JERMEI JM-06801 User manual
Jermei Ultrasonic Nebulizer
JM-06801
User Manual
目 录
...................................................................................................
2
1.
Technical specifications
Basic information
................................................................................................
2
2.
Features and Applications
.......................................................................................
3
3.
Parts
.........................................................................................
4
4.
User guide step by step
........................................................................................................................................
4
5.
..............................................................................................
5
Section 2. General Information
.................................................................................
9
1. Symbols
.................................................................................................................
9
2. Safety cautions
................................................................................................
9
3. Maintenance
....................................................................................................
11
4.
5.
Issue diagnosis and debugging
Warranty
.........................................................................
.................................................................................................................
12
13
1
Section 1. User Manual
1. Basic information
2
Section 1. User Manual
Product Name: Ultrasonic Nebulizer
Product configuration and components: Nebulizer (Including water tank) X1, User guide X1,
Mask X1, Mint essential oil pill X5)
Model: JM-06801
Manufacture date: see tag on the bottom of product
Expiration date: see tag on the bottom of product
Product technique spec SN：
Registration SN：
Production Permit SN：
Made by: Shenzhen Jermei Medical Device Technology Co., Ltd.
Sold by: Jermei Internalization Trading LLC
Official website: https://jermei.net
User guide print date：
Our products could be used for many years under proper cleaning and maintenance.
It could help avoid unnecessary resource consumption and reduce carbon footprint from
new production.
Please don’t place nonfunctional nebulizer together with non recyclable wastes. Read
all instructions carefully to make sure the nebulizer is used safely and effectively. Please keep
dated receipt for future services.
3
2. Technical specifications
2.1 Steaming speed: 0.13-0.45 ml/min
2.2① Water Tank volumn：30ml
② Product size: (L)123mm X (W)96mm X (H) 169mm
2.3Battery voltage: DC7.4V, Capacity 2400mAh
2.4 Power adapter : input AC100V-240V output DC9V 1A
2.5 Device Category
● non waterproof
● Continuously functioning for 15 minutes
● no signal input or output part
● No permanent installation device
2.6 Running Environment
● Temperature: 5 °C ~ 40 °C
● Relative humidity: ≤ 90%
● Atmosphere pressure: 70kpa~106kpa
● Power: 220VAC 50/60Hz (charging)
● Water temperature: ≤ 35 °C
●Keep away from rain, snow or corrosive objects
●Devices need to be kept in the original boxes during storage.
The boxes should be lifted to 20cm above the ground and keep 50cm distance
from the walls, doors and windows.
2.7 Transportation and Storage
.
4
● Storage requirements:
○Temperature: -40 °C ~ 55 °C
○Relative humidity: ≤ 90%
○Atmosphere pressure: 70kpa~106kpa
○No toxic air, no flammable or explosive objects, no corrosive chemicals.
○No strong mechanical vibration, impact or strong magnetic field
3.1 Features
● Portable
● Cold and warm mist switch
● High low mist volume switch
● Detachable water tank or strong magnetic field
4.1 List of parts
.
3. Features and Applications
4. Parts
NO Part Quantity
1Water Tank Cover 1
2Water Tank 1
3Nebulizer Body 1
4Mint Essential Oil Pill 1
5Mask 1
69V Power Adaptor 1
7User Manual 1
5
4.2 Parts diagram
5.1 Assembly and charge
4.3 Detachable parts
Water tank, Water tank cap, Mask,
Essential Oil pill (refillable)
Notes:
Do NOT try to operate nebulizer if no water in the water tank
Do NOT plug/unplug power cord with wet hands
Before every use:
● Detach and wash the water tank
● Detach and wash the mask
● Replace the essential oil pill
● Fill the tank with filtered or purified drinking water.
Connect the power cord to the nebulizer, then plug the cord to
100-240v power outlet. Please full charge for first time use.
Alarm indication：
（1）flashing blue light: low battery
（2）flashing green light: charging
（3）green light: charge complete
5. User guide step by step
6
5.2 Fill water tank
5.3 Use the nebulizer
1. Attach the water tank
2. Open the tank cover by rotating it in anti
clockwise direction
3. Pour filtered water till 2/3 of the tank
4. Tight the tank cover by rotating it in clockwise direction
1. Attach the mask after water tank is attached and filled with water.
2. Load the essential oil pill. After cleaning both hands, take out one
essential oil pill, remove the package and load it to pill holder at the nozzle.
3. Choose cold mist or warm mist mode
A. Push “Cold mist” button once to turn on cold mist mode, the button
circle and water tank will show blue light. Low mist volume light will be on
and cold mist will be sprayed periodically.
B. Push “Cold mist” button twice, high mist volume light will be one and
cold mist will be sprayed consistently.
C. Push “Cold mist” button again to turn it off.
A. Push “Warm mist” button once to turn on warm mist mode, the button
circle and water tank will show red light. Low mist volume light will be on
and warm mist will be sprayed periodically.
Cold mist mode
Warm mist mode
7
4. Put the mask over nose and mouth till steaming is done.
Note: Water drips will be condensed inside the Mask. They
could be wiped with tissue papers. The timer will start after
the last pushing on either button. The nebulizer will stop
automatically after the timeis up. The default timer is 20 minutes.
If no spray after turning on the nebulizer, check if the tank has
water in it and shake the nebulizer gently if there is water.
B. Push “Warm mist” button twice, high mist volume light will be
one and warm mist will be sprayed consistently.
C. Push “Warm mist” button again to turn it off.
Mint essential oil pill
Notes:
Load the essential oil pill onto the pill holder before turning on the nebulizer.
Please replace the pill before every use.
Mint essential oil is good for relief of multiple symptoms caused by cold,
such as cough, nose congestion, sore throat.
1. Do not swallow the pill. It might cause choking.
2. Not for children under 3 years old. Keep the pills away from the kids and pets.
3. Consult your doctor before use if you’re pregnant, breastfeeding or have asthma.
8
4. Do not use the essential oil pills if you have epilepsy, because
they will stimulate skin and eyes.
5. Wash it off with water and see a doctor if skin feels irritated or
eye is contacted by the pill. Stop using it if feeling uncomfortable
due to the pill.
6. Do not put the pill in microwave.
7. Do not open pill pack on furniture, bed, cloth or any plastics.
8. Do not pour any liquid on the pill.
5.4 Maintenance
5.5 Alarm indication
It is very important to clean and sanitize the nebulizer regularly keep it performing.
Important note: The remaining water in the tank may breed bacteria, which will affect
nebulizer’s performance. So keep the tank dry.
● Flashing red light: thermometer is broken, need to be
returned to factory for fixing.
● Flashing red light with beeping sound: no water in tank.
● Flashing blue light and battery light is on: need to charge
● Flashing green light: charging
● Green light: charge is completed
9
Section 2. General Information

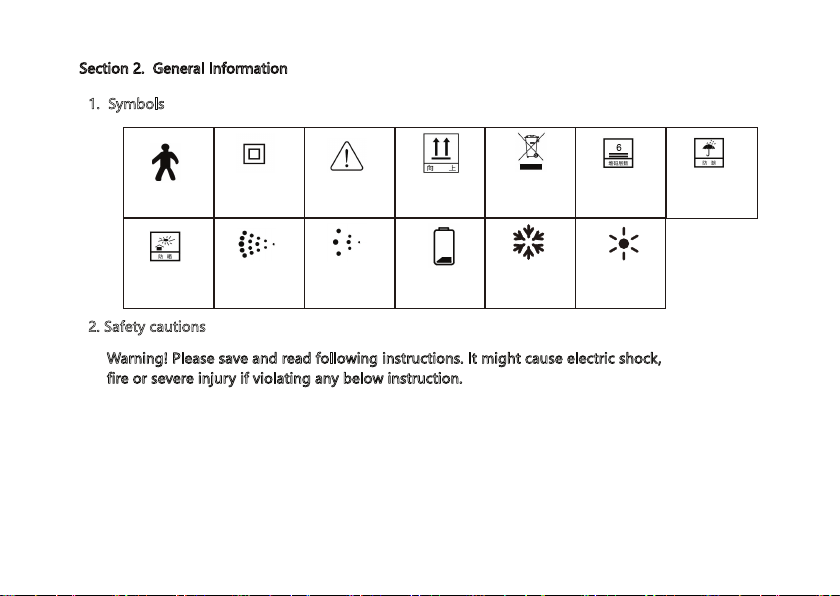

1. Symbols
2. Safety cautions
Type B Application Part Class II Equipment Query Random Packages are transported
vertically upwards
Non-recyclable
Number of layers
of the same transport
piece that can be stacked
The transport piece
package is afraid of
wetness
The transport
package cannot be
directly illuminated
The spray is thin
when the light is on
The spray is strong
when the light is on Cool Mist Button Warm Mist Button
The battery needs to
be charged when the
light is on
Warning! Please save and read following instructions. It might cause electric shock,
fire or severe injury if violating any below instruction.
1) This nebulizer is not a toy.
2) Please do not use the nebulizer for any other purpose than what is described in this manual.
3) Make sure there is always water in tank when using it.
4) Do not use hot water to fill the tank.
5) Make sure water tank is correctly mounted to nebulizer.
6) Please only use original 100-240VAC power adaptor to charge the nebulizer
* Please do not unplug the power adapter with wet hands
10
7) Please do not charge if power cord or plugin is broken.
8) Please keep the nebulizer in a cool and try place, within the original bag.
9) Do not pour any kind of drug into the tank. Do not cover any opening on
the device or stick object into any opening.
10) Please do not immerse entire nebulizer in the water when washing it. Clean
it with dry wipe, after shutting down and unmounting it. The nebulizer does
need regular cleaning.
11) Please do not try to empty or fill the tank when nebulizer is running.
12) Please do not use detergent wash any part filled with water, which could
interfere with nebulizer’s output. Use plain vinegar to wash the tank instead.
13) Lift the nebulizer with its bottom instead of mask.
14) Unplug the nebulizer before filling water.
15) Kids are only allowed to use nebulizer with parental supervision. Do not use
it for kids under 3.
16) This product is for personal use only, do not use it for any industrial purpose.
Do not plugin power cord during maintenance.
1. Clean outside of nebulizer with dry wipes
2. Clean mask in washer or by hand.
In washer - put the nebulizer on the top rack of washer and use normal setting
By hand - Wash it with soap, then wipe and let it dry
3. Maintenance
11
4. Store the nebulizer
4.1. Turn off the nebulizer, unplug the power cord and empty the tank.
4.2. Discard used essential oil pills.
4.3. Clean the nebuli zer by following above step 1, 2, 3.
4.4. Make sure each part completely dry.
4.5. Put the nebulizer in a dry and cool place within the bag.
3. Clean the water tank.
Don’t put the water tank in washer. Soak it in the water or water with plain vinegar
mixed for 15 minutes. Then wash the vinegar off and let it dry.

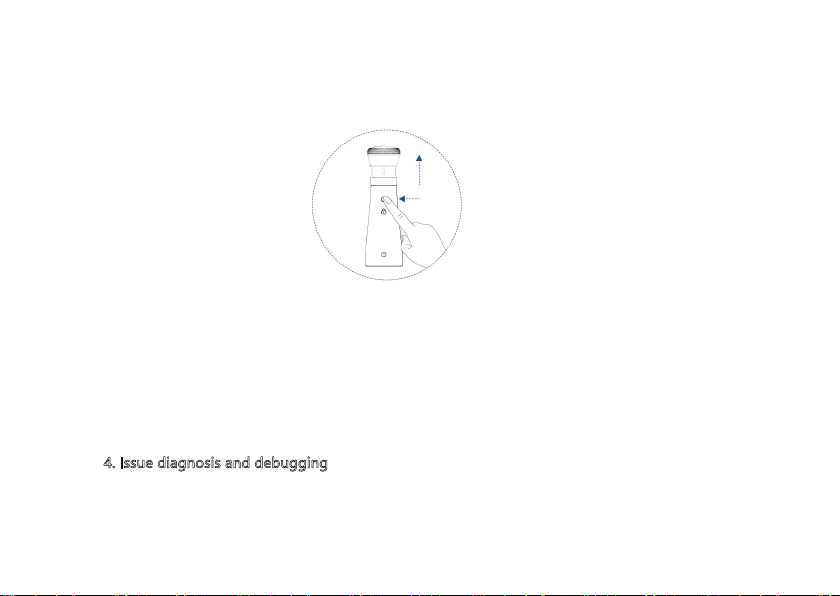

4. Issue diagnosis and debugging
12
Issue
Solution
Alarm indication is
on blue and flashing
Battery needs to be charged. Plugin power
cord and full charge for 4 hours.
No response from
the nebulizer
Bad smell
Water tank is leaking
No mist
Make sure it’s fully charged.
Soak the water tank in the water with plain vinegar mixed for 15 minutes.
Then put the empty tank in a cool and dry place for 12 hours.
Try to tighten the 4 screws on the back of the water tank.
Wait for 5 to 10 seconds after turning on the nebulizer. Shake it gently
if no mist after 10 seconds. And make sure there is water in the tank.
13
Thanks for choosing our product. The warranty for this product is for 12 months
from the date of purchase. This product has been manufactured with care and
meticulously examined before delivery. Please retain your receipt as proof of
purchase. In the case of warranty claim, please make contact by telephone or
email with our Customer Service.
Notice:
The warranty covers only claims for material and manufacturing defects, but
not for transport damage. This product is for domestic use only and is not
intended for commercial use. The warranty is void in the case of abusive and
improper handling. User of force and internal tampering not carried out by
our authorised service branch. You statutory rights are not restricted in any
way by this warranty, The warranty period is not extended by repairs made
under the warranty. This applies also to replaced and repaired parts.
5. Warranty
