Jet EQUIPMENT & TOOLS JLP Series User manual

OWNER'S MANUAL
JLP Series Pullers
1/4 Ton – 6 Ton
JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:[phone]
A WMH Company Auburn, WA 98071-1349 Fax: [phone]
www.jettools.com e-mail [e-mail] M-187705 09/2000


Important Information
1-YEAR JET offers a one-year limited
LIMITED WARRANTY warranty on this product
REPLACEMENT PARTS
Replacement parts for this tool are available directly form JET Equipment & Tools.
To place an order, call 1-800-274-6848. Please have the following information ready:
1. Visa, MasterCard, or Discover Card number.
2. Expiration date.
3. Part number listed within this manual.
4. Shipping address other than a Post Office box.
REPLACEMENT PART WARRANTY
JET Equipment & Tools makes every effort to assure that parts meet high quality and durability
standards and warrants to the original retail consumer/purchaser of our parts that each such part(s) to be
free from defects in materials and workmanship for a period of thirty (30) days from the date of purchase.
PROOF OF PURCHASE
Please retain your dated sales receipt as proof of purchase to validate the warranty period.
LIMITED TOOL AND EQUIPMENT WARRANTY
JET makes every effort to assure that its products meet high quality and durability standards and warrants to the
original retail consumer/purchaser of our products that each product be free from defects in materials and
workmanship as follows: 1 YEAR LIMITED WARRANTY ON THIS JET PRODUCT. Warranty does not apply to
defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our
facilities or to a lack of maintenance. JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED
ABOVE FROM THE DATE THE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY
IMPLIED WARRANTIES OR MECHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR
PROPERY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING FROM
THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. To take advantage of this warranty, the product or part must be returned for examination,
postage prepaid, to an authorized service station designated by our Auburn office. Proof of purchase date and an
explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, JET will either
repair or replace the product or refund the purchase price, if we cannot readily and quickly provide a repair or
replacement, if you are willing to accept such refund. JET will return repaired product or replacement at JET’s
expense, but if it is determined there is no defect, or that the defect resulted from causes not within the scope of
JET’s warranty, then the user must bear the cost of storing and returning the product. This warranty gives you
specific legal rights, and you have other rights, which vary, from state to state.
JET Equipment & Tools •
••
•P.O. Box 1349, Auburn, WA 98071-1349 •
••
•[phone]




 WARNING
•Read and understand the entire contents
of this manual before attempting to use
the puller.
•This puller is designed and intended for
use by properly trained and experienced
personnel only. If you are not familiar
with the proper and safe use of a puller,
do not use until proper training and
knowledge have been obtained.
•Do not use to lift people or loads over
people.
•Do not exceed the rated capacity of the
puller.
•Do not use a “cheater pipe” to extend the
length of the puller handle.
•Do not strike the handle with a hammer or
any other object.
•Do not use puller chain as a sling. This may
cause damage to the chain.
•Always inspect the puller for damage prior
to use. If puller is damaged, do not use until
it has been repaired or replaced.
•Do not use more than one puller to lift or
move a load. If thisis unavoidable, each
puller must have the same capacity as the
load to be moved.
•Never allow chain to “set” over sharp edges.
All pulls or lifts must be made with straight
chain that is free of obstacles.
•If the puller lever is difficult to operate, then
the load exceeds the capacity of the puller.
Select a puller of larger capacity.
•Do not use a puller if the chain is twisted,
kinked or damaged.
•Do not operate puller unless load is
centered between top and bottom hooks.
•Always take time to study the job to be
performed and choose the safest method.
Do not place yourself or other people in an
unsafe position.
•Leave all internal maintenance and
inspections to a qualified JET repair station.
•Replace chain with factory replacement
chain only. Do not use any other type of
chain.
•Never use the puller if either hook is
stretched, deformed, or has a broken or
missing safety latch. Always replace the
safety latch and/or the hook before placing
the puller back in service.
•Understand and follow all procedures as set
forth in American National Standards titled
“Performance Standard for Manually Lever
Operated Chain Hoists”. ANSI/ASME HST-
3M. This standard is available through the
American Society of Mechanical Engineers,
345 East 47th St., NY, NY 10017
•Failure to comply with all of these warnings
may cause serious injury and/or damage to
property.


Specifications: JLP Series Pullers
Model Numbers JLP-25-5
Stock Number................................................................................................................................187730
Load Chain Diameter .........................................................................................................................4mm
Number of Falls.......................................................................................................................................1
Rated Capacity ..............................................................................................................................1/4 Ton
Minimum Distance Between Hooks.................................................................................................. 9-1/8”
Standard Lift...........................................................................................................................................5’
Lbs. Pull to Lift Capacity ........................................................................................................................57
Lever Length.................................................................................................................................. 10-1/4”
Net Weight........................................................................................................................................6 lbs.
Model Numbers JLP-50-5, JLP-50-10
Stock Number......................................................................................................187705 (5’) 187706 (10’)
Load Chain Diameter .........................................................................................................................5mm
Number of Falls.......................................................................................................................................1
Rated Capacity ..............................................................................................................................1/2 Ton
Minimum Distance Between Hooks................................................................................................ 11-7/8”
Standard Lift...............................................................................................5’ (JLP-50-5), 10’ (JLP-50-10’)
Lbs. Pull to Lift Capacity ........................................................................................................................79
Lever Length.................................................................................................................................. 10-1/4”
Net Weight..............................................................................................................11 lbs.(5’), 14 lbs.(10’)
Model Numbers JLP-75-5, JLP-75-10, JLP-75-15, JLP-75-20
Stock Number...........................................................187707 (5’) 187708 (10’), 187709 (15’), 187710 (20’)
Load Chain Diameter .........................................................................................................................6mm
Number of Falls.......................................................................................................................................1
Rated Capacity ..............................................................................................................................3/4 Ton
Minimum Distance Between Hooks...............................................................................................12-7/16”
Standard Lift...........................................5’ (JLP-75-5), 10’ (JLP-75-10’), 15’ (JLP-75-15), 20’ (JLP-75-20)
Lbs. Pull to Lift Capacity ........................................................................................................................32
Lever Length.................................................................................................................................. 10-1/4”
Net Weight........................................................................16 lbs.(5’), 19 lbs.(10’), 21 lbs.(15’), 24 lbs.(20’)
Model Numbers JLP-150-5, JLP-150-10, JLP-150-15, JLP-150-20
Stock Number..........................................................187711 (5’), 187712 (10’), 187713 (15’), 187714 (20’)
Load Chain Diameter .........................................................................................................................8mm
Number of Falls.......................................................................................................................................1
Rated Capacity ...........................................................................................................................1-1/2 Ton
Minimum Distance Between Hooks...................................................................................................... 14”
Standard Lift.....................................5’ (JLP-150-5), 10’ (JLP-150-10) 15’ (JLP-150-15), 20’ (JLP-150-20)
Lbs. Pull to Lift Capacity ........................................................................................................................42
Lever Length.................................................................................................................................. 16-1/8”
Net Weight.......................................................................26 lbs.(5’), 31 lbs. (10’), 36 lbs.(15’), 41 lbs.(20’)
Model Numbers JLP-300-5, JLP-300-10, JLP-300-15, JLP-300-20
Stock Number.........................................................187715 (5’) , 187716 (10’), 187717 (15’), 187718 (20’)
Load Chain Diameter .......................................................................................................................10mm
Number of Falls.......................................................................................................................................1
Rated Capacity .................................................................................................................................3 Ton
Minimum Distance Between Hooks................................................................................................ 19-3/4”
Standard Lift....................................5’ (JLP-300-5), 10’ (JLP-300-10), 15’ (JLP-300-15), 20’ (JLP-300-20)
Lbs. Pull to Lift Capacity ........................................................................................................................72
Lever Length.................................................................................................................................. 16-1/8”
Net Weight......................................................................44 lbs.(5’), 52 lbs.(10’), 59 lbs. (15’), 67 lbs. (20’)


Model Number JLP-600-5, JLP-600-20
Stock Number.....................................................................................................187719 (5’), 187720 (20’)
Load Chain Diameter .......................................................................................................................10mm
Number of Falls.......................................................................................................................................2
Rated Capacity .................................................................................................................................6 Ton
Minimum Distance Between Hooks...............................................................................................24-7/16”
Standard Lift............................................................................................5’ (JLP-600-5), 20’ (JLP-600-20)
Lbs. Pull to Lift Capacity ........................................................................................................................76
Lever Length................................................................................................................................... 16-18”
Net Weight...........................................................................................................66 lbs. (5’), 111 lbs. (20)
The specifications in this manual are given as general information and are not binding. JET Equipment
and Tools reserves the right to effect, at any time and without prior notice, changes or alterations to
parts, fittings, and accessory equipment deemed necessary for any reason whatsoever.
Prior to Operation
1. Support for the hoist may be hook, clevis
pin, trolley, or beam clamp. Whatever
method of suspension is chosen, the
support components must be rated equal to,
or greater than the capacity of the chain
hoist.
2. With the lever in the up position, check for a
clicking sound when the handle is rotated in
a clockwise direction. Do not use if this
sound is not present.
3. With the lever in the up position, check free
play in handle rotation. Free play is
measured by the distance the handle travels
before resistance or gearing is felt. If free
play has reached 3/4 of a turn, brake discs
are worn and should be replaced by a JET
authorized repair station.
4. If the puller has not been used for an
extended period of time, check for proper
operation before putting into service. Apply
a light coat of 30W oil to the chain.
5. The brake mechanism must be kept clean
and free from dirt, water, and oil. Never
allow oil to penetrate the braking
mechanism. Always keep your puller clean
and store in a clean, dry location.
6. It is not necessary to oil the chain. However,
a periodic coating of 30Woil will cause
easier operation and prolong the life of the
chain.
7. Check the chain for damage. Replace
damaged chain before using the puller.


 WARNING
The load chain supplied with your JET puller
is designed, manufactured, and tested
for proper fit and durability. Over a
period of time, the chain may need to be
replaced. For your own safety, use
factory replacement chain only. Use of
other than factory replacement chain
may cause serious injury and/or damage
to the puller.
8. The top and bottom hooks on your JET
puller are designed to open and warn of an
overload. It is important to check top and
bottom hooks for proper opening. If the
safety latch no longer contacts the hook
opening, replace the hook. Never side load
the top or bottom hook; this practice is
dangerous and could lead to serious
injury.

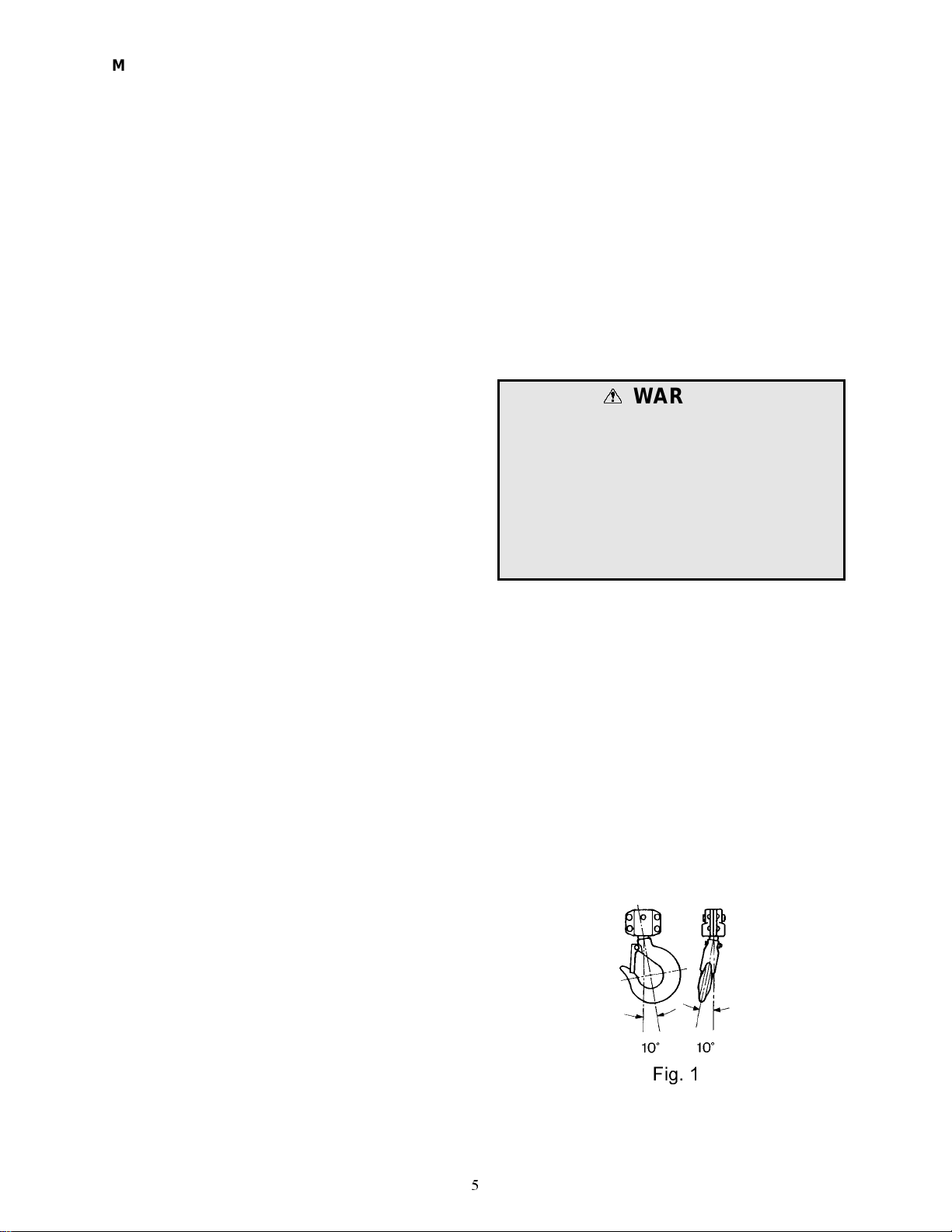

9. If the vertical angle, at the neck, of the
bottom or top hook reaches 10°, replace the
hook, (Fig. 1).


Operation
1. Set the top hook securely.
2. Center load on bottom hook correctly, (Fig.
2). Incorrect loading is dangerous to the
operator, the puller, and the load. Never,
load the hook in front of the safety latch (A,
Fig. 3), never load the hook tip (B, Fig. 3),
never load the hook off the centerline (C,
Fig. 3), never load the hook sideways (D,
Fig. 3).
3. Place direction lever on handle in the center
neutral position, (Fig. 4) so that chain free-
wheels. Note: Chain will only free wheel
when there is no load. Take up slack by
pulling on loose or free end or by turning
hand wheel.
4. Move direction lever to the up position, (Fig.
4). Ratchet handle to raise or pull load. Do
not overload the puller.
5. To release or lower load, turn direction lever
on handle to the down position, (Fig. 4) and
ratchet handle.


Precautions

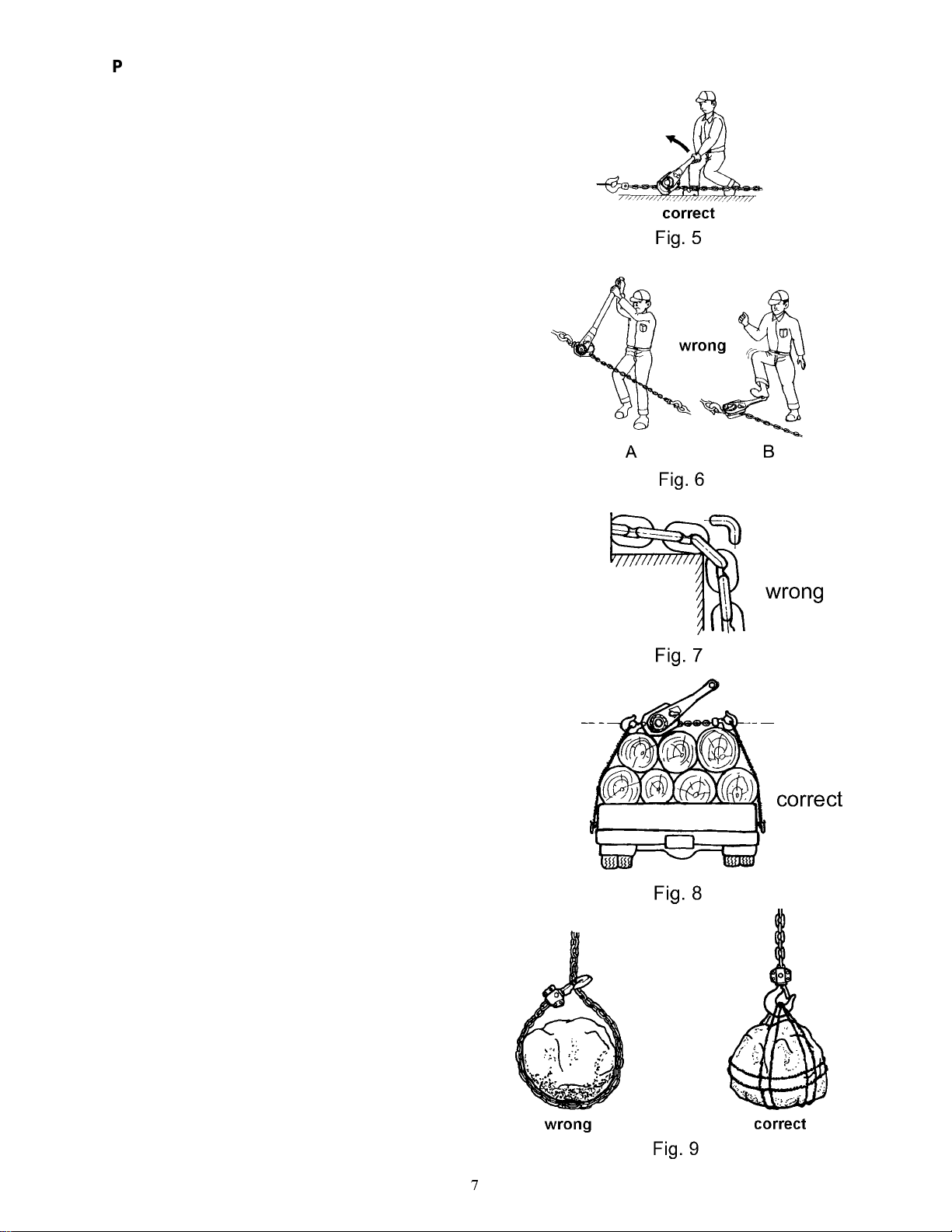

•During pulling operations, the operator
should stand near the side of the top hook
on the opposite side of the lever. If the
hand should slip off the lever, the lever will
spring back away from the operator, (Fig.
5).
•During lifting operations, do not stand
under the load.
•Do not use an extension on the lever (A,
Fig. 6). Do not use a foot to apply pressure
to the lever (B, Fig. 6).
•Prevent the chain from dragging over sharp
edges or corners. These will cause links to
weaken, bend, or break, (Fig. 7).
•When using a wire rope sling, the puller
must be applied along a straight line parallel
to the surface it is resting on, (Fig. 8).
•When lifting loads, hook the load with
slings. Do not use the puller chain as a
sling, (Fig. 9).
•Both ends of a sling or rope must be
completely on the inside of the safety latch
before pulling or lifting the load. Do not put
one end on the inside of the latch and leave
the other end on the hook end outside the
latch.


JET Model JLP Series Pullers
Allowable Limits for Load Chain and Hooks
Load Chain
Capacity 5 Links
Normal 5 Links Limit
1/4 ton 2.36” 2.43”
1/2 ton 2.95” 3.04”
3/4 ton 3.54” 3.65”
1-1/2 ton 4.72” 4.87”
3 ton 5.91” 6.08”
6 ton 5.91” 6.08”
Carefully inspect the entire load chain. As
illustrated in Figure 1, measure five consecutive
links with calipers to measure the length. Check
every three feet and especially where excessive
wear is indicated. Any load chain that shows
noticeable deformation or heat influence must
be replaced with a new one. Never extend load
chain by welding a second piece to the original.
Hooks (Top & Bottom)
Capacity Standard Throat
Opening Throat Opening Limit
1/4 ton 0.87” 0.95”
1/2 ton 1.1” 1.21”
3/4 ton 1.18” 1.3”
1-1/2 ton 1.42” 1.56”
3 ton 1.73” 1.91”
6 ton 1.97” 2.17”
Replace the hook when “A” in Figure 2 is wider
than Limit A in the table above. Never heat
treat the hook or attach anything to the hook by
welding.



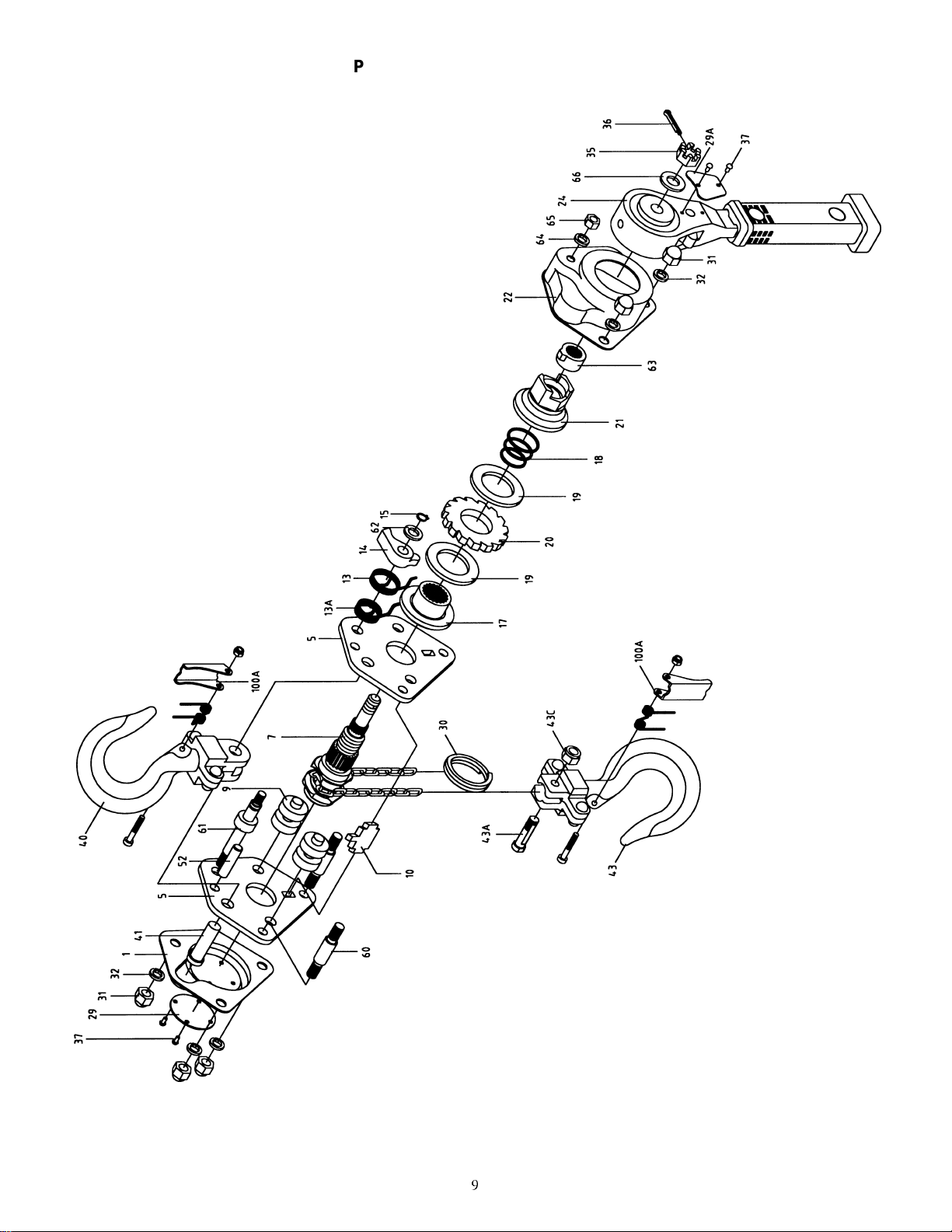

Parts Breakdown for JLP-25-5



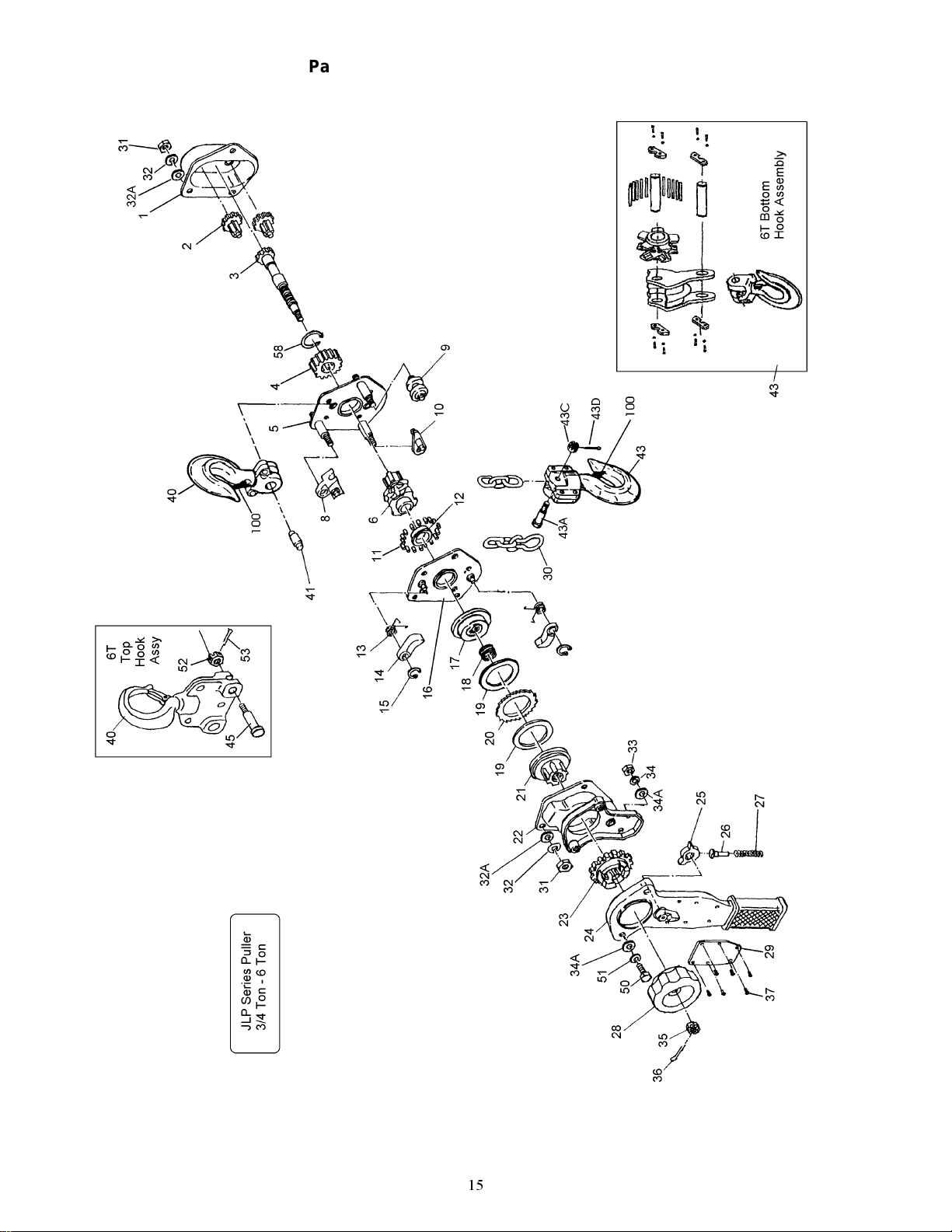

Parts List for the JLP Series Pullers
Note: Parts listed under each assembly are parts that make up that assembly.
JLP-25
Index Part
No. No. Description Size Qty.
1......... JLP25-1........................Cover................................................................. ...................................1
5......... JLP25-5........................Side Plate.......................................................... ...................................2
7......... JLP25-7........................Load Shaft ......................................................... ...................................1
9......... JLP25-9........................Guide Roller....................................................... ...................................2
10....... JLP25-10......................Stripper.............................................................. ...................................1
13....... JLP25-13......................Pawl Spring........................................................ ...................................1
13A..... JLP25-13A ...................Pawl Spring A.................................................... ...................................1
14....... JLP25-14......................Pawl................................................................... ...................................1
15....... JLP25-15......................Snap Ring..........................................................6.................................1
17....... JLP25-17......................Disk Hub............................................................ ...................................1
18....... JLP25-18......................Spring................................................................ ...................................1
19....... JLP25-19......................Friction Disc.......................................................35x22x2.5...................2
20....... JLP25-20......................Ratchet Disc ...................................................... ...................................1
21....... JLP25-21......................Feed Gear ......................................................... ...................................1
22....... JLP25-22......................Brake Cover....................................................... ...................................1
24....... JLP25-24......................Lever Handle Assembly. .................................... ...................................1
........... .....................................Handle Lever ..................................................... ...................................1
........... .....................................Change Over Shaft............................................ ...................................1
........... .....................................Selector Shaft.................................................... ...................................1
........... .....................................Steel Bolt...........................................................  5...............................1
........... .....................................Spring................................................................ ...................................1
........... .....................................Rubber Grip....................................................... ...................................1
........... .....................................Fixing Bolt.......................................................... ...................................2
........... .....................................Indicating Plate.................................................. ...................................1
........... .....................................Rivet.................................................................. ...................................2
........... .....................................Fixing Rivet ....................................................... ...................................2
........... .....................................Hoop.................................................................. ...................................1
........... .....................................Spring................................................................ ...................................1
........... .....................................Change Over Gear............................................. ...................................1
29....... JLP25-29......................Name Plate........................................................ ...................................1
29A..... JLP25-29A ...................Indicating Plate.................................................. ...................................1
30....... JLP25-30......................Chain Stop......................................................... ...................................1
31....... JLP25-31......................Cap Nut .............................................................M6..............................5
32....... JLP25-32......................Lock Washer......................................................M6..............................5
35....... JLP25-35......................Castle Nut..........................................................M8 ..............................1
36....... JLP25-36......................Split Pin.............................................................2x16............................1
37....... JLP25-37......................Rivet..................................................................2x4 .............................6
40....... JLP25-40......................Top Hook Assembly........................................... ...................................1
........... .....................................Top Hook........................................................... ...................................1
........... .....................................Safety Latch....................................................... ...................................1
........... .....................................Double Spring.................................................... ...................................1
........... .....................................Screw.................................................................3x20............................1
........... .....................................Self-lock Nut......................................................M3..............................1
41....... JLP25-41......................Top Hook Shaft.................................................. ...................................1
43....... JLP25-43......................Bottom Hook Assembly...................................... ...................................1
........... .....................................Bottom Hook...................................................... ...................................1
........... .....................................Safety Latch....................................................... ...................................1
........... .....................................Double Spring.................................................... ...................................1
........... .....................................Screw.................................................................3x20............................1
