Wind & Rain Sensor
Type: W+RE B/4

Technical Information
Wind / Rain Sensor- automatic
Type: W+RE B/4
Date of Issue: Dec 13 Page 4 of 6 Handbook –Jet Cox Ltd
Jet Cox Ltd / Coxdome, CRH House, Prothero Ind Est, Bilport Lane, Wednesbury, WS10 0NT Tel: [phone] Email: [email protected].uk
Valid from date of issue until the next edition. This document / drawing is protected by copyright.
The recipient may use it only for the propose for which it was entrusted to him.
Description:
The Wind and Rain unit consists of a control unit and a wind and rain sensor.
It is used for the automatic control of 230V actuators for windows, light domes and canopies as well as for
ventilation controls.
The basic version of the electronic control system is equipped with 4 changeable contacts (for 4 motor groups) each
with a contact rating of 230VAC / 5A / 50Hz.
In case of wind and / or rain, all 4 change over contacts switch over from the N/C contact to the N/O contact at the
same time.
For example, the motors which are connected move to the ‘closed’position or to their inactive state.
The settings for the wind trigger level, the wind release delay as well as the test position are made by a 4 pole DIP
switch on the control board.
Operation / Function:
Change- over switch from the ‘central CLOSE / Automatic’to the ‘Automatic’position
The two colour diagnosis LED lights green (steady light).
All groups can be manually operated individually through the respective ventilation switch.
Activation by wind:
In case of activation by the wind sensor (wind speed is adjustable), all actuators close.
The two-colour diagnosis LED flashes red.
Remark:
The ventilation switches are locked for the period of the wind activation.
The activation resets 10 or 20 min (adjustable) after the last sensor actuation.
Beaufort scale:
Wind force
in Beaufort
Speed in m/s
Speed in km/h
Wind intensity
Effects
0
0 –0,2
< 1
calm
smoke rises straight
1
0,3 –1,5
1 –5
light air
only visible from smoke
2
1,6 –3,3
6 –11
light breeze
noticeable in the face
3
3,4 –5,4
12 –19
gentle breeze
small twigs are moving
4
5,5 –7,9
20 –28
moderate breeze
thin branches are moving
5
8 –10,7
29 –38
fresh breeze
small trees sway
6
10,8 –13,8
39 –49
strong breeze
large branches are moving
7
13,9 –17,1
50 –61
moderate gale
whole trees in motion
8
17,2 –20,7
62 –74
fresh gale
branches break off from trees
9
20,8 –24,4
75 –88
strong gale
minor damage on houses
10
24,5 –28,4
89 –102
whole gale
trees blown over
11
28,5 –32,6
103 –117
violent storm
serious storm damage
12
> 32,6
> 117
hurricane force

Technical Information
Wind / Rain Sensor- automatic
Type: W+RE B/4
Date of Issue: Dec 13 Page 4 of 6 Handbook –Jet Cox Ltd
Jet Cox Ltd / Coxdome, CRH House, Prothero Ind Est, Bilport Lane, Wednesbury, WS10 0NT Tel: [phone] Email: [email protected].uk
Valid from date of issue until the next edition. This document / drawing is protected by copyright.
The recipient may use it only for the propose for which it was entrusted to him.
Operation / Function
Change- over switch from the ‘central CLOSE / Automatic’to the ‘Automatic’position
Activation by rain:
In case of activation by the rain sensor all actuators close.
The two-colour diagnosis LED lights red (steady light).
Remark:
The ventilation switches are locked for the period of the rain activation.
The activation resets 10 or 20 min. (adjustable) after the last sensor actuation.
A change over to ventilation switch mode is still possible in case of activation (see manual mode).
Manual mode (timed ventilation):
The rain activation can be deactivated by actuating the manual button (in front of the housing).
Despite a rain activation the actuators can be ‘OPENED’ via the ventilation switches.
The two-colour diagnosis LED flashes green.
The rain activation is active again after the expiry of approx. 30 min. or after pressing the manual switch again.
Change-over switch from the ‘central CLOSE / Automatic’ to the ‘central CLOSE’position
The two-colour diagnosis LED lights red (steady light).
CLOSED mode is a steady signal with priority over all other operating modes.
All functions are locked.
An external central CLOSE switch (potential-free N/O contact) can be closed.
Forwarding of a wind-rain activation
An external group extension or display (max. 60W) can be connected to the terminal X2.
In case of activation, 230Volt with maximum amperage of 280mA will be switched.
L1 = steady contact
Settings:
Various wind-rain parameters and operating modes can be set by means of the installed DIP switches.
DIP switch settings for the wind speed
Test
approx.
3 m/s
approx.
4 m/s
approx.
6 m/s
approx.
8 m/s
approx.
10 m/s
approx.
12 m/s
approx.
14 m/s
Switch 1
off
on
off
on
off
on
off
on
Switch 2
off
off
off
off
on
on
on
on
Switch 3
off
off
on
on
off
off
on
on
Attention: After start-up make all necessary settings for wind speed
Factory setting = test setting. Recommended setting is 8 m/s
Remark: In the test setting, the activation and release delay is deactivated.
DIP switch settings for wind-rain release delay
The wind-rain signal is stored for approx. 10 or 20 minutes (adjustable).
Switch position OFF
Switch position ON
Switch 4 = Wind-rain release delay
10 minutes
20 minutes

Technical Information
Wind / Rain Sensor- automatic
Type: W+RE B/4
Date of Issue: Dec 13 Page 4 of 6 Handbook –Jet Cox Ltd
Jet Cox Ltd / Coxdome, CRH House, Prothero Ind Est, Bilport Lane, Wednesbury, WS10 0NT Tel: [phone] Email: [e-mail]
Valid from date of issue until the next edition. This document / drawing is protected by copyright.
The recipient may use it only for the propose for which it was entrusted to him.
Display:
Via the two-color LED the respective operating state can be indicated.
LED-Diagnosis of operating status
green steady light
operation / automatic mode is ON
green flashing light
manual mode is ON
red steady light
rain activation, central CLOSE
red flashing light
wind activation

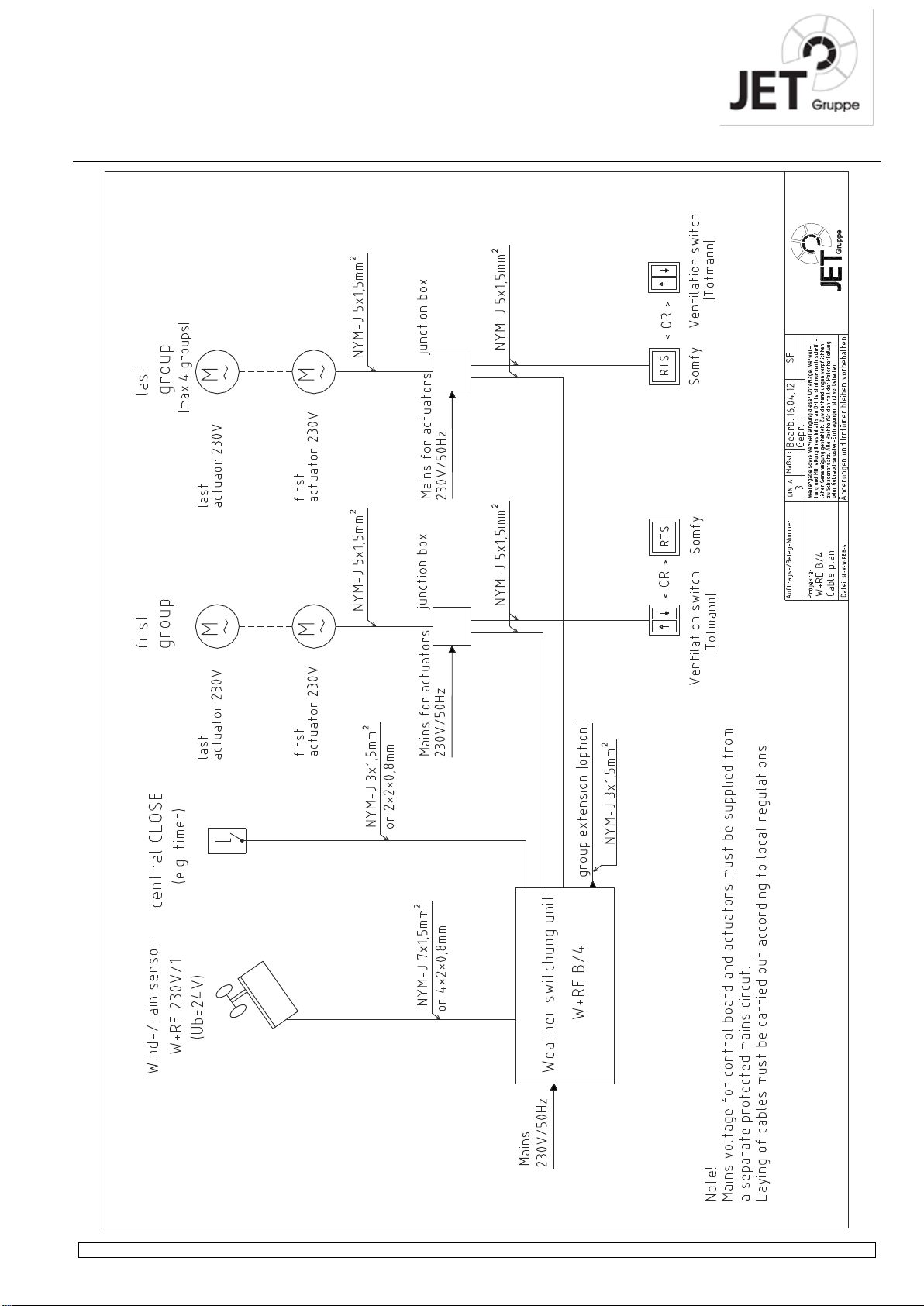

Connection:
Terminal X1 = power supply (230V / 50Hz)
Terminal X2 = external group extension or external display
Terminal X3 = 4 switching contacts (potential-free changer-over contact)
Terminal X4 = sensor connection (wind-/rain sensor, external central CLOSE)
Technical data:
Supply voltage: 230VAC / 50Hz
Fuse: F1 = T 315mA
Power consumption: 75 VA at max. group extension
External group extension: 230VAC / 50Hz (max. 280mA)
Circuit outputs: 4 x potential-free change-over contact
Switching capacity: 4 x 230VAC / 5A
(Note: max. 10 actuators per group)
Colour of the switch housing: light grey / RAL 7035
Switch housing dimension (WxHxD): 180 x 180 x 75mm
Switch housing weight: approx. 1kg
Sensor dimension (WxHxD): 80 x 160 x 55mm (without wind wheel)
Wind-rain sensor supply: 24V
Sensor weight: approx. 0,7kg
Sensor protection class: IP65
Setting of the wind mode: approx. 3 to 14 m/s (± 20%)
Setting of the wind-rain release delay: 10 min. / 20 min.
CE- sign conformity to european guidlines and the low voltage directive
Miscellaneous:
Only qualified personnel are allowed to connect the control system.
Electrical installation must be made according to local regulations.
Observe regulations as for aerial systems like mechanical stability, electrical safety and lightning protection.
Clean the sensor regularly depending on the degree of soiling.
