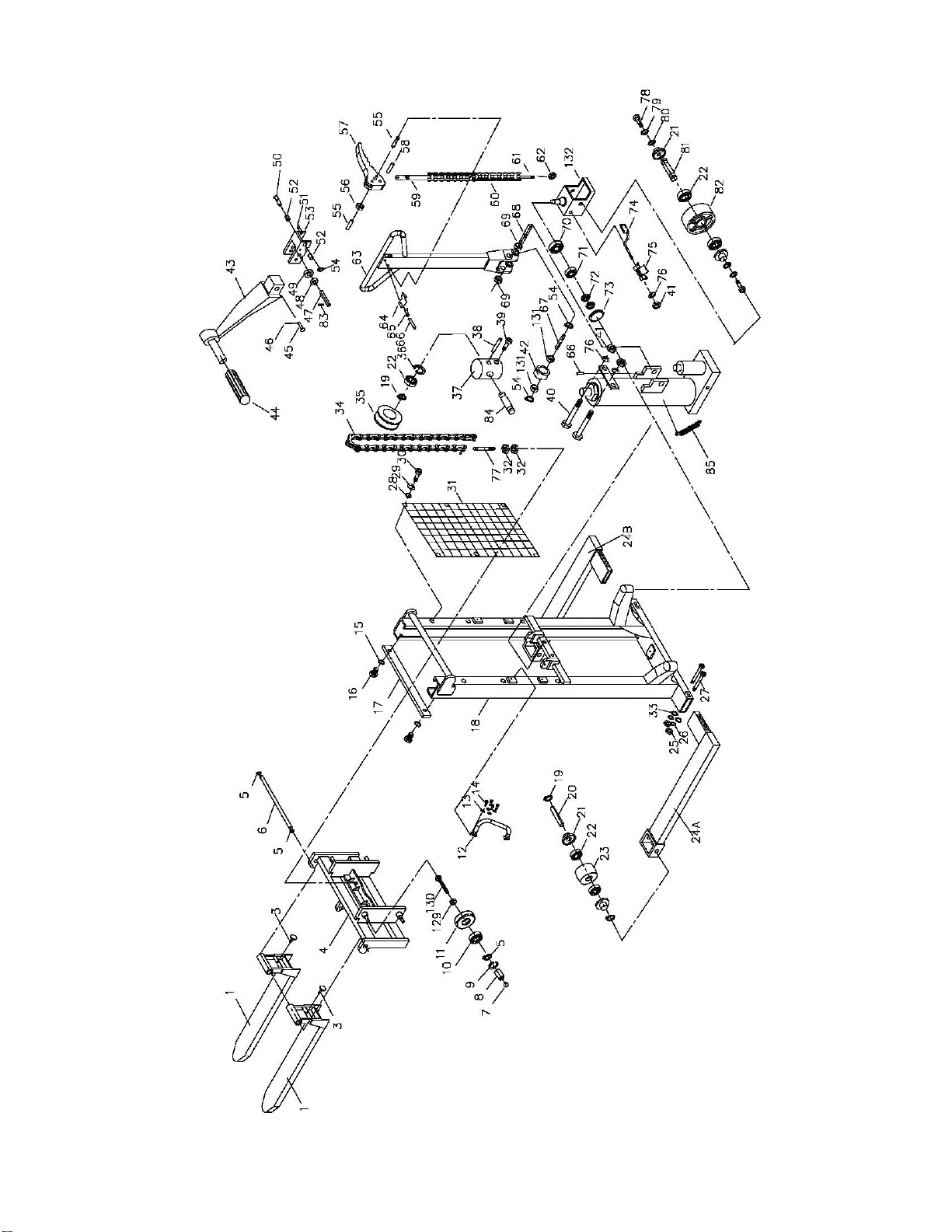

10.1.2 JHS-2200A Mast Assembly – Parts List
Index No Part No Description Size Qty
1 ................ JHS2200-1 ................ Fork.......................................................................... ...................................... 2
3 ................ JHS1100-2 ................ Adjusting Screw....................................................... ...................................... 2
4 ................JHS2200A-4.............. Mounting Plate......................................................... ...................................... 1
5 ................ JHS2200A-5.............. Snap Ring................................................................ 30mm............................ 6
6 ................ JHS2200A-6.............. Fork Shaft ................................................................ ...................................... 1
7 ................ SB-14MM .................. Steel Ball.................................................................. 14mm............................ 4
8 ................JHS2200A-8.............. Steel Ball Housing ................................................... ...................................... 4
9 ................ JHS2200A-9.............. Snap Ring................................................................ 62mm............................ 4
10 ..............BB-6206ZZ................ Ball Bearing ............................................................. 6206-2Z ........................ 4
11 .............. JHS2200A-11............ Guide Roller............................................................. ...................................... 4
12 .............. JHS1100-13A............ Rubber Grip Handle................................................. ...................................... 2
13 .............. TS-1551041 .............. Lock Washer............................................................ 6mm............................ 16
14 .............. TS-1503021 .............. Socket Head Cap Screw ......................................... M6x10 ......................... 16
15 .............. TS-1551061 .............. Lock Washer............................................................ 8mm.............................. 2
16 .............. TS-1504011 .............. Socket Head Cap Screw ......................................... M8x10 ........................... 2
17 .............. JHS2200-17 .............. Bar ........................................................................... ...................................... 1
18 .............. JHS2200-18 .............. Mast ......................................................................... ...................................... 1
19 .............. JHS1100-17 .............. Snap Ring................................................................ 20mm............................ 4
20 .............. JHS2200-20 .............. Front Wheel Axle ..................................................... ...................................... 2
21 .............. JHS1100-18 .............. Dust Cap.................................................................. ...................................... 8
22 ..............BB-6204ZZ................ Ball Bearing ............................................................. 6204-2Z ...................... 10
23 .............. JHS1100-20 .............. Front Wheel ............................................................. ...................................... 2
24A............JHS2200-24A............ Left Outrigger Leg.................................................... ...................................... 1
24B............JHS2200-24B............ Right Outrigger Leg ................................................. ...................................... 1
25 .............. TS-154010 ................ Hex Nut.................................................................... M16............................... 4
26 .............. TS-155110 ................ Lock Washer............................................................ 16mm............................ 4
27 .............. JHS2200A-27............ Hex Head Bolt.......................................................... M16x140 ....................... 4
28 .............. TS-1550031 .............. Flat Washer ............................................................. 5mm.............................. 6
29 .............. TS-1551031 .............. Lock Washer............................................................ 5mm.............................. 6
30 .............. TS-1502031 .............. Socket Head Cap Screw ......................................... M5x12 ........................... 6
31 .............. JHS2200-31 .............. Steel Fence ............................................................. ...................................... 1
32 .............. TS-2310181 .............. Hex Nut.................................................................... M18............................... 4
33 .............. TS-155010 ................ Flat Washer ............................................................. 16mm............................ 4
34 .............. JHS1100-35 .............. Chain ....................................................................... 05B-1x15mm ................ 2
35 .............. JHS1100-59 .............. Chain Wheel ............................................................ ...................................... 2
36 .............. JHS1100-11 .............. Snap Ring................................................................ 47mm............................ 2
37 .............. JHS1100-60 .............. Chain Wheel Bracket............................................... ...................................... 1
38 .............. JHS1100-61 .............. Spring Pin ................................................................ Ø8x50mm ..................... 1
39 .............. TS-1503021 .............. Socket Head Cap Screw ......................................... M6x10 ........................... 1
40 .............. TS-1490051 .............. Hex Cap Screw........................................................ M8x30 ........................... 2
41 .............. TS-1541031 .............. Nylon Lock Hex Nut................................................. M8................................. 4
42 .............. JHS1100-65 .............. Roller ....................................................................... ...................................... 1
43 .............. JHS1100-42 .............. Foot Pedal ............................................................... ...................................... 1
44 .............. JHS2200A-44............ Rubber Grip ............................................................. ...................................... 1
45 .............. JHS2200A-45............ Clevis Pin................................................................. 8x40mm ........................ 1
46 .............. JHS2200A-46............ Cotter Pin................................................................. 2.5x12mm ..................... 1
47 .............. JHS1100-45 .............. Roller Pin ................................................................. ...................................... 1
48 .............. JHS1100-46 .............. Bushing.................................................................... 1715.............................. 1
49 .............. JHS1100-47 .............. Roller ....................................................................... ...................................... 1
50 ..............JHS1100-51 .............. Roller Axle ............................................................... ...................................... 1
51 .............. JHS2200A-51............ Spring Pin ................................................................ 4x10mm ........................ 2
52 .............. JHS1100-49 .............. Bushing.................................................................... 1608.............................. 2
53 .............. JHS1100-50 .............. Foot Lever................................................................ ...................................... 1
54 .............. JHS2200A-54............ Snap Ring................................................................ 16mm............................ 3
55 .............. JHS1100-52 .............. Spring Pin ................................................................ Ø4x22mm ..................... 2
56 .............. JHS1100-53 .............. Roller ....................................................................... ...................................... 1
57 .............. JHS1100-54 .............. Lever........................................................................ ...................................... 1
58 .............. JHS1100-55 .............. Spring Pin ................................................................ Ø6x30mm ..................... 1
.................. JHS2200A-RCA ........ Release Chain Assembly (includes #59 thru 61)..... ...................................... 1
