OWNER'S MANUAL

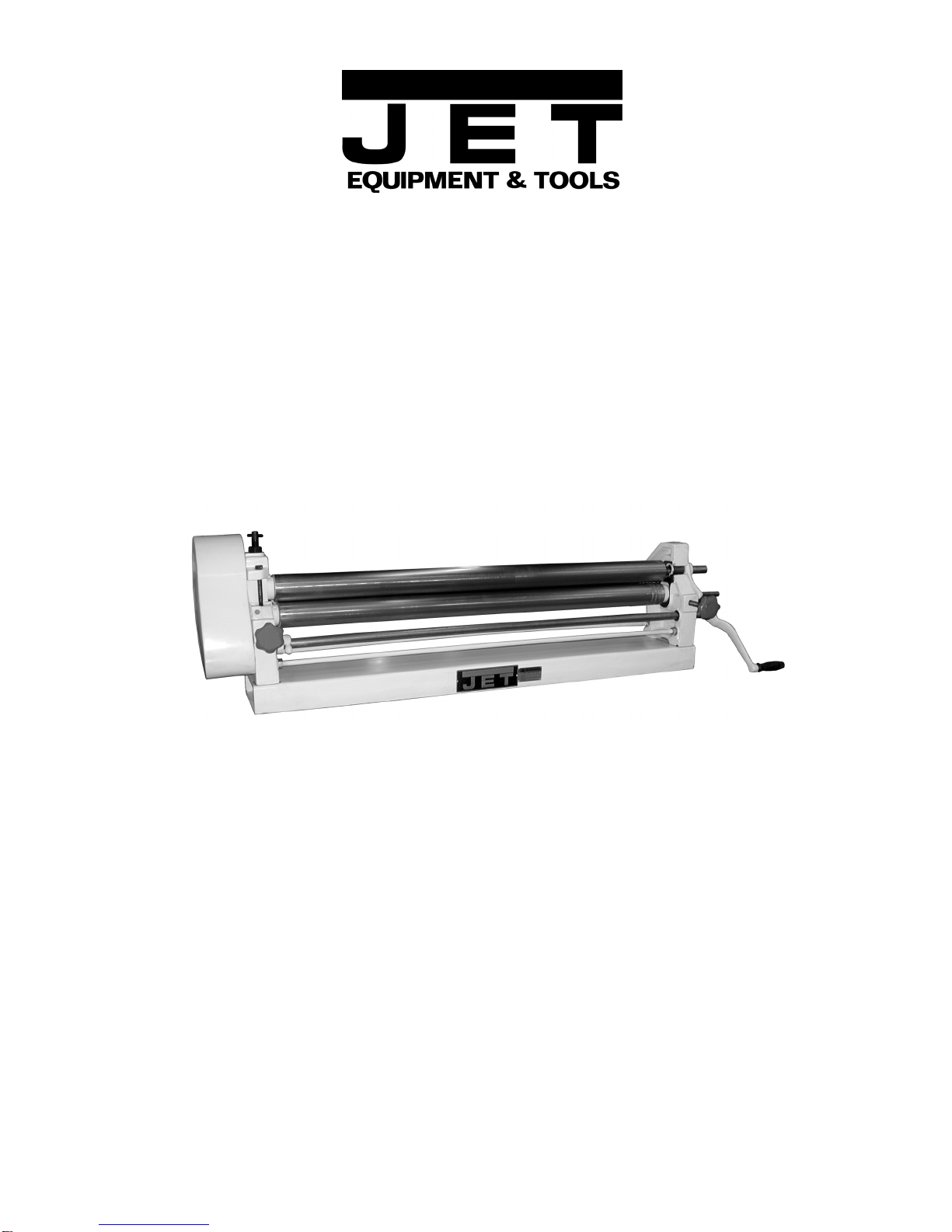

SR-1650N Slip Roll
JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000
A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840
www.jettools.com e-mail jet@jettools.com M-754050 03/01

2
Important Information
1-YEAR JET offers a one-year limited
LIMITED WARRANTY warranty on this product
REPLACEMENT PARTS
Replacement parts for this tool are available directly from JET Equipment & Tools.
To place an order, call 1-800-274-6848. Please have the following information ready:
1. Visa, MasterCard, or Discover Card number
2. Expiration date
3. Part number listed within this manual
4. Shipping address other than a Post Office box.
REPLACEMENT PART WARRANTY
JET Equipment & Tools makes every effort to assure that parts meet high quality and durability standards
and warrants to the original retail consumer/purchaser of our parts that each such part(s) to be free from
defects in materials and workmanship for a period of thirty (30) days from the date of purchase.
PROOF OF PURCHASE
Please retain your dated sales receipt as proof of purchase to validate the warranty period.
LIMITED TOOL AND EQUIPMENT WARRANTY
JET makes every effort to assure that its products meet high quality and durability standards and warrants to the
original retail consumer/purchaser of our products that each product be free from defects in materials and
workmanship as follows: 1 YEAR LIMITED WARRANTY ON THIS JET PRODUCT. Warranty does not apply to
defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities
or to a lack of maintenance. JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE FROM
THE DATE THE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED
WARRANTIES OR MECHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU. JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY
OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. To
take advantage of this warranty, the product or part must be returned for examination, postage prepaid, to an
authorized service station designated by our Auburn office. Proof of purchase date and an explanation of the
complaint must accompany the merchandise. If our inspection discloses a defect, JET will either repair or replace the
product or refund the purchase price, if we cannot readily and quickly provide a repair or replacement, if you are
willing to accept such refund. JET will return repaired product or replacement at JET’s expense, but if it is determined
there is no defect, or that the defect resulted from causes not within the scope of JET’s warranty, then the user must
bear the cost of storing and returning the product. This warranty gives you specific legal rights, and you have other
rights, which vary, from state to state.
JET Equipment & Tools •
••
•P.O. Box 1349, Auburn, WA 98071-1349 •
••
•(253) 351-6000

3
WARNING
For your own safety, read the owner’s manual before operating the slip roll.

4
Specifications: SR-1650N
Stock Number................................................................................................................................ 754050
Capacity (mild steel) ..............................................................................................................................16
Maximum Forming Length ....................................................................................................................50”
Number and Diameter of Rolls......................................................................................................3 and 3”
Minimum Forming Radius.......................................................................................................................2”
Wire Grooves.....................................................................................................................1/4", 5/16”, 3/8”
Overall Dimensions (LxWxH).............................................................................................. 68” x 22” x 24”
Uncrating and Clean-Up
1. Remove the crate from around the machine.
2. Carefully clean all rust protected surfaces
with a mild solvent or kerosene and a soft
rag. Do not use lacquer thinner, paint
thinner, or gasoline. These will damage
painted surfaces.
3. Coat all machined surfaces with a light coat
of oil to inhibit rust.
4. Remove the bolts holding the machine to the
skid.
5. Carefully move the machine to a well lighted
area on a solid, level work bench, and
secure to the bench with lag screws or bolts.
6. Machine location must allow access to all
sides.
Front Rolls
The (#) in the text refers to the breakdown.
1. The two front rolls carry the material through
as the crank handle #33 is turned in a
clockwise direction.
2. The lower roll adjustment knobs #16 are
used to move the lower roll #4 up and down
for different gauge material.
3. The gap between the two front rolls should
be equal at both ends.
Rear Roll
1. The rear roll #5 can be adjusted to control
the radius by turning adjustment knobs #17.
2. The gap between the rear roll and the two
front rolls should be equal at both ends of
the roll to assure an equal radius at both
ends of the material.
Releasing the Material
1. Once the material has been rolled release
the material from the roll by lifting clamp
handle #31.
2. Lift the upper roll #3 and pivot away from the
machine so that the material can be
removed.
Rolling Wires
There are three wire grooves in the upper and
rear rolls that will accommodate a 1/4", 5/16”
and a 3/8” wire.
Lubrication
The machine must be lubricated every day of
service with a few drops of oil. An oil pinhole is
located at both ends of the lower roll #4, rear roll
#5, and rod #25. The upper roll #3 has one oil
pinhole on the left side. The right side can be
lubed by opening the clamp handle #31, and
lightly oiling the end of the upper roll shaft.
Every thirty days of operation grease the gears
by removing the gear cover #37.
Lightly oil the rolls when not in use to prevent
rust.

5

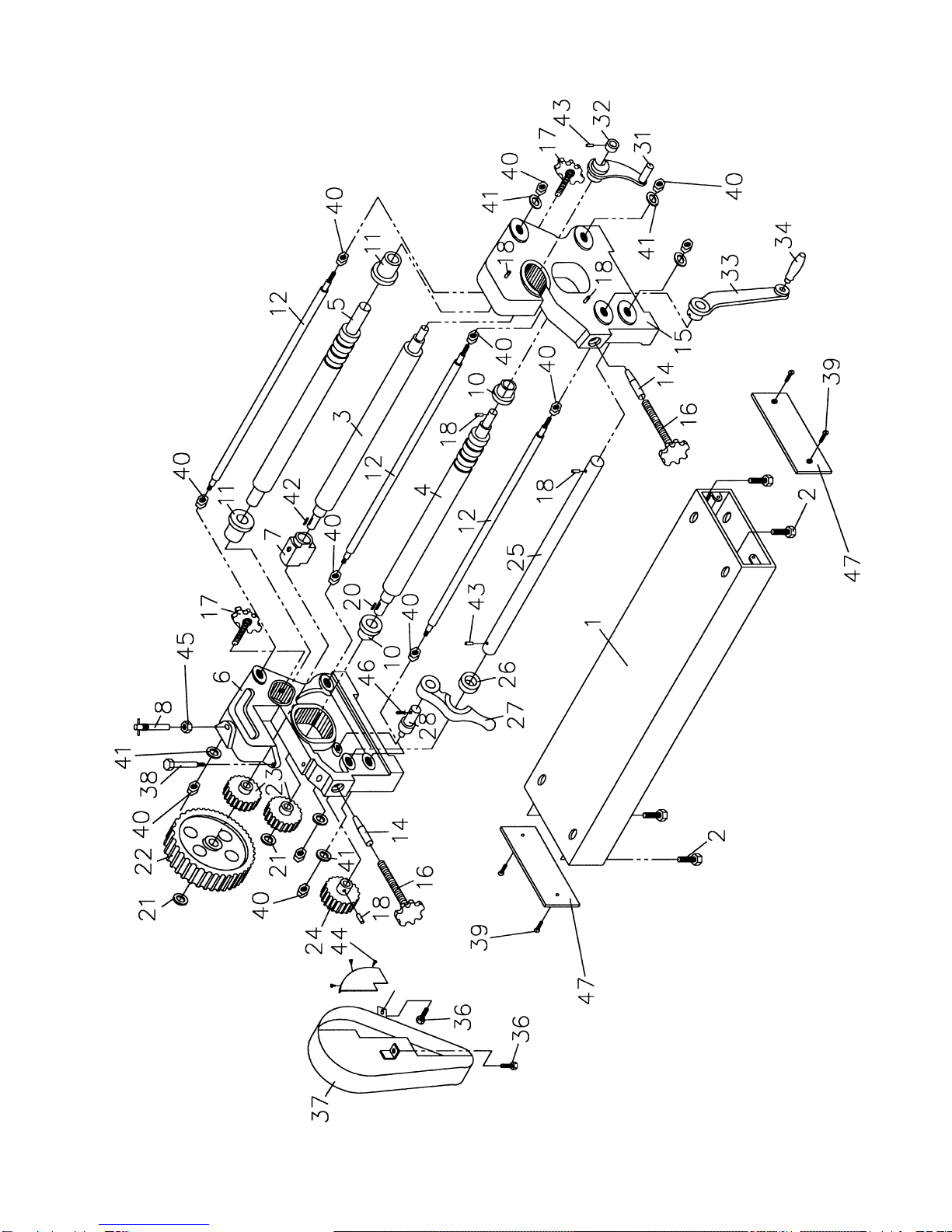

Breakdown for the SR-1650N Slip Roll

6
Parts List for the SR-1650N Slip Roll
Index Part
No. No. Description Size Quantity
1..........SR1650N-1.................. Base Assembly...................................... ...............................................1
2..........SR1650N-2.................. Hex Cap Screw......................................M16x25...................................4
3..........SR1650N-3.................. Upper Roll ............................................. ...............................................1
4..........SR1650N-4.................. Lower Roll ............................................. ...............................................1
5..........SR1650N-5.................. Rear Roll ............................................... ...............................................1
6..........SR1650N-6.................. Left Support........................................... ...............................................1
7..........SR1650N-7.................. Left Upper Roll Seat............................... ...............................................1
8..........SR1650N-8.................. Set Rod Assembly................................. ...............................................1
10........SR1650N-10 ................ Bushing................................................. ...............................................2
11........SR1650N-11 ................ Bushing................................................. ...............................................2
12........SR1650N-12 ................ Set Rod................................................. ...............................................3
14........SR1650N-14 ................ Pin......................................................... ...............................................2
15........SR1650N-15 ................ Right Support......................................... ...............................................1
16........SR1650N-16 ................ Knob...................................................... ...............................................2
17........SR1650N-17 ................ Knob...................................................... ...............................................2
18........SR1650N-18 ................ Spring Pin..............................................5x40........................................5
20........SR1650N-20 ................ Key........................................................8x8x30....................................2
21........SR1650N-21 ................ C-Ring...................................................28 ...........................................2
22........SR1650N-22 ................ Gear...................................................... ...............................................1
23........SR1650N-23 ................ Gear...................................................... ...............................................2
24........SR1650N-24 ................ Gear...................................................... ...............................................1
25........SR1650N-25 ................ Rod ....................................................... ...............................................1
26........SR1650N-26 ................ Bushing................................................. ...............................................1
27........SR1650N-27 ................ Stop....................................................... ...............................................1
28........SR1650N-28 ................ Shaft Assembly...................................... ...............................................1
31........SR1650N-31 ................ Clamp Handle........................................ ...............................................1
32........SR1650N-32 ................ Bushing................................................. ...............................................1
33........SR1650N-33 ................ Arm ....................................................... ...............................................1
34........SR1650N-34 ................ Handle................................................... ...............................................1
36........SR1650N-36 ................ Hex Cap Screw......................................M8x20.....................................2
37........SR1650N-37 ................ Gear Cover Assembly............................ ...............................................1
38........SR1650N-38 ................ Hex Socket Bolt.....................................M4x5.......................................1
39........SR1650N-39 ................ Flat Head Screw....................................M4x5.......................................4
40........SR1650N-40 ................ Hex Nut .................................................M16.......................................12
41........SR1650N-41 ................ Washer..................................................M16.........................................6
42........SR1650N-42 ................ Key........................................................8x8x60....................................1
43........SR1650N-43 ................ Set Screw..............................................M8x10.....................................1
44........SR1650N-44 ................ Tapping Screw.......................................ST4.3x9 ..................................8
45........SR1650N-45 ................ Hex Nut .................................................M20.........................................1
46........SR1650N-46 ................ Cotter Pin ..............................................3.2x30.....................................1
47........SR1650N-47 ................ Plate...................................................... ...............................................2
............SR1650N-ID................. ID Label (not shown).............................. ...............................................1
............SR1650N-W................. Warning Label (not shown) .................... ...............................................1
............SR1650N-J .................. JET Label (not shown)........................... ...............................................1
