JETWAY NAF791 Series User manual

NAF791 Series
User’s Manual
No. G03-NAF791-F
Rev: 3.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
ENVIRONMENTAL PROTECTION ANNOUCEMENT..............................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 SPECIFICATION.........................................................................................................1
1-2 LAYOUT DIAGRAM....................................................................................................2
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................6
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 REAR I/O BACK PANEL CONNECTORS....................................................11
2-2-2 MOTHERBOARD INTERNAL CONNECTORS............................................12
2-2-3 HEADER PIN DEFINITION...........................................................................16
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................20
3-2 BIOS MENU SCREEN ................................................................................................21
3-3 FUNCTION KEYS .......................................................................................................21
3-4 GETTING HELP ..........................................................................................................22
3-5 MENU BARS...............................................................................................................22
3-6 MAIN MENU................................................................................................................22
3-7 ADVANCED MENU.....................................................................................................23
3-8 CHIPSET MENU..........................................................................................................33
3-9 SECURITY MENU.......................................................................................................35
3-10 BOOT MENU...............................................................................................................37
3-11 SAVE & EXIT MENU...................................................................................................38
TABLE OF CONTENT

iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 40 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
3.0 Third Edition October 1, 2019
Item Checklist
Motherboard
Cable(s)
I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Specification
Spec
Description
Design

ATX form factor; PCB size: 30.5 x24.5 cm
Chipset

Intel Q370/C246 Express Chipset
CPU
Socket
Intel®LGA 1151 Socket for Intel®8th Generation Coffee Lake
series processors(TDP 95W)
CPU SKU for Q370 series: Core i7/i5/i3, Pentium, Celeron series
CPU SKU for C246 series: Xeon E, Core i7/i5/i3, Pentium, Celeron
series
*Note: for detailed CPU support information please visit our website.
Memory
Slots
4*DDR4 U-DIMM slot for 4* DDR4 RAM Module
Support dual channel function
Maximum capacity: up to 64GB
Maximum frequency: up to 2666MHz(depends on CPU support)
*Note: C246 series supports DDR4 W/ECC SDRAM
Expansion
Slots
2 * PCI-Express x16 slot
(*PCIE1/PCIE2
)
*Note: PCIE1 slot share x16 lane band width with PCIE2 slot.
1 * PCI-Express x1 slot (PCIE3)
1 * PCI-Express x4 slot (PCIE4)
2* PCI slot (PCI1/2)

1 * M.2 E-key slot, type-2230 (M2E)
Storage
5 * SATAIII 6Gb/s port (SATA_RA1/ SATA_RA2/SATA5)
Support RAID 0, 1, 5, 10 function
1* M.2 M-key slot, type-2242/2260/2280/22110, PCIe x4 with
SATA interface (M2M)
LAN Chip
Integrated with 2* Intel Gigabit PCI-E LAN chips
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip Realtek ALC662 6-channel Audio Codec integrated

Audio driver and utility included
BIOS

128M Bit AMI Flash ROM
Multi I/O
Rear Panel I/O:
1* RS232/422/485 COM port (COM1)
1* DP port
1* HDMI port
1* VGA port
1*DVI-D port
2* USB 3.1 (Gen.1) port

4* USB 3.1 (Gen.2) port

2
2* RJ-45 LAN port
1*3-phone audio jack (Line-in, Line-out, MIC)
Internal I/O Connectors & Headers:
1 *24-pin main power connector
1 *8-pin 12V power connector
1* CPUFAN connector & 2* SYSFAN connector
1* Front panel header
1* Speaker & Power LED header
1* Front panel audio header
1* HDMI_SPDIF header
2* LAN Status indicator header
1* PS/2 keyboard & mouse header
1* GPIO header
1* SMBUS header
2* 9-Pin USB 2.0 header (support 4* expansion USB 2.0 ports)
1* 19-Pin USB 3.1 (Gen.1) header for 2* USB 3.1 (Gen.1) ports
9* COM port header (COM2/3/4/5/6/7/8/9/10, COM2 supports
RS422/RS485 function )
1-2 Layout Diagram
Rear IO Diagram
COM1
RS232/422/485
Serial Port
DP Port
HDMI Port
USB 3.1 (Gen.1)
Ports
VGA Port
DVI-D Port
USB3 .1 (Gen.2)
Ports
RJ-45 LAN Ports
Line-In
Line-Out
MIC

3
Motherboard Internal Diagram
*Note: PCIE1 slot share x16 lane band width with PCIE2 slot. Configuration solutions: 1*PCIE x16
card, please plug in PCIE1 slot to run at x16 (Max.) lane band width; in the case that 2*PCIE cards
plugged in PCIE1 & PCIE2 slots, since the 2* PCIE slots share x16 lane band width, each card will run
at x8 (Max.) lane band width.
LGA 1151
CPU Socket
DDR4
DIMM Slot x 4
ATX 12V
Power Connector
SYSFAN1
Connector
CPUFAN
Connector
ATX Power
Connector
M.2 M-Key Slot
(M2M)
SATAIII Ports
Front Panel
Header
Front Panel
Audio Header
HDMI_SPDIF
Header
SMBUS Header
LANLED Headers
Serial Port Header
(COM2)
USB 2.0 Headers
SYSFAN2
Connector
GPIO Header
PWR LED &
Speaker Header
PS/2 Keyboard
& Mouse Header
USB 3.1(Gen.1)
Port Headers
Serial Port Headers
(COM3/4/5/6/7/8/9/10)
PCI Express x1 Slot (PCIE3)
*Rear IO
Connector
(Refer to Page-2)
Intel Chipset
PCI Slots (PCI1/2)
PCI Express x16 Slot (*PCIE1)
PCI Express x4 Slot (PCIE4)
PCI Express x16 Slot (*PCIE2)
M.2 E-key Slot
(M2E)

4
Motherboard Jumper Position
Jumper
Jumper
Name
Description
JP1
COM1 Port Pin9 Function Select
4-pin Block
JP12
COM2 Header Pin9 Function Select
4-pin Block
JP8
COM3 Header Pin9 Function Select
4-pin Block
JP9
COM4 Header Pin9 Function Select
4-pin Block
JP10
COM5 Header Pin9 Function Select
4-pin Block
JP11
COM6 Header Pin9 Function Select
4-pin Block
JP4
COM7 Header Pin9 Function Select
4-pin Block
JP5
COM8 Header Pin9 Function Select
4-pin Block
JP6
COM9 Header Pin9 Function Select
4-pin Block
JP7
COM10 Header Pin9 Function Select
4-pin Block
JBAT
Clear CMOS RAM Settings
3-pin Block
JP3
M2E (M.2 PCIE) Slot VCC3.3V/3.3VSB Select
3-pin Block
JAT_ATX
ATX/AT Mode Select
3-pin Block
COPEN
Case Open Message Display Detect
2-pin Block
JP2
ME_Features Select
2-pin Block
JP1
JBAT
JP3
COPEN
JAT_ATX
JP4
JP5
JP6
JP7
JP8
JP9
JP12
JP10
JP11
JP2

5
Connectors
Connector
Name
COM1
RS232/422/485 Serial Port Connector
DP
Display Port Connector
HDMI
High-Definition Multimedia Interface
Connector
USB3
USB 3.1 (Gen.1) Port Connector X2
CRT
VGA Port Connector
DVI1
DVI-D Port Connector
UL1/UL2
Top:RJ-45 LAN Connector X2
Middle & Bottom: USB 3.1 (Gen.2) Port
Connector X4
AUDIO
Top: Line-in Connector
Middle: Line-out Connector
Bottom: MIC Connector
ATXPWR
ATX Type Main Power Connector
ATX12V
ATX 12V Power Connector
CPUFAN
CPU FAN Connector
SYSFAN1/2
System FAN Connector
SATA_RA1
/SATA_RA2/SATA5
SATAIII Connector X5
Headers
Header
Name
Description
FP
(Front Panel Header)
PWR LED/ HD LED/ Power Button
/Reset
9-pin Block
SPK_LED
Power LED & Speaker Header
7-pin Block
FP_AUDIO
Front Panel Audio Header
9-pin Block
HDMI_SPDIF
HDMI_SPDIF Out Header
2-pin Block
LAN1_LED
/ LAN2_LED
LANLED Activity Header
2-pin Block
PS2KBMS
PS2 Keyboard & Mouse Header
6-pin Block
GPIO
GPIO Header
10-pin Block
SMBUS
SMBUS Header
5-pin Block
USB1/USB2
USB 2.0 Port Header
9-pin Block
FP_USB
USB 3.1 (Gen.1) Port Header
19-pin Block
COM 2
RS232/422/485 Serial Port Header
9-pin Block
COM3/4/5/6/7/8/9/10
RS232 Serial Port Header
9-pin Block

6
Chapter 2
Hardware Installation
2-1 Jumper Setting
JP1 (4-pin): COM1 Port Pin9 Function Select
JP1 → COM1 Port
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
RI=RS232;
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V;
JP12 (4-pin): COM2 Header Pin9 Function Select
JP12 → COM2 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP8 (4-pin): COM3 Header Pin9 Function Select
JP8 → COM3 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP12
COM2
JP1
COM3
JP8

7
JP9 (4-pin): COM4 Header Pin9 Function Select
JP9 → COM4 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP10 (4-pin): COM5 Header Pin9 Function Select
JP10 → COM5 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP11 (4-pin): COM6 Header Pin9 Function Select
JP11
→ COM6 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP4 (4-pin): COM7 Header Pin9 Function Select
JP4 → COM7 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP9
COM4
COM5
JP10
COM6
JP11
COM7
JP4

8
JP5 (4-pin): COM8 Header Pin9 Function Select
JP5 → COM8 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP6 (4-pin): COM9 Header Pin9 Function Select
JP6 → COM9 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP7 (4-pin): COM10 Port Pin9 Function Select
JP7 → COM10 Header
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
5
1
5
3
1
6
4
2
JP5
COM8
JP6
COM9
JP7
COM10

9
JBAT (3-pin): Clear CMOS RAM Settings
1-2 Closed: Clear CMOS.
1-2 Open: Normal；
1
3
1
3
JBAT → Clear CMOS
JP3 (3-pin): M2E (M.2 PCIE) Slot Power VCC Select
2-3 Closed: M2E Slot VCC = 3.3VSB.
JP3 → M2E Slot VCC
1-2 Closed:M2E Slot VCC= 3.3V;
1
3
1
3
JAT_ATX (3-pin): AT Mode /ATX Mode Select
1
3
1
3
JAT_ATX →
ATX/AT Mode Select
1-2 Closed: ATX Mode Selected;
2-3 Closed: AT Mode Selected.
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
JBAT
JP3
JAT_ATX

10
COPEN (2-pin): Case Open Message Display Function
COPEN → Case Open Detection
Pin1
CASE OPEN
GND
Pin 1-2 Short:When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your
computer, a message will be displayed on screen to inform you of this.
JP2 (2-pin): ME Features Select
1-2 Closed:ME Features Disabled.
JP2 → ME Features
2
1
1-2 Open:ME Features Enabled;
1
2
COPEN
JP2

11
2-2 Connectors and Headers
2-2-1 Rear I/O Back Panel Connectors
Icon Name Function
RS232/422/485
Serial Port
Mainly for user to connect external MODEM or
other devices that supports
Serial Communications Interface.
Display Port
To the system to corresponding display device
with compatible DP cable.
HDMI Port
To connect display device that support HDMI
specification.
DVI-D Port To connect display device that support DVI
specification
VGA Port
To connect display device that support VGA
specification.
RJ-45 LAN Port This connector is standard RJ-45 LAN jack for
Network connection.
USB 3.1 (Gen.1)
Port
To connect USB keyboard, mouse or other
devices compatible with USB 3.1 (Gen.1)
specification. Ports support up to 5Gbps data
transfer rate.
USB 3.1 (Gen.2)
Port
To connect USB keyboard, mouse or other
devices compatible with USB 3.1 (Gen.2)
specification. Ports support up to 10Gbps data
transfer rate.
Audio Connectors
BLUE: Line-in Connector
GREEN:Line-out Connector
PINK : MIC Connector
DP Port
HDMI Port
USB 3.1 (Gen.1)
Ports
VGA Port
DVI-D Port
USB3 .1 (Gen.2)
Ports
RJ-45 LAN Ports
Line-In
Line-Out
MIC
COM1
RS232/422/485
Serial Port

12
COM1 (9-pin Block): RS232/422/485 Port
COM1 port can function as RS232/422/485 port. In normal settings COM1 functions
as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485
port.
User also needs to go to BIOS to set ‘Transmission Mode Select’for COM1 (refer to
Page-27)at first, before using specialized cable to connect different pins of this port.
2-2-2 Motherboard Internal Connectors
(1) ATXPWR (24-pin block): Main Power Connector
ATX Power Supply connector: This is a new defined 24-pins connector that usually
comes with ATX case. The ATX Power Supply allows using soft power on momentary
switch that connect from the front panel switch to 2-pins Power On jumper pole on the
motherboard. When the power switch on the back of the ATX power supply turned
on, the full power will not come into the system board until the front panel switch is
momentarily pressed. Press this switch again will turn off the power to the system
board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power
supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin and
4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the
20-pin power plug can provide at least 15A on +12V and the power supply unit has a
minimum power rating of 350W. The system may become unstable or may not boot
up if the power is inadequate.
** If you are using a 20-pin power plug, please refer to Figure1 for power supply
connection. Power plug form power supply and power connectors from motherboard
both adopt key design to avoid mistake installation. You can insert the power plug into
the connector with ease only in the right direction. If the direction is wrong it is hard to
fit in and if you make the connection by force if is possible.

13

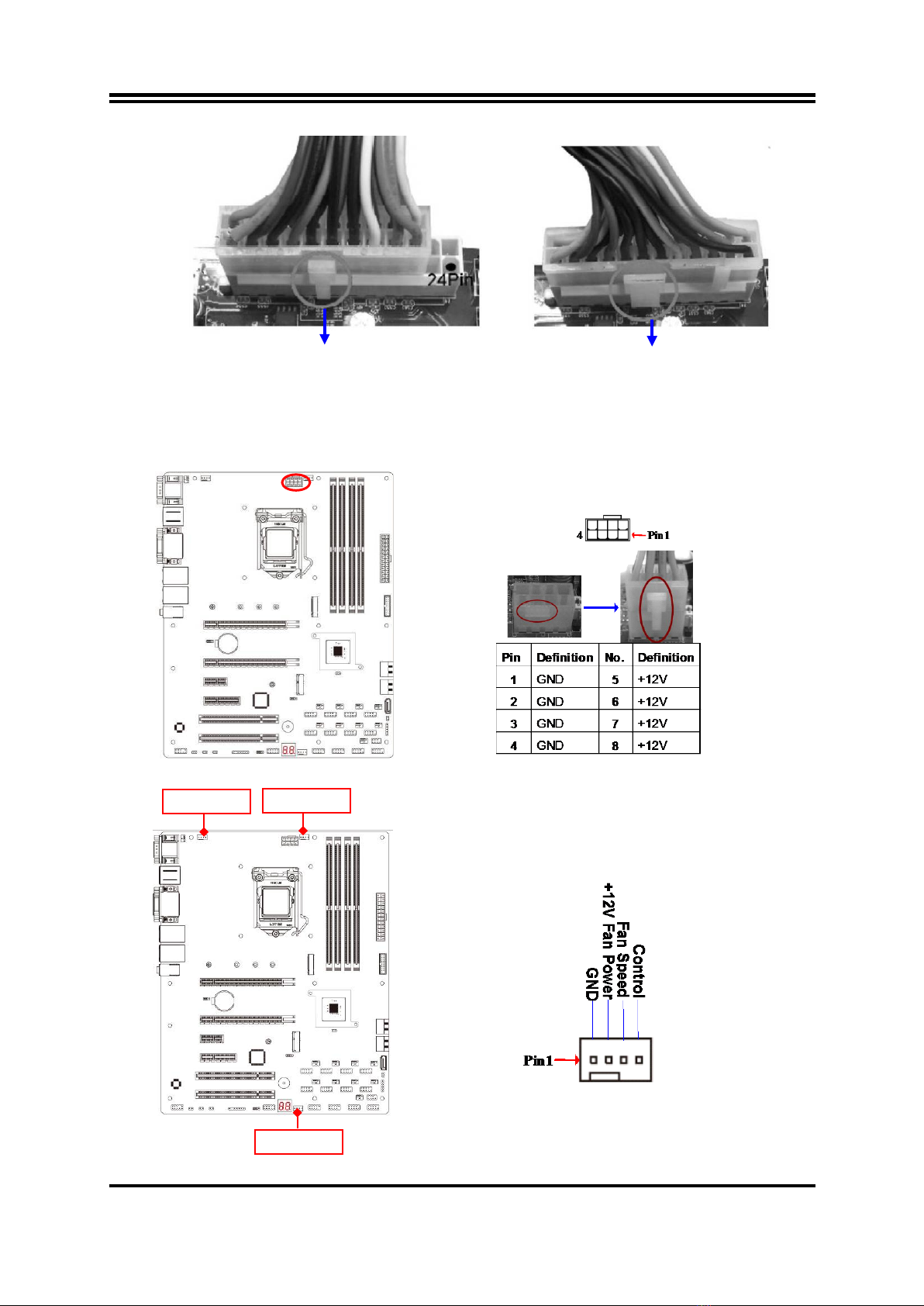

Figure1：20-pin power plug Figure 2：24-pin power plug
(2) ATX12V (8-pin block): 12V Power Connector
This is a new defined 8-pin connector that usually comes with ATX Power Supply that
supports extra 12V voltage to maintain system power consumption. Without this
connector might cause system unstable because the power supply can not provide
sufficient current for system.
(3) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors
SYSFAN1
CPUFAN
SYSFAN2

14
(4) SATA_RA1/DATA_RA2/5: SATAIII Port Connector
These connectors are high-speed SATAIII ports that support 6 GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
(5) M2M: M.2 M-Key Slot
M2M M.2 M-Key slot supports compatible type 2242/2260/2280/22110 SATA or PCIE
x4 SSD module.
M2M Slot Installation Guide:
1. Prepare compatible M.2 SATA or M.2 SSD card. Deferent type of cards has
different length. Find corresponding nut location for further installation.
Nut Location
MH1
MH2
MH3
MH4
Card Length
4.2 cm
6 cm
8 cm
11 cm
Module Type
Type- 2242
Type- 2260
Type- 2280
Type- 22110

15
2. Remove the screw post and nut fixed at
location MH4 by default (Skip step 2 & 3
and go straight to Step 4 if you are going
to use the default nut).
3. Lock the screw post into the location
corresponding to the length of the
module.
4. Align and insert corresponding M.2
module, as the photo shows.
5. Tighten up the screw to secure the
module into the M.2 connector. Mare
sure not overtighten the screw to avoid
possible damage to the module.
(6) Dual Channel Memory Installation:
Notice!
For dual channel installation, you need to install the same brand, speed, size and
type memory module.
It is unable to activate dual channel feature if you install one or three memory
modules, or you install DIMM1 & DIMM4 / DIMM2 & DIMM3. Slot order can be
from left-to-right or right-to-left, and it must be installed in pairs.
If you install memory modules in wrong direction, it will damage the motherboard
and memory module.
Configuration
DIMM1
DIMM2
DIMM3
DIMM4
1
install
--
install
--
2
--
install
--
install
3
install
install
install
install

16
2-2-3 Header Pin Definition
(1) FP (9-pin): Front Panel Header
HDDLED+
GND
PWRLED+
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
Pin 1
2
(2) SPK_LED(7-pin): PWR LED Header & Speaker Header
SPEAK+
NC
SPEAK-
PWRLED+
Pin 1
NC
PWRLED-
PWRLED-
(3) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header is connected to Front Panel Line-out, MIC connector with cable.
Pin 1
MIC2-L
LINE OUT-R
LINE_OUT_JD
MIC_JD
DETECT
2
MIC2-R
SENSE
LINE OUT-L
GND
SPK_LED
FP
FP_AUDIO
