Jiajia JJ298 User manual

JJ298 Strandgutsammler
Elektrokinderauto
Mit Fernbedienung
Bedienungs-&
Montageanleitung
Arten und Farben können variieren.
Produziert in China
Die Bedienungsanleitung enthält wichtige Sicherheitsinfor-
mationen, sowie Montage, Anwendung und Wartungsanwei-
sungen. Die Montage des Fahrzeugs muss von einem Er-
wachsenen übernommen werden. Bewahren Sie die Verpa-
ckung fern von Kindern auf und entsorgen Sie diese fachge-
recht.
BehaltenSiedieseAnleitungfürdieZukunft.

On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of
enjoyment. To help assure you and your rider a safe ride we ask you to
please read this manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and it’s rider.
Battery
Fuse
Charger
6V7Ah*2 or 6V10Ah*2 or 12V10Ah*1
4A & 13A
12V1000mA
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
37~96 Months
Under 30 kgs
2.5~5km/h
130 x 71 x 57.5 CM
Charging type
8 ~ 12 hours
About Your New Ride-On │1
VER: SMS-JJ298-EN-150430
MINI Beachcomber Children Electric Ride On manufactured by Zhejiang
Jiajia Ride-On Co., Ltd.
(Add: Xincang Industrial Zone, Pinghu City, Zhejiang Province,
P.R.China). The MINI logo and the MINI word mark are trademarks of
BMW AG and are used under license.
VER: SMS-JJ298-EN-RC-150430

2
4
2
3
2
24
A
B
C
D
E
F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
2
8
2
2
2
4
1
1
1
1
1
1
1
1
1
1
2
1
1
3
21
1
1
1
G
H
i
1
1
1
PART
NO.
REMARKS
PART NAME
Q’ty (pcs)
Gear box
Driving wheel
Ø12 washer
Motorhood
Front wheel
Bushing
Ø10 locknut
Tool box
Vehicle body
Steering column
Front axle
Rear axle
Seat
Steering wheel
M5x35 machines screw
Ø5 nut
Windshield
Rear window
Sport bar
Charger
M5x16 machine screw
Hubcap
Split pin
Ø10 washer
Spanner
Ø4x12 screw
Placed on the steering wheel
Placed on the steering wheel
One pair
1pc labeled “L”, and 1pc labeld “R”
1 pcs for spare
1 pcs for spare
Parts List │2
Assembly package
Remote controller
R/C driver
Ø5 nut
M5x12 machine screw

1
2
33
4
56
7
B
9
10
11
F
G H
13
17
8
18
15
16
F
F
12
14
18
19 A
CD
20
E
F
i
21
NOTE: Some parts shown are assembled on both sides of vehicle
Parts Diagram │3

●Non-rechargeable batteries are not to be recharged.
●If removable rechargeable batteries are used, the are only to be charged under adult
supervision.
●Remove rechargeable batteries from the product before charging.
●Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard
(carbon-zinc) or rechargeable (nickel-cadmium).
●Insert batteries as indicated inside the battery compartment, anode to andoe, cathode to
cathode.
●Remove batteries during long periods of non-use. Always remove exhausted batteries from the
product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.
●Never short circuit the battery terminals.
BATTERY INFORMATION
Before You Begin Assembly │4
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
• Make sure that the power switch is turned “OFF” before assembling the ride-
on.
• Before first time use, charge the battery for at least 4 to 6 hours.

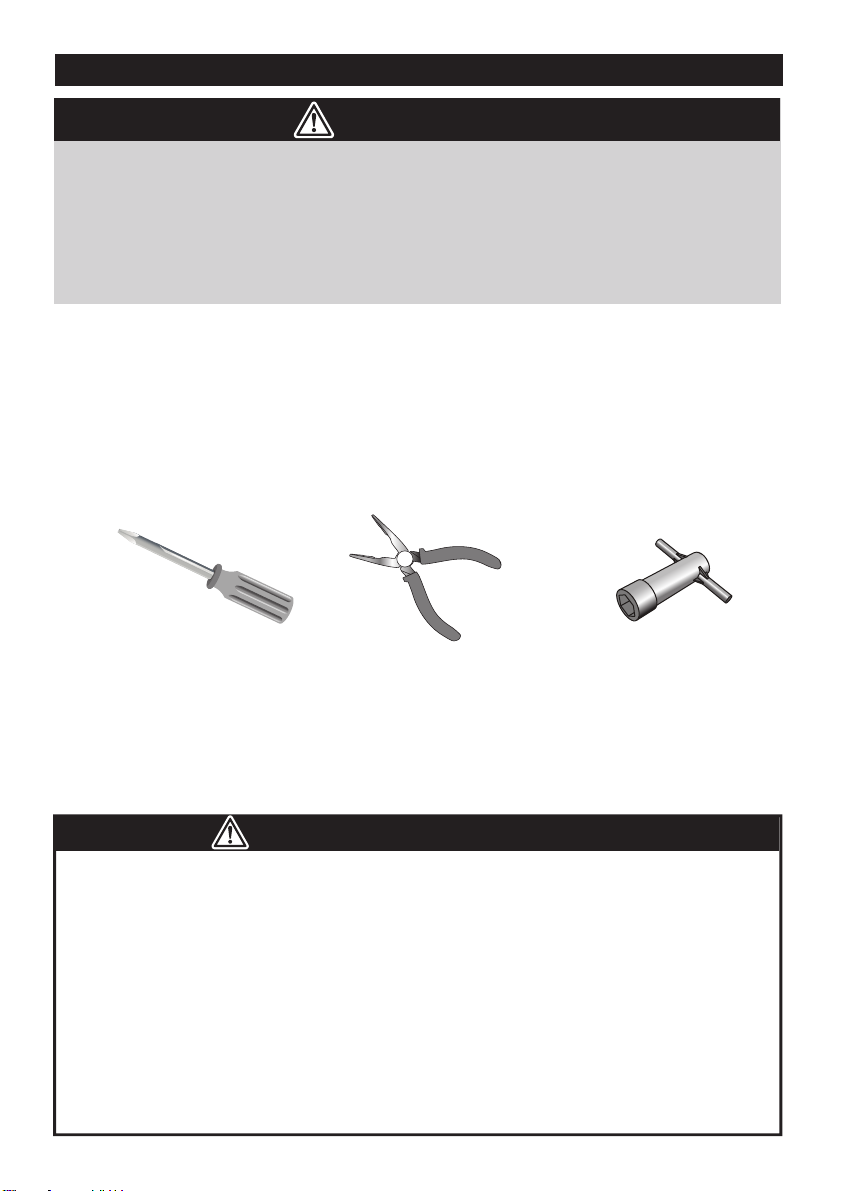

• Assembly tools required:
WARNING!
Screwdriver
(not included)
Long nose pliers
(not included)
Spanner

x4
2
3
1
1. Fit the front axle to the vehicle body.
2. Insert four Ø4x12 screws and tighten with a screwdriver.
3. Repeat for the other side.
Attach the Front Axle │5

1

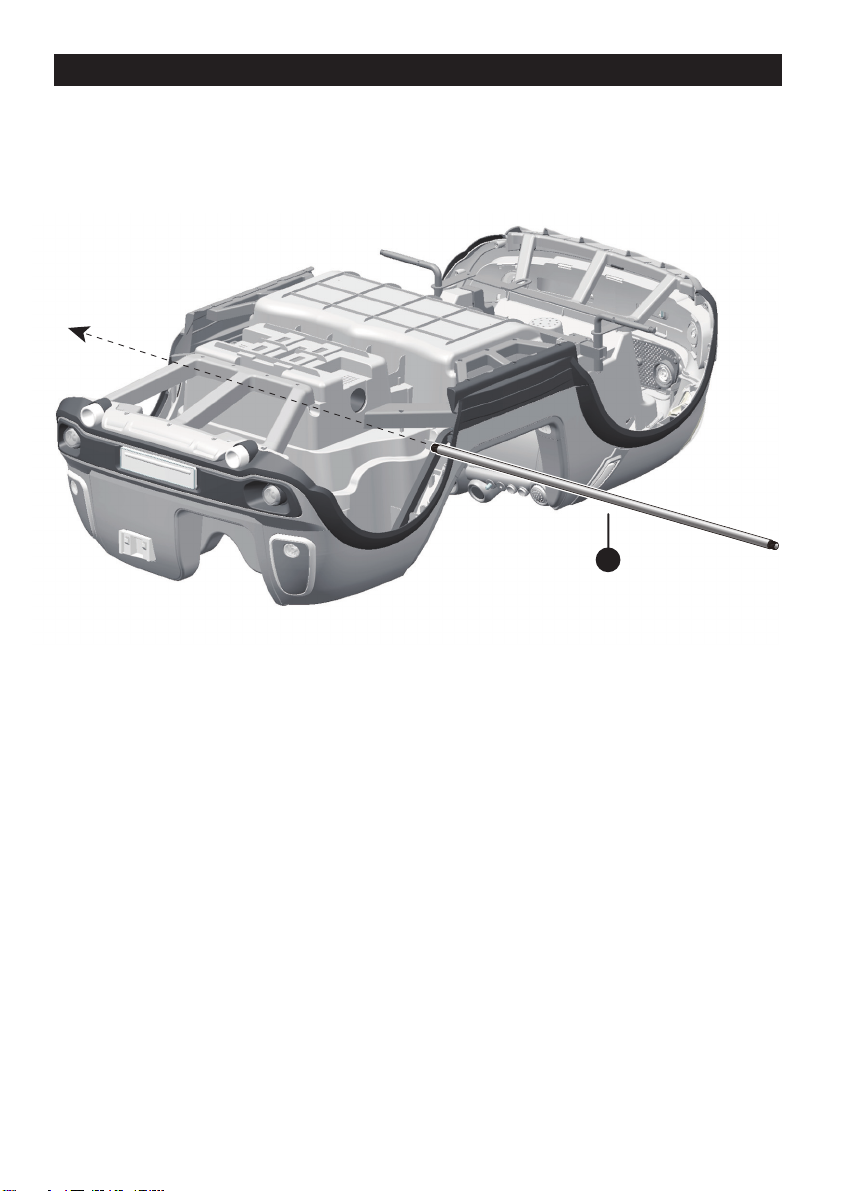

Remove all the parts from the rear axle.
1. Insert the rear alxe into the hole in the vehicle body.
Attach the Rear Axle │6

1
2
3
4
9
5
67
8
9
x2

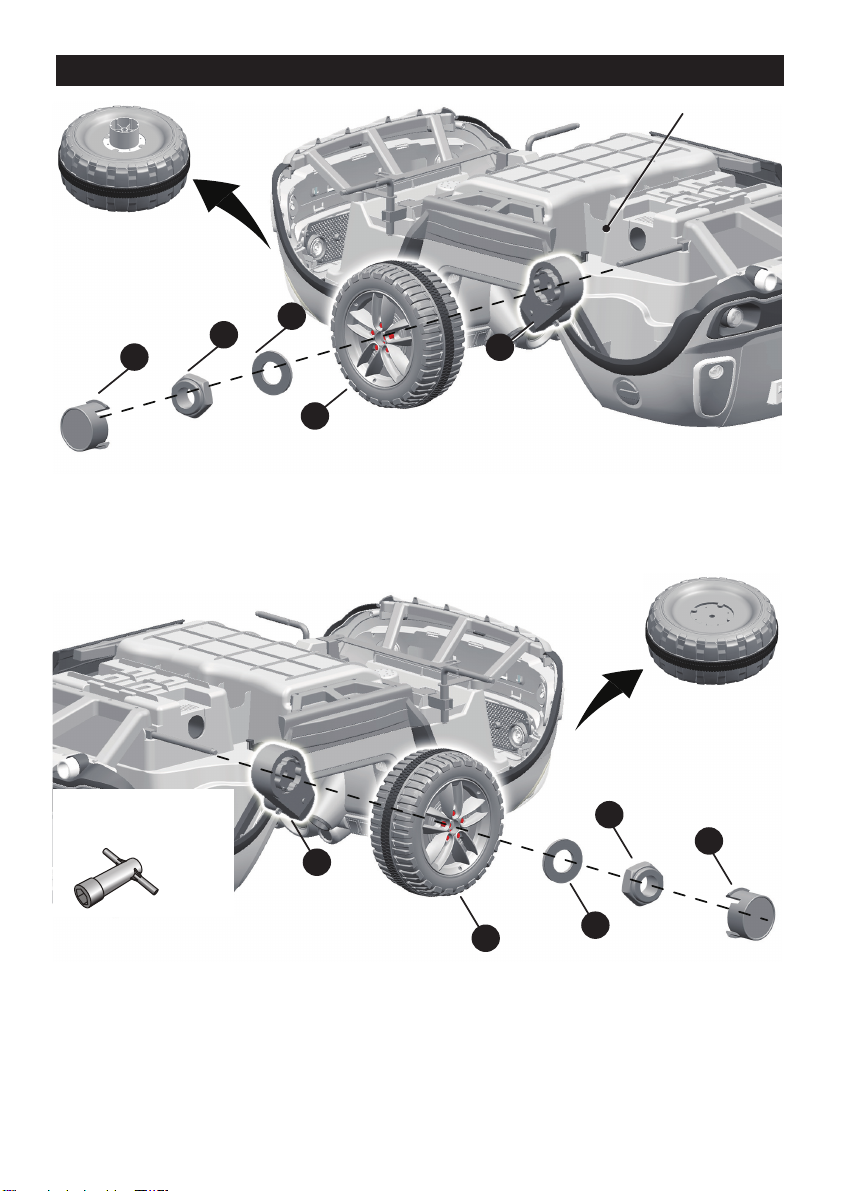

1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to
the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match with the
gear box.
3. Slide the Ø10 Washer onto the rear axle.
4. Tight a Ø10 Locknut to the end of the rear axle with a spanner.
5. Slide the gear box onto the rear axle (Right Side).
“R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled
gear box should be fit to “L” side of vehicle body.
6. Slide the driving wheel onto the rear axle. And keep the driving wheel match with the gear box.
7. Slide the Ø10 Washer onto the rear axle.
8. Tight a Ø10 Locknut to the end of the rear axle with a spanner. HINT: An extra spanner has
been provided to hold the Ø10 locknut on the other side of the rear alxe while tightening the
locknut on the other side.
9. Fit the hubcap to the wheel cover.
Attach the Rear Wheels │7
Rear axle
Driving wheels are more bigger than front wheels
Tools required: Spanner

1
2
3
4
5
6
Front axle
Tools required: Spanner
Remove all the parts from the front axle.
1. Slide a Ø10 washer onto the front axle.
2. Slide the bushing (ring end first) onto the front axle.
3. Slide the normal wheel (with wheel hubcap) onto the rear axle. and keep the
normal wheel match with the bushing.
4. Slide a Ø10 washer onto the front axle.
5. Tight a Ø10 Locknut to the end of the front axle with a spanner.
6. “Snap” the hubcap to the wheel cover.
Repeat this step for the other side.
GAP
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below picture), if
the gap is too big, please add two or three washers inside the wheel, But
after tightening the nut outside the wheel, please turn the wheel by your
finger to check if the wheel can run smoothly, this is very important,
because if the wheel can run smoothly, it is ok, but if the nut press the
wheel and the wheel can’t run smoothly, the motor will be broken easily!
Then you need to decrease one or two washers to make sure the wheel
can run smoothly!
Attach the Front Wheels │8

4
5
1
32
1
2
23
3
1
5
4
6
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Hole in the
front axle linkage

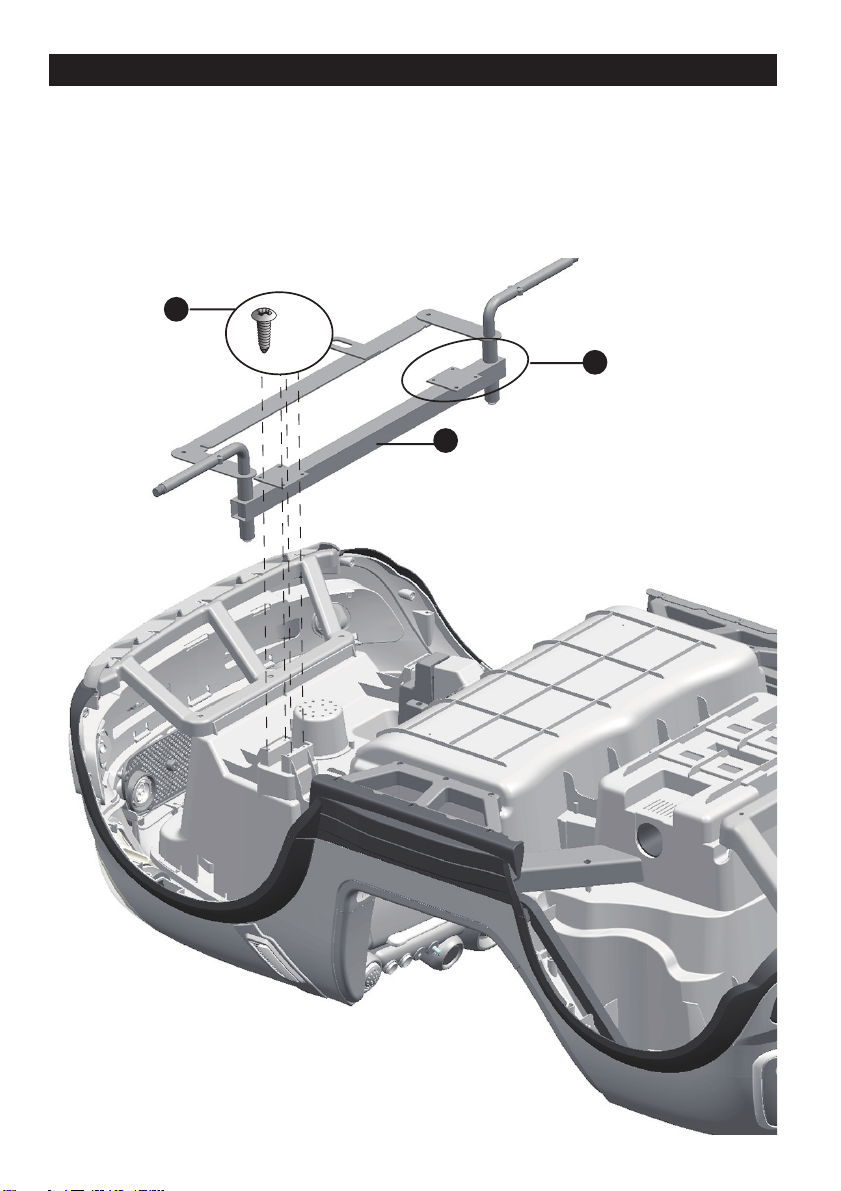

Turn the vehicle body on its side.
1. Slide a Ø10 washer onto the steering column from the straight end.
2. Insert the straight end of steering column up through the hole at the front of
vehicle body from bottom side, and out through the hole in the dash.
3. Insert the bent end of steering column through the hole in the front axle
linkage.
4. Fit a Ø10 washer onto the steering column.
5. Insert a split pin into the hole in the steering column, bend the ends of split pin
back using a long nose pliers.
Attach the Steering Column │9
Turn the vehicle body on its side. Remove the M5x22 machine screw and Ø5
nut from the R/C driver with a screwdriver.
1. Attach the R/C driver to the steering gear box, and make it match with
steering gear box.
2. Insert the straight end of steering column up through the hole in the R/C
diver, the hole in the steering gear box from the bottom side, and out
through the hole in the dash.
3. Line up the holes in the R/C driver and the hole in the steering column,
tighten a M5x22 machine screw and Ø5 nut back in the same location with a
screwdriver.
4. Insert the bent end of steering column through the hole in the front axle
linkage.
5. Fit a Ø10 washer to the steering column.
6. Insert a split pin into the hole in the steering column, bend the ends of split pin
back using a long nose pliers.
Steering Gear Box

42
1
3
7
6
5
End of the steering column
Attach the Steering Wheel │10
Turn the vehicle body upright. Remove the M5x35 machine screw and Ø5 nut
from the steering wheel.
5. Place the steering wheel over the steering column, protruding from the middle
of the steering wheel base.
6. Align the holes on each side of steering wheel with the holes at the end of the
steering column.
7. Fasten a nut on the opposite
end of the screw to
secure the steering
wheel to the steering
column.
1. With a screwdriver remove the
screw on the battery cover
located in the center of the
steering wheel.
2. Remove the battery cover from
the top of the battery
compartment.
3. Insert two AA batteries in their
correct polarities.
4. Place the battery cover over
the battery compartment and
fasten with the screw you
removed in step one.
Add the Batteries (NON PROVIDED) of Steering Wheel
Aattach the Steering Wheel
Follow the battery information on page 4.

1
2
Attach the Windshield │11

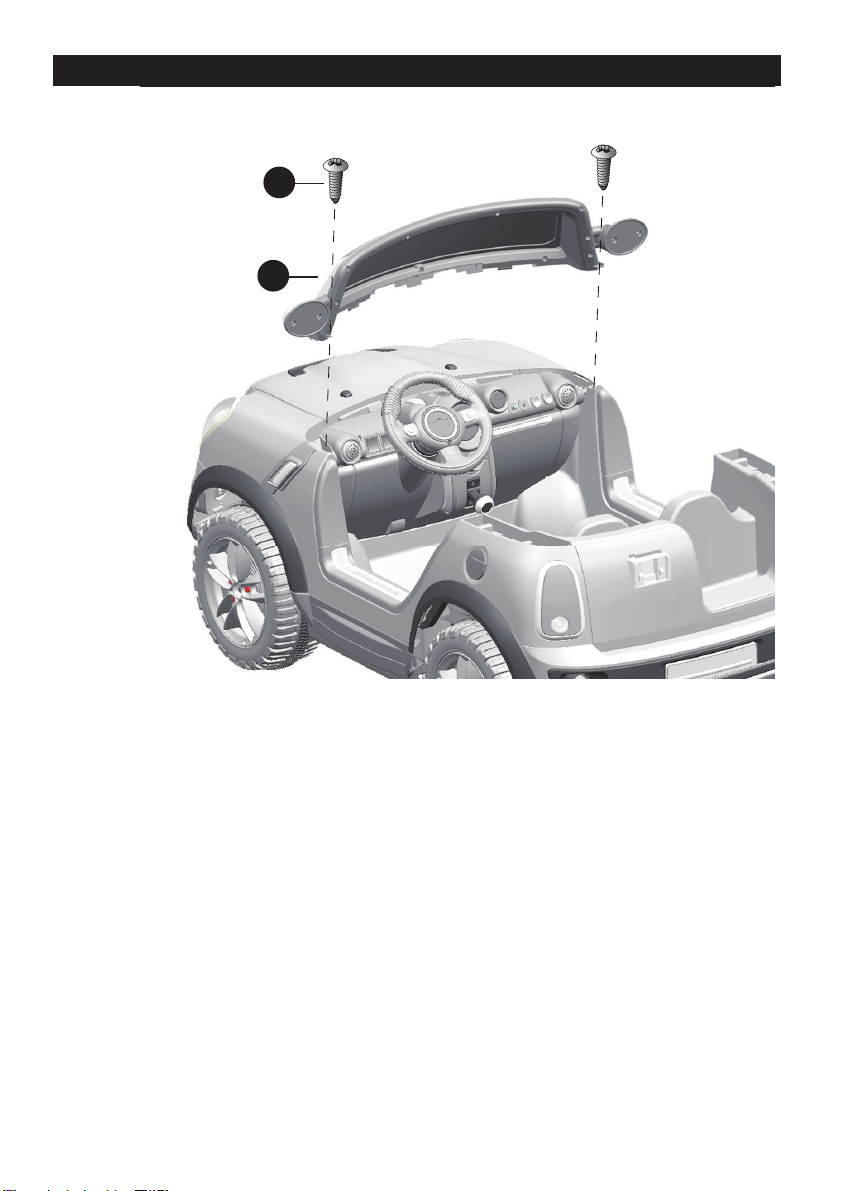

1. Fit the windshield assembly to the vehicle body.
2. Tighten two Ø4x12 screws through the windshield and into the vehicle body
with a scewdriver.

2
1
Connect the Power Supply │12
1. Plug the Vehicle Connector into the Motor Connector on body as shown
above. Repeat for the other side.
2. Plug the Red fuse connector into the terminal on battery.
Vehicle
connector
Motor connector
Fuse box
Battery

2
1
x4
Attach the Motor Hood │13
1. Fit the motor hood on the motor.
2. Tighten four Ø4x12 screws to secure it.
Repeat the above step for the other Motor hood.

1
1
2
2
Attach the Seat │14
1. Fit the tabs at back of the seat to the holes in the vehicle body.
2. Tighten two M5x16 machine screws with a screwdriver.
Tabs

2
1
3
Attach the Sport Bar │15
1. Fit the rear window to the sport bar.
2. Insert the two Ø4x12 screws through
the rear window and into the the sport
bar. tighten them with a screwdriver.
3. Insert the tabs on the rear windows
into the slots in the vehicle, push until
you hear it “click” into place.

1
Attach the Toolbox │16
1. Fit the tool box to the rear end of the vehicle body.

PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED.
Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or
collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 37 months due to its maximum
speed; Maximum user weight is 30 kgs.
• This toy has no brake.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the
safety belt before using, guarantee the security.
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep
inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or
playground.
• Never use in the dark. A child could encounter unexpected obstacles and have
an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
WARNING!
Use the vehicle on generally level ground ONLY! DO NOT Use the vehicle on Lawn space!
Saftely │17

2
5
6
3
3
1
4
78
Make sure your child knows how to steer, how to start and stop the vehicle and knows the rules for safe
driving. The vehicle can be driven at a maximum of 3~5 km/h.
ADVANCED USE - High speed Drive
1. Power Switch: Turns the vehicle on and off.
2. Shift Lever: Changes the direction that vehicle moves from forward to reverse.
●To move the car forward, shift the lever up
●To move the car backward, shift the lever down.
3. Sounds buttons: Press for sounds playing.
4. Volume knob (OPTIONAL): Turn the knob clockwise to increase the volume; Turn the
knob counterclockwise to decrease the volume.
5. Foot pedal: Applies power (speed) to the vehicle.
●To move the car, press the pedal down.
●To brake or slow down, release pressure from the pedal.
6. 3.5 mm Audio input connector (OPTIONAL)
7. Foot - R/C switch (OPTIONAL): Change the operating mode, foot-operate or
R/C-operate.
8. High/Low speed switch (OPTIONAL): The switch operates the vehicle to move in low
or high speed.
Use Your Ride-on │18
Always stop vehicle
when changing the
speed or direction to
avoid damage the
gears and motor.
IMPORTANT!

1. Press the FOOT - R/C SWITCH on the vehicle to the “Remote control”
position.
2. Press the ON-OFF SWITCH on the remote controller to the “ON” posi-
tion, the indicator light will be lighting.
3. Push the LEFT JOYSTICK to the front, the vehicle goes forward, pull
the LEFT JOYSTICK to the back, the vehicle goes backward.
4. Push the RIGHT JOYSTICK to the left, the vehicle turn left, push the
RIGHT JOYSTICK to the right, the vehicle turns right.
ASSEMBLY
OPERATION
1. Insert the antenna into the controller by tweak the antenna clock-
wisely;
2. Lift the battery compartment door on the back of the controller and
insert two AA(LR6) batteries.
NOTE: This product does not include the batteries.
Follow the battery information on page 4.

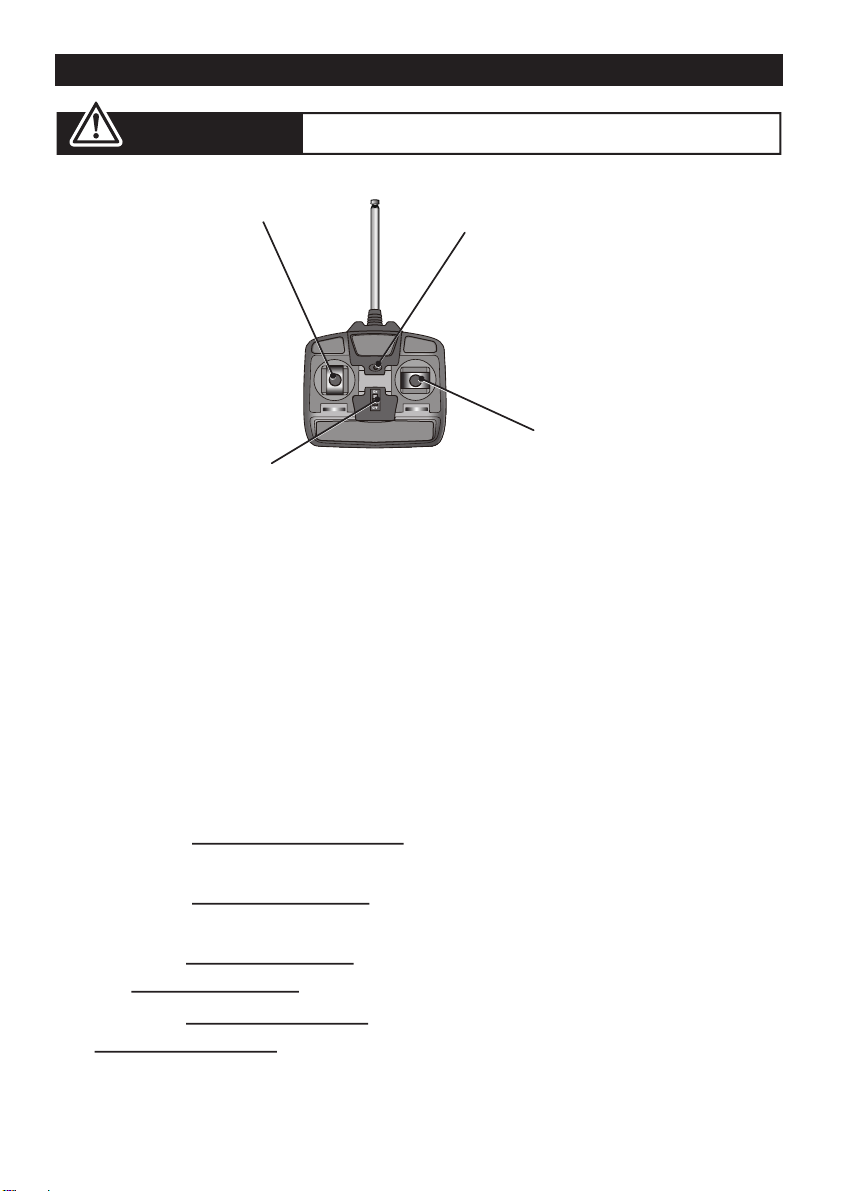

ON-OFF SWITCH
INDICATOR LIGHT
RIGHT JOYSTICK
LEFT JOYSTICK
Use the Remote Controller │19
ADULT OPERATING REQUIRED!
WARNING:
