Jigsaw Infrared Heater User manual

Feel the Future of Heating. Step out of the Shade and into the Sun
Infrared Heating
Instruction Manual: Aluminium Infrared Heater

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
2 3
GENERAL INFORMATION TABLE OF CONTENTS
PAGE
4
5
6
7
8
9
14
15
16
17
18
1. Technical features of the appliance
7. Product Guarantee
2. General Information
3. Product Advice
5. 3 Controls
6. Cleaning and maintenance
5. 1 Mounting
3. Positioning and Installation
4. Installation
5. 2 Electrical connection
8. Heating Advice
199. Warranty
Unpack the appliance and place it either on the protective
packaging or on a carpet/soft surface:
Package contains:
• Appliance
• Wall mounting kit & 350mm Screwdriver (1 Per order)
• Instruction manual
1. Read these instructions carefully before installing and using the
appliance and keep for future reference.
2. Use the appliance only according to these instructions.
3. These instructions do not cover all situations that may arise.
Use caution and common sense when installing and using the
appliance.
4. Modification of the heater in any way voids the warranty.
5. Make sure that the appliance is in good condition prior to
installation and do not use the appliance if damaged.
6. This appliance is not intended for use by persons (including
children) with reduced physical sensory or mental capabilities.
7. Children shall not play with the appliance.
8. Children of less than 3 years should be kept away unless
continuously supervised.
9. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
10. Children aged from 3 years and less than 8 years shall not plug in,
regulate and the appliance or perform user maintenance.
11. Cleaning and user maintenance shall not be made by children
without supervision.
CAUTION:
During normal operation the surface of the appliance may reach high
temperatures which can cause burns.

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
4 5
TECHNICAL FEATURES CERTIFICATION
230V 50Hz
Degree of protection: IP44
The features of the appliance are indicated on the
features label situated on the rear surface of the
heater.
(W):
ALUMINIUM FAR INFRARED HEATER
This appliance complies with European Directives:
• EN 60335-1:2012 / EN60335-2-30 (Safety of Electrical
Appliances)
• EN55014 1 + 2 / EN61003-2 / EN61003-3 (EMC)
• EN50366:2003+A1 (EMF)
• EN60529-1992 + A2 (IP44 rating)
• RoHS
• CE Certified
The Restriction of the Use of Certain Hazardous Substances
(RoHS) in Electrical and Electronic Equipment Directive
(2011/65/EU)aims to prevent hazardous substances from
entering the production process and thereby keep them out
of the waste stream.
The Waste Electrical or Electronic Equipment (WEEE) Directive
requires countries to maximise separate collection and
environmentally friendly processing of these items. In the UK,
distributors including retailers must provide a system which
allows all customers buying new electrical equipment the
opportunity to recycle their old items free of charge.
All the packaging for this heater is recyclable. This includes
the AirSac wrapping. Deate and place in your recycling bin.

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
6 7
PRODUCT ADVICE POSITIONING AND INSTALLATION
WARNING -in order to avoid overheating, do not cover the heater.
Combustible or ammable materials and pressurised containers
(sprays, fire extinguishers, etc.) must be kept at a distance of at least
50cm from the appliance.
Do not touch the appliance with wet hands or feet.
It is important NOT to cover the appliance at any time in order to avoid
dangerous overheating.
The materials used for packaging is only to be used for transport
and can be recycled. Remove before use. For disposal, use dedicated
recycling containers.
This appliance is intended for domestic use for room heating.
It must be fixed onto a wall as indicated in this instruction manual.
The means for disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules.
Ideally the heaters, if in landscape orientation, should be mounted at
picture / mirror height.
Our heaters are rated IP44 which means they can be installed in zone
1 or 2 of a bathroom. We recommend zone 2 or outside zone as most
appropriate.

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
8 9
INSTALLATION ADVICE MOUNTING BRACKETS
• Should not be installed in contact with the oor.
• The equipment must not be located immediately below a
socket-outlet.
• The equipment shall not be used if the panel is damaged.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Should not be installed in close proximity to ammable or
combustible materials or pressurised containers.
• Make sure that there are no electrical cables or pipes in the wall
which could be damaged during installation.
Make sure the rawl plugs and screws used to mount the heater are
suitable for the wall type onto which the appliance is going to be installed.
If in doubt, ask professional qualified personnel.
The brackets on the Aluminium heaters are suitable for wall and
ceiling mounting.
The heater bracket provides the option of hanging your heater in either
landscape or portrait orientation. Rotate and fix to suit preferred position.

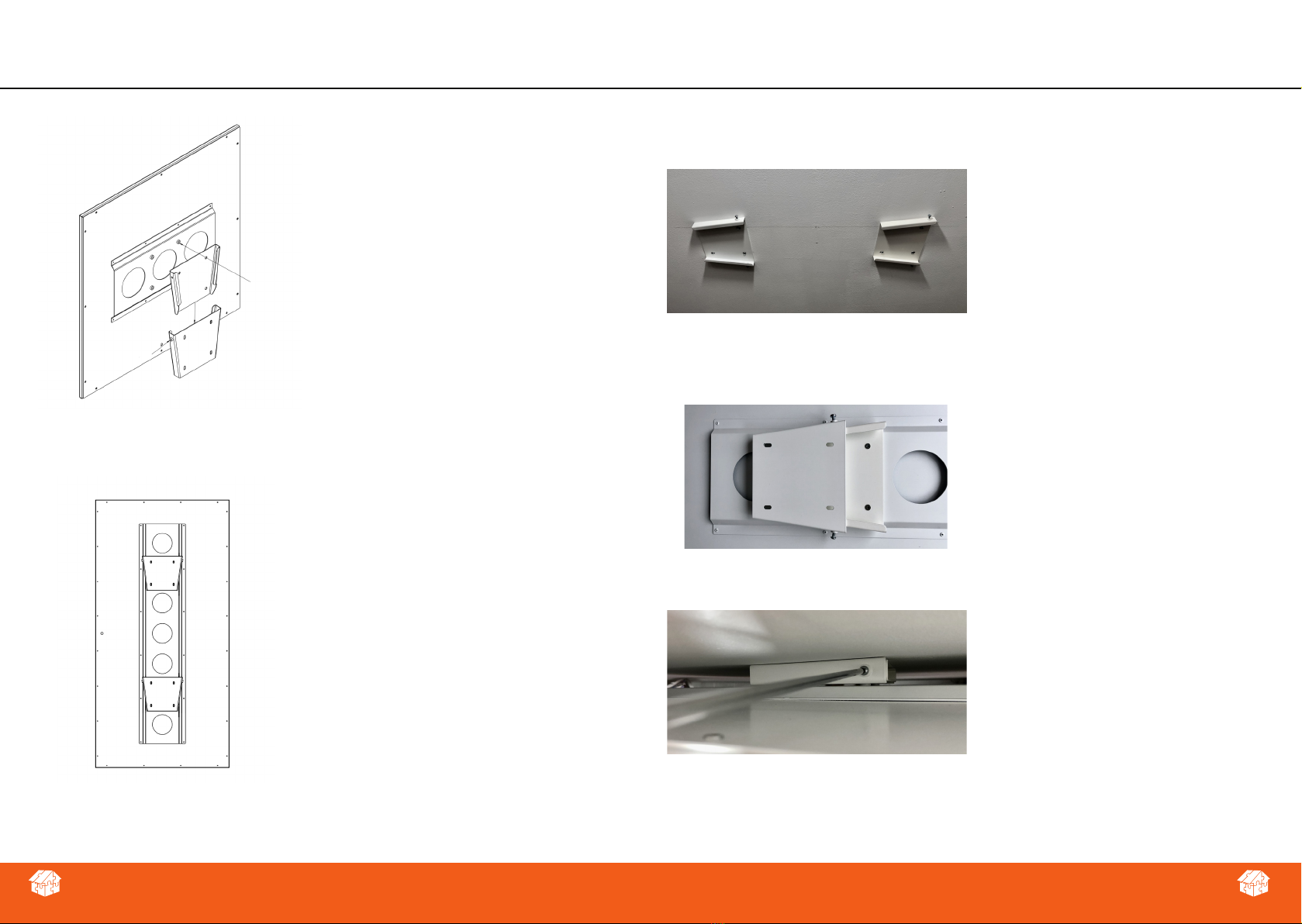

The wall bracket (A) is attached to the wall/ceiling on 4 corners. This must
be done at a suitable height and position with the correct fixings for the
construction of wall. See page 8 for measurements.
The panel bracket (B), attached to the heater, can then be slid into the wall
bracket (A). The retaining grub screws can then be tightened (C).
400w heaters - One mounting bracket must be used per installation
800w and above - Two mounting brackets must be used per
installation
Wall Bracket (A) Mating Wall & Panel Bracket (B) Joined Brackets (C)
Mounting (Advised)
1.5m to middle of heater from oor if wall
mounted.
Mounting (Mandatory)
0.50m to any surrounding objects
0.30m to any wall or ceiling (Minimum)
0.30m to any electrical socket (Minimum)
Must NOT block with any items,
clothing or furniture

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
10 11
400W WALL INSTALLATION 800W & 1000W INSTALLATION
400w heaters - One mounting
bracket must be used per installation
(Supplied)
The brackets on the Aluminium
heaters are suitable for wall and
ceiling mounting.
1, Attach the panel bracket (B) to the rear
of the heater with the four 10mm screws.
Ensure that they are tight.
2, The wall bracket (A) is attached to the
wall on 4 corners. This must be done at
a suitable height and position with the
correct fixings for the construction of
wall. Use a spirit level to ensure that the
bracket is straight.
3, Insert the grub screws into the wall
bracket ensuring that the screw is only
2-3mm in to the bracket.
4, The panel, with bracket (B) attached to
the heater, can then be slid into the wall
bracket (A).
5, Both retaining grub screws must
be tightened to ensure that the
heater is safely xed to the wall (C).
Use supplied 350mm screwdriver (retail
customers)
Panel Bracket (B) into heater
Joined Brackets with grub screws (C)
Horizontal bracket positions for 800w & 1000w
One grub screw to be used in each bracket in the
outer left and right fixing.
Vertical bracket positions for 800w & 1000w
All four grub screws to be used on top and
bottom brackets
800w & 1000w heaters - Two mounting
brackets must be used per installation
(Supplied)
The brackets on the Aluminium
heaters are suitable for wall and
ceiling mounting.
1, Attach two panel brackets (B) to the
rear of the heater with the four 10mm
screws. Ensure that they are tight.
2, The wall brackets (A) are attached to
the wall on 4 corners. This must be done
at a suitable height and position with the
correct fixings for the construction of
wall. Use a spirit level to ensure that the
bracket is straight.
3, Insert the grub screws into the wall
brackets ensuring that the screw is only
2-3mm in to the bracket. Horizontal -
Two retaining grub screws must be used.
Vertical - All retaining grub screws must
be used.
4, The panel, with brackets (B) attached
to the heater, can then be slid into the
wall bracket (A).
5, Tighten the grub screw to ensure that
the heater is safely fixed to the wall (C).
Use supplied 350mm screwdriver (retail
customers)

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
12 13
CEILING INSTALLATION CEILING INSTALLATION
400w bracket moutning for ceiling
Ceiling bracket positions for 800w & 1000w
Brackets must be in verticle position
All four grub screws to be used on the brackets
400w heaters - One mounting bracket
800w & 1000w heaters - Two mounting
brackets must be used per installation
(Supplied)
For ceiling installation, the mounting
brackets must be installed with the
10mm spacers supplied.
1, Attach the panel bracket/s (B) to the
rear of the heater for ceiling installation.
The 10mm spacer (supplied) must be
inserted between the heater and the
bracket. Use four 20mm screws for each
bracket. Ensure that the screws are tight.
2, Ceiling brackets (A) are attached
to the ceiling on all four corners. This
must be done at a suitable height and
position with the correct fixings for the
construction of wall. See page 8 for
measurements.
Advice - To ensure the brackets mount
correctly, draw a straight line with a
straight edge, spirit level or laser level
to align the fixing points for the two
brackets.
800w and 1000w bracket moutning for ceiling
Joining 800w and 1000w bracket
Fixing 400w, 800w and 1000w bracket moutning
for ceiling with 350mm scredwriver
Tip - The gap between the brackets is
390mm for both 800w & 1000w.
3, Insert the grub screws into the ceiling
brackets ensuring that the screw is only
2-3mm in to the bracket.
4, The panel, with brackets (B) attached
to the heater, can then be slid into the
ceiling bracket (A).
Advice - Two people must be used to
install the 800w and 1000w heaters.
5, Tighten all the grub screws to
ensure that the heater is safely fixed
to the ceiling (C). Use supplied 350mm
screwdriver (retail customers).
Remove the heater and check the
measurements and aligment if there is
resistance in the screw, or the screw fails
to insert into the bracket fully.
All grub screws must be fully inserted
to secure the heater to the ceiling.
Failure to do so could cause damage
to the heater, people or surrounding
objects.

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
14 15
ELECTRICAL CONNECTION CONTROLS
If hard-wiring to a fused spur, this work must be done by a
qualied electrician.
The electrical connection must be carried out in compliance with the
national regulations for electricians in force.
Before connecting the appliance to the electrical network, make sure
that the power is o.
Do not install the appliance if:
• The power supply cable is damaged.
• The appliance and / or the control boxes are damaged.
The appliance supply voltage is 230V.
Make sure the power supply complies with the appliance’s voltage.
Make sure that the power supply cable never comes into contact with
the hot surface of the appliance.
This appliance must be earthed and connected to a supply that is
earthed.
If the appliance is mounted in the bathroom or shower, the power line
must be equipped with an RCD with maximum rated current of 30mA.
In humid environments (bathrooms, kitchens, laundry rooms etc.) it is
very important that the electrical connection to the network is situated
at least at 25 cm from the oor.
Your heater should not be operated without a control system.
You must use either a wired or wireless thermostat depending on your
installation preference. If in doubt, ask professional qualified personnel.
This heater is NOT equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
WiFi connection:
A WiFi hub is required to connect the thermostats to the app.
Wired Diagram:
Wireless Diagram:
Mains Fused Spur Thermostat IR Panel
Mains Fused Spur IR Panel
Thermostat
RF Switch

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
16 17
CLEANING AND MAINTENANCE PRODUCT GUARANTEE
Before cleaning ensure that the heater is completely cold and that
it is disconnected from the mains (Where possible).
To clean, use a soft damp cloth with mild detergent to clean the
Aluminium range. Do not use abrasive cleaners, or corrosive solvents.
This will damage the finish of the heater and this will invalidate the
warranty.
Wait until the surface is completely dry before turning the unit on.
Please note that certain environmental conditions can cause
discolouration of the heater.
In case of technical problems, contact a qualified professional. Do not
attempt to repair it yourself. Attempts to do so will invalidate your
guarantee.
Disposal:
All ranges of our heaters are classed as electrical products and must
not be disposed of in household waste. The heater can be recycled.
Please contact your local council for advice on correct disposal.
This product carries a 5 year warranty from original date of
purchase when used in accordance with these instructions and
installed correctly.
Should you require after sales service, please call our CUSTOMER
HELPLINE on [phone] between 9.00am and 5.00pm (GMT)
Monday to Friday.
Please quote the serial number, model number, rating and date/place
of purchase.
Should your product be faulty, please contact the distributor you
purchased it from in the first instance.
Always retain your receipt as proof of purchase.

Jigsaw provide the solution piece by piece Feel the Future of Heating. Step out of the Shade and into the Sun
18 19
HEATING ADVICE WARRANTY INFORMATION
Saving Energy
Infrared heating is dierent to convection heaters. Infrared can feel
warmer at lower temperatures. It is advisable to heat a room to around
19º to determine if this is comfortable before raising the temperature.
This is best for high use rooms such as living rooms and kitchens.
Keeping these rooms at an average will ensure that the heater will be
used to “top-up” the heating when they are required to do so.
Only heating the rooms you are using is another positive way of saving
energy and therefore money on your bills. Setting these unused rooms
at a base rate of 16/17º will allow the room to stay warm until they are
required to be boosted to 19º. This is perfect for bedrooms, oces and
spare rooms.
Sizing the Heaters
Always follow the guidelines on our website for measuring the heat
loss of your home. A heater that is too small will not heat the room
eciently. There is a potential to shorten the life of the heater and have
runaway heating costs. Speak to an expert if you are unsure.
Control Units
Thought it might seem as costly to have multiple thermostats installed
per home. It will save energy and money in the long term.
Carbon Neutral
Combining our heaters with solar panels or renewable energy sources
could reduce your energy bills and carbon footprint further.
Installer Name:
Company Name:
Company Address:
Installation Date:
Equipment Installed:
Electrician Signature:
Customer Signature:
Date:

For Further Information Contact:
Email: [email protected]
Web: www.jigsawinfrared.com
Trade: www.jigsawinfraredfactory.com
Phone: [phone]
Solutions by Jigsaw LTD is a Limited Company registered in England and Wales.
Registered Oce: 1 St Josephs Court | Trindle Road | West Midlands | DY2 7AU
Company Number 10669703 | VAT 315 3643 21
1000w Printed in Situ
Infrared Heating
