Jimi JM-LL02 User manual

USER MANUAL(V1.0)
LTE CAT M1/NB2
ASSET TERMINAL
JM-LL02

CONTENTS
1
01 Product overview
......
02 Standard parts list
......
03 Specification
......
04 LED indication
......
05 Charging
......
06 Product Setup
......
07 Configure the device
......
08 Commands list
......
09 Installation recommendation
......
10 Web Platform and App
......
11 Troubleshooting
......
12 Warranty instructions
......
Maintenance Record

01/Product overview
02/Standard parts list
2
Making connections simpler
GPS indicator
Network indicator
Power indicator
On/off button
Magnetic contacts
Magnetic connector
Charging port
Light sensor
Magnetic cover
joint part
●GPS + WIFI + LBS positioning ●Real-time location query
●Geo-fence alert
●Tamper alert ●Strong magnet cover
●6,000mAh battery powered ●Magnetic charging
●IP67 dust and water resistant ●Bluetooth configuration
●Vibration alert
Item
Quantity
Device
1
Magnetic
cover
1
User
guide
1
Charger
1
Charge
cable
1
Tool
1

03/Specification
04/LED indications
Quick flicker (0.3s on, 0.3s off)
Frequency band
TTFF(opensky)
LTE M1/NB2：B2/B4/B5/B12/B13/B66
GSM：850/1900MHz
Avg. Cold start: <40sec
Avg. Hot start: <1sec
Low battery
Moderate flicker (1s on, 3s off) Fully charged
Slowflicker (0.1s on, 3s off) Normally working
Solid on Charging
Solid off Low battery voltage or battery failure
Location accuracy < 10m
Dimensions 85 X 58 X 29 mm
Weight 6000 mAh,37V Li - Polymer battery
Operating
Temperature -20°C to+70°C
Transmit Protocol TCP
3
Making connections simpler
Power Status (Red)
Slow flicker (0.1s on, 3s off) GPRS online
Solid on Calling
Quick flicker (0.3s on, 0.3s off) GSM initializing
Moderate flicker (1s on, 3s off) GSM connected successfully
Network Status (Green)
Quick flicker (0. 3s on, 0. 3s off) Searching GPS
Slow flicker (0.1s on, 3s off) GPS connected successfully
Solid off GPS is in sleep mode,or not active
GNSS Status (Blue)

4
Making connections simpler

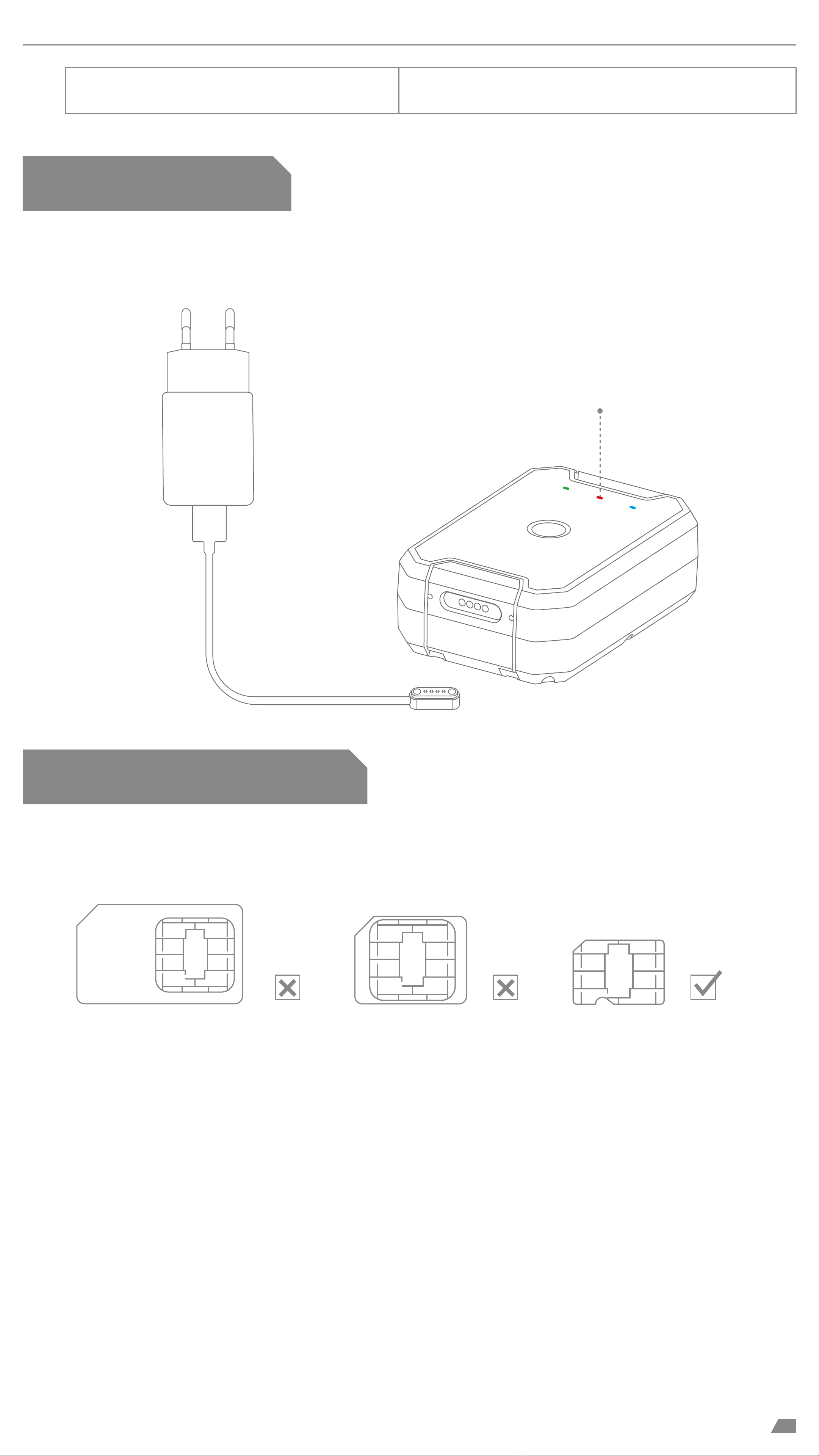

Please charge the device by original 5V/2A charger. It takes about 3 hours
to fully charge the device.
Insert SIM card: Please use a screw driver to remove the screws and open
the case to insert a SIM card (Size: Nano).
Power on: Press and hold the ON/OFF button for 3 seconds, and the LEDs
will flicker regularly if the device power on successfully.
Power off: Press and hold the ON/OFF button for 3 seconds and the LEDs
will be off in 2 seconds.
Solid off No GSM signal/ No SIM card
05/Charging
06/Product setup
Charging LED
MicroStandard Nano

5
Making connections simpler
Use your mobile phone to send commands to the device SIM card number
by SMS, please refer details of the commands in Commands list section .
On/off button
Method 1 :
1. Download and install the "Jimi loT Lab" app by the following
link: http://d.6short.com/lnbr.
Method 2 :
07/Configure the device
For iOS 9 and above Only
JIMI loT Lab
Making connections simpler
Preset
Manage preset parameters
Check Suitable Device
@Design by JIMI loT
Connect
Connect device with Bluetooth
Connect
JM-LL02_685
14:fc:7c:97:d5:08
Press the ON/OFF button and the LED will flicker for 15 seconds if the
device power on successfully.
Press the ON/OFF button and nothing will happen if the device power off
successfully.
Note:
1.
2.
Make sure the Bluetooth is enabled on your iPhone, choose Connect on
landing page.
2.

6
Making connections simpler
Power on LL02 and then short press the power button for 3 times, the
device name will automatically show on Connect page, tap on it to connect.
After the device is connected successfully, you can view the basic data of
the device, click "Command mode" button at the bottom can enter the
command setting page.
08/Command List
Command
APN
Usage
Set APN
ASETAPN Auto set APN
Instructions
APN, ApnName#
or
APN, ApnName,User,Password#
Auto set APN will be turned off when set
APN manually.
APN#
Query current APN
ASETAPN,X#
X=ON/OFF, ON:Enable auto set
APN, OFF:Disable auto set APN
ASETAPN#
Query auto set APN settings
3.
4.
Type and send the command to query and and make configurations. The
device has no password by default, you can set password (See details in
command list) to secure the device. If the password has been set, each
command will need to be sent with the password filled.
5.
In "Jimi loT Lab" app landing page, you can create a template with multi-
ple commands in Presets page, when the device is connected you can tap
the "Upload preset" button instead to send multiple commands that you
created in Presets at a lime.
6.

7
Making connections simpler
HBT
ASETGMT
SERVER
SERVER, 1,domain name,port#
SERVER,0,IP,port#
Default:SERVER, 1,GPSDEV.
TRACKSOLID.COM,21102#
SERVER#
Check the current sever settings
GMT
GMT,A,B,C#
A:E/W; E for eastern, W for western;
Default: E
B:0-12, time zone;Default:8
C:0/15/30/45; half time zone;
Default:0
GMT#
Query current time zone setting
HBT,T#
T=1-10 minutes, heartbeat packet
interval, Default:3 Minutes;
HBT#
Query the current heartbeat interval
Platform
server
setting
Time zone
setting
Heartbeat
packet
interval
Auto set
time zone
ASETGMT,<X>#
X=ON/OFF, ON:Enable auto set time zone,
OF:Disable auto set time zone
ASETGMT#
Query auto set lime zone settings
MODE
MODE,A,T1 ,T2#
A=1-2;1:Tracking mode, 2:Ultra
power saving mode;Default:1
When A=1, T1:Report interval of
GPS data in moving status, range:
10-3600 seconds; default: 10
T2:Report interval of GPS data in
static status, range:180-86400
seconds;default:0
When A=2, T1:start time of the
report, format:HH:MM
T2:time interval, range:1-72
hours, default:24
MODE#
Query the current working mode setting
Set working
mode

78
Making connections simpler
PWDSW Set command
password
PWDSW,A#
A=ON
PWDSW,A,B#
A=Numbers and alphabets, 1-19
digits;Default:666666
B=OFF
When PWDSW is ON, all the
command has to send with the
password as the first parameter,
e.g.:MODE,666666, 1,30,30#
PWDSW#
Query current password selling
PASSWORD
Modify
command
password
PASSWORD,A,B#
A=Old password, Default:666666
B=New password
CENTER Set center
number
CENTER,A,Number 1,Number 2,
Number 3#
Add center number
CENTER,D, 1, 2, 3#
Delete center number according to
the serial ID
CENTER,D,Number#
Delete center number according to
the matched number
CENTER#
Query the current center number
PWRLIMIT
Power
OFF
limitation
PWRLIMIT,ON #
X=ON/OFF;ON:Not allow to power
off with the device button, OFF:
Allow to power off with the device button;
PWRLIMIT#
Query the current PWRLIMIT setting
RESET
Reboot
the
device
RESET#
The device will reboot in 20 Seconds
when receive this command
FACTORY
Recover
the
settings
to factory
FACTORY#
Recover all the settings to factory
(Except server and APN)
Query the current center number

89
Making connections simpler
PARAM
Query
device
parameters
GPRSSET
Query
platform
server
and APN
Setting
STATUS Query status
09/Installation recommendation
Under front windshield
Under rear windshield
Around dashboard
The device should face up to the sky.
Metal thermal barrier or heating layer of the windshield affects the
signal. Please change installation position to receive better signal.
2.
1.
10/Web Platform & App
Please login the designated service platform provided by your distributor
to track and operate the device
Please download and install the APP in designated website, iOS App
store or Google Play store.
2.
1.

11/Troubleshooting
Use
Check theAPN and IP settings.
Check whether the data service of
SIM card is enabled.
Check the balance of SIM card.
Check if the device entered
network blind area.
Check the balance of SIM card.
Make sure the top side facing upward
without metallic things shielded.
Make sure it's not in area with no
satellite coverage.
Type
Unable to connect to tracking
platform
Tracker shows offline
Unable to locate
Check whether the battery is
exhausted.
Check whether the SIM card is
inserted.
Unable to boot
No command reply
Make sure command format is
correct.
Vehicle may be in network blind
area.
12/Warranty instructions and service
The warranty is valid only when the warranty card is properly completed,
and upon presentation of the proof of purchase consisting of original in-
voice indicating the date of purchase, model and serial No.of the product
We reserve the right to refuse warranty if this information has been re-
moved or changed after the original purchase of the product from the
dealer.
Our obligations are limited to repair of the defect or replacement the de-
fective part or at its discretion replacement of the product itself.
Warranty repairs must be carried out by our Authorized Service Centre.
Warranty cover will be void, even if a repair has been attempted by any
unauthorized service centre.
Repair or replacement under the terms of this warranty does not provide
right to extension or renewal of the warranty period.
The warranty is not applicable to cases other than defects in material,
design and workmanship.
1.
2.
3.
4.
5.
Making connections simpler
810

Maintenance Record
Date Serviced by
Product Model
IMEI Number
Fault Descriptions
Comments
