Jimi LL02 User manual

LL02 Magnetic GPS Tracker
(User Manual)
Email: customer-ser[email protected]
Tracking Website: Tracksolid.com
WhatsApp
Tracking App
Facebook Message

Content
Appearance...................................................................................................................................................... 1
Accessories...................................................................................................................................................... 2
Quick Setup......................................................................................................................................................5
Charging............................................................................................................................................... 5
Insert SIM card.................................................................................................................................... 6
Power ON / OFF..................................................................................................................................7
Download Tracksolid App...................................................................................................................8
Sign up & Login................................................................................................................................... 9
Troubleshooting............................................................................................................................................. 14
Indicators............................................................................................................................................ 14
Set up APN.........................................................................................................................................15
Get Help..............................................................................................................................................17
Install Device..................................................................................................................................................18
Double check before install............................................................................................................. 18
Install the magnetic base................................................................................................................. 18
Remove the magnetic base.............................................................................................................19
Main Functions.............................................................................................................................................. 20
Bottom menu......................................................................................................................................20
Console Menu....................................................................................................................................20
Real Time Tracking........................................................................................................................... 21
History Playback................................................................................................................................22
Geo Fence..........................................................................................................................................23
Set Work Mode..................................................................................................................................24
Multi-ways to View While Tracking................................................................................................. 25

1
Appearance
Light Sensor
Magnetic cover joint part
Waterproof Mic
Charging Port
Charging Contact
Magnetic Connector
Network LED
Power LED
GPS LED
On/Off Button

2
Accessories
Magnetic
Cover
5V/2A USB
Adaptor
Magnetic
Cable
Screws
Screwdriver
User Manual
* Note: A 4G SIM card is necessary to use the GPS locator.
Please prepare a SIM card that supports the following frequency
bands before starting to configure the device:
LTE Cat 1: B1/B3/B5/B7/B8/B20/B28
GSM: 850/900/1800/1900 MHz
IMEI

3
Specifications
GPS
Positioning system
GPS+WiFi+LBS
Frequency
L1
Positioning accuracy
<2.5m CEP
Track sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start ≤1sec
Avg. cold start ≤40sec
Network
Communication network
LTE + GSM
Frequency
LTE Cat 1:
B1/B3/B5/B7/B8/B20/B28
GSM: 850/900/1800/1900
Power
Battery
6,000mAh/3.7V industrial-grade
Li-Polymer battery
Working modes
Mode 1: Tracking mode
Mode 2: Power-saving mode
Magnetic charging port
Used for charging and debugging
LED indication
GPS (Blue), Network (Green),
Power (Red)

4
Physical specification
Dimensions
85.0 x 58.0 x 29.0mm
Weight
158g
SIM
4G Nano-SIM
Data storage
32+32Mb
Operating environment
Operating temperature
–20℃to +70℃
Operating humidity
5%-95%, non-condensing
IP rating
IP67
Feature
Sensors
Accelerometer, Light sensor
Scenarios
Low battery alert, Tamper alert,
Vibration alert, Over-speed alert,
Geo-fence
Specialties
On/off button disabling

5
Quick Setup
Charging
Use the original charger to charge the device.
The red LED is always on when charging, and it flashes slowly
when it is full.
A full charge usually takes about 3 hours.
Charging LED
Charging
Insert SIM
Power on
Download App
Sign up &
Bind Device

6
Insert SIM card
Unscrew the existing screws from the back cover using the
screwdriver.
(To simplify the steps, only 2 screws are installed during
production)
Insert 4G Nano SIM Card in correct direction.
SIM Card
Slot

7
Power ON / OFF
Power ON/OFF: Long press the power button for 3sec.
After power on, wait for the blue led to flash slowly (on for 1sec,
off for 3sec), which means that the device has connected to the
network via the SIM card successfully.
After confirming that the SIM card is working properly, restore
the back cover and use screws to fix the back cover.
What SIM Card should I to Choose?
Frequency Band
LTE Cat 1:
B1/B3/B5/B7/B8/B20/B28
GSM: 850/900/1800/1900
Network
4G
Data
Required (At least
20-30Mb/Month)
SMS
Required
Sim Type
Nano Size

8
*If the blue led keeps flashing quickly, the device may not
recognize the APN of the SIM card. Please refer to Set up APN to
set the APN manually.
*Please refer to here for the explanation of LED Indicator.
Download Tracksolid App
Search “Tracksolid” in App Store or Google Play to
download.
Scan the QR down below to download.
You can also login with the web link :

9

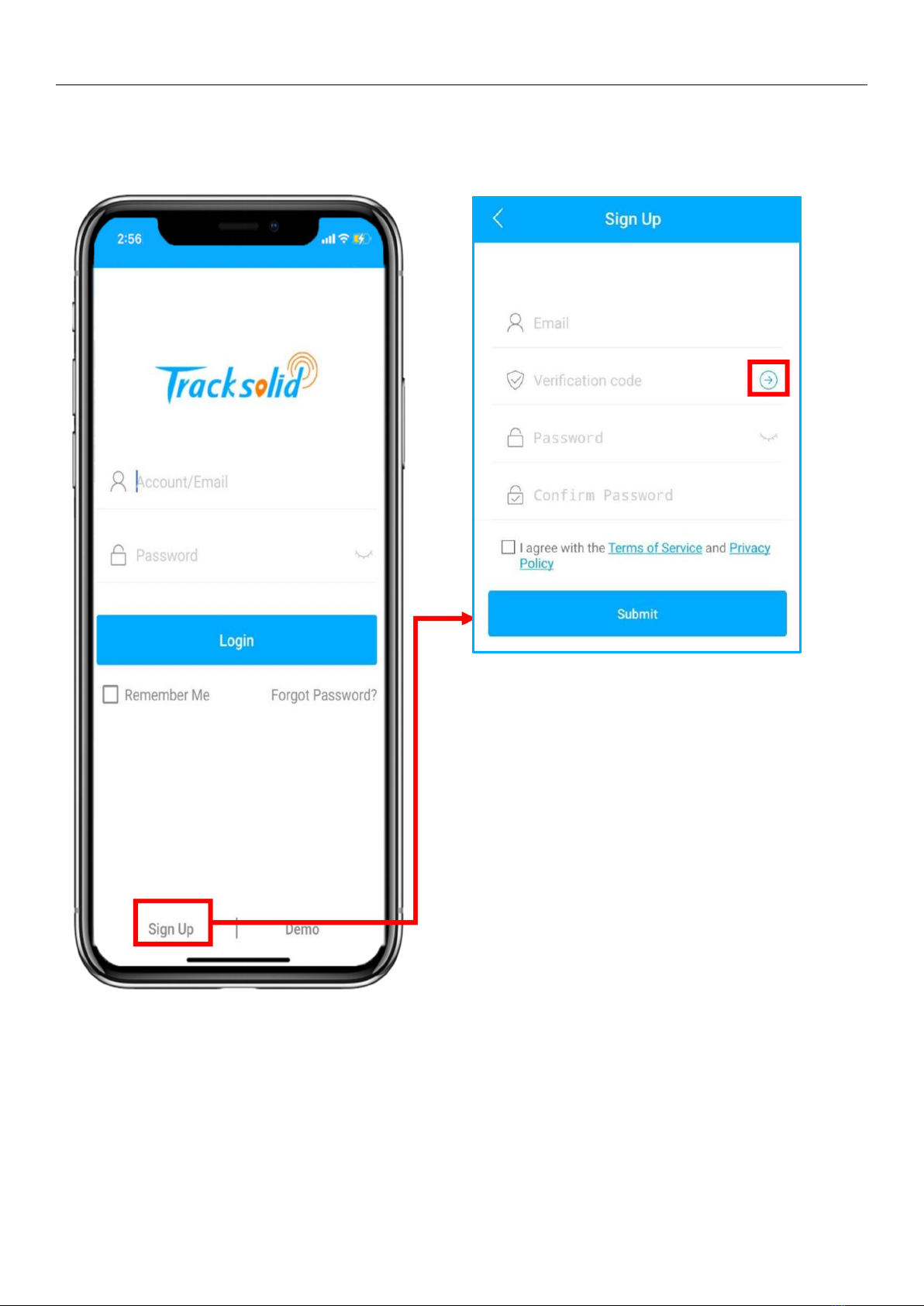

Sign up & Login
①Input your email
②Click ‘->’ to get verification
code
③Type in the code you find in
email
④Set up and confirm Password
⑤Agree the Terms
⑥Click on Submit
⑦Login with the email and
password
①
②
③
④
⑤
⑥
⑦

10
Bind Device
1. Click the ‘+’ on the top right to add device.
2. Scan or type in the IMEI barcode on the package or device
body.
Find the IMEI barcode
on package or device
Add Device
Scan
Barcode

11

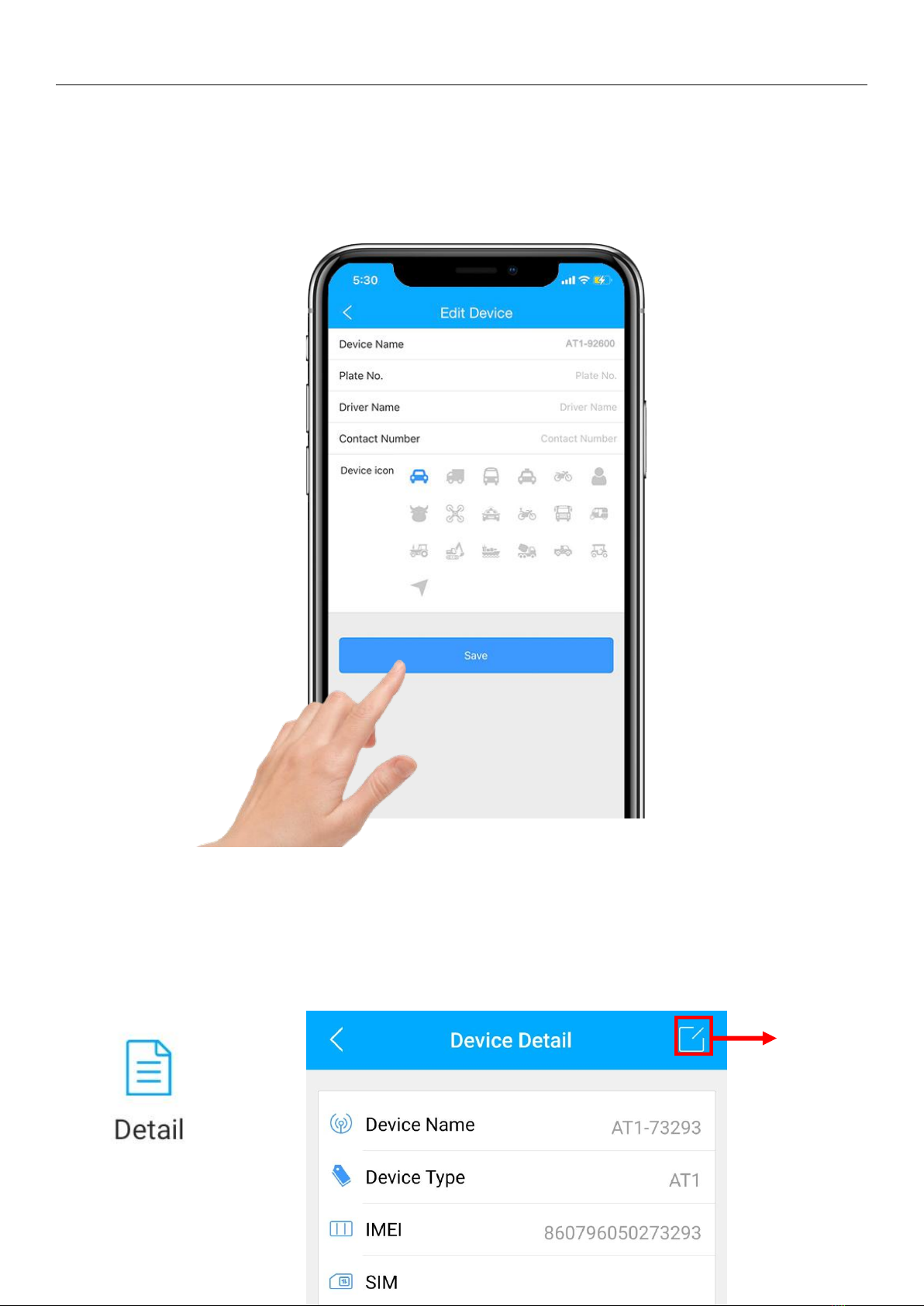

3. Click ‘Add Device’ to confirm binding.
Edit basic info about this device or click on ‘Save’ directly to
skip this step
You can come back and edit these info anytime in the ‘Detail’
Page
Edit

12

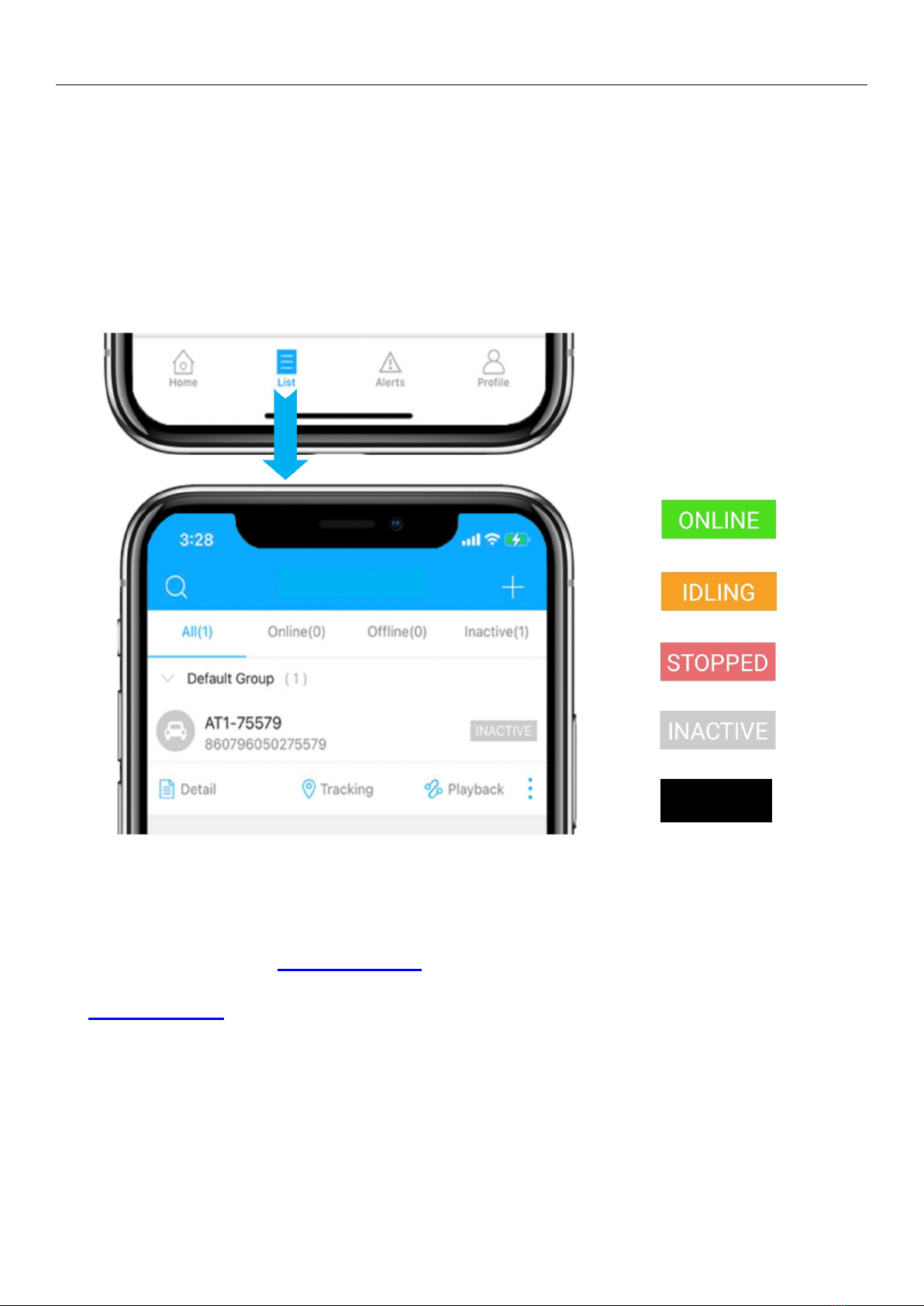

Get Device Online
Go to ‘List’, you will see the LL02 you just bind.
You can tell the status of the device via the color of the icons.
To get a location or send any command, the device must be
online.
Device Inactive
Usually inactive is because the device cannot match the APN.
Please refer to Set up APN.
Contact us with your IMEI number attached to get a technical
support.
Device Offline
Check whether the battery need to be charged.
Check whether the SIM card got sufficient balance.
OFFLINE
Status Indicator

13
If the power is on, check the LED indicator to find reasons.
Contact us with your IMEI number attached to get a technical
support.

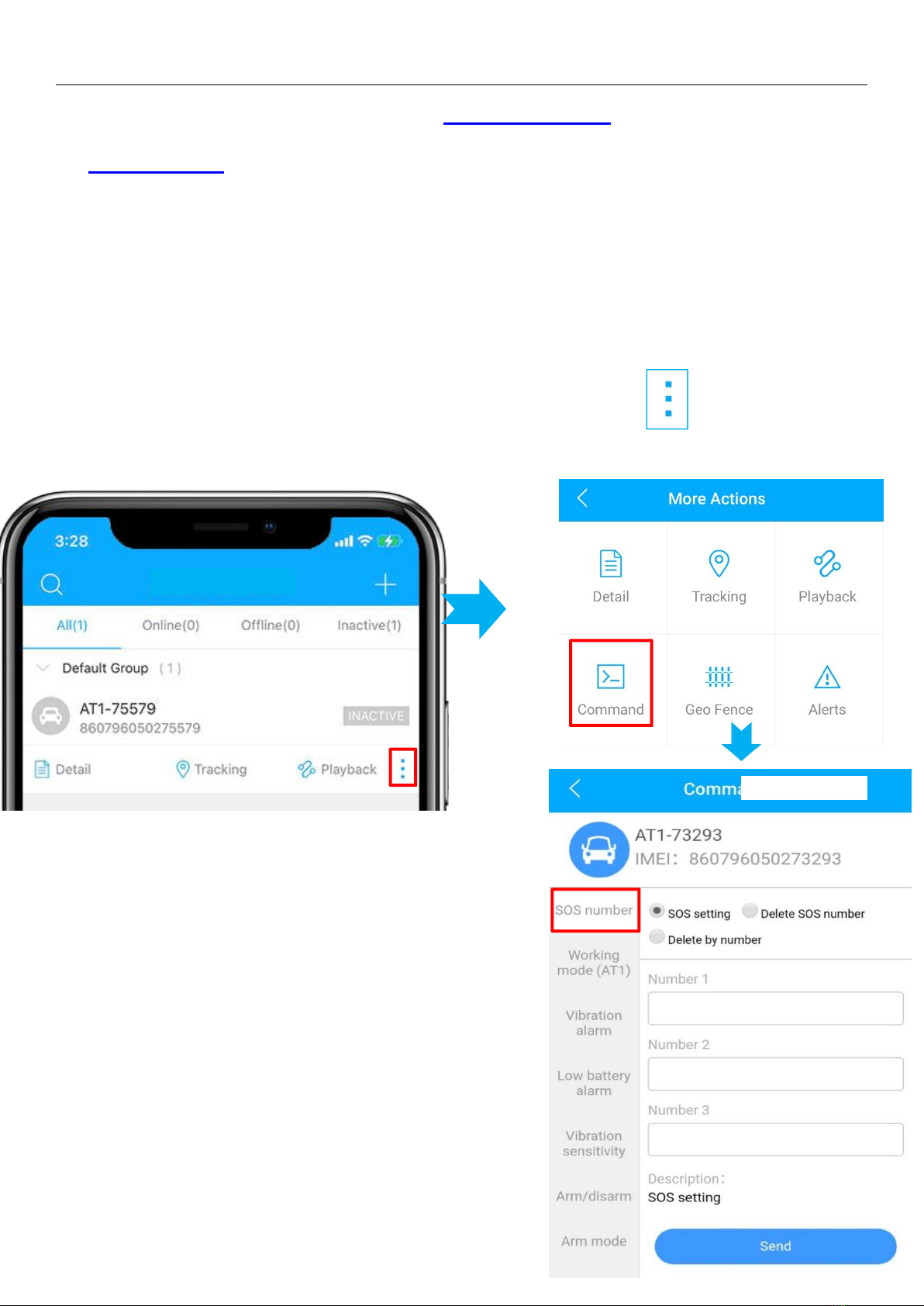

Set SOS number
After Device is online, you can set an SOS number to receive
SMS alert.
Find your device in the list page, click on the icon.
Go to ‘Command’ page to set the SOS number.
Set SOS number
1.Type in your number
2.Click ‘Send’
Delete SOS number
1. Choose corresponding number
to deelete
2.Click ‘Send’

14
Troubleshooting
Indicators
LED
Status
Meaning
Red
Always On
Charging
OFF
No battery or battery
failure
Moderate Flicker(1s on, 3s
off)
Fully charged
Flicker Quickly (0.3s on,
0.3s off)
Battery Low
Flicker Slowly(0.1s on; 3s
off)
Normally working
Blue
Flicker Quickly (0.3s on,
0.3s off)
Searching GPS
Flicker Slowly(1s on; 3s off)
GPS connected
successfully
OFF
GPS is on sleep
mode or not active

15
* Describing the LED status when contacting us will help locate
the problem.
Set up APN
If your device is unable to activate, you may need to set up
APN when first time use.
Step 1 - Confirm the SIM card frequency band compatible with
LL02:
LTE Cat 1:B1/B3/B5/B7/B8/B20/B28
GSM: 850/900/1800/1900 MHz
Step 2 - Insert the SIM card into your smartphone and disable the
PIN code.
Green
Always On
Calling
Flicker Quickly (0.3s on,
0.3s off)
GSM Initialization
Flicker Slowly(0.1s on; 3s
off)
GPRS online
Moderate Flicker(1s on; 3s
off)
GPRS connected
successfully
OFF
No GSM signal No
SIM

16
Step 3 - Get the APN name from carrier or Google it.
Step 5 - Insert SIM back into the device and power on LL02, then
send an SMS command (APN,APNname#) to the SIM card.
e.g.:
APN name: mobilenet
Then send the command:
APN,mobilenet#
(No spaces between the commands)

17
Step 4 – Reboot the device and find it online.
Get Help
Email us: [email protected]
Messenger us on Facebook: FB.com/PjxerdQ
Live chat via WhatsApp: [phone]

18
Install Device
Double check before install
Check if the device can work normally before installing the
magnetic base
Make sure the SIM card is insert correctly
Check whether the device is online in the Tracksolid. Please
contact us and get help if the device is inactive or offline.
Install the magnetic base
Align the magnetic base hole with the tamper detector on the
back of LL02. Put the base over the device.
Insert the magnetic base from the side with tamper detector.
Push in to make the base parallel to the device, and then push
it back to lock in.
①
②
③
