JNS Aquaria FR-1ES User manual

2( Only if you need to switch the hosebarbs from 20 mm to 13 mm)
1Loosen the thumb screws. Turn lid counterclockwise to release.
Recommendations
Filling Your Media
While we take great care to keep any contaminates away from our products
during assembly, please take a moment to clean the reactor and plumbing
before attaching to your tank. Only clean your reactor with warm water. Never
clean Acrylic with alcohol based products. Use caution when handling as
acrylic scratches easily.
Please keep in mind that a media reactor is intended to be a bypass filter, and
is not designed to handle the complete flow and pressure requirements of a
large aquarium system.
1.
2.
Some media (such as phosphate control products) is not designed to be
aggressively fluidized in a reactor – please read the instructions on your media
carefully.
The reactor should be cleaned out every time that the media is replaced
ensuring that there is no media below the bottom plate.
3.
4.
O-ring
Includes:
Main Body *1
Accessories:
3/4” (20 mm) hose barbs
FR-1E / FR-2E / FR-2ED
1/2” (13 mm) hose barbs
FR-1ES
1/2” (13 mm)hose barbs *2
1/2” (13 mm)hose barbs *4
- FR-1ES: *2 *1
*2
*2 *1
*2
*4 *2
*4
- FR-2ED:
- FR-1E / FR-2E:
The included hosebarbs could be switched from 3/4" to 1/2", just unscrewing the
hosebarbs' fasteners from beneath the lid, then pressing the hosebarb upward
out of their hexagonal recess.
Unique design of inlet and outlet could be set in multiple ways, could be
suitable for any tubing.
One and Only Multiple ways to set!
Don’t forget
to switch
the O-rings!
FR-1ES / FR-1E / FR-2E / FR-2ED
Installation Guide             
             
Fluidized GFO and Carbon Filter Media Reactor

JNS warrants all JNS products to be free from manufacturing defects for one year from the original purchase date when purchased through an authorized JNS retailer. This
warranty does not cover any damages caused by misuse, neglect, alterations or improper handling / transport / maintenance / installation. Physical damages are not
covered by warranty. JNS does not cover personal injury, personal loss, or other damages associated with the use of our products. In order to request warranty service,
please email us at [email protected]. A purchase receipt is required for any warranty services. Products requiring warranty service must be returned to JNS. You are
responsible for the cost of shipping a warranty claim to JNS and any damages that may occur during transit. Once a returned product has been inspected, it will be repaired
or exchanged at our discretion and returned to you. International and/or expedited shipping are not covered under your JNS warranty.
Warranty
If the diameter of your media is
above 2mm, you can skip to
Because the set of filter sponges is
not necessary for bigger media,
please read the instructions of your
media carefully.

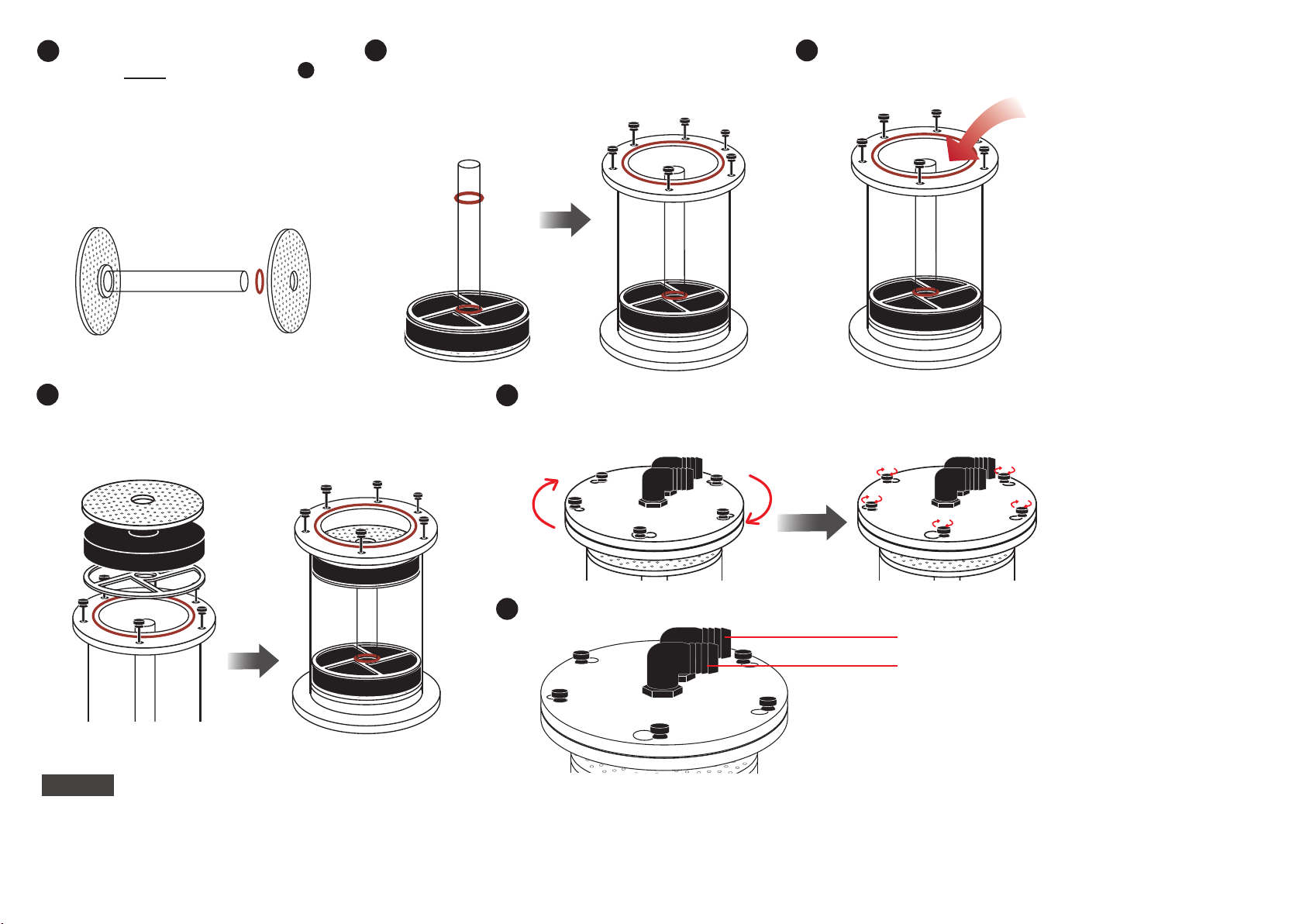

3
Remove the upper media plate
and the O-ring.
Install the set of filter sponges.
Make sure the sponge is all the way at the bottom
of the reactor, flush against the plate – otherwise
the media may leak past it when filling
4
67
5Now you can fill in your media, but watch out not to fill into
the central tube. You can temporarily block the top of the
central tube to stop media from going down the central tube.
8
Replace the reactor lid, turn clockwise and gently tighten the thumb screws.
CAUTION: DO NOT OVER TIGHTEN THE SCREWS.
Tips: Tighten the screws in a star pattern to evenly secure the lid.
Connect the Inlet and outlet hose to Inlet and outlet fitting of the lid.
Inlet
(connects to central tube)
Outlet
the reactor should be filled no
more than 2/3 full to allow the
media room to move around.
With heavy or fine media, you
may need to add less.
Install the rest of the set of filter sponges (not
necessary if media diameter is above 2mm) and the
upper media plate. The plenum may fit snugly, please
use caution when sliding it on.
5
