Jobsite IR-CB1 User manual

For Routing Infrared
Commands from One IR
Receiver to Four Sources
ONE ZONE IR CONNECTING BLOCK IR-CB1
DATA SHEET

IR-CB1
ONE ZONE IR CONNECTING BLOCK
FEATURES
• Provides one IR receiver input and four IR emitter outputs
• LED power indicator
• 12V DC status input jack and LED indicator
INSTALLATION FRIENDLY DESIGN:
• Snap and lock connector secures wire in place without the use of a
screwdriver
• Wings allow for either vertical of horizontal mounting
• 3.5mm emitter output jacks
• Includes in-line UL listed regulated power supply
SPECIFICATIONS
• IR system: Works with practically all brands of IR remote controls
• Connections: 1 receiver input, 4 emitter outputs
•Home runs required from each IR receiver
WIRING REQUIREMENTS:
• Category 5 or better
MOUNTING:
• Wall or flat surface: use drywall screws
DIMENSIONS:
• 4-3/4” wide x 1-1/4” high x 2” deep
WARRANTY:
• 2 year limited
ONE ZONE IR CONNECTING BLOCK IR-CB1
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM

ONE ZONE IR CONNECTING BLOCK IR-CB1
PREPARING FOR INSTALLATION:
The IR Receiver cables, Emitter cables and the 12V DC power supply cable must
all reach the proposed location of the IR-CB1 connecting block. Mark the cables
with Wire labels, describing where the cables originate from, rather than where
they will terminate. Locate a local un-switched AC outlet to be used to power the
IR-CB1 power supply.
INSTALLATION:
1. Run all the necessary wiring to the IR-CB1. Label the wires for future
reference.
2. Plug the supplied 12V DC power supply into the un-switched AC outlet.
3. Plug the 12V DC power supply connector into the IR-CB1 socket marked
POWER.
4. After verifying that the AC outlet works, unplug the power supply connector.
5. Strip 1/4" of insulation from the end of each CAT5 wire.
6. Locate the Snap and lock connectors and remove them if they are plugged in.
7. Use a small flathead screwdriver or your thumb to raise the locking tabs,
exposing the holes on the connectors.
8. Insert each wire into the appropriate hole and snap down the locking tabs.
9. Insert the smooth side of the connector plug into the smooth side of the
IR-CB1 socket.
10. Connect the Emitters to the Emitter outputs.
11. Plug the 12V DC power supply connector into the IR-CB1 socket marked
POWER.

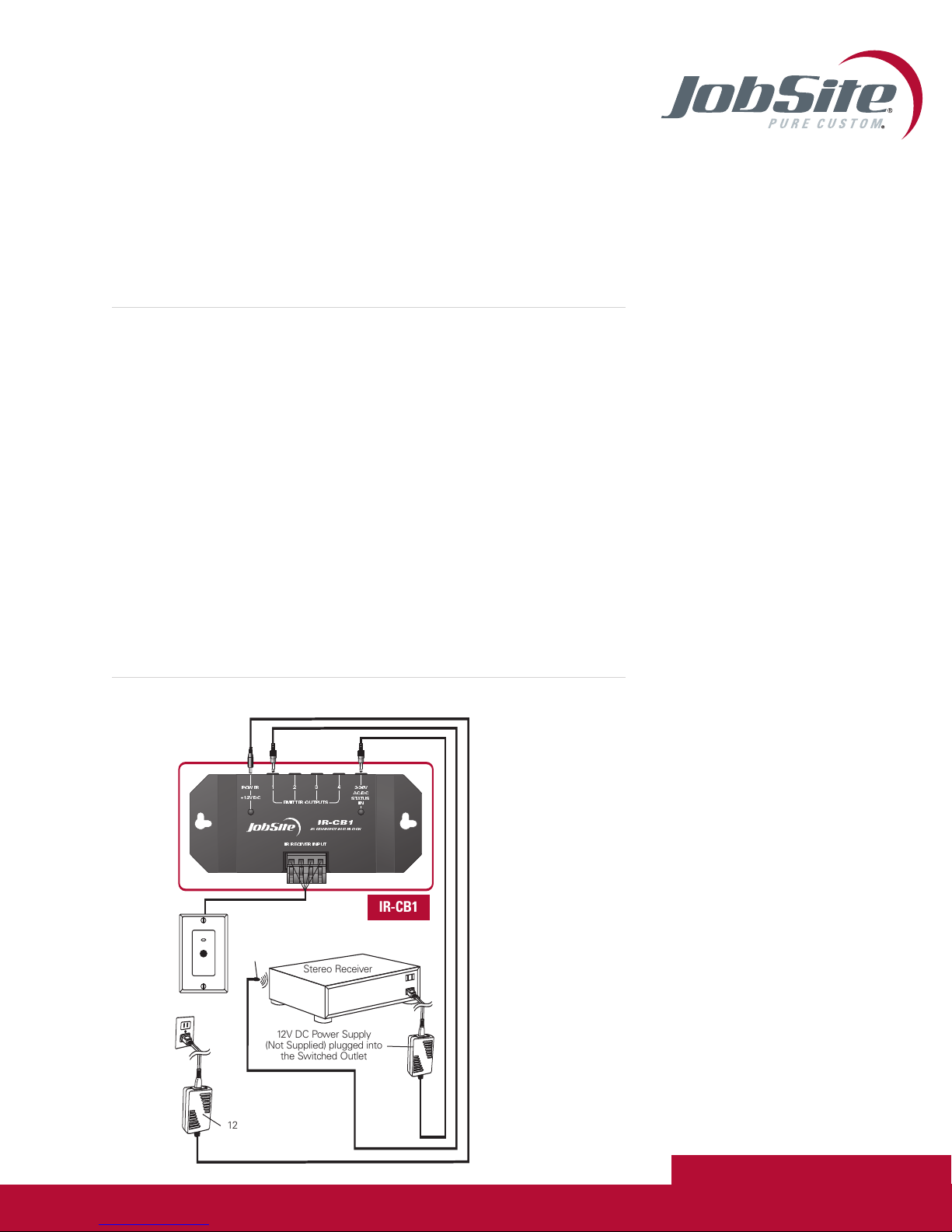

IR-CB1 INSTALLATION DIAGRAM
1234
POWER
+12V DC EMITTER OUTPUTS
IR-CB1
IR CONNECTING BLOCK
IR RECIVER I N PUT
3 - 3 0 V
A C / DC
ST
A TUS
I
N
IR-CB1
Stereo Receiver
12V DC Power Supply
(Not Supplied) plugged into
the Switched Outlet
12V DC Power Supply
Plugged into an Unswitched
AC Outlet Powers the System
IR-WMR
JobSite
IRE1
Emitter
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM
©2004 Niles Audio Corporation. JobSite,
Pure Custom and Niles are registered
trademarks of Niles Audio Corporation
and the JobSite Logo is a trademark of
Niles Audio Corporation. JSIRCB1PDF
Specifications subject to change without notice.
