LCD/PLASMA-PROOF WALL MOUNT IR RECEIVER IR-WMR MKII
For Receiving and Routing
Infrared Commands from
any Remote Control

FEATURES
• LCD/Plasma proof design
• Rejects interference from flat panel displays, CFL lighting or indirect sunlight
• Works with practically all remotes
• Extended receiving range
• Red talkback LED indicates when A/V system is on
• Blue talkback LED confirms reception of IR signals
INSTALLATION FRIENDLY DESIGN:
• Snap and lock connector secures wire in place without the use of a screwdriver
• Includes Decora® faceplate
SPECIFICATIONS
• IR system: Works with practically all brands of IR remote controls
• IR receiving (varies by brand of remote control): 20'-35' (609.6 cm -1066.8 cm)
• 18˚-30˚ degrees off-axis operation
WIRING REQUIREMENTS:
• CAT-5 or better
• Home runs required
MOUNTING:
• Single gang electrical box
DIMENSIONS:
• 1-5/8” (41.3 mm) wide x 2-5/8” (66.7 mm) high x 1-1/4” (31.8 mm) deep
WARRANTY:
• 2 year limited
LCD/PLASMA-PROOF WALL MOUNT IR RECEIVER IR-WMR MKII
IR-WMR MKII
LCD/PLASMA-PROOF WALL MOUNT IR RECEIVER
IR-WMR MKII WHITE
PART# FG01458

LCD/PLASMA-PROOF WALL MOUNT IR RECEIVER IR-WMR MKII
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P 866.4JB.SITE (866.452.7483)
F 305.238.0185
WWW.JOBSITESYSTEMS.COM
©2007 JobSite Systems. All rights
reserved. JobSite, Pure Custom and Niles
are registered trademarks of Niles Audio
Corporation and the JobSite Logo is a
trademark of Niles Audio Corporation. All
other trademarks are the property of their
respective owners. CS0170A
Specifications subject to change without notice.
PREPARING FOR INSTALLATION:
If you are installing the IR-WMR MKII into an existing wall, take time to
consider any possible obstructions which may be hidden inside the wall,
such as wood or metal studs, electrical, telephone or other types of wiring,
plumbing, AC or heating conduit. You should avoid locating the IR-WMR MKII
near potential sources of electrical or optical noise, such as light dimmers or
low-voltage lights.
INSTALLATION:
1. Identify the IR Receiver wire. Label the wire for future reference.
2. Strip 1/4” (6.4 mm) of insulation from the end of each CAT-5 wire.
3. Locate the Snap and lock connector and remove it if it is plugged in.
4. Use a small flathead screwdriver or your thumb to raise the locking tabs,
exposing the holes on the connector.
5. Insert each wire into the appropriate hole and snap down the locking tabs.
6. Insert the smooth side of the connector plug into the smooth side of the
IR-WMR MKII socket.
7. Install the IR-WMR MKII into the device ring.
8. Fasten the cover plate.

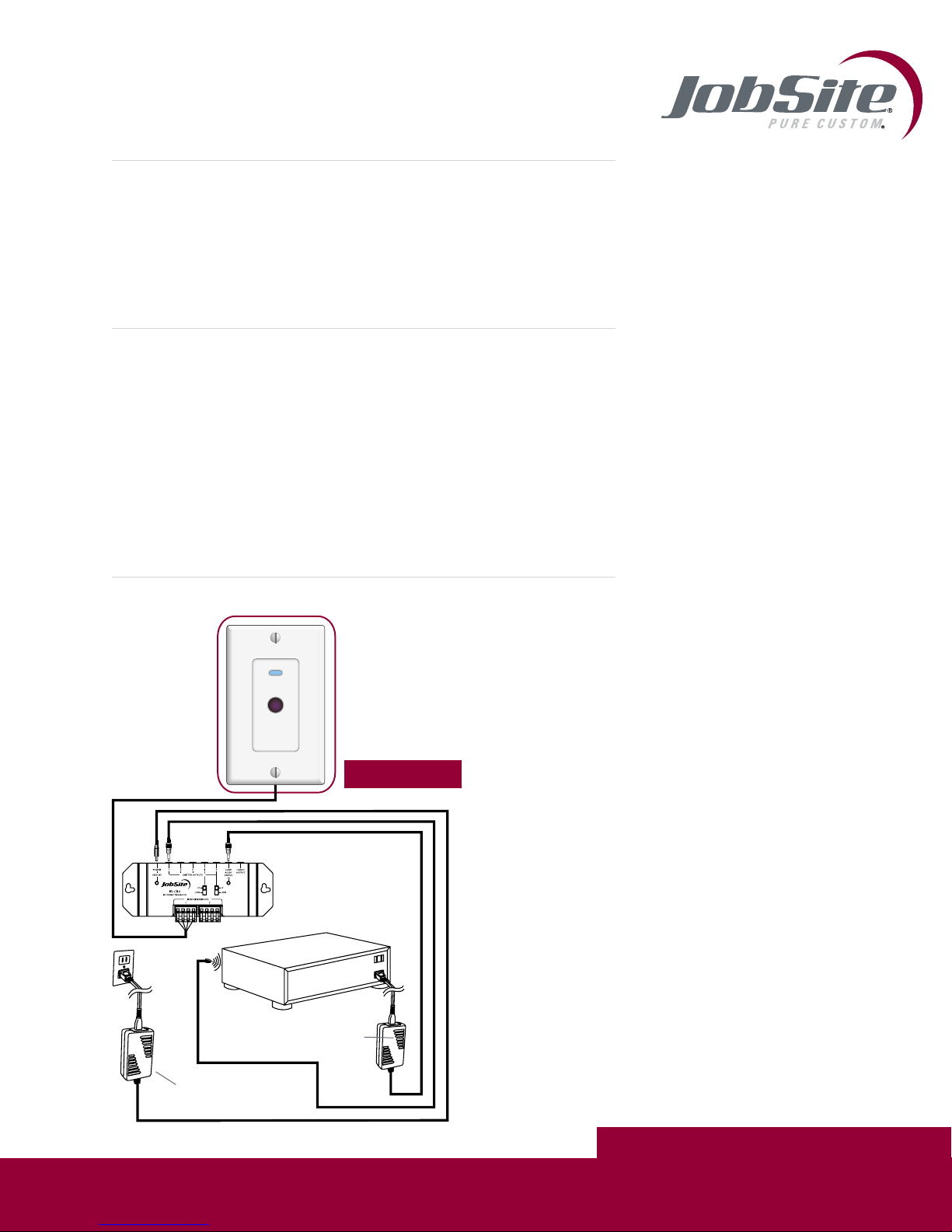

IR-WMR MKII INSTALLATION DIAGRAM
Stereo Receiver
12V DC Power Supply
(Not Supplied) plugged into
the Switched Outlet
12V DC Power Supply
Plugged into an
Unswitched AC Outlet
IR-CB-2
JobSite
IR-E1
Emitter
IR-WMR MKII
