Jobsite V-T8 User manual

For Parallel Signal Distribution to
Multiple Volume Controls
VOLUME CONTROL CONNECTION TERMINAL
V-T8
DATA SHEET

V-T8
VOLUME CONTROL CONNECTION TERMINAL
FEATURES
• Distributes audio signals for eight speaker pairs
• Reduces wiring clutter
INSTALLATION FRIENDLY DESIGN:
• Accepts up to 14 gauge wire
• Snap and lock connector secures wire in place without the use of a
screwdriver
• Mounts in 6” center structured wiring cabinets with the provided Christmas
tree snap-in plugs
• Wings allow for either vertical of horizontal mounting
SPECIFICATIONS
• Mounting: In a structured wiring Cabinet using Christmas tree snap-in
plugs (included)
•Wall or Flat Surface: Use drywall screws
• Power handling: 100 watts per channel
• Frequency response: +0 dB, -0 dB (flat) from 20Hz to 20kHz
WIRING REQUIREMENTS
• 2 individual runs of 2-conductor 14-18 gauge speaker wire or 1 run of
4 conductor
MOUNTING:
• In a structured wiring Cabinet using Christmas tree snap-in plugs (included)
DIMENSIONS:
• 6-7/8” wide x 3” high x 1-1/4” deep
WARRANTY:
• 10 year limited
MUTING VOLUME CONTROL CONNECTION TERMINAL
V-T8
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM

MUTING VOLUME CONTROL CONNECTION TERMINAL
V-T8
PREPARING FOR INSTALLATION:
The Speakers/Volume Control cables and Amplifier cables must all reach the
proposed location of the V-T8 distribution hub. Mark the cables with Wire
labels, describing where the cables originate from, rather than where they
will terminate.
INSTALLATION:
1. Select an appropriate location for the V-T8.
2. Run all the necessary wiring to the V-T8. Label the wires for future reference.
3. Strip 1/4" of insulation from the end of each wire. Tightly twist the end of
each wire until no frayed ends remain.
4. Locate the snap and lock connectors and remove them if they are plugged in.
5. Use a small flathead screwdriver or your thumb to raise the locking tabs,
exposing the holes on the connectors.
6. Insert each wire into the appropriate hole and snap down the locking tabs.
7. Insert the smooth side of the connector plug into the smooth side of the
V-T8 socket.
8. Connect the Amplifier to the connector terminal labeled: INPUT FROM AMP.
9. Connect the Speaker wires to the connector terminals labeled: OUTPUTS TO
VOLUME CONTROLS.

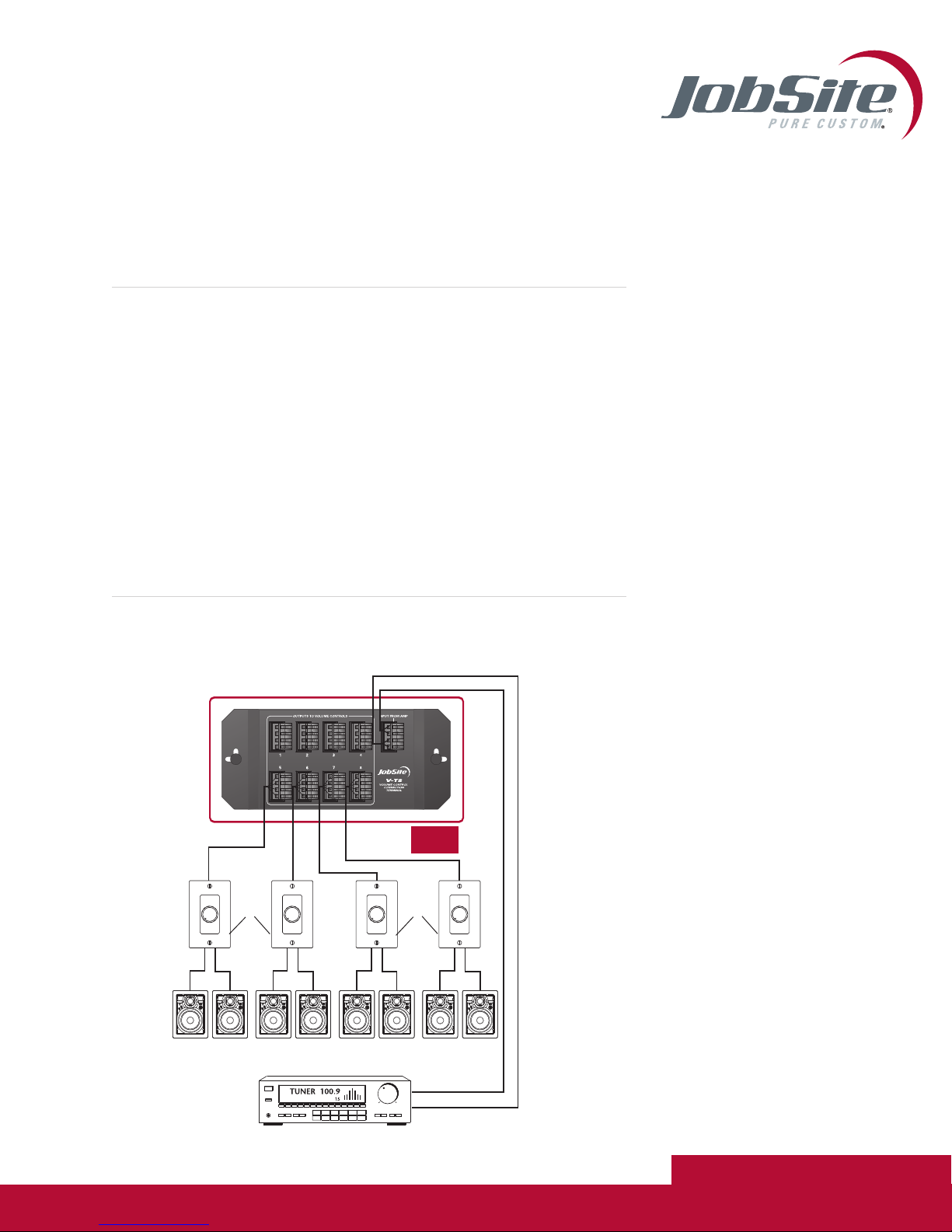

V-T8 INSTALLATION DIAGRAM
Stereo Receiver
Speaker
Pair 4 Speaker Pair 3 Speaker Pair 2 Speaker Pair 1
V-T8
JobSite
V-12 JobSite
V-12
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM
©2004 Niles Audio Corporation. JobSite,
Pure Custom and Niles are registered
trademarks of Niles Audio Corporation
and the JobSite Logo is a trademark of
Niles Audio Corporation. JSVT8PDF
Specifications subject to change without notice.
