Jocel JC321NFB User manual

COMBI
JC321NFB
INSTRUCTION MANUAL

Cont ent s
1. SAFETY WARNINGS........................................................................................................1
2. INSTALLTION .................................................................................................................2
2.1 Loca on .................................................................................................................2
2.2 Reversing the Door Swing....................................................................................... 2
2.3 Door Space Requirements ......................................................................................2
2.4 Levelling the Unit ................................................................................................... 2
2.5 Cleaning Before Use ............................................................................................... 2
2.6 Before Using Your Unit ...........................................................................................2
2.7 Interior Accessories ................................................................................................ 3
3. PRODUCT OVERVIEW ....................................................................................................4
4. OPERATION ...................................................................................................................4
4.1 Opera on Instruc ons............................................................................................ 4
4.2 Noise Inside the Unit! ............................................................................................. 6
4.3 Tips for Keeping Food in the Unit............................................................................6
4.4 Change the Light Bulb............................................................................................. 6
5. CLEANING......................................................................................................................6
5.1 Defros ng ..............................................................................................................6
5.2 Cleaning the Interior and the Exterior of the Unit ...................................................6
5.3 Cleaning Tips ..........................................................................................................6
6. MAINTENANCE..............................................................................................................7
6.1 Changing the Internal Light..................................................................................... 7
6.2 Care When Handling / Moving Your Unit ................................................................ 7
6.3 Servicing................................................................................................................. 7
6.4 Switching Ofor Long Periods of Time ...................................................................7
6.5 Do not shield posi ons of air outlet and return air inlet of the refrigerator.............7
7. Trouble shoo ng ...........................................................................................................7
7.1 Warm tips: .............................................................................................................8
8. TIPS FOR ENERGY SAVING.............................................................................................. 8
9. DISPOSAL ......................................................................................................................8

1
1. SAFETY WARNINGS
1) WARNINGKeep venlaon openings, in the appliance enclosure or in the built-in
structure, clear of obstrucon.
2) WARNINGDo not use mechanical devices or other means to accelerate the defrosng
process, other than those recommended by the manufacturer.
3) WARNINGDo not damage the refrigerant circuit.
4) WARNINGDo not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5) The appliance has to be unplugged aer use and before carrying out user maintenance on the
appliance.
6) This appliance can be used by children aged from 8 years and above and persons with reduce
physical sensory or mental capabilis or lack of experience and knowledge if they have been
given supervision or instrucon concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
7) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualid persons in order to avoid a hazard.
8) Please abandon the refrigerator according to local regulators for it use ammable blowing gas
and refrigerant.
9) Please according to local regulaons regarding disposal of the appliance for its ammable
refrigerant and blowing gas. Before you scrap the appliance, please take othe doors to prevent
children trapped.
10) This appliance is intended to be used in household and similar applicaons such as
– stakitchen areas in shops, oces and other working environments;
– farm houses and by clients in hotels, motels and other residenal type environments;
– bed and breakfast type environments;
– catering and similar non-retail applicaons.
11)Do not store explosive substances such as aerosol cans with a ammable propellant in this
appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

2
2. INSTALLTION
2.1 Location
When selecng a posion for your unit you should make sure the floor is flat and rm, and the
room is well venlated. Avoid locang your unit near a heat source, e.g. cooker, boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumpon. Extreme cold ambient
temperatures may also cause the unit not to perform properly. This unit is not designed for use in
a garage or outdoor installaon. Do not drape the unit with any covering.
When installing the unit, ensure that 10 cm of free space is leat both sides, 10 cm at the rear
and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efciency of the cooling process.
2.2 Reversing the Door Swing
1) Take off knuckle guard.
2) Take off top hinge.
3) Take off the door of refrigerating chamber
4) Take off middle hinge with a screw driver

2
5) Take off the door of freezing chamber
6) Take off hinge assembly with a screw
driver , Assemble lower hinge assembly to
left side of the cabinet with a screw driver
7) Assemble the door of freezer chamber on
the lower hinge
8) Assemble middle hinge assembly to left
side of the cabinet
9) Assemble the door of refrigerating
10) Take on knuckle guard.

2
2.3 DoorSpace Requirements

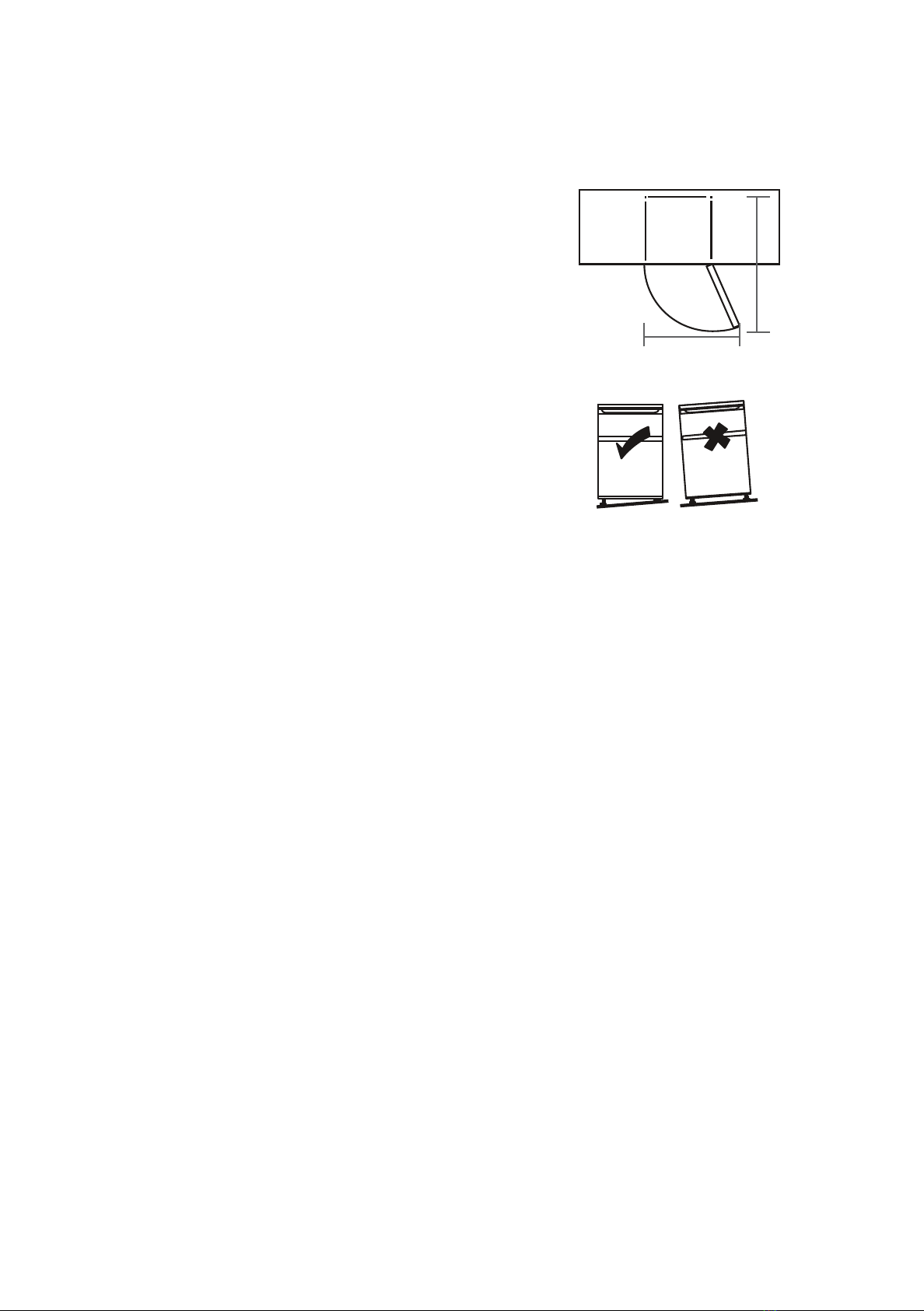

The unit's door must be able to open fully as shown.
W×D≥990×1025mm
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnec seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, ghtening.
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak soluon of bicarbonate soda. Then rinse with warm
water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more informaon refer to the Cleaning secon.
2.6 Before Using Your Unit
The refrigerator adopts 220~240V/50Hz AC power, voltage uctuaons over the range of 187 ~
264V will cause malfuncon or even damage.
Do not damage the power cord under any condion so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put ammable, explosive, volale and highly corrosive items in the refrigerator to prevent
damages to the product or re accidents.
Do not place ammable items near the refrigerator to avoid res.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to naonal standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as boled or sealed container of f luid such as boled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it me to fall to the correct temperature. Your unit should not be overlled.
W
D

3
Do not damage the power cord under any condion so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put ammable, explosive, volale and highly corrosive items in the refrigerator to prevent
damages to the product or re accidents.
Do not place ammable items near the refrigerator to avoid res.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to naonal standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as boled or sealed container of uid such as boled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it me to fall to the correct temperature. Your unit should not be overlled.
Do not store or place dry ice in the refrigerator.
Before Plugging in
You must check that you have a socket which is compable with the plug supplied
with the unit.
Before Turning On!
Do not turn on unl two hours aer moving the unit.
2.7 Interior Accessories
Various glass or plasc storage shelves are included with your appliance - different
models have different combinaons.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this posion. To do
this, pull the storage shelf forward unl it can be swiveled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out
of the appliance, according to your daily use.

4
3. PRODUCT OVERVIEW
*Do ed line represents the pos on of air outlet and return air inlet.
*All images in this instruc on manual are for indica on only; please refer to your individual unit for details.
4. OPERATION
4.1 Opera on Instruc ons
Temperature control
Temperature control of fresh food storage compartment
（Built-in ）
2 c 3 c 4 c 6 c 8 cTEMPERATURE FASTCOOL
A fast cool①②③④⑤

5
Key
A.SET: gear seng key
Display screen
1 Gear 1
2 Gear 2
3 Gear 3
4 Gear 4
5 Gear 5
Display
For the rst power-on, the display screen (including the key light) will be displayed in full for 3s,
and then the gear in the middle displays the state of running
Display of normal running
On the occurrence of a failure, the corresponding LED light will give a combined display of failure
code (loop display);
Where there is no failure, the LED light will display the current running gear of the refrigerator.
Gear setting
The gear will be changed once every me when you press the key SET. Then, the refrigerator will
run under the seng value aer 15s.
Fast cool function
Enter: Circulang modulaon rapid cooling mode
Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2.
Exit: 1. Operate 150min under the rapid cooling mode
2. Temperature adjustment can exit from the rapid cooling mode
Temperature control of freezing chamber
The freezing temperature is rela low in “COLDER” posion, while the freezing temperature
is rela high in “COLD” posion, thus, “NORMAL” posion is generally used.
When ambient temperature is high in summer, the temperature shall be in the range from
“NORMAL” to “COLD”. If the ambient temperature is above 35, then “COLD” posion shall
Gear 1
Gear 2
Gear 3
Gear 4
Gear 5

6
prevail.
When ambient temperature is low in winter, the temperature shall be in the range from
“NORMAL” to “COLDER”. If the ambient temperature is below 10, then “COLDER” posion shall
prevail.
4.2 Noise Inside the Unit!
You may noce that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulaon of the refrigerant liquid in the cooling system. It has
become more pronounced since the introducon of CFC free gases. This is not a fault and will not
aect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
To prevent cold air escaping from the unit, try to limit the number of mes you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
4.4 Change the Light Bulb
Lamp replacement by professionals
5. CLEANING
5.1 Defrosng
Auto-defrost for Frost-free Refrigerator
5.2 Cleaning the Interior and the Exterior of the Unit
Remove all the shelves and the salad bin. To remove the salad bin first remove the lower
door shelf.
Wipe the inside of the unit with a weak soluon of bicarbonate soda and then rinse with
warm water using a“wrung-out”sponge or cloth. Wipe completely dry before replacing the
shelves and salad bin.
Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish geng on the magnec door seal or inside
the unit.
The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a sobrush aachment.
5.3 Cleaning Tips

7
Condensaon may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem connues, please contact a qualified
technician for assistance.
6. MAINTENANCE
6.1 Changing the Internal Light
Lamp replacement by professionals.
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lied
by holding the edges of the top surface.
6.3 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be
used. Under no circumstances should you aempt to repair the unit yourself. Repairs carried out
by inexperienced persons may cause injury or serious malfuncon. Contact a qualitaly
technician.
6.4 Switching Off for Long Periods of Time
When the unit is not in use for a long period of me, disconnect it from the mains supply, empty
all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
6.5 Do not shield posions of air outlet and return air inlet of the refrigerator
6.6 Do not keep foods of higher temperature close to temperature sensor
6.7Take out drawer of freezing chamber of refrigerator and put foods directly on the
glass paron
7. Trouble shoong
The following simple issues can be handled by the user. Please call the aer-sale service
department if the issues are not seled.
Inoperaon
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are roen;
Whether the interior shall be cleaned.
Long-term operaon of
compressor
It is normal that refrigerator operates for longer me in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one me;
Do not put foods unl they are cooled;
Frequent opening of refrigerator door.
Illuminang light does not
shine
Whether the refrigerator is connected to power,
whether the illuminang light is damaged.
The refrigerator door can not
The freezer door is stuck by food packages;

8
be properly closed. Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
7.1 Warm ps:
The refrigerator enclosure may emit heat during operaon specially in summer, this is caused
by the radiaon of the condenser, and it is a normal phenomenon.
Condensaon: condensaon phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensaon can be wiped away with a dry towel.
Buzz: Buzz will be generated by running compressor specially when starng up or shung
down.
8. TIPS FOR ENERGY SAVING
Try not to open the door too oen, especially when the weather is wet and hot. Once you open
the door, close it as soon as possible.
Every now and then check if the appliance is suciently venlated (adequate air circulaon
behind the appliance).
In normal temperature condions, please arrange the thermostat at the middle seng.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient
temperature.
Ice and frost layer increase energy consumpon, so clean the appliance as soon as the layer is 3-5
mm thick.
If it is the outer condenser, the rear wall should be always clean free of dust or any impuris.
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heang ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or
spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulaon, making the appliance less ecient.
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one me, and close the door as soon as possible.
9. DISPOSAL
Old units sll have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in your

9
unit and insulaon materials require special disposal procedures. Ensure that none of the pipes
on the back of the unit are damaged prior to disposal. Up to date informaon concerning opons
of disposing of your old unit and packaging from the new one can be obtained from your local
council ofce.
When disposing of an old unit break of any old locks or latches and remove the door as a
safeguard.
Correct Disposal of this product
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device,
please use the return and collecon systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
For more informaon, please contact the local authority or your retailer where you purchased
the product.

GENERAL WARRANTY TERMS
1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to
faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for
repair or replacement of defective parts, according to the discretion of our
technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or
poor use, improper assembly or installation, as well as external influences
such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the
instructions, or connected to FEEDING NETWORKS not guarantee a constant
voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused
directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs,
alterations or interventions by any person not authorized by Jocel.
THE WARRANTY EXPIRES
1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for
industrial appliances, warranty expires and assistance will be made by
charging the costs of manpower, according to current fees.
TECHNICAL ASSISTANCE
For technical assistance request, our services are available through the
following contacts:
Telef. 00 351 252 910351
Fax: [phone]
E-mail: [e-mail]
http://www.jocel.pt
10

HEADQUARTERS:
Rua Alto do Curro, n.º 280
4770-569 S. COSME DO VALE
V.N. de FAMALICÃO
Telef: 252 910 350/2
Fax: [phone]
email: [e-mail]
http://www.jocel.pt
DECLARATION OF CONFORMITY
We declare on our own responsibility that the machine indicated below:
Product COMBI
Brand JOCEL
Model JC321NFB
Complies with the following European directives and standards implementation.
Low Voltage 2014/35/EU EN 60335-1:2012+A11:2014
EN 60335-2-24:2010
EN 62233:2008
Electromagnetic Compatibility 2014/30/EU EN 55014-1:2014
EN 55014-2:2015
EN 61000-3-3:2013
EN 55014-2:2015
11

COMBINADO
JC321NFB
MANUAL DE INSTRUÇÕES
MANUAL DE INSTRUCCIONES

2
ÍNDICE
1. AVISOS DE SEGURANÇA ............................................................................................ 3
2. INSTALAÇÃO ................................................................................................................. 4
2.1 Localização .................................................................................................................... 4
2.2 Inverter a abertura da porta ........................................................................................... 5
2.3 Requisitos de espaço da porta ...................................................................................... 7
2.4 Nivelamento do aparelho …........................................................................................... 7
2.5 Limpeza antes da utilização .......................................................................................... 7
2.6 Antes de utilizar o aparelho............................................................................................ 7
2.7 Acessórios ..................................................................................................................... 9
3. VISÃO GERAL DO PRODUTO..................................................................................... 10
4. FUNCIONAMENTO ....................................................................................................... 10
4.1 Instruções de operação ............................................................................................... 10
4.2 Ruído no interior do aparelho ...................................................................................... 12
4.3 Dicas para conservar os alimentos ..............................................................................12
4.4 Substituir a lâmpada ....................................................................................................13
5. LIM PEZA ...................................................................................................................... 13
5.1 Descongelação ........................................................................................................... 13
5.2 Limpar o interior e exterior do aparelho....................................................................... 13
5.3 Dicas para a limpeza ................................................................................................... 14
6. MANUTENÇÃO ............................................................................................................. 14
6.1 Substituir a lâmpada interna ........................................................................................ 14
6.2 Cuidados a ter quando mover o seu aparelho............................................................. 14
6.3 Assistência .................................................................................................................. 14
6.4 Desligar o aparelho por longos períodos...................................................................... 14
6.5 Não proteja as posições de saída de ar e a entrada de retorno do combinado ……...14
7. RESOLUÇÃO DE PROBLEMAS ................................................................................. 15
7.1 Dicas sobre aquecimento ............................................................................................ 16
8. DICAS PARA POUPANÇA DE ENERGIA ................................................................... 16
9. ELIMINAÇÃO ................................................................................................................ 17
10. CONDIÇÕES GERAIS DE GARANTIA ...................................................................... 18
11.DECLARAÇÃO DE CONFORMIDADE ....................................................................... 19

3
1. AVISOS DE SEGURANÇA
1) AVISO—Mantenha as aberturas de ventilação na caixa do aparelho ou na
estrutura embutida desobstruídas.
2) AVISO—Não utilize dispositivos mecânicos ou outros meios para acelerar o
processo de descongelação, além dos recomendados pelo fabricante.
3) AVISO—Não danifique o circuito de refrigerante.
4) AVISO—Não utilize aparelhos elétricos no interior dos compartimentos de
armazenamento de alimentos do aparelho, a não ser que sejam do tipo
recomendado pelo fabricante
5) O aparelho tem de ser desligado após a utilização e antes de o utilizador
efetuar manutenção no aparelho.
6) Este aparelho pode ser utilizado por crianças com idades a partir dos 8 anos,
assim como por pessoas com capacidades físicas, sensoriais e mentais
reduzidas ou com falta de experiência ou conhecimento, desde que
devidamente supervisionadas ou lhes tenham sido dadas instruções
relativas à utilização do aparelho de uma forma segura e com consciência
dos riscos associados. As crianças não devem brincar com o aparelho. A
limpeza e a manutenção não devem ser realizadas por crianças sem
supervisão.
7) Caso o cabo de alimentação fique danificado, este deve ser substituído pelo
fabricante, pela assistência pós-venda ou por um Técnico Qualificado para
evitar situações de perigo.
8) Por favor, elimine o aparelho de acordo com a regulamentação local em
relação a gás inflamável e refrigerante.
9) A eliminação deve ser realizada em conformidade com a regulamentação
local devido ao seu gás inflamável e refrigerante. Antes de se desfazer do
aparelho, por favor, tire as portas para evitar que crianças fiquem fechadas
no seu interior.
10) Este aparelho destina-se apenas a utilização doméstica e a aplicações
semelhantes como:
-copas de cozinha em estabelecimentos comerciais, escritórios e outros
ambientes de trabalho;
-casas de quintas e por clientes em hotéis, motéis e outros tipos de ambientes
residenciais;

4
-estabelecimentos turísticos do tipo “pousada” ou “turismo rural”;
-aplicações de catering e não retalhistas semelhantes.
11) Não armazene substâncias explosivas, tais como latas de aerossol com um
carburante inflamável neste aparelho.
É PERIGOSO PARA QUALQUER PESSOA QUE NÃO SEJA O
PESSOAL DE SERVIÇO AUTORIZADO EFETUAR SERVIÇO DE
REPARAÇÃO QUE ENVOLVA A REMOÇÃO DE TAMPAS.
PARA EVITAR O RISCO DE CHOQUE ELÉTRICO NÃO TENTE VOCÊ
PRÓPRIO FAZER REPARAÇÕES.
2. INSTALAÇÃO
2.1 Localização
Quando escolher um local para o seu aparelho, certifique-se de que o chão é
plano e firme, e de que o a divisão é bem ventilada. Evite colocar o seu aparelho
perto de fontes de calor, por ex., fogão, caldeira ou radiador. Evite também luz
solar direta uma vez que isto pode aumentar o consumo de energia elétrica.
Temperaturas ambientes de frio extremo podem também fazer com que o
aparelho não funcione corretamente. Este aparelho não foi concebido para ser
utilizado numa garagem ou para ser instalado no exterior. Não tape o aparelho
com qualquer cobertura.
Quando instalar a unidade, assegure-se de que deixa 10 cm de espaço livre em
ambos os lados, 10 cm na parte de trás e 30 cm na parte de cima da unidade.
Isto irá permitir que o ar frio circule em volta do combinado e irá melhorar a
eficiência do processo de refrigeração.

5
2.2 Inverter a Abertura da Porta
1) Retire a proteção superior da dobradiça.
3) Retire a porta do compartimento
frigorifico.
2) Retire a dobradiça superior
4) Retire a dobradiça do meio
com chave de fendas.
