User-Service Manual
Joerns® Lifting and Repostioning
Model C-HLA-2
redefining patient handling
To avoid injury, read user’s manual before using.

2
Joerns® Lifting and Repositioning
C-HLA-2 Lift
This manual contains important safety and
maintenance instructions. Please read it carefully
before using your patient lifter and refer to it as often
as needed for safe and efcient use.
If you have any questions regarding the safe use and/
or assembly, maintenance or specications of your
patient lifter, you should call Joerns Healthcare toll-free
at 800.826.0270.
For service and repair, remember your authorized
Hoyer dealer is able to provide the assistance you
need. Save this manual for future reference. For non-
homecare lifters, your maintenance department should
keep this manual.
Caution: For patient use, refer to the separate
manual, “How to Use a Patient Lifter.” If you did not
receive a copy or need additional copies, contact
Joerns Healthcare at 800.826.0270.
Warning: Using other manufacturers’ parts and
accessories on Hoyer products is unsafe and may
result in serious injury to patient and/or attendant.
Use only Hoyer parts. Hoyer lifter parts are NOT
interchangeable with other manufacturers’ products.
Replace any worn parts immediately.
Equipment Identication: The unit’s identication
number (specication, model, serial number) appears
on a silver nameplate attached to the back of the lift
base.
Receipt of Equipment: Upon receipt of the
equipment, verify it against the packing list to
ensure it is complete and inspect the equipment for
possible damage due to shipping. If there is any
damage, DO NOT use the equipment and notify the
carrier immediately to le a claim. Provide complete
information concerning damage claims or shipping
errors to your supplier. Include all equipment
identication numbers and group part numbers (if any)
as described above along with a full description of
damaged goods.
Important Precautions
Warning: Do not attempt to use this equipment
without understanding this manual.
To ensure safe operation, read carefully the entire
manual before installing, operating or servicing
this equipment.
If anything is not completely understood, please
contact your supplier for more details. Failure to
comply with warnings in this manual may result
in injury.
Keep this manual with the lift and refer to it as
required. Contents of this manual are subjected to
change without prior notice to users.
Important information is highlighted by the following
terms, which appear throughout the manual. Pay
particular attention to the information provided under
these headings.
Warning: Important safety information for hazards that
might cause serious injury.
Caution: Information for preventing damage to
the product.
Note: Information to which you should pay
special attention.
Additional copies of this manual can be obtained from
your supplier. Please quote the product model number.
Warning: Your lift is for transferring patients only. Do
not use the lift for any other purpose.
Warning: Always carry out the daily check list before
using the lift.
Warning: Hoyer oor lifts are specically designed for
Hoyer slings and accessories. Slings and accessories
designed by any other manufacturer are prohibited
and will void Joerns Healthcare’s warranty. Use only
Hoyer slings and accessories to maintain user safety
and product utility.
Warning: Hoyer oor lifts are intended to be used for
persons within the specied weight limit indicated for
the lift. Do not attempt to lift more than the weight limit
indicated.

3
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Warning: Before attempting to transfer, the user must
be assessed by a qualied professional.
Warning: Hoyer lifts must be used by qualied
caregivers with proper training to work with the person
to be transferred.
Warning: Only trained and qualied caregivers should
transfer a person. Do not attempt to use the lift if you
have not been properly trained to do so.
Warning: Always carefully plan and be prepared
before attempting to transfer a person.
Warning: Do not use a sling that is not recommended
for the lift.
Warning: Never use a damaged, torn or frayed sling.
Warning: Always place the sling around the user
according to the sling user instructions.
Warning: Follow lifting procedures outlined in the
“How to Use a Patient Lifter” manual.
Warning: Use all controls and safety features only
according to the rules specied in this manual. Never
attempt to force a control or button on the lift.
Warning: Do not store the lift in a shower, bath or
other area with high humidity.
Warning: IMPORTANT: Keep all components of the
lift clean and dry, and have electrical and mechanical
safety checkpoints done as instructed in the
“Maintenance” section of this manual.
Warning: Do not attempt to maneuver the lift by
pushing on the mast, motor shaft, boom or patient.
Warning: Always maneuver the lift with the
handle provided.
Warning: Do not push a loaded lift at speeds which
exceed a slow walking pace (2.6 ft/sec.).
Warning: Inspect all precautionary labels on the
equipment. Order and replace all labels that cannot be
easily read.
Caution: Use pump to raise boom into position for
lifting patient.
Caution: DO NOT lift up on end of boom when
positioning to prepare for lifting patient as this causes
air to be drawn in under ram, preventing hydraulic
pump from lifting when handle is pumped.
Caution: DO NOT press down hard on handle beyond
its normal downward stopping point.
Caution: It is a common occurrence after a few hours
of non-use for the boom to lower with no weight
suspended from the end of the boom. This does
not indicate a faulty pump but is a trait common to
hydraulic equipment.
Caution: If trouble develops or you have questions
regarding the hydraulic pump, call Joerns Healthcare
Customer Care at 1-800-826-0270 (be sure to provide
your serial number and date purchased). DO NOT
attempt to lift someone with a faulty hydraulic pump.
Warning: DO NOT wash slings with bleach. Bleach
will damage material. Slings can suffer damage during
washing and drying.
Warning: Possible Injury or Death. Always check
slings before use. Bleached, torn, cut, frayed or
broken slings are unsafe and could result in serious
injury or death to patient/caregiver. Destroy and
discard worn slings. DO NOT alter slings.
Warning: Inside center attachment points on cradle
are used only for Hoyer slings with chains or straps.
The four outside attachment points are used for Hoyer
4-point slings.
Warning: Possible Injury or Death. Cradle Center
Post must protrude below the bottom of the cradle
center pivot assembly (approximately 1/16"). If cradle
center post is ush or recessed, excessive wear may
have occurred. Worn cradle parts could fail resulting in
serious injury or death to patient and/or attendant.
.

4
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Table of Contents
Important Precautions ............................................. 2
Specications ........................................................... 4
Assembly................................................................... 5
Inspection of Hydraulic Pump Stud ........................ 7
Operation ................................................................... 8

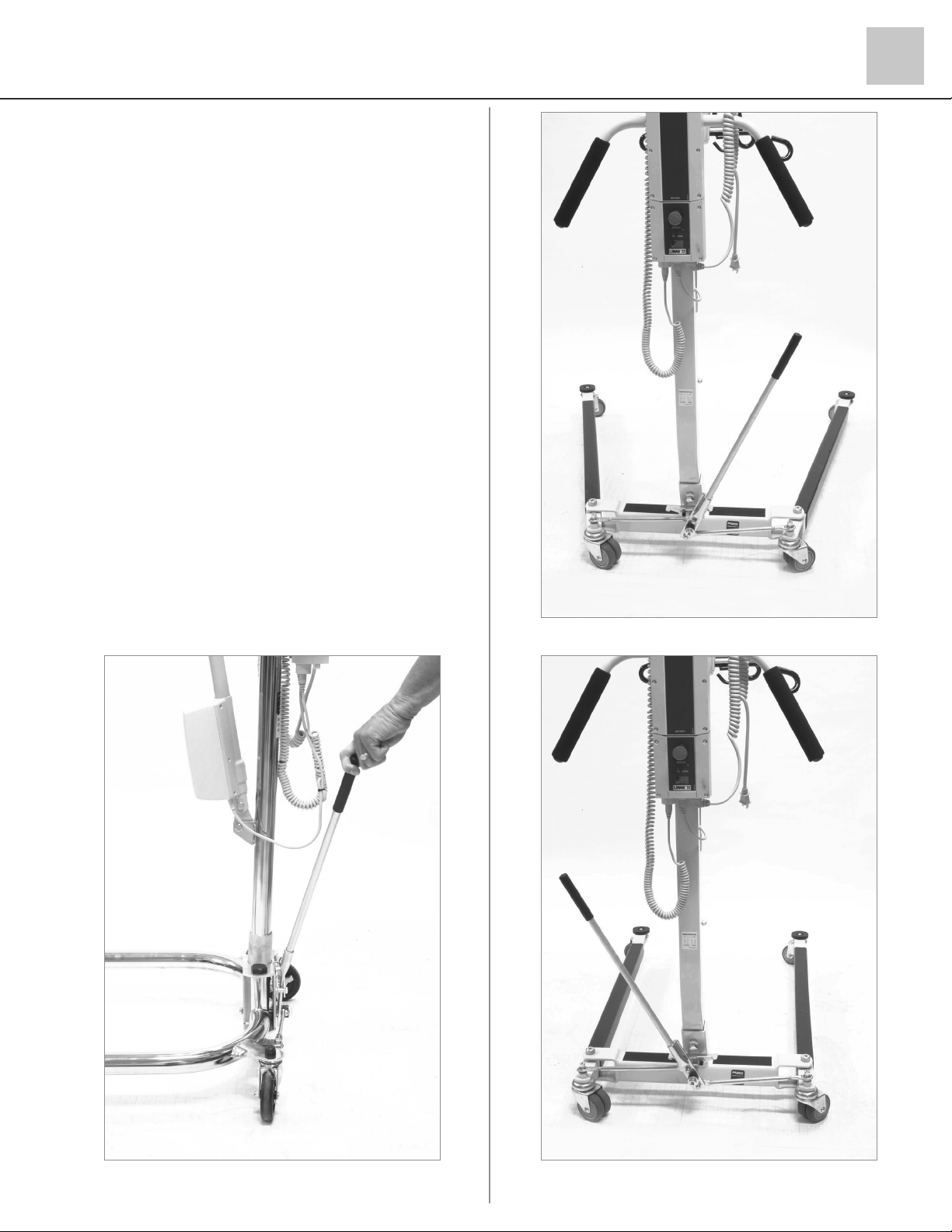

Leg Spreader Operation
Lifter Maintenance Checklist ................................. 10
Troubleshooting ..................................................... 11
Hoyer 4-point Sling Information ............................ 12
Warranty .................................................................. 14

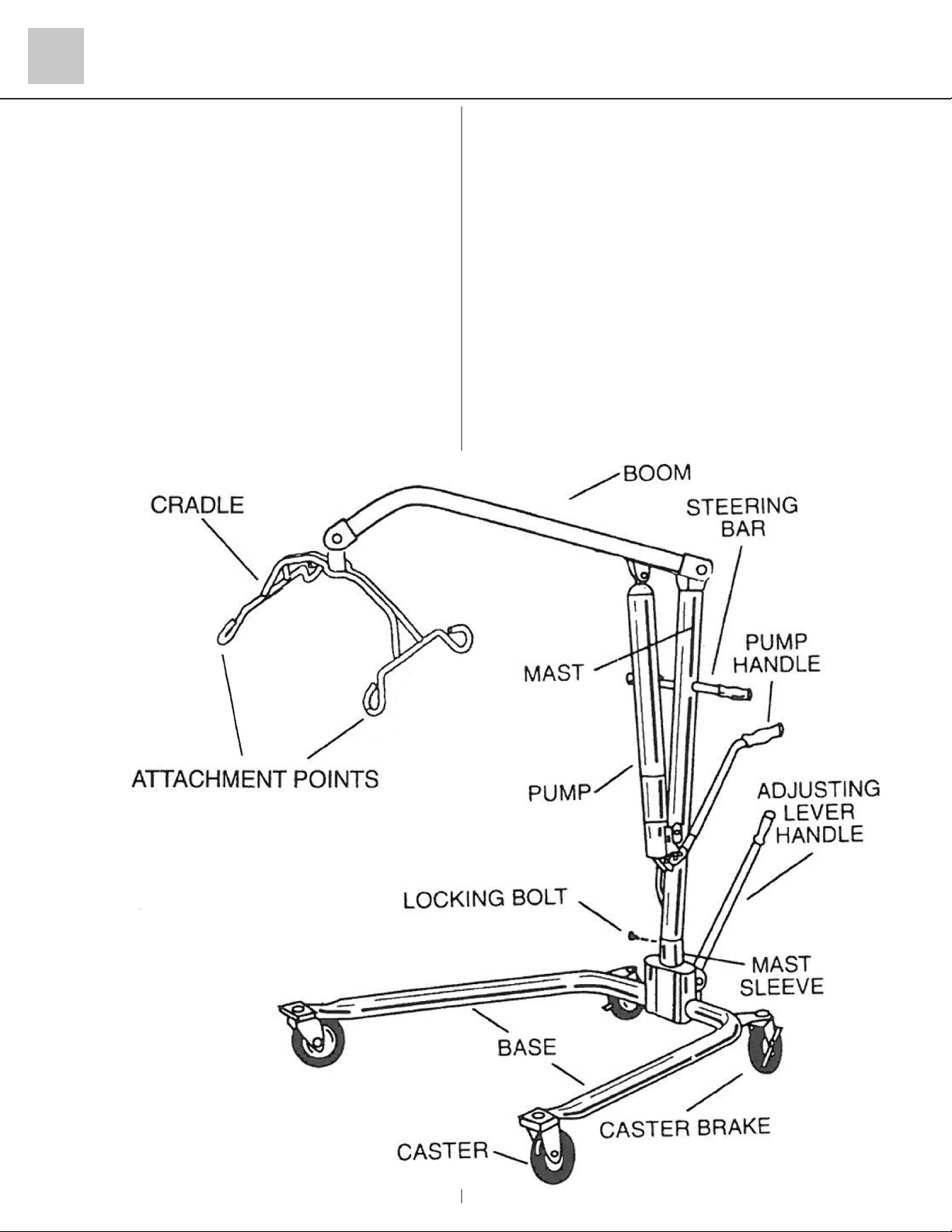

Specifications
Base ......................................................Adjustable U
Maximum Weight Capacity ........................... 400 lbs.
Lift Range of Boom ...................................... 29" - 80"
Width of Base ........................................... 24" - 39.5"
Length of Base .....................................................41"
Base Clearance ...................................................5.5"
Finish ............................................................ Chrome

5
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Assembly
Recommended Tools: two 9/16" wrenches, 1/8" hex
wrench, 5mm hex wrench
Warning: Inside center attachment points on cradle
are used only for Hoyer slings with chains or straps.
The four outside attachment points are used for Hoyer
4-point slings.
Warning: The large thrust washer must be inserted
on the cradle hanger post (Figure 7, pg 6). If washer is
not present, the cradle hanger post and cradle center
may wear prematurely. Worn cradle parts could fail,
resulting in injury to resident/caregiver. Hanger post
should protrude from the cradle center by 1/16th inch.
Warning: Never lock wheel locks or block wheels
when lifting someone. Wheel locks are provided for
parking the lifter only. The only exception is when
lifting a patient from the oor - the locks should be
engaged during a oor lift.
1. Carefully unpack Hoyer Lifter. Check for swivel
bar/6-point cradle and adjusting lever handle.
2. Insert mast in base sleeve (Figure 1). Be sure
notch on end of mast ts over bolt in bottom of
mast sleeve. Mast must lock into position in base
sleeve, making it impossible to rotate. Check
carefully to be certain mast cannot rotate.
3. Make certain boom points in same direction as
base legs. Thread mast safety lock and stud
into threaded hole in mast sleeve. Tighten rmly,
locking mast into base (Figure 2). Keep mast and
base locked at all times except when removing
mast from base for storage.
4. Insert boom end into hole in yoke hinge at the top
of mast. Fasten bolt and nut (Figure 3). Be certain
hex of bolt head ts into formed hex on side of
hinge and that plastic washer is under lock nut.
5. Attach hydraulic pump to boom (Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4

6
Joerns® Lifting and Repositioning
C-HLA-2 Lift

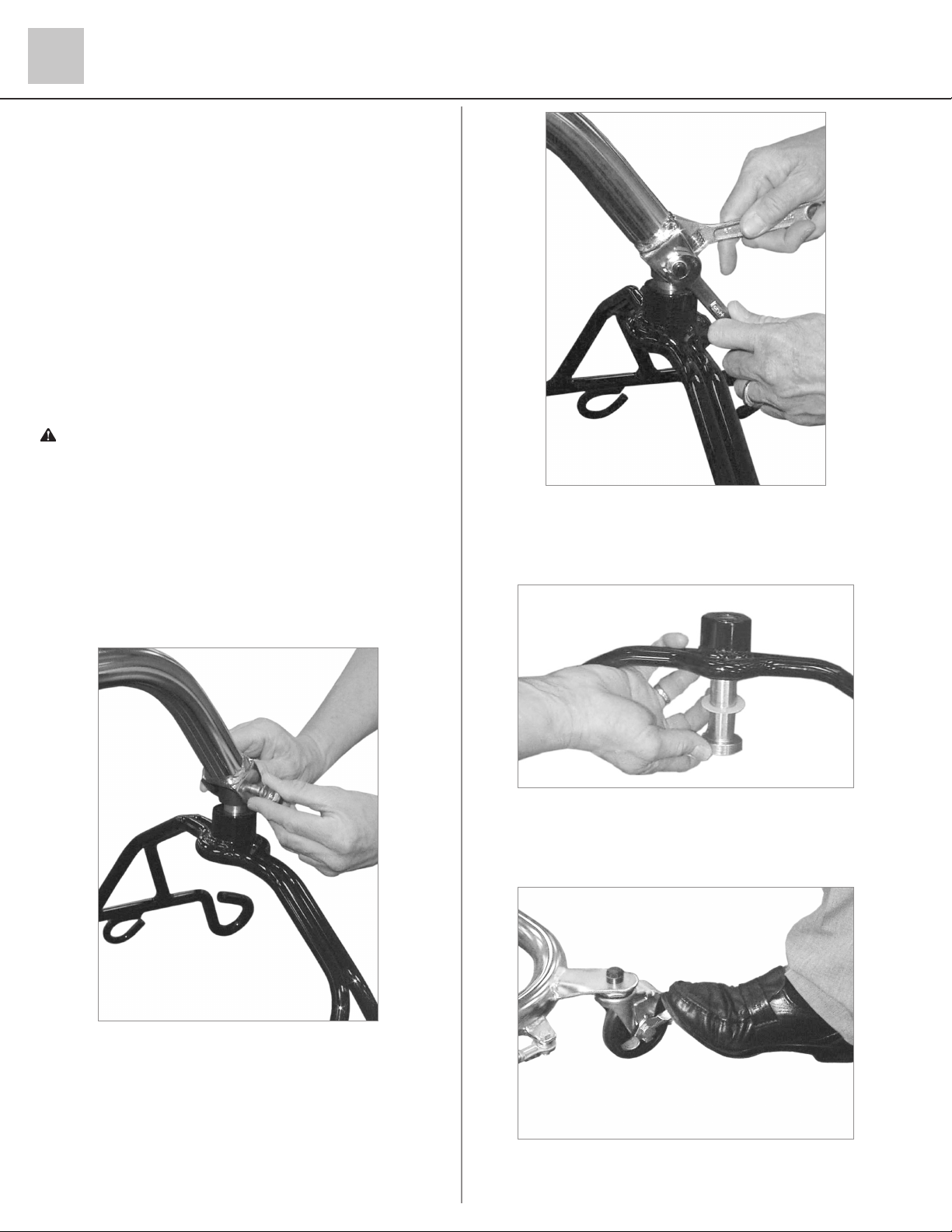

6. Cradle Attachment
a. Remove nut and bolt from cradle.
b. Hold cradle in position at the end of the boom
and align the holes of the pin and cap with the
holes in the boom end fork.
c. Insert supplied bolt and washer through boom
fork, cradle cap and pin. Washers must be
placed on the outside of the fork under bolt
head and under the nut (Figure. 5). Place nut
on bolt, and secure tightly (Figure 6).
d. Swivel cradle to check for free movement.
7. Attach adjusting lever handle into base (Figure 7).
8. Wheel locks are provided for parking. To lock
caster, step on cam lever on side of caster. To
unlock, step on highest cam lever (Figure 8).
Warning: The large thrust washer must be inserted on
the cradle hanger post as shown in Figure 7. If washer
is not present, the cradle hanger post and cradle
center may wear prematurely. Worn cradle parts could
fail, resulting in injury to resident/caregiver. Hanger
post should protrude from the cradle center by 1/16th
inch.
Figure 5
Figure 6
Figure 7
Figure 8

7
Joerns® Lifting and Repositioning
C-HLA-2 Lift

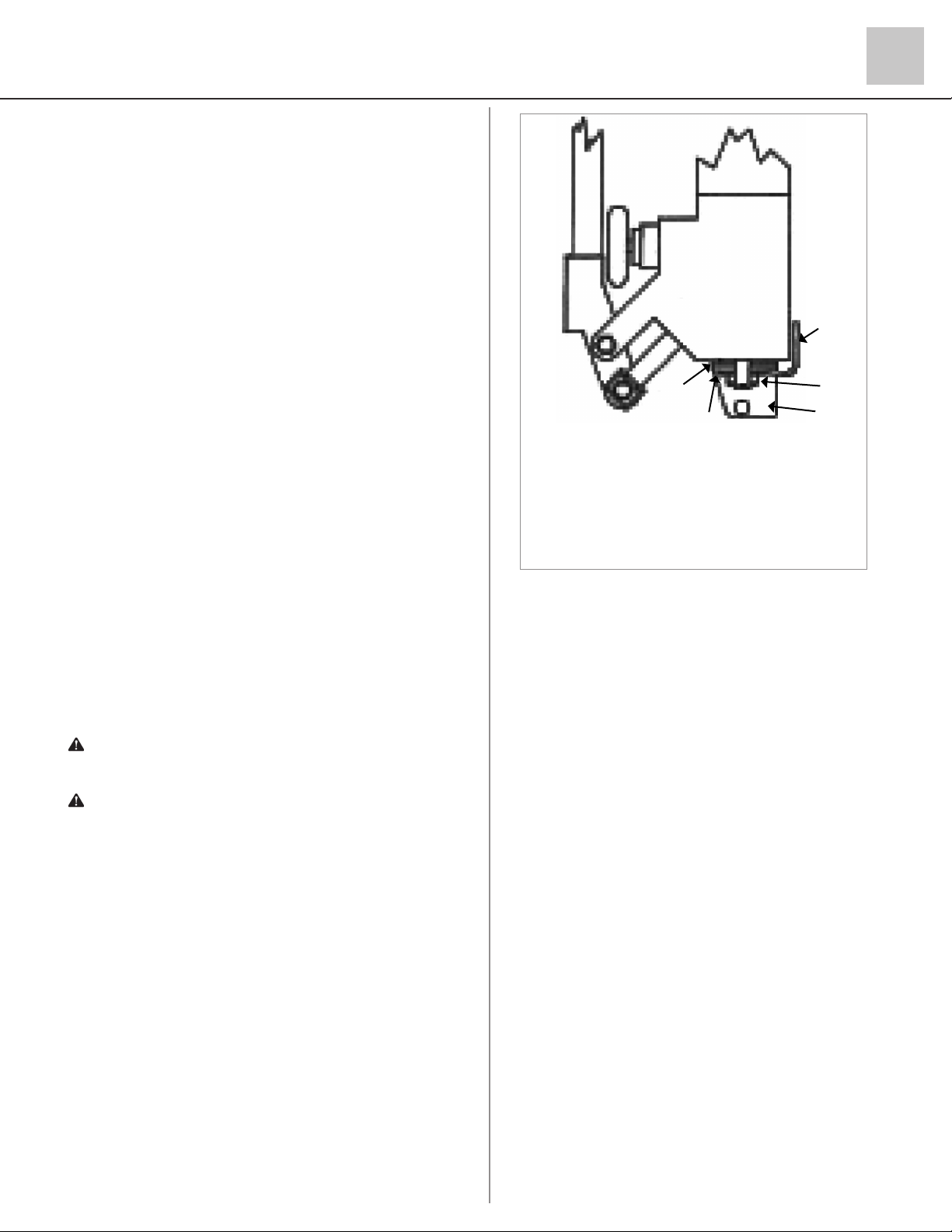

Inspection of Hydraulic Pump
Stud
Tools required: 5mm hex wrench, 9/16" combination
wrench
1. Observe orientation of “U” bracket (3) and rotation
limit bracket (4) prior to removing pump from lift.
2. Remove hydraulic pump from lifter by removing
bolts at mast and boom attaching points. Place on
suitable work surface.
3. Loosen nut (2) by three turns at base of pump
using the 9/16" combination wrench. If the stud
turns while loosening, use the 5mm hex wrench to
prevent it from turning.
4. Check tightness of stud using the 5mm hex
wrench. Firmly tighten the stud by turning in a
clockwise direction when viewed from the bottom.
5. Verify all components 1, 2, 3, 4, and 5 are correctly
assembled (Figure 9).
6. Tighten nut (2) until it lightly contacts the nylon
washer (1). Loosen the nut (2) by 1/2 turn so
that the pump rotates freely in “U” bracket (3).
Check that the stud is still tight using the 5mm hex
wrench.
7. Reassemble the pump to lift (reverse of step
2). Tighten nuts until contact is made with “U”
brackets of mast and boom. Then loosen by 1/2
turn. Pump should be free to rotate. Verify that
“U” bracket (3) and rotation limit bracket (4) are
correctly oriented to mast per diagram.
8. Check for free rotation of pump after assembly.
Caution: The pump should rotate freely prior to lifting
a patient.
Caution: Place the pump handle in a comfortable
position prior to lifting a patient. Do not attempt to
rotate the pump while lifting a patient.
Figure 9
1. Washer, Nylon 7/8" O.D
2. Nut, Hex, Locking
3. “U” Bracket
4. Bracket, Rotation limit
5. Washer, nylon, 2" O.D.
1
5
4
2
3

8
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Operation
Warning: Lifters can tip over. Keep base widened
for stability. NEVER lock wheel locks or block wheels
when lifting someone. Wheel locks are provided for
parking. The only exception is when lifting a patient
from the oor - the locks should be engaged during a
oor lift. To lock casters, step on cam lever on side of
casters. To unlock, step on highest cam lever.
To Raise Lifter
1. Tighten hydraulic pressure release knob by turning
it clockwise. Release knob is located on pump
near pump handle (Figure 10). Base of lifter must
be spread to widest possible position to maximize
stability (Figure 11).
2. Pump hydraulic handle (Figure 12). Do not lock
rear casters. If needed, lifter base will move
slightly to adjust for balance.
To Lower Lifter
1. Open hydraulic pressure release knob by turning
it counter-clockwise, not more than one full turn
(Figure 13).
2. Guide descent. Push gently on knees to attain
correct sitting posture while lowering.
3. After patient reaches seat, push down on boom to
slacken chains.
Warning: Lifters can tip over. Keep base widened
for stability. NEVER lock wheel locks or block wheels
when lifting someone. Wheel locks are provided for
parking. The only exception is when lifting a patient
from the oor - the locks should be engaged during a
oor lift. To lock casters, step on cam lever on side of
casters. To unlock, step on highest cam lever.
Figure 10
Figure 11
Figure 12
Figure 13

9
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Note: Hydraulic Pump
1. Do not lift up on end of boom to position for lifting
patient as this causes air to be drawn in under
ram, preventing pump from lifting when handle is
pumped.
2. Do not press down hard on handle when bottom of
stroke is reached.
3. It is a common occurrence after a few hours of
non-use for the boom to lower with no weight
suspended from the end of the boom. This does
not indicate a faulty pump but is a trait common to
hydraulic equipment.
4. If trouble develops with the hydraulic pump,
remove it and call your Joerns Healthcare Supplier
to receive an RMA. Provide serial number (located
on the base of the unit) and date purchased. Do
not attempt to lift someone with a faulty hydraulic
pump.
5. Inspect the mounting stud at the base of the pump.
Refer to “Inspection of Hydraulic Pump Stud”
section.
Leg Spreader Operation
To widen or narrow the base, pull adjustment handle
back to unlock (Figure 14). Handle can be moved to
the right to widen the base (Figure 15) or to the left to
narrow the base (Figure 16).
Figure 14
Figure 15
Figure 16

10
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Lifter Maintenance Checklist
Only qualied persons should service and repair Hoyer lifters. Regular maintenance of lifters and accessories is
necessary to assure proper and safe operation. Read and observe the following recommended instructions.
Item Initially Before
each use
Bi-
Monthly
Base and Wheels
Base is even and level (all four wheels are on the oor) ✔ ✔
Wheel bolts are tight ✔ ✔
Wheels swivel and roll easily ✔ ✔
Base Adjustment
Base locks securely, all parts are present ✔ ✔
Base opens and closes smoothly ✔ ✔
Check spreader lock and all hardware for wear ✔
Mast
Mast fully engaged and locked into mast sleeve ✔ ✔
Inspect for bends or deections ✔
Inspect all bolts and nuts for wear and tightness ✔
Boom
Inspect all bolts and nuts for wear and tightness ✔
Inspect to ensure the boom is centered between the base legs ✔ ✔
Cradle
Check hanger post for wear or damage. Replace post if wear exceeds 1/16". ✔
Check sling attachments for wear or deection ✔
Swivel Bar
Check nut at bottom of swivel bar hook and eye hook on boom for wear ✔
Check for two nylon washers between nut of swivel bar hook and underside of
swivel bar assembly
✔
Pump Assembly
Tighten seals around piston with spanner wrench provided ✔ ✔
Pump handle and valve work smoothly ✔ ✔
Check for oil leakage, a light lm is normal, but not to the point of dripping. ✔ ✔
Check the 5mm mounting stud at the base of the pump for tightness ✔
Slings and Hardware
Check metal parts, nuts and bolts for wear, damage or loosening ✔ ✔
Check all nuts, bolts and screws for wear and tightness ✔
Check slings and web straps for wear or damage ✔

11
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Troubleshooting, Power Unit
Symptom Action
Handle mounting holes
loosening or enlarging
• Periodically oil the pivot point
Jack lowers with patient
suspended
• Check to make sure the pressure release knob is completely closed.
• Check valve not sealing. Pump handle rapidly several times, then open pressure
release knob and pull down on boom. Repeat two or three times.
• Replace the jack.
Jack fails to lift to
full height
• Air in oil under ram– pump unit up as far as it will go. Open pressure release knob and
pull down on boom to lowest position. Repeat until lift raises to full height.
• Unit may be low on oil– remove jack from lift, collapse ram. Remove socket screw
(located on top of top cap) and put 1oz. of #10 weight hydraulic oil in at a time until the
jack ram moves the proper distance.
NOTE– Proper amounts of oil for a jack when completely empty are 7 3/4 oz. for 12" stroke; 11 1/2 oz. for
17" stroke; 3 3/4 oz. for 6" stroke; 12 1/2 oz. for 19" stroke.
Oil leaking from
around piston
• Replace the jack.
Oil leaking around rim of
top cap
• Replace the jack.
Unit will not lower • Lay jack on its side. Remove and clean release cartridge making sure small holes are
cleaned out with pin or small diameter wire.
• Replace the jack.
Jack is noticeably loose
in the mounting bracket
located at the base of
the jack.
• Refer to “Inspection of Hydraulic Pump Stud” section to tighten the mounting stud for
the jack.
Lifter Maintenance Checklist continued...
Item Initially Before
each use
Bi-
Monthly
Lubrication
Oil all pivot joints, including:
Top of mast where boom attaches ✔
Top and bottom of actuator mounting ✔
Pump handle hinge ✔
Use a light grease to lubricate base adjustment lock plate and
all rotating hardware.
✔
Wheel and swivel bearings ✔
Cleaning*
Use mild soap to clean; dry thoroughly. ✔
Apply auto or appliance wax ✔
Keep painted surfaces clean from oil ✔
* Do not wash under water pressure.

12
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Hoyer 4-point Sling
Information
Warning: Torn, cut, frayed or broken slings could
fail resulting in serious injury or death to patient. Use
slings in good condition only. Destroy and discard old,
unusable slings.
Note: Do not use any other manufacturer’s sling with
the C-HLA-2 Lifter.
Note: Do not use Hoyer slings with any other
manufacturer’s lift.
Patient Size Guide
A B Weight
inch (cm) inch (cm) lbs (kg)
Large 28 (70) 19 (47) 198-400 (90-191)
Medium 24 (61) 19 (47) 99-210 (45-95)
Small 18 (46) 15 (38) 55-110 (25-50)
*Patient’s weight to sling size information is an
approximation only.
Patient can be raised 4" higher by hooking up the
inside strap to the cradle.
Example of label found on back of Hoyer Slings
Use inside
straps to
raise patient
4" higher.

13
Joerns® Lifting and Repositioning
C-HLA-2 Lift
Notes:

Joerns® Lifting and Repositioning
C-HLA-2 Lift
Post Acute, Acute, HomeCare
5001 Joerns Drive
Stevens Point WI 54481
(P) 800.826.0270
(F) 800.457.8827
VA/Government
19748 Dearborn Street
Chatsworth, CA 91311
(P) 800.966.6662
(F) 800.232.9796
Canadian Ofce
1000 Clarke Road, Suite 6
London, ON Canada N5V 3A9
(P) 866.546.1151
(F) 519.451.8662
www.joerns.com • email: [email protected]
Joerns
Healthcare
© 2010 Joerns Healthcare • 000-3559 RevD • 10-1058
Your Hoyer Classics Lifts are warranted for one (1)
year after purchase by the original consumer/owner.
Components are warranted as follows:
1. Lifter structure; base, mast, boom, and suspension
cradle.
2. Hydraulic pump/jack (for manual lifters).
3. Electronic control box, hand pendant, actuator and
battery (for power lifters).
All other non-durable components, such as rubber
parts, plastic parts and painted surfaces, are
warranted for one (1) year from original consumer/
owner purchase. These non-durable components are
subject to normal wear and replacement.
Damage caused by use in unsuitable environmental
conditions or failure to maintain the product in
accordance with user and service instructions is not
covered. Any alteration, modication, or repair unless
performed by or authorized in writing by Joerns
Healthcare will void this warranty.
This warranty applies in the USA only. Check with your
supplier to nd out if international warranties apply.
Parts
Hoyer Classics Lifts contain various parts that wear
from normal use. These parts, such as rubber parts,
plastic parts and painted surfaces are not covered
under the one-year warranty but are covered for 90
days after date of purchase.
Joerns Healthcare’s obligation under this warranty is
limited to supplying replacement parts, servicing, or
replacing, at its option, any product which is found by
Joerns Healthcare to be defective.
Warranty replacement parts are covered by the terms
of this warranty until the product’s original warranty
period expires.
When requested by Joerns Healthcare, parts must
be returned for inspection at the customer’s expense.
Credit will be issued only after inspection.
Service
Most service requests can be handled by the facility
Maintenance Department with assistance from the
Joerns Healthcare Product Service Department.
Should a technician be required, one will be provided
by Joerns Healthcare, at our discretion. Only the
Joerns Healthcare Product Service Department can
dispatch authorized technicians.
This warranty is extended to the original purchaser
of the equipment.
Joerns Healthcare Warranty Program
for Hoyer® Classic Lifts
