John Bunn JB0112-164 User manual

Read this manual before operating the nebulizer.
Save this manual for future reference.
Federal Law (USA) restricts this device to sale by or
on the order of a physician. This device should not
be used unless the operator has been instructed by
a qualied healthcare professional.
Neb-u-Tyke
®
RR Train
Nebulizer Compressor
Item JB0112-164
User Manual
JB0112-164-INS-LAB-RevC14

JB0112-164-INS-LAB-RevC14 2
CONTENTS
INTRODUCTION...........................................................................................................3
INTENDED USE ........................................................................................................... 3
SYMBOLS KEY ............................................................................................................ 3
IMPORTANT SAFETY PRECAUTIONS .......................................................................4
PRODUCT DESCRIPTION ...........................................................................................7
FEATURES AND COMPONENTS................................................................................ 7
SETUP...........................................................................................................................8
OPERATION ...............................................................................................................10
SAFETY OVERLOAD..................................................................................................11
MAINTENANCE..........................................................................................................12
CLEANING THE COMPRESSOR’S OUTER CASE .................................................. 12
CLEANING THE NEBULIZER CUP ........................................................................... 12
REPLACING THE FILTER.......................................................................................... 13
STORAGE................................................................................................................... 13
TROUBLESHOOTING................................................................................................14
SPECIFICATIONS.......................................................................................................15
LIMITED WARRANTY ................................................................................................16
COMPRESOR DE NEBULIZADOR MANUAL USUARIO (EN ESPAÑOL) ...............19
This product has been tested and successfully approved with the
following standards:
UL1431
EN 60601-1
GF Health Products, Inc. is not responsible for typographical errors. All
illustrations, specications, packaging and warranties contained in this
literature are based on the latest product information available at the time of
printing. The most current product information, including the most current
version of this manual, can be found online at
Graham-Field, John Bunn and Neb-u-Tyke are registered trademarks of
GF Health Products, Inc. © 2008, GF Health Products, Inc.

JB0112-164-INS-LAB-RevC14 3
INTRODUCTION
This user manual contains important information and
safety precautions for the John Bunn Neb-u-Tyke RR Train
Nebulizer Compressor.
Before using your Nebulizer Compressor, please read and
understand this entire user manual. Take special note of all
safety precautions marked DANGER and WARNING. Save
this user manual for future reference.
Intended Use
The Neb-u-Tyke RR Train Compressor Nebulizer System is
designed to provide a source of compressed air for aerosol
therapy. It is used in conjunction with a jet (pneumatic)
nebulizer to produce medicated aerosols for inhalation by
pediatric and adult patients with respiratory symptoms.
Indications for therapy include asthma, chronic bronchitis,
infection of the upper respiratory tract, chronic
obstructive pulmonary disease, and other respiratory
disorders in accordance with a physician’s prescription.
Do not use this product for any other purpose than the
preceding. This device can be used with adult or pediatric
patients under physician’s prescription.
Symbols Key
O Off
I On
~ Alternating current
IPX0 Enclosed equipment without protection against ingress of water
Attention (read the instructions)
II Class II (not applicable for UL1431)
BF: This product is in accordance with the degree of protection against electric
shock for type BF equipment. (not applicable for UL1431)
Disposal of Electrical & Electronic Equipment (WEEE): This product should
not be treated as household waste, but submitted to an appropriate collection
point for the recycling of electrical and electronic equipment. For more detailed
information about the recycling of this product, please contact your local city
ofce, household waste disposal service, or the Graham-Field authorized
distributor from whom you purchased this product.

JB0112-164-INS-LAB-RevC14 4
IMPORTANT SAFETY PRECAUTIONS
When using electrical products, especially when children
are present, always follow basic safety precautions,
including the following:
DANGER: Indicates a potential hazard situation or unsafe
practice that, if not avoided, will result in death or serious
personal injury.
WARNING: Indicates a potential hazard situation or unsafe
practice that, if not avoided, could result in death or
serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice
that, if not avoided, could result in minor or moderate
personal injury.
s NOTICE: Indicates a potential hazard or unsafe practice
that, if not avoided, could result in product or property
damage.
Info: Provides application recommendations or other useful
information to ensure that you get the most from your
product.
READ ALL INSTRUCTIONS BEFORE USING
DANGER: To reduce the risk of electrocution:
1. Always unplug this product immediately after use.
2. Do not use this product while bathing, showering,
washing dishes, or close to water sources of any kind.
3. Do not place or store device where it can fall or be pulled
into a tub or sink.
4. Do not place device in or drop into water or other liquid.
5. Do not reach for a device that has fallen into water.
Unplug it immediately.

JB0112-164-INS-LAB-RevC14 5
 WARNING:Toreducetheriskofburns,electrocution,re
or personal injury:
1. Never leave this device unattended when plugged in.
2. This product contains small parts that may present
a choking hazard to small children, and the tubing
may present a strangulation hazard. Always use close
supervision when this device is used by or near children
or those who require close supervision.
3. Children under the age of 3, or any patient who is unable
to use a mouthpiece properly under supervision, should
use a mask.
4. Use this device only as intended and described in this
manual. Do not use attachments or accessories not
recommended by GF Health Products, Inc.
5. Never operate this product if:
a. it has a damaged cord or plug,
b. it is not working properly,
c. it has been dropped or damaged, or
d. it has been dropped into water.
Return the product to your Graham-Field authorized
distributor for examination and repair.
6. Keep the cord away from heated surfaces.
7. Never block the air openings of this product or place it
on a soft surface, such as a bed or couch, where the air
openings may be blocked. Keep the air openings free of
lint, hair and the like.
8. Never drop or insert any object into any openings or hose.
9. Never use this device while drowsy or sleeping.
10. Do not use this device outdoors or operate where aerosol
(spray) products are being used.
11.Donotusethisdeviceinthepresenceofammable
anesthesia or where oxygen or nitrous oxide is being
administered. This device has no AP or APG protection.
12. Connect this device to a properly grounded outlet only.

JB0112-164-INS-LAB-RevC14 6
13. This device has a polarized plug (one blade is wider
thantheother).Asasafetyfeature,thisplugwilltinto
apolarizedoutletonlyoneway.Iftheplugdoesnott
fullyintotheoutlet,reversetheplug.Ifitstilldoesnott,
contactaqualiedelectrician.Donotmodifytheplugin
any way. Do not attempt to defeat this safety feature.
14.Unplugthedevicebeforellingorcleaningthenebulizer.
15. This device is oil-free. Do not lubricate.
16. Do not remove the jet nebulizer while the device is operating.
17. Do not leave medication inside the jet nebulizer when it is
not in use.
18. Use the nebulizer intermittently; the maximum operating
period is 30 minutes. The nebulizer must stand unused for
30 minutes between uses.
19. The mouthpiece and masks are for use by one person
only; in order to avoid infection, do not share them.
20. Notice for California Customers- California Proposition 65
WARNING: This product contains a chemical known to the
State of California to cause cancer and reproductive or
developmental harm.

JB0112-164-INS-LAB-RevC14 7
PRODUCT DESCRIPTION
Features and Components
Please note nebulizer features and components, labeled in
the illustration below.
reservoir tube
air outlet connector
for tubing
filter cap
ON/OFF switch
adult mask
nebulizer cup
mouthpiece
tubing
T adapter
pediatric mask
Neb-u-Tyke RR Train
Nebulizer Compressor

JB0112-164-INS-LAB-RevC14 8

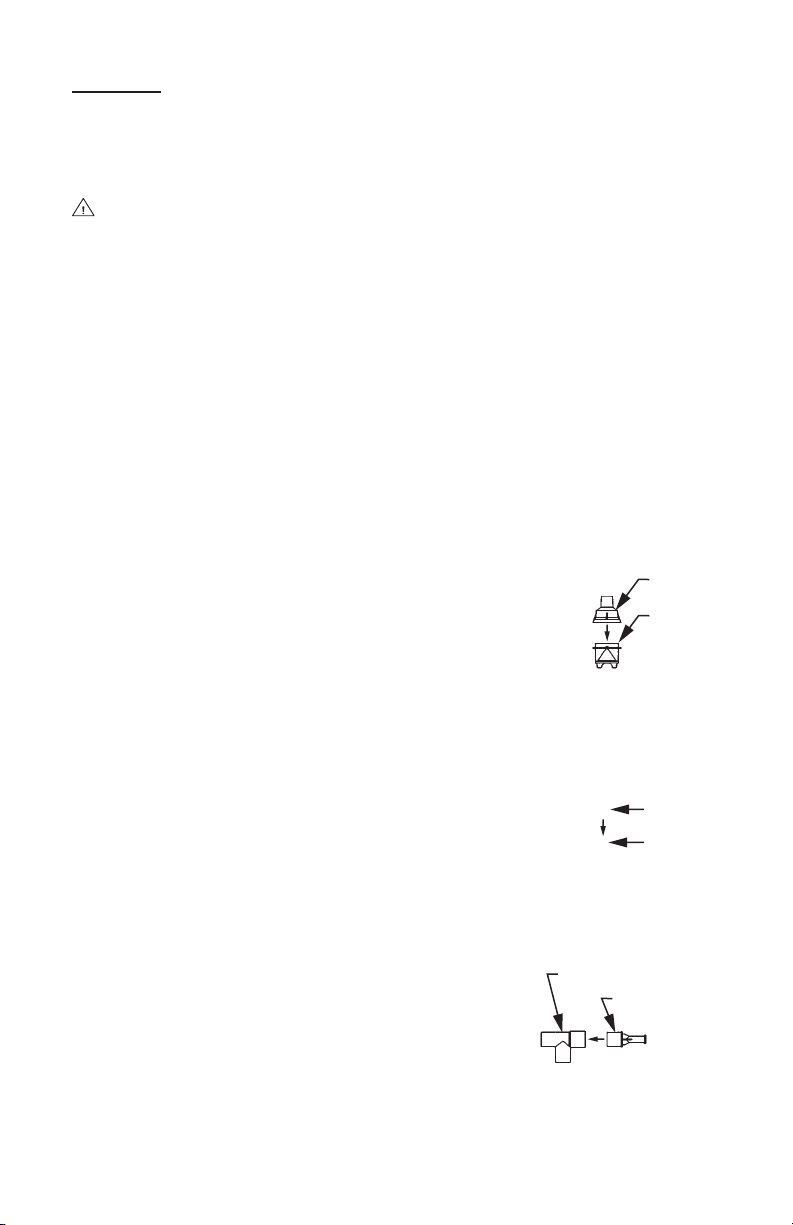

SETUP
Info: Before initial operation, clean the nebulizer
cup assembly following the instructions given in
MAINTENANCE/Cleaning the Nebulizer Cup.
WARNING: Ensure that the nebulizer compressor is
unplugged during setup.
1. Before each use, inspect the compressor and nebulizer
cup assembly for damage or wear; replace as needed.
2. Place the compressor on a table or other at stable
surface (not on the oor), in an area that is clean and
dust-free. Be sure you can easily reach the controls
when seated.
3. Open the nebulizer medication cup: Twist the cap
counter-clockwise until it stops, then lift cap off.
4. Pour the prescribed medication into the nebulizer
medication cup. Do not ll with more than 5 ml per
treatment.
5. Install cap on cup. Turn clockwise
to tighten.
6. If using the mouthpiece for
treatment, proceed to step 7. If
using a mask, install the bottom
part of the mask directly onto the
top of the nebulizer medication cup
cap as shown at right. Proceed to
step 9.
7. Insert mouthpiece into large end of
T adapter.
install cap
on cup
cap
cup
install mask
on cap
mask
cap
assemble
mouthpiece
and T adapter
T adapter
mouthpiece

JB0112-164-INS-LAB-RevC14 9
Info: The reservoir tube, shown in the illustration earlier in
this manual, acts as a holding tank for the mist, reducing the
amount lost during treatment. Its use is optional. If you wish
to use the reservoir tube, install it now on the small end of
the T adapter.
8. Install T adapter onto top of
nebulizer medication cup cap.
9. Connect the tubing to the adapter
on the bottom of the nebulizer
medication cup.
10. Connect the tubing's other end
to the compressor air outlet
connector.
WARNING: Before use, check that all parts are securely
connected. Use of an improperly assembled nebulizer
could diminish or prevent adequate delivery of medication
and the effectiveness of the treatment.
install
T adapter
on cap
T adapter
cup

JB0112-164-INS-LAB-RevC14 10
OPERATION
s NOTICE: The Neb-u-Tyke RR Train Nebulizer Compressor
is designed for intermittent use only. Do not operate it
continuously for more than 30 minutes for a single use
without turning it off and allowing a cooling period of least
30 minutes.
1. Ensure that the ON/OFF switch is in the OFF position.
2. Plug the power cord into a properly grounded electrical
wall outlet.
3. Move the ON/OFF switch to the ON position to start the
compressor.
4. Place the nebulizer mouthpiece between teeth and
close mouth (or install the mask on face).
5. As aerosol starts owing, inhale deeply and slowly
through mouthpiece (or mask).
WARNING: Never use a nebulizer with a clogged nozzle.
If the nozzle is clogged, the aerosol mist will be reduced,
altered or stopped, which will diminish or eliminate the
effectiveness of the treatment. If clogging occurs, replace
the nebulizer.
Info: If you need to interrupt treatment, move the ON/OFF
switch to the OFF position.
6. When the treatment is complete, move the ON/OFF
switch to the OFF position to turn off the compressor.
7. Unplug the compressor from power outlet.
8. Disconnect nebulizer from tubing.
9. Clean nebulizer as instructed in MAINTENANCE/
Cleaning the Nebulizer Cup.

JB0112-164-INS-LAB-RevC14 11
Safety Overload
s NOTICE: Do not exceed 30 minutes of continuous
operation.
1. The motor of this device has a built-in thermal overload
protector. Should the motor overheat, the protector
will automatically shut off the motor. Should this occur,
move the ON/OFF switch to the OFF position and allow
the motor to cool down for approximately 30 minutes
before turning it on again.
2. If the overload protector shuts off the motor frequently,
you may have an unstable voltage situation.
3. If the device shuts down and cannot restart, it may
need to be replaced. Call your Graham-Field authorized
distributor immediately.

JB0112-164-INS-LAB-RevC14 12
MAINTENANCE
Cleaning the Compressor’s Outer Case
WARNING: Electrical shock hazard. Do not remove
the outer case of the device. All disassembly and
maintenance of the device must be performed by a
qualiedservicetechnician.Referservicetoqualied
service personnel.
WARNING: This device does not require oil. Do not
attempt to lubricate any internal parts.
WARNING: Unplug device before cleaning. Do not
submerge in water for cleaning.
Wipe the compressor's outer case with a clean, damp cloth
weekly to keep it dust-free. Do not use any powdered type
cleaners or soap.
Cleaning the Nebulizer Cup
All parts of the disposable nebulizer, except tubing, should
be thoroughly cleaned after each use. If your physician
species a specic cleaning procedure, follow that
procedure.
WARNING: To prevent possible risk of infection from
contaminated medication, clean the nebulizer after each
treatment.
1. After each use, disassemble the nebulizer cup, T
adapter and mouthpiece completely, wash all parts in
warm soapy water, and rinse thoroughly. Allow to air
dry. Store in a clean, dry location.
2. Once daily, after washing as above, soak nebulizer
components in a fresh solution consisting of one part
warm water and one part white vinegar for 30 minutes
followed by a warm water rinse. Allow to air dry. Store
in a clean, dry location.

JB0112-164-INS-LAB-RevC14 13
Replacing the Filter
s  NOTICE:Changethelteronceevery30daysorwhenthe
lterchangescolor.
1. Ensure that ON/OFF switch is in the OFF position. Open
the lter cap located next to the ON/OFF switch.
2. Remove the dirty lter with a small, pointed object.
Discard the lter.
3. Replace with a clean lter.
4. Replace the lter cap.
s  NOTICE:Donotusecottonorothermaterialsasalter.
s  NOTICE:Donotwashorcleanthelter.
s  NOTICE:Donotreusethelter.Donotoperate
compressorwithoutalter.Compressordamagecan
result.
WARNING: The disposable nebulizer kit is for single
patient use only.
Storage
Keep the device and accessories dry. Avoid exposure to
direct sunlight.

JB0112-164-INS-LAB-RevC14 14
TROUBLESHOOTING
If your Nebulizer Compressor fails to function, consult the
following Troubleshooting guide. If the problem persists,
consult your Graham-Field authorized distributor.
Problem Cause and Solution
Device doesn’t
operate
Check if plug is properly t into a grounded electrical outlet.
When device has been run continuously for more than 30 minutes
just before using, auto-shut-down may have been activated by the
built-in thermal protector; ensure that device is OFF for at least 30
minutes before next usage.
Nebulization is
weak
Check for proper electrical voltage.
Check tubing for blockage or air leakage at connection to Neb-u-Tyke
compressor or nebulizer cup; replace as needed.
Check that the nebulizer cup is properly assembled and not
damaged. If there is any damage, replace as needed.
Check if lter is dirty; replace lter as needed.

JB0112-164-INS-LAB-RevC14 15
SPECIFICATIONS
Specication Description
Maximum pressure
(compressor)
32.5 PSI
Maximum ow rate Approximately 10 LPM
Nebulization rate .33 ml/min
Particle dimension .5 - 5 microns
Capacity 5 ml
Filter Sponge
Dimensions (LxWxH) 9.7" x 5.5" x 4.5" (24.5 cm x 14.0 cm x 11.4 cm)
Weight 3.5 lb (1.59 kg)
Electrical requirement 115VAC/60Hz
Current 1.2A (rate)
Fuse 2.5A 250V
Power cord White, 7 ft (84") / 213.4 cm
Plug 2-prong type
Sound level 55dba
Environment Temperature Operation: 41°F to 104°F (5°C to 40°C)
Storage: 14°F to 158°F (-10°C to 70°C)
Humidity Operation: 30% to 95% RH
Storage: 10% to 95% RH

JB0112-164-INS-LAB-RevC14 16
LIMITED WARRANTY
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it
will replace or repair components, at GF’s sole discretion, that are defective
in material or workmanship under normal use and service. All warranties
are conditioned upon the proper use of the products strictly in accordance
with good commercial practice and applicable GF instructions and manuals,
including proper use and maintenance. To the extent that a component is
warranted by a third party, GF conveys all of its rights under that warranty to
the original purchaser, to the extent permitted.
This limited warranty shall only apply to defects that are reported to GF’s
customer service team within the applicable warranty period and which, upon
examination by GF or its authorized representative, prove to be a warranty
item. This limited warranty is not transferable.
The warranted components and time period are set forth below:
Compressor: ....................................ve years
Accessories: ....................................six months
The applicable warranty period shall commence from date of shipment to
the original customer, unless there is an expiration date on the component in
which case the warranty shall expire on the earlier of warranty period or the
expiration date.
OBTAINING WARRANTY SERVICE
A GF Customer Service Representative must authorize warranty service.
Specic directions will be provided by the Customer Service Representative.
Failure to abide by the specic directions will result in denial of the warranty claim.
EXCLUSIONS
The warranty does not cover and GF shall not be liable for the following:
1) Defects, damage, or other conditions caused, in whole or in part, by
misuse, abuse, negligence, alteration, accident, freight damage, tampering
or failure to seek and obtain repair or replacement in a timely manner;
2) Products which are not installed, used, or properly cleaned and maintained
as required in the ofcial manual for the applicable product;
3) Products considered to be of a non-durable nature including, but not
limited to: casters, lters, fuses, gaskets, lubricants, and charts;
4) Accessories or parts not provided by GF;
5) Charges by anyone for adjustments, repairs, replacement parts, installation
or other work performed upon or in connection with such products which
are not expressly authorized in writing, in advance, by GF;
6) Any labor or shipping charges incurred in the replacement part installation
or repair;
7) Costs and expenses of regular maintenance and cleaning; and
8) Representations and warranties made by any person or entity other than
GF.

JB0112-164-INS-LAB-RevC14 17
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL
DAMAGES DISCLAIMER
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF
ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL
OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND
QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT
WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL
RESPECTS.
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF
THE DEFECTIVE PARTS. GF SHALL NOT BE LIABLE FOR AND HEREBY
DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES
FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER,
OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND
BENEFITS.
The warranties contained herein contain all the representations and
warranties with respect to the subject matter of this document, and supersede
all prior negotiations, agreements and understandings with respect thereto.
The recipient of this document hereby acknowledges and represents that it
has not relied on any representation, assertion, guarantee, warranty, collateral
contract or other assurance, except those set out in this document.
For additional information on this product or this warranty, please contact a
GF Customer Service Representative.
NOTES:
1) Additional terms and conditions may apply.
2) Freight claims must be notated on the Bill of Lading and must be made with
immediacy. The ICC regulations govern specic requirements for freight
claims. Failure to abide by those regulations may result in a denial of the
freight claim. GF will assist you in ling the freight claim.
3) Claims for any short shipment must be made within thirty (30) days of the
invoice date.
