John Lewis JLBIHD520 User manual

JLBIHD520 Designer Cooker Hood
User guide

Cooker hood user guide
2
2

Cooker hood user guide 3
Contents
Contents 3
Introduction 4
Safety is important 4
In the box 4
Safety information 5
Important safety information 5
Warnings 5
Cautions 6
Electrical information 6
Mains supply 6
Operation 7
Controls 7
Indicators 7
Care, Cleaning and Servicing 8
Care and Cleaning 8
Cleaning and Replacing Filters 8
Aluminium Filters 8
Long Life Filters 8
Replacing Lights 9
Servicing 9
Installation 10
Preparation for installation 10
Installing the Cooker Hood 10
Disposal and Guarantee 16
Disposal 16
Guarantee 16
Troubleshooting 17
Troubleshooting 17
Repairs - after sales service 18
Spare parts 18
Specifications 19

Cooker hood user guide
4
Introduction
Thank you for purchasing this JLBIHD520 designer cooker
hood.
Please take time to read these instructions and retain for
future reference.
Safety is important
To ensure your safety and the safety of others, please read the
Safety information before you operate this product.
Keep this information in a safe place for future reference.
In the box
You will find the following:
• Cooker hood
• User guide
Note: If any of the items listed are damaged or missing, please
contact your local John Lewis branch.

Cooker hood user guide 5
Important safety instructions - read
carefully before use
Take note of the following safety information:
Warning! To prevent fire or shock hazard,
do not expose this cooker hood to rain or
moisture.
Warning! Always remove the mains plug
from the wall socket when not in use or
before any service operation.
Warning! There are no user serviceable
parts on this cooker hood. Refer servicing to
qualified service personnel.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this cooker hood.
This symbol indicates that dangerous voltages
constituting a risk of electric shock are present within
this cooker hood.
Important safety information
It is most important that this guide should be retained with the
cooker hood for future reference. Should you move house and
leave the appliance, always ensure that this guide is supplied
with the cooker hood in order that the new owner can get to
know the functionality and the relevant warnings.
These warnings have been provided in the interest of safety.
You MUST read them carefully before installation or use. If you
are unsure of the meanings of these warnings contact the John
Lewis branch from which you purchased the cooker hood.
To avoid accidents to property or people it is important to
follow the instructions given. Failure to do so removes any
liability from John Lewis.
Warnings
• Any installation work must be undertaken by a qualified
electrician or competent person.
• This is a class I electrical appliance and must therefore be
correctly earthed.
• If the cooker hood is installed for use above a gas appliance,
the provision for ventilation must be in accordance with the
Gas Safety Codes of Practice, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued by the
Department of the Environment and, where applicable, the
Building Standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• Do not install this cooker hood above a cooker with a high-
level grill.
• Keep all packaging well away from children. There is risk of
suffocation.
• If the room where the cooker hood is to be used contains
a fuel burning appliance (such as a gas or oil fired central
heating boiler), the boiler’s flue must be a room sealed or
balanced flue type. Alternatively, you should make sure that
there is adequate air inlet into the room at all times so that
fumes from the boiler are not drawn back into the room by
the cooker hood.
• Do not allow the power cord to be crushed or bent
excessively.
• Do not let the power cord touch or pass over the hob or
other hot surface.
• Do not hold the power cord or plug with wet hands.
• Never use a damaged power cord or plug, or a loose mains
socket.
Safety information

Cooker hood user guide
6
Cautions
• This cooker hood is designed for domestic use only.
• This cooker hood is designed to be operated by adults.
Children should not be allowed to tamper with the controls
or play with the cooker hood.
• Do not leave frying pans unattended during use, as
overheated fats and oils may catch fire.
• Do not do flambé cooking under this cooker hood.
• Do not leave naked flames under the cooker hood.
• Make sure foreign objects do not get into the cooker hood
or obstruct the motor.
• Do not use the cooker hood without filters fitted.
• Clean or replace the filters regularly to avoid oil build up.
• Do not replace the filters while the cooker hood is
operating.
• Replacement filters should be bought from authorised
dealers.
• The light and cover may be hot in use.
• Do not use abrasive cleaning materials or scouring pads
when cleaning the cooker hood.
Electrical information
Mains supply
Warning! This cooker hood MUST BE
EARTHED.
Should the power supply cable need to be replaced, this
must be carried out by an approved service engineer. John
Lewis declines any liability should this safety measure not be
observed.
Before switching on, make sure the electricity supply voltage is
the same as that indicated on the cooker hood’s rating plate.
The cooker hood must be installed by a qualified electrician or
competent person.
Warning! The appliance should not be
connected to the electrical supply by means
of an extension cable.

Cooker hood user guide 7
Operation
Controls
The controls are (top to bottom):
Power. Press the button to switch
the cooker hood on or off.
Fan speed. To select a speed
setting press the button:
once for speed 1
twice for speed 2
three times for speed 3
Alternatively, when the cooker hood is
switched on press and hold the button for
5 seconds to activate intensive speed. The
intensive speed setting will operate for 10
minutes or until you press the fan speed
button or the power button.
Note: For regular cooking, we recommend using fan setting 1
or 2. If you are frying or cooking other dishes which generate
a large amount of smoke or steam, we recommend using fan
setting 3 or intensive speed.
Light. Press this button to operate the LED lights.
Timer. Press this button to set a 15 minute
timer. The cooker hood will operate at the currently
selected speed (speed setting 1-3 only, not intensive
speed) for 15 minutes and then switch off. This is
useful for clearing cooking fumes and odour.
Press and hold the timer button for 4 seconds to
switch the LED lights on or off.
Indicators
The indicators are (top to bottom):
Filters. If this indicator is:
Lit. The anti-grease filters have been used for a
minimum of 30 hours and should be washed.
Flashing. The anti-grease filters have been used
for a minimum of 120 hours and should be
washed.
To reset the filters indicator, when the cooker hood
is switched off press and hold the fan speed button
for 5 seconds. The filters indicator will go out and the
internal timer will reset for another 30/120 hours.
Note: We recommend that you wash filters every 2-3
months. See page 8 for more information on cleaning filters.
Clean Air. When the cooker hood is switched off
press and hold the fan speed button for 5 seconds to
activate the clean air function. The cooker hood will
operate automatically at speed 1 for 10 minutes
every hour. This indicator will flash when the fan is off
and be lit when the fan is on.
Timer. This indicator is lit when the timer is
switched on.
Lights. This indicator is lit when the lights are
switched on.

Cooker hood user guide
8
Care, Cleaning and Servicing
Note: Switch off and unplug the cooker hood before carrying
out any cleaning or maintenance work.
Care and Cleaning
Clean the interior and exterior casing using a cloth with water
and mild (neutral) detergent.
Do not use abrasive cleaning materials or scouring pads when
cleaning the cooker hood as this may damage the stainless
steel finish.
Cleaning and Replacing Filters
This cooker hood is supplied with aluminium filters.
Aluminium Filters
Aluminium filters are designed to absorb grease and dust
during cooking. They should be removed and cleaned at least
once every two months, or more often if you regularly fry
food.
To clean the aluminium filters:
1 Open the panel (1).
2 Remove the brackets from the housing (2).
3 Pull the filter out of the cooker hood (3).
4 Wash the filter in warm, soapy water or in a dishwasher
and dry it.
5 Replace the filter in the cooker hood
and press into position.
6 Replace the brackets in the housing.
7 Close the panel.
The filters may discolour after a few
washes. This is normal and does not
mean they have to be replaced.
Long Life Filters
Long life filters are designed to absorb grease, dust and
unwanted odours during cooking. Unlike traditional charcoal
filters these can be washed and re-used approximately 12-
15 times before they have to be replaced. They should be
washed at least once every 2-3 months.
To clean the charcoal filters:
1 Open the panel (1).
2 Remove the brackets from the housing (2).
3 Pull the filter out of the cooker hood (3).
4 Wash the filter in warm, soapy water or in a dishwasher at
the highest dishwasher temperature.
5 Dry the filter in the oven at 100°C for 10-15 minutes to
re-activate it.
6 Insert the reactivated filter in the cooker hood and press
into position.
7 Replace the brackets in the housing.
8 Close the panel.
With regular cleaning and reactivation, these charcoal filters
will retain their odour-absorbing capacity for approximately
three years before they need to be replaced.
Replacement filters should be bought from authorised dealers.

Cooker hood user guide 9
Replacing Lights
Your cooker hood is fitted with LEDs. They should only be
replaced by an authorised service engineer.
Servicing
This cooker hood should only be serviced by an authorised
service engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
cooker hood yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunction.

Cooker hood user guide
10
Preparation for installation
The cooker hood must be mounted so that the minimum
distance between the filters and the gas or electric hob is
65cm.
If a two-part connecting tube is used, the upper part must be
placed outside the lower part.

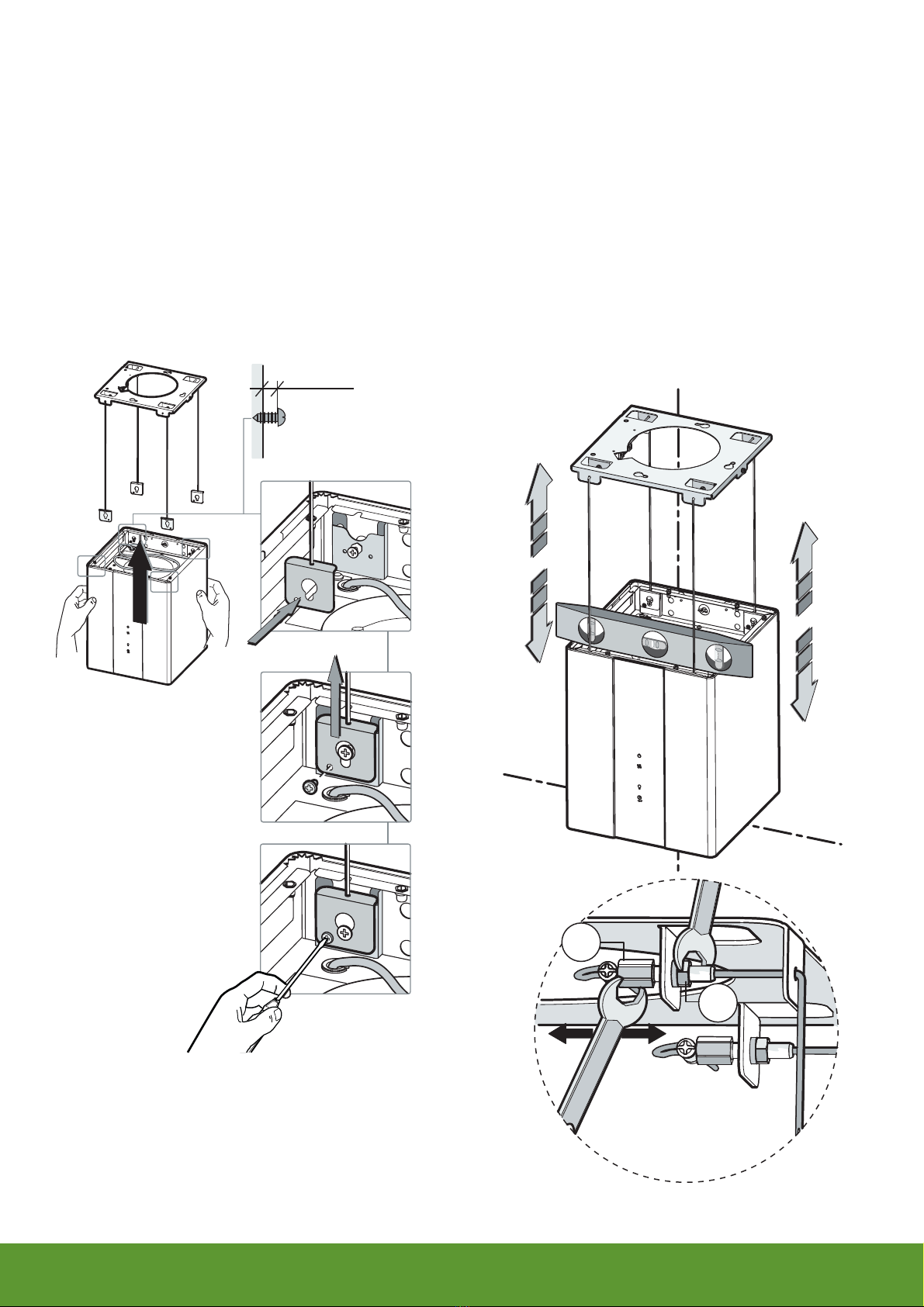

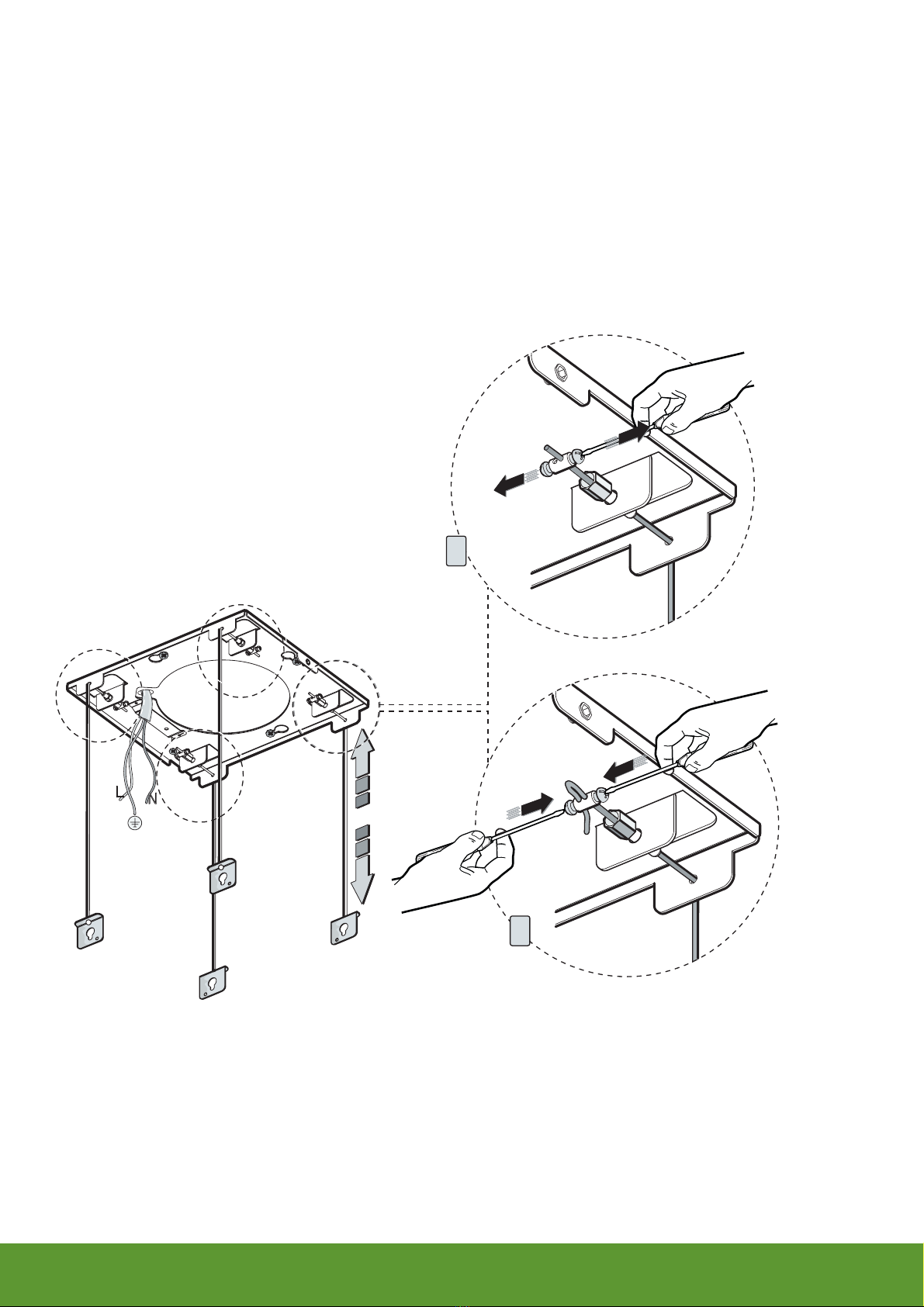

Installing the Cooker Hood
1 Use the drill hole template to mark the ceiling connection
holes.
2 Drill 5 Ø8 holes in the ceiling. Insert rawlplugs in the holes.
3 Insert 3 screws (E) and tighten, leaving at least 3mm
protruding from the ceiling. Do not insert screws in
remaining holes (X).
4 Place top frame over the ceiling screws (E) and turn frame
to lock it in position.
5 Insert the remaining two screws and tighten all the screws
to hold the frame tightly against the ceiling.
6 Work out the required cable length by subtracting the
height of the hob, the cooker hood and the clearance
required between them (650mm) from the height of the
room.
Installation
X
XE
E
E
min 3mm
E

Cooker hood user guide 11
A
B
7 To adjust the cable height, first loosen the screws as shown
in A below.
8 Pull the cables to the required length.
9 Tighten the screws as shown in B below.

Cooker hood user guide
12
Installation
10 Hook the hood body onto the cable ends as shown below.
Tighten the screws and then insert the retaining screws.
11 Use a spirit level to make sure that the hood is completely
level (as shown below). Turn the alignment screws (A) to
adjust the cable heights.
12 Once the hood is correctly aligned, tighten the alignment
nuts (B) to lock the hood in position.
2/3 mm
A
B

Cooker hood user guide 13
13 Before connecting the electric cables, screw the connection
box to the frame.
14 Open the connection box and connect the electrical cables
as shown below.
15 Close the box and fasten the lid with the two screws as
shown.
16 Take the frame cover and fasten it to the frame with two
screws as shown below.

Cooker hood user guide
14
17 Connect the lights as shown below. 18 Pass the power supply cable through the hood top, then
screw the hood top down as shown below.
Installation

Cooker hood user guide 15
19 Insert screws to the cooker hood, but do not completely
tighten them. Leave 2/3mm clear to hook the decorative
cover on to.
20 Slide the decorative cover on to the hood and hook it
over the screws.
21 Tighten the screws to hold the cover in position.
22 Repeat these steps for the second decorative cover.
Your cooker hood is now ready for use.
2/3 mm

Cooker hood user guide
16
Disposal
This symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council office, your household waste disposal service
or the John Lewis branch where you purchased the product.
Guarantee
Your John Lewis JLBIHD520 designer cooker hood is covered
by a three year parts and labour guarantee. This means that
if the cooker hood develops a fault during the guarantee
period we arrange a repair free of charge. Your original receipt
acts as your guarantee so please make sure that you retain it
throughout the guarantee period.
Please note that this guarantee does not cover you against
faults caused by accidental damage or misuse.
Disposal and Guarantee

Cooker hood user guide 17
To assist in locating possible faults use the help guide below:
Troubleshooting
Problem Cause Correction
Light not working
The LED lights are not working The LED string is loose. Switch off the cooker hood, then see page 14
for details of how to connect the LED string.
The LED string is burned out. Contact your local John Lewis branch.
No electric current is reaching the cooker
hood.
Check that the cooker hood is plugged in and
the power is on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
Cooker hood not operating effectively
The cooker hood is not working
effectively.
The fan speed is too low. Select a higher fan speed.
The filter needs cleaning or replacing. Clean or replace the filter.
The air discharge outlet may be blocked. Check the air discharge outlet and clear any
blockages.
Oil or fat collects on the filter. The filter needs cleaning or replacing. Clean or replace the filter.
Cooker hood will not operate
The cooker hood has switched
off unexpectedly during
operation.
The cooker hood has overheated. Switch off the cooker hood and wait until it
has cooled down.
The cooker hood is too close to the hob. Re-site the cooker hood at the correct height.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
The cooker hood will not start. The cooker hood is not plugged in or the
power is off.
Check that the plug is firmly pushed in and the
power is on.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
If none of the above suggestions resolve the problem please contact your local John Lewis branch. Never attempt to repair the
cooker hood yourself.
Note: The cooker hood must only be repaired by a qualified registered service person.
Troubleshooting

Cooker hood user guide
18
Repairs - after sales service
Your cooker hood comes with a free three year warranty. If
it is not working correctly, consult the troubleshooting section
within this User Guide.
If a fault occurs which you cannot resolve through following
the advice and information contained within this User Guide,
the next step is to contact our warranty administrators on
0844 871 7771. They will give you details for your local service
engineer.
When you contact your local service engineer you will need to
give the following details:
• Your name, address and post code
• Your telephone number
• Clear and concise details of fault
• The purchase date as found on your receipt
• The model and serial number of the cooker hood. So that
you always have these numbers at hand, we recommend
you make a note of them here:
Mod : .......................................
S.N : .......................................
Note: If you call out an engineer to a fault or to repair a fault
caused by incorrect use or installation, a charge will be made
even if the cooker hood is under guarantee.
Spare parts
Caution: Always insist on genuine spare
parts.
An authorised service engineer should service this cooker
hood, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
cooker hood yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local John Lewis branch.

Cooker hood user guide 19
Specifications
Specifications of the cooker hood that you have just purchased may vary from the information in this table due to technical
innovations.
Type Island Pendant Hood
Dimensions 510 mm wide x 465 mm high
Drive Mode JC2
Extraction Rate (per hour) 500 - 600 m3
Number of Speeds 3 + intensive
Noise Level 50/53db
Wattage 130w
Washable Metal Filters Yes

Cooker hood user guide
20
