John Lewis JLBIHD923 User manual

JLBIHD923 90cm Cooker Hood
User guide

Cooker hood user guide
2
2

Cooker hood user guide 3
Contents
Contents 3
Introduction 4
Safety is important 4
In the box 4
Safety information 5
Important safety information 5
Warnings 5
Cautions 6
Electrical information 6
Mains supply 6
Operation 7
Controls 7
Indicators 7
Care, Cleaning and Servicing 8
Care and Cleaning 8
Cleaning and Replacing Filters 8
Aluminium Filters 8
Charcoal Filters (Not Supplied) 8
Replacing Lights 9
Servicing 9
Installation 10
Preparation for installation 10
Installing the Cooker Hood 10
Disposal and Guarantee 12
Disposal 12
Guarantee 12
Troubleshooting 13
Troubleshooting 13
Repairs - after sales service 14
Spare parts 14
Specifications 15

Cooker hood user guide
4
Introduction
Thank you for purchasing this JLBIHD923 cooker hood.
Please take time to read these instructions and retain for
future reference.
Safety is important
To ensure your safety and the safety of others, please read the
Safety information before you operate this product.
Keep this information in a safe place for future reference.
In the box
You will find the following:
• Cooker hood
• Telescopic chimney
• User guide
Note: If any of the items listed are damaged or missing, please
contact your local John Lewis branch.

Cooker hood user guide 5
Important safety instructions - read
carefully before use
Take note of the following safety information:
Warning! To prevent fire or shock hazard,
do not expose this cooker hood to rain or
moisture.
Warning! Always remove the mains plug
from the wall socket when not in use or
before any service operation.
Warning! There are no user serviceable
parts on this cooker hood. Refer servicing to
qualified service personnel.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this cooker hood.
This symbol indicates that dangerous voltages
constituting a risk of electric shock are present within
this cooker hood.
Important safety information
It is most important that this guide should be retained with the
cooker hood for future reference. Should you move house and
leave the appliance, always ensure that this guide is supplied
with the cooker hood in order that the new owner can get to
know the functionality and the relevant warnings.
These warnings have been provided in the interest of safety.
You MUST read them carefully before installation or use. If you
are unsure of the meanings of these warnings contact the John
Lewis branch from which you purchased the cooker hood.
To avoid accidents to property or people it is important to
follow the instructions given. Failure to do so removes any
liability from John Lewis.
Warnings
• Any installation work must be undertaken by a qualified
electrician or competent person.
• This is a class I electrical appliance and must therefore be
correctly earthed.
• If the cooker hood is installed for use above a gas appliance,
the provision for ventilation must be in accordance with the
Gas Safety Codes of Practice, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued by the
Department of the Environment and, where applicable, the
Building Standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• Do not install this cooker hood above a cooker with a high-
level grill.
• Keep all packaging well away from children. There is risk of
suffocation.
• If the room where the cooker hood is to be used contains
a fuel burning appliance (such as a gas or oil fired central
heating boiler), the boiler’s flue must be a room sealed or
balanced flue type. Alternatively, you should make sure that
there is adequate air inlet into the room at all times so that
fumes from the boiler are not drawn back into the room by
the cooker hood.
• Do not allow the power cord to be crushed or bent
excessively.
• Do not let the power cord touch or pass over the hob or
other hot surface.
• Do not hold the power cord or plug with wet hands.
• Never use a damaged power cord or plug, or a loose mains
socket.
Safety information

Cooker hood user guide
6
Cautions
• This cooker hood is designed for domestic use only.
• This cooker hood is designed to be operated by adults.
Children should not be allowed to tamper with the controls
or play with the cooker hood.
• Do not leave frying pans unattended during use, as
overheated fats and oils may catch fire.
• Do not do flambé cooking under this cooker hood.
• Do not leave naked flames under the cooker hood.
• Make sure foreign objects do not get into the cooker hood
or obstruct the motor.
• Do not use the cooker hood without filters fitted.
• Clean or replace the filters regularly to avoid oil build up.
• Do not replace the filters while the cooker hood is
operating.
• Replacement filters should be bought from authorised
dealers.
• The light and cover may be hot in use.
• Do not use abrasive cleaning materials or scouring pads
when cleaning the cooker hood.
Electrical information
Mains supply
Warning! This cooker hood MUST BE
EARTHED.
Should the power supply cable need to be replaced, this
must be carried out by an approved service engineer. John
Lewis declines any liability should this safety measure not be
observed.
Before switching on, make sure the electricity supply voltage is
the same as that indicated on the cooker hood’s rating plate.
The cooker hood must be installed by a qualified electrician or
competent person.
Warning! The appliance should not be
connected to the electrical supply by means
of an extension cable.

Cooker hood user guide 7
Operation

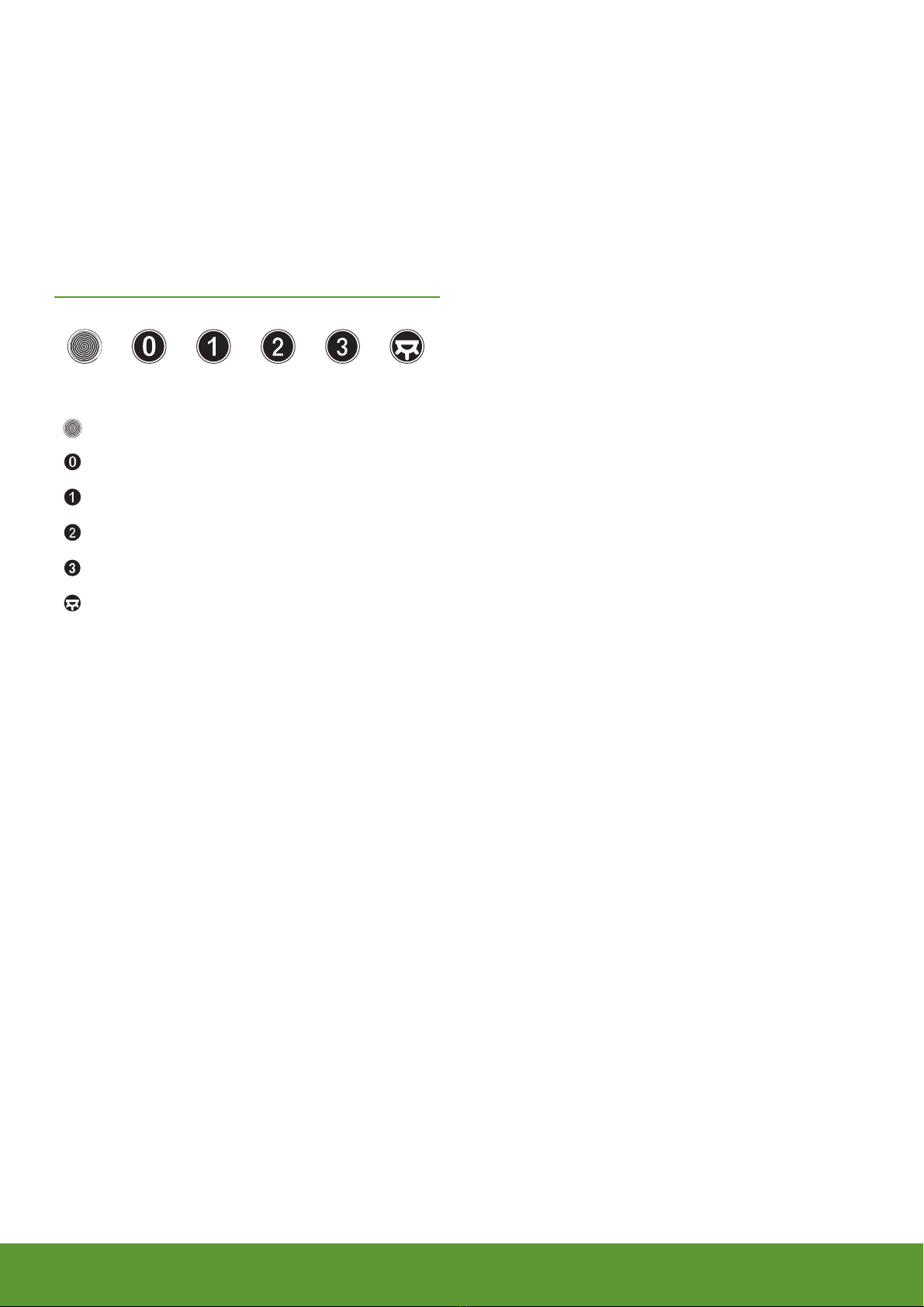

Controls
The controls are (Left to right):
- Motor working indicator.
- Off. Switch the cooker hood off.
- Fan speed 1.
- Fan speed 2.
- Fan speed 3.
- Light. Press this button to operate the LED lights in
the cooker hood.
Note: For regular cooking, we recommend using fan setting 1
or 2. If you are frying or cooking other dishes which generate
a large amount of smoke or steam, we recommend using fan
setting 3.

Cooker hood user guide
8
Care, Cleaning and Servicing
Note: Switch off and unplug the cooker hood before carrying
out any cleaning or maintenance work.
Care and Cleaning
Clean the interior and exterior casing using a cloth with water
and mild (neutral) detergent.
Do not use abrasive cleaning materials or scouring pads when
cleaning the cooker hood as this may damage the stainless
steel finish.
Cleaning and Replacing Filters
This cooker hood is supplied with aluminium filters.
Aluminium Filters
Aluminium filters are designed to absorb grease and dust
during cooking. They should be removed and cleaned at least
once every two months, or more often if you regularly fry
food.
The filters may discolour after a few washes. This is normal
and does not mean they have to be replaced.
To clean the aluminium filters:
1 Open the panel (A).
2 Pull the filter out of the cooker hood (B).
3 Remove the filter from the holder (C).
4 Wash the filter in warm, soapy water or in a dishwasher
and dry it.
5 Replace the filter in the holder and replace it in the cooker
hood by pressing it into position.
6 Close the panel.
Charcoal Filters (Not Supplied)
Charcoal filters are designed to absorb grease, dust and
unwanted odours during cooking.
Non-regenerable charcoal filters must be replaced at least
every four months.
Unlike traditional charcoal filters, regenerable charcoal filters
can be washed and re-used approximately 12-15 times before
they have to be replaced. They should be washed at least
once every 2-3 months.
To clean the charcoal filters:
1 Open the panel (A).
2 Pull the filter out of the cooker hood (B).
3 Remove the filter from the holder (C).
4 Either replace the filter (if non-regenerable), or (if
regenerable) wash the filter in warm, soapy water or in a
dishwasher at the highest dishwasher temperature.
5 Dry the filter in the oven at 100°C for 10-15 minutes to
re-activate it.
6 Insert the reactivated filter in the cooker hood and press
into position.
7 Replace the brackets in the housing.
8 Close the panel.
Replacement filters should be bought from authorised dealers.
A

Cooker hood user guide 9
Replacing Lights
Your cooker hood is fitted with LEDs. They should only be
replaced by an authorised service engineer.
Servicing
This cooker hood should only be serviced by an authorised
service engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
cooker hood yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunction.
B
C

Cooker hood user guide
10
Preparation for installation
The cooker hood must be mounted so that the minimum
distance between the filters and the gas or electric hob is
65cm.
The ducting system for this cooker hood must not be
connected to an existing ventilation system which is being used
for any other purpose.
We recommend an air exhaust tube which is the same
diameter as the air exhaust outlet hole. If a two-part air
exhaust tube is used, the upper part must be placed outside
the lower part.
If installing this cooker hood between adjoining wall cabinets,
the wall cabinets must not overhang the hob.
Before beginning installation, remove the filters (see page 8).
This will make the unit easier to handle during installation.
Installing the Cooker Hood
1 Drill holes (A) 235mm apart to allow you to fix the cooker
hood to the wall.
2 Fix the cooker hood to the wall and align it horizontally.
3 Adjust the width of the support bracket for the upper flue
and insert screws to attach it to the wall.
4 Connect the flange (C) to the air exhaust hole.
Installation
A
B
C

Cooker hood user guide 11
5 Insert the upper flue into the lower flue.
6 Insert screws (B) to attach upper flue to lower flue.
If your flue connects as shown below;
Attach the screws inside the flue as shown below:
7 Insert the filters, as described on page 8.
8 Connect your cooker hood to the electrical supply.
Your cooker hood is now ready for use.

Cooker hood user guide
12
Disposal
This symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council office, your household waste disposal service
or the John Lewis branch where you purchased the product.
Guarantee
Your John Lewis JLBIHD923 cooker hood is covered by a
three year parts and labour guarantee. This means that if the
cooker hood develops a fault during the guarantee period
we arrange a repair free of charge. Your original receipt acts
as your guarantee so please make sure that you retain it
throughout the guarantee period.
Please note that this guarantee does not cover you against
faults caused by accidental damage or misuse.
Disposal and Guarantee

Cooker hood user guide 13
To assist in locating possible faults use the help guide below:
Troubleshooting
Problem Cause Correction
Cooker hood not operating effectively
The cooker hood is not working
effectively.
The fan speed is too low. Select a higher fan speed.
The filter needs cleaning or replacing. Clean or replace the filter.
The air discharge outlet may be blocked. Check the air discharge outlet and clear any
blockages.
Oil or fat collects on the filter. The filter needs cleaning or replacing. Clean or replace the filter.
Cooker hood will not operate
The cooker hood has switched
off unexpectedly during
operation.
The cooker hood has overheated. Switch off the cooker hood and wait until it
has cooled down.
The cooker hood is too close to the hob. Re-site the cooker hood at the correct height.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
The cooker hood will not start. The cooker hood is not plugged in or the
power is off.
Check that the plug is firmly pushed in and the
power is on.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
If none of the above suggestions resolve the problem please contact your local John Lewis branch. Never attempt to repair the
cooker hood yourself.
Note: The cooker hood must only be repaired by a qualified registered service person.
Troubleshooting

Cooker hood user guide
14
Repairs - after sales service
Your cooker hood comes with a free three year warranty. If
it is not working correctly, consult the troubleshooting section
within this User Guide.
If a fault occurs which you cannot resolve through following
the advice and information contained within this User Guide,
the next step is to contact our warranty administrators on
0844 871 7771. They will give you details for your local service
engineer.
When you contact your local service engineer you will need to
give the following details:
• Your name, address and post code
• Your telephone number
• Clear and concise details of fault
• The purchase date as found on your receipt
• The model and serial number of the cooker hood. So that
you always have these numbers at hand, we recommend
you make a note of them here:
Mod : .......................................
S.N : .......................................
Note: If you call out an engineer to a fault or to repair a fault
caused by incorrect use or installation, a charge will be made
even if the cooker hood is under guarantee.
Spare parts
Caution: Always insist on genuine spare
parts.
An authorised service engineer should service this cooker
hood, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
cooker hood yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local John Lewis branch.

Cooker hood user guide 15
Specifications
Specifications of the cooker hood that you have just purchased may vary from the information in this table due to technical
innovations.
Type Cooker Hood
Dimensions 900 mm wide x 490 mm high
Drive Mode HC2
Extraction Rate (per hour) 600 m3
Number of Speeds 3
Noise Level 59db
Wattage 230w
Washable Metal Filters Yes

Cooker hood user guide
16
