John Lewis JLBIOS661 User manual

JLBIOS661
Built-in oven
Instruction manual

Safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis branch
from which you purchased the appliance.
Installation
• This oven must be installed by qualified and
competent personnel to the relevant
National Standards.
• Refer to Installation information chapter
before installation.
• This oven is heavy. Take care when moving
it.
• Remove all packaging, both inside and
outside the oven, before using the oven.
• Do not attempt to modify the oven in any
way.
People Safety
• This oven is designed to be operated by
adults. Do not allow children to play near
or with the oven.
• The oven gets hot when it is in use. Children
should be kept away until it has cooled.
• This appliance is not intended for use by
children or other persons whose physical,
sensory or mental capabilities or lack of
experience and knowledge prevents them
from using the appliance safely without
supervision or instruction by a responsible
person to ensure that they can use the
appliance safely.
Use
• This oven is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
• Appliances become very hot with use, and
retain their heat for long periods after use.
Care should be taken to avoid touching
heating elements inside the oven.
• Always stand back from the oven when
opening the oven door during cooking or
at the end of it to allow any build up of
steam or heat to release.
• Never line any part of the oven with
aluminium foil.
• Do not allow heatproof cooking material,
e.g. roasting bags, to come into contact
with oven elements.
• Never place plastic or any other material
which may melt in or on the oven.
• Do not place sealed cans or aerosols inside
the oven. They may explode if they are
heated.
2

• Do not hang towels, dishcloths or clothes
from the oven or its handle.
• Do not use this oven if it is in contact with
water and never operate it with wet hands.
• Take great care when heating fats and oils
as they will ignite if they become too hot.
• Always use oven gloves to remove and
replace food in the oven.
• Ensure that all control knobs are in the OFF
position when not in use.
• Do not leave cookware containing
foodstuffs, e.g. fat or oil in or on the oven
in case it is inadvertently switched ON.
• When using other electrical appliances,
ensure the cable does not come into
contact with the hot surfaces of the oven.
Maintenance and
Cleaning
• Only clean this oven in accordance with the
instructions.
• The oven should be kept clean at all times.
A build-up of fats or other foodstuffs could
result in a fire, especially in the grill pan.
• Never use steam or high pressure steam
cleaners to clean the appliance.
• Always allow the oven to cool down and
switch off the electrical supply before
carrying out any cleaning or maintenance
work.
• Do not use abrasive cleaners or sharp metal
scrapers. These can scratch the glass in the
oven door, which may result in the
shattering of the glass.
Service
• This oven should only be repaired or
serviced by an authorised Service Engineer
and only genuine approved spare parts
should be used.
3

Contents
For the user
Safety information 2
Description of the appliance 5
General overview 5
Oven accessories 6
The Control Panel 6
Controls 6
Before using for the first time 7
Using the oven 8
The timer 8
Setting the clock 8
Cooking Duration function 9
End of cooking 10
Cooking duration and End of cooking time
combined 10
Minute minder 10
Use, Tips and Tables 11
The Safety Thermostat 12
The Cooling Fan 12
The Fan Oven 13
Cooking chart - Fan Oven 14
Grilling 18
Defrosting 18
Care and cleaning 19
Cleaning the oven door 20
Oven Shelves and Shelf Supports 21
Something not working 23
Disposal 23
Packaging material 24
Old appliance 24
For the installer
Electrical Connections 25
Building In 26
Technical data 27
Guide to use the
instruction manual
The following symbols will be found in the text
to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
4

Description of the appliance

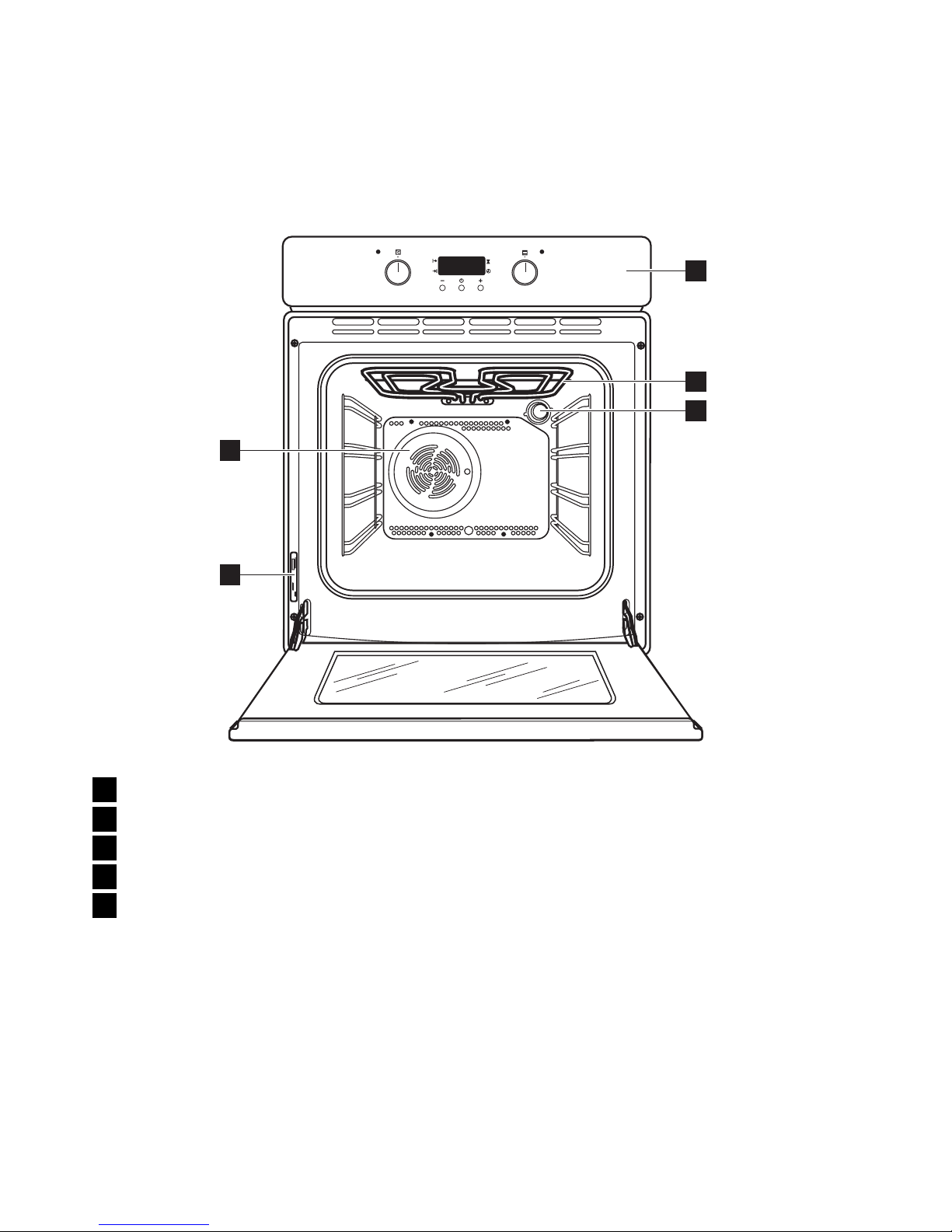

General overview
2
1
3
5
4
1Control panel
2Grill
3Oven light
4Rating plate
5Fan
5

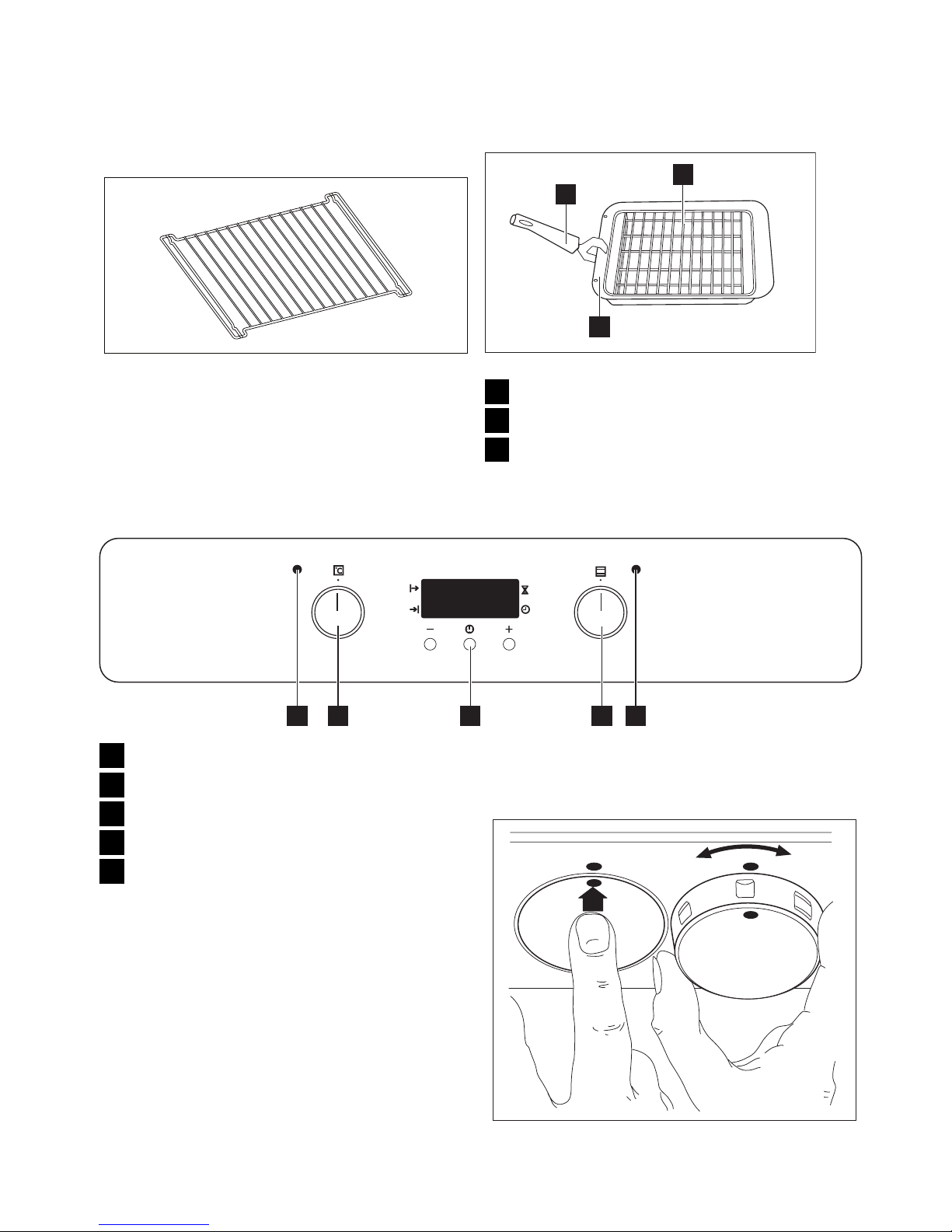

Oven accessories
Shelf
1
2
3
1Removable handle
2Grill Pan Grid
3Grill / Roasting pan
The Control Panel
1 2 3 4 5
1Thermostat Control Light
2Thermostat Control Knob
3Electronic Programmer
4Oven Function Control Knob
5Mains on Light
Controls
Push-Pull control knobs
6

The appliance is provided with push-pull
control knobs. These knobs can be
completely sunken inside the control panel
when the oven is not working.

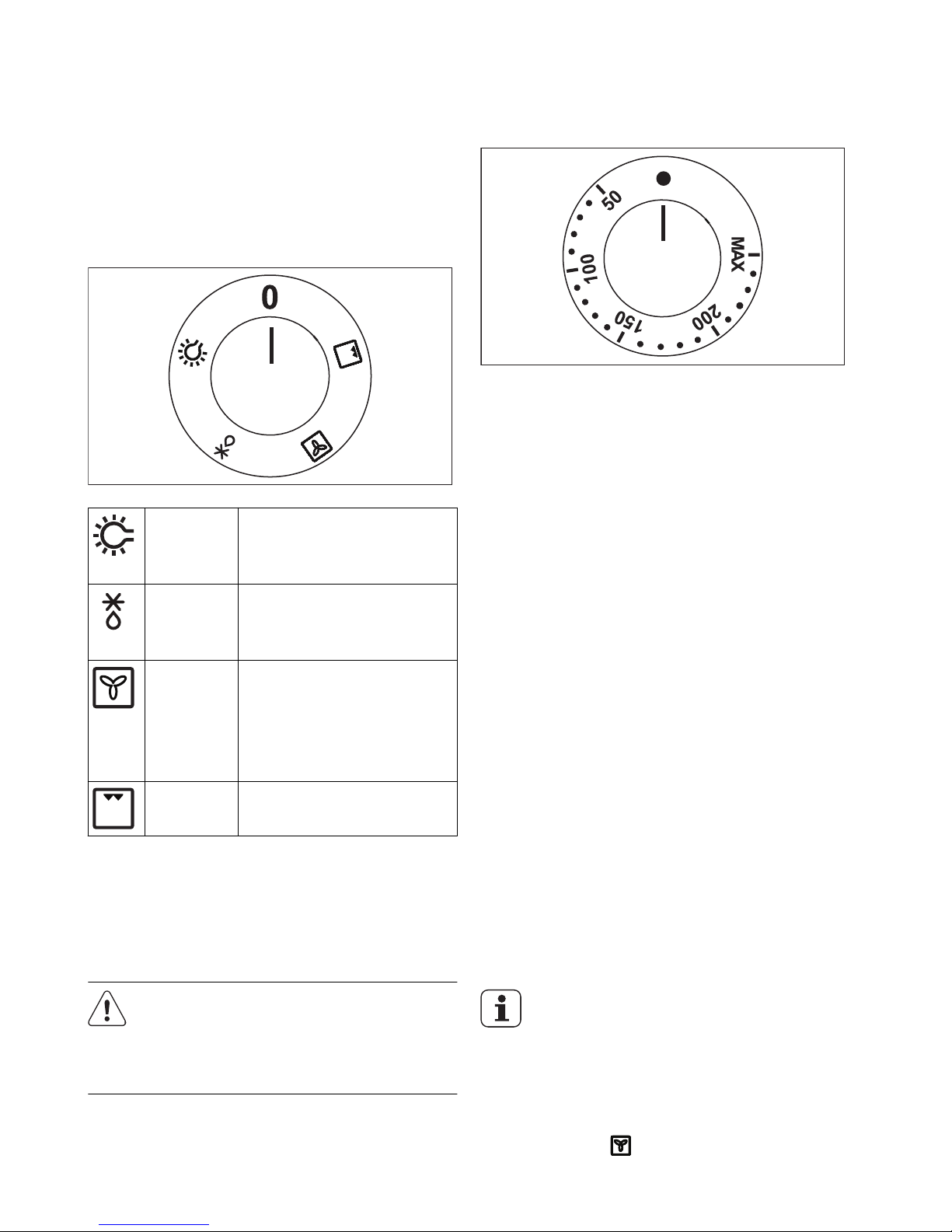

Oven Function Control
Knob
Oven
Light
The oven light will be on
without any cooking
function.
Defrost
Setting
This setting is intended to
assist in thawing of frozen
food.
Fan
cooking
This allows you to roast or
roast and bake
simoultaneously using any
shelf, without flavour
transference.
Grill The heat comes from the
top element only.
Thermostat Control
Knob
Turn the thermostat control knob clockwise
to select temperatures between 50°C and
MAX (250°C).
Thermostat Control
Light
The thermostat control light will come on
when the thermostat control knob is turned.
The light will remain on until the correct
temperature is reached. It will then cycle on
and off to show the temperature is being
maintained.
Mains on Light
The mains on light will come on when the
oven function control knob is set.
Before using for the first time
Warning! Remove all packaging,
both inside and outside the oven
including the advertising labels and any
protective film, before using the oven.
Before first use, the oven should be heated
without food.
The oven will work only if the time of
day has been set.
1. Set the time of day with the electronic
programmer (refer to "The timer").
2. Switch the oven function control knob to
fan cooking .
7

3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for
approximately 45 minutes.
This procedure should be repeated with the
grill function for approximately 5-10
minutes.
During this time, an unpleasant odour
may be emitted. This is absolutely
normal, and is caused by residues of
manufacturing.
Once this operation is carried out, let the
oven cool down, then clean the oven cavity
with a soft cloth soaked in warm water to
which a little mild washing-up liquid has been
added.
Before cooking for the first time,
carefully wash the shelves and the
baking tray.
Warning! To open the oven door,
always hold the handle in the centre.
Using the oven

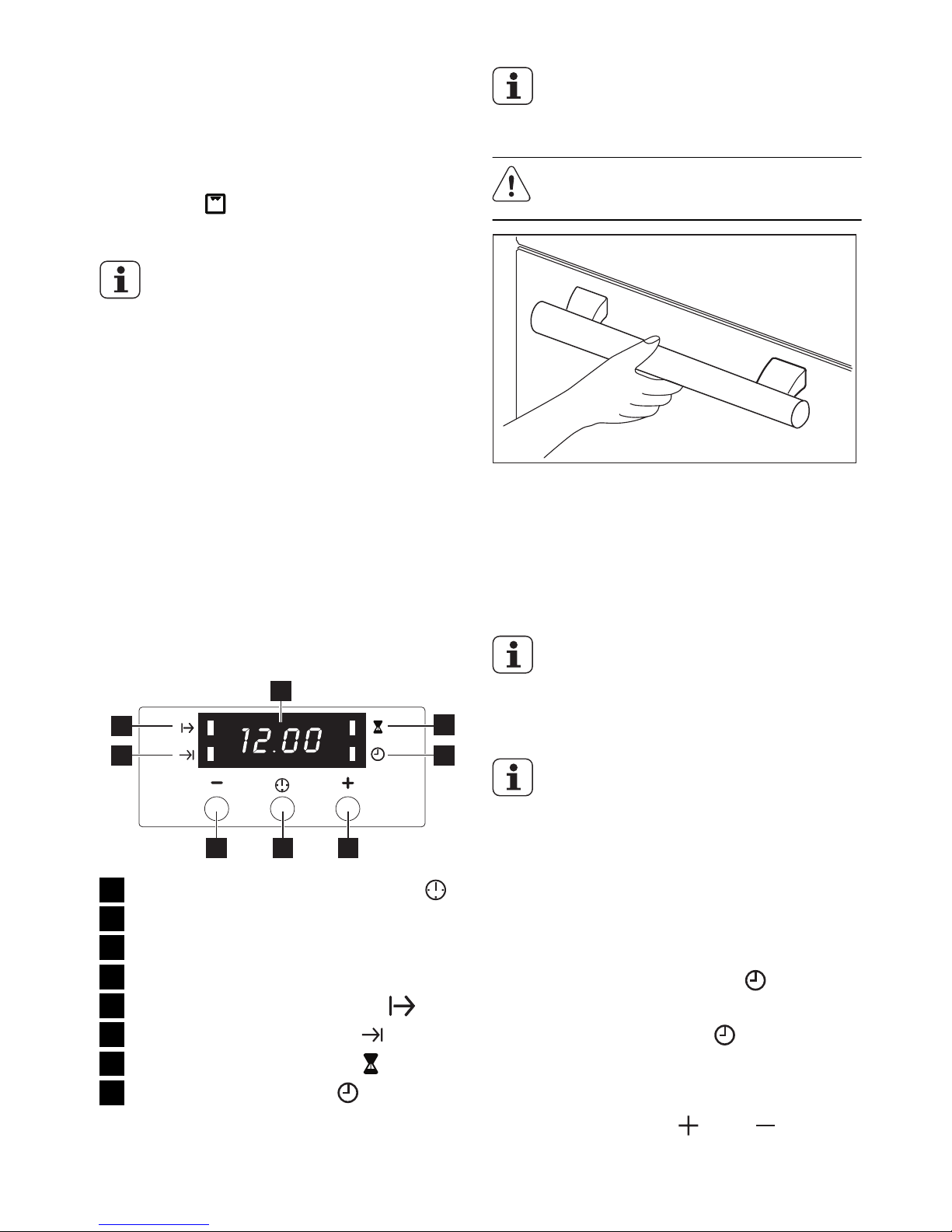

The timer
1 3
8
7
4
2
6
5
1Push button for selecting a function
2Decreasing control button " -"
3Increasing control button " +"
4Display
5“Cooking Duration” pilot lamp
6“End of cooking” pilot lamp
7“Minute minder” pilot lamp
8“Time of day” pilot lamp
The oven will only work if the time of
day has been set. However, the oven
can also be operated without any
programme.
In the event of a power failure, all the
settings (time of day, programme
setting or programme in operation)
will be cancelled. When the power is
restored, the numbers in the display
will flash, and the clock/timer has to
be reset.

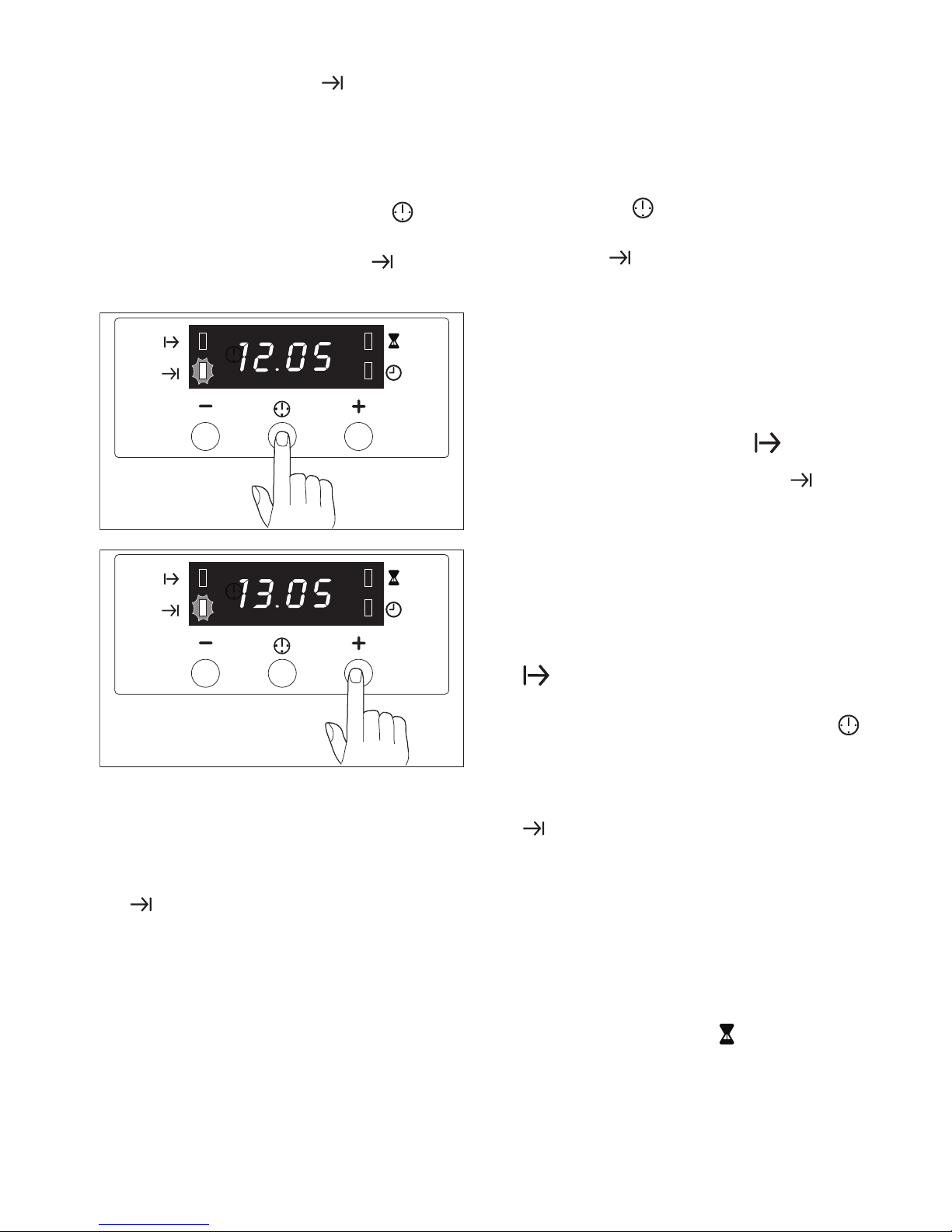

Setting the clock
When the power is switched on or if a power
failure occurs, the “Clock” pilot lamp will
flash in the display.
To set the clock:
1. Press the button “ ” or “ ”.
8

2. Then wait 5 seconds: the “Clock” pilot
lamp will go out and the display will show
the set time. The appliance is now ready
for use.
To reset the correct clock time:
1. Press the button repeatedly to select
the “Clock” function. The relevant pilot
lamp will start flashing. Then proceed as
described above.
The clock time can only be reset if no
automatic function (cooking time or
end of cooking time ) has been set.
Cooking Duration
function
This function allows the oven to automatically
switch off at the end of a programmed cooking
duration time. Place food in the oven, select a
cooking function and adjust the cooking
temperature. Press button repeatedly to
select the “Cooking Duration” function. The
relevant pilot lamp will start flashing. Then,
proceed as follows:
To set the duration time
1. Press button " +" or " -".
2. After the setting is carried out, wait for 5
seconds: the "Cooking Duration" pilot
lamp will come on and the display will
revert to the time of day.
3. When cooking time is over, the oven will
be switched off automatically and an
acoustic alarm will be heard, while the
pilot lamp will start flashing. Turn the oven
function and the thermostat control knob
to zero.
To switch off the acoustic alarm, press any
button.
Turning the acoustic alarm off will reset the
oven to manual, and if the oven function and
the thermostat knobs are not set to zero the
oven will start to heat again.
To cancel the duration time
1. Press button repeatedly to select the
“Cooking Duration” function. The
relevant pilot lamp will flash and the
display will show the remaining cooking
time.
2. Press button " -" until the display shows
“0:00”. After 5 seconds the pilot lamp will
go out and the display will revert to the
time of day.
9

End of cooking
With this function, you can set the oven to
switch off automatically when a programmed
end of cooking time is over. Place food in the
oven, select a cooking function and adjust the
cooking temperature. Press button
repeatedly to select the “End of cooking”
function. The relevant pilot lamp will start
flashing.
To set the End of cooking time
1. Press button " +" or " -".
2. After the setting is carried out, wait for 5
seconds: the “End of cooking” pilot lamp
will come on and the display will revert
to the time of day.
3. When cooking time is over, the oven will
be switched off automatically and an
acoustic alarm will be heard, and the pilot
lamp will start flashing. Turn the oven
function and the thermostat control knob
to zero.
To switch off the acoustic alarm, press any
button.
Turning the acoustic alarm off will reset the
oven to manual, and if the oven function and
the thermostat knobs are not set to zero the
oven will start to heat again.
To cancel the End of cooking time
1. Press button repeatedly to select the
“End of cooking” function. The relevant
pilot lamp will flash and the display will
show the programmed End of cooking
time.
2. Press button " -"until the display shows
the current time of day. The programmer
will beep and the pilot lamp will go out.
Cooking duration and
End of cooking time
combined
The functions “Cooking duration” and “End of
cooking time” can be used simultaneously to
set the oven to switch on and off automatically
at a later time.
1. With the “Cooking duration” function
(carry out the cooking duration setting
as described in the relevant chapter) set
the duration time. Then, press button
and the display will show the programmed
setting.
2. With the “End of cooking time” function
(carry out the End of cooking setting as
described in the relevant chapter) set the
end of cooking time.
The relevant pilot lamps will come on and
the display will show the time of day. The
oven will switch on and off according to
the set programmes.
Minute minder
The minute minder alarm will sound at the end
of a timed period, but the oven will remain on,
if it is in use.
10
