John Louis Home JLH-530 User manual

BOOKLET SKU#719
Installation Instructions
www.johnlouishome.com
12in. Deep Simplicity Closet Organizer
MODEL: JLH-530, JLH-531

PARTS LIST Lista De Piezas Liste Des Piéces
IMPORTANT: DO NOT RETURN TO STORE!
For missing or damaged parts, technical or assembly questions,
please call John Louis Customer Service at 1-800-480-6985
IMPORTANTE: ¡NO LO DEVUELVA A LA TIENDA!
Llame al servicio al cliente local de John Louis al 1-800-480-6985
para aclarar sus dudas sobre pérdidas, daños, asuntos écnicos y ensamblaje.
IMPORTANT: NE PAS RENVOYER OU RAPPORTER AU MAGASIN!
Si vous avez une question concernant l’assemblage, des piéces manquantes ou endommagées ou
un probléme technique, appelez le Service á la clientéle de John Louis au 1-800-480-6985.

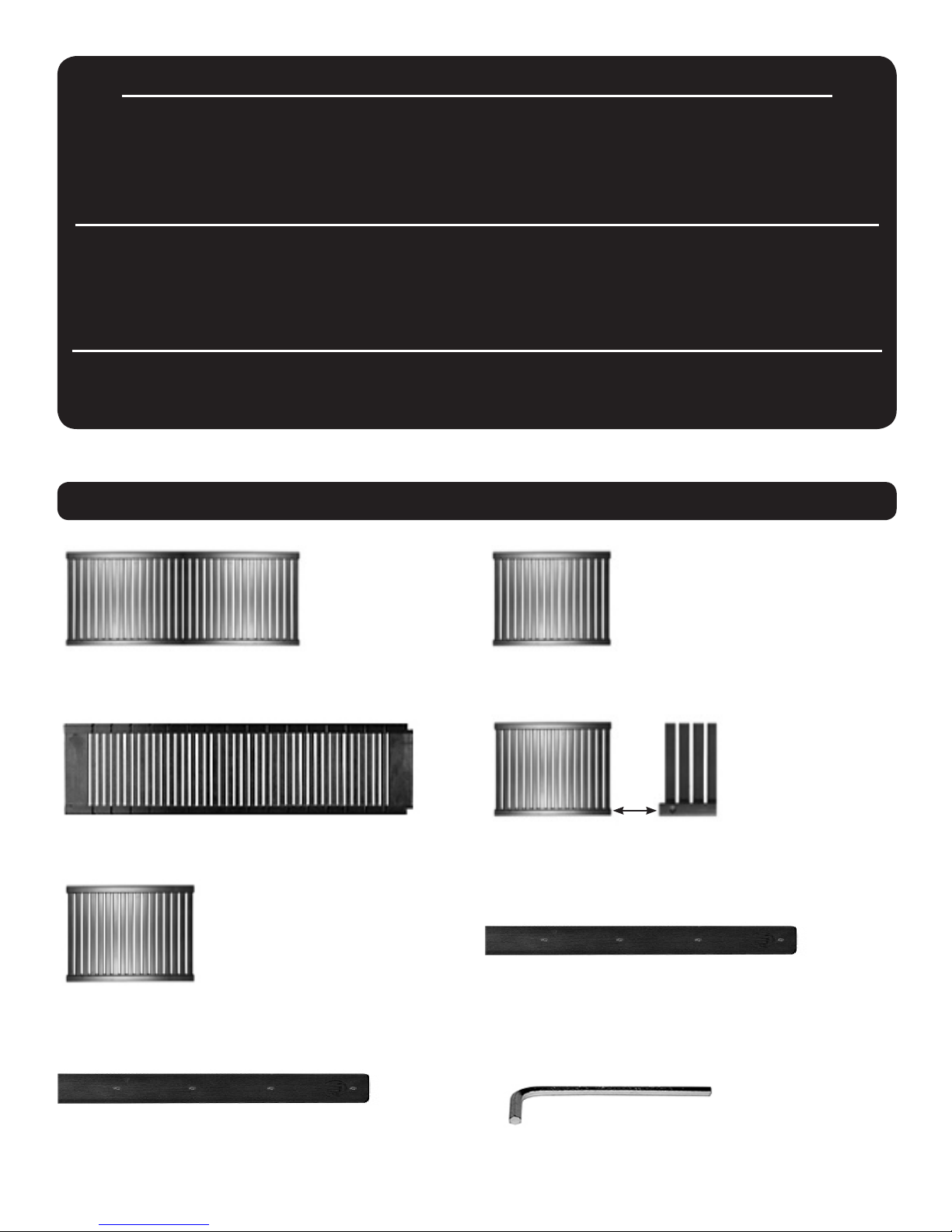

Quantity: 2 48 in. Shelf
Quantity: 2 72 in. Tower Side
Quantity: 4 24 in. Adjustable Shelf
Quantity: 1 24 in. Cam Shelf
Quantity: 2 48 in. Wardrobe Bar
1
Quantity: 1 26 in. Shelf Quantity: 1 24 in. Wardrobe Bar
Quantity: 1 Allen wrench

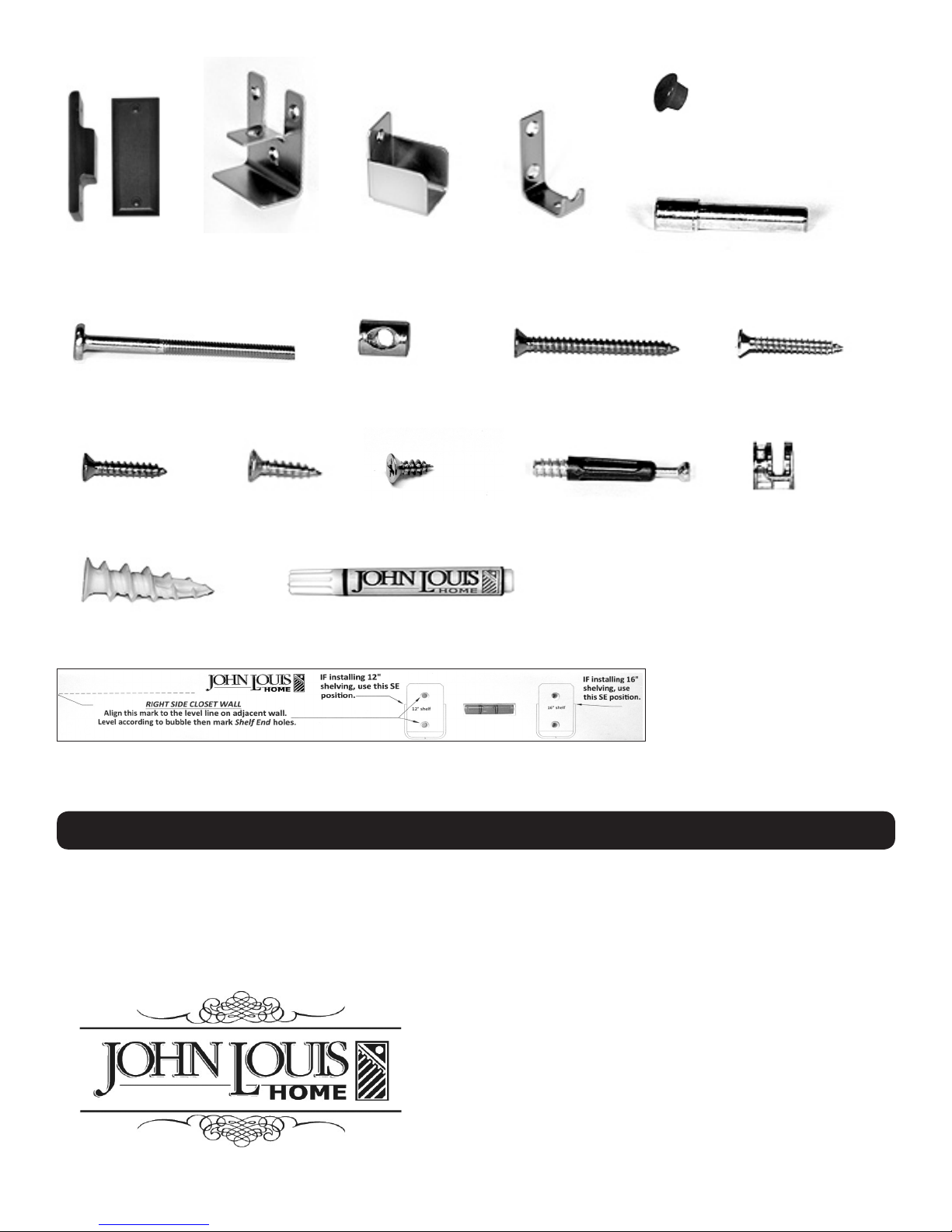

Quantity: 4 Barrel Nut
Quantity: 4
Cam Lock Nut
Quantity: 4 Cam Bolt
Quantity: 20 Adjustable Shelf Pin
Quantity: 1 Touch Up Stain Pen
2
Quantity: 8
Bar Spacer
Quantity: 14
Shelf mounting L- Clip
Quantity: 4 Mushroom Cap
Quantity: 12
#8 3/4 in.
Quantity: 18
#4 3/4 in.
Quantity: 44 #8 1 1/2 in.
Quantity: 48 Wall Anchor
Quantity: 4 Barrel Bolt
Quantity: 6
Shelf End
Quantity: 6
Tower Bracket
Contact Contact0 Contacter
For questions concerning missing or damaged parts, technical specs and / or assembly help, please contact John Louis Home Customer Service at:
Si tiene preguntas sobre partes faltantes o dañadas, especicaciones técnicas o asistencia para el armado, comuníquese con el Servicio al Cliente de John Louis
Home:
Pour toute question relative à des pièces manquantes ou endommagées, toute spécication technique et/ou aide au montage, contactez le service après-vente de
John Louis Home au :
1.800.480.6985 [email protected] www.johnlouishome.com
John Louis Home 4310 Rider Trail North Earth City, Missouri 63045 USA
© 2012 John Louis Inc., All Rights Reserved.
Quantity: 4
#8 1/2 in.
Quantity: 1
Shelf End Template
Quantity: 16
#8 1 in.

3
IMPORTANT - Read Before Assembly

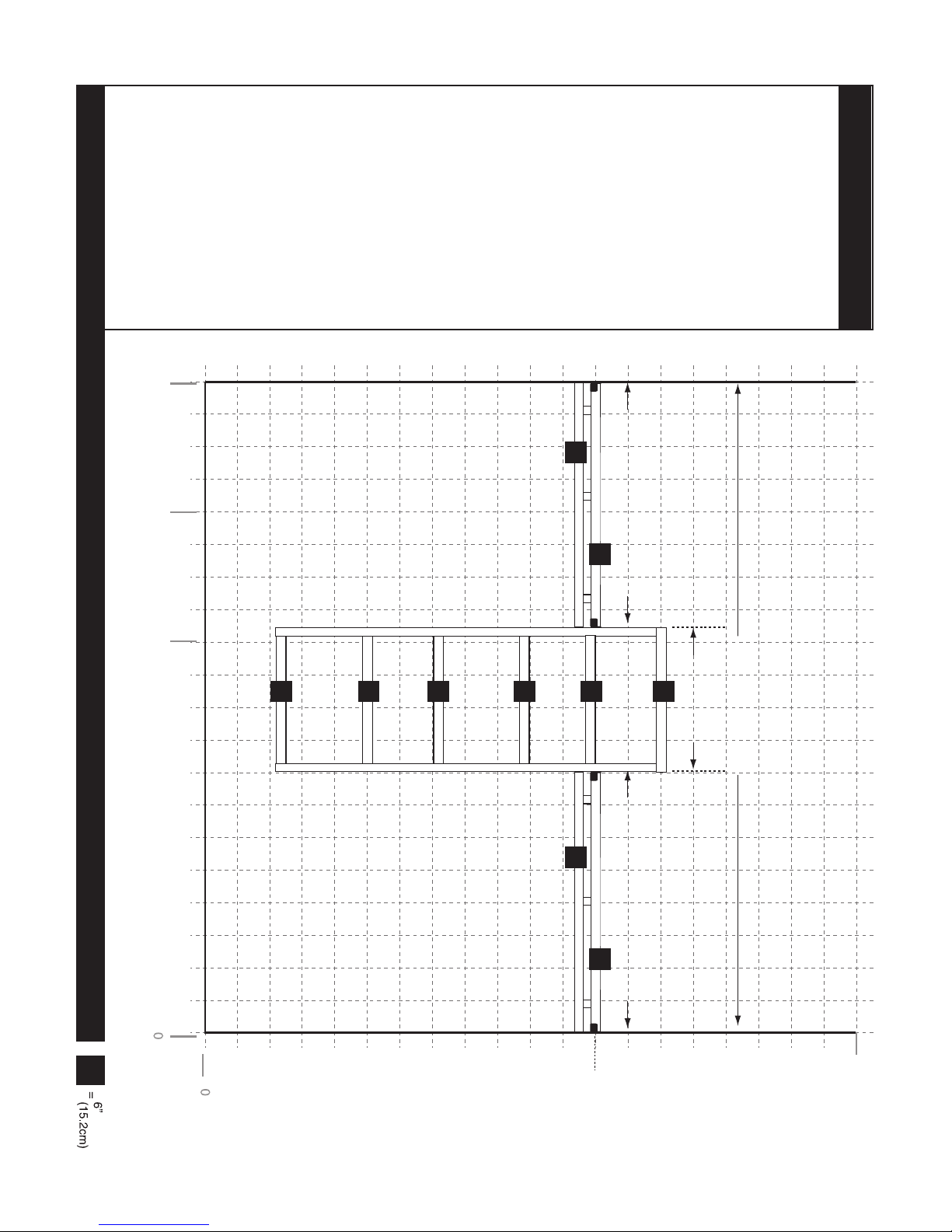

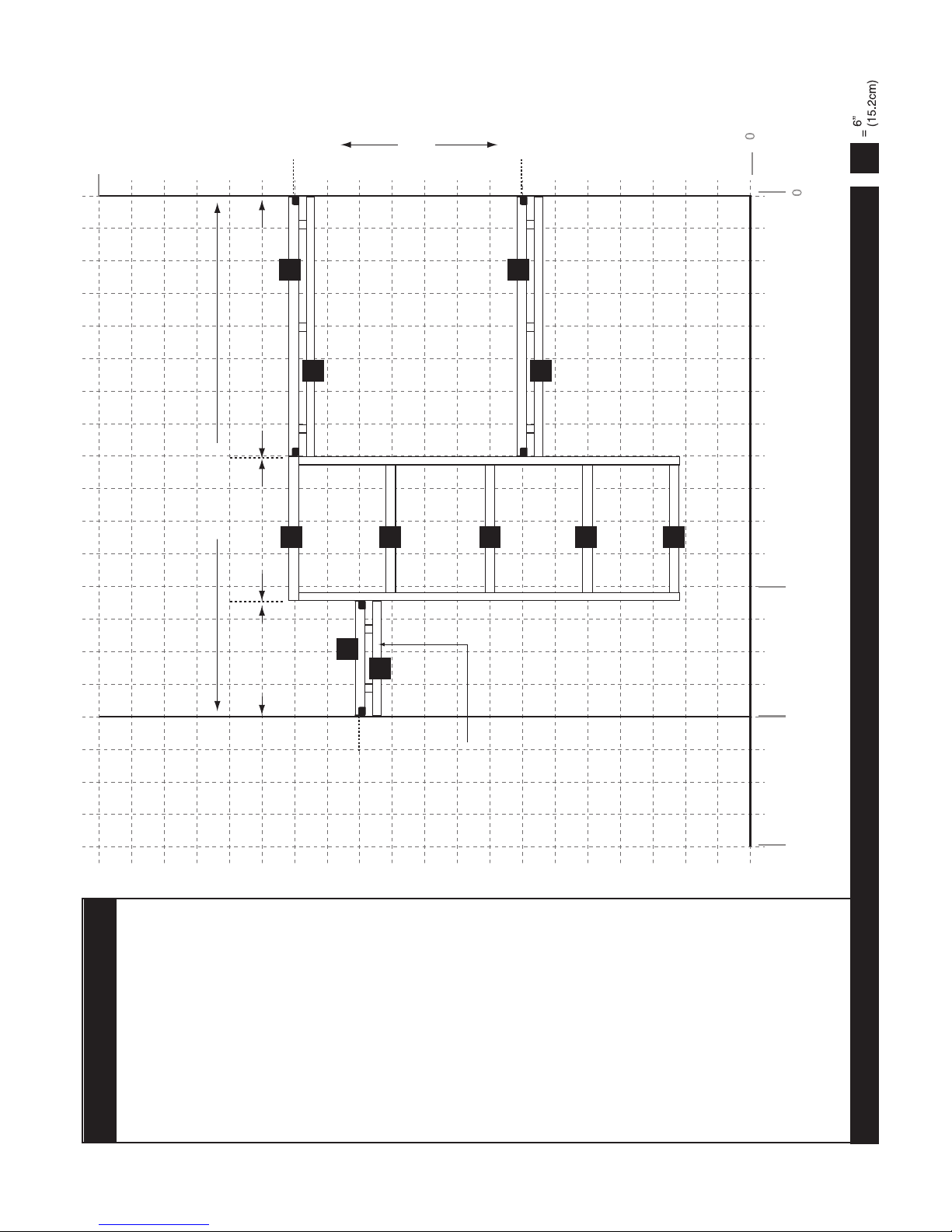

Assembly instructions are written for 8 ft. conguration A.
All assembly processes are the same for each conguration
EXCEPT for the order or locations of the assembly process.
Use selected conguration for shelf locations.
Shelf lengths and Garment bars may need to be cut depending upon conguration
desired.
All cut shelf lengths are used in closet congurations supplied. Depending upon
your closet dimensions, some cut lengths may not be usable.
EXAMPLE: If you choose an 6 ft. closet conguration and the width of your
closet is 6 ft. 4 in., the cut shelf length will be short 4 in. for use. It is recommended
that if your closet is over the selected dimension (6 ft.), then choose a congura-
tion from the next dimension higher (8 ft.).
EXAMPLE: If you choose an 8 ft. closet conguration and the width of your
closet is 7 ft. 6 in., some shelf lengths may need to be cut 6 in. shorter in length
to t closet dimensions.
VERIFY SHELF MEASUREMENTS
MEASURE - MARK - MEASURE AGAIN
Chosen conguration may not require use of all hardware or components sup-
plied.
It is recommended to secure hardware into wall studs for overall strength and
stability of closet system.
If choosing a custom designed conguration, modications to the instructions pro-
vided will be necessary.
All congurations provided may be reversed.

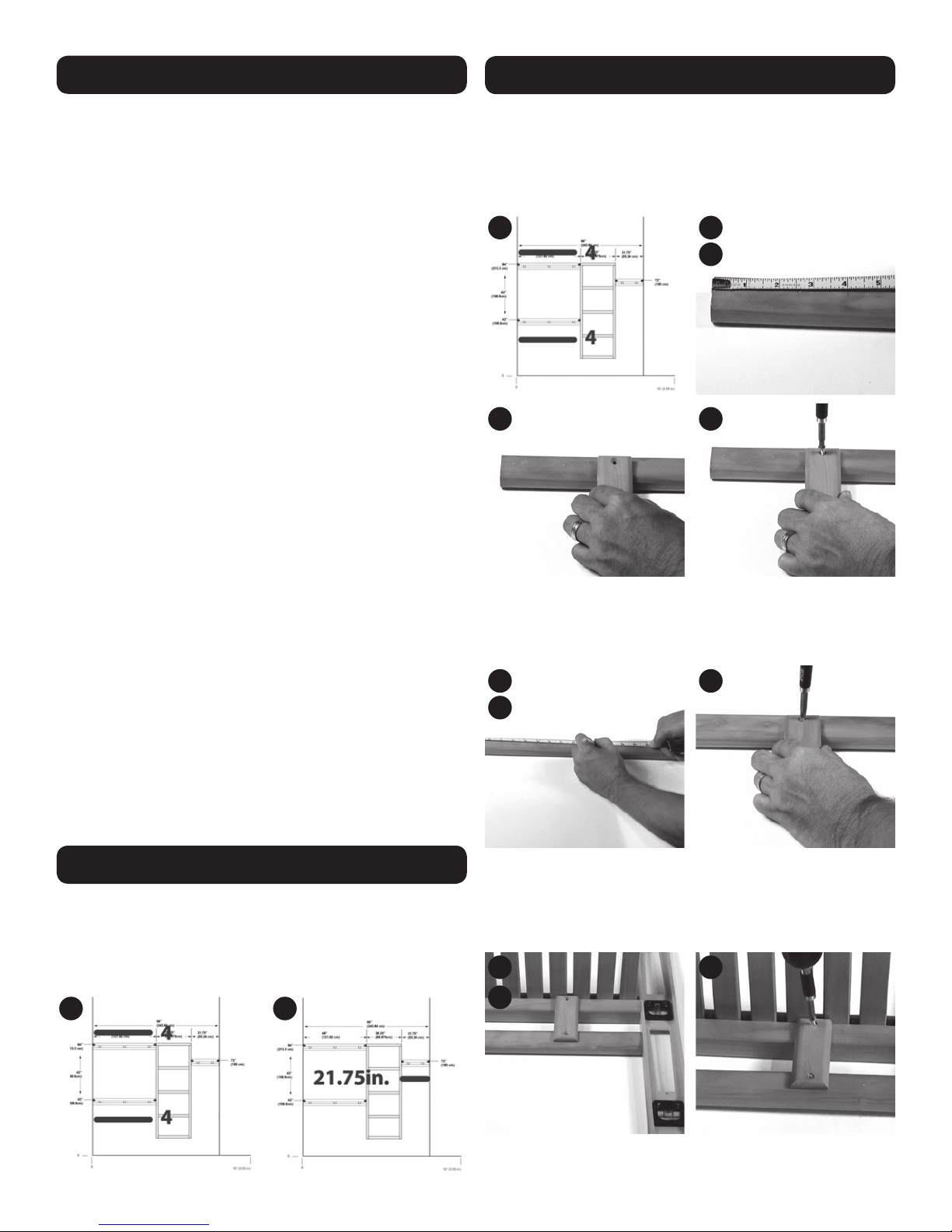

STEP 1 - Determining Your Dimensions
1. Locate your desired conguration (Instructions are written for 8 ft.
conguration A).
2. Double hang shelf is created with 2 - 4ft. shelf lengths.
3. Long hang is created by cutting a 2ft. shelf to 21 3/4 in. wide. (Cut may be
adjusted for any width under 2ft.)

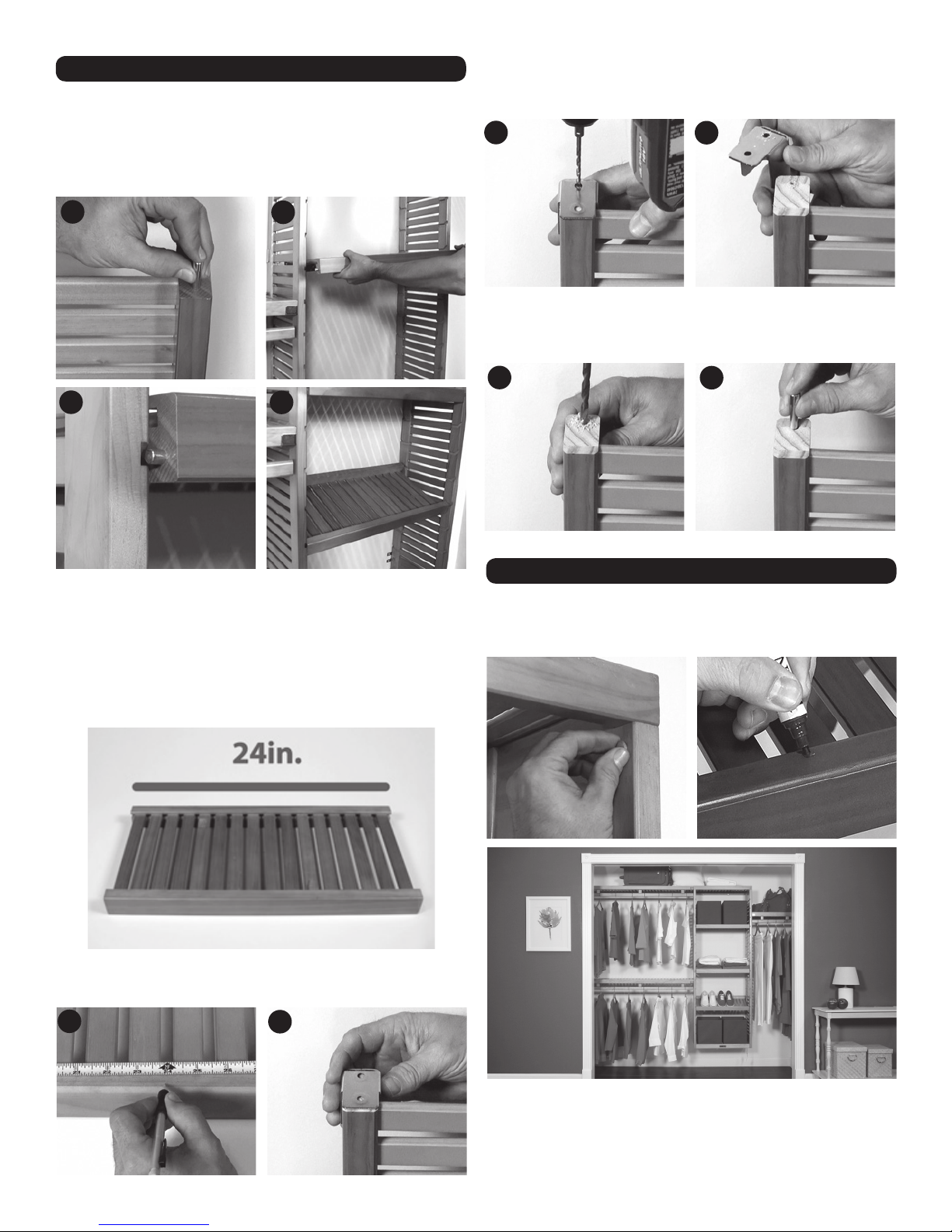

STEP 2 - Attaching Garment Bars
1. 4ft. garment bars are used for double hang.
2. On the pilot hole side of the bar, measure in 4in. from the end.
3. Mark location & repeat for other end.
4. Align side of bar spacer with the mark.
5. Secure with #8 1in. screw.
6. Repeat at each marked location.
7. Find bar center & mark location.
8. Align center of bar spacer at marked location.
9. Secure with #8 1in.screw.
10. Repeat for 2nd 4ft. bar.
11. Place notched bar spacer / bar tight on inside rail of shelf.
12. Flush bar & shelf.
13. Secure bar spacer to shelf rail with #8 1in. screw.
14. Repeat at each bar spacer location.
15. Repeat for each bar & shelf.
1 2
4 5
3
7 9
8
11
12
13
2 3

4

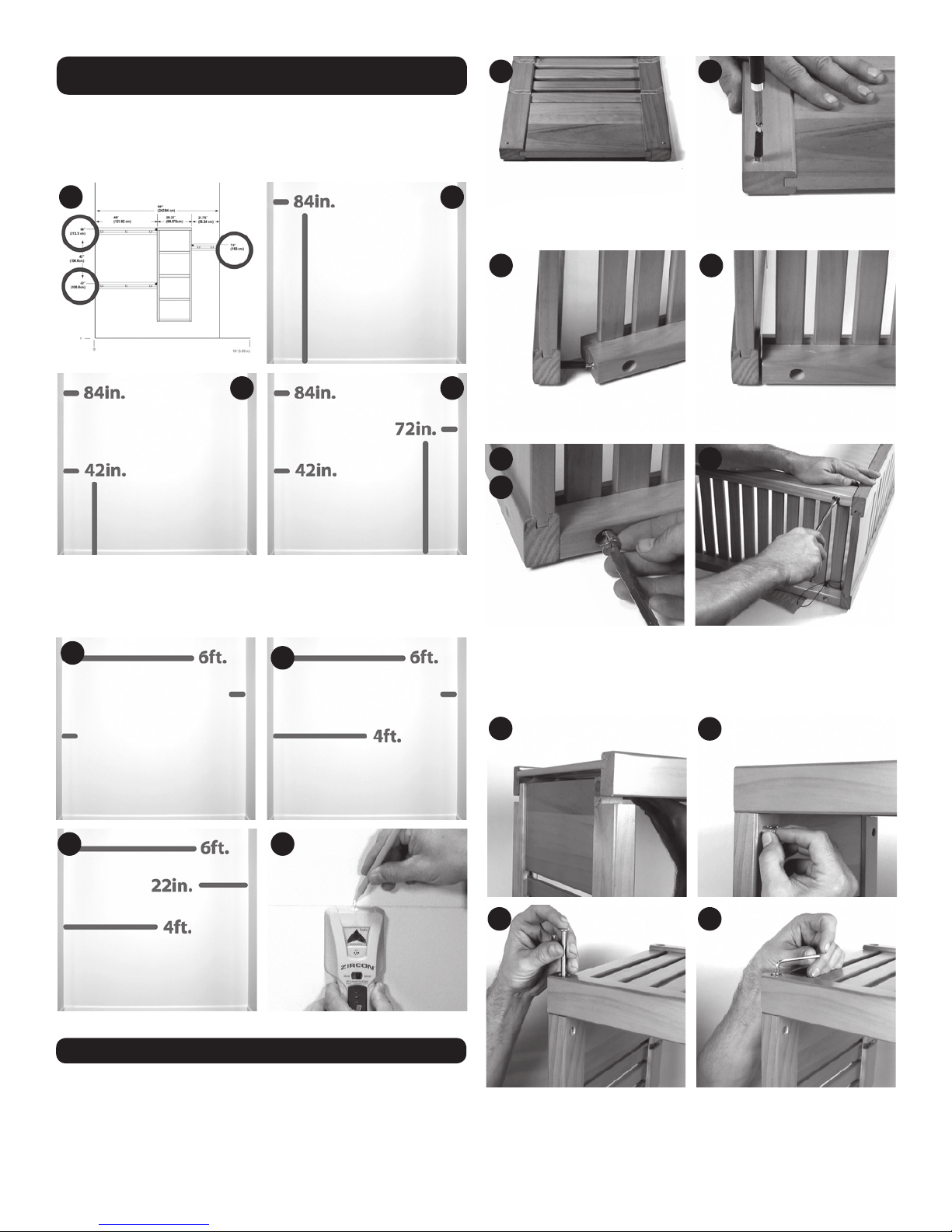

STEP 3 - Marking Measurements
1. Locate the 3 main height locations for your conguration.
2. Measure up & mark the 84in. shelf location.
3. Mark the 42in. shelf location.
4. Mark the 72in. shelf location.
5. Draw a 6ft. long level line out from wall end at 84in. location.
6. Draw a 4ft. long level line out from wall end at 42in. location.
7. Draw a 22 in. long level line out from wall end at 72in. location.
8. Locate stud locations at level lines.

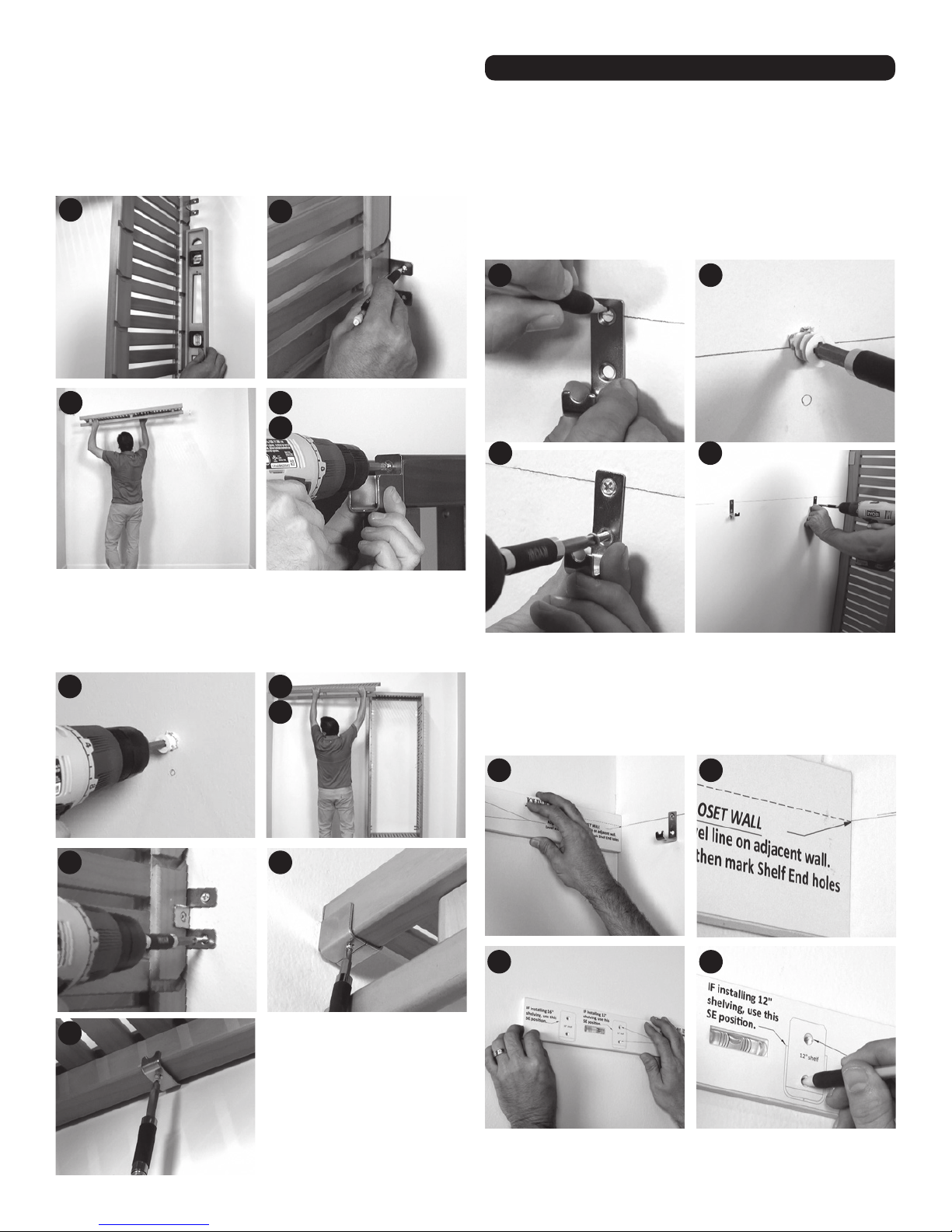

STEP 4 - Tower Assembly
1. Place tower sides down with grooves facing up.
2. Insert cam bolts at tower bottom hole locations.
3. Insert tower sides into tower bottom.
4. Insert cam nuts into tower bottom shelf with arrow facing bolt hole.
5. Secure by turning cam nuts clockwise to tighten.
6. Repeat for opposite tower side.
7. Place tower top into notches at top of tower.
8. Insert barrel nuts into tower sides with groove facing tower top.
9. Insert barrel bolts into tower top & tighten with allen wrench provided (nut
position may need adjustement).
10. Place tower face down (nameplate typically designates tower front)
11. Place top tower bracket between 1st & 2nd groove.
12. Place middle tower bracket between 8th & 9th groove.
13. Place bottom tower bracket between last groove & tower bottom.
12
3 4
56
7 8
1 2
3 3
4 6
5
78
9 9

5
14. Repeat for opposite side.
15. Secure brackets to tower using #6 3/4in. screws.

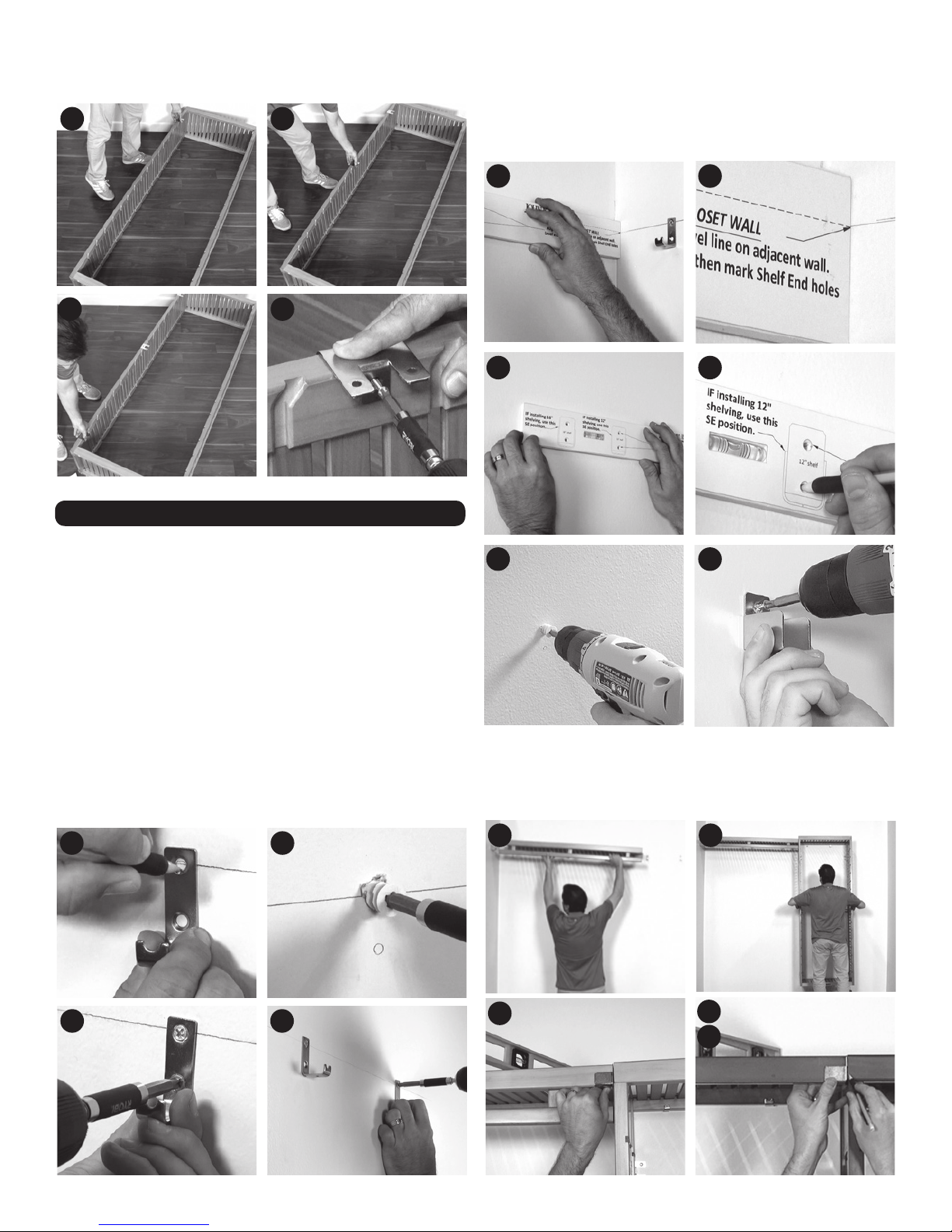

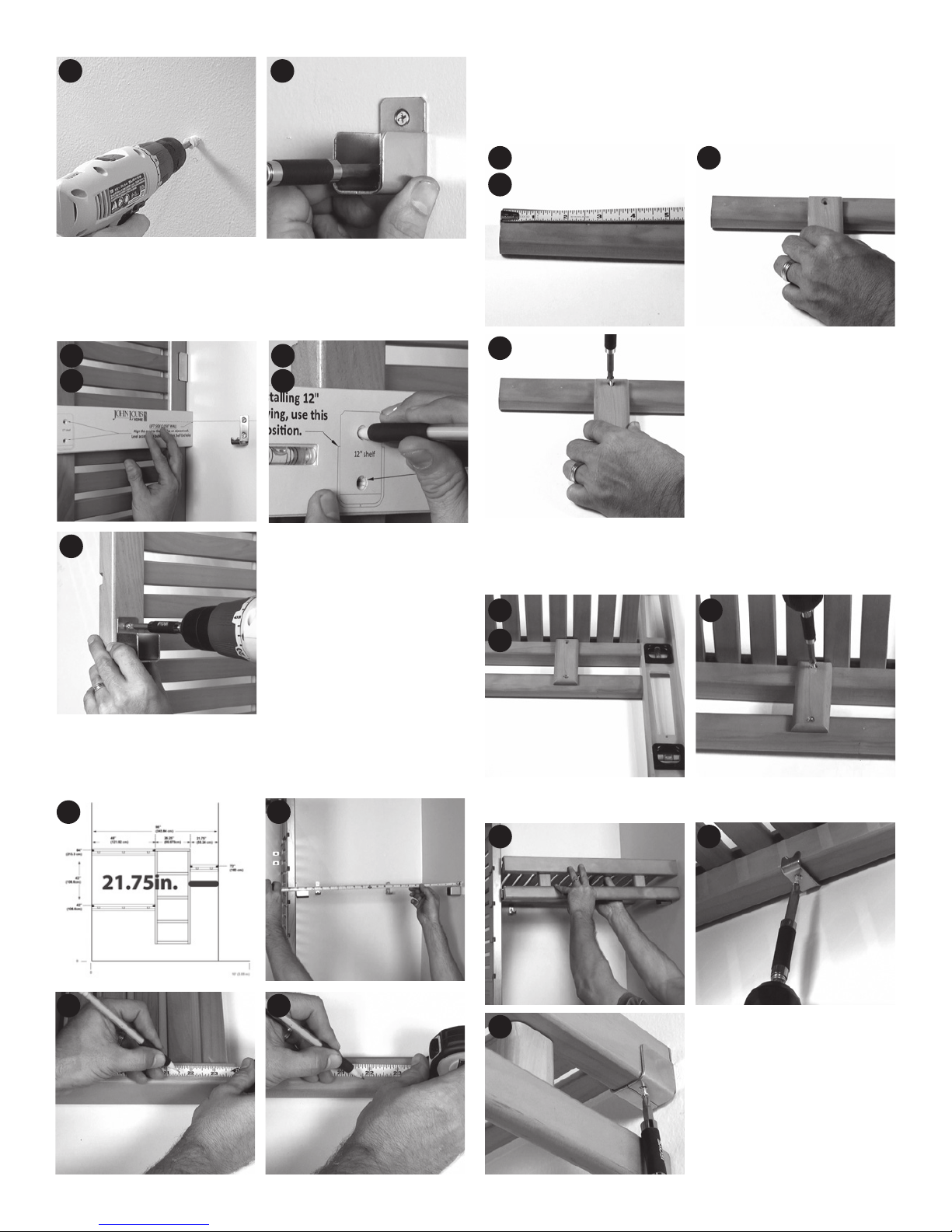

STEP 5 - Installing Top Shelf & Tower
It is recommended to install hardware into wall studs. Typically 16 in. on
center. Use 50 lb. wall anchors provided if no stud is present.
On the top level line space shelf mounting L-clip hardware equidistant in
the following manner:
• 3 L-clip hardware within the 48in. shelf location
• 2 L-clip hardware within the tower top location
NOTE: AT LEAST 1 L-CLIP HARDWARE MUST BE IN-
STALLED INTO A WALL STUD AT TOWER TOP LOCATION
1. Center the top screw hole of the shelf mounting L-clip hardware with the
level line & mark all hole locations.
2. Secure L-clip to wall using #8 1 1/2 in. screws at hole locations (Use wall
anchors provided if no stud is present).
3. Repeat for remaining L-clip locations.
4. Position shelf end template onto side wall.
5. Align template line with adjacent wall line.
6. Level template.
7. Mark required Shelf End position for required depth (12in. or 16in. depth).
8. Secure Shelf End using #8 - 1 1/2in. screws (use wall anchor if no stud is
present).
9. Place shelf onto hardware.
10. Place tower onto hardware.
11. Place a shelf end onto the tower of the shelf at tower end.
12. Flush tower with top shelf by moving tower left or right.
13. Level shelf front to back & mark shelf end hardware location on tower.
11 12
13 15
1 2
2 3
4 5
6 7
8 8
9 10
11 12
13

6

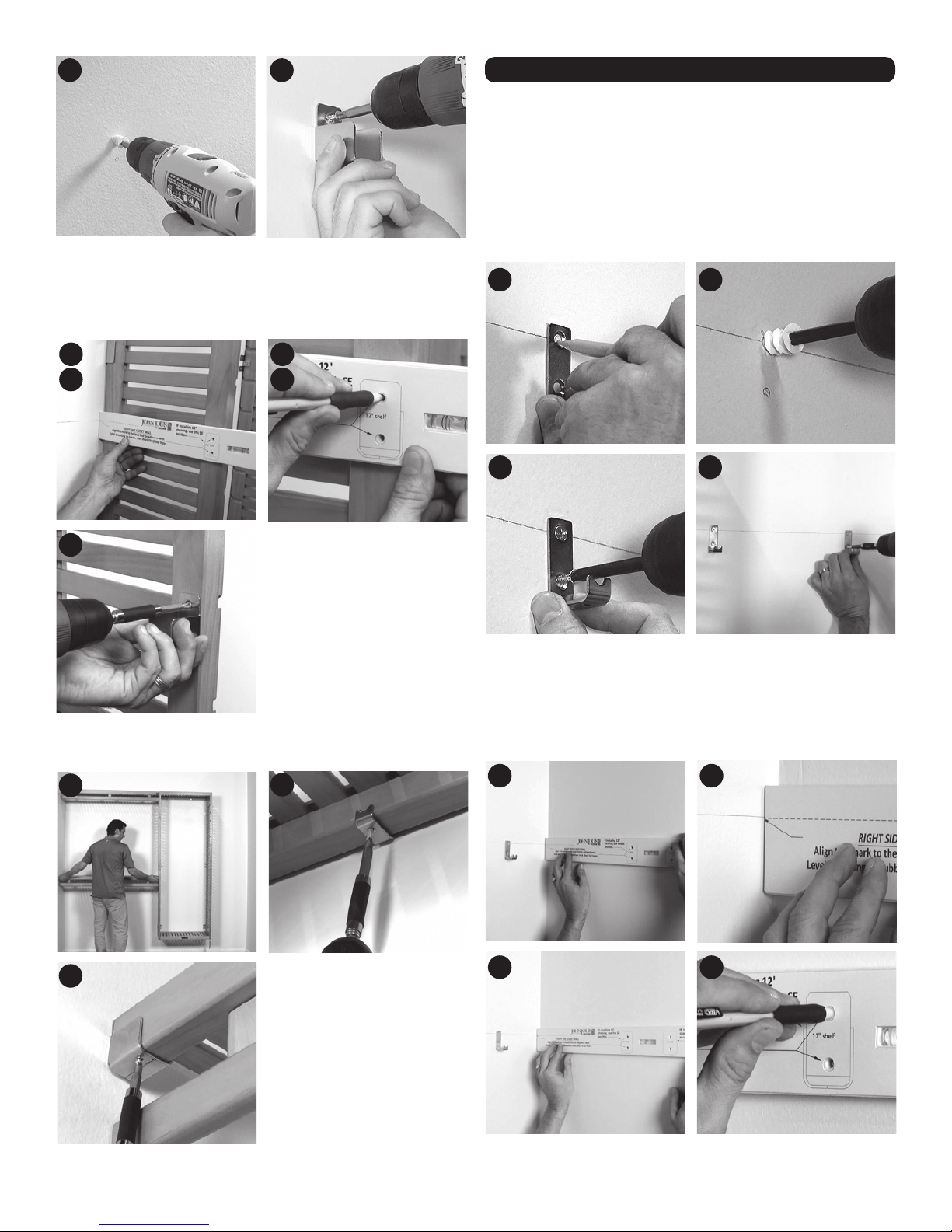

STEP 6 - Installing Lower Shelf
14. Plumb level tower side.
15. Mark tower bracket hole locations on wall.
16. Remove shelf and tower.
17. Align shelf end hardware with the mark on the tower & mark screw hole
locations.
18. Secure shelf end to tower top using #8 1/2in. screws at hole locations.
NOTE: If shelf is mounted level with the tower top, the shelf end hardware
should be “centered” on the end of the front rail of the tower top.
19. Install wall anchors at tower bracket locations if no stud is present.
20. Place tower onto wall and align with hole locations.
21. Place shelf onto wall hardware.
22. Secure tower to wall using #8 1 1/2in. screws at all bracket locations.
23. Secure shelf to hardware using #4 3/4 in. screws at all hardware locations
On the lower level line space shelf mounting L-clip hardware equidistant in
the following manner:
• 3 L-clip hardware within the 48in. shelf location
1. Center the top screw hole of the shelf mounting L-clip hardware with the
level line & mark all hole locations.
2. Secure L-clip to wall using #8 1 1/2 in. screws at hole locations (Use wall
anchors provided if no stud is present).
3. Repeat for remaining L-clip locations.
4. Position shelf end template onto side wall.
5. Align template line with adjacent wall line.
6. Level template.
7. Mark required Shelf End position for required depth (12in. or 16in. depth).
8. Secure Shelf End using #8 - 1 1/2in. screws (use wall anchor if no stud is
present).
16
14 15
17
18
19
22
23
20
23
21
1 2
2 3
4 5
6 7

7
9. Position shelf end template onto tower side.
10. Align template line with adjacent wall line.
11. Level template.
12. Mark required Shelf End position for required depth (12in. or 16in. depth).
13. Secure using #8 - 3/4in. screws.
14. Place shelf into shelf end hardware & onto L-clip hardware.
15. Secure shelf to hardware using #4 3/4 in. screws at all hardware locations.
STEP 7 - Installing Long Hang Shelf
On the 72in. level line space shelf mounting L-clip hardware equidistant in
the following manner:
• 2 L-clip hardware within the 24in. shelf location
1. Center the top screw hole of the shelf mounting L-clip hardware with the
level line & mark all hole locations.
2. Secure L-clip to wall using #8 1 1/2 in. screws at hole locations (Use wall
anchors provided if no stud is present).
3. Repeat for remaining L-clip locations.
4. Position shelf end template onto side wall.
5. Align template line with adjacent wall line.
6. Level template.
7. Mark required Shelf End position for required depth (12in. or 16in. depth).
8. Secure Shelf End using #8 - 1 1/2in. screws (use wall anchor if no stud is
present).
8 8
9
10
13
11
12
14 15
15
4 5
6 7
1 2
2 3

8
9. Position shelf end template onto tower side.
10. Align template line with adjacent wall line.
11. Level template.
12. Mark required Shelf End position for required depth (12in. or 16in. depth).
13. Secure using #8 - 3/4in. screws.
14. The long hang is created by cutting the 24in. shelf & bar to 21 3/4 in. wide.
15. Double check required shelf measurement.
16. Cut Shelf to required width.
17. Cut bar to required width.
18. On the pilot hole side of the bar, measure in 4 in. from the end.
19. Mark location & repeat for other end.
20. Align side of bar spacer with the mark.
21. Secure with #8 1in. screw.
22. Repeat at each marked location.
8 8
9
10
13
11
12
14 15
16 17
23. Place notched bar spacer / bar tight on inside rail of shelf.
24. Flush bar & shelf.
25. Secure bar spacer to shelf rail with #8 1in. screw.
26. Repeat at each bar spacer location.
23
24
25
18
19
21
20
27. Place shelf into shelf end hardware & onto L-clip hardware.
28. Secure shelf to hardware using #4 3/4 in. screws at all hardware locations.
27
28
28

9
STEP 9 - Final Touches
1. Insert mushroom caps into barrel nut holes on tower.
2. Touch up scratches & cut ends with stain pen provided.
STEP 8 - Installing Adjustable Shelves
1. Select 24in. adjustable shelf & insert shelf pins into shelf ends.
2. Adjustable shelves may be placed anywhere within the tower.
3. Place the shelf into the tower by inserting the pins into the tower grooves.
4. Create a shoe shelf by inserting the shelf upside down with the back one
groove higher than the front.
Creating Adjustable Shelves
Put your excess cuts back into your closet. Any material greater than 24 in.
wide can be used as an additional shelf.
Cut excess lengths to 24 in. wide to use as tower shelves & place where
ever you choose.
1. Measure required dimension, mark & cut shelf (if necessary).
2. Place shelf end bracket onto shelf.
3. Using the lower hole location on the bracket, drill a pilot hole using a 1/8 in.
drill bit.
4. Remove the shelf end bracket.
5. Re-drill hole 1 - 1 1/4 in. deep using a 1/4 in. drill bit.
6. Repeat steps for each shelf end.
7. Insert shelf pin into holes at each end.
1
1
2
2
3
3
4
4
57

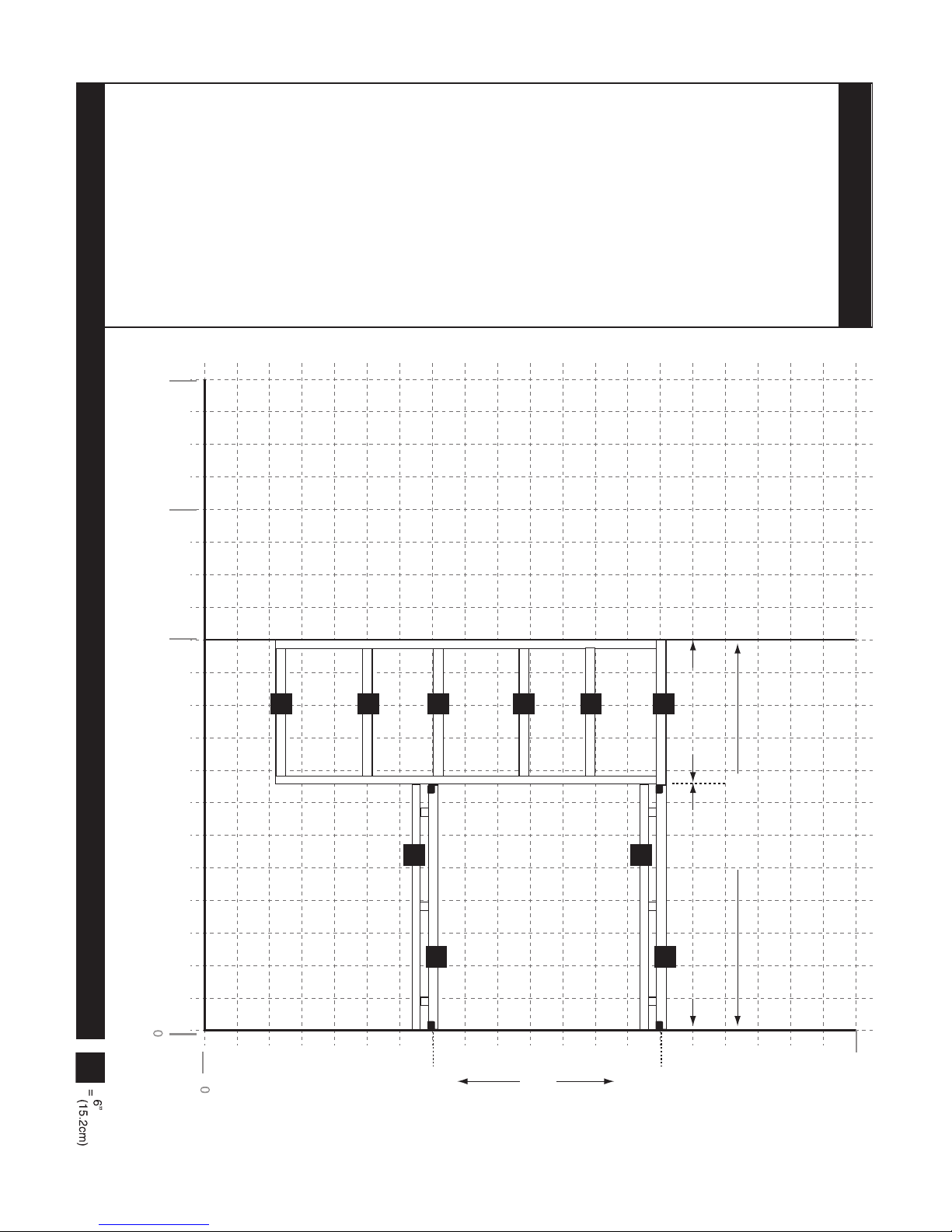

CONFIGURATION NOTES: • Requires cutting of B shelf. • Design can be reversed. • 72” Long hang shelf can be placed at any height.
10‘ (3.05 m)
10‘ (3.05 m)
6‘ (1.82m) 8‘ (2.43m)
84” (213.3 cm)
72” (183 cm)
42” (106.6cm)
42” (106.6cm)
26.25” (66.675cm)
21.75” (55.24 cm)
48” (121.92 cm)
8’ CLOSET CONFIGURATION A • A CONFIGURACION DE 2.43M • A CONFIGURATION DE 2.43M
21.25” (53.96 cm)
96” (243.84 cm)
A A
G G
F
B
E D
B B B
10

11
CONFIGURATION NOTES: • Requires cutting of A shelf. • A shelves may be placed at any height • Requires drilling of B shelf for use as adjustable shelf. • Design can be reversed..
10‘ (3.05 m)
10‘ (3.05 m)
6‘ (1.82m) 8‘ (2.43m)
26.25” (66.675cm)
48” (121.92 cm)
10’ CLOSET CONFIGURATION B • B CONFIGURACION DE 3.05M • B CONFIGURATION DE 3.05M
120” (304.8 cm)
A
G
45.75” (116.205 cm)
A
G
E D
B B B
B
72” (183 cm)

12
CONFIGURATION NOTES: • Requires cutting of A shelf. • Requires drilling of B shelf for use as adjustable shelf. • Design can be reversed.
10‘ (3.05 m)
10‘ (3.05 m)
6‘ (1.82m) 8‘ (2.43m)
84” (213.3 cm) 42” (106.6cm)
42” (106.6cm)
26.25” (66.675cm)
45.75” (116.205 cm)
6’ CLOSET CONFIGURATION C • C CONFIGURACION DE 1.82M • C CONFIGURATION DE 1.82M
72” (182.88cm)
A A
G G
E D
B B B
B
