OWNER'S MANUAL
TREADMILL T8000E
July 30, 07’
SAP#065923-A
All manuals and user guides at all-guides.com
all-guides.com

TABLE OF CONTENTS
INSTRUCTION
IMPORTANT SAFETY INSTRUCTIONS
SETUP THE TREADMILL
• Getting Started
• Making A Choice Of Site
• Stabilizing The Johnson Treadmill
• Centering The Belt
• Electrical Power Requirement
• Grounding Instructions
• Antenna Or Cable TV (CATV) Connection
• RCA Connection
• Unpacking The Johnson Treadmill
ASSEMBLY
• Fasteners & Assembly Tools
• Assembly Instructions
SERIAL NUMBER LOCATION
USING THE WORKOUTS
• Display Console
• Display Descriptions
• Workout Parameter Prompts
• Workout Overviews
• Workout Tips
• Workout Setup Steps
• Using Fitness Networking
MANAGER'S CUSTOM MODE
• Manager Menu
• TV Setup
MAINTENANCE
• Recommended Cleaning Tips
• Centering The Belt
• Tensioning The Belt
• Maintenance Lamp
PRODUCT SPECIFICATIONS
• Model T8000E Specifications
02
03
05
10
17
18
29
35
39
01
JOHNSON TREADMILL T8000E
All manuals and user guides at all-guides.com

This Owner’s Manual describes the functions of the following product:
Johnson Fitness Treadmills – T8000E
See Product "Specifications" (Page 39) in this manual for product specific features, the
Johnson Treadmill T8000E is intended for commercial use.
It is recommended that all users of Johnson Fitness exercise equipment should be
informed of the following information prior to its use.
When using the Johnson Treadmill, always follow basic precautions:
• To ensure your safety and to protect the unit, read all the instructions before assembling
and using the treadmill.
• To ensure the proper use and safety of the treadmill, make sure that all users read this
manual. Please make this manual a part of your facility’s training program.
Remind the users that before undertaking any fitness programme, they should obtain
complete physical examinations from their physicians. If, at any time while exercising,
the user experiences dizziness, pain, or shortness of breath, nausea or feels faint he or
she must stop immediately.
SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
INSTRUCTION
READ AND SAVE ALL INSTRUCTIONS before assembling or using this Johnson
Treadmill. It is strongly recommended to take the following safety instructions.
• DANGER: To reduce the risk of electrical shock, always unplug the Johnson Treadmill
before cleaning or attempting any maintenance activity.
• WARNING: To reduce the risk of burns, fire, electric shock, or injury, it is imperative to
connect each product to a properly grounded electrical outlet.
• CAUTION: If you experience chest pains, nausea, dizziness or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• Never operate the treadmill if it has a damaged power cord or electrical plug, if it is not
working properly, or if it has been damaged or immersed in water. Return the treadmill
to Johnson Fitness or authorized dealers for examination and repair.
• Keep the power cord away from heated surfaces. Do not pull the equipment by the power
cord or use the cord as a handle. Never place the power cord under carpeting or place
any object on top of the power cord.
• Only use the power cord provided with your Johnson Treadmill. If the power cord is
damaged, it must be replaced by the manufacturer, an authorized service agent, or a
a similarly qualified person to avoid a hazard.
• To disconnect, turn the switch to the off position, then remove the plug from the outlet.
• Use this treadmill for its intended purpose as described in this manual. Do not use
attachments that have not been recommended by the manufacturer.
• Never drop or insert any object into any opening in the product. If an object should
drop inside, turn off the power, unplug the power cord from the outlet, and carefully
retrieve it. If the item cannot be reached, contact Johnson Fitness or authorized dealers.
• Do not reach into, or underneath the unit or tip it on its side during operation.
• Keep hands and feet clear at all times from moving parts to avoid injury.
• Do not remove the treadmill motor cover or roller covers. Service should be performed
only by an authorized service technician.
• Do not use any equipment that is damaged or has worn or broken parts. Use only
replacement parts supplied by Johnson Fitness or authorized dealers.
• Do not use the Johnson Treadmill outdoors, near swimming pools or in areas of high
humidity.
• Do not operate where aerosol (spray) products are being used or when oxygen is being
administered.
IMPORTANT SAFETY INSTRUCTIONS
0302
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
All manuals and user guides at all-guides.com

• Be sure the emergency stop pull cord is clipped to user and in a proper placed position
on the user before beginning any workout.
• Use the stationary handrails when mounting or dismounting the treadmill. Place the feet
firmly on the right and left side platforms before the running belt begins moving (prior
to a workout). Step onto the running belt when the speed is at or below 1.6 km/h (1 mph).
• Never mount or dismount the treadmill while the running belt is moving.
• Handrails may be held to enhance stability as needed, but are not for continuous use.
• Do not wear any clothing that might catch on any moving parts of this treadmill.
• Never walk or jog backwards on the treadmill.
• Do not use this product in bare feet. Do not wear shoes with heels, leather soles, cleats or
spikes. Make sure no stones are embedded in the soles.
• Do not turn the belt by hand.
• Close supervision is necessary when used near children, invalids or disabled people.
• When the treadmill is in use, young children and pets should be kept at least 3 meters / 10
feet away.
• When it is necessary to immobilize the treadmill, set the display to read "SELECT
PROGRAM". (Pressing the Emergency Stop key twice will immediately take the unit to this
screen). Then hold down the "CH " and "VOL " keys at the same time. The treadmill will
display "IMMOBILIZED". In this state, the treadmill can not be operated. Both the drive motor
& elevation motor are disabled. The treadmill will remain in this state across power cycles,
resets, etc. To return to normal operation mode repeat the same key sequence, hold
down the "CH " and "VOL " keys. The treadmill will display "SELECT PROGRAM" again.
GETTING STARTED
Read the Owner’s Manual before setting up the Johnson Fitness Treadmill. Place the
treadmill in where it will be used before beginning the setup procedure.
MAKING A CHOICE OF SITE
The site that you select for the treadmill should be well-lit and well ventilated. Locate the
T8000E on a structurally solid and flat surface a few meters / feet from the wall or any
equipment (Allow a distance of 21 centimeters, or eight inches, between the treadmill and
other units on either side. Allow a distance of two meters, or six feet, from the rear of the
treadmill to any object or surface.) If the site has a heavy plush carpet, to protect the carpeting
and machinery, you should place a rigid plastic base under the treadmill.
Please do not place the treadmill in an area of high humidity, such as the vicinity of a
steam room, indoor pool, or sauna. Exposure to intensive water vapor or chlorine could
adversely affect the electronics, as well as other parts of the machine. To make exercise a
desirable daily activity for you, the treadmill should be in an attractive setting.
STABILIZING THE JOHNSON TREADMILL
After placing the unit in where it will be used, check its stability. If the treadmill is placed
on a slightly uneven surface, adjusting the adjustable levelers located underneath the base
frame can help, but will not compensate for extremely uneven surfaces. To adjust, loosen
the nut, and turn the leveler until the rocking motion ceases, and both levelers rest firmly
on the floor. Retighten the nut.
NOTE: It is extremely important that the levelers are correctly adjusted for proper operation.
An unbalanced unit may cause striding belt misalignment. A bubble level is recommended
to ensure proper leveling.
SETUP THE TREADMILL
0504
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
E
8
000
All manuals and user guides at all-guides.com

Supply Voltage (VAC) Rated Current (Amps)
100
120
200
220
230
240+
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
15
15
10
10
10
10
CENTERING THE BELT
After installing and leveling the treadmill, check the belt to ensure that it is tracking
properly. The belt might need to be adjusted after the first two hours of use. If the belt
needs to be adjusted, please see at the section of
MAINTENANCE
for details.
ELECTRICAL POWER REQUIREMENT
The Johnson Fitness Treadmill requires a dedicated line according to the electrical
configurations listed in the chart below. It is particularly important that no sensitive
electrical equipment, such as a computer or a TV, shares the same circuit.
GROUNDING INSTRUCTIONS
The Johnson Treadmill must be properly grounded. If the product malfunctions or breaks
down, proper grounding provides a path of least resistance for the electric current to
reduce the risk of electrical shock. This product is equipped with an electrical cord, which
includes an equipment grounding conductor and a grounding plug. The plug must be
inserted into an outlet that has been properly installed and grounded in accordance with
all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or service provider
if you are in doubt as to whether or not the product is properly grounded. DO NOT
modify the plug provided with the product. If it will not fit an electrical outlet, have a
proper outlet installed by a qualified electrician. Any modification to the electrical plug will
result in a voided warranty.
0706
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
ADJUSTING THE BELT
ANTENNA OR CABLE TV (CATV) CONNECTION
Connect your “F” type cable or antenna coaxial signal cable to the provided RF antenna
adapter. Once you have connected the cable to the adapter, insert the connector.
NOTE: The TV aspect of the LCD Console can only receive an analog signal. Digital cable
must be externally converted to an analog signal. A 75-ohm external antenna terminal for
VHF/UHF (>43dBuV (@75ohm) or > 65.8dBm) TV signal input must be present before TV
setup can occur.
RCA CONNECTION
If the treadmill would display DVD or VCR entertainment, it is able to connect the supplied
RCA Audio/Video signal cable as follows:
YELLOW: Composite Video Out on your DVD, VCR, etc. to the Composite VIDEO Input
connector on the TV.
WHITE: Left Audio Output on your DVD, VCR, etc. to the AUDIO-L Input on the TV.
RED: Right Audio Output on your DVD, VCR, etc. to the AUDIO-R Input on the TV.
VIDEO AUDIO-L AUDIO-R
C-SAFE
RCA CONNECTION
CATV CONNECTION
Frequency (Hz)
All manuals and user guides at all-guides.com

UNPACKING THE JOHNSON TREADMILL
The Johnson treadmill is carefully inspected before it is packaged. It is shipped in four
pieces: the frame base, the upright console supports, the console, the foam rubber
handles and the hardware kit. Carefully unpack the unit and dispose of the box material.
CAUTION: This unit weighs 169 kg / 374 lbs. To avoid injury to the user and the unit,
be sure to have proper assistance to remove and move the unit.
NOTE: In case any of these parts are missing from the package, please contact Johnson
Fitness or the local authorized dealers at once.
Hardware Kit
0908
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
Console
T8000E
Console Supports
Foam Rubber Handles
Frame Base
All manuals and user guides at all-guides.com
all-guides.com

ASSEMBLY
FASTENERS & ASSEMBLY TOOLS
PHILLIPS SCREWDRIVER
#5 L-TYPE ALLEN KEY
SOCKET HEAD SCREW (M10 x 1.5P x 25L)
SOCKET HEAD SCREW (LOW HEAD)
CROSS-HEAD BUTTON SCREW
#8 L-TYPE ALLEN KEY
#2 L-TYPE ALLEN KEY
WASHER
PARTS NO. DESCRIPTION QUANTITY SKETCH
Z01
Z02
Z03
Z04
Z50
Z51
Z52
Z53
Z54
1
1
1
1
8
8
4
2
4
ASSEMBLY INSTRUCTIONS
1110
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
Please make sure that the power plug is not plugged into the wall outlet while completing
the following procedure. To ensure correct assembly of the T8000E, carefully read and
follow these steps:
ATTENTION: After installation is completed, the treadmill will need to be calibrated by
using the AUTO-CHECK function. If this is not done, the treadmill's speed and incline values
may be incorrect and damage the treadmill. Do not stand on the belt when performing
the AUTO-CHECK function.
ASSEMBLY EXPLODED DIAGRAM
Z52
Z52
Q53
Z53
Z51
Z51
N07
N04
N06
Z50
Z50
Motor Cover
Console
Swift Controls™ Panel
Frame Base
Foam Rubber Handle
Console Support
(M8 x 1.25P x 15L)
(M3 x 0.5P x 15L)
(M5 x 0.8P x 12L)
SOCKET HEAD CAP SCREW
(ULTRA LOW HEAD)
All manuals and user guides at all-guides.com

1312
STEP 1 STEP 2
Unscrew the screw (Q53) on each side, and keep the screws. Remove the motor cover.
Pull out console, antenna coaxial signal, RCA and C-SAFE cables and route them through
the right console mast. Place the right console mast and then the left console mast in the
console support brackets. Secure the right and left support with the 4 screws and 4 washers
provided (Z51, Z50). Make sure these screws are tightened.
Connect the console cable from the console set to the motor control board. And insert the
other connectors to upper control board and TV module. Secure the console set with 2 screws
(Z52) on each side.
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
Z51
Z51
Z50
Z50
Z52
Z52
All manuals and user guides at all-guides.com

1514
STEP 3 STEP 4
Put the foam rubber handle into the handlebar frame. Use the handlebar cap (N06, N07)
to secure the handle foam rubber.
Note: The handle bar caps separate into right and
left, make sure these caps are in the correct position.
1). Connect the speed and incline Swift Controls™ cable with the control panels. Secure
the Swift Controls™ panels onto the handlebars with the 2 screws (Z54) on each side.
2). Place the motor cover onto the treadmill front end and secure with the screws (Q53)
included in the motor cover and the screws (Z53) provided in the hardware kit. Plug the
power cable into the outlet.
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
N06
N04
N07
N03
Z53
Z54
Q53
Note: The Swift Controls™ panels separate into right for SPEED control and left
for INCLINE control, make sure these panels are in the correct position.
Z54
All manuals and user guides at all-guides.com

1716
FINAL ASSEMBLY
Enter the to execute P15 AUTO CHECK. The treadmill’s
speed and incline will be calibrated automatically. This will take around 2 minutes to run.
After completing calibration, press EMERGENCY STOP key twice to back to the initial starting
screen.
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
MANAGER’s CUSTOM SETTINGS
SERIAL NUMBER LOCATION
SERIAL # PLACEMENT
All manuals and user guides at all-guides.com

1918
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
USING THE WORKOUTS
DISPLAY CONSOLE
A
D
B
C
A
B
C
THE TFT LCD DISPLAY:
The TFT LCD Display provides
interactive workout screen and
easy access to entertainment
TV.
EMERGENCY STOP:
Press the button to stop the
running belt and end the
current workout. To resume,
press the button once again.
CONTROL KEYPAD:
The Control Keypad allows the user to set up programs, control workout and adjust TV
parameters.
DHEADPHONE JACK:
The jack is located on the left-hand side
of the console faceplate housing.
Headphones are necessary to access
the sound for the TV.
1 TV REMOTE CONTROL keys:
These keys are dedicated TV entertainment controls for the TV and the screen switch.
VOL + / - : Volume control for the TV.
CH + / - : Channel control for the TV.
MODE: This key allows the user to switch the LCD screen showing relevant workout data or
size of entertainment screen.
2 SPEED & INCLINE: Use the arrow keys to adjust speed or incline.
3 START / SELECT / QUICK START: This key has several functions during an exercise session.
Each function is described as below:
START: Use the START key to begin your workout after the workout setup.
SELECT: Use the SELECT key to confirm specific prompts during the workout setup.
QUICK START: Press QUICK START to begin your workout immediately, without having to select
a workout program.
4 RIGHT AND LEFT ARROWS: These right and left arrows present the available selections and
affect what appears on the display.
5 PAUSE / RESET / CLEAR: This key has several functions during an exercise session. Each function
is described as below:
PAUSE / RESET: Press this key once to enter PAUSE mode. And, press it again to reset the treadmill
and restart the programming sequence.
CLEAR: Use the CLEAR key to clear data not yet entered during the workout setup.
6 PROGRAM QUICK KEYS: To begin an exercise session, press any of these keys to select the
program. For detailed program descriptions, refer to WORKOUT OVERIVEWS.
WARM UP: Press this key to begin an automatically customized workout warm-up.
COOL DOWN: Press this key to begin an automatically customized workout cool-down.
18
61225344
All manuals and user guides at all-guides.com
all-guides.com

20
DISPLAY DESCRIPTIONS
The TFT LCD Display allows the user to move from screen by screen by Control Keypads to access other
screens. The TFT LCD Display enables users to access:
1) PROGRAM SELECTION — choose a workout
2) WORKOUT SETUP — enter workout values
A1. PROGRAM ICONS:
Display all programs — MANUAL, INTERVAL,
WEIGHT LOSS, FAT BURN, 5K RUN, TARGET
HEART RATE, QUICK START, WARM UP and
COOL DOWN. If one of programs is selected,
the program icon becomes hollow. And, the
selected program icon pops out to show as a
large icon in the screen.
A2. INFORMATION DISPLAY:
To display instructions for a workout setup.
A2-1. INFORMATION AREA:
Shows the user what workout is currently being
set up.
A2-2. CORRESPONDING KEYS:
These keys are corresponded to the keys on
the Control Keypads, listed in the following chart.
A3. VALUE CIRCLE:
Shows values for workout parameters set up.
The unenclosed circle would increase or decrease
a dotted curve depending on the value input.
The small red numbers represent minimum
and maximum values in each workout parameter.
21
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
A1
A2
A3
A2-2 A2-2A2-1
CORRESPONDING KEYS CONTROL KEYPADS DESCRIPTIONS
SELECT PROGRAM
PROGRAM SELECT
SELECT LEVEL
SELECTCLEAR LEVEL
PROGRAM
+
LEVEL
-
SPEED
INCLINE
QUICK START
CLEAR
TV REMOTE
CONTROL KEYS
MANUAL 5K RUN
M
FAT BURN
INTERVAL
WEIGHT LOSS
TARGET
HR
PROGRAM
QUICK KEYS
WARM UP
COOL DOWN
MODE
VOL
VOL
CH
CH
PAUSE
RESET
START
SELECT
A2-2 A2-2
PAUSE
RESET
START
SELECT
SELECT
ëPress SELECT key to confirm an entry
of the number.
ëPress START key to begin the workout.
ëPress CLEAR key to clear data not yet
entered during the workout setup.
ëPress RIGHT arrow key to increase
value for the workout parameters.
ëPress this key to select SPEED control
mode during the setup of heart rate
program.
ëPress LEFT arrow key to decrease value
for the workout parameters.
ëPress this key to select INCLINE control
mode during the setup of heart rate
program.
All manuals and user guides at all-guides.com

22
JOHNSON TREADMILL T8000E
23
JOHNSON TREADMILL T8000E
3) WORKOUT PROGRESS — monitor progress, edit workout goals, and access TV viewing
B1
B1. PROGRAM NAME:
Shows the user what workout is currently
exercising.
B2. WORKOUT PROFILE:
During a workout, intervals, hills and valleys
appear in this window as rows of lights stacked
in columns. The number of lit rows within a
column corresponds to an incline percentage.
B3. WORKOUT READOUT:
Shows the workout readout the user is currently
exercising.
B4. DISPLAY MODE:
Shows the LCD screen display mode. The mode
has relevant workout data and size of
entertainment screen.
B5. TV SCREEN:
Shows the current TV program.
B6. CH / VOL DISPLAY: Shows the current channel
number and TV volume.
B2
B3
B3
B4
B3
B5
B6 B4 B6
PROMPT DEFAULT MINIMUM MAXIMUM UNIT
TIME
LEVEL
WEIGHT
AGE
SPEED
INCLINE
20
1
68 / 150
30
N/A
N/A
10
1
34 / 75
10
0.8 / 0.5
0
99
10
182 / 400
99
20 / 12
15
minute
kg / lbs
years old
km/h / mph
%
NOTE: The workout time displays “countdown” according to default time or the maximum time
that the club owner set. When the workout time input as “0”, the time will count from 0 to
the maximum time depending on the fitness club setup. The workout pattern repeats until the
maximum workout time is completed.
WORKOUT PARAMETER PROMPTS
All manuals and user guides at all-guides.com

PROGRAM
NAME
DEFAULT
TIME
PROGRAM
CONTROL
PROMPT
INPUT
DESCRIPTION
QUICK
START
MANUAL
INTERVAL
WEIGHT
LOSS
FAT BURN
5K RUN
TARGET HR
N/A
20 min
20 min
20 min
20 min
N/A
20 min
N/A
N/A
Elevation
Elevation
Elevation
Elevation
Elevation
Speed or
N/A
Time, Weight
Level, Time,
Weight
Level, Time,
Weight
Level, Time,
Weight
Level, Weight
Age, Target,
Heart Rate,
Max Speed
or Max
Elevation,
Time,
Weight

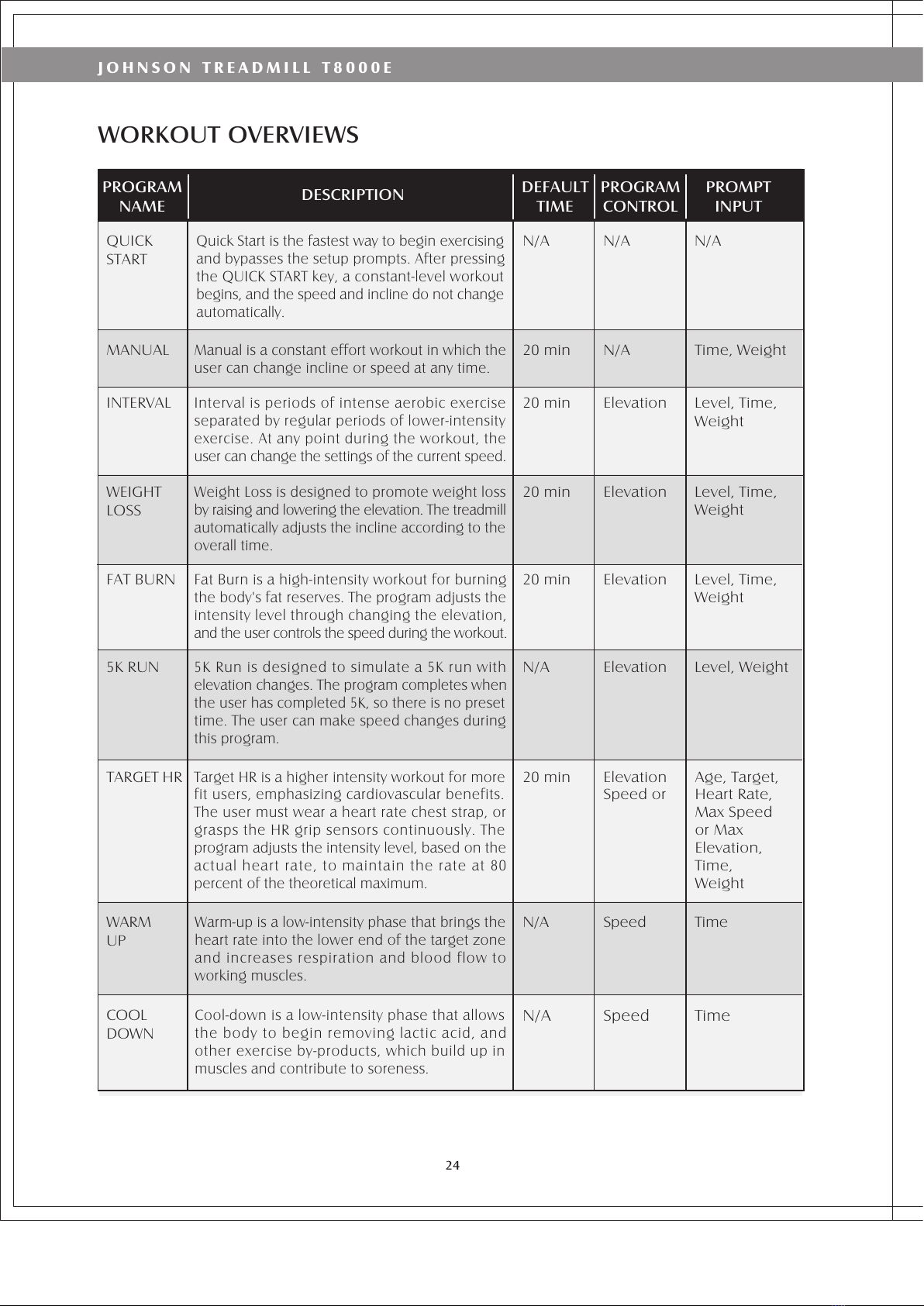

WORKOUT OVERVIEWS
Manual is a constant effort workout in which the
user can change incline or speed at any time.
Interval is periods of intense aerobic exercise
separated by regular periods of lower-intensity
exercise. At any point during the workout, the
user can change the settings of the current speed.
Weight Loss is designed to promote weight loss
by raising and lowering the elevation. The treadmill
automatically adjusts the incline according to the
overall time.
Fat Burn is a high-intensity workout for burning
the body's fat reserves. The program adjusts the
intensity level through changing the elevation,
and the user controls the speed during the workout.
5K Run is designed to simulate a 5K run with
elevation changes. The program completes when
the user has completed 5K, so there is no preset
time. The user can make speed changes during
this program.
Target HR is a higher intensity workout for more
fit users, emphasizing cardiovascular benefits.
The user must wear a heart rate chest strap, or
grasps the HR grip sensors continuously. The
program adjusts the intensity level, based on the
actual heart rate, to maintain the rate at 80
percent of the theoretical maximum.
2524
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
WORKOUT TIPS
• Johnson Fitness strongly recommends seeing a physician for a complete medical exam
before undertaking an exercise program. If, at any time while exercising, the user
experiences faintness, dizziness, pain, or shortness of breathe, he or she must stop
immediately.
• Without anyone standing on the treadmill, plug the power cord into a dedicated electrical
outlet.
• The On/Off switch for the treadmill is located next to the power supply plug in. Turn the
switch to the on " I " position to activate the treadmill.
• To mount or dismount the treadmill, grasp the stationary side-handrails and place the
feet firmly on the right and left side platforms before the running belt begins moving.
Prior to the workout, please always attach the security clip to your clothing.
• When you are comfortable situated onto the running belt, the computerized display
console on the treadmill instructs you to operate the unit.
• The better position of feet to walk on the treadmill is where feet planted on the belt to
have your arms bent slightly and your hands grasped the heart rate sensors (as below
illustration). At the running speed, the feet stand on the point of the belt where the
hands at a natural swing are not able to touch the front handrail.
• Hold onto the handrail with one hand while you increase SPEED with the other hand.
Once you are comfortable with the walking or running speed, you can remove your
hands from the handrail.
• Do not attempt to grasp the sensors at speeds above 7.2 km/h (4.5 mph). For these
speeds, the use of a heart rate chest strap is recommended.
• It is highly recommended that you always incorporate the warm-up and cool-down
period into your workout. Warm-up brings the heart rate into the lower end of the target
zone and increases respiration and blood flow to working muscles. Cool-down takes time
for a user’s heart rate to return to a resting state after vigorous exercise and reduces the
amount of lactic acid in muscle tissue.
WARM
UP
N/A Speed Time Warm-up is a low-intensity phase that brings the
heart rate into the lower end of the target zone
and increases respiration and blood flow to
working muscles.
COOL
DOWN N/A Speed Time
Cool-down is a low-intensity phase that allows
the body to begin removing lactic acid, and
other exercise by-products, which build up in
muscles and contribute to soreness.
Quick Start is the fastest way to begin exercising
and bypasses the setup prompts. After pressing
the QUICK START key, a constant-level workout
begins, and the speed and incline do not change
automatically.
All manuals and user guides at all-guides.com

WORKOUT SETUP STEPS
Quick Start
Press the "QUICK START" key and the VALUE CIRCLE will display "3, 2, 1,GO”. The workout
begins at the lowest incline and speed, and the time counts “0” to the maximum time.
Warm Up
1) Press the “WARM-UP” key to enter the program.
2) “SELECT TIME” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to begin a warm-up.
Cool Down
1) Press the “COOL-DOWN” key to enter the program.
2) “SELECT TIME” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to begin a cool-down.
Manual
1) “SELECT TIME” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
2) “SELECT WEIGHT” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
3) Press START to begin the workout.
2726
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
Interval, Weight Loss & Fat Burn
1) “SELECT LEVEL” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
2) “SELECT TIME” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
3) “SELECT WEIGHT” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm..
4) Press START to begin the workout.
5K Run
1) “SELECT LEVEL” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
2) “SELECT WEIGHT” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm..
3) Press START to begin the workout.
Target HR
1) “SELECT AGE” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
2) “SELECT TARGET HR” using the RIGHT and LEFT arrow keys to select and pressing
SELECT key to confirm.
3) “SELECT CONTROL MODE” using the RIGHT and LEFT arrow keys.
* If SPEED is selected, the console will display "SET MAX SPEED”. Use the RIGHT / LEFT
key to set Max Speed.
*
If INCLINE is selected, the console will display "SET MAX INCLINE”. Use the RIGHT / LEFT
key to set Max Incline.
4) “SELECT TIME” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
5) “SELECT WIEGHT” using the RIGHT and LEFT arrow keys to select and pressing SELECT
key to confirm.
6) Press START to begin the workout.
With the interactive screen, the computerized display leads the user to step-by-step
to input the workout. The screen would instruct the user to use the PROGRAM QUICK
KEYS to enter the program, or use LEFT/RIGHT arrow keys to scroll to desired program
when prompted in the screen. Use the LEFT/RIGHT arrow keys to enter the values.
Press the SELECT key to confirm each selection, or press the CLEAR key to clear data
not yet entered. Follow the steps to set up each workout.
All manuals and user guides at all-guides.com

VIDEO AUDIO-L AUDIO-R
C-SAFE
2928
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
USING FITNESS NETWORKING
The two RJ45 networking ports are available in the T8000E. These ports allow the treadmill to
be connected to a fitness entertainment system and/or a fitness network, such as FitLinxx®.
C-SAFE PORT
The C-SAFE port located next to the On/Off switch enables the treadmill to upload user workout
statistics to a fitness network database.
CARDIO PORT
The Cardio port is located on the back of the console that is compatible with entertainment
protocol such as Cardio Theater® or BroadcastVision™.
MANAGER’s CUSTOM MODE
The Manager’s Custom Mode provide two modes for the club manager. The MANAGER
MENU allows the manager to set unit defaults, configure workout duration, set maintenance
lamp distance, check error log, etc. The TV SETUP allows adjusting TV brightness, contrast,
or sharpness. Also allows choice of TV system and favorite channel setup.
To enter the Manager’s Custom Mode, press and hold down the "INCLINE "and
"SPEED "keys. Continue to hold down these two keys until the screen displays “MANAGER
MENU” and “TV SETUP”.
1. To scroll the red bar in the list of Manager’s Mode, use the SPEED / key.
2. To select a setting, press the SELECT key to enter.
3. To change the value of the setting, use the SPEED / key or LEFT / RIGHT arrow
keys.
4. To confirm and save the value of the setting, press the START / SELECT key. “SETTING
SAVED” will appear in the screen. To exit the setting without saving, press the CLEAR
key over 5 seconds, or if there is no key pressed, the system will resume automatically.
All manuals and user guides at all-guides.com
all-guides.com

MANAGER MENU
P0
P1
P2
P3
P4
P5
P6
P7
P8
99 min
20 min
1
68kg /
150lbs
30
20kph /
12mph
15
N/A N/A N/A N/A
km/
mile
N/A N/A N/A N/Ahour
10 min
10 min
1
34kg /
75lbs
10
6.4kph /
4mph
4
99 min minute
99 min
10
182kg /
400lbs
99
20kph /
12mph
15
MAXIMUM
TIME
DEFAULT
TIME
DEFAULT
LEVEL
DEFAULT
WEIGHT
DEFAULT
AGE
MAXIMUM
SPEED
MAXIMUM
INCLINE
ACCUMU-
LATED
DISTANCE
ACCUMU-
LATED
TIME
CUSTOM
SETTING
3130
DEFAULT MINIMUM MAXIMUM UNIT STEP DESCRIPTION
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
This option controls the default program
time.
This option controls the default program
level.
This option controls the default users age
used in the target heart rate calculations.
This option changes the maximum incline
grade to 4%, 8%, 12% or 15%.
This option enables fitness club managers
to set the program maximum workout
duration limits during peak and non-peak
hours of club traffic. Active variable
displayed in the TIME display after change.
This option controls the default weight
used in the calorie calculations. Sets to
default unit change (kilograms or
pounds). Displayed in native units.
Controls the maximum speed for all
programs. Displayed in native units
(kilometers per hour or miles per hour).
Reverts to default value on unit change.
Accumulated distance is not editable, for
display only. Displayed in native units
( miles or kilometers ). Holding the
INCLINE and SPEED keys
simultaneously to reset the accumulated
distance. After the treadmill reaches the
maximu distance, it will reset to “0”
automatically.
1
minute 1
1
1
n/a
kg/lbs
1
kph/
mph
1
age
N/A
%
Accumulated distance is not editable, for
display only. Displayed in native units
( miles or kilometers ). Holding the
INCLINE and SPEED keys simultanously
to reset the accumulated distance. After
the treadmill reaches the maximu distance,
it will reset to “0”
automatically.
P9
P10
P11
P12
P13
P14
P14-1
P15
0.8kph/
0.5mph
0.8kph/
0.5mph
3kph/
1.8mph
kph/
mph
60 sec 30 sec 180 sec
START
SPEED
PAUSE
TIME
SOFTWARE
VERSION
UNITS
MAINTENANCE
LAMP
LANGUAGE
AUTO
CHECK
CUSTOM
SETTING DEFAULT MINIMUM MAXIMUM UNIT STEP DESCRIPTION
This is the maximum time during which
a workout can remain in pause mode.
The language of the screen display, not
including Manager’s Custom Setting.
The measurement unit type for weight,
distance, and speed.
Controls the starting speed for all
programs (minimum speed not affected).
Displayed in native units (kilometers per
hour or miles per hour). Reverts to default
value on unit change.
Software version is not editable, for
display only.
This option enables fitness club managers
to set the maintenance lamp as ON/OFF.
When the treadmill's accumulated
distance reaches the certain kilometers
or miles, the maintenance lamp will light
meaning maintenance is needed.
The function is only for manufacturer
use.
The function is to calibrate the treadmill’s
speed and incline after the completion of
the installation.
0.1
second 1
Error log is not editable, for display only.
Holding the INCLINE and SPEED
keys simultaneously to erase error log.
The function would clear all custom settings
had stored on the unit as a default value.
Holding the INCLINE and SPEED
keys simultaneously to clear all custom
setting as a default value.
English N/A N/A N/A N/A
N/A N/A N/A N/A N/A
Metric Metric English N/A N/A
ON ON OFF N/A N/A
N/A N/A N/A N/A N/A
P16
ERROR
LOG
N/A N/A N/A N/A N/A
P17
RESET ALL
N/A N/A N/A N/A N/A
P18
MANUFAC-
TURING
TEST
N/A N/A N/A N/A N/A
MAIN-
TENANCE
DISTANCE
4000
km/
2500
miles
4000
km/
2500
miles
8000
km/
5000
miles
km/
miles 10
All manuals and user guides at all-guides.com

TV SETUP
SYSTEM SEARCH
FAVORITE CHANNEL (note 3)
RESET ALL
CHANNEL
SEARCH
(note 2)
SCREEN ADJUST
TV SYSTEM (note 1)
NTSC
PAL / SECAM
BLUE SCREEN
CONTRAST
SHARPNESS
BRIGHTNESS
TINT
COLOR
VIDEO SYSTEM
NTSC
PAL / SECAM
AUTO (FULL)
ADD / ERASE
RF SYSTEM
AUTO (FULL)
ADD / ERASE
MANUAL SERACH
NTSC
PAL-B/G
AUTO
N/A
N/A
CATV
N/A
N/A
N/A
OFF
OFF
Middle Value
Middle Value
Middle Value
Middle Value
Middle Value
N/A
3332
ADJUSTMENTS DEFAULT VALUE
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
NOTE:
1) TV SYSTEM:
êIf your local system is NTSC, the TV SYSTEM only displays “NTSC, NTSC-J, NTSC-US”.
êIf your local system is PAL or SEACM, the TV SYSTEM displays “PAL-B/G, PAL-D/K, PAL-I,SECAM-L.
2) CHANNEL SEARCH:
The built-in TV system can automatically memorize all the channels in your region. Channel
search has a different setting in NTSC and PAL/SECAM. Please follow the steps according to your
local TV system.
IF YOUR LOCAL SYSTEM IS “NTSC”, PLEASE SELECT LOCAL RF SYSTEM (RADIO
FREQUENCY SYSTEM).
1. Enter RF System to select “TV” or “CATV”. TV means outdoor antenna connection; CATV means
cable TV connection.
2. Press SPEED / to move the scroll to AUTO(FULL), and then press SELECT. The tuner will
search through all available channels in your area and add them to the TV memory.
Sometimes, it may be difficult to preset when the broadcasting signals are weak, the channel cycle
frequency is incorrect or the frequency jamming is occurring around the area. You can manually
add weak or additional channels or erase unwanted channels from TV memory.
3. Press SPEED / to move the cursor to ADD/ERASE, and press ENTER to add or erase the channels.
4. Press SPEED / to select which channel wants to add or erase.
êIf “ADD” displays next to the channel number, it means this channel wasn't in the memory. Press
SELECT to add this channel.
êIf “ERASE” displays next to the channel number, it means this channel has already been in the
memory. Press SELECT to erase this channel.
IF YOUR LOCAL SYSTEM IS “PAL” OR “SECAM”, PLEASE FOLLOW THE STEPS BELOW.
1. Press SPEED / to move the cursor to AUTO(FULL), and press SELECT. The tuner will search
through all available frequencies in your area and save them to the TV memory as a channel
number in order. After pressing AUTO (FULL) search, you can manually erase unwanted channels
from TV memory or add the erased channels back.
2. Press SPEED / to move the cursor to ADD/ERASE, and press SELECT to select the wanted or
unwanted channels.
êIf “ERASE” displays next to the channel number, press SELECT to erase this channel.
êIf “ADD” displays next to the channel number, press SELECT to add this channel.
Sometimes, it may be difficult to preset when the broadcasting signals are weak, the channel cycle
frequency is incorrect or the frequency jamming is occurring around the area. You can manually
add weak or additional channels as a new channel number.
3. Press SPEED / to move the cursor to MANUAL SEARCH, and press SELECT to enter the
MANUAL SEARCH screen.
3.1 Press SPEED / to move the cursor to SEARCH, and press SELECT to search the frequency.
3.2 When you select the frequency, press SELECT to confirm.
3.3 Press SPEED / to move down the cursor to SAVE AS A NEW CH, and press SELECT.
3.4 Press SPEED / to select a channel number, and press SELECT to save this channel number
into TV memory.
All manuals and user guides at all-guides.com

The T8000E built for use in the commercial environment - 12 hours a day and seven days
a week. However, as a club manager or owner, you are responsible for cleaning and
maintaining the unit’s integrity. If you fail to maintain the treadmill as described below,
it could affect or void the Johnson limited warranty.
DANGER: To reduce the risk of electrical shock, always unplug the treadmill from its
power source before cleaning it or performing any maintenance task.
CAUTION: Any changes or modifications to this equipment could void the product
warranty.
NOTE: Safety of the equipment can be maintained only if the equipment is examined
regularly for damage or wear. Keep the equipment out of use until defective parts are
repaired or replaced.
RECOMMENDED CLEANING TIPS
1) Use a damp, soft cloth with water or mild liquid detergent to clean all exposed
surfaces. DO NOT use ammonia, chlorine, or acid-based cleaners.
2) DO NOT pour water or cleaning solutions on any surface. This could cause
electrocution.
3) Check the operation of the emergency stop system once a week.
4) Wipe the user’s contact areas, including console, HR handgrips, side handrails and
side rails, after every use.
5) Brush away any wax deposits from the deck and belt area. This is a common
occurrence until the wax is worked into the belt material.
6) Be sure to remove any obstructions from the path of the elevation including power
cords.
7) Monthly, remove the motor cover to check for debris and clean with a dry cloth or
small vacuum nozzle. Unplug the unit while executing this procedure.
MAINTENANCE
3534
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
3) FAVORITE CHANNEL:
Up to 50 favorite channels can be stored for a continuous selection during making channel up
or down.
TURN ON / OFF FAVORITE CHANNEL SETTING
Press SPEED / to move the cursor to ON / OFF, and press SELECT to turn on/off the setting.
SELECT FAVORITE CHANNELS
1. When Favorite Channel is ON, press SPEED / to move the cursor to ADD CH or ERASE CH
and press SELECT to add or erase the wanted channels.
2. Press SPEED / to select which channel wants to add or erase.
êTo ADD a channel, select the wanted channel numbers and press SELECT to add this channel.
The channel will display in the list. If the wanted channel number has been in the list, it will
display a sentence “CHxx has already been in the list.”
êTo ERASE a channel, select the wanted channel numbers and press SELECT to erase this channel.
The channel will remove from the list. If the wanted channel number was not in the list, it
will display a sentence “CHxx is not in the list.”
If the list has had “50” channels, it won't accept to ADD any channel. “Unacceptable to add any
channel” will display in the screen, if adding a channel.
If the list has a “zero” channels, it won't allow to ERASE any channel. “No channel in the list”,
if trying to erase a channel.
All manuals and user guides at all-guides.com

3736
JOHNSON TREADMILL T8000E JOHNSON TREADMILL T8000E
CENTERING THE BELT
The Johnson Treadmill is built with a crowned roller to ensure proper tracking of the
belt in the centre of the deck. An 8 mm Allen wrench (A 5/16-inch hex key wrench) is
required for this task. The unit has access holes in the rear roller guards which allow
access to the tensioning bolts.
Before proceeding, please follow the centering belt procedure tips.
1) DO NOT wear loose clothing or jewellery while making this adjustment.
2) NEVER have the tensioning bolts more than 1/4 turned at a time.
3) Tighten one side and loosen the other side to prevent from over-tightening or
loosing the belt. Over-tightening the belt will significantly shorten the life of the belt.
4) After the belt adjustment, let the treadmill run for 5 minutes to test. If necessary,
repeat the procedure until the belt is centered.
If the belt has moved to the right, turn the right tension bolt a 1/4 turn clockwise and
then turn the left tension bolt a 1/4 turn counter-clockwise to start the belt tracking
back to the centre of the roller.
1/4 TURN
1/4 TURN
Repeat the adjustments until the belt appears centered. Allow the treadmill to continue
running for several minutes at 6.4 km/h (4.0 mph) to be sure that the tracking is
stabilized.
NOTE: DO NOT
exceed one full turn of the adjusting screws in either direction. If after
one full turn the belt does not track properly, please contact Johnson Fitness or the
local authorized dealers.
TENSIONING THE BELT
Check the tension of the belt. The belt should be very snug. When a person walks or
runs on the belt, it should not hesitate or slip. If this occurs, turn the belt tensioning
bolts a 1/4 turn clockwise for each side. Repeat if necessary until the belt no longer
slips. DO NOT exceed one full turn (i.e. four 1/4 turns) per side when adjusting the belt
tensioning bolts. If after tension the belt, the belt still hesitates or slips, please contact
Johnson Fitness or the local authorized dealers at once.
If the belt has moved to the left, turn the left tension bolt a 1/4 turn clockwise and then
turn the right tension bolt a 1/4 turn counter-clockwise to start the belt tracking back to
the centre of the roller.
1/4 TURN
1/4 TURN
All manuals and user guides at all-guides.com
