Jolly D5-BS User manual

USER MANUAL
Version:1.0

Table of content
1.Open-Package guidelines........................................................... .1
１.１Package........................................................................................... ...1
2.Safety instructions................................................................... ...1
3.Operating determination....................................................... ......3
4.Rigging the fixture................................................................. ......4
4.1 Mounting.......................................................................... .....................4
5.
6.
7.
7.1
7.2
7.3
8.DMX protocol........................................................................... 12
9.Maintance and cleaning................................................ ......16
10.Electric equipment specification........................................ ......16
10.1 Electrical paramters.......................................................... ...............16
10.2
10.3
............
............
............
............
............
............
4.2Installing the Clamps..........................................................................................4
4.3 Power supply connection and cut off.................................................................5
4.4 Power Connection.............................................................................................6

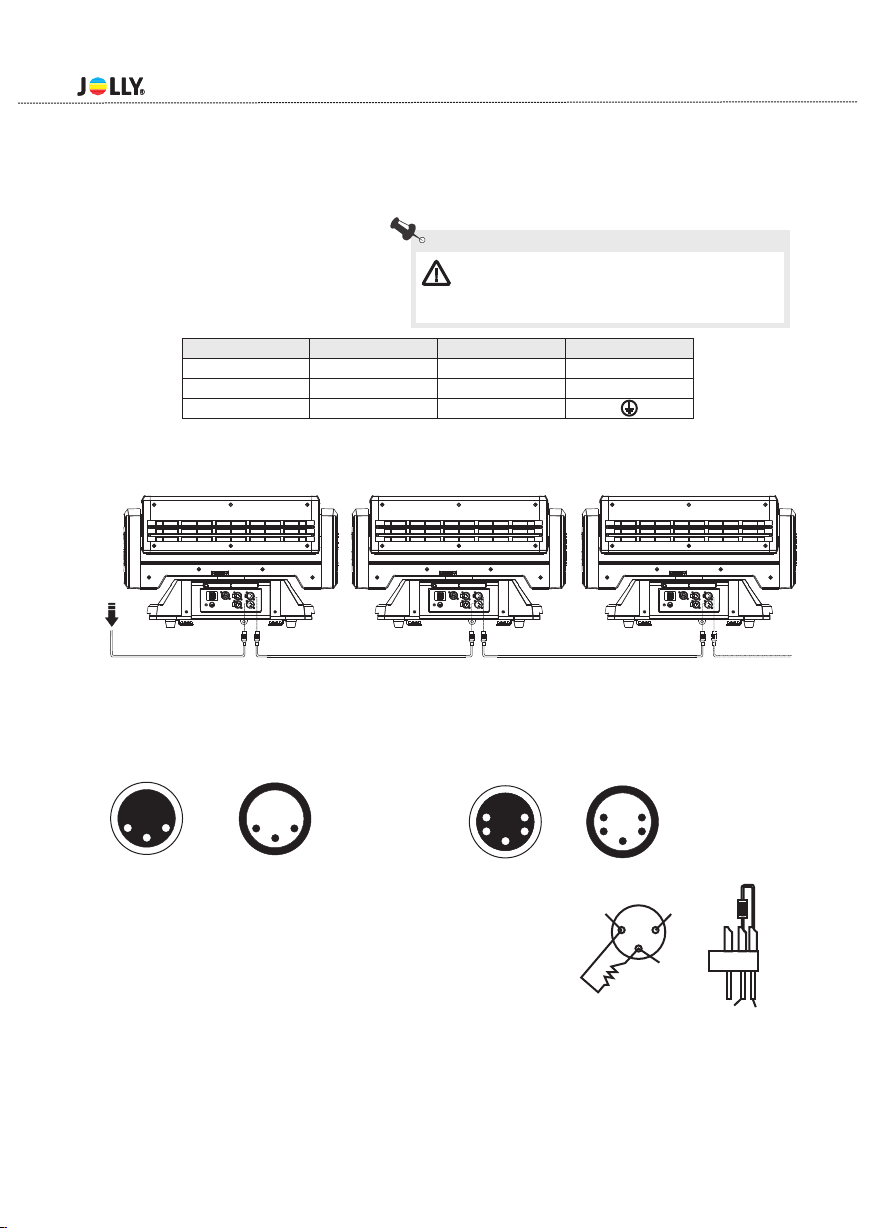

4.5 DMX-512 connection/connection between fixtures...........................................6
............
............
............
.........................
............
.........................
............
.................
............
............
.................................................................................17
Channel Characteristics................................................................................17
10.4 Menu Function..............................................................................................17
11.Electronic drawing..............................................................................18

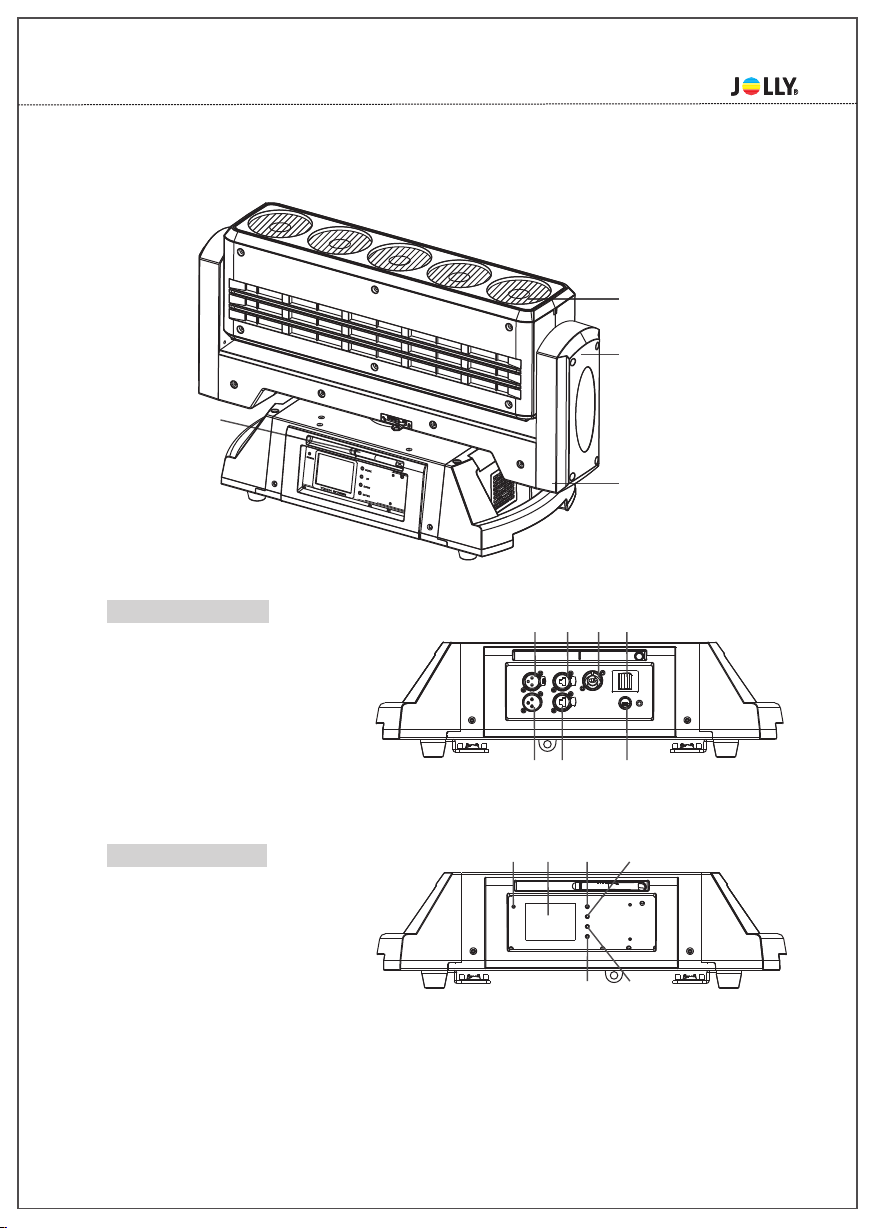

Description of the device........................................................... ..7
Dimension.................................................................................. .8
Display control......................................................................... ...9
Navigation in the Menu......................................................... ...9
Display Operation................................................................. ................9
Menu list................................................................................. 11
Weight and dimensions

Congratulations on choosing our products! Please carefully read this instruction manual in its
entirety and keep it well for using reference. This manual contained about the installation and
the relative using information of this products. Plese refere this manual's relative instruction
when using this equipment.

2.Safety instructions
1.Open-Package guidelines
-This equipment is made of new style,high intensity plastic. It fully shows the modem times light charac
teristic with beauty struture. And it is made accord to CE standard. Fully agree with the interna-
tion 512 agreement.
teristic with
standard of DMX
1.Signal cable-1PC 2.Safty cable-1PC
3.User Manval-1PC 4.Omega holder-2PCS
5.Power cable-1PC 5.Service card-1PC
-When receive the product, please be careful to take and put,Check if the product has damage or not
because of transportation, and check the following parts:
This device has been shipped with our premises in absolutely perfect condition. In order to maintain this
ensure a safe operation ,it is absolutely necessary for the user to follow the safety instruc -
notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
condition and to ti
ons and warning
Every person involvd with installation and maintenance of this device to:
-Be qualilfied
-Follow the instructions of this manual.
Transportation lock
Arm lock

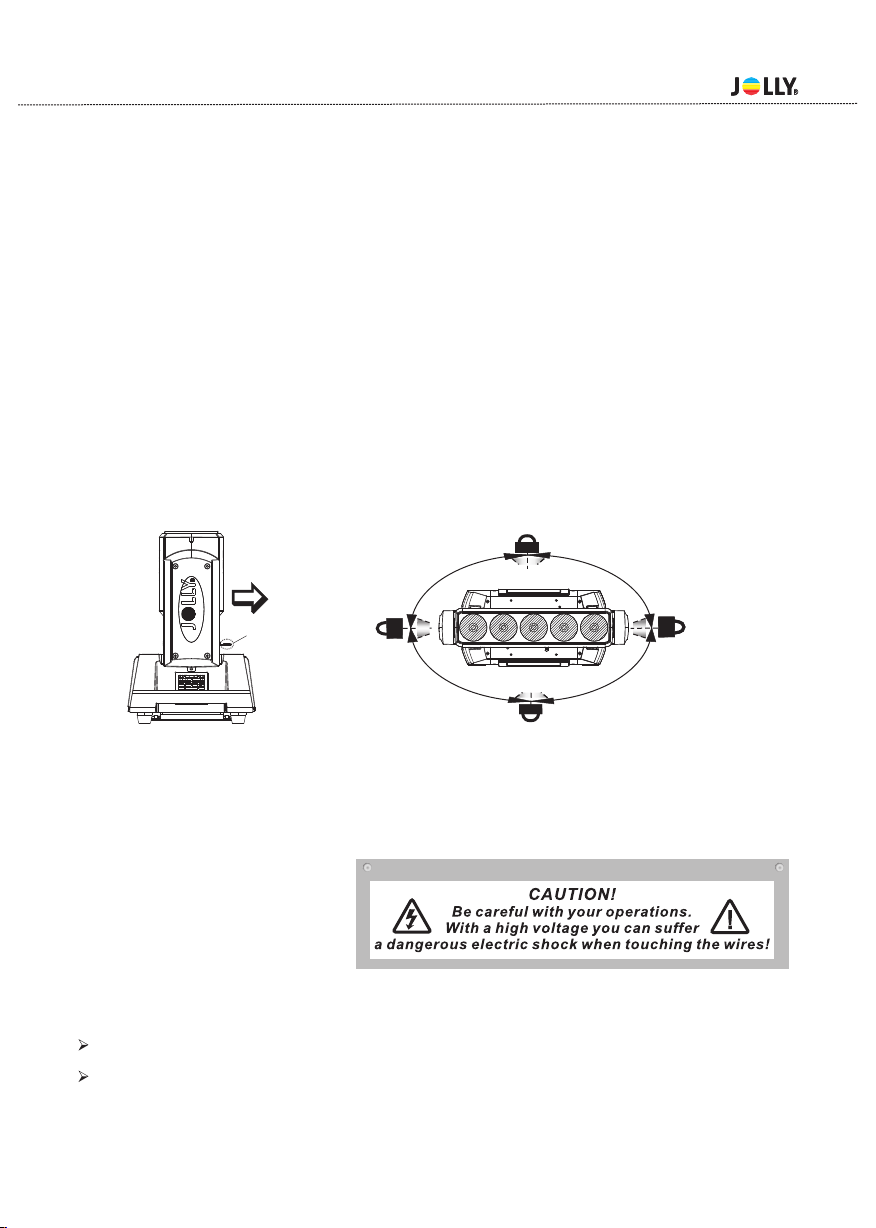

１.１Package
Unpacking the fixture
1.Open the flight case cover
2.With one person on each side, lift the fixture out of the flight case.
3.Unlock pan before operating fixture.
Packing the fixture
1.Disconnect the fixture from power and allow it to cool.
2.lock arm as figure. (
3.Place the fix ture in the bottom of the flight case, and cover the case without forcing.
.
- Fig.1 PAN Mechanism Lock and Release (every 90°)- Fig.2)
Fig.1 Fig.2
- 1 -
90°
90°
90°
90°

Never let the power-cord come into contact with other cables! Handle the power cord and all connections
with particular caution!
Make sure that the available voltage is not higher than stated on the rearpanel.
Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con
ections with themains with particular caution!
Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p-
ower-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power-cord by the plug,Never pull out the plug by tugging the powercord.
This device falls under protection class I.Therefore it is essential to connect the yellow/green conductor
to earth.
The electric connection,repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
Do not touch the device’s housing bare hands during its operation(housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
t 90
c°C
IP20
t 40
a°C
Risk Group 2
According to
En62471
Eye damage!
Avoid looking directly into the light source(meant especially for epileptics)!
Minimum distance of illuminated objects
0.20 metres (8”) from the lens of the projector.
Maximum ambient temperature
Do not operate the fixture if the ambient temperatuer(Ta) exceeds 40°C (104°F).
Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting,in a ther-
mally steadystate,is 90°C (194°F).
IP20 protection rating
The fitting is protected against penetration by solid of over 12mm (0.47”) in diameter (first
digit 2), but not against dripping water,rain,splashes or jets of water (second digit 0).
Indoor use only
Not suitable for household illumination
Photobiological Safety
CAUTION.Possibly hazardous optical radiation emitted from this product.Do not stare at
operating lamp.May be harmful to the eyes.
Light collimation system
This product contains internal light collimation system.Avoid intense light from any angle.
The products to which this manual refers comply with the European Directives purs-
uant to:
•2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
•2004/108/EC - Electromagnetic Compatibility (EMC)
•2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
•2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I app-
liance according to standard EN 60598-1) .It is, moreover, recommended to protect the supply
lines of the projectors from indirect contact and/orshorting to earth by using appropriately
sized residual current devices.
The projector needs to be positioned so that the objects hit by the beam of light are at least
- 2 -

Disposing
This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical
and Electronic Equipment (WEEE).To preserve the environment please dispose/recycde this
product at the end of its life according to the local regulation.
Battery
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To pre-
serve the environment,please dispose the battery at the end of its life according to the regul-
ation in force.
This device is a moving-head for creating decorative effects and was designed for indoor use only.
If the device ha been exposed to drastic temperature fluctuation(e.g.after transportation).do not weitch it
on immediately.The arising condensation water might damage your device,Leave the device switched off
until it has reached room temperature.
Never run the device without lamp!
Do not shake the device,Avoid brute force when installing or operating the device.
Never life the fixture by holding it at the projectorhead, as the mechanics may be damaged. Always hold
the fixture at the transport handles.
When choosing the installation-spot,please make sure that the device is not exposed to heat,moisture or
dust.There should not be any cables lying around.You endanger your own and the safety of others!
The minimum distance between light output and the illuminated surface must be more than 0.2 meters.
Make sure that the area below the installation place is blocked when rigging,derigging or servicing the fi-
xture.
Always fix the fixture with an appropriate safety rope, Fix the safety rope at the correct holes only.
Operate the fixture after having checked that the housing is firmly closed and all screws are tightly faste-
nd.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps
may explose and emit a hign ultraviolet radiat, which may cause burns.
The maximum ambient temperature 40°C must never be exceeded.
Operate the device only after having familiarized with its functions. Do not permit operation by persons
not qualified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasonsl.
If this device will be operated in any way different to the one described in this manual, the product may
suffer damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers
like short-circuit,burns, electric shict,burns due to ultraviolet radiation,lamp explosion,crash etc.
3.Operating determinations
- 3 -

4.1 Mounting
Pay attention to the regulations of CE.
Installation by qualified staff to complete.
For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different
accessories kits are available.
Through this a safe and firm installation is assured.
You’ll find special connectors on the bottom side of the system which are put to use here.
4.2 Installing the Clamps
Please consider the respective national norm s during the Installation!The installation must only be car-
ried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the wei-
ght for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g.an appropriate catch
net.This secondary safety attachment must be constructed in a way that no part of the installation can
fall if the main attachment fails.
When servicing the fixture staying in the area below the installation place,on bridges,under high working
places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert before taking into operation for the first time and after changes before taking into operation an-
other time.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by
a skilled person once a year.
The projector should be installed outside areas where persons m ay walk by or be seated.
Important!Overhead rigging requires extensive expering CE,including (but not limited to)calculating
working load limits, installation material being used, and periodic safety inspection of all installation ma-
terial and the projector. If you lack these qualifications, do not attempt the installation yourself, but inste-
ad use a professional structural rigger. Improper installation can result in bodilyinjury and or damage to
property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing system s have
to be used. The projector must never be fixed swinging freely in the room .
Caution Projectors may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do not install the projector!
Before rigging make sure that the installation area can hold a minim um point load of 10 times the
projector s weight.
4.Rigging the fixture
- 4 -

The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte-
ring its operation characteristics.
For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You
must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the
bottom of the base and over the trussing system etc.
1
2
3
4mounting plate
secure chain
omega holder
Lock catch
4.3 Power supply connection and cut off
Connect the light source to the main power source with the plug of the power cord, or cut off the power
supply:
Connection: according to procedures, the power
plug and socket is inserted into the groove one one
alignment,rotation.
Cut off:according to procedures,press the button
on the rotating plug,pull out.
- 5 -
Warning: it is necessary to make sure that
the installation location is perfectly appropriate,
and the installation location is safe and reliable.
1
1
1
1
2
4
3
0.2
0.2
1
2
12
3

2 1
3
2 1
3
5 1
4 2
3
5 1
4 2
3
5 1
4 2
3
1:Ground
2:Signal(-)
3:Signal(+)
1:Ground
2:Signal(-)
3:Signal(+)
4:N.A.
5:N.A.
2 1
3
5 1
4 2
3
4.5 DMX-512 connection/connection between fixtures
Only use stereo shieded cable and 3-pin XLR-plugs and connectors in order to connect.
Warning: please verify the power of the power
supply equipment prior to the connection! Earth wire
must be grounded!
Caution
At the last fixture,the DMX-cable has to be terminated with a terminatou. solder a 120 resistor between
signal(-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
DMX iutput
3-pin XLR socket
DMX iutput
5-pin XLR socket
DMX output
3-pin XLR socket
DMX output
5-pin XLR socket
4.4 Power Connection
mains with the enclosed power cable and plug.
If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the
L
N
CABLE(EU) CABLE(US) Pin
Brown Black Live
Yellow/Green Green Earth
Light blue White Neutral
INTERNATIONAL
- 6 -
DMX512
DMX Terminator Diagram
-For installations where the DMX cable has to run a long distance or
is In an electrically noisy environment it is recommended to use a
DMX terminator. This help in preventing corruption of the signal by
electrical noise. The DMX terminato r is simply an XLR plug witha
120 resistor connected between pins 2 and pins3, which is then
plugged into a the output XLR socket of the last ifxture in the chain.
Ω
1
2
3
12 0Ω
PIN2 PIN3

- 7 -
5.Description of the device
Head
360 unlimited rotating.
2.
3.
1.
Arm
360 unlimited rotating.
Base
17.WDMX wire
(No pulling out to
avoid damaging of
collision to arm.)
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
BACK PANEL
3-pin XLR female
Network interface
Power-in
Power switch
Insurance seat
Network interface
3-pin XLR male
CINTROL PANEL
Status indicator lamp
MODE button
UP button
DOWN button
ENTER button
Touch screen(LCD display)
16 12 13
14
15
11
467
5
89
10

6.Dimension
- 8 -
(15")
381
(6.69")
170
5 7
(20.35")
1
1
(5")
27
(24.45")
621
(13.54")
344
7
(19.17")
48 252
(9.92")

7.Display control
7.1 Navigation in the Menu
7.2 Display Operation
Using the buttons or touch screen, and this can be simply and easily set the address code and
code.
functions
If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu
interface. Both there is sub menu corresponding to the functional operation of the main menu. Each of the
menus is representative of the specific features of the lamp. The specific contents shows as the table
menu below.
Set or browse lighting function, press UP or DOWN button.
Press ENTER to save your changes or enter the submenu.Press the UP or DOWN can change the nume-
rical (increase or decrease in value).
Press the MODE button to return to menu. Set a time 0 to 10 minutes automatically exit menu interface
and close the screen.
Put through power supply, open the power switch of lamps and lanterns, display show the company
website. According to the main interface, as shown in figure:
In the main interface, press "MODE" button to view the software version, press the "UP" "DOWN" can m-
odify the DMX address.
If the screen " " icon is green,said DMX signal connection is normal, this state can be used to check th-
elamps and lanterns and connection between the control table is normal.
LOGO
- 9 -
Can view the company LOGO,web
site, hardware, software vers ion, date .
menu interface
This lamp can be set to turn off the automatic flip screen function, touch this " “ icon can be manually
flip screen.
1
001-029Settings
1
E
1 2
CH-001:Red 000.0% 000
CH-002:Red Fine 000.0% 000
CH-003:Green 000.0% 000
CH-004:Green Fine 000.0% 000
CH-005:Blue 000.0% 000
CH-006:Blue Fine 000.0% 000
CH-007:White 000.0% 000
CH-008:White Fine 000.0% 000
CH-009:Liner CTO 000.0% 000
CH-010:Macro Colour 000.0% 000
Mode EnterUp Down
Universe
002
Mode EnterUp Down
Dmx Address
0 10
Mode EnterUp Down
Universe
000
Mode EnterUp Down
IP AddressIP Address
Net MaskNet Mask
Mode EnterUp DownMode EnterUp Down Mode EnterUp Down
Channel Mode
Mode 29
Mode 38
Mode 58
Mode 66
Mode 158
Mode 186
Set Up
Inforamtion
Personality
Manual Control
Advanced
Mode EnterUp Down
Universe
001
Mode EnterUp Down menu interface

Click on the main interface of the icon, numerical to view view Settings related information of lamps and
lanterns.Symbols such as the main interface appear “ “,the following error message indicates that there
might be a lamps and lanterns,can click to view and control information content to modify the lamps and
lanterns.
- 10 -
CODE #
ERRO INFO CHECK MEASURMENT NOTE
E01 SpiFlashError Check the welding of memory IC
E02 Program Err 1 Check the welding of Chip
E03 Program Err 2 Check the welding of master IC EP3C
E04 MBDInit Error
E05 BD1Init Error
E06 BD2Init Error
E12 BusErr1
E14 SPDError Check the welding of master IC
E16 MFpga Error
E17 BD1 BUS Error
E18 BD2 BUS Error
E21 Pan FB. Err
E23 Tilt FB. Err
E22 Pan Zero Err
E24 Tilt Zero Err
E37 B.Fan1 Error Check the fan of head
E45 EthMDL Error Check the fan of ArtNet、communication signal
Check the communication signal 485& 485 chip & memory IC
Check cable of sensor, distance and location of ,magnets and sensor
Check the light coupling line, optical coupling switch and a plate of the
relative position measurement
Check the communication signal& welding of communication chip
Check main cable ABAB（485） chip
RESET
ERROR

7.3 Menu list
- 11 -
Remark
Universe 0~255
DMX Address 000~XXX
Universe 0~255
DMX Address 000~XXX
Pixels Engine Universe 0~255
Fixture Id 0001~9999 Lamps address
Mode 1 1~29
Mode 2 1~38
Mode 3 1~58
Mode 4 1~66
Mode 5 1~158
Mode 6 1~186
002.XXX.XXX.XXX
Confirm
255.XXX.XXX.XXX
Confirm
Fixture Times XXXXX h XX m Total working hours
LED On Times XXXXh XXm Lamp On working hours
Reset Lamp Time Input Password Reset Lamp Time
Error List Error details
BOARD 1: XX.XX%
BOARD 2: XX.XX%
BOARD 3: XX.XX%
BOARD 4: XX.XX%
BOARD 5: XX.XX%
DMX Values DMX Values
Fans Monitor Fans Monitor
Pan Reverse ON/OFF Pan Reverse (defaul OFF)
Tilt Reverse ON/OFF Tilt Reverse(defaul OFF)
Feedback ON/OFF Pan/Tilt Auto Switch(defaul ON)
Wired Input Wired Input(defaul)
Wireless Input Wireless Input
Wireless In/XLR out Wireless In/XLR out
Ethnet Input Ethnet Input
Brightness Brightness
Screen Time out 0-10m Screen Time out
Touch Screen ON/OFF Touch Screen(defaul ON)
Auto Screen ON/OFF Auto Screen(defaul ON)
Auto
High
Reset Reset Pan/Tilt
Channel Chanel Testing
Deom
Calibration lnput Password XXXX Chanel Adgusting
Factory Default ON/OFF Reset to orignal parameters
Touch Calibration Touch screen adjusting
IPAddress
Netmask
Basic Engine
Strobe Engine
Channel Mode default Mode1
Screen
Manual Control
Fan Mode
Set up
Ethernet
Information
LED Times
Diagnosis Diagnosis
Pan/Tilt
Dmx Input
Advanced
Defaul Auto
Personality

8.DMX protocol
- 12 -
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value
1 1 1 1 1 1
Red Black→Red 0-100% 0-255
2 2 2 2 2 2 Red fine Red fine 0-255
3 3 3 3 3 3 Green Black→Green 0-100% 0-255
4 4 4 4 4 4 Green fine Green fine 0-255
5 5 5 5 5 5 Blue Black→Blue 0-100% 0-255
6 6 6 6 6 6 Blue fine Blue fine 0-255
7 7 7 7 7 7 White Black→White 0-100% 0-255
8 8 8 8 8 8 White fine White fine 0-255
Reserve 0-14
8000K 15-44
7000K 45-74
6000K 75-104
5600K 105-134
5000K 135-164
4000K 165-194
3200K 195-224
2500K 225-255
Macro color OFF 0-9
Red 10
Green 11
Blue 12
Cyan 13
Yellow 14
Magenta 15
White 7000 K 16
White 3700 K 17
White 5000 K 18
Black 19
Medium Yellow 20-22
Straw Tint 23-26
Surprise Peach 27-28
Fire 29
Medium Amber 30
Gold Amber 31
Dark Amber 32-34
Sunrise Red 35-44
Light Pink 45
Medium Pink 46-48
Pink Carnation 49-61
Light Lavender 62-67
Lavender 68-77
Sky Blue 78-88
Just Blue 89-99
Dark yellow green 100-109
Spring Yellow 110-111
Light Amber 112
Straw 113
Deep Amber 114
Orange 115-116
Light Rose 117
English Rose 118
Light Salmon 119
Middle Rose 120
Dark Pink 121-122
Magenta 123-124
Peacock Blue 125
Med Blu Green 126
Steel Blue 127
Light Blue 128
Dark Blue 129-130
Leaf Green 131-133
9 9999 Linear CTO9
Macro colour101010 1010 10

- 13 -
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value
Dark Green 134-135
Mauve 136-137
Bright Pink 138-141
Medium Blue 142-144
Deep Golden Amber 145
Pale Lavender 146
Special lavender 147-148
Primary Green 149-150
Bright Blue 151-156
Apricot 157-161
Pale Gold 162-167
Deep Orange 168-171
Bastard Amber 172-173
Flame Red 174
Daylight Blue 175-178
Lilac Tint 179
Deep lavender 180-183
Dark Steel Blue 184-190
Congo Blue 191-206
Alice Blue 207
Dirty White 208
White 209-255
CLOSED 0-3
STROBE SLOW→FAST（1→25 flash/sec） 4-103
OPEN 104-107
PULSATION SLOW→FAST（0.5-25 flash/sec） 108-207
OPEN 208-212
RANDOM SLOW STROBE 213-225
RANDOM MEDIUM STROBE 226-238
RANDOM FAST STROBE 239-251
OPEN 252-255
12 12 12 12 12 12 Dimmer Dimmer 0-100% 0-255
13 13 13 13 13 13 Dimmer Fine Dimmer Fine 0-100% 0-255
14 14 14 14 14 14 Pan Pan 0-255
15 15 15 15 15 15 Pan Fine Pan Fine 0-255
UNUSED RANGE 0-2
CW Rotation speed from fast to slow 3-126
Stop Rotation 127-130
CW Rotation speed from slow to fast 130-255
17 17 17 17 17 17 Tilt Tilt 0-255
18 18 18 18 18 18 Tilt Fine Tilt Fine 0-255
UNUSED RANGE 0-2
CW Rotation speed from fast to slow 3-126
Stop Rotation 127-130
CW Rotation speed from slow to fast 130-255
Function off -rearmed 0-11
Pan Tilt Fast (Default) 12-24
Pan Tilt Normal 25-37
Dimmer Curve 1 38-42
Dimmer Curve 2 43-47
Dimmer Curve 3 48-52
Dimmer Curve 4 53-57
RGBW Gamma curve 1 -gamma =1.0 58-62
RGBW Gamma curve 2 -gamma =1.5 63-67
RGBW Gamma curve 3 -gamma =2.0 68-72
Strobe Ethernet control open (default) 73-77
Strobe Ethernet control 78-82
Strobe pixel Ethernet control open (default) 83-87
10 1010 10 10 Macro colour10
Activate the following function channel 9 linear CTO automatically
shut down.
19
11 Strobe11
16 Pan Rotation16
Tilt Rotation19
11 11 11 11
The functions are actived passing through the"unused range” and
staying 5 seconds.
Function252423222120
16161616
19191919

- 14 -
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value
Strobe pixel Ethernet control control 88-92
Strobe channel merger (default) 93-97
Strobe independence 98-102
Stroboscopic crosswise (default) 103-107
Stroboscopic arrangement 108-112
Flashing up and down 103-117
PAN / TILT RESET 118-122
Unused range 128-255
21 21 21 21 21 21 Pixels R Pixels R 0-100% 0-255
22 22 22 22 22 22 Pixels R Fine Pixels R Fine 0-100% 0-255
23 23 23 23 23 23 Pixels G Pixels G 0-100% 0-255
24 24 24 24 24 24 Pixels G Fine Pixels G Fine 0-100% 0-255
25 25 25 25 25 25 Pixels B Pixels B 0-100% 0-255
26 26 26 26 26 26 Pixels B Fine Pixels B Fine 0-100% 0-255
CLOSED 0-3
STROBE SLOW→FAST（1→25 flash/sec） 4-103
OPEN 104-107
PULSATION SLOW→FAST（0.5-25 flash/sec） 108-207
OPEN 208-212
RANDOM SLOW STROBE 213-225
RANDOM MEDIUM STROBE 226-238
RANDOM FAST STROBE 239-251
OPEN 252-255
28 28 28 28 28 28 Pixels Dimmer Pixels Dimmer 0-100% 0-255
29 29 29 29 29 29 Pixels Dimmer Fine Pixels Dimmer Fine 0-100% 0-255
Reserve 0-7
Single pulsation 8
Divergence 9
Single spaced interval 1 10
Single spaced interval 2 11
Single spaced interval 3 12
Single spaced interval 4 13
Reserve 14-255
Radius size,Static 0-63
max to min speed 64-158
Stop 159-160
min to max speed 161-255
32 32 32 32 32 Shape Fade Shape Fade 0-100% 0-255
33 33 33 33 33 Shape R Shape R 0-100% 0-255
34 34 34 34 34 Shape G Shape G 0-100% 0-255
35 35 35 35 35 Shape B Shape B 0-100% 0-255
36 36 36 36 36 Shape W Shape W 0-100% 0-255
37 37 37 37 37 Shape Dimmer Shape Dimmer 0-100% 0-255
CLOSED 0-3
STROBE SLOW→FAST（1→25 flash/sec） 4-103
OPEN 104-107
PULSATION SLOW→FAST（0.5-25 flash/sec） 108-207
OPEN 208-212
RANDOM SLOW STROBE 213-225
RANDOM MEDIUM STROBE 226-238
RANDOM FAST STROBE 239-251
OPEN 252-255
39 39 39 Red LED 1 Red 0-100% 0-255
40 40 40 Green LED 1 Green 0-100% 0-255
41 41 41 Blue LED 1 Blue 0-100% 0-255
42 42 42 White LED 1 White 0-100% 0-255
43 43 43 Red LED 2 Red 0-100% 0-255
44 44 44 Green LED 2 Green 0-100% 0-255
45 45 45 Blue LED 2 Blue 0-100% 0-255
46 46 46 White LED 2 White 0-100% 0-255
47 47 47 Red LED 3 Red 0-100% 0-255
48 48 48 Green LED 3 Green 0-100% 0-255
49 49 49 Blue LED 3 Blue 0-100% 0-255
24 25 Function20 21 22 23
31 31 31 31 Shape Speed
30 Shape Selection
27 27 27 27
38 38
27 27 Strobe
38 38 Shape Strobe
30 30 30 30
38
31

- 15 -
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value
50 50 50 White LED 3
White 0-100% 0-255
51 51 51 Red LED 4 Red 0-100% 0-255
52 52 52 Green LED 4 Green 0-100% 0-255
53 53 53 Blue LED 4 Blue 0-100% 0-255
54 54 54 White LED 4 White 0-100% 0-255
55 55 55 Red LED 5 Red 0-100% 0-255
56 56 56 Green LED 5 Green 0-100% 0-255
57 57 57 Blue LED 5 Blue 0-100% 0-255
58 58 58 White LED 5 White 0-100% 0-255
Reserve 0-7
Vertical divergence 1 8
Vertical divergence 2 9
Vertical random elongation 10
Vertical random 11
Vertical sequence flow 12
Vertical single diffusion 13
Vertical two pulsation 1 14
Vertical two pulsation 2 15
Vertical two pulsation 3 16
Transverse sequence flow 17
Transverse random elongation 18
Lateral divergence 19
Single snaking beating 20
Single point following runout 1 21
Single point random beating 22
Single point following runout 2 23
Single point following runout 3 24
Single point following runout 4 25
Single point following runout 5 26
Square jitter 27
Strip spinning 28
Small strip beating 1 29
Small strip beating 2 30
Single point following runout 5 31
Reserve 32-255
Radius size,Static 0-63
max to min speed 64-158
Stop 159-160
min to max speed 161-255
61 61 Pixels Shape Fade Shape Fade 0-100% 0-255
62 62 Pixels Shape R Shape R 0-100% 0-255
63 63 Pixels Shape G Shape G 0-100% 0-255
64 64 Pixels Shape B Shape B 0-100% 0-255
CLOSED 0-3
STROBE SLOW→FAST（1→25 flash/sec） 4-103
OPEN 104-107
PULSATION SLOW→FAST（0.5-25 flash/sec） 108-207
OPEN 208-212
RANDOM STROBE SLOW→FAST 213-251
OPEN 252-255
66 66 Pixels Shape
Dimmer Shape Dimmer 0-100% 0-255
39 67 Pixels 1 R Pixels 1 R 0-100% 0-255
40 68 Pixels 1 G Pixels 1 G 0-100% 0-255
41 69 Pixels 1 B Pixels 1 B 0-100% 0-255
42 70 Pixels 1 Dimmer Pixels 1 Dimmer 0-100% 0-255
43 71 Pixels 1 Shape Fade Pixels 1 Shape Fade 0-255
44 72 Pixels 1 Shape
Speed Pixels 1 Shape Speed 0-255
45 73 Pixels 2 R Pixels 2 R 0-100% 0-255
46 74 Pixels 2 G Pixels 2 G 0-100% 0-255
47 75 Pixels 2 B Pixels 2 B 0-100% 0-255
60 60 Pixels Shape Speed
65 Pixels Strobe65
59 59 Pixels Shape
Selection

- 16 -
9.Maintance and cleaning
It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not
buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
through out its life. A soft lint-free cloth moistened with any good glass cleaning fluid is recommended,
under no circum stances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues,reduc-
ing the light-output very quickly.The cooling-fans should be cleaned monthly.
The gobos may be cleaned with a soft brush,The interior of the fixture should be cleaned at least annua-
lly usinga vacuum-cleaner or an air-jet.
There are no serviceable parts inside the device except for the lamp and the fuse.
Replacing the fuse: If the lamp burns out,the fine-wire fuse of the device might fuse,too.Only replace the
fuse by a fuse of same type and rating.Before replacing the fuse,unplug mains lead.
Maintenance and maintenance of the operation, please contact the manufacturer or distributor.
DANGER:Disconnect from the mains before starting any maintenance work.
Mode1 Mode2 Mode3 Mode4 Mode5 Mode6 Name Function DMX Value
48 76 Pixels 2 Dimmer Pixels 2 Dimmer 0-100% 0-255
49 77
Pixels 2 Shape Fade Pixels 2 Shape Fade 0-255
50 78 Pixels 2 Shape
Speed Pixels 2 Shape Speed 0-255
51 79 Pixels 3 R Pixels 3 R 0-100% 0-255
52 80 Pixels 3 G Pixels 3 G 0-100% 0-255
53 81 Pixels 3 B Pixels 3 B 0-100% 0-255
54 82 Pixels 3 Dimmer Pixels 3 Dimmer 0-100% 0-255
55 83 Pixels 3 Shape Fade Pixels 3 Shape Fade 0-255
56 84 Pixels 3 Shape
Speed Pixels 3 Shape Speed 0-255
. . . . .
. . . . .
. . . . .
153 181 Pixels 20 R Pixels 20 R 0-100% 0-255
154 182 Pixels 20 G Pixels 20 G 0-100% 0-255
155 183 Pixels 20 B Pixels 20 B 0-100% 0-255
156 184 Pixels 20 Dimmer Pixels 20 Dimmer 0-100% 0-255
157 185 Pixels 20 Shape
Fade Pixels 20 Shape Fade 0-255
158 186 Pixels 20 Shape
Speed Pixels 20 Shape Speed 0-255
10.1 Electrical paramters
10.Electric equipment specification
SOURCE:
POWER:800
VOLTAGE:
RGBW 5LED-60W+ RGB 1280LED-0.2W
W
AC100-240V 50/60HZ
Color Temperature:6500K
