Jolly A-3 Coupe User manual

USER MANUAL

Table of content
1.Open-Package guidelines..........................................................................1
１.１Package..............................................................................................1
2.Safety instructions....................................................................................1
3.Operating determination...........................................................................3
4.Rigging the fixture....................................................................................4
4.1 Mounting..............................................................................................4
5.
6.
6.1
6.2
6.3
7.DMX protocol........................................................................................10
8.Maintenance and cleaning....................................................................12
9.Electric equipment specification............................................................13
9.1 Electrical paramters.......................................................................13
9.2
9.3
9.5 light table ......................................................................................14
................................................................................14
10.Electronic drawing..............................................................................16
4.2Installing the Clamps.............................................................................4
4.3 Power supply connection and cut off.....................................................6
4.4 POWER Connection..............................................................................6
4.5 DMX-512 connection/connection between fixtures..............................6
...................................................................13
Channel Characteristics..................................................................13
9.4 Menu Function................................................................................13
.

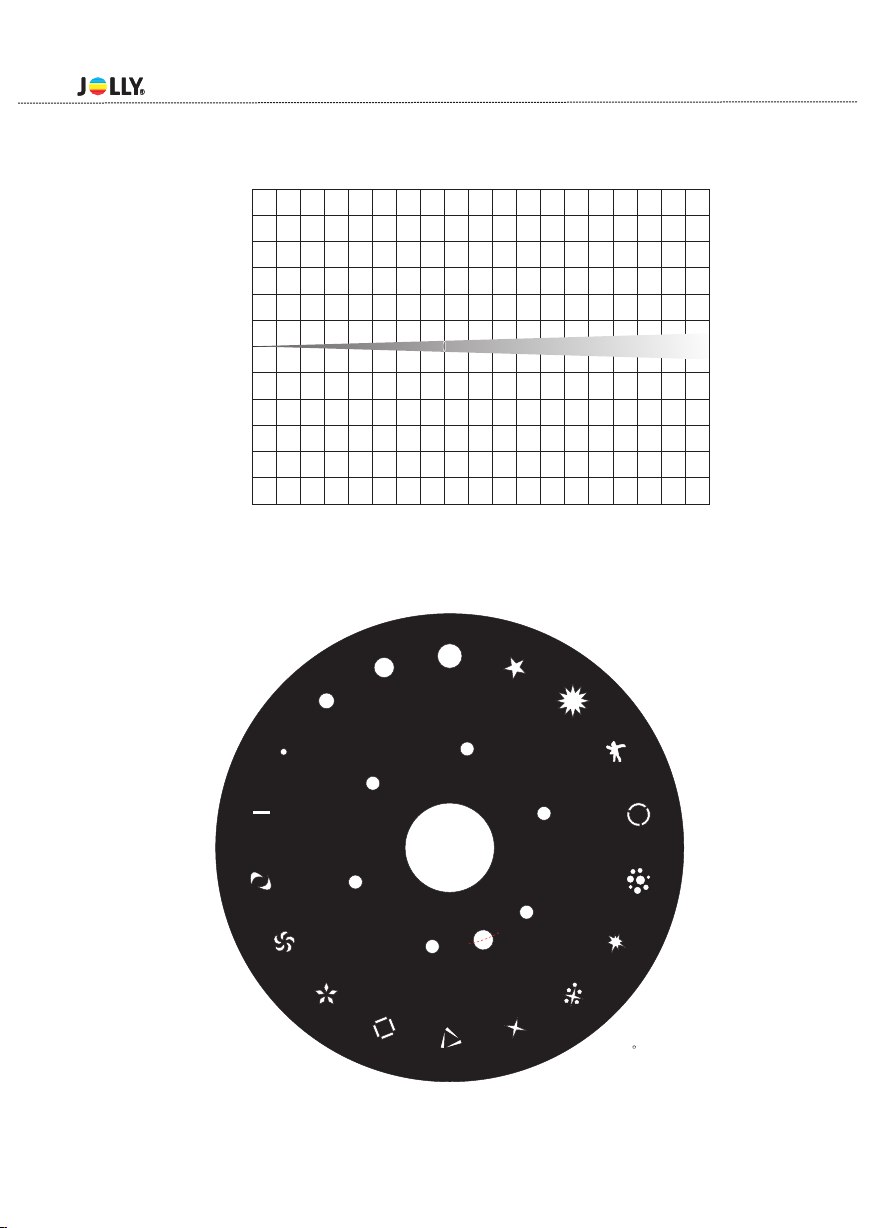

9.6 Gobo wheel.....

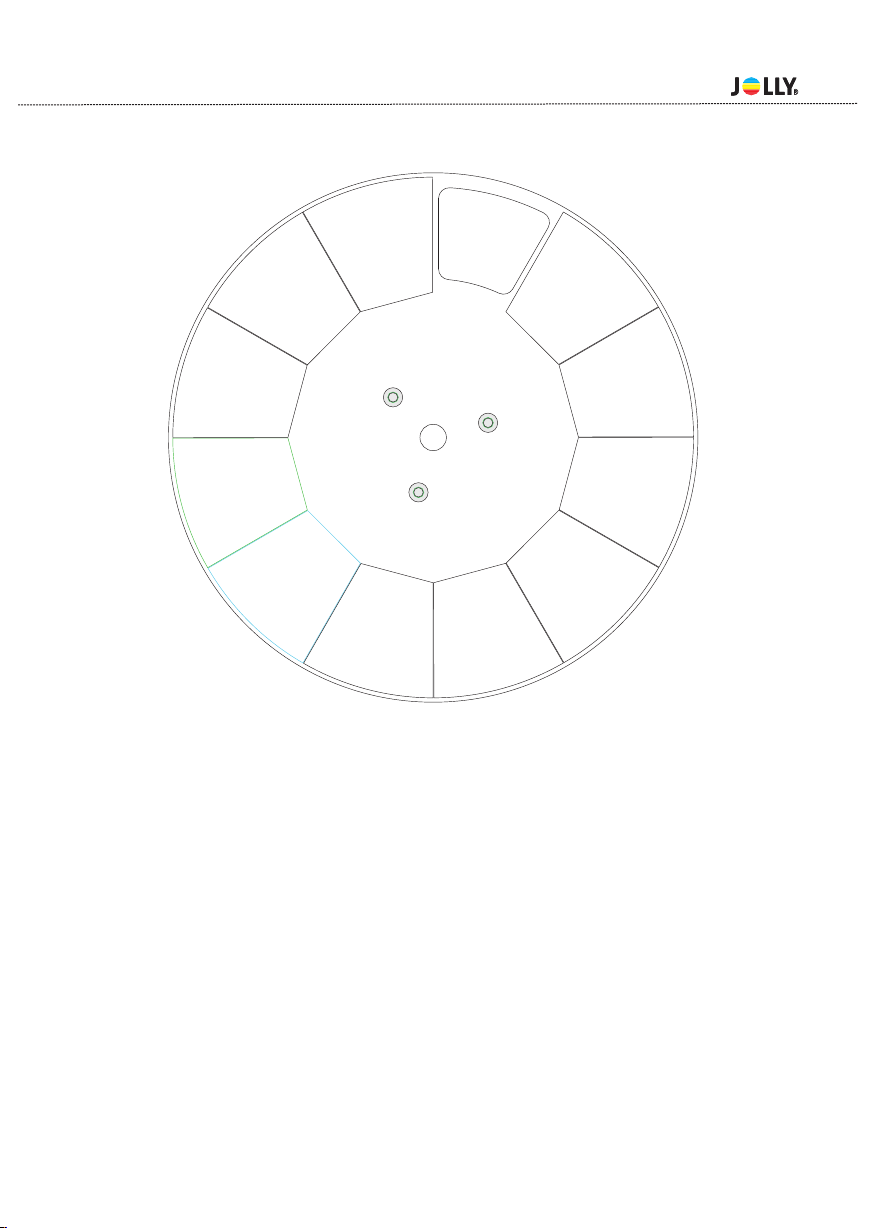

9.7 Color wheel.....................................................................................15
Description of the device..........................................................................7
Display control.........................................................................................8
Navigation in the Menu........................................................................8
Display OPeration................................................................................8
Menu Maps ........................................................................................9
Weight and dimensions

Congratulations on choosing our products! Please carefully read this instruction manual in its
entirety and keep it well for using reference. This manual contained about the installation and
the relative using information of this products. Plese refere this manual's relative instruction
when using this equipment.

2.Safety instructions
1.Open-Package guidelines
１.１Package
Unpacking the fixture

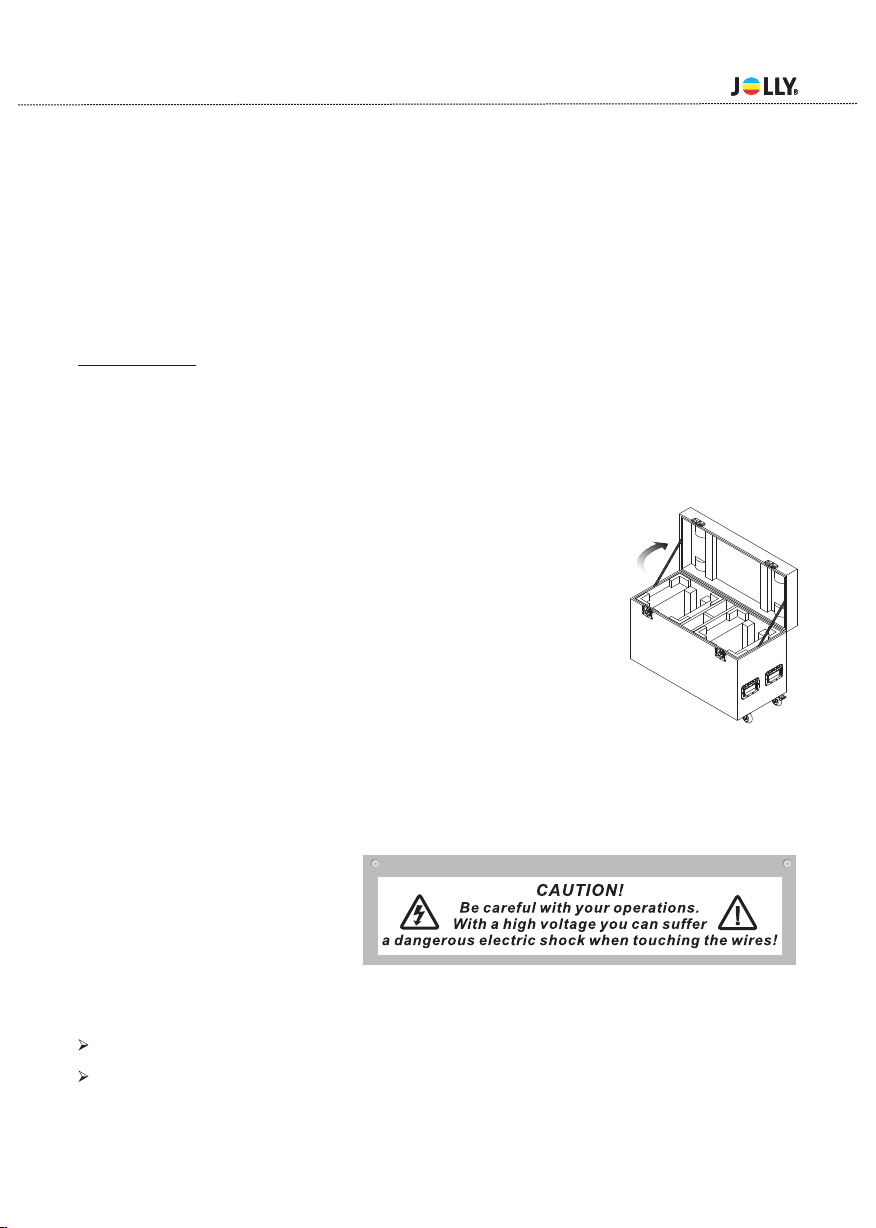

1.Open the flight case cover
2.With one person on each side, lift the fixture out of the flight case.
3.Unlock pan and tilt before operating fixture.
Packing the fixture
1.Disconnect the fixture from power and allow it to cool.
2.lock arms and h as figure.(
3.Place the fix ture in the bottom of the flight case, and cover the case without forcing.
- Fig.1
ead PAN Mechanism Lock and Release (every 45°)
(Tilt Mechanism Lock and Release (every 45°)
This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac
teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation
512 agreement.
teris-
tic with
standard of DMX
1.Signal cable-1PC 2.Safty cable-1PC
3.User Manval-1PC 4.Omega holder-2PCS
5.Power cable-1PC 5.Service card-1PC
When receive the product,please be careful to take and put,check if the product has damage or not be-
cause of transportation, and check the following parts:
This device has been shipped with our premises in absolutely perfect condition.In order to maintain this co-
ndition and toensure a safe operation,it is absolutely necessary for the user to follow the safety instructions
and warning notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Every person involvd with installation and maintenance of this device to:
-Be qualilfied
-Follow the instructions of this manual.
- 1 -
Fig.1
Aviation box

- 2 -
Never let the power-cord come into contact with other cables! Handle the power cord and all connections
with particular caution!
Make sure that the available voltage is not higher than stated on the rearpanel.
Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con
ections with themains with particular caution!
Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p-
ower-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power-cord by the plug,Never pull out the plug by tugging the powercord.
This device falls under protection class I.Therefore it is essential to connect the yellow/green conductor
to earth.
The electric connection,repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
Do not touch the device’s housing bare hands during its operation(housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
t 80
c°C
IP20
t 40
a°C
Eye damage!
Avoid looking directly into the light source(meant especially for epileptics)!
Minimum distance of illuminated objects
2.5 metres from the lens of the projector.
Maximum ambient temperature
Do not operate the fixture if the ambient temperatuer(Ta) exceeds 40°C (104°F).
Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting,in a ther-
mally steadystate,is 80°C (176°F).
IP20 protection rating
The fitting is protected against penetration by solid of over 12mm (0.47”) in diameter (first
digit 2), but not against dripping water,rain,splashes or jets of water (second digit 0).
Indoor use only
Not suitable for household illumination
Photobiological Safety
CAUTION. Do not look directly at the light source.Do not look at the light beam with optical de-
vices or any other tool that could cause light convergence.
The fixture must be positioned so that the minimum distance between the front lens and human
eye is at least 3metres to prevent personal photobiological risks.
Mounting surfaces
It is permissible to mount the fitting on normally flammable surfaces.
The products to which this manual refers comply with the European Directives purs-
uant to:
•2006/95/EC - Safety of electrical equipment supplied at low voltage ( LVD)
•2004/108/EC - Electromagnetic Compatibility (EMC)
•2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
•2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I app-
liance according to standard EN 60598-1) .It is, moreover, recommended to protect the supply
The projector needs to be positioned so that the objects hit by the beam of light are at least
F
Risk Group 1
According to
En62471
2.5

Disposing
This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and
Electronic Equipment (WEEE) . To preserve the environment please dispose/recycde this product at
the end of its life according to the local regulation.
Battery
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery.To preserve the
environment,please dispose the battery at the end of its life according to the regulation in force.
Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the
apparatus. -Carefully read the "operating instructions" provided by the lamp manufacturer.
-Immediately replace the lamp if damaged or deformed by heat.
Maintenance
Before starting any maintenance work or cleaning the projector,cut off power from the mains supply.
After switching off, do not remove any parts of the fitting for at least 10 minutes. After this time the like
lihood of the lamp exploding is virtually small.If it is necessary to replace the lamp,wait for another 15
minutes to avoid getting burnt.The fitting is designed to hold in any splinters produced by a lamp expl-
oding.
This device is a moving-head for creating decorative effects and was designed for indoor use only.
If the device ha been exposed to drastic temperature fluctuation(e.g.after transportation).do not weitch it on imm-
ediately.The arising condensation water might damage your device,Leave the device switched off until it has rea-
ched room temperature.
Never run the device without lamp!
Do not shake the device,Avoid brute force when installing or operating the device.
Never life the fixture by holding it at the projectorhead, as the mechanics may be damaged. Always hold the fixtu-
re at the transport handles.
When choosing the installation-spot,please make sure that the device is not exposed to heat,moisture or dust.Th-
ere should not be any cables lying around.You endanger your own and the safety of others!
The minimum distance between light output and the illuminated surface must be more than 0.2 meters.
Make sure that the area below the installation place is blocked when rigging,derigging or servicing the fixture.
Always fix the fixture with an appropriate safety rope, Fix the safety rope at the correct holes only.
Operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastend.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may ex-
plose and emit a hign ultraviolet radiat, which may cause burns.
The maximum ambient temperature 40°C must never be exceeded.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not qua-
lified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasonsl.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers like short-circ-
uit,burns, electric shict,burns due to ultraviolet radiation,lamp explosion,crash etc.
3.Operating determinations
lines of the projectors from indirect contact and/orshorting to earth by using appropriately sized
residual current devices.
E
!
- 3 -

4.1 Mounting
For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different
accessories kits are available.
Through this a safe and firm installation is assured.
You’ll find special connectors on the bottom side of the system which are put to use here.

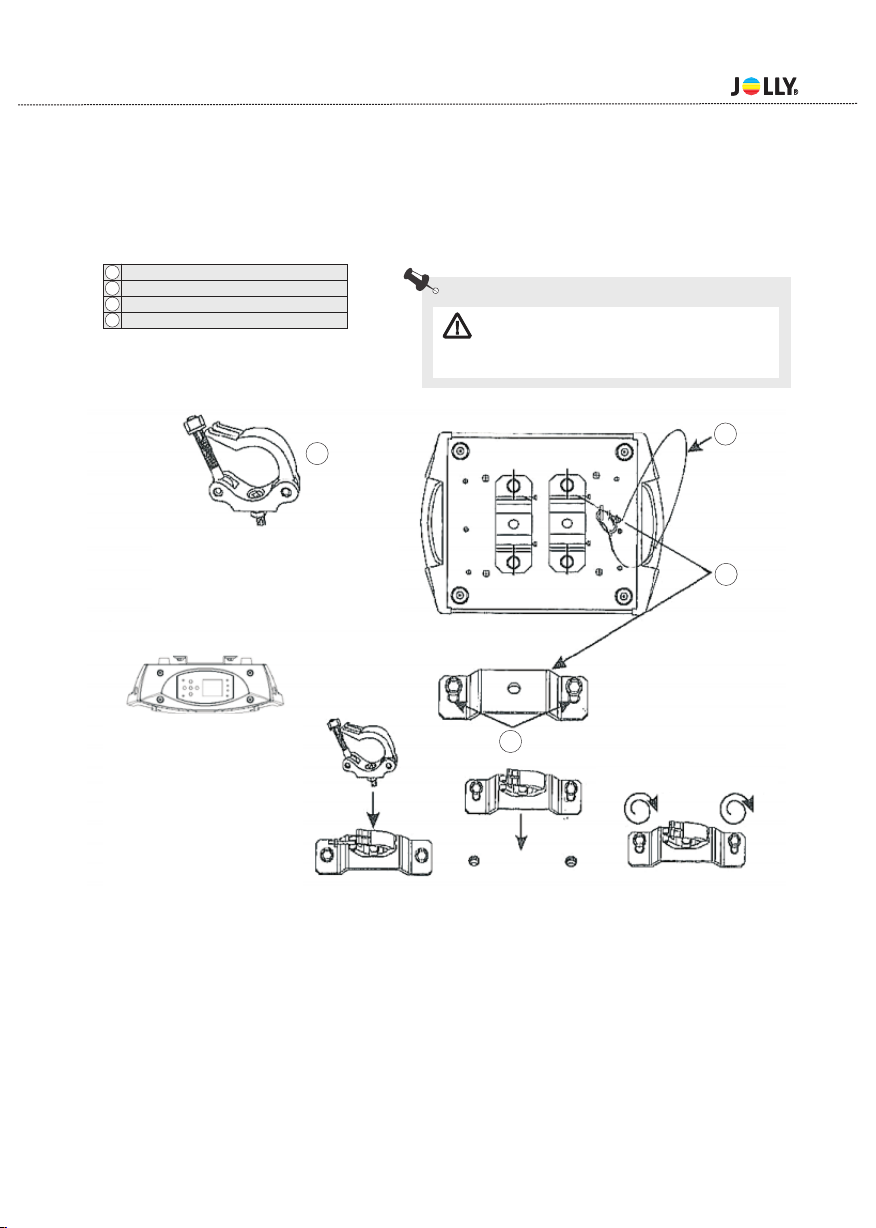

4.2 Installing the Clamps
Please consider the respective national norm s during the Installation!The installation must only be car-
ried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the wei-
ght for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g.an appropriate catch
net.This secondary safety attachment must be constructed in a way that no part of the installation can
fall if the main attachment fails.
When servicing the fixture staying in the area below the installation place,on bridges,under high working
places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert before taking into operation for the first time and after changes before taking into operation an-
other time.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by
a skilled person once a year.
The projector should be installed outside areas where persons m ay walk by or be seated.
Important!Overhead rigging requires extensive expering CE,including (but not limited to)calculating
working load limits, installation material being used, and periodic safety inspection of all installation ma-
terial and the projector. If you lack these qualifications, do not attempt the installation yourself, but inste-
ad use a professional structural rigger. Improper installation can result in bodilyinjury and or damage to
property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing system s have
to be used. The projector must never be fixed swinging freely in the room .
Caution Projectors may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do not install the projector!
Before rigging make sure that the installation area can hold a minim um point load of 10 times the
projector s weight.
4.Rigging the fixture
Pay attention to the regulations of CE.
Installation by qualified staff to complete.
- 4 -

The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte-
ring its operation characteristics.
For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You
must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the
bottom of the base and over the trussing system etc.
- 5 -
Warning: it is necessary to make sure that
the installation location is perfectly appropriate,
and the installation location is safe and reliable.
2
3
1
4
1
2
3
4
safaty cable
Setety clamp
1/4 Turn Quick-Look Fasioners
omega Bracket

- 6 -
4.5 DMX-512 connection/connection between fixtures
Only use stereo shieded cable and 3-pin XLR-plugs and connectors in order to connect.
4.4 Power Connection
mains with the enclosed power cable and plug.
If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the
L
N
CABLE(EU) CABLE(US) Pin
Brown Black Live
Yellow/Green Green Earth
Light blue White Neutral
INTERNATIONAL
Warning: please verify the power of the power
supply equipment prior to the connection! Earth wire
must be grounded!
DMX512
2 1
3
2 1
3
5 1
4 2
3
5 1
4 2
3
5 1
4 2
3
1:Ground
2:Signal(-)
3:Signal(+)
1:Ground
2:Signal( -)
3:Signal( +)
4:N.A.
5:N.A.
2 1
3
5 1
4 2
3
Caution
At the last fixture,the DMX-cable has to be terminated with a terminatou. solder a 120 resistor between
signal(-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
DMX iutput
3-pin XLR socket
DMX iutput
5-pin XLR socket
DMX output
3-pin XLR socket
DMX output
5-pin XLR socket
12
3
1
2
4.3 Power supply connection and cut off
Connect the light source to the main power source with the plug of the power cord, or cut off the power
supply:
Connection: according to procedures, the power
plug and socket is inserted into the groove one one
alignment,rotation.
Cut off:according to procedures,press the button
on the rotating plug,pull out.

DMX Terminator Diagram
-For installations where the DMX cable has to run a long distance or
is In an electrically noisy environment it is recommended to use a
DMX terminator. This help in preventing corruption of the signal by
electrical noise. The DMX terminato r is simply an XLR plug witha
120 resistor connected between pins 2 and pins3, which is then
plugged into a the output XLR socket of the last ifxture in the chain.
Ω
1
2
3
12 0Ω
PIN2 PIN3
- 7 -
5.Description of the device
Right button
Head
Tilt °,
270 Fixture
could auto reset.
Arm
Pan °,540 Fixture
could auto reset.
2.
1.
3. Base
Display
Status indicator lamp
ENTER button
DOWN button
Up button
MODE button

- 8 -
6.Display control
Temp:26°C
001
DMX-512 Mode
Note
Set
Calib
System Setup
Run Mode DMX
Fixture ID 0 00
Channel Mode 18CH
Invert Pan OFF
Invert Tilt OFF
Pan-Tilt Swap OFF
DMX Address
001
Password:0 0 0 0
Testing. .. . .
System Info
LED Moving Head
M.Firm:V01.00
D.Firm:V01.00
System OK!
Test
Manual
Address
Manual Drive
1.Pan 000
2.Tilt 000
3.Dimmer 000
4.Strobe 000
5.Color 000
6.Gobe 000
Press any button
to enter the main
menu
*Address and functions can be set simply and conveniently by pressing the button.
Press any button to view or modify the function Settings, and the display will enter the menu operation
interface. There are corresponding submenus under each main level for unction operation. Every menu
represents the specific function of devices; the detail content is shown in the menu chart below.
Press up, down, left, right or confirm button to set or browse functions.
Press ok to save your changes or enter the submenu, press up, down, left and right keys to modify the
value (add or subtract value).
Press the back button to return to the previous menu.
6.1
*
*
*
*
*Switch on the power, turn on the device, and the main interface will be displayed after it is reset, shown
as following:
Navigation in the Menu
6.2 Display Operation

- 9 -
6.3 Menu Maps
Address code 1-512
DMX
Self running 1
Self running 2
Voice control
Local number 1-255
Channel mode 18 channel
Open
Close
Open
Close
Open
Close
Open
Close
Kept
Clean
Open
Close
Chinese
English
Factory reset
Manual mode Channel 0-255
Electrical
MIC
Change pass’
System testing Fun
System information Software version
Vertical reversal
Level reversal
Running mode
System setting
System calibration Enter password
Language
Screen saver
Without signal
XY error correct
XY exchange

- 10 -
7.DMX protocol
Mode1 Fade Type
Dmx Value Function
1 PAN PAN0～540° 0-255
2 TILT TILT0～240° 0-255
3 Dimming Dimming from dark to light 0-255
Light up 0-3
Synchronous strobe 4-100
Split strobe 101-150
Quickly strobe 151-200
Randomly strobe 201-250
Light up ( No delay dimming ) 251-255
white light 0-4
white light+color1 5-9
color1 10-14
color1+color2 15-19
color2 20-24
color2+color3 25-29
color3 30-34
color3+color4 35-39
color4 40-44
color4+color5 45-49
color5 50-54
color5+color6 55-59
color6 60-64
color6+color7 65-69
color7 70-74
color7+color8 75-79
color8 80-84
color8+color9 85-89
color9 90-94
color9+color10 95-99
color10 100-104
color10+color11 105-109
color11 110-114
color11+white light 115-119
anticlockwise color auto running(fast to slow) 120-185
white light 186-189
clockwise color auto running(slow to fast) 190-255
gobo1 0-3
gobo2 4-7
6 Gobo
4 Strobe
5 Color

- 11 -
gobo3 8-11
gobo4 12-15
gobo5 16-19
gobo6 20-23
gobo7 24-27
gobo8 28-31
gobo9 31-35
gobo10 36-39
gobo11 40-43
gobo12 44-47
gobo13 48-51
gobo14 52-55
gobo15 56-59
gobo16 60-63
gobo17 64-67
gobo18 68-71
gobo1shake 72-78
gobo2shake 79-85
gobo3shake 86-92
gobo4shake 93-99
gobo5shake 100-106
gobo6shake 107-113
gobo7shake 114-120
gobo8shake 121-127
gobo9shake 128-134
gobo10shake 135-141
gobo11shake 142-148
gobo12shake 149-155
gobo13shake 156-162
gobo14shake 163-169
gobo15shake 170-176
gobo16shake 177-183
gobo17shake 184-190
gobo18shake 191-197
Counterclockwise pattern auto running(slow to fast) 198-224
gobo1 225-228
Clockwise pattern auto running ( slow to fast ) 229-255
prism1 shift out 0-127
prism1 cut-over 128-255
7 Prism1(8)
6 Gobo
Mode1 Fade Type
Dmx Value Function

- 12 -
prism1 rotate360° 0-127
prism1anticlockwiseself-rotation( slow to fast ） 128-191
prism1clockwiseself-rotation(slow to fast) 192-255
prism2 shift out 0-127
prism2 cut-over 128-255
prism2 rotate360° 0-127
prism2anticlockwiseself-rotation(slow to fast) 128-191
prism2clockwiseself-rotation( slow to fast ） 192-255
11 Zoom 0 to 100% linear focus 0-255
Atomization shift out 0-127
Atomization cut-over 128-255
Seven color film shift out 0-127
Seven color film cut-over 128-255
14 Empty No function 0-255
15 Pan fine tuning PAN16bit 0-255
16 Tilt fine tuning TILT16bit 0-255
17 Pan/Tilt speed fast to slow 0-255
No function 0-250
Reset (maintained for 5 seconds) 251-255
13 Seven colors
film
18 Reset
10 Prism2self-
rotation(48)
12 Pulverization
9 Prism2(48)
Prism1self-
rotation(8)
8
Mode1 Fade Type
Dmx Value Function
8.Maintance and cleaning
DANGER:Disconnect from the mains before starting any maintenance work.
Ballast
Please change timely when each pin is getting yellow.
Be sure to maintain the device every 2 months,and make sure that all parts of the ballast,such as,scre-
ws,terminals,are locked well to ensure performance.Neglecting of maintenance may lead to failure of
devices.
Lamp
Turn off the lamp first to better protect the device when the fixture is turned off. Turn off the power after
running for at least 5 minutes
Don't touch the bulb with your hands.Once contacting with your hands,scrub with alcohol and then dry
with linen.
When the light is on, the bulb runs at high pressure,so there is a risk of broken.It is related to the duration
of using,temperature and unreasonable operation.Therefore, please do not use lamp over the life span.
The using of lamp should not exceed hours, otherwise it can damage device. Check the running
time of the fixure regularly.When the lamp is used around 1500 hours, We strongly recommend that you
change the lamp.After replacing it,the used time of lamp can be removed and reset.
Avoid operating in dirty and dusty environment, clean and maintain lamps regularly. Wipe the outside of
the lens at least every 20 days. Wipe the internal fan at least every 30 days
It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not
buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
1500

- 13 -
through out its life. A soft lint-free cloth moistened with any good glass cleaning fluid is recommended,
under no circum stances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues,reduc-
ing the light-output very quickly.The cooling-fans should be cleaned monthly.
The gobos may be cleaned with a soft brush,The interior of the fixture should be cleaned at least annua-
lly usinga vacuum-cleaner or an air-jet.
There are no serviceable parts inside the device except for the lamp and the fuse.
Please disconnect the power supply before replacing the fuse and bulb. When replacing them, adopt the
same mode.
9.Electric equipment specification
9.1 Electrical paramters
SOURCE:
POWER:
VOLTAGE:
80W White LED
200W
AC100-240V 50/60HZ
9.2 Weight and dimensions
Dimensions：
NET WEIGHT:16Kg
Dimensions
WEIGHT
330X220X480 mm
665X330X410mm
( ): 18Kg
（ ）:Carton package
Carton package
9.3 Channel Characteristics
2.Scan: Pa n540°,Tilt270°,Sc an speed adjustable.Fixture could auto reset.
3.Colour wheel:One open+11 colors.rainbow effect,half-color effects.
4.RGo bo wheel:one open+17gobos.
5. 8 facet rotation prism+48 facet rotation prism
6.Focus: linear focus.
7.Shutter: electronic shutter, random strobe.
8.Demme r: limear dimme r.
1.Channel:18DMX -512.
9.4 Menu Function
1.
2.Each DMX Value displayable.
LCD display，English menu.
3.Monitor could ON/OFF automatically.
4.Show fixture, lamp use time.
5.Lamp ON/OFF when power on.
6. After the DMX signal is disconnected, the display will be bright and dark.

- 14 -
9.5 light table
Illuminance(Lux)
Flare diameter(m)
Projection distance(m)
Flare diameter(m)510 15 20
25614
102453 11384 6430
Φ0.3
Φ0.15 Φ0.45 Φ0.6
2°
9.6 Gobo wheel

- 15 -
9.7 Color wheel
3blue
4yellow
2green
5Rose red
8Orange
1red
7 Light blue
9Light Red
11 light
orange
6 Light Green
10 CTO

- 16 -
10.Electronic drawing
Note: The above contents for reference only and is subject to change without prior notice, please
take specification you have on hand and our company reserves the final right of interpretation.
Dimmer Temperature
To motor Board DMX
36V
12V
GND
To
Displayer
Board
Titl sensor
Pan sensor
Color wheel
sensor
Fan
Focus
sensor
Fix Gobo
wheel sensor
24 Prism
motor
24 Prism
Roating
motor
Focus
motor
Titl
motor
Pan
motor
Titl.
En
Pan.
En
Color
wheel
motor
Fix
Gobo
Wheel
motor
Frost
motor
8 Prism
motor
8 Prism
Roating
motor
Colorful
