Jolly LT-1220 User manual

USER MANUAL
Version:1.0
LT-1220


Table of content
1.Open-Package guidelines........................................................... .1
1.1Package............................................................................. ...1
2.Safety instructions................................................................... ...1
3.Operating determination....................................................... ......2
4.Rigging the fixture................................................................. ......3
4.1 Mounting.......................................................................... .......3
5.
6.
7.
7.1
7.2
7.3
8.DMX protocol........................................................................... ..10
9.Maintance and cleaning..................................................... ........14
10.Electric equipment specification........................................ .......15
10.1 Electrical paramters.......................................................... ..15
10.2
10.3
............
............
............
............
............
............
4.2Installing the Clamps............................................................................3
4.3 Power supply connection and cut off...................................................4
4.4 Power Connection...............................................................................4
4.5 DMX-512 connection/connection between fixtures.............................4
............
............
............
............
............
........
............
............
............
............
....................................................................15
Channel Characteristics...................................................................15
10.4 Menu Function.................................................................................15
10.5 Light table.......................................................................................15
11.Electronic drawing................................................................................16
Description of the device........................................................... ...6
Dimension.................................................................................. ..6
Display control......................................................................... ....7
Navigation in the Menu......................................................... ...7
Display Operation................................................................. ...7
Menu Maps.................................................................................. 8
Weight and dimensions

Congratulations on choosing our products! Please carefully read this instruction manual in its
entirety and keep it well for using reference. This manual contained about the installation and
the relative using information of this products. Plese refere this manual's relative instruction
when using this equipment.

2.Safety instructions
1.Open-Package guidelines
1.1Package
Unpacking the fixture
1.Open the flight case cover.
2.With one person on each side, lift the fixture out of the flight case.
Packing the fixture
1.Disconnect the fixture from power and allow it to cool.
2. djust the rotating support ,place it in the box.A
This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac
teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation
512 agreement.
teris-
tic with
standard of DMX
1.Signal cable-1PC 2. Safty cable-1PC
3.User Manval-1PC 4. Power cable-1PC
5.Service card-1PC 6.Omega bracket-2PCS
When receive the product,please be careful to take and put,check if the product has damage or not be-
cause of transportation, and check the following parts:
This device has been shipped with our premises in absolutely perfect condition.In order to maintain this co-
ndition and toensure a safe operation,it is absolutely necessary for the user to follow the safety instructions
and warning notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Every person involvd with installation and maintenance of this device to:
-Be qualilfied
-Follow the instructions of this manual.
- 1 -
Never let the power-cord come into contact with other cables! Handle the power cord and all connections
with particular caution!
Make sure that the available voltage is not higher than stated on the rearpanel.
Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con
ections with themains with particular caution!
Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p-
ower-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power-cord by the plug,Never pull out the plug by tugging the powercord.
This device falls under protection class I.Therefore it is essential to connect the yellow/green conductor
to earth.
The electric connection,repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
Do not touch the device’s housing bare hands during its operation(housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
Eye damage!
Avoid looking directly into the light source(meant especially for epileptics)!

- 2 -
t 80
c°C
IP 65
t 45
a°C
Risk Group 2
According to
En62471
Minimum distance of illuminated objects
0.80 metres from the lens of the projector.
Maximum ambient temperature
Do not operate the fixture if the ambient temperatuer(Ta) exceeds 45°C (113°F).
Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting,in a ther-
mally steadystate,is 80°C (176°F).
IP65 protection rating
Completely prevent external intrusion and dust entering. Avoid the damages to devi-
ces of water coming from the nozzle from different directions.
Photobiological Safety
CAUTION.Possibly hazardous optical radiation emitted from this product.Do not stare at
operating lamp.May be harmful to the eyes.
Light collimation system
This product contains internal light collimation system.Avoid intense light from any angle.
The products to which this manual refers comply with the European Directives purs-
uant to:
EN 60598-1:2015
EN 60598-2-17:1989+A2:1991
EN55015:2013/A1:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN61547:2019
Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I app-
liance according to standard EN 60598-1) .It is, moreover, recommended to protect the supply
lines of the projectors from indirect contact and/orshorting to earth by using appropriately
sized residual current devices.
The projector needs to be positioned so that the objects hit by the beam of light are at least
•Safety of electrical equipment supplied at low voltage ( LVD)
•Electromagnetic Compatibility (EMC)
This device is a moving-head for creating decorative effects and was designed for indoor use only.
If the device ha been exposed to drastic temperature fluctuation(e.g.after transportation).do not weitch it on imm-
ediately.The arising condensation water might damage your device,Leave the device switched off until it has rea-
ched room temperature.
Never run the device without lamp!
Do not shake the device,Avoid brute force when installing or operating the device.
Never life the fixture by holding it at the projectorhead, as the mechanics may be damaged. Always hold the fixtu-
re at the transport handles.
When choosing the installation-spot,please make sure that the device is not exposed to heat,moisture or dust.Th-
ere should not be any cables lying around.You endanger your own and the safety of others!
3.Operating determinations
0.8m

Always fix the fixture with an appropriate safety rope, Fix the safety rope at the correct holes only.
Operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastend.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may ex-
plose and emit a hign ultraviolet radiat, which may cause burns.
The maximum ambient temperature 40°C must never be exceeded.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not qua-
lified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasonsl.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers like short-circ-
uit,burns, electric shict,burns due to ultraviolet radiation,lamp explosion,crash etc.
- 3 -
4.1 Mounting
For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different
accessories kits are available.
Through this a safe and firm installation is assured.
You’ll find special connectors on the bottom side of the system which are put to use here.
4.2 Installing the Clamps
Please consider the respective national norm s during the Installation!The installation must only be car-
ried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the wei-
ght for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g.an appropriate catch
net.This secondary safety attachment must be constructed in a way that no part of the installation can
fall if the main attachment fails.
When servicing the fixture staying in the area below the installation place,on bridges,under high working
places and other endangered areas is forbidden.
4.Rigging the fixture
Pay attention to the regulations of CE.
Installation by qualified staff to complete.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert before taking into operation for the first time and after changes before taking into operation an-
other time.
The operator has to make sure that safety-relating and machine-technical installations are approved by
an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by
a skilled person once a year.
The minimum distance between light output and the illuminated surface must be more than 0.2 meters.
Make sure that the area below the installation place is blocked when rigging,derigging or servicing the fixture.

The projector should be installed outside areas where persons m ay walk by or be seated.
Important!Overhead rigging requires extensive expering CE,including (but not limited to)calculating
working load limits, installation material being used, and periodic safety inspection of all installation ma-
terial and the projector. If you lack these qualifications, do not attempt the installation yourself, but inste-
ad use a professional structural rigger. Improper installation can result in bodilyinjury and or damage to
property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing system s have
to be used. The projector must never be fixed swinging freely in the room .
Caution Projectors may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do not install the projector!
Before rigging make sure that the installation area can hold a minim um point load of 10 times the
projector s weight.
- 4 -
The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte-
ring its operation characteristics.
For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You
must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the
bottom of the base and over the trussing system etc.
Warning: it is necessary to make sure that
the installation location is perfectly appropriate,
and the installation location is safe and reliable.
4.3 Power supply connection and cut off
Connect the light source to the main power source with the plug of the power cord, or cut off the power
supply:
Warning: please verify the power of the power
supply equipment prior to the connection! Earth wire
must be grounded!
4.4 Power Connection
mains with the enclosed power cable and plug.
If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the
L
N
CABLE(EU) CABLE(US) Pin
Brown Black Live
Yellow/Green Green Earth
Light blue White Neutral
INTERNATIONAL
4.5 DMX-512 connection/connection between fixtures
Only use stereo shieded cable and 3-pin XLR-plugs and connectors in order to connect.

- 5 -
Caution
At the last fixture,the DMX-cable has to be terminated with a terminatou. solder a 120 resistor between
signal(-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
DMX Terminator Diagram
-For installations where the DMX cable has to run a long distance or
is In an electrically noisy environment it is recommended to use a
DMX terminator. This help in preventing corruption of the signal by
electrical noise. The DMX terminato r is simply an XLR plug witha
120 resistor connected between pins 2 and pins3, which is then
plugged into a the output XLR socket of the last ifxture in the chain.
Ω
1
2
3
12 0Ω
PIN2 PIN3
DMX512
Max loop 3 fixture at 110V, Max loop 6 fixture at 240V.
2 1
3
2 1
3
1:Ground
2:Signal(-)
3:Signal(+)
2 1
3
DMX iutput
3-pin XLR socket
DMX output
3-pin XLR socket

- 6 -
5.Description of the device
6.Dimension
1.
2.
4.
7.
8.
9.
Power-In
Power-Out
ENTER button
DOWN button
UP button
MODE button
LED display
10.Respirator
3-pin XLR male
3.3-pin XLR female
5.
6.
1
2
3
4
5
6
7
8
9
10
1008mm
85mm
166mm
1.25° lens.
2.6°/15°/45°/60° lens(Optional).

- 7 -
7.Display control
7.1 Navigation in the Menu
7.2 Display Operation
Using the buttons, and this can be simply and easily set the address code and function code.
If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu
interface. Both there is sub menu corresponding to the functional operation of the main menu. Each of the
menus is representative of the specific features of the lamp. The specific contents shows as the table
menu below.
Set or browse lighting function, press UP or DOWN button.
Press ENTER to save your changes or enter the submenu.Press the UP or DOWN can change the nume-
rical (increase or decrease in value).
Press the MODE button to return to menu.
-When the power on, if the display is flashing, it indicates that the DMX signal connection is unnormal.
-Once powering on, the display indicates as following:
>Main
DMX
>Main
Personality
>Main
Stand-Alone
>Main
Service
>Main
Information
menu interface
Main interface
CLIKE ENTER OF HOME PAGE TO SELECT:
Mode
DMXA 0 0 1
Std.12
DMX address code

- 8 -
7.3 Menu Maps
Adress 1-XXX
Standard - 13*
Advanced - 32
Pixel - 61
Compressed RGBW - 5
RDM ON*/OFF
Reset via DMX ON*/OFF
Shutter/Closed*
Hold
Play Program 1 / 2 / 3
OFF*
ON
OFF*
ON
Refresh rate xxx Hz
Color Wheel 0-255
Red 0-255
Green 0-255
Blue 0-255
White 0-255
Shutter 0-255
Dimmer 0-255
CTO 0-255
Pattern 0-255
Pattern Speed 0-255
Pattern Fade 0-255
Linear
Theatrical
Square Law *
Inverse Square
Fast*
Smooth
600 Hz
1200 Hz*
2400 Hz
4800 Hz
9600 Hz
Off
1 minute*
5 minute
60 minute
No signal flash On*/Off
Auto
Off*
On
Celsius*
Fahrenheit
Off*
ON
Set password **** Yes/NO
Auto*
DMX
Static
Temperature Unit
Lock
Shut-off time
Flip Display
Dimmer Curve
Dimmer Speed
DMX
Mode
No DMX
Personality
PWM
Display Setting
W-DMX
W-DMX Enable
WirelessToDmx
DMX Live
Select ModeBoot mode

- 9 -
Select Mode Play Program
DMX High Priority ON*/Off
Reverse LED Off*/ON
Test Sequence Run/Cancel
Alone*
Master
Slave Slave 1/2/3
Color Wheel 0-255
Red 0-255
Green 0-255
Blue 0-255
White 0-255
Shutter 0-255
Dimmer 0-255
CTO 0-255
Pattern 0-255
Pattern Speed 0-255
Pattern Fade 0-255
Reset All Yes/No
Select Step 01-30
Capture DMX Yes/Cancel
Color Wheel 0-255
Red 0-255
Green 0-255
Blue 0-255
White 0-255
Shutter 0-255
Dimmer 0-255
CTO 0-255
Reset All Yes/NO
Hold Time 000-999
Fade Time 000-999
Program 2/3 (See above)
Program Play Program 1/2/3
Program Reset Program 1/2/3/All
Reset Fixture Reset Reset/Cancel
Red 0-255 ( 0* )
Green 0-255 ( 0* )
Blue 0-255 ( 0* )
White 0-255 ( 0* )
Red 0-255 (255*)
Green 0-255 (255*)
Blue 0-255 (255*)
White 0-255 (255*)
LED Protect 0-255 (100*)
Factory Default NO/Yes
Resettable xxx H xxM
Total xxx H xxM
Clear Resettable Clear/Cancel
Actual xxx C/F
Max xxx C/F
Reset Max Cancel/Confirm
Firmware version x.x.x.x
Serial Number Password:xxxx xxxxxx
Static Mode
Master/Slave
Program Edit
Color Min.
Service
Information
Fixture time
Fixture Temp.
Program 1
Stand-Alone
LED Calibration
(Password:xxxx)
Boot mode
Personality
Color Max.

- 10 -
8.DMX protocol
Standard Advanced Pixel
Compressed
RGBW Fade Type Function Dmx
Value
No Function, RGBW Colour mixing 0 - 5
LEE 790-Moroccan Pink 6-10
LEE 157-Pink 11-15
LEE 332-Special Rose Pink 16 - 20
LEE 328-Follies Pink 21 - 25
LEE 345-Fuchsia Pink 26 - 30
LEE 194-Surprise Pink 31 - 35
LEE 181-Congo Blue 36 - 40
LEE 071-Tokyo Blue 41 - 45
LEE 120-Deep Blue 46 - 50
LEE 079-Just Blue 51 - 55
LEE 132-Medium Blue 56 - 60
LEE 200-Double CT Blue 61 - 65
LEE 161-Slate Blue 66 - 70
LEE 201-Full CT Blue 71 - 75
LEE 202-Half CT Blue 76 - 80
LEE 117-Steel Blue 81 - 85
LEE 353-Lighter Blue 86 - 90
LEE 118-Light Blue 91 - 95
LEE 116-Medium Blue Green 96 - 100
LEE 124-Dark Green 101 - 105
LEE 139-Primary Green 106 - 110
LEE 089-Moss Green 111 - 115
LEE 122-Fern Green 116 - 120
LEE 738-JAS Green 121 - 125
LEE 088-Lime Green 126 - 130
LEE 100-Spring Yellow 131 - 135
LEE 104-Deep Amber 136 - 140
LEE 179-Chrome Orange 141 - 145
LEE 105-Orange 146 - 150
LEE 021-Gold Amber 151 - 155
LEE 778-Mellennium Gold 156 - 160
LEE 135-Deep Golden Amber 161 - 165
LEE 164-Flame Red 166 - 170
Coulourwheel rotation forward (fast - slow) 171 - 185
Coulourwheel rotation stop 186 - 190
Coulourwheel rotation backward (fast - slow) 191 - 205
Coulourwheel rotation stop 206 - 210
Fast – slow 211 - 225
Tungsten Simulation 226 - 230
Warm white - 3200K 231 - 235
Neutral white - 4200K 236 - 240
Cold white - 5600K 241 - 245
Cold white - 7200K 246 - 250
Cold white - 8000K 251 - 255
2 2 2 1 Red Red 0-100% 0 - 255
* 3 3 * Red fine Red fine 0-100% 0 - 255
3 4 4 2 Green Green 0-100% 0 - 255
* 5 5 * Green fine Green fine 0-100% 0 - 255
4 6 6 3 Blue Blue 0-100% 0 - 255
* 7 7 * Blue fine Blue fine 0-100% 0 - 255
Colourwheel rotation effects
Random colours
White hue
1 1 1 * Color Wheel

- 11 -
Standard Advanced Pixel
Compressed
RGBW Fade Type Function Dmx
Value
5 8 8 4
White White 0-100% 0 - 255
* 9 9 * White fine White fine 0-100% 0 - 255
Shutter Closed 0 – 15
Random Strobe (slow-fast) 16 - 47
Ramp Up (slow-fast) 48 - 79
Ramp Down (slow-fast) 80 - 111
Ramp UP & down (slow-fast) 112 - 143
Strobe Pause 5s -1s (slow-fast) 144 - 199
Strobe 1Hz -20 Hz (slow-fast) 200 - 239
Shutter Open 240 - 255
7 11 11 * Dimmer Dimmer 0-100% 0 - 255
8 12 12 * Dimmer fine Dimmer fine 0-100% 0 - 255
9 13 13 * CTO CTO 0 - 255
No Effect 0 - 5
Static Pattern 6 - 61
No Effect 62 - 79
Animated Pattern 80 - 163
Random Pixel 164 - 179
No Effect 180 - 255
11 15 * * Pattern 1 Speed Pattern 1 Speed 0-100% 0 - 255
12 16 * * Pattern 1 Fade Pattern 1 Fade 0-100% 0 - 255
* 17 * * Pattern 1 Red Pattern 1 Red 0-100% 0 - 255
* 18 * * Pattern 1 Green Pattern 1 Green 0-100% 0 - 255
* 19 * * Pattern 1 Blue Pattern 1 Blue 0-100% 0 - 255
* 20 * * Pattern 1 White Pattern 1 White 0-100% 0 - 255
* 21 * * Pattern 1 Shutter Pattern Shutter 0 - 255
* 22 * * Pattern 1 Dimmer Pattern 1 Dimmer 0-100% 0 - 255
No Effect 0 - 5
Static Pattern 6 - 61
No Effect 62 - 79
Animated Pattern 80 - 163
Random Pixel 164 - 179
No Effect 180 - 255
* 24 * * Pattern 2 Speed Pattern 2 Speed 0-100% 0 - 255
* 25 * * Pattern 2 Fade Pattern 2 Fade 0-100% 0 - 255
* 26 * * Pattern 2 Red Pattern 2 Red 0-100% 0 - 255
* 27 * * Pattern 2 Green Pattern 2 Green 0-100% 0 - 255
* 28 * * Pattern 2 Blue Pattern 2 Blue 0-100% 0 - 255
* 29 * * Pattern 2 White Pattern 2 White 0-100% 0 - 255
* 30 * * Pattern 2 Shutter 0 - 255
* 31 * * Pattern 2 Dimmer Pattern 1 Dimmer 0-100% 0 - 255
Reserved 0 - 55
Dimmer Speed: Smooth 56 - 60
Dimmer Speed: Fast 61 - 65
Reserved 66 - 70
Dimmer Curve: Linear 71 - 75
Dimmer Curve: Threatrical 76 - 80
Dimmer Curve: Sqaure Law 81 - 85
Dimmer Curve: Inverse Sqaure Law 86 - 90
Reserved 91 - 95
No DMX: Hold 96 - 100
No DMX: Shutter Closed 101 - 105
No DMX: Play Program 1 106 - 110
Reserved 111 - 115
Display Backlight: On 116 - 120
Display Backlight: Off 121 - 125
Shutter6 10 10 *
Pattern 1
Pattern 2
10 14 * *
* 23 * *
Control13 32 * 5

- 12 -
Standard Advanced Pixel
Compressed
RGBW Fade Type Function Dmx
Value
Reserved 126 - 135
DMX Mode: Standard 136 - 140
DMX Mode: Advanced 141 - 145
DMX Mode: Pixel 146 - 150
DMX Mode: Compressed RGBW 151 - 155
Reserved 156 - 175
Zoom Reset 176 - 180
Fixture Reset 181 - 185
Factory default (except DMX Address & Mode) 186 - 190
Reserved 191 - 200
PWM Rate: 600 Hz 201 - 205
PWM Rate: 1200 Hz 206 - 210
PWM Rate: 2400 Hz 211 - 215
PWM Rate: 4800 Hz 216 - 220
PWM Rate: 9600 Hz 221 - 225
Reserved 226 - 230
Boot Mode: Auto 231 - 235
Boot Mode: DMX 236 - 240
Boot Mode: Program Play 241 - 245
Boot Mode: Static 246 - 250
Reserved 251 - 255
* * 14 * Red 1 Red 1 0-100% 0 - 255
* * 15 * Green 1 Green 1 0-100% 0 - 255
* * 16 * Blue 1 Blue 1 0-100% 0 - 255
* * 17 * White 1 White 1 0-100% 0 - 255
* * 18 * Red 2 Red 2 0-100% 0 - 255
* * 19 * Green 2 Green 2 0-100% 0 - 255
* * 20 * Blue 2 Blue 2 0-100% 0 - 255
* * 21 * White 2 White 2 0-100% 0 - 255
* * 22 * Red 3 Red 3 0-100% 0 - 255
* * 23 * Green 3 Green 3 0-100% 0 - 255
* * 24 * Blue 3 Blue 3 0-100% 0 - 255
* * 25 * White 3 White 3 0-100% 0 - 255
* * 26 * Red 4 Red 4 0-100% 0 - 255
* * 27 * Green 4 Green 4 0-100% 0 - 255
* * 28 * Blue 4 Blue 4 0-100% 0 - 255
* * 29 * White 4 White 4 0-100% 0 - 255
* * 30 * Red 5 Red 5 0-100% 0 - 255
* * 31 * Green 5 Green 5 0-100% 0 - 255
* * 32 * Blue 5 Blue 5 0-100% 0 - 255
* * 33 * White 5 White 5 0-100% 0 - 255
* * 34 * Red 6 Red 6 0-100% 0 - 255
* * 35 * Green 6 Green 6 0-100% 0 - 255
* * 36 * Blue 6 Blue 6 0-100% 0 - 255
* * 37 * White 6 White 6 0-100% 0 - 255
* * 38 * Red 7 Red 7 0-100% 0 - 255
* * 39 * Green 7 Green 7 0-100% 0 - 255
* * 40 * Blue 7 Blue 7 0-100% 0 - 255
* * 41 * White 7 White 7 0-100% 0 - 255
* * 42 * Red 8 Red 8 0-100% 0 - 255
* * 43 * Green 8 Green 8 0-100% 0 - 255
* * 44 * Blue 8 Blue 8 0-100% 0 - 255
* * 45 * White 8 White 8 0-100% 0 - 255
* * 46 * Red 9 Red 9 0-100% 0 - 255
* * 47 * Green 9 Green 9 0-100% 0 - 255
* * 48 * Blue 9 Blue 9 0-100% 0 - 255
3213 Control5*

- 13 -
* * 49 *
White 9 White 9 0-100% 0 - 255
* * 50 * Red 10 Red 10 0-100% 0 - 255
* * 51 * Green 10 Green 10 0-100% 0 - 255
* * 52 * Blue 10 Blue 10 0-100% 0 - 255
* * 53 * White 10 White 10 0-100% 0 - 255
* * 54 * Red 11 Red 11 0-100% 0 - 255
* * 55 * Green 11 Green 11 0-100% 0 - 255
* * 56 * Blue 11 Blue 11 0-100% 0 - 255
* * 57 * White 11 White 11 0-100% 0 - 255
* * 58 * Red 12 Red 12 0-100% 0 - 255
* * 59 * Green 12 Green 12 0-100% 0 - 255
* * 60 * Blue 12 Blue 12 0-100% 0 - 255
* * 61 * White 12 White 12 0-100% 0 - 255
Standard Advanced Pixel
Compressed
RGBW Fade Type Function Dmx
Value

- 14 -
9.Maintance and cleaning
It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not
buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
through out its life. A soft lint-free cloth moistened with any good glass cleaning fluid is recommended,
under no circum stances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues,reduc-
ing the light-output very quickly.The cooling-fans should be cleaned monthly.
The gobos may be cleaned with a soft brush,The interior of the fixture should be cleaned at least annua-
lly usinga vacuum-cleaner or an air-jet.
There are no serviceable parts inside the device except for the lamp and the fuse.
Replacing the fuse: If the lamp burns out,the fine-wire fuse of the device might fuse,too.Only replace the
fuse by a fuse of same type and rating.Before replacing the fuse,unplug mains lead.
Maintenance and maintenance of the operation, please contact the manufacturer or distributor.
DANGER:Disconnect from the mains before starting any maintenance work.

- 15 -
10.Electric equipment specification
10.1 Electrical paramters
SOURCE:
Max POWER:240
VOLTAGE:
RGBW 12 LED-20W
W
AC100-240V 50/60HZ
Color temperature:6000K-6500K(W)
10.2 Weight and dimensions
Dimensions:
NET WEIGHT:10.8Kg
Dimensions(Carton package):1110X250X180mm
WEIGHT(Carton package) : 13.2Kg
Dimensions(Air boxes -10 lights):1060X605X615mm
NET WEIGHT/WEIGHT(Air boxes -10 lights):162Kg
1008X166X85mm
10.3 Channel Characteristics
2.Demme r: limear dimme r.
3.Shutter: electronic shutter, random strobe.
4.LED individual control, preseting automatical temp erature control system.
1.Channel:13、32、61、5 DMX -512.
10.4 Menu Function
2.Display the time using of lighting feature and lamp as well as the times of turning on for lamp.
3.
4.Software upgrade function.
1.O
After the DMX signal is disconnected, the display will be bright and dark.
LED display.

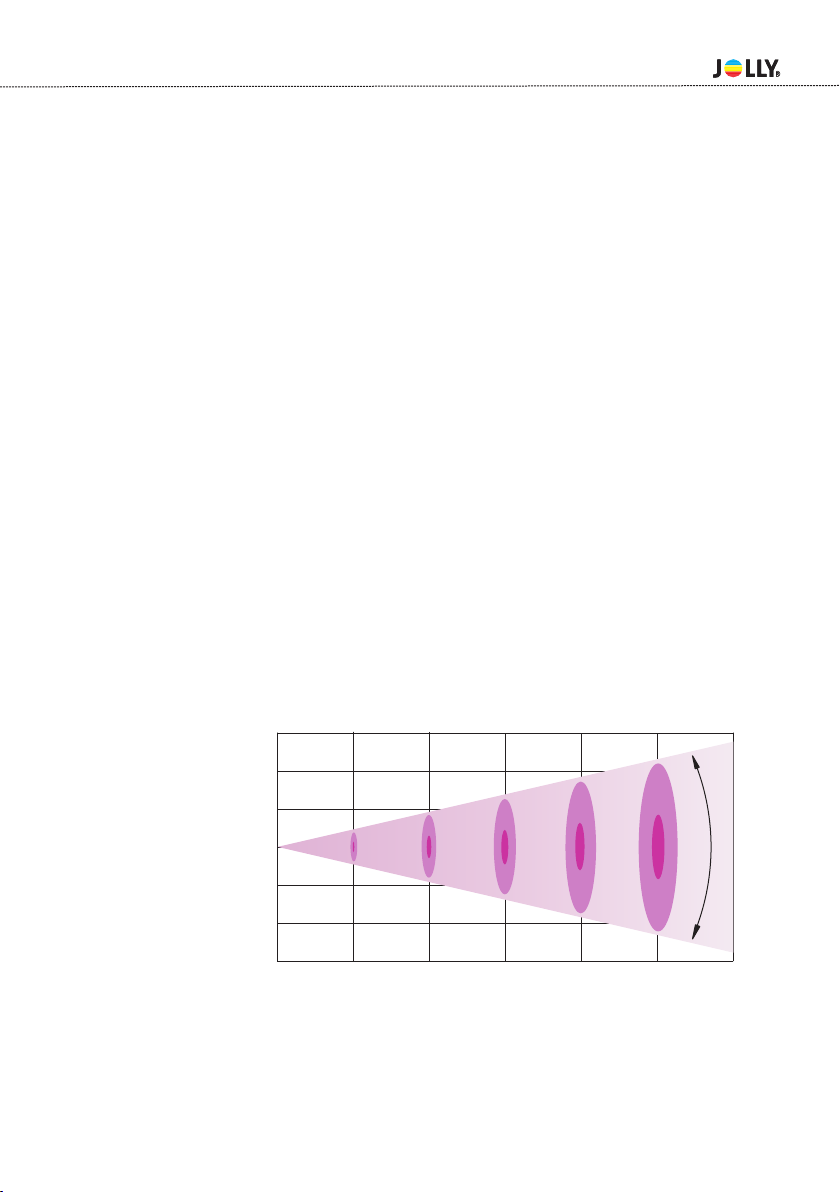

10.5 light table
Projection distance(m)
10 20
15 25
Φ4.2 Φ6.3 Φ8.4 Φ10.5
Φ2.1
1530 383 96170
5
60
25°
Illuminance(Lux)
Flare diameter(m)
The minimum Angle 25°Flare diameter(m)

- 16 -
Note: The above contents for reference only and is subject to change without prior notice, please
take specification you have on hand and our company reserves the final right of interpretation.
11.Electronic drawing
G
AC220V N
L
G
PSU
1
2
3
1
23
N
L
G
N
L
GIN AC220V
OUT
AC220V
-
+
DC36V
N
L
123456
60
FAN1
60
FAN2
Displayer Board
LED Control Board
LED Board LED Board LED Board LED Board LED Board LED Board
Table of contents
Other Jolly Lighting Equipment manuals
