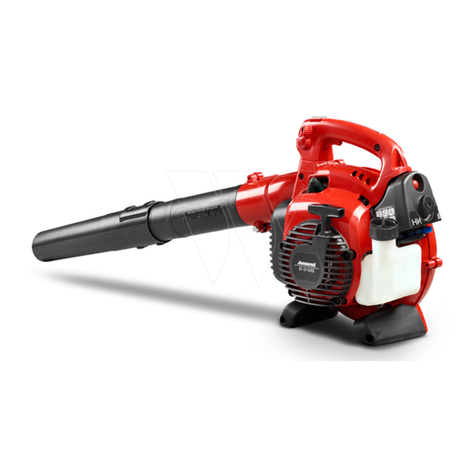

Jonsered B2126 Guide

Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
IPL, B2126 (EU,RoW,AU,NZ), 5451643-35, 2011-04
B2126
(EU,RoW,AU,NZ)

545164335
3/11/11 Replaces
545164335 - 6/25/10 Page:
PARTS LIST B2126 (EU/RoW/AU/NZ)
1
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
1. 545081817 Kit - Rope
2. 545043205 Handle - Starter
3. 530015814 Screw
4. 545008020 Kit - Cruise Control (Incl. 5,6,7)
5. 530015147 Washer - Wave
6. 545111501 Ratchet - Cruise Control
7. 530015814 Screw
8. 545140302 Foot - Front Impact
9. 545157902 Assy. - Muffler Guard
10. 545003502 Screw - Blower tube
11. 545111301 Wire - Linkage
12. 545111602 Trigger - Throttle
13. 545131701 Wire - Handle Ground
14. 545173201 Impeller
15. 530015127 Washer
16. 530015197 Nut
17. 530015515 Locknut
18. 545111204 Cover - Vac Door
19. 530015814 Screw
20. 575533203 Assy - Outer scroll (Incl. 18)
21. 545147101 Nut - Impeller
22. 545164501 Washer - Impeller
23. 530016445 Screw
24. 545110003 Scroll - Inner
25. 530047721 Bulb - Purge
26. 545081841 Kit - Fuel line grommet (Incl. 25,28)
27. 545073101 Assy - Fuel cap with retainer
28. 530095646 Assy - Fuel pickup
29. 545108902 Assy - Fuel tank (Incl. 25,26,27,28)
30. 530015814 Screw - Fuel tank
31. 545140402 Foot - Rear Impact
32. 530015814 Screw
33. Scroll - Flywheel
34. 530015814 Screw
35. 530015810 Screw
36. 545088801 Assy - Flywheel
37. 530015828 Washer
38. 530016134 Nut - Flywheel
39. 573956401 Cover - Motor housing
40. 545112801 Screw
41. 545140801 Hub
42. 545081818 Kit - Starter (Incl. 40,41)
43. 530042095 Spring - Starter
44. 545111802 Housing - Starter Cover
45. 530015810 Screw
----- Manual - Operators
115278026 Euro 1
115278126 Euro 2
115278226 Euro 3
115278326 Euro 4
115278426 Euro 5
115278526 Euro 6
115278626 Euro 7
115278726 Euro 9
115277910 Scan
545094201 Scrench
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description
Not Shown
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
3
2
45 44
43 42
4140 39
38 37 36
34 33 32
31
24
23
22
22 21
14
20
19
18
13
12
9
7
6
5
4
1
35
15 19
11
8
16
17
27
28
26
25
29
30
10

545164335
3/11/11 Replaces
545164335 - 6/25/10 Page:
PARTS LIST B2126 (EU/RoW/AU/NZ)
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
8
24
23
26
27
28
30
29
29
30
31 31
32
34
22
67
9
25 27
33 35 36
Gasket
Kit
Kit-Decal
Warnings &
Start Instruction
10
11 12 13
14 15
5
4
2
3
1
16 17
18
19
20
21
1. 545111901 Assy - Muffler (Incl. 2,3,4,5)
2. 545081813 Gasket - Muffler (kit)
3. 545081810 Kit - Spark Screen
4. 530058982 Bolt - Muffler
5. 530015241 Screw
6. 545049301 Switch
7. 545128201 Protector - Switch
8. 952030249 Accy - Spark Plug (RCJ6-Y)
9. Cylinder - Chrome
10. 545132501 Boot - Carb.
11. 530016187 Screw
12. 545133301 Plate - Carb.
13. 545081813 Gasket - Carb. (kit)
14. 545081811 Kit - Carb. (W37) (Incl. 13,16)
15. 530047721 Bulb - Purge (Incl. in #25 on page 1)
16. 545081813 Gasket - Airbox (kit)
17. 545109802 Base - Airbox
18. 530016101 Nut - Carb screw
19. 545112101 Filter - Air
20. 545109602 Cover - Airbox
21. 545072201 Assy - Airbox Knob
22. 545108202 Assy - Leadwire
23. 545108101 Module - Ignition
24. 530016456 Screw
25. 545081814 Kit - Piston (Incl. 26,27)
26. 530019283 Ring - Piston
27. 530015162 Retainer - Piston pin
28. 545081816 Kit - Crankshaft
29. 545013401 Bearing
30. 545081815 Kit - Crankshaft seal
31. 545081813 Seal - Cylinder (kit)
32. 545068301 Cap - Bearing
33. 530015940 Screw
34. 530015897 Screw
35. 545081813 Kit - Gasket (Incl. 2,13,16,31)
36. 545081863 Kit - Decal
545134804 Decal - Starter Hsg.
Ref. Part No. Description Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Not Shown

545164335
3/11/11 Replaces
545164335 - 6/25/10 Page:
PARTS LIST B2126 (EU/RoW/AU/NZ)
3
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
= New Part Number For This IPL
1. 545140202 Assy - Tube - Upper Blower w/barrier
2. 545118002 Tube - Lower Blower
3. 545119502 Tube - Lower Blower Flare
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
Ref. Part No. Description
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
12
3
R

545164335
3/11/11 Replaces
545164335 - 6/25/10 Page:
PARTS LIST B2126 (EU/RoW/AU/NZ)
4
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
Service Reference
Note : Due to product improvements, please refer to the serial number on your unit and order the parts below.
Serial Number - 2008-233N and lower, please use the following parts:
Page 1, Ref.# 33 - 545008035 Kit - Cylinder and Flywheel Scroll
Page 2, Ref.# 9 - 545008035 Kit - Cylinder and Flywheel Scroll
Serial Number - 2008-234N and higher, please use the following parts:
Page 1, Ref.# 33 - 545132801 Flywheel Scroll
Page 2, Ref.# 9 - 545132601 Cylinder
