IPL, BV2126, 2008-06, 545 16 43-49
BV2126
545 16 43-49

545164349
11/20/07
NEW
Page:

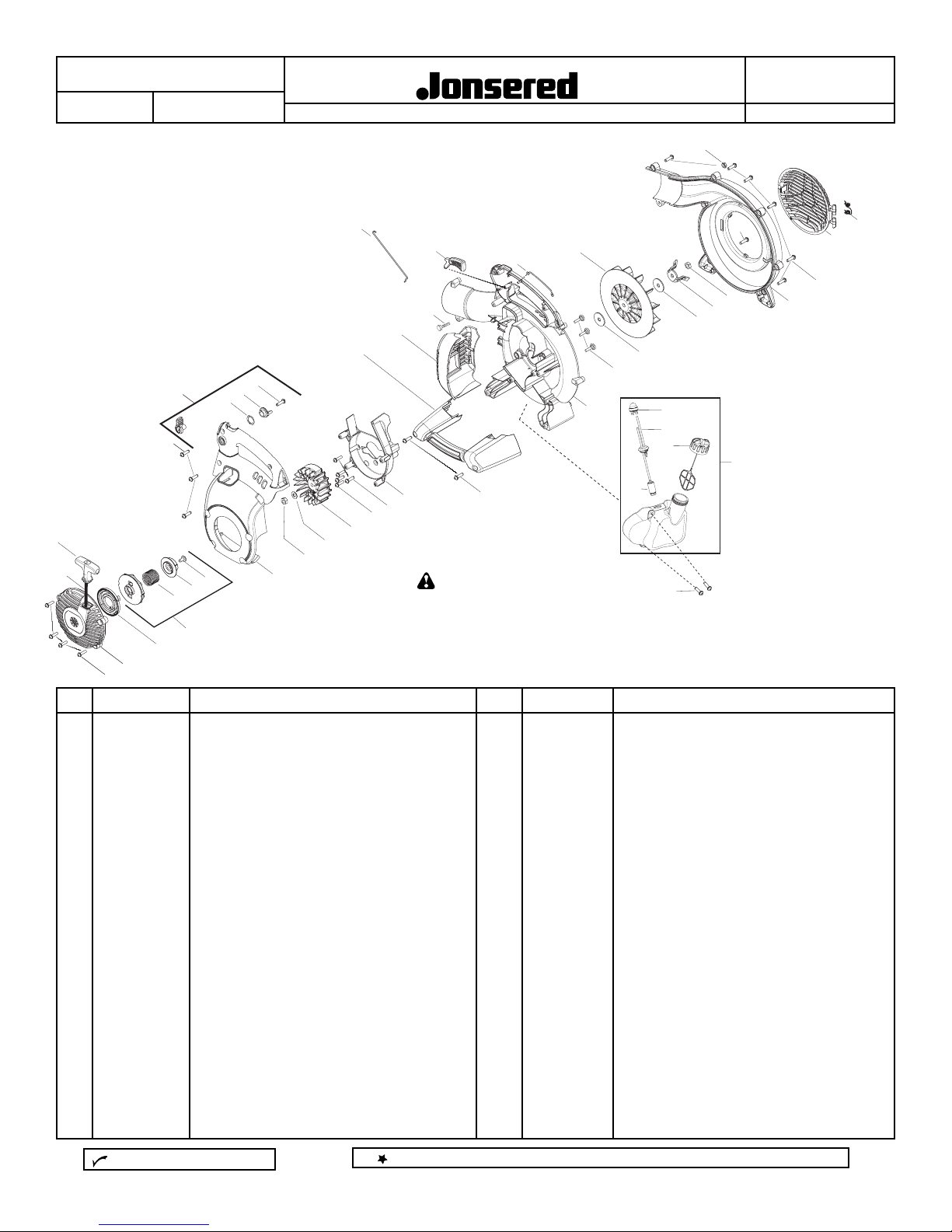

PARTS LIST BV2126
1
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
3
2
44 43
42
41
39 38 37
36
35
34
32
31 30
24
23
22
22
20
14
19
18
17
15
13
12
10
9
7
6
5
16
4
1
40
33
21
18
11
8
27
28
26
25
29
30
1. 545081817 Kit - Rope
2. 545043205 Handle - Starter
3. 530015814 Screw
4. 545008020 Kit - Cruise control (Incl. 5,6,7)
5. 530015147 Washer - Wave
6. 545111501 Ratchet - Cruise control
7. 530015814 Screw
8. 545119003 Handle - Assist
9. 545157902 Assy. - Muffler guard
10. 545003502 Screw - Blower tube
11. 545111301 Wire - Linkage
12. 545111602 Trigger - Throttle
13. 545131701 Wire - Handle ground
14. 545131301 Impeller
15. 530015197 Nut - Blower tube
16. 545111101 Spring - Vac door
17. 545111203 Cover - Vac door
18. 530015814 Screw
19. 545113004 Assy - Outer scroll (Incl. 16,17)
20. 545147101 Nut - Impeller
21. 545139401 Blade - Mulch
22. 545164501 Washer - Impeller
23. 530016445 Screw
24. 545110004 Scroll - Inner
25. 530047721 Bulb - Purge
26. 545081841 Kit - Fuel line grommet (Incl. 25,28)
27. 545073101 Assy - Fuel cap with retainer
28. 530095646 Assy - Fuel pickup
29. 545108902 Assy - Fuel tank (Incl. 25,26,27,28)
30. 530015814 Screw
31. 545132801 Scroll - Flywheel
32. 530015814 Screw
33. 530015810 Screw
34. 545088801 Assy - Flywheel
35. 530015828 Washer
36. 530016134 Nut - Flywheel
37. 545108804 Cover - Motor housing
38. 545112801 Screw
39. 545089001 Hub
40. 545115901 Spring - EPS2
41. 545006084 Kit - Starter (Incl. 38,39,40)
42. 530042095 Spring - Starter
43. 545111802 Housing - Starter Cover
44. 530015810 Screw
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
noitpircseD.oNtraP.feRnoitpircseD.oNtraP.feR
= New Part Number For This IPL = Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

545164349
11/20/07
NEW
Page:
PARTS LIST BV2126
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
8
24
23
26
27
28
30
29
29
30
31 31
32
34
22
67
9
25 27
33 35 36
Gasket
Kit
Kit-Decal
Warnings &
Start Instruction
10
11
12
13
14
15
5
4
2
3
1
16
17
18
19
20
21
1. 545111901 Assy - Muffler (Incl. 2,3,4,5)
2. 545081813 Gasket - Muffler (kit)
3. 545081810 Kit - Spark Screen (Incl. 5)
4. 530058982 Bolt - Muffler
5. 530015241 Screw
6. 545049301 Switch
7. 545128201 Protector - Switch
8. 952030249 Accy - Spark Plug (RCJ6-Y)
9. 545132601 Cylinder - Chrome
10. 545132501 Boot - Carb.
11. 530016187 Screw
12. 545133301 Plate - Carb.
13. 545081813 Gasket - Carb. (kit)
14. 545081811 Kit - Carb. (X5055) (Incl. 13,16)
15. 530047721 Bulb - Purge (Included with #25 on page 1)
16. 545081813 Gasket - Airbox (kit)
17. 545109802 Base - Airbox
18. 530016101 Nut - Carb screw
19. 545112101 Filter - Air
20. 545109602 Cover - Airbox
21. 545072201 Assy - Airbox Knob
22. 545108202 Assy - Leadwire
23. 545108101 Module - Ignition
24. 530016456 Screw
25. 545081814 Kit - Piston (Incl. 26,27)
26. 530019283 Ring - Piston
27. 530015162 Retainer - Piston pin
28. 545081816 Kit - Crankshaft
29. 545013401 Bearing
30. 545081815 Kit - Crankshaft seal
31. 545081813 Seal - Cylinder (kit)
32. 545068301 Cap - Bearing
33. 530015940 Screw
34. 530015897 Screw
35. 545081813 Kit - Gasket (Incl. 2,13,16,31)
36. 545081861 Kit - Decal
Ref. Part No. Description Ref. Part No. Description
= New Part Number For This IPL = Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.

545164349
11/20/07
NEW
Page:
PARTS LIST BV2126
3
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
= New Part Number For This IPL
1. 545131202 Assy - Upper vac tube
2. 545119603 Tube - Lower vac
3. 545119702 Tube - Elbow
4. 545132901 Strap - Carrying
5. 545119801 Vac bag
6. 545140202 Assy - Tube - Upper Blower w/barrier
7. 545118002 Tube - Lower blower (round)
8. 545119502 Tube - Lower blower (flare)
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
Ref. Part No. Description
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
1
2
34
5
6
7
8
