Instructions for:
9135JC/9136JC Wall Mounted 3-Section Coat Locker w/Boot Shelf
Hardware Package HAIH
Qty Description
(8) XAFH 3" Drywall Screw
Assembly Instructions:

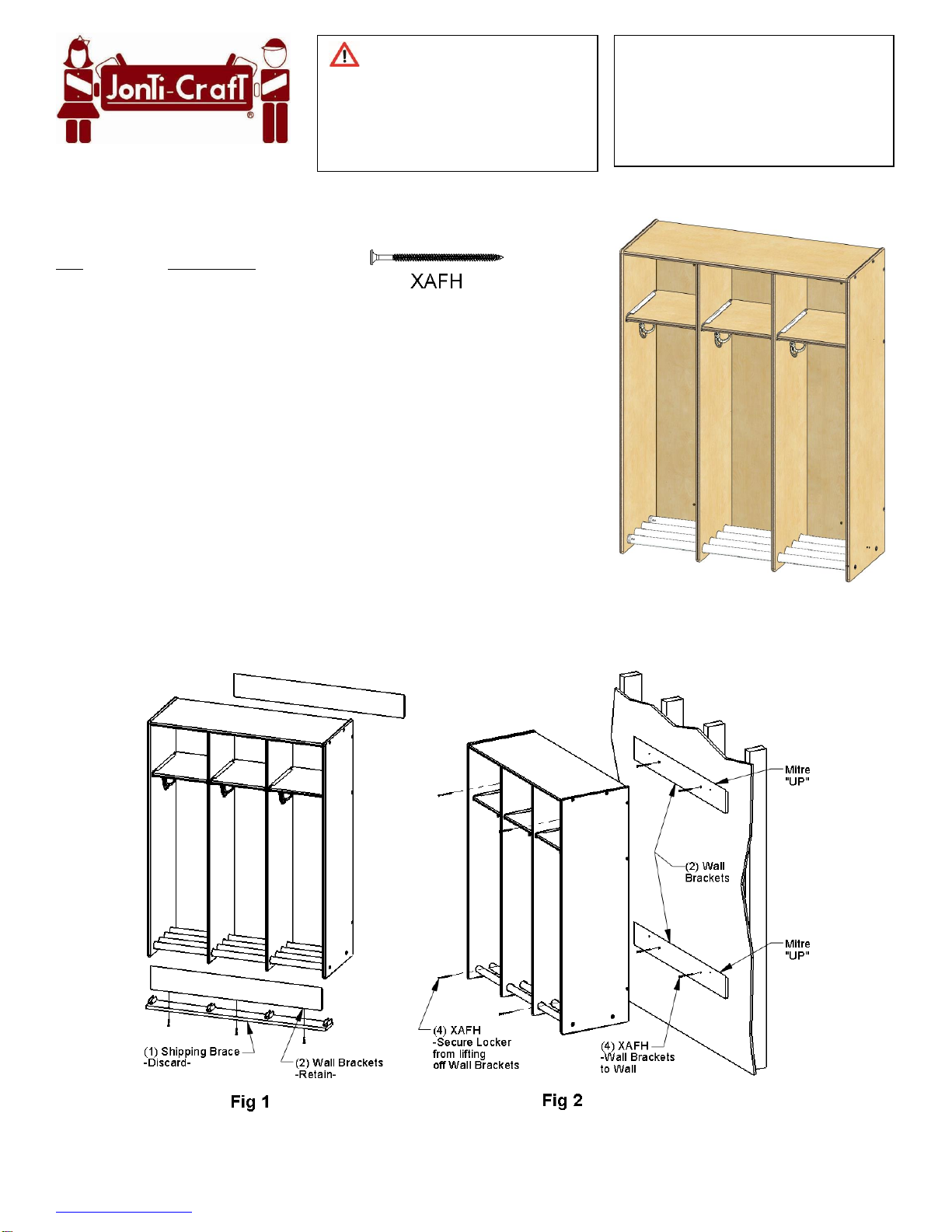

1. Remove the Shipping Brace that protected center dividers during
shipment. Dis-assemble Wall Mounting bracket from Shipping
Brace by removing 3-Drywall Screws. Retain the Wall Mounting
Bracket (with mitered edge) for wall installation. (See Fig 1)
2. Select wall location for Locker. Attach the (2) Wall Brackets to
the wall studs using 4 of the 3” drywall screws that have been
provided (See Fig 2 and Fig 3). Note: Wall mounting bracket
must be mounted to at least two wall studs.
3. Lift the unit up into position above the Wall Brackets and allow
the unit to slide down into position on the Wall Brackets.
4. Finish securing the unit by pre-drilling w/countersink and
screwing four more of the 3” drywall screws through the back
and into the upper and lower wall brackets, locate holes
approximately 6” below the Top and 4” above bottom (See Fig 2
and Fig 3). This step will insure that the unit will not lift off the Wall Brackets.
5. If you experience any difficulties when assembling this product, please contact the Jonti-Craft
Customer Relations Team at [phone] or sal[email protected]. All other requests for
assistance must be directed to your Jonti-Craft Dealer.
Required Tools:
A power screwdriver is
recommended, although a
Medium Phillips screwdriver will
work.
3/16” Drill Bit with Countersink
WARNING:
CHOKING HAZARD/SHARP
POINTS- Assembly hardware
contains small parts and
components with sharp points.
Adult assembly required.
