JRC NSVS1107 User manual

NSVS1107 Nov. 2004
Application
449.7MHz Low Power Transceiver
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Maximum Rating: (Table 2)
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.0x3.0x1.15[mm3] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Table 1. Electrical Specifications
Item Spec. Typ.
Input and Output Impedance 50Ω-
Nominal Center Frequency (f0) 449.7MHz -
Insertion Loss 449.2~450.2MHz 3.5dB max. 2.5dB
Response Variation 449.2~450.2MHz 1.5dB max. 0.5dB
Input and Output VSWR 449.2~450.2MHz 2.5 max. 1.5
428.3 MHz 50dB min. 60dBOut of Band Rejection
(Relative to Through Level) 471.1 MHz 40dB min. 50dB
(Operating Temperature Range: -10~+60ºC)
Table 2. Maximum Ratings
Item Rating
Maximum Input Power +20dBm
Maximum DC Voltage 7.5V
Operating Temperature Range -10~+60ºC
Storage Temperature -20~+70ºC
JRC SAW FILTER
NSVS1107
Communications Equipment Division
Communications Equipment Marketing Department
10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,
Tokyo, 160-8328 Japan
Tel. +81 3-3348-3845
Fax. +81 3-3348-3935
http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)
http://www.jrc.co.jp/eng/product/saw/index.html(English)
NSVS1107 Nov. 2004
Marking
(1) Lot Number
(a) Year
(b) Month
*Oct.--- X
Nov.--- Y
Dec.--- Z
(c) Date
1-9--- 0
10-19--- 1
20-31--- 2
(2) Part Number Mark
Pin no. Connection
1 GND
2 IN/OUT
3 GND
4 GND
5 OUT/IN
6 GND
(0.6)
(0.25)
(0.6)
(0.53)
(0.75)
(0.45)
1
2
34
6
1. 15±0. 15
3. 0±0. 15
3. 0±0. 15
(a)
(1)
(b)
(2)
(1.80)
5
[2x]
[4x]
[4x]
(c)
Fig.1 Measuring circuit
Fig.2 Package dimensions (in mm)
Fig.3 Desirable land area (in mm)
420
XF
1
2
34
5
6
SAW
IN
50ΩOUT
50Ω
0.93
0.6
0.93 3.8
3.8
2.2 1.15
1.15
NSVS1107 Nov. 2004
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -10ºC or more than +60ºC, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of soldering
iron: 350ºC max., the time of soldering: 10 seconds max., the power of
soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature of
this component goes down to room temperature.
5. Confirm that there are not any influence for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity to
this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
2. The information contained herein may be changed without prior notice. It is
therefore advisable to contact Japan Radio Company before proceeding with the
design of equipment incorporating this product.
3. The products are designed to be used with ordinary electronic equipment (data
and communications equipment, office equipment, audio-video equipment,
measuring instruments, etc). Japan Radio Company does not assume any
liability for the case using the products with the application required high
reliability or safety extremely (such as space equipment, sea-bottom equipment,
medical equipment etc). When intending to use any our product please
contact our sales representatives in advance.
0
20
40
60
80
100
S21
Insertion Loss [dB]
0
2
4
6
8
10
CH1 : center 449.7 span 100
CH2 : center 449.7 span 100
Insertion Loss [dB]
FREQUENCY CHARACTERISTICS
NSVS1107 Nov. 2004
S11 S22
S11 S22
1 1
3 3
5 5
7 7
9 9
11 11
399.7 399.7499.7 499.7
Frequency [MHz] Frequency [MHz]
VSWR
VSWR
InsertionLoss [dB]
0
20
40
60
80
100
0.3 3000
S21
Frequency [MHz]
NSVS971 Dec-04
Fig.1 Measuring circuit
13.30±0.20
6.5±0.20
(R0.3)
[4×]
(0.76)
(2.54)
(1.4)
(0.8)
[12×]
(2.54±0.15)
Pin No. Connection
1GND(PKG)
2GND(PKG)
3 GND(PKG)
4GND(PKG)
5OUT/IN
6 GND(signal)
7GND(PKG)
8GND(PKG)
9GND(PKG)
10 GND(PKG)
11 IN/OUT
12 GND(signal)
2.0 max.
(1)
(a) (b)
(3)
Marking
(1) Manufacture's Mark
(2) Lot Number
(a) Year
(b) Month
*Oct.--- X
Nov.--- Y
Dec.--- Z
(c) Date
1-9--- 0
10-19--- 1
20-31--- 2
(3) Part Number Mark
(1.26±0.13)
[12×]
[12×]
(2.54)
(R0.3)
(2.54±0.15)
(2)
12345
6
7
8
910
11
12
(C)
Fig.2 Package dimensions(in mm)
J4Y1
VS971
1234
10
987
11
12
6
5
OUT
50O
IN
50O
SAW
*27nH
*27nH
39pF
33pF
*murata LQW18A series

Other JRC Water Filtration System manuals

JRC NSVS1234 User manual

JRC

JRC NSVS1234 User manual

JRC NSVS1204 User manual

JRC

JRC NSVS1204 User manual

JRC NSVS776 User manual

JRC

JRC NSVS776 User manual

JRC NSVS1104 User manual

JRC

JRC NSVS1104 User manual

JRC NSVA300 User manual

JRC

JRC NSVA300 User manual

JRC NSVS614 User manual

JRC

JRC NSVS614 User manual

JRC NSVS1252 User manual

JRC

JRC NSVS1252 User manual

JRC NSVA528 User manual

JRC

JRC NSVA528 User manual

JRC NSVS1102 User manual

JRC

JRC NSVS1102 User manual

JRC NSVS1246 User manual

JRC

JRC NSVS1246 User manual

JRC NSVS1207 User manual

JRC

JRC NSVS1207 User manual

JRC NSVA288 User manual

JRC

JRC NSVA288 User manual

JRC NSVS1092 User manual

JRC

JRC NSVS1092 User manual

JRC NSVS681 User manual

JRC

JRC NSVS681 User manual

JRC NSVS1152 User manual

JRC

JRC NSVS1152 User manual

JRC NSVS1115 User manual

JRC

JRC NSVS1115 User manual

JRC NSVS1237 User manual

JRC

JRC NSVS1237 User manual

JRC NSVS1058 User manual

JRC

JRC NSVS1058 User manual

JRC NSVS1101 User manual

JRC

JRC NSVS1101 User manual

JRC NSVS1108 User manual

JRC

JRC NSVS1108 User manual

JRC NSVS747 User manual

JRC

JRC NSVS747 User manual

JRC NSVS675 User manual

JRC

JRC NSVS675 User manual

JRC NSVS1089 User manual

JRC

JRC NSVS1089 User manual

JRC NSVS1061 User manual

JRC

JRC NSVS1061 User manual

Popular Water Filtration System manuals by other brands

Vulcan-Hart SCALEBLOCKER SMF600 Installation & operation manual

Vulcan-Hart

Vulcan-Hart SCALEBLOCKER SMF600 Installation & operation manual

SpectraPure The Eliminator DI Installation and operating manual

SpectraPure

SpectraPure The Eliminator DI Installation and operating manual

Pond Boss 52387 manual

Pond Boss

Pond Boss 52387 manual

Beko owamat 12 Instructions for installation and operation

Beko

Beko owamat 12 Instructions for installation and operation

Erie water treatment SOF-WHF series Technical manual

Erie water treatment

Erie water treatment SOF-WHF series Technical manual

Neo-Pure TL3 manual

Neo-Pure

Neo-Pure TL3 manual

Pall UT310 Series Service instructions

Pall

Pall UT310 Series Service instructions

MANN+HUMMEL ProVent 200 operating instructions

MANN+HUMMEL

MANN+HUMMEL ProVent 200 operating instructions

ELGA PURELAB Prima 7 Operator's manual

ELGA

ELGA PURELAB Prima 7 Operator's manual

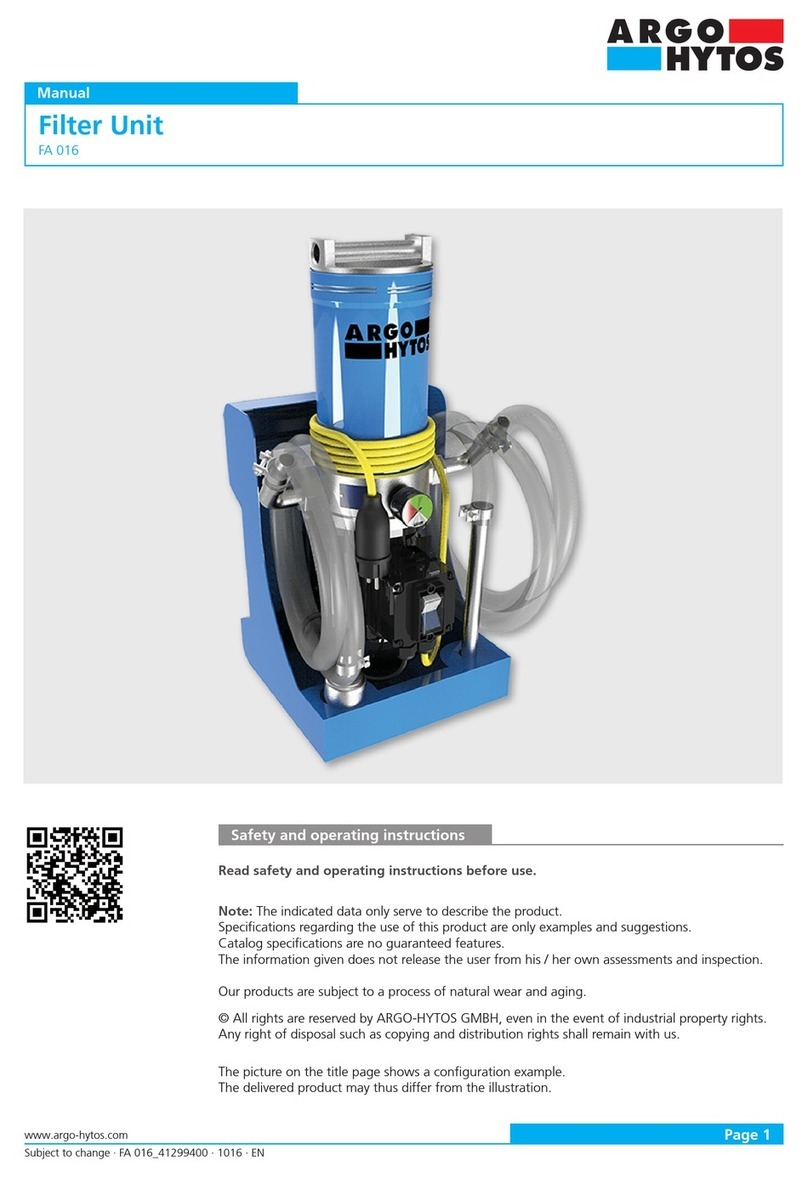

Argo-Hytos FA 016 Safety and operating instructions

Argo-Hytos

Argo-Hytos FA 016 Safety and operating instructions

amiad T Installation & maintenance instructions

amiad

amiad T Installation & maintenance instructions

Nederman NOM 4 user manual

Nederman

Nederman NOM 4 user manual

Viqua UVMax DWS11-A owner's manual

Viqua

Viqua UVMax DWS11-A owner's manual

VGE XCLEAR user manual

VGE

VGE XCLEAR user manual

Nimbus Water Systems Five Water Maker WM5-50 user manual

Nimbus Water Systems

Nimbus Water Systems Five Water Maker WM5-50 user manual

North Coast Synthesis MSK 009 manual

North Coast Synthesis

North Coast Synthesis MSK 009 manual

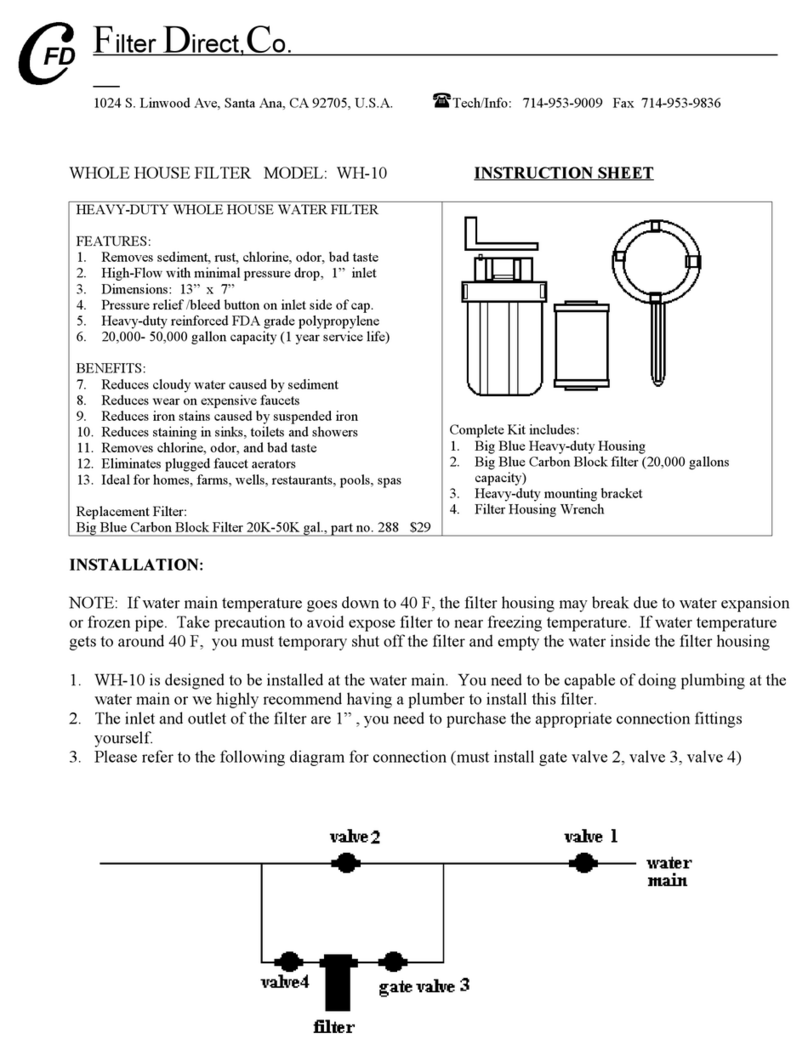

FILTER DIRECT WH-10 instruction sheet
