TRAMPOLINE
MANUAL’S INSTRUCTIONS
RECTANGLE TRAMPOLINE - 10FT x 17FT - 305cm x 518cm
BEFORE FIRST USE, READ CAREFULLY THE MANUAL AND SAFETY ADVICE
Available in more languages (FR)
www.jump4fun.fr/noces
TRAJ4F101702
Manual’s instrucons updated on the 30th August 2018
Manual’s instructions updated on the 9th january 2019

- 2 -
SUMMARY
Page 3 Introduction
Page 5 General instructions

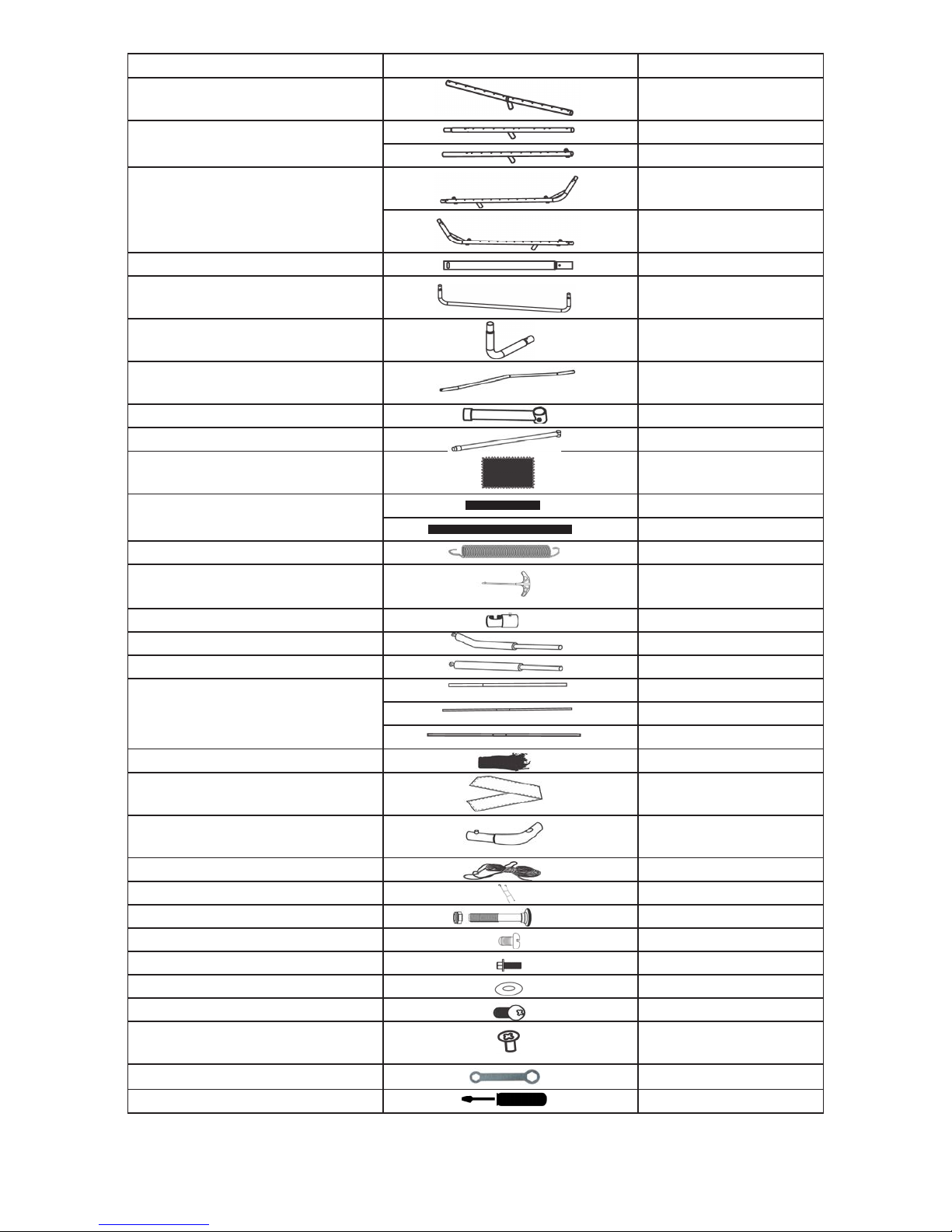

Page 10 Trampoline’s parts list
Page 11 Assembly instructions

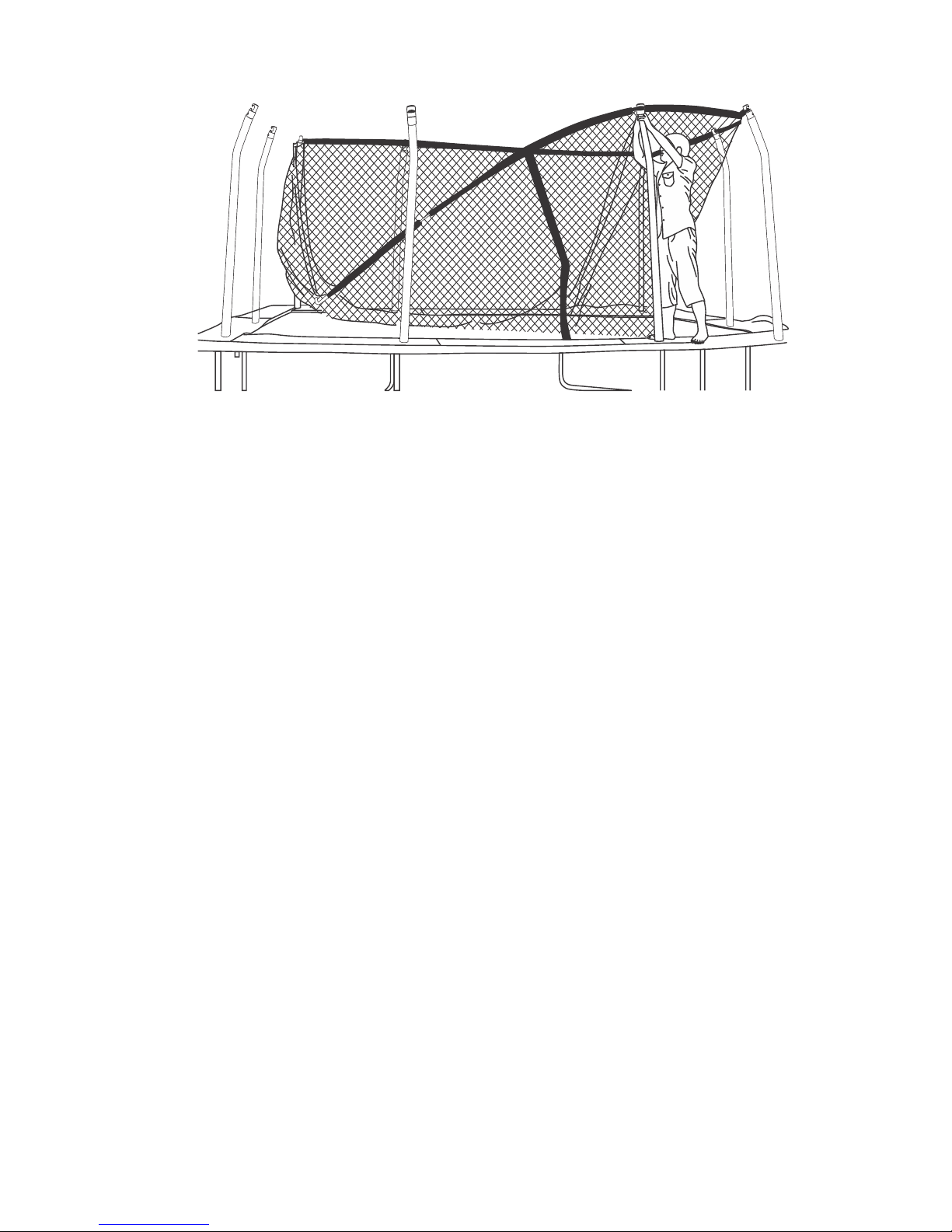

Page 15 Safety net assembly
Page 19 Testing the trampoline

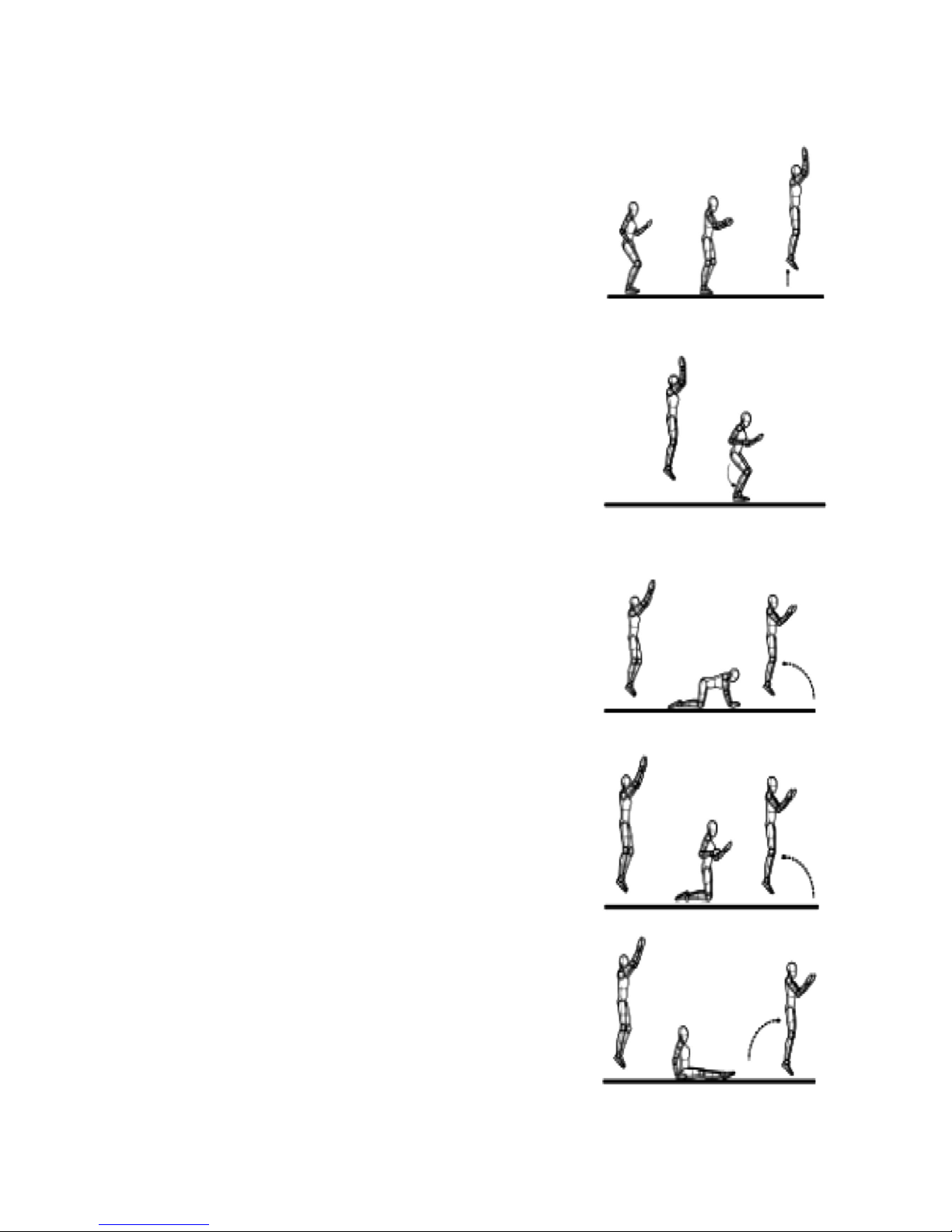

Page 20 Bounces techniques
Page 21 Guarantees
Page 22 After sales service

- 3 -
INTRODUCTION
We thank you for purchasing this trampoline.
This instruction manual is valid for all our rectangulars trampolines.
Before using the trampoline, read this manual to assess the precautions of use and assembly.
To avoid injury, please read the appropriate safety tips and rules.
WARNINGS
Using the trampoline at a high frequency can cause injury.
The trampoline propels the user in heights and causes unusual movements. All appropriate
precautions should be taken when using this trampoline.
Always inspect the trampoline before use.
Assemble neatly, pay attention and keep your device in shape.
All safety instructions are in this manual.
All users and supervisors should read this manual.
Each person using this trampoline must be aware of his/her possibilities and limitations
regarding the consequences of rebounds.

- 4 -
Before you start using this trampoline, you should read all the information in this manual. As with any
type of physical activity, the use of this trampoline requires special attention because participants
can be injured. To reduce the risk of injury, please read the appropriate safety rules and advice
carefully.
Misuse and/or abuse of this trampoline is dangerous and can cause serious injury !
Trampolines are bouncing devices that allow the user to perform unusual jumps at unusual
heights through various movements. Always be careful when jumping/playing on a trampoline.
Always inspect the trampoline before each use.
This manual contains assembly instructions, maintenance instructions, safety tips, as well
as danger warnings and appropriate techniques for jumping and bouncing on the trampoline. All
users and supervisors should read and familiarize themselves with these instructions. Anyone who
chooses to use this trampoline should be aware of their own limitations in performing various jumps
and bounces.
At the beginning, we advise you to get used to the feeling and rebound of the trampoline. The
focus should be on your body position and you should practice each recommended bounce
before moving on to more difcult and advanced jumps. Do not behave recklessly on the
trampoline, it is important to control its movements and master the different bouncing techniques.
No more than one person is allowed on the
trampoline ! Multiple jumpers increase the risk
of a mid-air collision resulting in injury.
Do not make ip jumps as this will increase
the chances of landing on your head or neck.
Paralysis or even death can occur.
Caution : Always jump in the middle of the mat.

- 5 -
GENERAL INSTRUCTIONS
1. Placing the trampoline
The minimum space around the trampoline must be 2m, this space must be clear of any object
(walls, electrical wires, tree branches, fence, fence, garage etc.). Please note the following tips :
- Place the trampoline on a non-slip horizontal surface
- Clear the space around the trampoline
- No obstruction under the trampoline
- No obstruction above the trampoline
The trampoline is not intended to be buried in the ground. Place the trampoline on a at surface
and on a soft surface, preferably on grass. Placing the trampoline on a hard surface (concrete and
asphalt) will contribute to the fragility of the structure and will cause damage over time that is not
covered by the commercial warranty.
Placing the trampoline on uneven surfaces can cause the trampoline to tip. In addition, it must not
be placed near incompatible installations (paddling pools, swings, slides, climbing structures, etc.).
Never place the trampoline near water and keep a space around it for safety.
Do not place any foreign objects inside the trampoline.
2. Mounting instructions
Before starting to assemble the trampoline, read all the instructions in the manual. The trampoline
must be properly installed before use.
The trampoline must be carefully assembled by at least two non-disabled adults. If in doubt, ask a
qualied person.
Remove all materials and place them in an empty space. This gives you an overview and simplies
the assembly procedure.
Check with the spare parts list to ensure that no parts are missing. You can dispose of the packaging
material when the assembly is completed.
Caution, when using tools or technical work, there is always a risk of injury; assemble the product
carefully.
Create a safe environment. For example, do not leave tools scattered in the workspace. Do not
place any objects under the trampoline.
Store packaging material in a safe place.
Never install the trampoline in rainy, windy or stormy conditions, especially in hazardous weather
conditions. It is recommended that the trampoline to be dismantled and stored in bad weather. Do
not use the trampoline if it is wet. Strong winds can knock down the trampoline. If strong winds are
forecast, the trampoline must therefore be moved to a protected area and dismantled or secured to
the ground with ropes and mooring lines.

- 6 -
The metal structure of the trampoline can conduct electricity. Lightning, extension cords and all
electrical equipment must never come into contact with the trampoline.
When mounting or dismounting, please use gloves to protect your hands.
For added stability, you can place sandbags on the trampoline feet. This will prevent the trampoline
from tipping over in the event of lateral force.
In some countries, during the winter period, snow load and very low temperatures can damage the
trampoline. It is recommended to remove the snow and store the carpet and structure inside.
Check that the mat, protection, springs and structure are free of defects. That is, sun, rain, snow and
extreme temperatures reduce the resistance of these parts over time.
Secure the trampoline against unauthorized use.
The trampoline must be attached with anchors in windy conditions or dismantled and stored.
Carefully climb onto the trampoline. Do not jump in directly. Do not use the trampoline as a springboard
for other items or objects. For more information, see the assembly and disassembly sections.
3. Operating and safety instructions for trampolines
The product is intended for domestic, family and leisure use and is not suitable for professional or
medical use.The maximum authorized weight is 500 lbs/225kg. Exceeding this maximum weight
will result in an overload on the trampoline and the commercial warranty will not be valid.
When using the trampoline, do not leave children unattended. Perform the necessary safety
measures and supervise trampoline activities. Be aware that packaging materials are not suitable
for children. There is a risk of suffocation!
Trampolines over 51 cm high are not recommended for children under 6 years of age. Children are
not aware of the potential dangers of this product. Keep the children away from this trampoline, it’s
not a toy. The product must be stored out of the reach of children and pets.
Do not modify the product. Use only original spare parts. Repairs must be carried out by qualied
technicians. Improper repairs can compromise the safety of your trampoline. Use this product only
as described in this manual.
Protect the trampoline from moisture and high temperatures. The trampoline should always be used
in a quiet place.
The trampoline must be inspected before each use to detect wear or defective parts, as this can
make the overall safety of the trampoline difcult. Damaged, worn or defective parts must be replaced
immediately.
In the meantime, the trampoline must be closed.
It is the responsibility of the supervising adult to inform users of the safety instructions to be followed
when using the trampoline.
Do not use during pregnancy. Do not use in case of high blood pressure. Do not eat while jumping.
Do not jump out.
Do not wear shoes when jumping. This will damage the jump mat that is not covered by the

- 7 -
commercial warranty.
Do not use the trampoline under the inuence of alcohol or drugs.
Do not sit or lean on the cushion as it must be exible to be able to move with the jumping mat. Be
careful that small children do not get up using the cushions. Tears caused by bearing blockage are
not covered by the commercial warranty.
Do not expose the trampoline to direct contact with ames.
BE CAREFUL
1. Please ensure that the safety net is closed and reattached before jumping.
2. Do not intentionally jump into the safety net, it is only designed to prevent people from falling off the
trampoline. An intentional jump into the net can tip the trampoline or damage your net. Solicitations
of the safety net is considered abusive, which is not covered by the commercial warranty, please
refer to the warnings.
All trampoline users need a supervisor, regardless of the age or experience of the user.
Somersaults should be avoided. Incorrect landing on the trampoline can result in injuries, including
back, neck or head injuries. Injuries can include paralysis or even death.
Learn the basic jumping techniques. Before trying difcult jumps, check the fundamental technical
jumps section. For more information or exercise instructions, you can contact a trained trampoline
teacher.
3.1 Accident categories
We detail the cases around which you must be particularly vigilant in order to avoid any accident.
Jump : the most delicate one is the landing phase on the head or neck, even on the middle of the
mat. This type of landing can cause severe back and neck injuries with the risk of paralysis or death.
This can happen if the user makes a mistake and falls forwards or backwards.
Multiple users on trampolines : the risk of injury increases if a second person uses the trampoline
at the same time. Indeed, one of the users could lose control and push or injure the rst one.
Generally, the risk is greater for the smallest or lightest person. They are more likely to jump high
and uncontrolably.
Up and down : Users must take every precaution to get on and off the trampoline. To do this, they
must simply grab the frame with their hands and stand on the mat, avoiding as much damage as
possible to the protective foams. Going up and down the trampoline must be then carried out by the
ladder provided for this purpose.
Do not climb by grasping the protective foams or climbing on the springs or jumping directly onto the
oor mat with any object. Young children must be assisted to get in and out.
Hitting the frame or springs : When using the trampoline, jump on the centre of the mat. This
reduces the risk of shocks to the frame or springs. Therefore, it is always necessary to ensure that
the protective foams are present and in good condition. Try to avoid walking or jumping on these
foams to prevent from deforming them.

- 8 -
Loss of control : When users lose control, they may not land properly on the mat, chassis or
springs. Always keep the protective foams on top of them. Before performing more complicated
jumps, you must rst master the basic jumps. If the user is tired or tries to make a jump that exceeds
his or her abilities, there is a risk of injury. To regain control, simply bend your knees when landing.
Foreign bodies : Do not use the trampoline if there are people, animals or objects under it. This
increases the risk of injury. Do not hold objects in your hands or put foreign objects in the trampoline
when someone is inside. Please take the necessary precautions regarding objects above the
trampoline (tree branches, electrical cables, etc.).
3.2 Accident prevention method
User’s role in accident prevention : the user must be aware of the basics for his safety.
Everyone must rst learn to perform small basic jumps, before performing more complex ones.
A controlled jump is a jump where you jump and land in the same place. See the « basic jump
techniques » section of this manual.
4. Maintenance and cleaning
Our maintenance instructions must draw attention to the need to carry out checks and maintenance
operations on the main parts (frame, suspension system, belt, protection, etc.) at the beginning of
each season and at regular intervals, and if these checks are not carried out, the trampoline could
become dangerous.
Inspect the trampoline regularly to ensure that there is no damage, abrasion or worn parts to replace
directly with your dealer.
After installing the trampoline according to the instructions, make sure that all bolts and nuts are
properly installed and tightened.
Check that all spring connections are intact and do not risk disengaging during play. Also check all
covers and sharp edges and replace them if necessary.
Make sure that the Velcro fasteners are properly closed when using the trampoline.
Inspect the trampoline regularly to check for damage, abrasion or worn parts to be replaced directly
with your dealer.
A minimum of two adults is required to move the trampoline. Be careful that the chassis does not
twist when manoeuvring.
Do not use abrasives to clean the trampoline, please use a soft cloth and clean water. Make sure to
dry the surface thoroughly after cleaning.
This product is delivered with packaging to protect it during transport. Most of its packaging is
recyclable. Please dispose of them in recycling bins. Be careful not to leave your protective packaging
within reach of children.
It is recommended to change the safety net at least every two years.

5. Warnings
Be careful. The maximum authorized weight is 500 lbs/225kg.
Be careful. This trampoline is intended for domestic and family use only;
Be careful. Adult supervision is required;
Be careful. This trampoline is intended for outdoor use only;
Be careful. The trampoline must be mounted by an adult in accordance with the assembly
instructions,and checked before rst use;
Be careful. Only one user at a time. Risk of collision;
Be careful. Always close the net opening before jumping;
Be careful. Jumping without shoes;
Be careful. Do not use the mat when it is wet;
Be careful. Empty pockets and hands before jumping;
Be careful. Always jump in the middle of the mat;
Be careful. Do not eat while jumping;
Be careful. Do not jump out;
Be careful. Limit the duration of continuous use (take regular breaks);
Be careful. Do not use in strong wind conditions and secure the trampoline;
Be careful. Do not make dangerous jumps;
Be careful. Read the instructions;
Be careful. It is recommended to replace the net every 2 years.
- 9 -

Pieces Pictures Quantity
A: Top tubes 2
B: Top tubes B1 2
B2
C: Corner tubes C1
2
C2
2
D: Leg extensions 10
E: Leg bases 4
F: Corner supports 2
G: Middle support 1
H: Short leg supports 4
I : Long leg supports 2
J: Jumping mat 1
K: Cover pads 2
2
L: Springs 108 (3 box of 36)
M: Spring pulling tool 1
N: Plastic caps with hole 10
O: Upper poles with foam 10
P: Lower poles with foam 10
Q: Fiber glass roads (net road)
Q1 2
Q2 8
Q3 6
R: Safety net 1
S: PVC sleeves 10
T: Fiber glass corners 4
U: Net string 1
V: Ladder 1
W: Screws and rings 10
X: Foot screws 20
Y: Supports screws 8
Z: Rings 32
AA : Pole screws 22
AB : Phillips screws poles 10
AC : Wrench 1
AD : Screwdriver 1
108,5cm
115,3cm
114,5cm
178cm
178cm
61cm
166cm
81cm
153cm
35,2cm
141cm
98cm
99cm
67cm
84cm
102cm
60x8mm
- 10 -

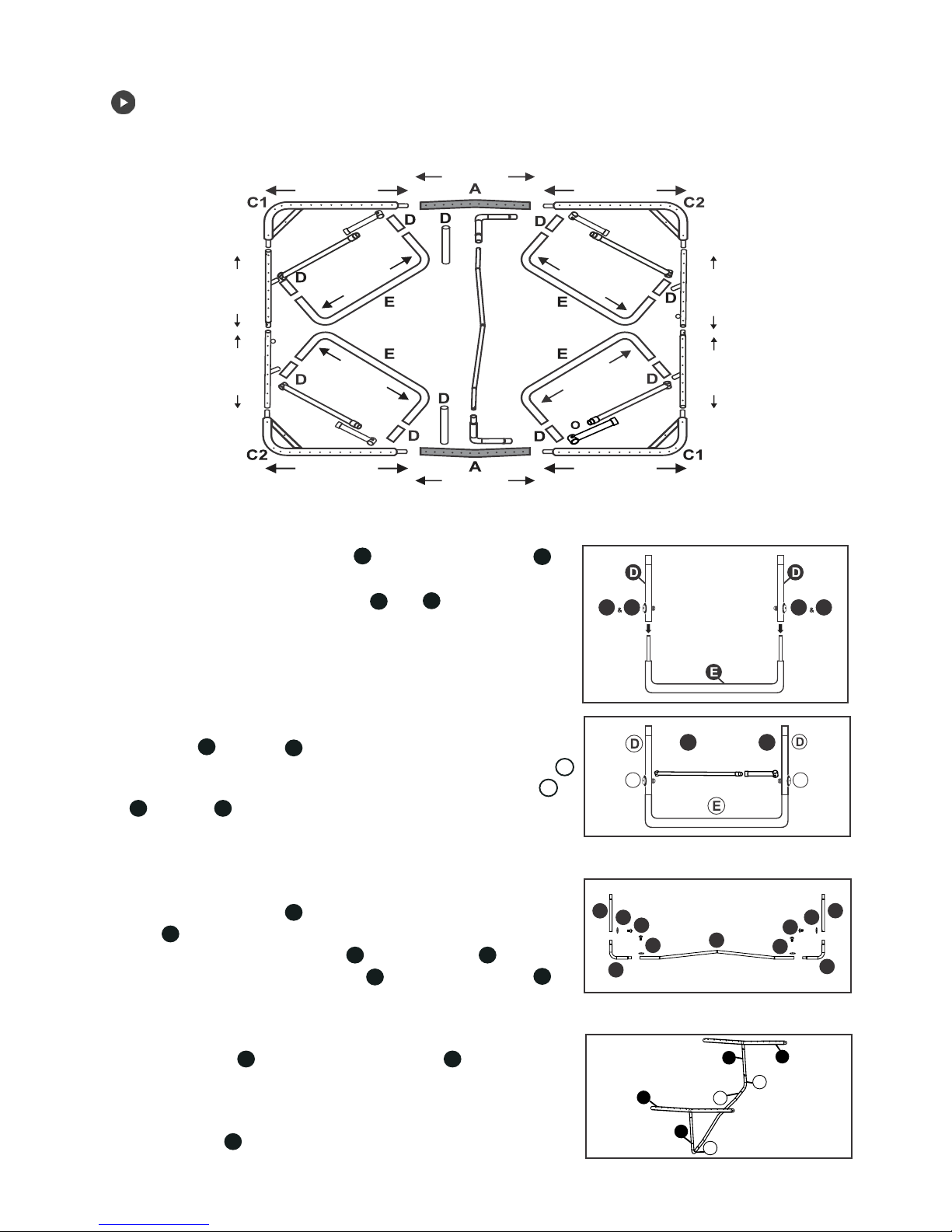

STEP 1 - Frame Layout
Lay out the trampoline parts on the ground so that you start to form a rectangle with the top
tubes sections. Make sure to keep all the tubes in the same direction all around the rectangle.
STEP 2 - Assemble the feet with the legs.
1. Assemble each of the Leg Base to the Leg Extension
Attach the leg extensions to the legs base and tightly secure
together with screws and washers and .Continue doing
the same for all 4 leg bases.
ED
XZ
2. Connect the middle supports to the legs.
Connect part and part together. Once they are attached,
connect the pole to the legs by inserting them between part
leg extensions. Secure them to the legs with screws part ,
(part and part should be placed 16 inc. above the ground.)
Continue doing the same for all 4 legs bases.
IH
Y
I H
D
3. Assembling the center leg base.
Take the middle bracket and insert it between the 2 corner
brackets (on the longest parts of the brackets). Secure
them together with the screws and washers . Then
assemble the two leg extensions with the corners .
(2 screws X + 2 washers Z)
G
F
X Z
DF
4. Assembling the base structure of the trampoline.
Attach the 2 parts to both sides onto part of the middle
leg base. Lay the assembled part on the ground.
Note :
The upper tubes are xed on the length of the trampoline.
AD
3. Assembling the center Leg Base.
4. Assembling the frame to the Base.
Take part #Q and insert it between the 2 part #N pieces, secure
together with screws and washers part #J and K. (Connect it to
the longer side of the part #N.) Attach the 2 parts #D onto both
part #N pieces, secure together with screws and washers part
#J and K.
Attach the 2 parts #A to both sides onto part #D of the middle
leg base. Lay the assembled part on the ground.
Attach the leg extensions to the leg base and tightly secure together
with screws and washers Part #J and K. Continue doing the same to
all 4 leg bases.
DD
2. Connect the middle leg supports to the legs.
E D
D
DA
A
Frame assembly installation for model UBRTG01-1017
B1
B2 B1
B2
Connect part #P and part #O together. Once they is attached, connect
the pole to the legs by inserting it between part #D leg extensions.
Secure
it to the legs with screws part #M, (The part #P and part #O
should be placed 16” above the ground.) Continue doing the same
to all 4
legs bases.
t
B
F
F
G
H
HH
H
H
I
II
I
178cm 178cm
178cm 178cm
166cm
166cm
166cm
166cm
115,3cm
115,3cm
114,5cm
114,5cm
108,5cm
108,5cm
XX Z Z
YY
IH
Z
ZZ
Z
XX
G
FF
F
F
G
3. Assembling the center Leg Base.
4. Assembling the frame to the Base.
Take part #Q and insert it between the 2 part #N pieces, secure
together with screws and washers part #J and K. (Connect it to
the longer side of the part #N.) Attach the 2 parts #D onto both
part #N pieces, secure together with screws and washers part
#J and K.
Attach the 2 parts #A to both sides onto part #D of the middle
leg base. Lay the assembled part on the ground.
Attach the leg extensions to the leg base and tightly secure together
with screws and washers Part #J and K. Continue doing the same to
all 4 leg bases.
DD
2. Connect the middle leg supports to the legs.
E D
D
DA
A
Frame assembly installation for model UBRTG01-1017
B1
B2 B1
B2
Connect part #P and part #O together. Once they is attached, connect
the pole to the legs by inserting it between part #D leg extensions.
Secure
it to the legs with screws part #M, (The part #P and part #O
should be placed 16” above the ground.) Continue doing the same
to all 4
legs bases.
t
B
F
F
G
H
HH
H
H
I
II
I
178cm 178cm
178cm 178cm
166cm
166cm
166cm
166cm
115,3cm
115,3cm
114,5cm
114,5cm
108,5cm
108,5cm
XX Z Z
YY
IH
Z
ZZ
Z
XX
G
FF
F
F
G
3. Assembling the center Leg Base.
4. Assembling the frame to the Base.
Take part #Q and insert it between the 2 part #N pieces, secure
together with screws and washers part #J and K. (Connect it to
the longer side of the part #N.) Attach the 2 parts #D onto both
part #N pieces, secure together with screws and washers part
#J and K.
Attach the 2 parts #A to both sides onto part #D of the middle
leg base. Lay the assembled part on the ground.
Attach the leg extensions to the leg base and tightly secure together
with screws and washers Part #J and K. Continue doing the same to
all 4 leg bases.
DD
2. Connect the middle leg supports to the legs.
E D
D
DA
A
Frame assembly installation for model UBRTG01-1017
B1
B2 B1
B2
Connect part #P and part #O together. Once they is attached, connect
the pole to the legs by inserting it between part #D leg extensions.
Secure
it to the legs with screws part #M, (The part #P and part #O
should be placed 16” above the ground.) Continue doing the same
to all 4
legs bases.
t
B
F
F
G
H
HH
H
H
I
II
I
178cm 178cm
178cm 178cm
166cm
166cm
166cm
166cm
115,3cm
115,3cm
114,5cm
114,5cm
108,5cm
108,5cm
XX Z Z
YY
IH
Z
ZZ
Z
XX
G
FF
F
F
G
3. Assembling the center Leg Base.
4. Assembling the frame to the Base.
Take part #Q and insert it between the 2 part #N pieces, secure
together with screws and washers part #J and K. (Connect it to
the longer side of the part #N.) Attach the 2 parts #D onto both
part #N pieces, secure together with screws and washers part
#J and K.
Attach the 2 parts #A to both sides onto part #D of the middle
leg base. Lay the assembled part on the ground.
Attach the leg extensions to the leg base and tightly secure together
with screws and washers Part #J and K. Continue doing the same to
all 4 leg bases.
DD
2. Connect the middle leg supports to the legs.
E D
D
DA
A
Frame assembly installation for model UBRTG01-1017
B1
B2 B1
B2
Connect part #P and part #O together. Once they is attached, connect
the pole to the legs by inserting it between part #D leg extensions.
Secure
it to the legs with screws part #M, (The part #P and part #O
should be placed 16” above the ground.) Continue doing the same
to all 4
legs bases.
t
B
F
F
G
H
HH
H
H
I
II
I
178cm 178cm
178cm 178cm
166cm
166cm
166cm
166cm
115,3cm
115,3cm
114,5cm
114,5cm
108,5cm
108,5cm
XX Z Z
YY
IH
Z
ZZ
Z
XX
G
FF
F
F
G
3. Assembling the center Leg Base.
4. Assembling the frame to the Base.
Take part #Q and insert it between the 2 part #N pieces, secure
together with screws and washers part #J and K. (Connect it to
the longer side of the part #N.) Attach the 2 parts #D onto both
part #N pieces, secure together with screws and washers part
#J and K.
Attach the 2 parts #A to both sides onto part #D of the middle
leg base. Lay the assembled part on the ground.
Attach the leg extensions to the leg base and tightly secure together
with screws and washers Part #J and K. Continue doing the same to
all 4 leg bases.
DD
2. Connect the middle leg supports to the legs.
E D
D
DA
A
Frame assembly installation for model UBRTG01-1017
B1
B2 B1
B2
Connect part #P and part #O together. Once they is attached, connect
the pole to the legs by inserting it between part #D leg extensions.
Secure
it to the legs with screws part #M, (The part #P and part #O
should be placed 16” above the ground.) Continue doing the same
to all 4
legs bases.
t
B
F
F
G
H
HH
H
H
I
II
I
178cm 178cm
178cm 178cm
166cm
166cm
166cm
166cm
115,3cm
115,3cm
114,5cm
114,5cm
108,5cm
108,5cm
XX Z Z
YY
IH
Z
ZZ
Z
XX
G
FF
F
F
G
A
- 11 -

5. Assemble frame parts and with the 4 legs.
Lay out the parts as shown in the gure. Connect and and place onto the leg bases as shown
in the gure below.
B1 B2
B1 B2
7. Connect the base.
Secure the frame pieces together using the screws and nuts part #I.
Make sure to tighten the screws.
6. Attach all the corners.
Attach the corners to the frame, make sure the
longer side of part #C is on the longer side of the
trampoline as the picture shows.
5. Assemble frame parts B1 and B2 with the 4 legs.
Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown
in the figure below.
10
8. Then secure top rails to the leg base using screws J and washers K
as shown in figure, and repeat this step to all legs.
C1
C1
A
A
C2
C2
A
A
B2
B1
B1
B2
E
E
E
E
F
F
G
F
F
G
E
D
E
E
E
I
H
H
I
H
I
D
D
H
D
H
ID
I
H
I
B1
B2
B1
B2
1. Part #A goes on the long side of the trampoline - the 17 ft side.
2. Make sure that all screw holes that connect the B rails to the legs are
facing the inside of the frame.
Note:
W
X
Note :
Make sure that the screw holes connecting the top tubes to the
feet are placed inside the structure.
B
7. Connect the base.
Secure the frame pieces together using the screws and nuts part #I.
Make sure to tighten the screws.
6. Attach all the corners.
Attach the corners to the frame, make sure the
longer side of part #C is on the longer side of the
trampoline as the picture shows.
5. Assemble frame parts B1 and B2 with the 4 legs.
Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown
in the figure below.
10
8. Then secure top rails to the leg base using screws J and washers K
as shown in figure, and repeat this step to all legs.
C1
C1
A
A
C2
C2
A
A
B2
B1
B1
B2
E
E
E
E
F
F
G
F
F
G
E
D
E
E
E
I
H
H
I
H
I
D
D
H
D
H
ID
I
H
I
B1
B2
B1
B2
1. Part #A goes on the long side of the trampoline - the 17 ft side.
2. Make sure that all screw holes that connect the B rails to the legs are
facing the inside of the frame.
Note:
W
X
6. Attach all the corners.
Attach the corners to the frame, make sure the longer
side of part is on the longer side of the trampoline
as shown on the picture.
7. Connect the base.
Secure the frame pieces together using the screws and nuts part #I.
Make sure to tighten the screws.
6. Attach all the corners.
Attach the corners to the frame, make sure the
longer side of part #C is on the longer side of the
trampoline as the picture shows.
5. Assemble frame parts B1 and B2 with the 4 legs.
Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown
in the figure below.
10
8. Then secure top rails to the leg base using screws J and washers K
as shown in figure, and repeat this step to all legs.
C1
C1
A
A
C2
C2
A
A
B2
B1
B1
B2
E
E
E
E
F
F
G
F
F
G
E
D
E
E
E
I
H
H
I
H
I
D
D
H
D
H
ID
I
H
I
B1
B2
B1
B2
1. Part #A goes on the long side of the trampoline - the 17 ft side.
2. Make sure that all screw holes that connect the B rails to the legs are
facing the inside of the frame.
Note:
W
X
7. Connect the base.
Secure the frame pieces together using the screws and nuts
part . Make sure to tighten the screws.
7. Connect the base.
Secure the frame pieces together using the screws and nuts part #I.
Make sure to tighten the screws.
6. Attach all the corners.
Attach the corners to the frame, make sure the
longer side of part #C is on the longer side of the
trampoline as the picture shows.
5. Assemble frame parts B1 and B2 with the 4 legs.
Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown
in the figure below.
10
8. Then secure top rails to the leg base using screws J and washers K
as shown in figure, and repeat this step to all legs.
C1
C1
A
A
C2
C2
A
A
B2
B1
B1
B2
E
E
E
E
F
F
G
F
F
G
E
D
E
E
E
I
H
H
I
H
I
D
D
H
D
H
ID
I
H
I
B1
B2
B1
B2
1. Part #A goes on the long side of the trampoline - the 17 ft side.
2. Make sure that all screw holes that connect the B rails to the legs are
facing the inside of the frame.
Note:
W
X
8. Then attach the upper tubes to the base of the trampoline
feet, using the screws and nuts provided for this purpose
and repeat the operation for all 4 feet.
(8 X screws + 8 Z nuts)
C
W
ZX
- 12 -

STEP 3 - Trampoline mat assembly
WARNING :
Be careful where you place your hands during spring assembly as you can pinch yourself !
1. Lay out the trampoline mat inside the frame.
1. Layout the Trampoline Mat inside the frame.
2. Connect all 4 corner springs to the corner top rails.
USPT
2. Connect all 4 corner springs to the corner top tubes.
1. Layout the Trampoline Mat inside the frame.
2. Connect all 4 corner springs to the corner top rails.
USPT
Note : When attaching the springs, rst attach to mat the end of the spring hooks that is more
curved.
1. Layout the Trampoline Mat inside the frame.
2. Connect all 4 corner springs to the corner top rails.
US
PT
How to use the spring pulling tool ?
Step 1 : Connect one side of the spring to the triangle of
the mat.
Step 2 : Extend tool and link up spring hook with eyelet
on tool. Pull the handle of the tool in direction shown
until the spring hook links up with the frame.
1. Layout the Trampoline Mat inside the frame.
2. Connect all 4 corner springs to the corner top rails.
USPT
- 13 -

STEP 4 - Cover pads assembly
The trampoline is at a stage close to completion with all the springs in place. Before using the
trampoline, please attach the provided safety pads.
The safety pad has a few sets
of strings with two S shaped hooks at the
end, all around the pad. Attach the S
shaped hooks to the V-rings of the mat.
Attach the hooks from underneath the
how to attach it correctly.
The safety pad has a few sets
of strings with two S shaped hooks at the
end, all around the pad. Attach the S
shaped hooks to the V-rings of the mat.
Attach the hooks from underneath the
how to attach it correctly.
The safety pad has a few sets
of st
rings with two S shaped hooks at the
end
, all around the pad. Attach the S
shaped hooks
to the V-rings of the mat.
Attach the hooks f
rom underneath the
how
to attach it correctly.
Step 1 : Lay out 2 sides of the pad shown here and
connect with the attached velcro strips.
Step 2 : Lay out the other 2 pads and connect with
velcro.
Step 3 : The safety pad has a few sets of strings
with two S shaped hooks at the end, all around the
pad. Attach the S shaped hooks to the V-rings of the
mat. Attach the hooks from underneath to see how to
attach it correctly.
- 14 -

Safety net assembly
Refer to parts list for identication of parts.
Warning : Two adults in good physical condition are required for the following assembly. For your
safety, you should wear proper shoes and clothing. Failure to follow these instructions and war-
nings may result in injury.
Note : picture may slightly differ with the various trampoline models.
ENCLOSURE PARTS LIST 1017
13
APLASTIC CAP
WITH HOLE
C1
C2
POLE SCREW
WRENCH
BUPPER POLE
WITH FOAM
C
F
G PVC SLEEVE
H
IFIBER GLASS
CORNERS
UBRPPC-814,915,1017
UBRPUP-814,915,1017
UBRPLP-814,915,1017
UBRPFG3-1017
UBRPFG1-1017
UBRPFG2-1017
UBRPPS-814,915,1017
UBRPRS-1017
UBRPCC-1017
10
10
10
2
8
6
1
20
10
1
4
D
38.2’’
39.4’’
26’’
FIBERGLASS
ROAD 39.4’’
33.5’’
ESAFTEY
ENCLOSURE NET
J
K
L
PUSH BUTTON
BIG ROPE
POLE CAP
SCREW
LOWER POLE
WITH FOAM
UBRPR-1017 1
10
4
.
1. Lay out all parts on the oor prior to assembly. We recommend
that two people carry out the assembly.
- 15 -
2. Connect the lower poles to the upper
poles . Connect them to the straighter part
of the upper poles. Secure them together
with screws . Make sure the EPE foams are
covering the poles.
3. Connect the pole cap on the top of upper
pole with the screw .
Refer to the picture to clearly see which way
to attach the pole cap, the opening of the pole
cap has to be on the same side as the outside
bend of the upper pole.
4. Cover all the poles with PVC sleeves .
N
O
S
Connect the fiber glass pieces together, using
5 pcs of fiber glass to make the long line, and
3 pcs to make the short. Refer to the figure
at the left to see which fiberglass pieces to
use when assembling it.
Connect the lower poles to the upper poles,
connect it to the straighter part of the upper pole.
Secure it together with screws at the point where
it connects. Make sure the EPE foams are covering
the poles.
Q
3
Q2
Q1
Q2
Q
3
Q2
Q
3
Q2
Q3
Q2
Q1
Q2
Q2
Q
3
Q2
Q
3
P
P O
O
N
O
O
P
AA
AB

Connect the fiber glass pieces together, using
5 pcs of fiber glass to make the long line, and
3 pcs to make the short. Refer to the figure
at the left to see which fiberglass pieces to
use when assembling it.
Connect the lower poles to the upper poles,
connect it to the straighter part of the upper pole.
Secure it together with screws at the point where
it connects. Make sure the EPE foams are covering
the poles.
Q
3
Q2
Q1
Q2
Q
3
Q2
Q
3
Q2
Q3
Q2
Q1
Q2
Q2
Q
3
Q2
Q
3
P
P O
O
N
O
5. Attach the assembled poles to the
trampoline structure using the curved-headed
pole screws . (10 AA screws)
6. Connect net rods together, using 5 pcs to
make the long line, and 3 pcs to make the
shorter one. Refer to the gure on the left to
see which rods to use when assembling it.
Insert the fiber glass into the the sleeve of the
safety net. Long fiberglass for long side, short
for shorter side; as explained in the previous
step.
After inserting the fiber glass into the sleeve
of the enclosure net, both the long side and
short side, connect the shorter side to the
longer side with the corner pieces - part #J.
(This step should be done while the net is
laid out on the trampoline jumping mat you
9. Connect the fiber glass to the top of the poles by clicking it into the pole caps. Do this
step to
will only attach it afterwards to the poles).
all 10 poles.
7. Insert the net rods into the sleeve of the safety
net. Long rods for the longer side and short rods
for the shorter side; as explained in the previous
step.
Note : Make sure the opening of the net (the
zipper) is placed on the long side of the
trampoline.
8. After inserting the xing rods into the net sheath,
connect the length to the width of the rods using
the berglass corner supports .
(This step must be done while the net is on the
trampoline jump mat, only then attach them to the
poles.)
- 16 -
AA
T

Insert the fiber glass into the the sleeve of the
safety net. Long fiberglass for long side, short
for shorter side; as explained in the previous
step.
After inserting the fiber glass into the sleeve
of the enclosure net, both the long side and
short side, connect the shorter side to the
longer side with the corner pieces - part #J.
(This step should be done while the net is
laid out on the trampoline jumping mat you
9. Connect the fiber glass to the top of the poles by clicking it into the pole caps. Do this
step to
will only attach it afterwards to the poles).
all 10 poles.
9. Connect the net rods to the top of the poles by clicking them into the pole caps. Repeat this step
for all 10 poles.
- 17 -

B N M
1. Connect the net to the V-rings of the trampoline
mat using the attached clips, securing at regular
intervals. This holds the net in place for you to com-
plete the attachment with rope.
2. Secure one end of the rope by knotting it to the
V-ring closest on one side to the trampoline entrance
zipper.
3. Weave the rope through the net and every second
v-ring successively, moving around the trampoline in
the direction away from the entrance zipper.
4. When you complete the weaving and reach the
other side of the entrance zipper, secure the other
end of the rope also by knotting it to the V-ring clos-
est to the entrance on that side.
5. Your trampoline safety net is now fully secured.
Follow the safety checks in the ‘Testing the Trampo-
line’ section before using the trampoline net.
Attach the bottom of the net to the mat
1. Connect the net to the V-rings of the trampoline mat
using the attached clips, securing at regular intervals. This
holds the net into place for you to complete the attachment
with the string.
2. Secure one end of the string by intertwining it to the
V-ring closest to the trampoline entrance zipper.
3. Intertwine the string throught the net and every second
v-ring successively, moving around the trampoline in the
direction away from the entrance zipper.
4. When you complete the weaving and reach the other
side of the entrance zipper, secure the other end of the
string also by intertwining it to the V-ring closest to the en-
trance on that side.
5. Your trampoline safety net is now fully secured. Follow
the safety checks on the « testing the trampoline » section
before using the trampoline net.
B N M
1. Connect the net to the V-rings of the trampoline
mat using the attached clips, securing at regular
intervals. This holds the net in place for you to com-
plete the attachment with rope.
2. Secure one end of the rope by knotting it to the
V-ring closest on one side to the trampoline entrance
zipper.
3. Weave the rope through the net and every second
v-ring successively, moving around the trampoline in
the direction away from the entrance zipper.
4. When you complete the weaving and reach the
other side of the entrance zipper, secure the other
end of the rope also by knotting it to the V-ring clos-
est to the entrance on that side.
5. Your trampoline safety net is now fully secured.
Follow the safety checks in the ‘Testing the Trampo-
line’ section before using the trampoline net.
- 18 -

After assembling the trampoline, it is important that you perform the following
safety checks.
Trampoline’s base structure safety checks :
Using a screw driver, check that all the screws are tightly secured.
Look under the trampoline and check that all the springs are hooked securely to the frame
and triangle rings.
Move the trampoline around and check the sturdiness of the frame.
Using your two hands, put your body weight on one section of the trampoline and release to
check that the oor is even.
Inspect the cover pads and check if they completely cover the springs and frame.
Make sure the strings of the pads are tied securely.
Enclosure net safety checks :
Hold onto the safety net and shake it to check that all the enclosure poles are sturdy. Re-
tighten any pole that seem loose.
Check the safety net for any tears in the stitching or fabric.
Check to see if all safety net enclosure hooks are attached to the triangle ring under the
trampoline.
Once all the checks are performed and the trampoline has passed all the initial tests (above), then
have one person test the trampoline by jumping on the centre continuously for 5 minutes. If the
trampoline feels sturdy then your trampoline passes the test. Congratulations, you have completed
the trampoline assembly ! Remember to abide by all the safety rules. Have fun, play safe...
PLEASE NOTE :
CERTAIN PARTS MAY HAVE TO BE REPLACED OVER TIME FROM YOUR SUPPLIER, DUE TO
WEAR AND TEAR.
- 19 -

FUNDAMENTAL BOUNCES TECHNIQUES
18
Occasionally the user
All trampoline users are recommended to understand and perfect these funda-
mental bounces.
THE BASIC BOUNCE
Start from a standing position, feet shoulder width apart with
head and eyes on the mat.
Swing your arms forwards and up and around in a circular motion.
Bring feet together while in mid-air and point toes downward.
Keep feet shoulder width apart when landing on mat.
THE BREAKING MANEUVER
Occasionally the user may lose control of their jump and bounce
wildly. Performing the breaking maneuver will allow the user to
regain control of the jump and their balance.
Start with a basic bounce.
As you land, bend your knees sharply and this will allow you to
stop your jump.
THE HANDS AND KNEES BOUNCE
Start with a low controlled basic bounce.
Land on your hands and knees keeping your back straight.
Emphasis should be directed at a four-point landing (2 knees & 2
hands), and not on jumping high.
KNEE BOUNCE
Start with a low controlled basic bounce.
Land on your knees keeping your back straight, body in the
vertical position and use your arms to maintain balance.
Bounce back to the basic bounce position by swinging your arms
up.
SEAT BOUNCE
Land in a at sitting position.
Place hands on the mat beside your hips.
Return to the vertical position by pushing with your hands.
- 20 -
