Jumper JPD-FR410 User manual

JPD-FR410
Infrared Thermometer
Instruction Manual
Shenzhen Jumper Medical Equipment Co., Ltd
Manual Version: 1.0
Date of Issue: 2018/08
0482

Product Information
Product Name: Infrared Thermometer
Model: JPD-FR410
Manufacturer: Shenzhen Jumper Medical Equipment Co., Ltd
Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,
Shenzhen, Guangdong, China.
Copyright
Copyright © Jumper Medical.
All rights reserved.
Statement
Shenzhen Jumper Medical Equipment Co., Ltd. owns and reserves all of
the rights comprised in the copyright of this document. No part of this
document may be changed, excerpted, copied, reproduced, or imitated in
any form or by any means without the prior consent of Shenzhen Jumper
Medical Equipment Co., Ltd.
All statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied. The information in this document is
subject to change without notice. Shenzhen Jumper Medical Equipment
Co., Ltd. reserves the right of final interpretation of this document.
Introduction
Thank you for purchasing this Infrared Thermometer. Please read the User
Manual carefully to make sure safe and proper use of this thermometer.
Please read and fully understand the Safety Precautions before use.
Keep the Instruction Manual with this thermometer for future
reference.

Contents
Unpacking Check............................................................................................ 1
Package Contents............................................................................................ 1
Safety Precautions...........................................................................................1
Warning............................................................................................................3
Symbols........................................................................................................... 4
Body Temperature Basics............................................................................... 6
Product Description.........................................................................................7
Features............................................................................................................8
Product structure............................................................................................. 9
Display description..........................................................................................9
Sounds and backlight instructions................................................................10
Display and Operating Instructions..............................................................11
Measuring Ear Temperature......................................................................... 17
Measuring Forehead Temperature................................................................19
Measuring Object Temperature....................................................................20
Replacing Batteries....................................................................................... 21
Cleaning and Disinfection............................................................................ 22
Maintenance.................................................................................................. 23
Troubleshooting.............................................................................................24
Specifications................................................................................................ 25
Security Class................................................................................................26
Storage and Transportation...........................................................................26
EMC Information-Guidance and Manufacture’s Declaration....................27
Warranty and After-Sale Service..................................................................32

1
Unpacking Check
Please open the package carefully before use, check whether all
accessories are available or not and whether any component is damaged
during transportation, and perform installation and operation following this
user manual. In case of any damage or operation problem, please contact
the dealer or contact Jumper directly. You will need the following
information when making your claim:󳮁device model, serial number,
purchase date, and your contact information and address.
Package Contents
No.
Name
Quantity
1
Infrared Thermometer
1
2
Pouch
1
3
Battery (AAA)
2
4
Instruction Manual
1
Safety Precautions
Read the following precautions carefully before using the
thermometer.
Attention
Take care of the temperature probe lens, which is fragile.
Dispose used batteries with care. To protect the environment,

2
you are recommended to send the used batteries to a designated
collection point.
Remove the batteries if the thermometer will not be used for
more than two months.
Do not immerse the thermometer in water or expose it to direct
sunlight.
Do not subject the thermometer to vibration or impact.
The normal body temperature varies from person to person.
Tracking a person's body temperature will help determine
whether they have fever.
Do not take body temperature readings within 20 minutes after
you do physical exercises or get excited.
Clean the thermometer probe after each use.
Do not use the thermometer on newborns or for continuous
temperature monitoring purposes.
Do not use the thermometer for purposes that are not specified
in this User’s Manual. Follow the instructions in the
"Measurement Process" chapter and carefully operate the
thermometer when measuring children's temperature.
Do not immerse the thermometer in water or other liquid, as it is
not waterproof. Clean and disinfect the thermometer as
described in the "Cleaning and Disinfection" chapter.
Do not touch the tip of the temperature probe, on which a
precise temperature sensor resides.

3
Keep the temperature probe clean to make sure accurate
readings.
Before measuring the temperature from the ear canal, clean the
earwax, if any.
The ambient temperature must not be extremely high or low. To
make sure accurate readings, keep the thermometer under room
temperature for more than 30 minutes before use.
Do not use the thermometer under an ambient temperature
higher than 40°C (104°F) or lower than 10°C (50°F), which is
beyond the operating temperature range of the thermometer.
Risk of pollution! The user is recommended to send the
overdue thermometer to local garbage disposal site or send it
back to us.
2 AAA batteries of 1.5V are the only replaceable accessories of
the thermometer. Please do not use the batteries of other
voltages or specifications.
Warning
Warning
Do not force the temperature probe of the thermometer into an
ear canal. Otherwise, the ear canal may get injured.
Keep the thermometer out of the reach of children.
The result may be inaccurate if you use the overdue
thermometer.

4
The thermometer is not intended to diagnose or treat any health
problem or disease. The measurement results are for reference
only.
It is dangerous to make a self-diagnosis or self-treatment based
on the obtained measurement results. For such purposes, please
consult a doctor.
Do not charge an alkaline dry-cell battery or throw it in fire.
Otherwise, the battery may explode.
Do not disassemble the thermometer or attempt to repair it.
Otherwise, the thermometer may be damaged permanently.
Do not take temperature measurements on body parts other than
forehead and ears. Otherwise, the temperature readings may be
inaccurate.
During measurement, do not use a mobile phone or any other
device that may cause electromagnetic interference.
Do not use the thermometer in an environment where
flammable anesthetic mixture with air or with oxygen or nitrous
oxide is available.
Symbols
Symbol
Description
Type BF applied part.

5
Symbol
Description
Attention must be paid.
The action is prohibited.
Information about the manufacturer.
Date of manufacture.
Consult the instructions for use.
This product complies with the MDD93/42/EEC
requirements.
Waste electrical materials should be sent to a
dedicated collection point for recycling.
IPX0
Degree of protection against the Ingress of water.
Warning
A personal injury or damage to the thermometer
may occur if the thermometer is not used correctly.
Attention
Inaccurate reading or damage to the thermometer
may occur if the thermometer is not used correctly.

6
Body Temperature Basics
Generally, you can take a body temperature on the forehead, in the ear
canal, under the armpit, in the mouth, or in the anus. The temperature
measured at different parts of the body may differ slightly.
Body Part
Normal Temperature Range
Forehead
36.1°C–37.5°C / 97.0°F–99.5°F
Ear canal
35.8°C–38.0°C / 96.4°F–100.4°F
Mouth
35.5°C–37.5°C / 95.9°F–99.5°F
Armpit
34.7°C–37.3°C / 94.5°F–99.1°F
Anus
36.6°C–38.0°C / 97.9°F–100.4°F
The normal body temperature range slightly varies with age and gender.
Generally, newborns or children have higher body temperature than adults,
and adults have higher body temperature than the elderly. Women's body
temperature are appropriately 0.3°C higher than men's.

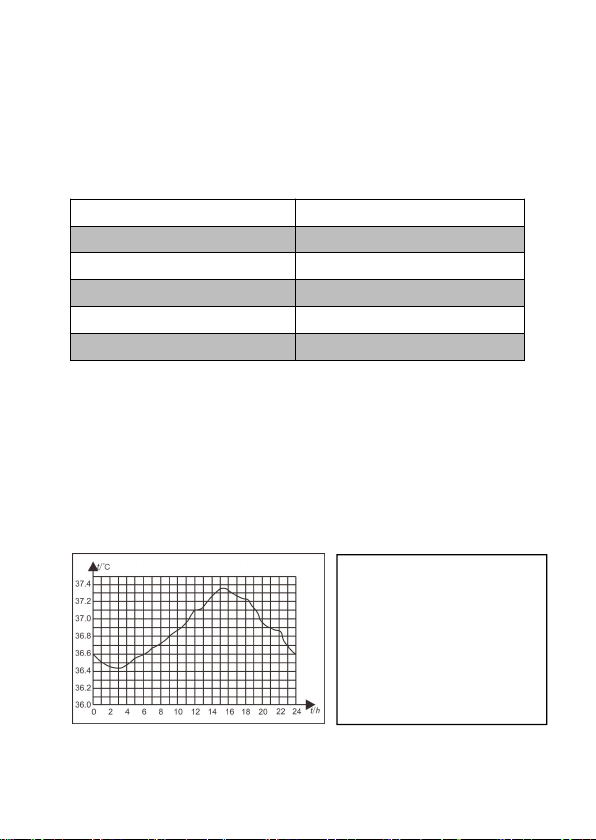

Variation in body temperature
Normal body temperature varies
by the time of day and is also
affected by external factors.
The body temperature of an
individual is the lowest between
2:00 a.m. and 4:00 a.m. and the
highest between 14:00 p.m. and
20:00 p.m. An individual's body
temperature typically changes by
less than 1°C each day.

7
Product Description
1) Overview
Infrared Thermometer JPD-FR410 measures the body temperature based
on the infrared energy emitted from the eardrum or the forehead. Users can
quickly get measurement results after positioning properly the temperature
probe in the ear canal or forehead.It can also be used to measure the
surface temperature of object.(such as milk and water)
2) Structure
The thermometer consists of a shell, an LCD, a measure button, a beeper,
an infrared temperature sensor, and a Microprocessor.

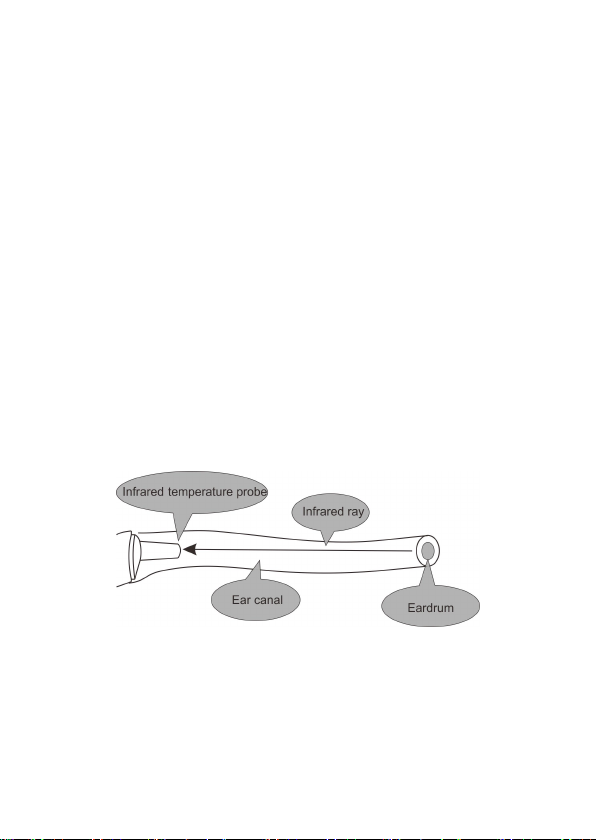

3) Operating principle
The infrared temperature sensor collects infrared energy emitted by the
eardrum or the skin surface. After being focused by a lens, the energy is
converted into a temperature reading by the thermopiles and measurement
circuits.
4) Intended use
The JPD-FR410 Dual Mode Digital Infrared Thermometer is intended for
the measurement of human body temperatures. The forehead mode is
indicated for use by people of all ages and the eardrum mode is indicated
for use by people above three months old.

8
5) Contraindications
Do not use the thermometer if the ear is infected with otitis or suppuration.
Features
01 Good safety
● Passive infrared receiving technology.
02 Easy operation
● Ergonomic design
● One button measurement
03 Quick measurement
● 1-second measurement
04 High accuracy
● Advanced infrared temperature sensor, with high sensitivity
● High accuracy with automatic temperature calibration
05 Diverse functions
● 20 reading recalled
● Fever alert
● Switching between ºC and ºF
● Automatic power-off, power saving
06 Extensive application scope
● Forehead temperature measurement applicable to all age groups
● Ear temperature measurement applicable to children older than
three months, adults, and the elderly

9

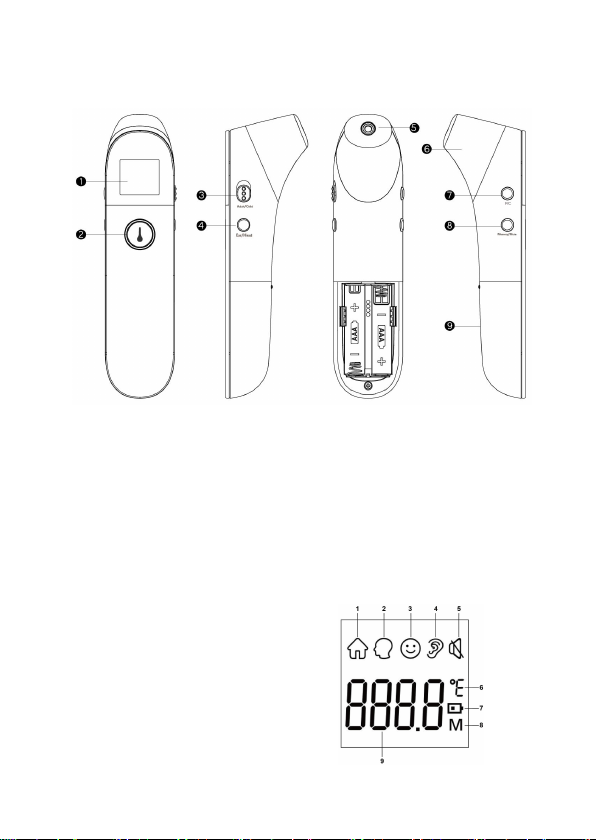

Product structure
(1) LCD display screen
(2) Power button / Measure button
(3) Adult mode / Child mode
(4) Mode button (Forehead / Ear / Object)
(5) Probe (take off the cover when measuring the ear temperature)
(6) Probe cover (put the cover on when measuring the forehead
temperature)
(7) Unit switch button(℃/℉)
(8) Memory button / Sound switch
(9) Battery cover
Display description
1. Object temperature mode
2. Adult Forehead temperature mode
3. Child mode
4. Ear temperature mode
5. Mute / un-mute
6. Temperature unit (˚C / ˚F)

10
7. Low battery
8. Memory recall
9.Temperature value
Sounds and backlight color instructions
Range
Sounds
Backlight
Forehead temperature (Adult / Child)
35.0℃-37.5℃/95.0℉-99.5℉
A long beep
Orange
37.6℃-42.2℃/99.6℉-108.0℉
3 short double beeps
Red
Ear temperature (Adult / Child)
35.0℃-37.5℃/95.0℉-99.5℉
A long beep
Orange
37.6℃-42.0℃/99.6℉-107.6℉
3 short double beeps
Red
Object temperature
0℃-100℃/32.0℉-212℉
A long beep
Orange
Note: When the forehead and the ear temperature is between
35.0°C/95.0℉and 37.5°C/99.5℉, there will be a long beep and a red
backlight.This indicates that your body temperature is normal.
When the forehead temperature is between 37.6°C/99.6℉and
42.2°C/108.0℉, and the ear temperature is between 37.6°C/99.6℉and
42.0°C/107.6℉,there will be 3 short double beeps and a red backlight.
This indicates that your body temperature is a little high. You may have a
fever. Please consult your doctor if you are not sure.

11
Display and Operating Instructions
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color

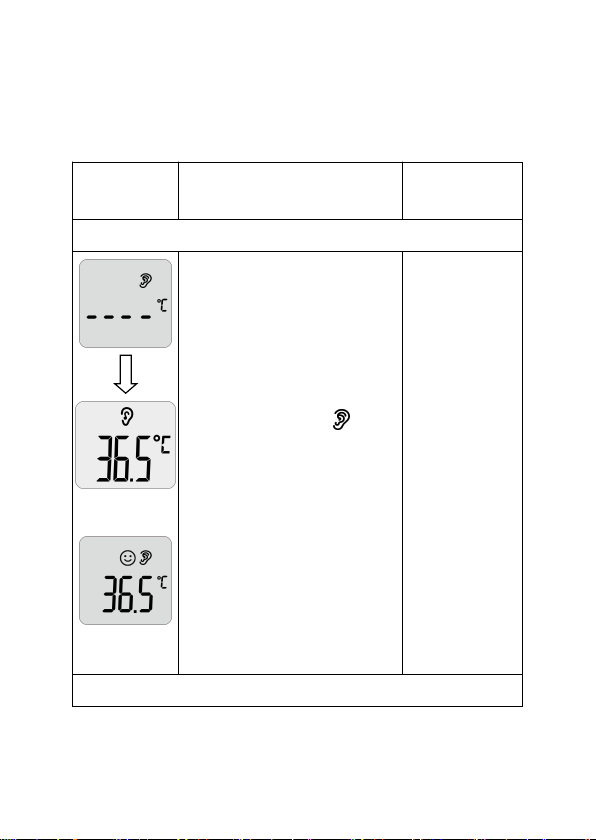

Measuring Ear temperature (Adult / Child)
Ear temperature
for adult
Ear temperature
for child
Take off the probe cover, press and
release the Power button for 1
second to power on the
thermometer. Press the Mode
button, the thermometer enters the
Ear mode. The symbol “ ” is
displayed on the screen.
Switch to the adult or child
measurement mode by dialing the
side adult/child switcher according
to your measurement needs.
Insert the temperature probe into a
proper position in the ear canal.
Press the Measure button to start a
measurement.
See the table in the
“Sounds and
backlight color
instructions”
section.

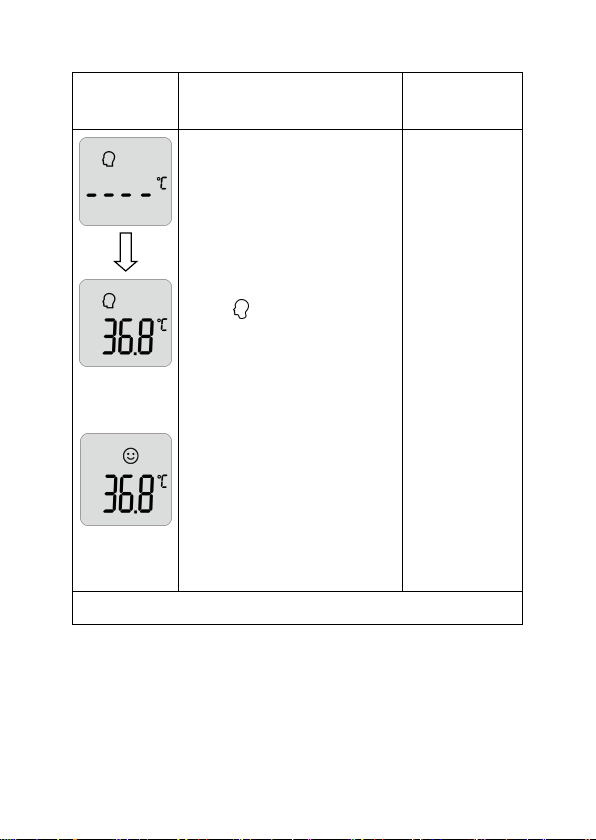

Measuring Forehead temperature (Adult / Child)

12
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
Forehead
temperature for
adult
Forehead
temperature for
child
Put the cover on the probe, press
and release the Power button for 1
second to power on the
thermometer. Press the Mode
button, the thermometer enters the
Forehead mode. The “Head”
symbol is displayed on the
screen.
Switch to the adult or child
measurement mode by dialing the
side adult/child switcher according
to your measurement needs.
Point the thermometer to the sides
of the forehead.about”1-3cm ”
away from the skin surface. Press
and release the Measure button.
The temperature will be displayed
on the screen.
See the table in the
“Sounds and
backlight color
instructions”
section.

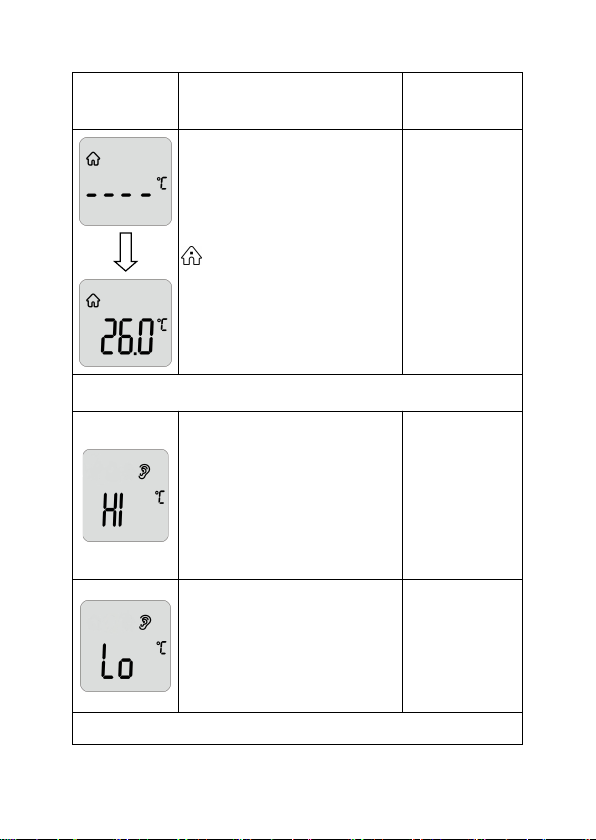

Measuring Object temperature

13
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
Press and release the Power button
for 1 second to power on the
thermometer. Then press the Mode
button. The thermometer enters the
Object mode. The “House” symbol
is displayed on the screen.
Point the thermometer to the center
of the object. Press and release the
Measure button. The temperature
will be displayed on the screen.
See the table in the
“Sounds and
backlight color
instructions”
section.
Out of the measuring range display
In Ear mode, a temperature reading
of more than 42.0ºC (107.6ºF)
In Forehead mode, a temperature
reading of more than 42.2ºC
(108.0ºF)
In Object mode, a temperature
reading of more than 100ºC
(212.0ºF)
A long beeps,the
backlight is red.
In Ear mode, a temperature reading
of less than 35.0ºC (95.0ºF)
In Forehead mode, a temperature
reading of less than 35.0ºC (95.0ºF)
In Object mode, a temperature
reading of less than 0ºC (32.0ºF)
A long beeps,the
backlight is red.
Recall 20 memories

14
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
In a power-on state, press the
Memory button enter the memory
mode.
When the Memory button is
released, 1will be shown, followed
by the recorded reading.
Press the Memory button again for
the next recorded data. 2will be
shown, followed by the recorded
reading.
A maximum of 20 temperature
readings can be recalled.
When the maximum number of
records is exceeded, the oldest
memory data will be overwritten.
Note:
1represents the newest data.
Silent,the
backlight is
orange.
No memory data / Clear memory data

15
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
When the memory data is queried,
when there is no memory data
under the current serial number, the
display is as shown.
Remove 2 dry batteries and
re-install the power to clear all
memory data.
When the power is
turned back on, a
long beep, the
backlight is
orange, then turn
red.
Switching between mute and un-mute
In the power-on state, press and
hold the sound switch button for
about 2 seconds to switch the sound
on or off. When the sound is turned
on, it will beep once and the mute
symbol will be displayed when the
sound is off.
The symbol is displayed in
Mute mode and disappears in
Un-mute mode.
When the sound is
turned on, it
sounds a long
beep and the
backlight is
orange.
Switching between object temperature and body temperature

16
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
Press the Mode button to switch
between object temperature and
body temperature.
Body temperature contains the
Forehead temperature and Ear
temperature.
Silent, the
backlight is
orange.
Switching between ºF/ºC
In the power off state, remove the
battery cover, and toggle the °C/°F
unit in the battery compartment to
switch the toggle device.
Toggle switch for ℃upwards and
downwards toggle switch as the ℉
unit.
Silent

17
Screen Display
Operating Instructions
Displayed State
Sound and
backlight color
Error information & low battery
The ambient temperature is higher
than 40.0ºC (104.0ºF) or lower than
10.0ºC (50.0ºF).
A long beeps,the
backlight is red.
An error occurs when data is being
read from or written to the memory,
or the temperature correction is not
complete.
A long beeps,the
backlight is red.
When the battery voltage is lower
than 2.5V ± 0.1V, the low battery
symbol will appear on the display.
Please replace the batteries.
Silent
Measuring Ear Temperature
1. When using the thermometer for the first time, move the battery’s
insulating piece away.
2. Take the probe cover off from the thermometer before measuring the
