Jumper PD-FR409-B User manual

JPD-FR409-BT
Infrared Thermometer
Instruction Manual
Shenzhen Jumper Medical Equipment Co., Ltd
Manual Version: 1.0
Date of Issue: 2019.8
0482

Product Information
Product Name: Infrared Thermometer
Model: JPD-FR409-BT
Manufacturer: Shenzhen Jumper Medical Equipment Co., Ltd
Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,
Shenzhen, Guangdong, China.
Copyright
Copyright © Jumper Medical.
All rights reserved.
Statement
Shenzhen Jumper Medical Equipment Co., Ltd. owns and reserves all of
the rights comprised in the copyright of this document. No part of this
document may be changed, excerpted, copied, reproduced, or imitated in
any form or by any means without the prior consent of Shenzhen Jumper
Medical Equipment Co., Ltd.
All statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied. The information in this document is
subject to change without notice. Shenzhen Jumper Medical Equipment
Co., Ltd. reserves the right of final interpretation of this document.
Introduction
Thank you for purchasing this Infrared Thermometer. Please read the User
Manual carefully to make sure safe and proper use of this thermometer.
Please read and fully understand the Safety Precautions before use.
Keep the Instruction Manual with this thermometer for future
reference.

Contents
FCC Statement................................................................................................ 1
Unpacking Check............................................................................................2
Package Contents............................................................................................ 2
Safety Precautions...........................................................................................2
Warning............................................................................................................4
Symbols........................................................................................................... 5
Body Temperature Basics............................................................................... 6
Product Description.........................................................................................8
Features............................................................................................................9
Product structure........................................................................................... 10
Display description....................................................................................... 10
Sounds and indicator color instructions.......................................................11
Display and Operating Instructions..............................................................11
Measuring Ear Temperature......................................................................... 18
Measuring Forehead Temperature................................................................20
Measuring Object Temperature....................................................................21
Connecting the Thermometer to an APP Application of a Mobile Phone.22
Replacing Batteries....................................................................................... 23
Cleaning and Disinfection............................................................................ 24
Maintenance.................................................................................................. 25
Troubleshooting.............................................................................................26
Specifications................................................................................................ 27
Security Class................................................................................................28
Storage and Transportation...........................................................................28
EMC Information-Guidance and Manufacture’s Declaration....................29
Warranty and After-Sale Service..................................................................34

1
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Notes:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions,may cause harmful interference to radio
communications.However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.

2
Unpacking Check
Please open the package carefully before use, check whether all
accessories are available or not and whether any component is damaged
during transportation, and perform installation and operation following this
user manual. In case of any damage or operation problem, please contact
the dealer or contact Jumper directly. You will need the following
information when making your claim:device model, serial number,
purchase date, and your contact information and address.
Package Contents
No.
Name
Quantity
1
Infrared Thermometer
1
2
Pouch
1
3
Battery (AAA)
2
4
Instruction Manual
1
Safety Precautions
Read the following precautions carefully before using the
thermometer.
Attention
Take care of the temperature probe lens, which is fragile.
Dispose used batteries with care. To protect the environment, you
are recommended to send the used batteries to a designated
collection point.

3
Remove the batteries if the thermometer will not be used for more
than two months.
Do not immerse the thermometer in water or expose it to direct
sunlight.
Do not subject the thermometer to vibration or impact.
The normal body temperature varies from person to person.
Tracking a person's body temperature will help determine whether
they have fever.
Do not take body temperature readings within 20 minutes after you
do physical exercises or get excited.
Clean the thermometer probe after each use.
Do not use the thermometer on newborns or for continuous
temperature monitoring purposes.
Do not use the thermometer for purposes that are not specified in
this User’s Manual. Follow the instructions in the "Measurement
Process" chapter and carefully operate the thermometer when
measuring children's temperature.
Do not immerse the thermometer in water or other liquid, as it is
not waterproof. Clean and disinfect the thermometer as described
in the "Cleaning and Disinfection" chapter.
Do not touch the tip of the temperature probe, on which a precise
temperature sensor resides.
Keep the temperature probe clean to make sure accurate readings.
Before measuring the temperature from the ear canal, clean the

4
earwax, if any.
The ambient temperature must not be extremely high or low. To
make sure accurate readings, keep the thermometer under room
temperature for more than 30 minutes before use.
Do not use the thermometer under an ambient temperature higher
than 40°C (104°F) or lower than 10°C (50°F), which is beyond the
operating temperature range of the thermometer.
Risk of pollution! The user is recommended to send the overdue
thermometer to local garbage disposal site or send it back to us.
2 AAA batteries of 1.5V are the only replaceable accessories of the
thermometer. Please do not use the batteries of other voltages or
specifications.
Warning
Warning
Do not force the temperature probe of the thermometer into an ear
canal. Otherwise, the ear canal may get injured.
Keep the thermometer out of the reach of children.
The result may be inaccurate if you use the overdue thermometer.
The thermometer is not intended to diagnose or treat any health
problem or disease. The measurement results are for reference
only.

5
It is dangerous to make a self-diagnosis or self-treatment based on
the obtained measurement results. For such purposes, please
consult a doctor.
Do not charge an alkaline dry-cell battery or throw it in fire.
Otherwise, the battery may explode.
Do not disassemble the thermometer or attempt to repair it.
Otherwise, the thermometer may be damaged permanently.
Do not take temperature measurements on body parts other than
forehead and ears. Otherwise, the temperature readings may be
inaccurate.
During measurement, do not use a mobile phone or any other
device that may cause electromagnetic interference.
Do not use the thermometer in an environment where flammable
anesthetic mixture with air or with oxygen or nitrous oxide is
available.
Symbols
Symbol
Description
Type BF applied part.
Attention must be paid.
The action is prohibited.

6
Symbol
Description
Information about the manufacturer.
Date of manufacture.
Consult the instructions for use.
This product complies with the MDD93/42/EEC
requirements.
Waste electrical materials should be sent to a
dedicated collection point for recycling.
Warning
A personal injury or damage to the thermometer may
occur if the thermometer is not used correctly.
Attention
Inaccurate reading or damage to the thermometer may
occur if the thermometer is not used correctly.
Non-ionizing radiation
Body Temperature Basics
•The normal body temperature is a range.
•The normal range varies from person to person and can fluctuate
throughout the day.
•The normal range also varies by body site. Therefore, measurements
from different sites should not be compared directly.

7
To determine if an individual is experiencing an elevated body temperature
and/or having a fever, it is critical to know the individual’s normal body
temperature when he/she is well. Take multiple readings to obtain the
normal body temperature range and note the specific body site measured,
for example: forehead or eardrum temperature.
The normal body temperature range varies slightly with age and gender.
Generally, newborns or children have higher body temperatures than
adults, and adults have higher body temperatures than the elderly.Women's
body temperatures are approximately 0.3°C (0.5 °F) higher than men's.

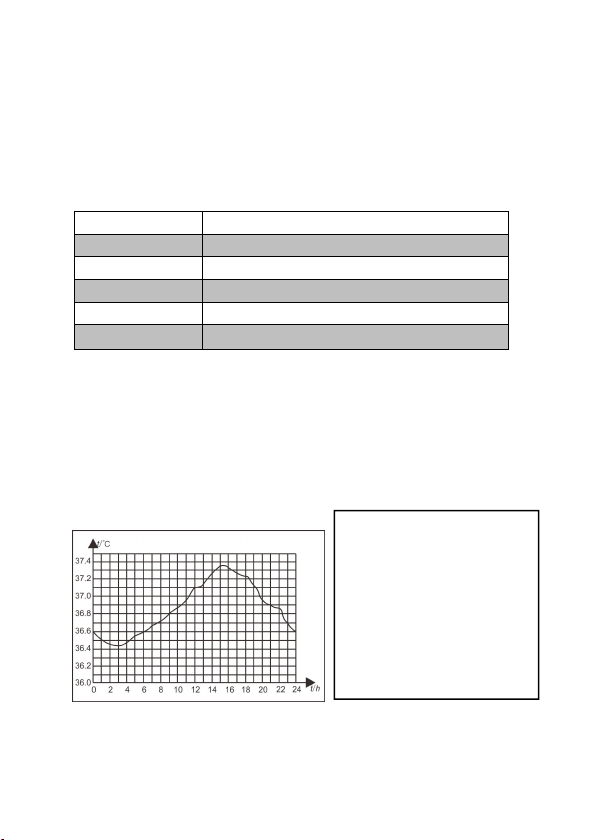

Variation in body temperature
Body Site
Normal Temperature Range
Forehead
34.7°C-37.3°C (94.5°F- 99.1°F)
Eardrum
35.8°C-38.0°C (96.4°F-100.4°F)
Mouth
35.5°C-37.5°C (95.9°F- 99.5°F)
Armpit
34.7°C-37.3°C (94.5°F- 99.1°F)
Rectal
36.6°C-38.0°C (97.9°F-100.4°F)
Normal body temperature
fluctuates throughout the day and
is also affected by external
factors.The body temperature of
an individual is the lowest
between 2:00 a.m. and 4:00 a.m.
and the highest between 2:00
p.m. and 8:00 p.m. An
individual's body temperature
typically changes by less than
1°C (1.8°F) each day.

8
Product Description
1) Overview
Infrared Thermometer JPD-FR409-BT measures the body temperature
based on the infrared energy emitted from the eardrum or the forehead.
Users can quickly get measurement results after positioning properly the
temperature probe in the ear canal or on the forehead.

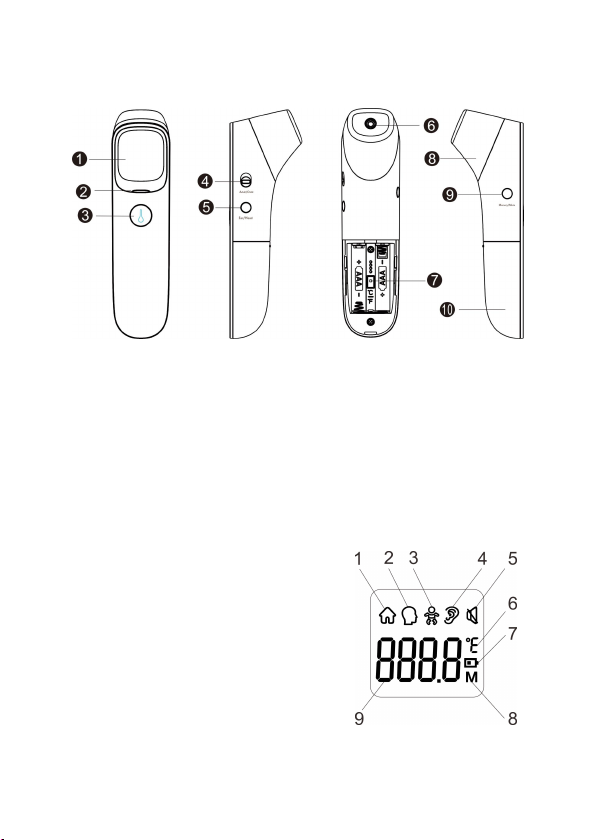

2) Structure
The thermometer consists of a shell, an LCD, a measure button, a beeper,
an infrared temperature sensor, and a Microprocessor.
3) Operating principle
The infrared temperature sensor collects infrared energy emitted by the
eardrum or the skin surface. After being focused by a lens, the energy is
converted into a temperature reading by the thermopiles and measurement
circuits.
4) Intended use
The JPD-FR409-BT Dual Mode Digital Infrared Thermometer is intended
for the measurement of human body temperatures. The forehead mode is
indicated for use by people of all ages and the eardrum mode is indicated
for use by people above three months old.
5) Contraindications

9
Do not use the thermometer if the ear is infected with otitis or suppuration.
Features
01 Good safety
● Passive infrared receiving technology.
02 Easy operation
● Ergonomic design
● One button measurement
03 Quick measurement
● 1-second measurement
04 High accuracy
● Advanced infrared temperature sensor, with high sensitivity
● High accuracy with automatic temperature calibration
05 Diverse functions
● 20 readings recall
● Fever alert
● Switching between ºC and ºF
● Automatic power-off, power saving
06 Extensive application scope
● Forehead temperature measurement applicable to all age groups
● Ear temperature measurement applicable to children older than
three months, adults, and the elderly
07 Child mode
● This mode is recommended for people under 12 years of age.

10
Product structure
(1) LCD display screen
(2) Indicator
(3) Power button / Measure button
(4) Adult mode / Child mode
(5) Mode button (Forehead / Ear / Object)
(6) Probe (take off the cover when measuring the ear temperature)
(7) Unit switch button(℃/℉)
(8) Probe cover (put the cover on when measuring the forehead
temperature)
(9) Memory button / Sound switch
(10) Battery cover
Display description
1. Object temperature mode
2. Forehead temperature mode
3. Child mode
4. Ear temperature mode
5. Mute / un-mute
6. Fahrenheit / Celsius degrees
7. Low battery
8. Memory recall
9.Temperature value

11
Sounds and indicator color instructions
Range
Sounds
Indicator
Color
Forehead temperature (Adult / Child)
35.0℃-37.5℃/95.0℉-99.5℉
A long beep
Green
37.6℃-42.2℃/99.6℉-108.0℉
3 short double beeps
Red
Ear temperature (Adult / Child)
35.0℃-37.5℃/95.0℉-99.5℉
A long beep
Green
37.6℃-42.0℃/99.6℉-107.6℉
3 short double beeps
Red
Object temperature
0℃-100℃/32.0℉-212℉
A long beep
Green
Note: When the forehead and the ear temperature is between
35.0°C/95.0℉ and 37.5°C/99.5℉, there will be a long beep and a green
indicator.This indicates that your body temperature is normal.
When the forehead temperature is between 37.6°C/99.6℉ and
42.2°C/108.0℉, and the ear temperature is between 37.6°C/99.6℉ and
42.0°C/107.6℉,there will be 3 short double beeps and a red indicator. This
indicates that your body temperature is a little high. You may have a fever.
Please consult your doctor if you are not sure.
Display and Operating Instructions
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color

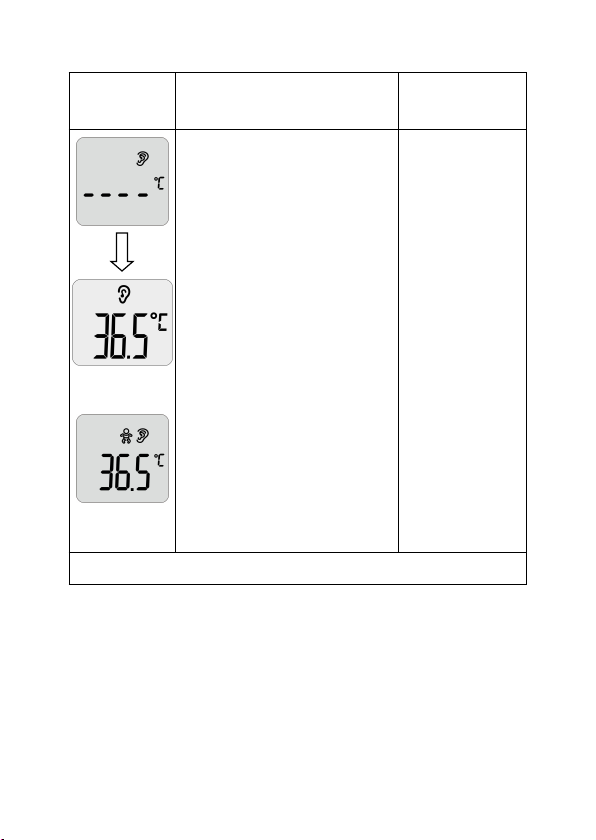

Measuring Ear temperature (Adult / Child)

12
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
Ear temperature
for adult
Ear temperature
for child
Take off the probe cover, press and
release the Power button for 1
second to power on the
thermometer. Press the Mode
button, the thermometer enters the
Ear mode. The symbol “Ear” is
displayed on the screen.
Switch to the adult or child
measurement mode by switching
the side adult/child button
according to your measurement
needs.
Insert the temperature probe into a
proper position in the ear canal.
Press the Measure button to start a
measurement.
See the table in the
“Sounds and
indicator color
instructions”
section.
Measuring Forehead temperature (Adult / Child)

13
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
Forehead
temperature for
adult
Forehead
temperature for
child
Put the cover on the probe, press
and release the Power button for 1
second to power on the
thermometer. Press the Mode
button, the thermometer enters the
Forehead mode. The “Head”
symbol is displayed on the screen.
Switch to the adult or child
measurement mode by switching
the side adult/child button
according to your measurement
needs.
Point the thermometer to the center
of the forehead.about 1-3cm away
from the skin surface. Press and
release the Measure button. The
temperature will be displayed on
the screen.
See the table in the
“Sounds and
indicator color
instructions”
section.

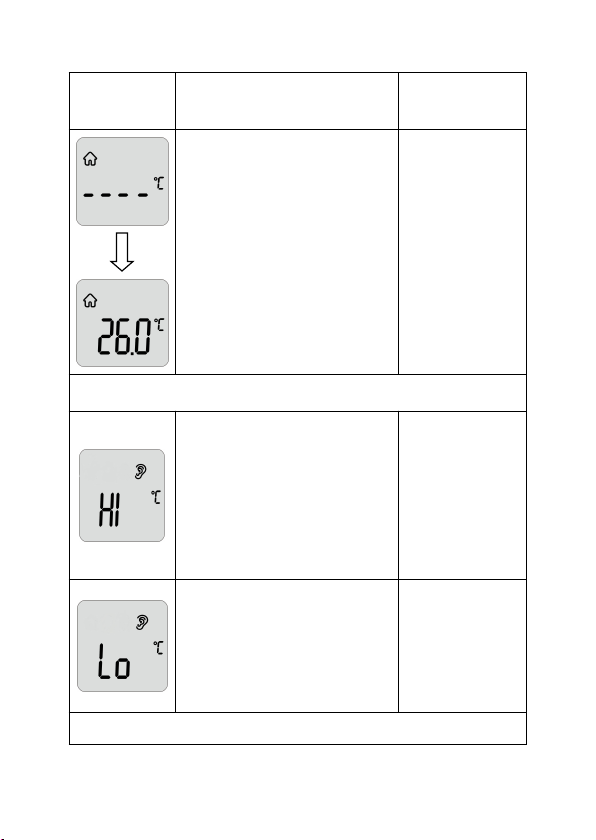

Measuring Object temperature

14
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
Press and release the Power button
for 1 second to power on the
thermometer. Then press the Mode
button. The thermometer enters the
Object mode. The “House” symbol
is displayed on the screen.
Point the thermometer to the center
of the object. Press and release the
Measure button. The temperature
will be displayed on the screen.
See the table in the
“Sounds and
indicator color
instructions”
section.
Out of the measuring range display
In Ear mode, a temperature reading
of more than 42.0ºC (107.6ºF)
In Forehead mode, a temperature
reading of more than 42.2ºC
(108.0ºF)
In Object mode, a temperature
reading of more than 100ºC
(212.0ºF)
A long beep with
the red indicator
light.
In Ear mode, a temperature reading
of less than 35.0ºC (95.0ºF)
In Forehead mode, a temperature
reading of less than 35.0ºC (95.0ºF)
In Object mode, a temperature
reading of less than 0ºC (32.0ºF)
A long beep with
the red indicator
light.
Recall 20 memories

15
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
In a power-on state, press the
Memory button enter the memory
mode.
When the Memory button is
released, 01 will be shown,
followed by the recorded reading.
Press the Memory button again for
the next recorded data. 02 will be
shown, followed by the recorded
reading.
A maximum of 20 temperature
readings can be recalled.
When the maximum number of
records is exceeded, the earliest
memory data will be overwritten.
Note:
01 represents the latest data.
Silent,the indicator
light is green.
No memory data / Clear memory data

16
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
The display is as shown , when
there is no more data checked while
recalling memories. Remove 2 dry
batteries and after 10 seconds
re-install the power to clear all
memory data.
With a long beep,
the green indicator
light shows up and
turn red, when
device is powered
on.
Switching between mute and un-mute
In the power-on state, press and
hold the sound switch button for
about 2 seconds to switch the sound
on or off. When the sound is turned
on, it will beep once and the mute
symbol will be displayed when the
sound is off.
The symbol is displayed in
Mute mode and disappears in
Un-mute mode.
When the sound is
turned on, the green
indicator light
shows up with a
long beep.
Switching between object temperature and body temperature

17
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator Color
Press the Mode button to switch
between object temperature and
body temperature.
Body temperature contains the
Forehead temperature and Ear
temperature.
The silent green
indicator light
Switching between ºF/ºC
In the power off state, remove the
battery cover, and toggle the
°C/°F unit in the battery
compartment to switch the toggle
device.
Toggle switch for ℃upwards and
downwards toggle switch as the ℉
unit.
Silent
