Jumpking JKR1014G16 User manual
10ft x 14ft Rectangle Combo
User Guide
WARNING: Read these assembly instructions carefully
before attempting to assemble or use this product. Keep
this user guide in a safe place for future reference.
Got a Problem building your trampoline?
Call us on 0344 800 4060 and we can help
Patent no: DE602006006495D1, EP1721640B1 and US7628731
Made In China
IMPORTANT INFORMATION
2
. WARNING! ADULT SUPERVISION & GUIDANCE REQUIRED AT ALL TIMES.
. Recommended age 6+ years.
. No somersaults or flips - can cause serious injury.
WARNINGS!
. Only for domestic use.
. Maximum user weight limit 140 kg.
. Not suitable for children under 36 months - small parts, choking hazard.
. Outdoor use only.
. The trampoline should be assembled by an adult in accordance with assembly instructions
and checked in every instance before use.
. Only one user. Collision hazard.
. Always close the net opening before jumping.
. Remove footwear before jumping on the trampoline.
. Do not use the mat / jumping bed when it is wet.
. Empty pockets and hands before jumping.
. Always jump in the middle off the mat / jumping bed.
. Do not eat whilst jumping.
. Do not exit by a jump.
. Limit the time of continuous usage (make regular stops).
. Do not use in strong wind conditions and sec
. The net should be replaced every 1 year.
ure the trampoline.
ADVISORY
. This trampoline is not intended to be buried in the ground.
. The following product dimension relate to this trampoline:
- Height from ground to top rail: 89 cm (0.89m)
- Height from ground to top of enclosure: 278 cm (2.78m)
- Height from top rail to top of enclosure: 189 cm (1.89m)
. The trampoline must be placed on a level surface at least 2m from any structures or
obstructions such as fence, garage, house, overhanging branches, laundry lines or electrical
wires.
. Do not install the trampoline over concrete, asphalt or any other hard surface not at
proximity of other conflicting installation, such as paddling / swimming pools, swings, slides
or climbing frames.
. Inspect trampoline / enclosure net before each use. Any damaged or worn parts must be
replaced before using the trampoline (see spare parts page 19).
. If an access ladder is used it should be removed when trampoline is not in use.
. Make sure there are no children / animals / obstructions underneath the trampoline.
. Access the trampoline through the door of the enclosure net only. Making sure you securely
close it before bouncing.
. Please don’t use when it’s windy or rainy as this can cause you slip and become injured.
. Don’t intentionally rebound off the enclosure net as this will weaken it.
. Only attach manufacturer approved accessories to the trampoline and enclosure net.
. Always jump in the middle of the mat and practice bounce techniques safety with adult
supervision and guidance.
. Jump without shoe.
. In certain countries during winter period, the snow load and the very low temperature can
damage the trampoline. It is recommended to remove the snow and store the mat and the
enclosure indoor.
JUMPING INSTRUCTIONS
Fundamental Bounce
1. Start from a standing position with
your head erect and your eyes on the
frame pad.
2. Swing your arms forward and up in a
circular motion.
3. Bring your feet together and point
your toes downward while in the air.
4. Keep your feet about 30 cm (15 in.)
apart from when landing on the bed.
Seat Drop
1. Land in a sitting position with your
legs parallel to the bed.
2. Place your hands on the bed beside
your hips.
3. Push with your hands to return to an
erect position.
Hand and Knee Drop
1. Start bouncing from a standing
position, keeping your eyes on the
frame pad.
2. Land on the bed on your hands and
knees.
3. Push with your hands and come back
up to an erect position.
HalfTurntable
1. Start from the front drop position
and push to the left or right with
your arms to begin turning your body
in the opposite direction.
2. Turn your head and shoulders
toward the direction that your body
is turning.
3. Keep your back parallel to the bed
and your head up.
4. After completing a half turn, land in
the front drop position.
Knee Drop
1. Start bouncing from a standing
position, keeping your eyes on the
frame pad.
2. Land on your knees, keeping your
back straight and your body erect.
3. Come back up to an erect position.
Swivel Hips
1. Start with a seat drop.
2. Turn your head to the left or right
and swing your arms up in the same
direction.
3. Turn your hips in the same direction
as your head and arms, completing a
twist.
4. Land in the seat drop position.
3
IMPORTANT PRECAUTIONS
surface.
1 user allowed at any one time.
This can result in serious injury to head, neck, arms or legs.
4
CARE & MAINTENANCE
Regular care and maintenance of your trampoline is required. This will help prolong its life and reduce
the possibility of injury. Neglecting this can lead to a risk for users.
Inspect your trampoline before each use using the checklist below as a guide. Take particular care in
doing this at the start of each season and at regular intervals. Ensure all parts are in tact and cannot
become dislodged during play, tighten any screws or nuts and bolts where required.
IMPORTANT: If any faults are found, the trampoline MUST NOT BE USED. We advise that the
trampoline is dismantled and placed in a dry place until new parts are
Looking after your trampoline:
Excess weight and improper use will damage it and
cause it to break easily.
If any part becomes dirty, clean with a damp cloth and dry thoroughly. Do
not use any abrasive cleaners as this could damage the product.
Prolonged exposure to sun
and harsh weather can shorten its life.
(available to buy from our website).
Common damage can be caused by water pooling, garden/outdoor debris landing on it, sparks
from nearby or displays landing on it.
their claws can damage it.
A trampoline can act like a sail in strong winds. It can be blown over
which can cause damage to the frame and surrounding areas. We recommend that it is moved
to a sheltered location and secured to the ground (tie-down kit available from our website), or
dismantled and stored away.
Follow assembly
instructions in reverse order making sure the springs are removed before dismantling frame.
To be lifted by 2 people. Lift slightly off the ground,
keeping the frame horizontal. Never drag to move it as this can displace parts. Always check that
parts are positioned correctly after moving.
PART
All Parts
Springs
Frame / Enclosure
Poles
Bed / Enclosure
Net / Frame Pad /
Foam Tubes
CHECKLIST
Securely attached
Correctly positioned
No sharp edges or points present
No missing parts
No damage (bent / broken)
No missing parts
No bent parts
No damage
No rusting or corrosion
No missing parts
(e.g. V-rings / Ties / Zips etc.)
No sagging
No damage
(Holes / Rips / Fraying / Tearing)
NOT OKOK
BUILDING YOUR TRAMPOLINE

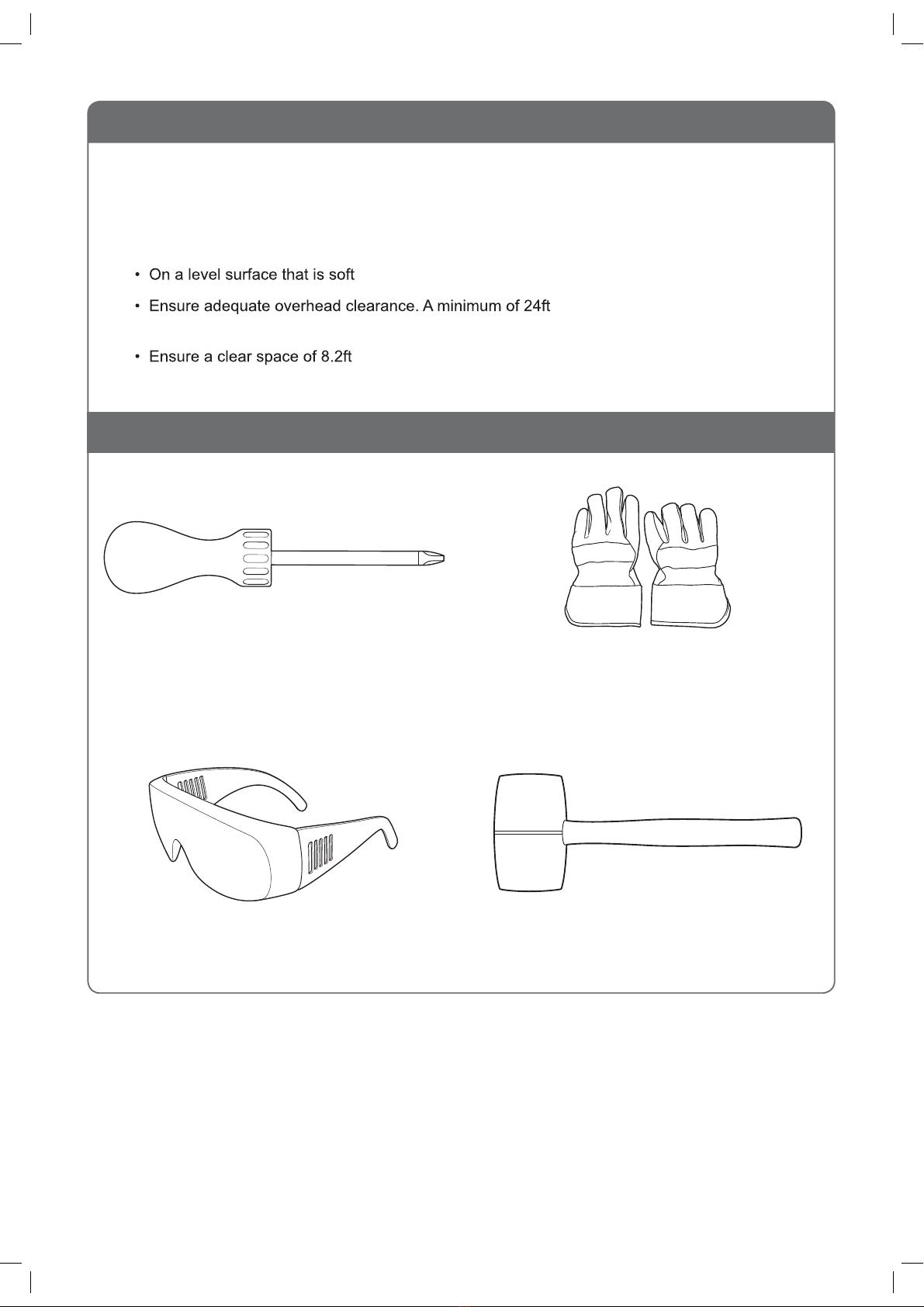

Description:
Safety glasses
Description:
Cross-head screwdriver
Description:
Mallet
Description:
Gloves
WHAT YOU WILL NEED
1. This is a 2 person build.
2. Time for build is approximately 2 hours.
3. Choose a good location:
(wood chippings, sand or grass).
(7.3m) from ground level, away from
wires, trees and other possible hazards.
(2.5m) around sides, away from walls, fences, structures, tarmac
and other hard surfaces and play areas.
5
6
PARTS LIST
Part B
Part FPart H
Part K
Part P
Part I
Part NPart O
Part C
Part M
Part L
Part
GPart J
Part DPart E
Part A
Description:
Top Tube
B, C marking
Quantity: 2
Description:
L-Top tube
Quantity: 4
2 x ABL - Top Tube
2 x CDL - Top Tube
Description:
Stitched bed
Quantity: 1
Description:
Top enclosure poles
Quantity: 8
Description:
Enclosure netting
Quantity: 1
Description:
7inch Springs
Quantity: 104
Description:
Bottom enclosure
poles
Quantity: 8
Description:
Cords
Quantity: 8
Description:
Cap connector
Quantity: 8
Description:
Leg extensions
Quantity: 8
Description:
Spring tool
Quantity: 1
Description:
Quantity: 24
Description:
Centre legs
Quantity: 4
Description:
Frame pad
Quantity: 1
Description:
Black G3 poles
Quantity: 2
2 x Long Sections
2 x Short Sections
Self tapping screws
and spring washers
Description:
Top Tube
A, D marking
Quantity: 2
Part QPart R
Description:
Description:
G3 L Steel Connector
(Have been attached to
the G3 poles Part L)
Quantity: 4
T-connector +
Welded tube
(Have been attached to
the top rail)
Quantity: 8
7
First we will complete the two sections of
the trampoline frame.
BA
Insert the Center leg and leg extensions into upright
.rotcennoc-Tnoebut
Note: You may need to tap the leg extension in
using a rubber mallet or by placing a piece of
wood over the top of the tube. Do not use a metal
hammer on the metal tube as this may distort the
end of tube.
D
Screw one of the self tapping screws through the
slot in the T-connector and into the hole in
the leg extension using the cross-head screwdriver.
STEP 1 : ASSEMBLING THE FRAME
You will need the following parts to complete
section 1a:
4 x L-Top tube with Welded connector
(2 pcs one side A marking and one side B marking,
2 pcs one side C marking and one side D marking)
- Part A & Q
ebutpoTx2 - Part B
ebutpoTx2 - Part C
8 x Leg extensions - Part E
4 x Centre legs - Part D
A
B
D
E
L-Top tube
Top tube B, C marking
Centre leg
Leg extension
16 x Self tapping screws & washers -- Part N
You will also need a cross-head screwdriver
(not supplied).
Self tapping screw and washer
Cross-head screwdriver
With A marking
With A marking
With D marking
With B marking
With B marking
With C marking
B
CTop tube A, D marking
With A marking
With A marking
With D marking
With D marking With C marking
With B marking
With B marking
With C marking
Slot the narrow end of the top tube with
T-connector. Ensure the welded tube of
the T-connector is facing inwards.
8
Important: The frame is held together under
tension so you will have to use some force to
insert certain parts.
Place your feet on the top tubes and grip the leg
extension with both hands.
Pull the extension until it can be slotted into the
T-connector.
Slot the end of leg extension into the
T-connector.
Push down on the end of the centre leg to fully
.rotcennoc-Tehtotninoisnetxegelehttesni
You have now completed the frame section.
Repeat the last two steps until you have
assembled the remaining sections of the trampolines
frame.
You have now completed step 1.
Screw one of the self tapping screws through the
slot in the T-connector and into the hole in
the leg extension using the cross-head screwdriver.
With B marking
With A marking
9
This step will require 2 people who must be
wearing gloves.
Slot two of the frame section together as shown in
the diagram.
You will now need to slot the frame together, this
will take some force. The easiest method is if the
two people face each other.
Important: Ensure all of the top tubes, leg
extensions and centre legs are fully inserted.
The frame is now fully assembled and you have
now completed step 2.
Hold the top tubes either side of the
T-connector+welded tubes and push
towards each other until the loose end of the
frame can be inserted into the T-connector.
STEP 2 : ASSEMBLING THE FRAME
With C marking
With D marking
With D marking
With A marking
With A marking
With C marking
With B marking
With B marking
10
STEP 3 : FITTING THE STITCHED BED
This step will require 2 people who must be
Part H
Part F and O
wearing gloves and protective eye wear.
Lay the stitched bed (with the V-Rings) out inside
the frame of the trampoline with the warning labels
facing upwards.
Important: springs must be slotted on the right way
around.
Slot the other end of the spring into one of the
spring slots in the top of the frame.
IMPORTANT: Ensure the spring is fully
inserted into the slot on the top of the frame.
Locate the 4 V-Rings at 4 corners.
Slot one of the springs onto one of the
V-Rings as shown.
11
Attach a spring to the corner V-ring.
Important: You will now need to use the spring
tool to attach the spring to the frame.
Hook the spring tool onto end of spring, and pull
until the spring can be slotted into the spring slot
on the top of the frame.
IMPORTANT: Ensure the spring is fully
inserted into the slot on the top of the frame.
Attach four more springs to the V-Rings then attach
them to the frame next to the T-connector+welded tube.
T-connector+welded tube
Continue to attach springs in the same sequence
as above: in the middle of each section, making
sure the next spring is attached on the opposite
side to even out the tension.
Important: The stitched bed is designed like
elastic to be bouncy, which means that during
construction it may look like it won’t Please
note that it will stretch to the correct size when
attaching the springs, this may take some force.
The stitched bed is now and you have
completed step 3.
1
2
3
4
5
6
7
8
12
STEP 4 : FITTING THE FRAME PAD
This step will require 2 people.
Lay the frame pad - Part I out over the edge of
the frame with the ties facing downwards.
Align the openings in the frame pad with the
T-connector+welded tube's on the frame.
The frame pad is now and you have
completed step 4.
WARNING: The trampoline MUST NOT be used
during construction.
ABC
Frame Pad Frame Pad
Frame Pad
Top tube
Top tube
Top tube
Webbing Webbing Webbing
D-ring D-ring
D-ring
Look under the trampoline and locate the pairs
of straps near the edge of bed(6) and Double
D-ring and webbing near the frame.
See the inset drawing. A, B and C. Repeat this
step with the remaining straps (not shown).
Please note the other straps located closer to the
springs of the trampoline these will be attached later
on.
STEP 5 : FITTING THE ENCLOSURE TUBES
You will need the following parts to complete step 5:
8 x Top enclosure tubes
- Part J
8 x Bottom enclosure tubes
- Part K
8 x Self tapping screws & washers -- Part N
You will also need a cross-head screwdriver (not
supplied).
Slot the thin end of one of the bottom enclosure
tubes into the open end of one of the top
enclosure tubes.
Align the hole in the bottom enclosure tube with
the slot in the top enclosure tube.
Screw one of the self tapping screws through the
slot in the top enclosure tube and into the hole in
the bottom enclosure tube using the cross-head
screwdriver.
Top enclosure tube
Bottom enclosure tube
Self tapping screw and washer
Cross-head screwdriver
13
Please note the screw is larger than the hole.
Some force will be needed to screw this in.
14
Slot the bottom enclosure tube into the tubes in
stolsehthguorhtelbisivsebutdedlew+rotcennoc-Teht
in the frame pad.
Slot the eight enclosure tubes into the
T-connector+welded tube's on the frame.
The enclosure tubes are now and you have
completed step 5.
Repeat this step for the remaining seven enclosure
poles.
Screw the enclosure poles into the
T-connector+welded tube, securing them to the
frame.

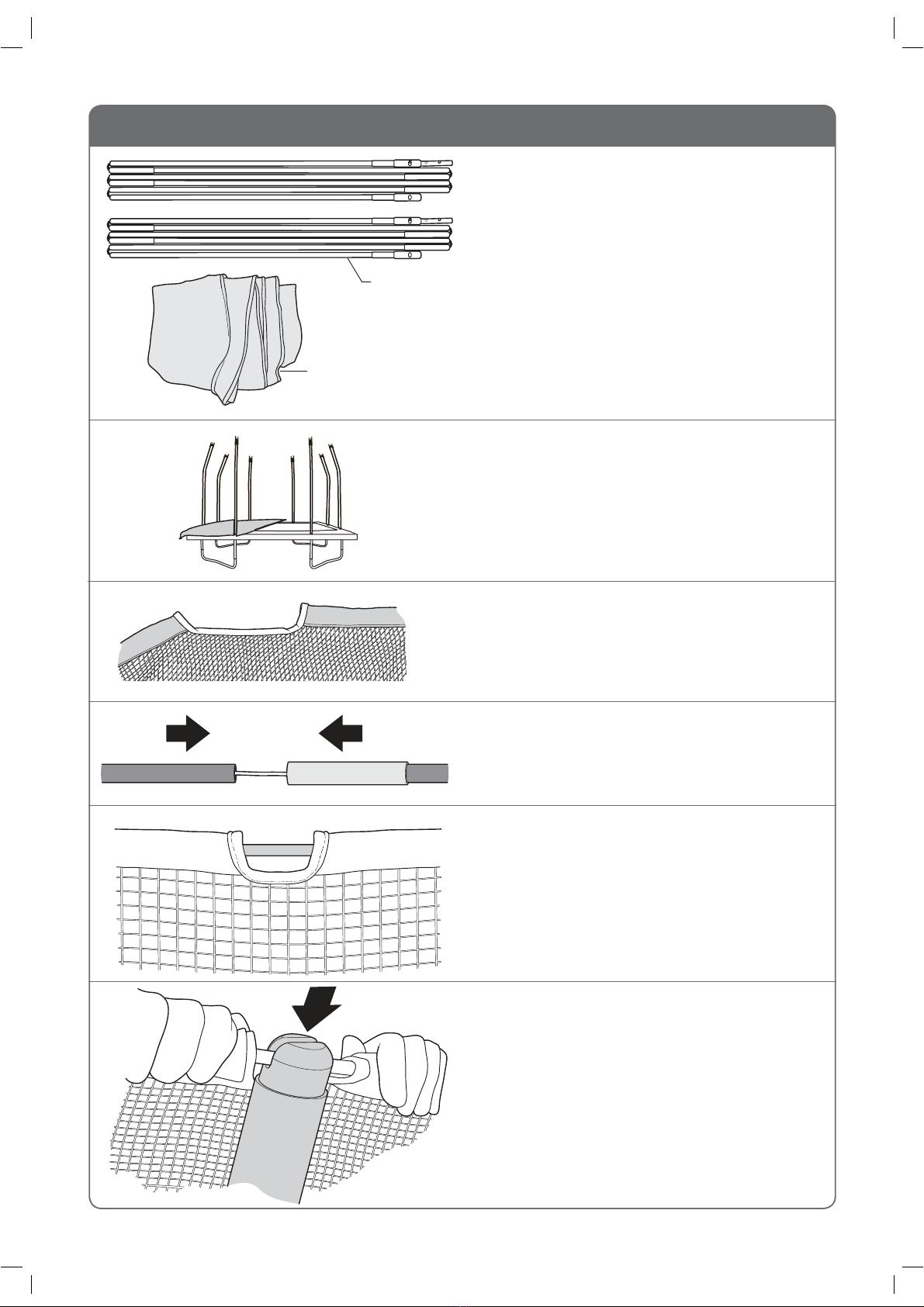

STEP 6 : FITTING THE ENCLOSURE NETTING
You will need the following parts to complete step 6:
1 x Enclosure netting - Part M
Lay the enclosure netting out on the trampoline.
Enclosure
netting
15
2 x Black G3 poles - Part L and R
Find the sleeves that run along the top of the
enclosure netting.
Slot the thin sections on the two black G3 poles
into the metal ends so the poles become two long
sections.
Black G3
poles
You may need to slide the connected poles around
in the nettings sleeves until the thin black sections
are aligned with the gaps between sleeves.
(2 x Long Sections 2 x Short Sections)
With the netting hanging on the inside of the
enclosure poles, stand on the trampoline and
insert one of the exposed sections of the Black
G3 pole into a plastic grip on top of one of the
enclosure tubes.
Attach the seven other exposed sections of the
G3 rods to the other enclosure tubes in the
order shown in the diagram.
The enclosure net is now and you have
completed step 6.
16
4
5
6
78
Ensuring the four corners of the FRP Rods are in
the exposed sections.
17
STEP 7 : ATTACHING THE BOTTOM OF THE NET
You will need the following parts to complete step 7:
8 x Cords
- Part P
.
Tie the non-plastic end of the cord around a
V-Ring. Push the plastic end through a hole in
the bottom of the netting.
Important: Keep the cord tight at all times.
Slot plastic end of the cord through the middle
of the next V-Ring along.
Now slot the plastic end back through the net
and down through the next V-Ring. Continue to do
this until you have used up nearly all the cord then
tie this end around a V-Ring.
Tie another cord to this V-Ring and continue until
all of the net is tied down.
From the underside of the trampoline, tie the
remaining elastic straps around the springs or
through the V-Rings.
You have completed step 7 and the trampoline is
fully assembled.
USING THE TRAMPOLINE
To enter the trampoline, unzip the door and climb
in.
Always close the doorway before using the
trampoline.
Ensure that there is 7.3 metres (24 feet) clearance
above the trampoline.
Also check that there are no overhanging objects
in the area above the trampoline.
7.3m
24ft
Door
zip
18
2.5m
8.2ft
Before using your trampoline, check again that
there is enough clearance around it. Maintain a
clear space of 2.5 metres (8.2 feet) on all sides of
the trampoline.
Also check that the area is free from walls,
structures, fences, tarmac and other hard surfaces
and other play areas.
SPARE PARTS
For a full range of accessories and replacement parts call 0344 800 4060
or visit our web site at: www.jumpking.eu
Customer Helpline on:
0344 800 4060.
To help us assist you, please provide the following information when calling:
JKR1014G16
(see parts list below).
19
19
16
18
17
9
10
5
5
4
4
6
6
1A
1A
2
2
4
5
6
6
7
8
11
12
13
15
14
2
2
3
4
Key
No. Qty. Description
Key
No. Qty. Description
1 4 L Frame Tube
2 4 Top Tube
(2 pcs with B and C marking on each side,
2 pcs with A and D marking on each side)
3 8
4 8 T
(2 pcs A marking, 2 pcs B marking
2 pcs C marking, 2 pcs D marking)
-Connector+Welded tube
5 4 W-Leg
6 8 Leg Extention
7 1 Stitched Bed with V-ring
8 1 Frame Pad
9 104 7” Length Springs
10 1 Spring pulling tool
11 8 Straight Poles
12 8 Top curve pole
13 8 Plastic cap
14 1 Netting with attached Hardware
15 16 Foam Sleeve
16 24 Self-tapping scre
17 1 Set of G3 FRP
18 1 User Manual
19 8 PP-Rope
Connector cap
(2pcs, one side A marking, one side B marking
2pcs, one side C marking, one side D marking)
Table of contents
Other Jumpking Accessories manuals
