JUPITERBIKE DISCOVERYx7 User manual

USERS MANUAL
Folding Electric Bike | Vélo Pliant Electric | Bici Eléctrica Plegable

2
Structural Diagram.........................................................2
Specications ....................................................................3
Unfolding The Bike Frame.........................................4
Unfolding the Handle Stem .....................................5
Installing The Handle ...................................................6
Installing The Seat Post ..............................................7
Unfolding the Pedals....................................................8
Battery and Charger Care ..........................................8
Removing The Battery .................................................9
Turning On Your Bike..................................................10
Rear Saddle Light ....................................................... 10
The LCD Display............................................................11
Precautions When Riding....................................... 12
Care & Maintenance .................................................. 13
Warnings............................................................................ 14
Warranty ............................................................................ 15
Returns................................................................................ 16
TABLE OF
CONTENTS

3
STRUCTURAL DIAGRAM
NOTE:
Manual illustrations are for demonstration purposes only. Illustrations may not reflect exact
appearance of actual product. *Specifications subject to change without notice.*
Max Range: 34 Miles
Max Speed: 16 MPH
Max Load: 265 lbs
Tire Pressure: 40-60 psi
*Mileage is subjected to weight, road conditions, temperature,
wind speed, riding habits, etc. The bike was tested
in conditions, which consisted of: 143lb Load, 77°F temperature,
riding on flat road, wind less than .5 mph and with full charge.
*Please use the original charger that was provided with purchase.
*The warranty becomes invalid in the instance of any unauthor-
ized bike modification.

4
PACKING CONTENTS:
Discovery X7 Electric Bike
Saddle & Seat Tube
User Manual
Charger
In Frame Battery
2 Keys for Battery Lock
Front & Rear Mudguards
SPECIFICATIONS
MOTOR & BATTERY
Motor Wattage: 36V / 350w
Charging Time: About 5 hours
Waterproof Rating: IP54
Battery Capacity: 36V / 7.8Ah
Battery Type: Lithium Ion
Charging Current 2A max
METER:
Display: LCD Display
Remaining Power: Yes
Speed: Yes
Total Mileage: Yes
Speed Mode: 3 Modes (High, Mid, Low)
COMPOSITION
Suspension: Rear Spring Shock Absorber
Frame: Magnesium Alloy Unibody Frame
Brake Type: Front & Rear disc
Production dimensions:
Folded: 35.4” x 15.7” x 31.5”
Unfolded: 62.2” x 22.8” x 43.3”
Seat Height (from ground) 30” - 36” (adjustable)
Net Weight (with battery) 48 lbs
Wheel Base: 45 Inches
Tire Size: 20 inches

5
limit screw
UNFOLDING THE BIKE FRAME
1: Unfold the bike frame. 2: Press the latch lock to
release mechanism. Adjust limit
screw if necessary.
3: Proceed when you achieve the
status as pictured.
4: Fasten the latch as pictured.
Jiggle the frame to make sure it
is locked firmly.

6
UNFOLDING THE HANDLE STEM
1: Tilt stem upright to
ensure it connects
seamlessly with the base.
Note: Hinge does not
align with body to allow
stem to fold down.
2: Fasten the stem latch
upward to lock it in place.
Jiggle the stem to see
if the folder has firmly
locked in place.
3: To fold the stem, press
the latch lock then
release the stem latch
back down.

7
1: Lift the quick-release lock
from the handlebar holder and
remove the lower screw.
2: Set aside the nut and gasket but
leave screw in place.
3: Place the handle bar inside the
holder, then close the holder
allowing the screw to come
through the bottom hole.
4: Adjust handlebar angle and
position to your preference.
Then reinstall the nut and
gasket to tighten.
INSTALLING THE HANDLE(IF NEEDED)

8

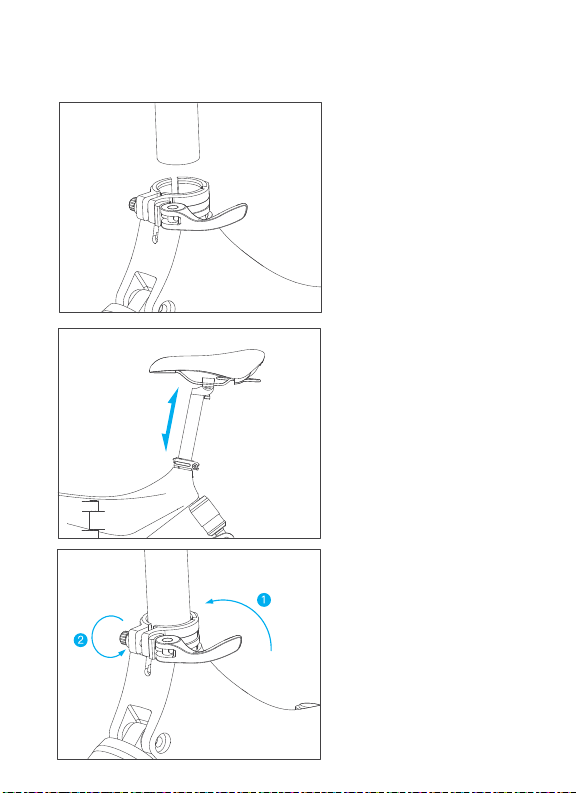

1.Loosen the seat post clamp
and insert saddle post.
2: Adjust the saddle until
its bottom is 25-50mm
higher than the rider’s
leg, or whatever height is
comfortable to the rider.
3: To secure the saddle,
tighten the seat post clamp
as pictured, then press the
seat downward firmly to
ensure it stays in place.
INSTALLING SEAT POST

9
UNFOLDING THE PEDALS
1: Lower pedal into place 2: Fold pedal back up by pressing
inward & upward
CHARGING THE BATTERY
Be sure to charge the battery before your rst ride!
Option 1: Uncover silicon lid and
insert charger to charge from
the bike frame port.
Option 2: Remove battery
and plug charger in directly.

10
REMOVING THE BATTERY

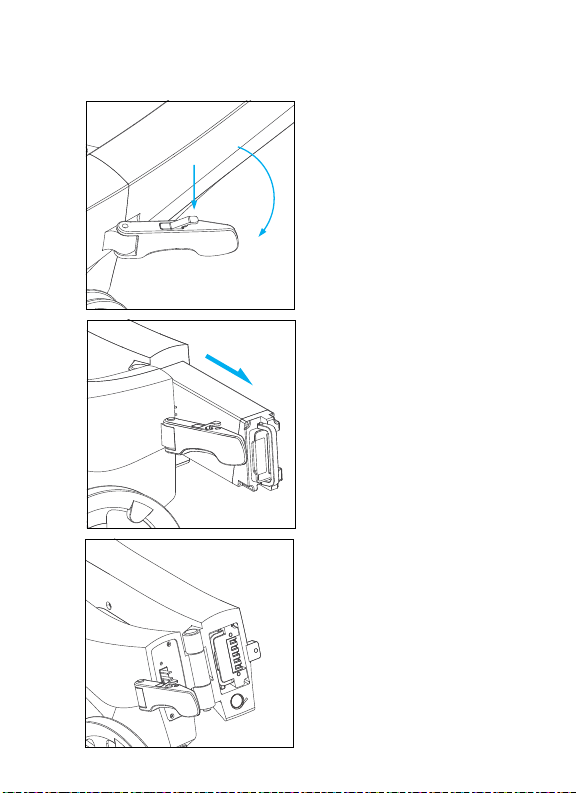

1: Unfold frame by
pressing the latch lock
and pulling the frame
latch away from frame.
2: With bike folded, turn
battery lock, then slide
battery out from frame.
3: Reverse the procedure
to re-install the battery.
