JVC CD Receiver KW-XG701 User manual

ENGLISH
CD RECEIVER
KW-XG701
For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0461-003A
[EX/EU]
For canceling the display demonstration, see page 4.
Cover_KW-XG701_003A_1.indd 1 3/7/07 2:52:51 PM

ENGLISH
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.

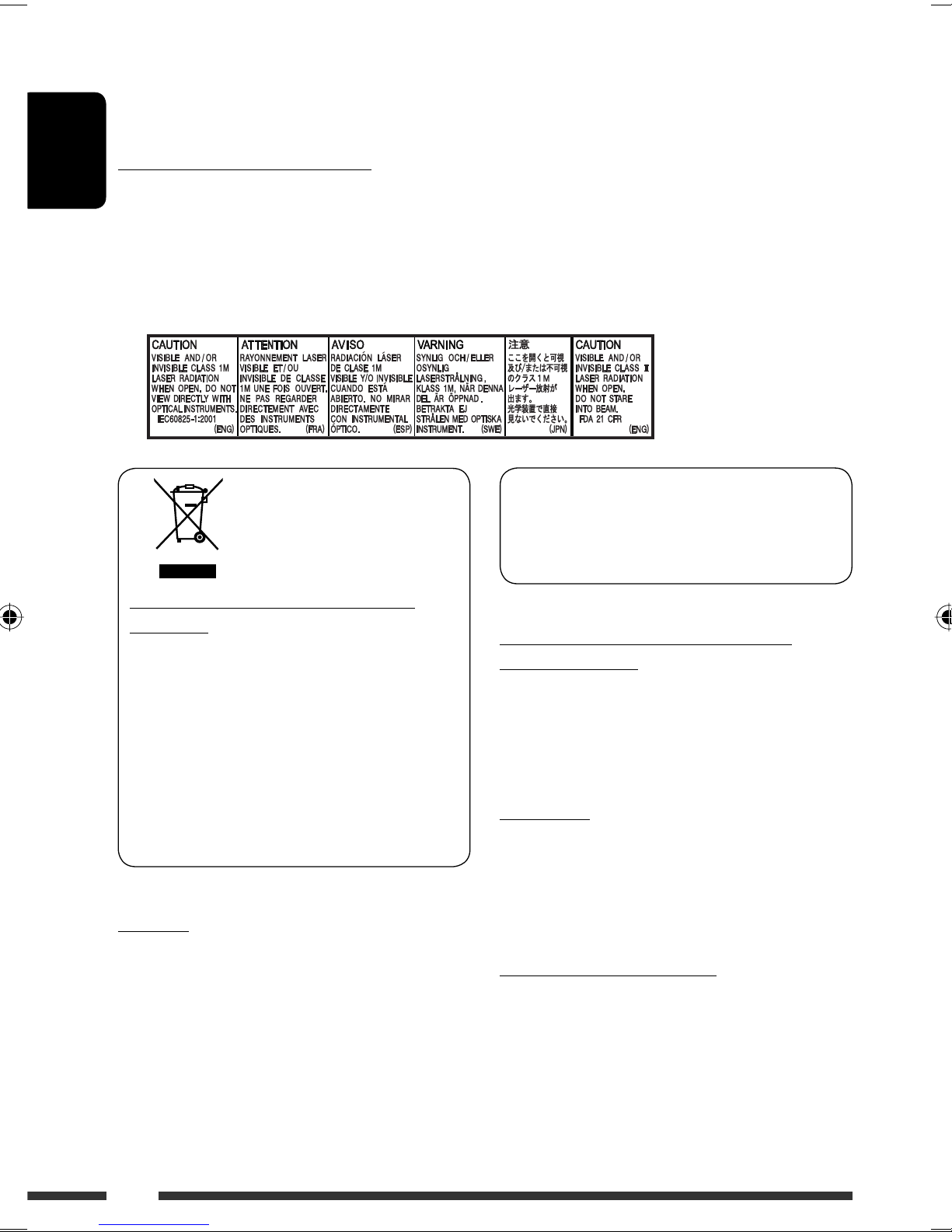

IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
Information for Users on Disposal of Old
Equipment
This symbol indicates that the product with
this symbol should not be disposed as general
household waste at its end-of-life. If you wish to
dispose of this product, please do so in accordance
with applicable national legislation or other rules in
your country and municipality. By disposing of this
product correctly, you will help to conserve natural
resources and will help prevent potential negative
effects on the environment and human health.
Warning:
If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
This symbol is only valid in
the European Union.
This unit is equipped with the steering wheel
remote control function.
• ee the Installation/Connection Manual (separate
volume) for connection.
Note: Only for [EX] model users in UK and
European ountries
For security reasons, a numbered ID card is provided
with this unit, and the same ID number is imprinted on
the unit’s chassis. Keep the card in a safe place, as it will
help the authorities to identify your unit if stolen.
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• top the car before performing any complicated
operations.
Tem erature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
EN02-07_KW-XG701_003A_1.indd 2EN02-07_KW-XG701_003A_1.indd 2 3/7/07 2:52:58 PM3/7/07 2:52:58 PM

ENGLISH
3
How to reset your unit
• Your preset adjustments will also be erased (except
the registered Bluetooth device and preset tuner
station, see pages 8 and 14)

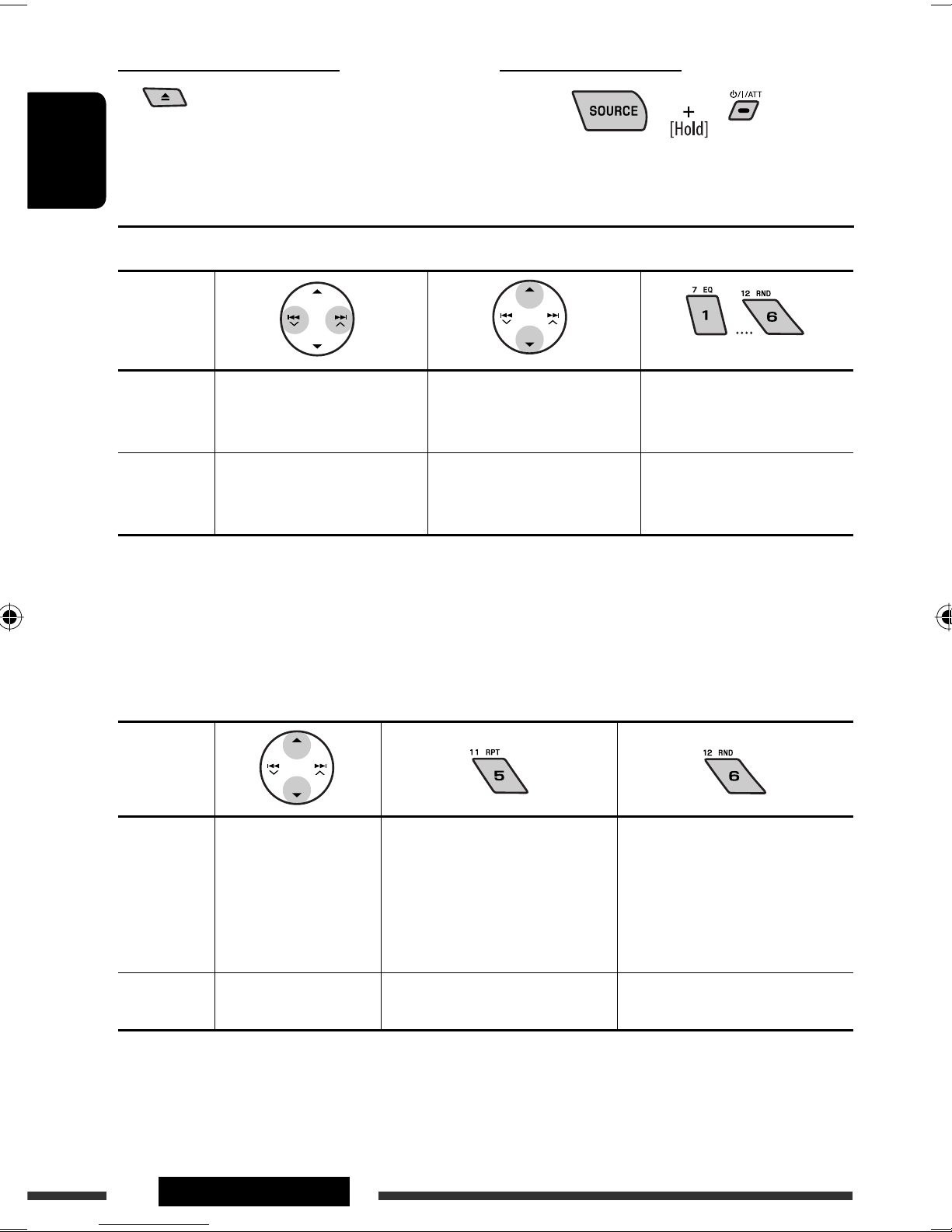

How to forcibly eject a disc
• Be careful not to drop the disc when it ejects
• If this does not work, reset your unit
How to use the MODE button
If you press MODE, the unit goes into functions
mode, then the number buttons and 5/∞ buttons
work as different function buttons.
[Within seconds...]
CONTENTS
INTRODUCTIONS
Preparation ...................................... 4
OPERATIONS
Basic operations ................................ 5
• sing the control panel ................ 5
• sing the remote controller
(RM-RK50) ................................... 6
Listening to the radio ......................... 8
Searching for FM RDS programme
—PTY Search ............................... 9
Disc operations .................................. 11
EXTERNAL DEVICES
Listening to the SB device ................. 13
sing the Bluetooth ® devices .............. 14
• sing the Bluetooth cellular
phone ......................................... 16
• sing the Bluetooth audio
player ......................................... 18
Listening to the CD changer ................ 19
Listening to the DAB tuner .................. 21
Listening to the iPod / D. player .......... 22
Listening to the other external
components ................................. 24
SETTINGS
Selecting a preset sound mode ............ 26
General settings — PSM ..................... 27
Bluetooth settings ............................. 30
REFERENCES
Maintenance ..................................... 31
More about this unit .......................... 32
Troubleshooting ................................ 36
Specifications .................................... 40
EN02-07_KW-XG701_003A_f.indd 3EN02-07_KW-XG701_003A_f.indd 3 4/4/07 2:13:56 PM4/4/07 2:13:56 PM

ENGLISH
4INTRODUCTIONS
Preparation
Cancel the display demonstration and set the clock
• See also pages 27 and 28.
~ Turn on the power.
Ÿ Enter the PSM settings.
! ] ⁄ Cancel the display demonstrations
Select “DEMO,” then “DEMO OFF.”
Set the clock
Select “CLOCK H” hour), then adjust the hour.
Select “CLOCK M” minute), then adjust the minute.
Select “24H/12H,” then “24H” hour) or “12H” hour).
@ Finish the procedure.
Caution on volume setting:
Digital devices CD/USB) produce very little noise compared with other sources. Lower the volume before playing
these digital devices to avoid damaging the speakers by the sudden increase of the output level.
When the power is turned off: Check the current clock time
When the power is turned on: Change the display information
EN02-07_KW-XG701_003A_2.indd 4EN02-07_KW-XG701_003A_2.indd 4 3/14/07 11:20:24 AM3/14/07 11:20:24 AM

ENGLISH
5OPERATIONS
Basic operations

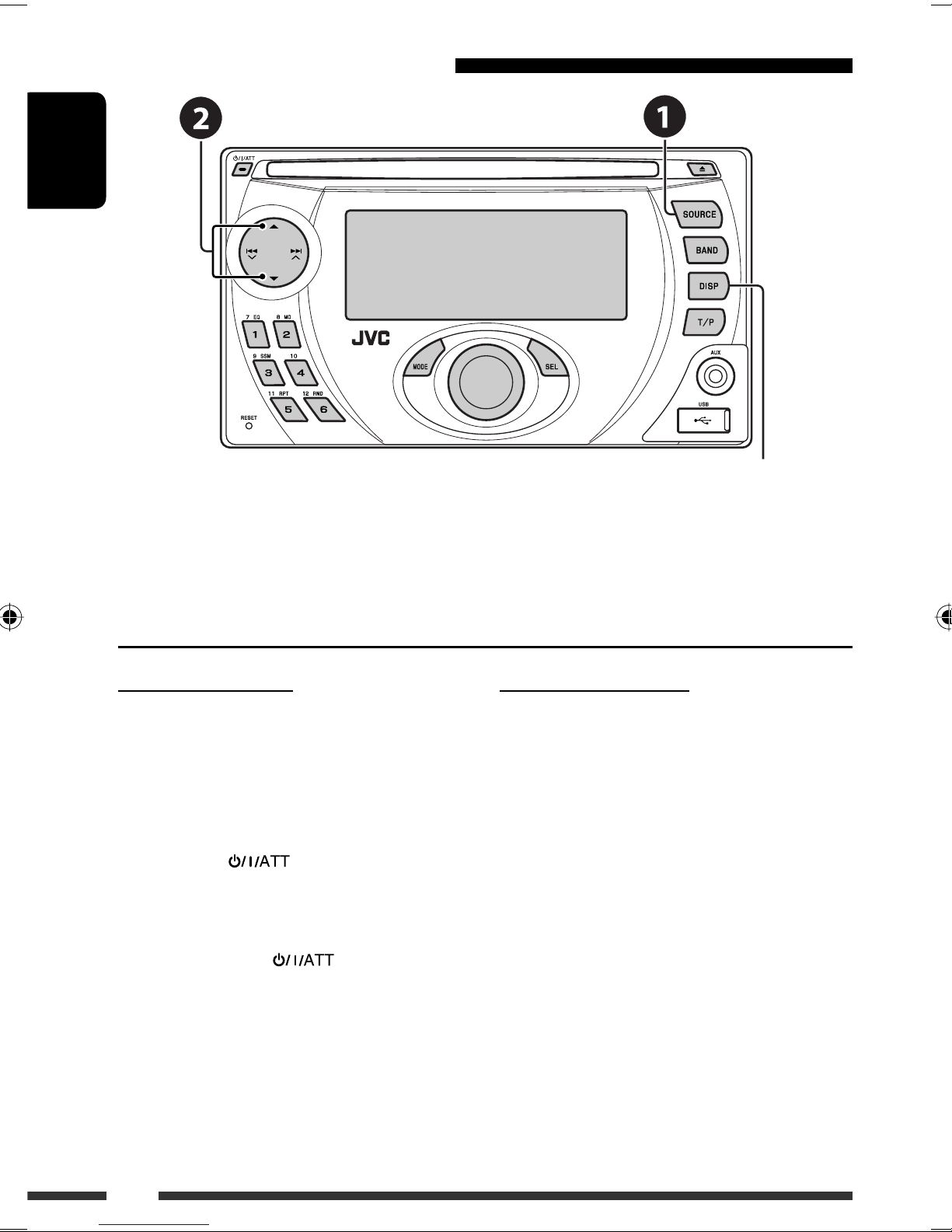

Using the control panel
1 • DAB: Select DAB service.
• CD/USB/CD-CH: Select folder.
• IPOD/D.PLAYER: Enter the main menu/Pause or
stop playback/ onfirm selection.
• BT-PHONE/BT-AUDIO: Enter setting menu/
onfirm selection.
2 • Turn on the power.
• Turn off the power [Hold].
• Attenuate the sound (if the power is on).
3 • FM/AM/DAB: Search for station/DAB ensemble.
• CD/USB/CD-CH: Select track.
• IPOD/D.PLAYER: Select track.
• BT-PHONE/BT-AUDIO: Select setting item/
Select a registered device.
4 Loading slot
5 Display window
6 Select the source.
FM/AM = DAB * = CD * = USB * = CD-CH */
IPOD */D.PLAYER * (or EXT IN) = BT-PHONE *
(Bluetooth Phone) = BT-AUDIO * (Bluetooth
Audio) = AUX IN = (back to the beginning)
* You cannot select these sources if they are not
ready or not connected.
7 Eject disc.
8 Select the bands.
9 Reset button
p • FM/AM/DAB: Select preset station/DAB service.
• CD/USB/CD-CH: Select folder/track/disc (for D
changer).
• BT-PHONE: Select preset phone number.
q Enter functions mode.
Press MODE, then one of the following buttons
(within 5 seconds)...
EQ : Select the sound mode.
MO : Turn on/off monaural reception.
SSM : Automatic station presetting [Hold].
RPT : Select repeat play.
RND : Select random play.
5 / ∞ : Skip 10 tracks.
w Volume control [Turn].
e • Enter the PSM settings [Hold].
• Adjust the sound mode.
r • Activate/deactivate TA Standby Reception.
• Enter RDS programme search [Hold].
t AUX (auxiliary) input jack
y USB (Universal Serial Bus) input terminal
u hange the display information.
EN02-07_KW-XG701_003A_f.indd 5EN02-07_KW-XG701_003A_f.indd 5 4/4/07 2:15:22 PM4/4/07 2:15:22 PM

ENGLISH
6
Before usi g the remote co troller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
Display window
Using the remote controller (RM-RK50)
Remote sensor
1 Playback source indicators
2 Track information indicators
3 RDS indicators
4 Main display (Menu, playback information)
5 Tuner reception indicators
6 Playback mode/item indicators
(Random/Repeat)
7 • Spectrum analyzer meter
• Volume level indicator
8 Sound mode indicators
9 Equalizer indicator
p Loudness indicator
q lock indicator
w Analyzer indicator
e Bluetooth indicator
r Track indicator
t Source display/Preset No./Track No./Folder No./
Disc No.
y Status of Bluetooth device
(Device number, [1 – 5]; signal strength, [0 – 3]*;
battery reminder, [0 – 3]*)
* As the number increases, the signal/battery
strength becomes stronger.
EN02-07_KW-XG701_003A_f.indd 6EN02-07_KW-XG701_003A_f.indd 6 4/4/07 2:15:24 PM4/4/07 2:15:24 PM

ENGLISH
7OPERATIONS
Installing the lithium oin battery (CR2025)
Warning:
To prevent a idents and damage
• Do not install any battery other than CR2025 or
its equivalent.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time.
• tore the battery in a place where children
cannot reach.
• Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.
• Do not leave the battery with other metallic
materials.
• Do not poke the battery with tweezers or similar
tools.
• Wrap the battery with tape and insulate when
throwing away or saving it.
1 • Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 • Changes the FM/AM/DAB bands with 5 U.
• Changes the preset stations (or DAB services)
with D ∞.
• Changes the folder of the MP3/WMA/AAC/WAV.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
• While listening to an Apple iPod or a JVC
D. player:
– Pauses/stops or resumes playback with D ∞.
– Enters the main menu with 5 U.
(Now 5 U/D ∞/2 R/F 3 work as the menu
selecting buttons.)*
* 5 U : Returns to the previous menu.
D ∞ : Con irms the selection.
3 Adjusts the volume level.
4 elects the sound mode (iEQ: intelligent equalizer).
5 elects the source.
6 For Bluetooth cellular phone:
– Answers calls if pressed briefly.
– Rejects calls if pressed and held.
7 • earches for stations (or DAB services) if pressed
briefly.
• earches for DAB ensembles if pressed and held.
• Fast-forwards or reverses the track if pressed and
held.
• Changes the tracks if pressed briefly.
• While listening to an iPod or a D. player (in menu
selecting mode):
– elects an item if pressed briefly. (Then, press
D ∞ to confirm the selection.)
– kips 10 items at a time if pressed and held.
• Reverse skip/forward skip for Bluetooth audio.
EN02-07_KW-XG701_003A_1.indd 7EN02-07_KW-XG701_003A_1.indd 7 3/7/07 2:53:02 PM3/7/07 2:53:02 PM

ENGLISH
8
Listening to the radio
~ Select “FM/AM.”
Ÿ Select the bands.
! Search for a station to listen—Auto Search.
Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.
Select preset station.
When an FM stereo broadcast is hard
to receive
1
2
Reception improves, but stereo effect will be lost.
• M indicator lights up.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
You can preset up to six stations for each band.
1
2
3
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Change the display information
EN08-15_KW-XG701_003A_2.indd 8EN08-15_KW-XG701_003A_2.indd 8 3/14/07 8:45:28 AM3/14/07 8:45:28 AM

ENGLISH
9OPERATIONS

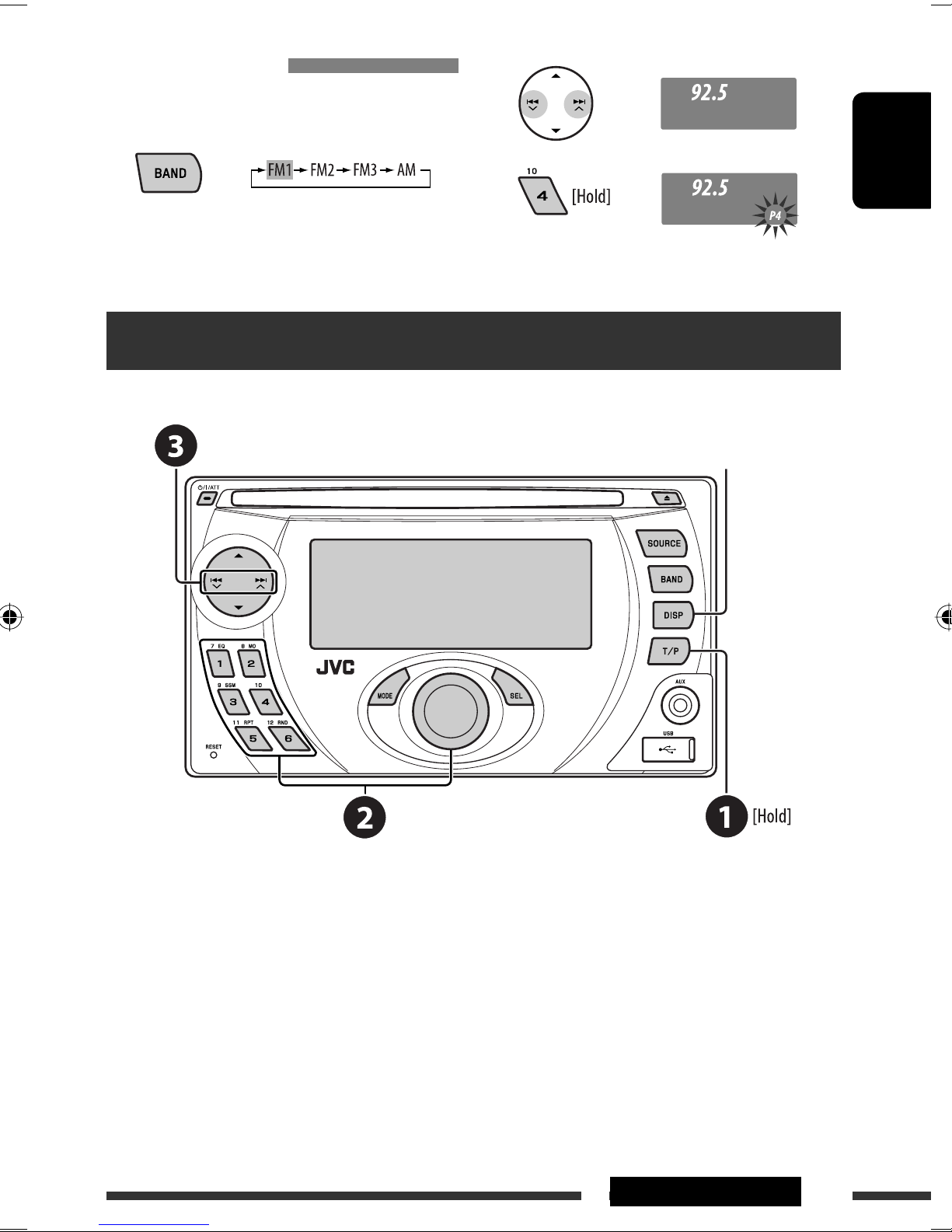

Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
1
2
3

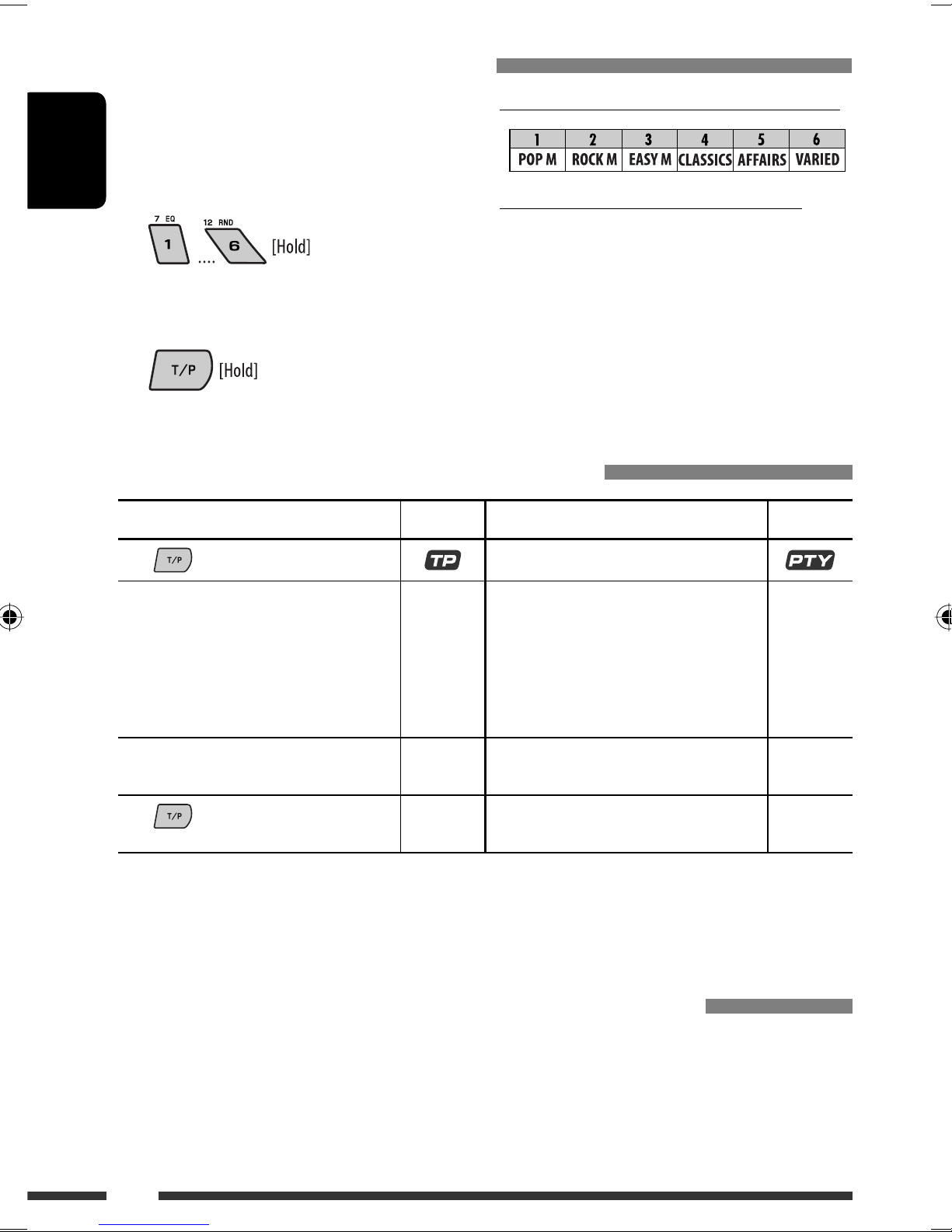

Searching for FM RDS programme — PTY Search
Change the display information
Station name PS) = Station frequency =
PTY = back to the beginning)
~ Activate PTY Search.
Ÿ Select one of the PTY codes (programme types).
See page 10 for details.
! Start searching.
If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned
in.
Continued on the next page
EN08-15_KW-XG701_003A_2.indd 9EN08-15_KW-XG701_003A_2.indd 9 3/14/07 11:21:10 AM3/14/07 11:21:10 AM

ENGLISH
10

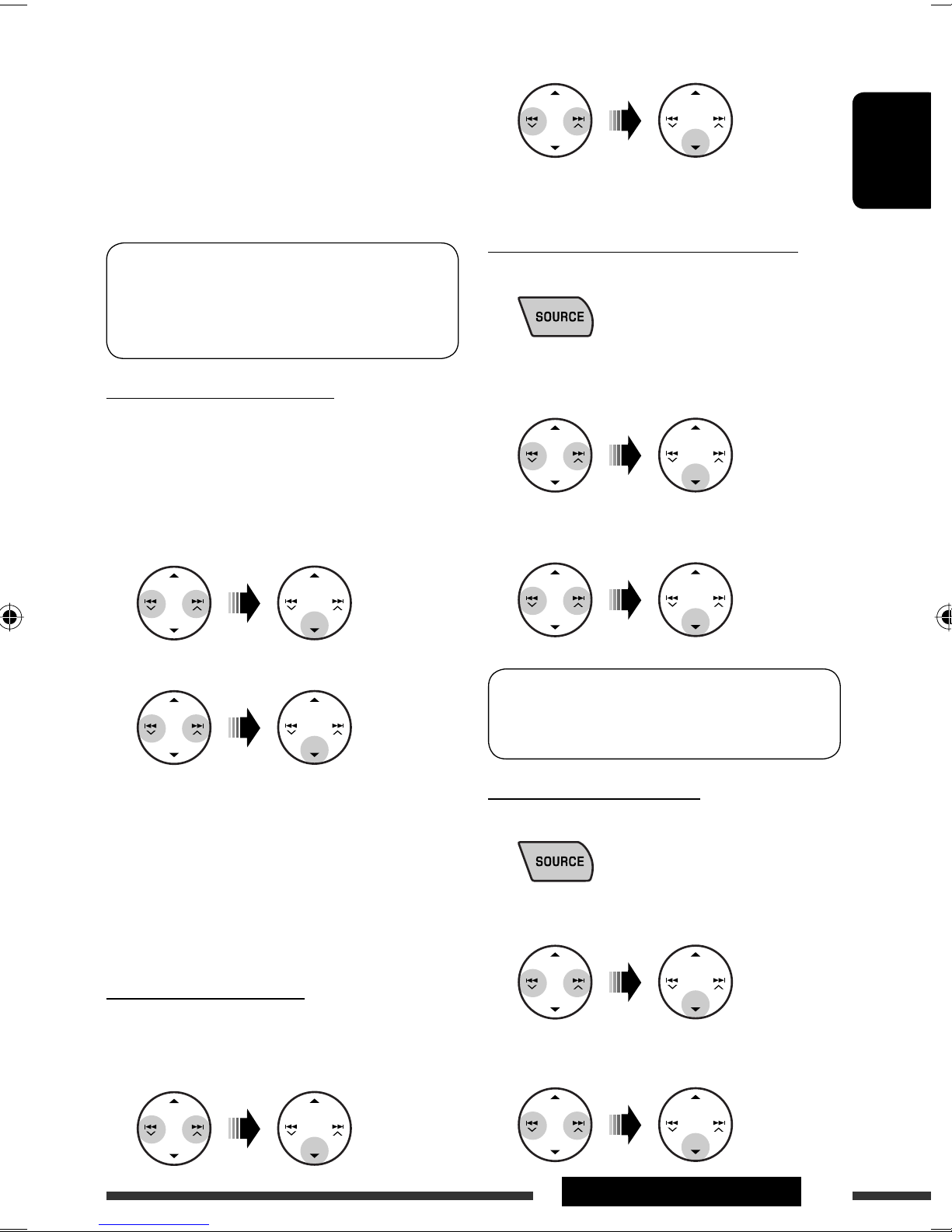

You can store your favorite PTY codes into the number
buttons.
1 Select a TY code (see right column).
2 Select a preset number.
3 Repeat steps 1 and 2 for storing other
TY codes.
4
reset TY codes in the number buttons (1 to 6):
TY codes (available with the control dial):
NEWS, AFFAIRS, INF , SP RT, EDUCATE, DRAMA,
CULTURE, SCIENCE, VARIED, P P M (music), R CK M
(music), EASY M (music), LIGHT M (music), CLASSICS,
THER M (music), WEATHER, FINANCE, CHILDREN,
S CIAL, RELIGI N, PH NE IN, TRAVEL, LEISURE, JAZZ,
C UNTRY, NATI N M (music), LDIES, F LK M (music),
D CUMENT
Activating/deactivating A/P Y Standby Reception
TA Standby Reception Indicator TY Standby Reception Indicator
Press to activate. See page 28.
The unit temporarily will switch to Traffic
Announcement (TA), if available, from any
source other than AM*.
The volume changes to the preset TA
volume level if the current level is lower
than the preset level (see page 28).
Lights up The unit temporarily will switch to your
favorite PTY programme from any source
other than AM*.
Lights up
Not yet activated. Tune in to another
station providing the RDS signals.
Flashes Not yet activated. Tune in to another
station providing the RDS signals.
Flashes
Press to deactivate. Goes off Select “ FF” for the PTY code (see page 28)
to deactivate.
Goes off
• When a DAB tuner is connected, TA/PTY Standby Reception also searches for services. (See also pages 21 and 28.)
* The unit will not switch to Traffic Announcement or PTY programme when a call connection is established through the
“BT-PHO E.”
racing the same programme—Network- racking Reception
When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another
FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the
illustration on page 11).
Storing your favorite programme types
EN08-15_KW-XG701_003A_1.indd 10EN08-15_KW-XG701_003A_1.indd 10 3/7/07 2:53:12 PM3/7/07 2:53:12 PM
