2ENGLISH
Please read all instructions carefully before operation, to ensure your complete understanding and
to obtain the best possible performance from the unit.

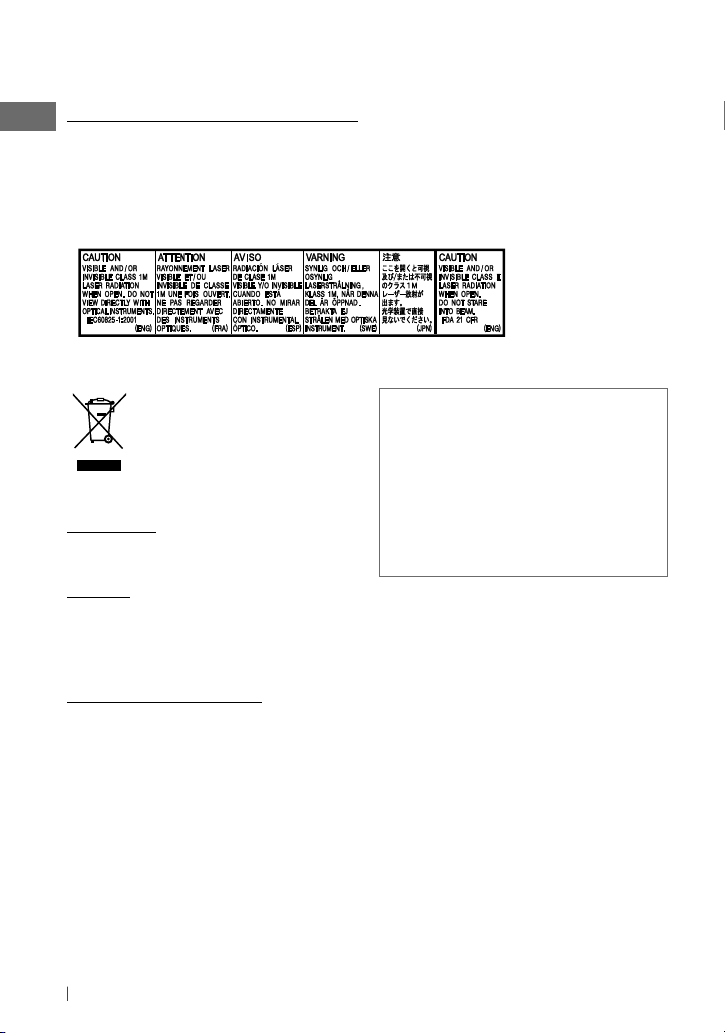

IMPORTANT FOR LASER PRODUCTS
1.CLASS 1 LASER PRODUCT
2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3.CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
WARNING:
Stop the car before operating the unit.
Caution:
Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too
high may cause an accident.
Caution on volume setting:
Digital devices (CD/USB) produce very little
noise compared with other sources. Lower the
volume before playing these digital sources to
avoid damaging the speakers by the sudden
increase of the output level.
Condensation : When the car is air-
conditioned, moisture may collect on the
laser lens. This may cause disc read errors. In
this case, remove the disc and wait for the
moisture to evaporate.
Temperature inside the car : If you have
parked the car for a long time in hot or cold
weather, wait until the temperature in the car
becomes normal before operating the unit.
EN_KW-XG810S[UN]1.indd 2EN_KW-XG810S[UN]1.indd 2 9/29/11 2:56:38 PM9/29/11 2:56:38 PM

3ENGLISH
CONTENTS
3 How to reset your unit
3 How to forcibly eject a disc
3 Maintenance
4 Setting the clock
5 Basic operations
6 Listening to the radio
8 Listening to a disc
9 Listening to the USB device
10 Listening to the other external
components
10 Selecting a preset sound mode
11 Menu operations
14 More about this unit
16 Troubleshooting
19 Specifications
How to reset your unit
Your preset adjustments will also be erased.

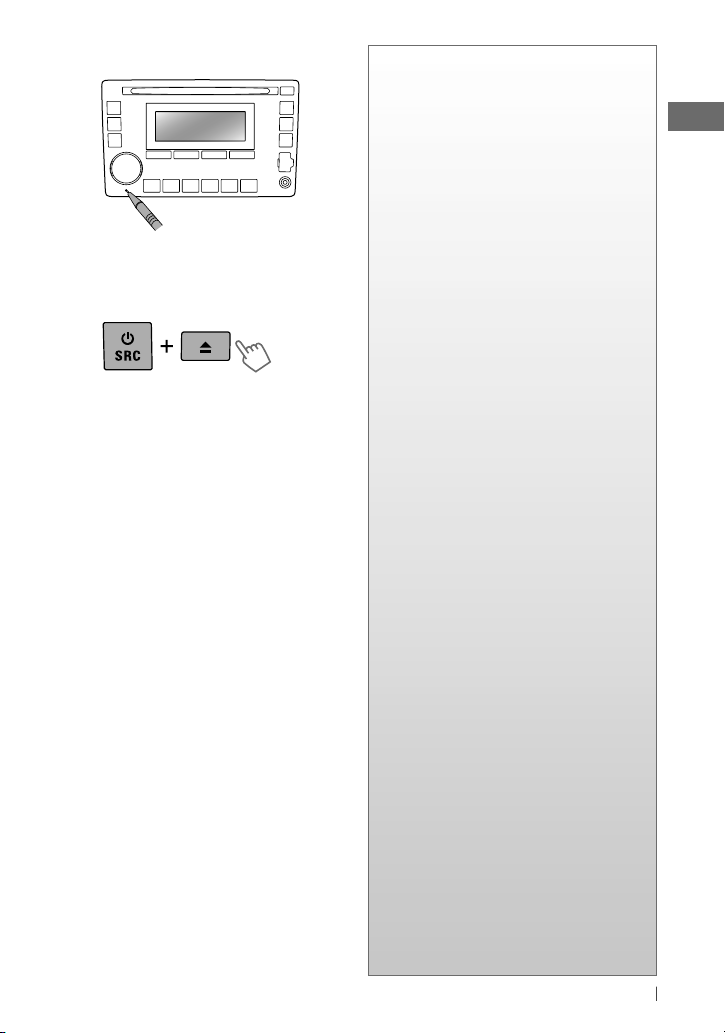

How to forcibly eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Maintenance
Cleaning the unit:
Wipe off the dirt on the panel with a dry silicon
or soft cloth. Failure to observe this precaution
may result in damage to the unit.
[Hold]
EN_KW-XG810S[UN]1.indd 3EN_KW-XG810S[UN]1.indd 3 9/29/11 2:56:39 PM9/29/11 2:56:39 PM

4ENGLISH
Setting the clock
1 Turn on the power.
2
3 Select <CLOCK>.
4 Select <CLOCK SET>.
5 Adjust the hour.
6 Adjust the minute.
7 Exit from the setting.
[Hold]
EN_KW-XG810S[UN]f.indd 4EN_KW-XG810S[UN]f.indd 4 10/27/11 11:25:16 AM10/27/11 11:25:16 AM

5ENGLISH

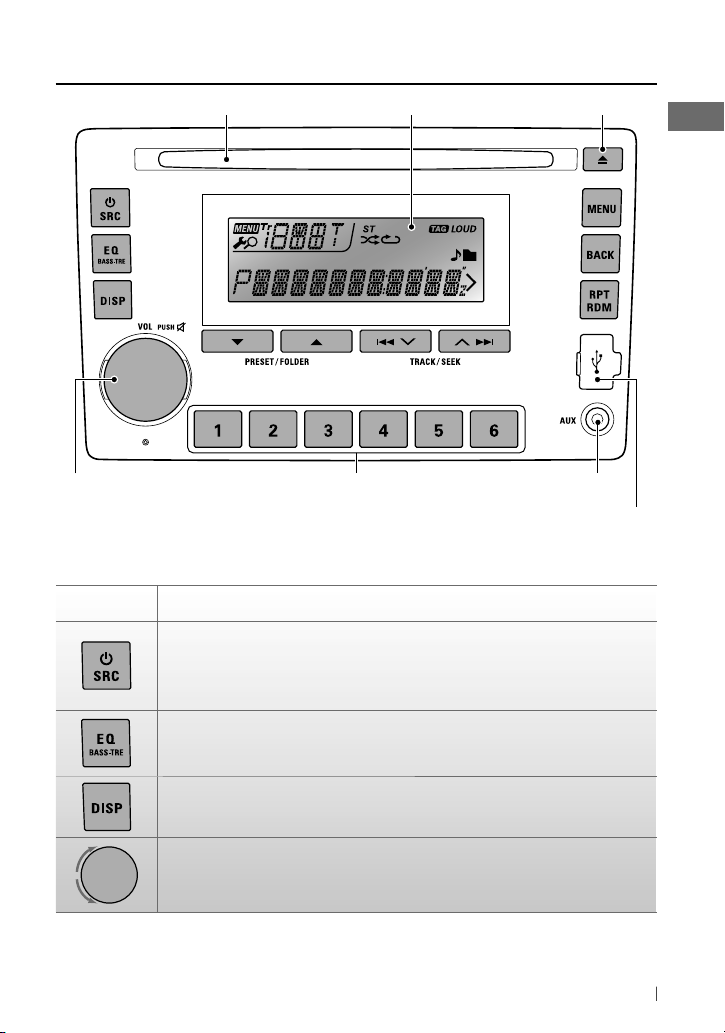

Basic operations
Control dial
Ejects the disc
Loading slot
USB (Universal Serial Bus) input terminal
Display window
Auxiliary input jackSelects preset station.
When you press or hold the following button(s)...
Button General operation
• Turns on.
• Turns off if pressed and held.
• Selects the available sources (if the power is turned on). If the source is ready,
playback also starts.
• Selects the sound mode.
• Enters tone level adjustment directly (see page 10) if pressed and held.
• Changes the display information.
• Scrolls the current display information if pressed and held.
• Adjusts the volume level.
• Selects items.
Continued...
EN_KW-XG810S[UN]f.indd 5EN_KW-XG810S[UN]f.indd 5 10/27/11 11:25:16 AM10/27/11 11:25:16 AM

6ENGLISH

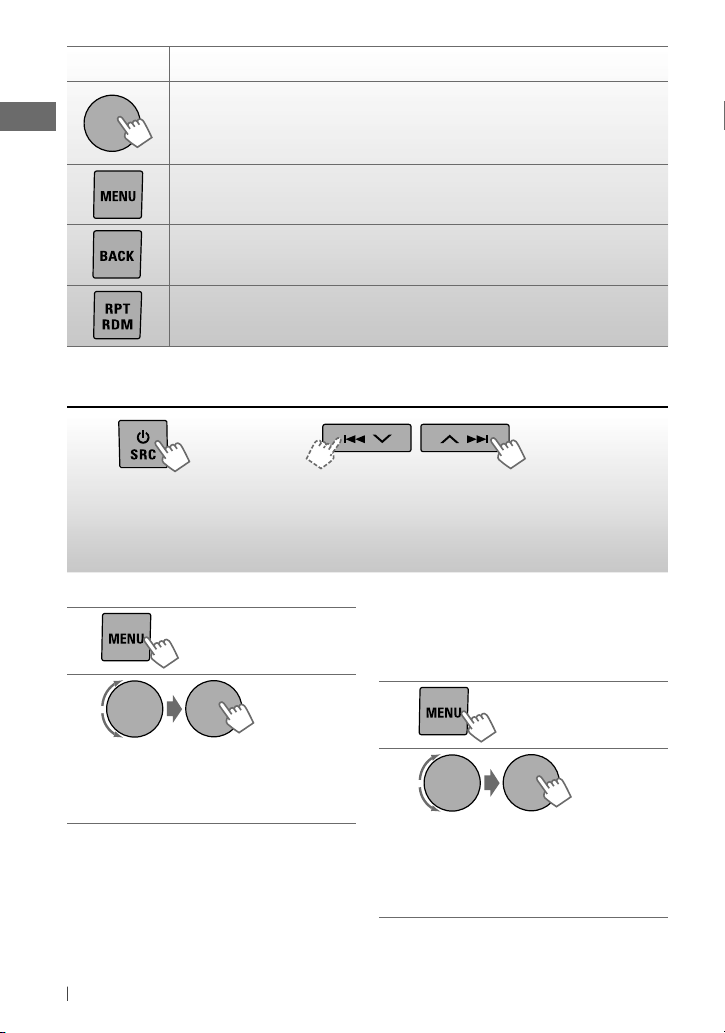

Button General operation
• Mutes the sound while listening to a source. If the source is “CD” or “USB,”
playback pauses. Press the control dial again to cancel muting or resume
playback.
• Confirms selection.
Enters menu setting if pressed and held (see page 11).
Returns to the previous menu.
Enters playback mode menu directly (see page 8).
Listening to the radio
~
] “FM” or “AM”
Ÿ
• [Press] Searches for stations automatically.
• [Hold] Searches for stations manually.
“M” flashes, then press the button repeatedly.
“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.
Automatic presetting (FM)—
SSM (Strong-station Sequential Memory)
You can preset up to 18 stations for FM.
While listening to a station...
1
2
]<TUNER> ]<SSM> ]<SSM 01 – 06> /
<SSM 07 – 12> / <SSM 13 – 18>
“SSM” flashes and local stations with
the strongest signals are searched and
stored automatically.
To preset another 6 stations, repeat the
above procedure by selecting one of the other
SSM setting ranges.
Improving the FM reception
1
2
] <TUNER> ] <MONO> ]
<MONO ON>
Reception improves, but stereo effect
will be lost.
To restore the stereo effect, repeat the same
procedure to select <MONO OFF>.
[Hold]
[Hold]
EN_KW-XG810S[UN]1.indd 6EN_KW-XG810S[UN]1.indd 6 9/29/11 2:56:39 PM9/29/11 2:56:39 PM

7ENGLISH
Manual presetting (FM/AM)
You can preset up to 18 stations for FM and 6
stations for AM.
1
] Tune in to a station you want to
preset.
2
“PRESET MODE” flashes.
3
] Selects a preset number.
Preset number flashes and “MEMORY”
appears.
• Pressing and holding the number buttons
(1 to 6) can also store the current station to the
selected number buttons (1 – 6).
Selecting a preset station
or
• Pressing the number buttons (1 to 6) can also
select the preset stations (1 – 6).
Changing the display information
Frequency = Clock =
Station name * = (back to the
beginning)
* If no title is assigned to a station, “NO NAME”
appears for a few seconds.
[Hold]
Title assignment
You can assign titles up to 30 station
frequencies (FM and AM) using 8 characters
(maximum) for each title.
• If you try to assign titles to more than 30
station frequencies, “NAME FULL” appears.
Delete unwanted titles before assignment.
1
] “FM” or “AM”
2
] Show the title entry screen.
3
] Select a character (A – Z, 0 – 9, —, /,
<, >, space).
4
] Move to the next (or previous)
character position.
5Repeat steps 3and 4until you have
finished entering the title.
6
To erase the entire title, press and hold DISP
after step 2, then press the control dial.
[Hold]
EN_KW-XG810S[UN]1.indd 7EN_KW-XG810S[UN]1.indd 7 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

8ENGLISH
Stopping playback and ejecting
the disc
If the ejected disc is not
removed within 15 seconds, it is
automatically inserted into the
loading slot.
Basic operations
Selects folder of the MP3/WMA.
[Press] Selects track.
[Hold] Fast-forwards or reverses the track.
Selecting a track/folder from the
list
For MP3/WMA discs, select the desired folder,
then the desired track by repeating the control
dial procedures.
• To return to the previous menu, press BACK .
Selecting the playback modes
You can use only one of the following playback
modes at a time.
1
2
] “REPEAT” j “RANDOM”
3
REPEAT
TRACK RPT : Repeats current track
FOLDER RPT : Repeats current folder
RANDOM
FOLDER RDM : Randomly plays all
tracks of current folder, then tracks of
next folders
ALL RDM : Randomly plays all tracks
To cancel repeat play or random play, select
“RPT OFF” or “RDM OFF.”
Changing the display information
Disc title/Album name/performer (folder
name)* = Track title (file name)* = Current
track number with the elapsed playing time
= Current track number with the clock
time = (back to the beginning)
* “NO NAME” appears for conventional CDs or if
not recorded.
Listening to a disc
~
] Turn on the power.
Ÿ
All tracks will be played repeatedly until you change the source or eject the disc.
EN_KW-XG810S[UN]1.indd 8EN_KW-XG810S[UN]1.indd 8 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

9ENGLISH
If you have turned off the power (without
detaching the USB device)...
Pressing
SRC turns on the power and
playback starts from where it has been stopped
previously.
• If a different USB device is currently attached,
playback starts from the beginning.
Stop playing and detaching the
USB device
Straightly pull it out from the unit.
“NO USB” appears. Press SRC to listen to
another playback source.
You can operate the USB device in the same
way you operate the files on a disc.
(See page 8.)

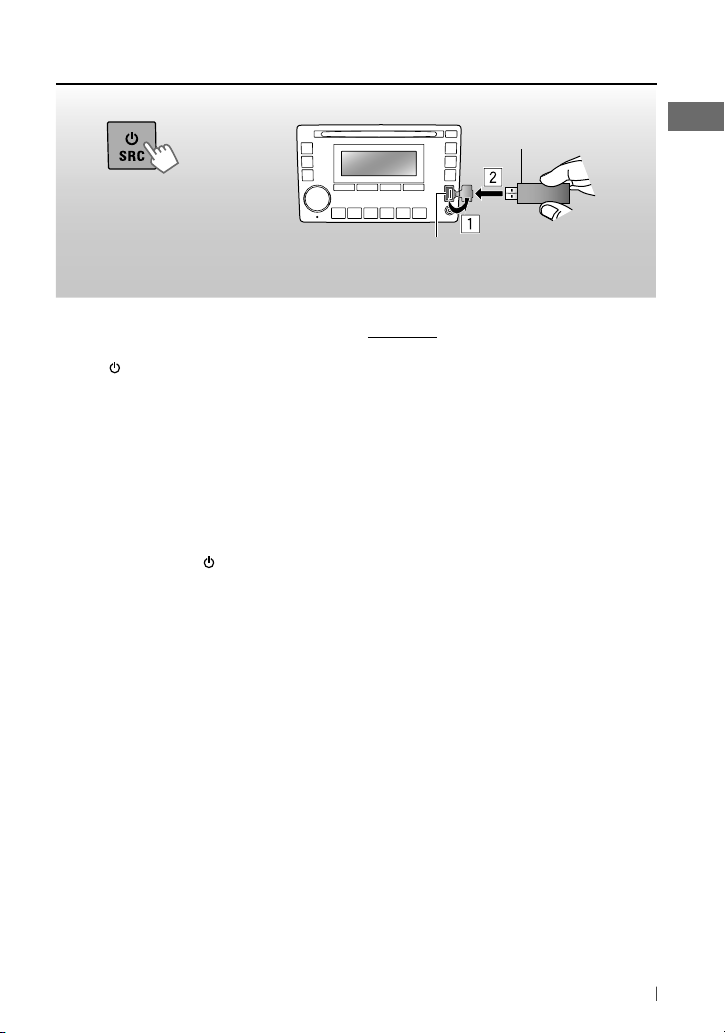

Listening to the USB device
This unit can play MP3/WMA files stored in a USB device.
~
] Turn on the power.
Ÿ
All tracks will be played repeatedly until you change the source or detach the USB device.
USB input terminal
USB memory
Cautions:
• Avoid using the USB device if it might hinder
your safety driving.
• Do not pull out and attach the USB device
repeatedly while “READING” is shown on the
display.
• Do not start the car engine if a USB device is
connected.
• This unit may not be able to play the files
depending on the type of USB device.
• Operation and power supply may not work as
intended for some USB devices.
• You cannot connect a computer to the USB
input terminal of the unit.
• Make sure all important data has been backed
up to avoid losing the data.
• Do not leave a USB device in the car, expose
to direct sunlight, or high temperature to
avoid deformation or cause damages to the
device.
• Some USB devices may not work immediately
after attaching USB device or turn on the
power.
• For more details about USB operations, see
pages 15 and 16.
EN_KW-XG810S[UN]1.indd 9EN_KW-XG810S[UN]1.indd 9 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

10 ENGLISH
Connecting an external component to the AUX input jack
3.5 mm stereo mini plug
(not supplied)
Portable audio player,
etc.
Listening to the other external
components
Selecting a preset sound mode
While listening, you can adjust the tone level of
the selected sound mode.
1
2
Adjust the level (–06 to +06) of the
selected tone (BASS / MID / TRE).
The sound mode is automatically stored
and changed to “USER.”
You can select a preset sound mode suitable
for the music genre.
FLAT = NATURAL = DYNAMIC = VOCAL
BOOST = BASS BOOST = USER = (back to
the beginning)
[Hold]
Auxiliary input jack
Recommended to use a 3-terminal plug head stereo mini plug for
optimum audio output.
You can connect an external component to the AUX (auxiliary) input jack on the control panel.
Preparation: Make sure <AUX ON> is selected for the <SRC SELECT> = <AUX IN> setting.
(See page 13.)
• For details, refer also to the instructions supplied with the adapter or external components.
~
] “AUX IN”
ŸTurn on the connected component and
start playing the source.
EN_KW-XG810S[UN]1.indd 10EN_KW-XG810S[UN]1.indd 10 9/29/11 3:04:26 PM9/29/11 3:04:26 PM

11ENGLISH
Tone Sound element
Frequency Level Q
BASS 60 Hz
80 Hz
100 Hz
200 Hz
–06 to +06 Q1.0
Q1.25
Q1.5
Q2.0
MIDDLE 0.5 kHz
1.0 kHz
1.5 kHz
2.5 kHz
–06 to +06 Q0.75
Q1.0
Q1.25
TREBLE 10.0 kHz
12.5 kHz
15.0 kHz
17.5 kHz
–06 to +06 Q FIX

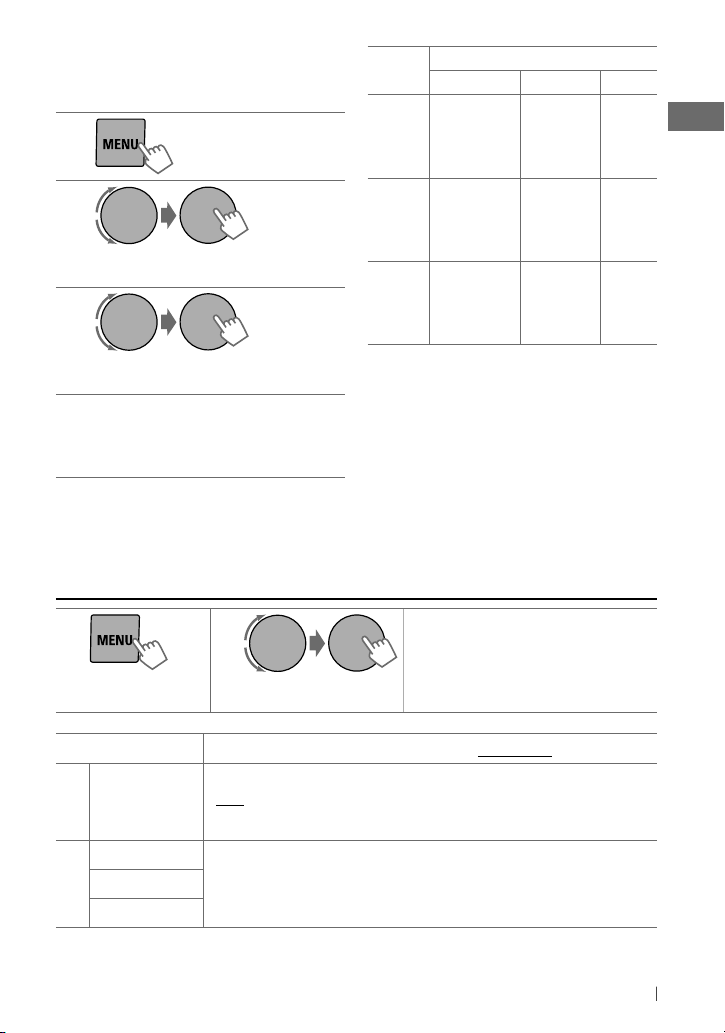

Storing your own sound mode
You can store your own adjustments in
memory.
1
2
] <PRO EQ> ] <BASS> / <MIDDLE> /
<TREBLE>
3
Adjust the sound elements of the
selected tone. (See table on the right.)
4Repeat steps 2and 3to adjust other
tones.
The adjustments are stored and
<USER> is activated.
[Hold]
Menu operations
1 2 3 Repeat step 2if necessary.
• To return to the previous menu,
press BACK .
• To exit from the menu, press
DISP or MENU .
Menu item Selectable setting, [Initial: Underlined]
CLOCK
CLOCK SET
Clock setting
—
[ 1:00 ]
: Adjust the hour, then the minute. (See page 4.)
PRO EQ
BASS — : For settings, see “Storing your own sound
mode” above.
MIDDLE
TREBLE
[Hold]
Continued...
EN_KW-XG810S[UN]f.indd 11EN_KW-XG810S[UN]f.indd 11 10/27/11 11:25:35 AM10/27/11 11:25:35 AM

12 ENGLISH
Menu item Selectable setting, [Initial: Underlined]
DISPLAY
SCROLL *1• SCROLL ONCE
• SCROLL AUTO
• SCROLL OFF
: Scrolls the displayed information once.
: Repeats scrolling (at 5-second intervals).
: Cancels.
Pressing
DISP for more than one second can scroll the display
regardless of the setting.
TAG DISPLAY • TAG ON
• TAG OFF
: Shows the Tag information while playing MP3/WMA
tracks.
: Cancels.
TUNER
SSM*2
Strong-station
Sequential
Memory
• SSM 01 – 06
• SSM 07 – 12
• SSM 13 – 18
: For settings, see “Automatic presetting (FM)—SSM
(Strong-station Sequential Memory)” on page 6.
MONO *2
Monaural mode
• MONO ON
• MONO OFF
: Activate monaural mode to improve FM reception,
but stereo effect will be lost. ( See page 6.)
: Restore the stereo effect.
IF BAND
Intermediate
frequency band
• AUTO
• WIDE
: Increases the tuner selectivity to reduce interference
noises between adjacent stations. (Stereo effect may
be lost.)
: Subject to interference noises from adjacent stations,
but sound quality will not be degraded and the
stereo effect will remain.
AUDIO
FADER *3R06 – F06
[ 00 ]
: Adjust the front and rear speaker output balance.
BALANCE L06 – R06
[ 00 ]
: Adjust the left and right speaker output balance.
LOUD
Loudness
• LOUD ON
• LOUD OFF
: Boost low and high frequencies to produce a well-
balanced sound at a low volume level.
: Cancels.
VOL ADJUST
Volume adjust
VOL ADJ –05 —
VOL ADJ +05
[ VOL ADJ 00 ]
: Preset the volume adjustment level of each source
(except FM), compared to the FM volume level. The
volume level will automatically increase or decrease
when you change the source.
• Before making an adjustment, select the source you
want to adjust.
• “VOL ADJ FIX” appears on the display if “FM” is
selected as the source.
*1 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*2 Displayed only when the source is “FM.”
*3 If you are using a two-speaker system, set the fader level to “00.”
EN_KW-XG810S[UN]f.indd 12EN_KW-XG810S[UN]f.indd 12 10/27/11 11:25:35 AM10/27/11 11:25:35 AM

13ENGLISH
Menu item Selectable setting, [Initial: Underlined]
AUDIO
AMP GAIN* 4
Amplifier gain
control
• LOW POWER
• HIGH POWER
: VOLUME 00 – VOLUME 30 (Select if the maximum
power of each speaker is less than 50 W to prevent
damaging the speakers.)
: VOLUME 00 – VOLUME 50
SRC SELECT
AM* 5
AM station
• AM ON
• AM OFF
: Enable “AM” in source selection.
: Disable “AM” in source selection.
AUX IN* 6
Auxiliary input
• AUX ON
• AUX OFF
: Enable “AUX IN” in source selection.
: Disable “AUX IN” in source selection.
*4 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the
volume level set higher than “VOLUME 30.”
*5 Displayed only when any source other than “AM” is selected.
*6 Displayed only when any source other than “AUX IN“ is selected.
About discs
This unit can only play the CDs with:
Discs that cannot be used:
• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• You cannot play a Recordable/ReWritable disc that has not been finalized. (For the finalization
process refer to your disc writing software, and your disc recorder instruction manual.)
• 8 cm CD cannot be used. Attempt to insert using an adapter can cause malfunction.
Handling discs:
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicon or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove the rims from the center hole and disc edge before inserting a disc.
EN_KW-XG810S[UN]f.indd 13EN_KW-XG810S[UN]f.indd 13 10/27/11 11:25:35 AM10/27/11 11:25:35 AM

14 ENGLISH
More about this unit
Basic operations
General
• If you turn off the power while listening to
a track, playback will start from where it had
been stopped previously next time you turn
on the power.
• If no operation is done for about 60 seconds
after pressing
MENU button, the operation
will be canceled.
Tuner operations
Storing stations in memory
• During SSM search...
–All previously stored stations are erased and
the stations are stored anew.
–When SSM is over, the station stored in the
lowest preset number will be automatically
tuned in.
• When storing a station manually, the
previously preset station is erased when
a new station is stored in the same preset
number.
Disc/USB operations
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does not
comply with the “Compact Disc Digital Audio”
standard. Therefore, the use of Non-DVD side
of a DualDisc on this product may not be
recommended.
General
• This unit has been designed to reproduce
CDs/CD Texts, and CD-Rs (Recordable)/
CD-RWs (Rewritable) in audio CD (CD-DA),
MP3 and WMA formats.
• If you change the source while listening to a
disc, playback stops. Next time you select “CD”
as the playback source, playback will start
from where it had been stopped previously.
• When a disc is inserted upside down, “PLEASE”
and “EJECT” appear alternately on the display.
Press 0 to eject the disc.
• If the ejected disc is not removed within
15 seconds, it is automatically inserted into
the loading slot again to protect it from dust.
Playback starts automatically.
• MP3 and WMA “tracks” (words “file” and “track”
are used interchangeably) are recorded in
“folders.”
• While fast-forwarding or reversing on an MP3
or WMA disc, you can only hear intermittent
sounds.
Playing a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can only play back files of the same
type as those detected first if a disc includes
both audio CD (CD-DA) files and MP3/WMA
files.
• This unit can play back multi-session discs;
however, unclosed sessions will be skipped
while playing.
• Some CD-Rs or CD-RWs may not play back on
this unit because of their disc characteristics,
or for the following reasons:
–Discs are dirty or scratched.
–Moisture condensation has occurred on the
lens inside the unit.
–The pickup lens inside the unit is dirty.
–The files on the CD-R/CD-RW are written
using the “Packet Write” method.
–There are improper recording conditions
(missing data, etc.) or media conditions
(stained, scratched, warped, etc.).
• CD-RWs may require a longer readout time
since the reflectance of CD-RWs is lower than
that of regular CDs.
EN_KW-XG810S[UN]1.indd 14EN_KW-XG810S[UN]1.indd 14 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

15ENGLISH
• Do not use the following CD-Rs or CD-RWs:
–Discs with stickers, labels, or a protective seal
stuck to the surface.
–Discs on which labels can be directly printed
by an ink jet printer.
Using these discs under high temperature
or high humidity may cause malfunctions or
damage to the unit.
Playing an MP3/WMA disc
• This unit can play back MP3/WMA files with
the extension code <.mp3> or <.wma>
(regardless of the letter case—upper/lower).
• This unit can show the names of albums,
artists (performer), and Tag (Version 1.0, 1.1,
2.2, 2.3, or 2.4) for MP3 files and for WMA files.
• This unit can display only one-byte characters.
No other characters can be correctly displayed.
• This unit can play back MP3/WMA files
meeting the conditions below:
–Bit rate of MP3/WMA: 32 kbps — 320 kbps
–Sampling frequency of MP3:
32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)
16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)
–Sampling frequency of WMA:
22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
–Disc format: ISO 9660 Level 1/Level 2,
Romeo, Joliet, Windows extension
• The maximum number of characters for
file/folder names vary depending on the
disc format used (includes 4 extension
characters—<.mp3> or <.wma>).
– ISO 9660 Level 1: up to 12 characters
– ISO 9660 Level 2: up to 31 characters
– Romeo: up to 64 characters
– Joliet: up to 32 characters
– Windows extension: up to 64 characters
• This unit can recognize a total of 512 files, 255
folders, and 8 hierarchical levels.
• This unit can play back files recorded in VBR
(variable bit rate).
Files recorded in VBR have a discrepancy
in the elapsed time display, and do not
show the actual elapsed time. In particular,
this difference becomes noticeable after
performing the search function.
• This unit cannot play back the following files:
–MP3 files encoded in MP3i and MP3 PRO
format.
–MP3 files encoded in an inappropriate
format.
–MP3 files encoded with Layer 1/2.
–WMA files encoded in lossless, professional,
and voice format.
–WMA files which are not based upon
Windows Media® Audio.
–WMA files copy-protected with DRM.
–Files which have data such as AIFF, ATRAC3,
etc.
• The search function works but search speed is
not constant.
Playing MP3/WMA tracks from a USB
device
• While playing from a USB device, the playback
order may differ from other players.
• This unit may be unable to play back some
USB devices or some files due to their
characteristics or recording conditions.
• Depending on the shape of the USB devices
and connection ports, some USB devices may
not be attached properly or the connection
might be loose.
• Connect one USB mass storage class device to
the unit at a time. Do not use a USB hub.
• If the connected USB device does not have
the correct files, “CANNOT PLAY” appears.
• This unit can show Tag (Version 1.0, 1.1, 2.2,
2.3, or 2.4) for MP3 files and for WMA files.
• This unit can play back MP3/WMA files
meeting the conditions below:
–Bit rate of MP3/WMA: 32 kbps — 320 kbps
–Sampling frequency of MP3:
32 kHz, 44.1 kHz, 48 kHz (for MPEG-1)
16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)
–Sampling frequency of WMA:
22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
Continued...
EN_KW-XG810S[UN]1.indd 15EN_KW-XG810S[UN]1.indd 15 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

16 ENGLISH
• This unit can play back MP3 files recorded in
VBR (variable bit rate).
• The maximum number of characters for:
–Folder names : 32 characters
–File names : 32 characters
–MP3 Tag : 64 characters
–WMA Tag : 32 characters
• This unit can recognize a total of 5 000 files,
255 folders (255 files per folder including
folder without unsupported files), and of 8
hierarchies.
• This unit does not support SD card reader.
• This unit cannot recognize a USB device
whose rating is other than 5 V and exceeds
500 mA.
• USB devices equipped with special functions
such as data security functions cannot be
used with the unit.
• Do not use a USB device with 2 or more
partitions.
• This unit may not recognized a USB device
connected through a USB card reader.
• This unit may not play back files in a USB
device properly when using a USB extension
cord.
• This unit cannot play back the following files:
–MP3 files encoded in MP3i and MP3 PRO
format.
–MP3 files encoded in an inappropriate
format.
–MP3 files encoded with Layer 1/2.
–WMA files encoded in lossless, professional,
and voice format.
–WMA files which are not based upon
Windows Media® Audio.
Troubleshooting
Symptom Remedy/Cause
General
Sound cannot be heard from the
speakers.
• Adjust the volume to the optimum level.
• Make sure the unit is not muted/paused (see
page 6).
• Check the cords and connections.
“PROTECT” appears on the display
and no operations can be done.
Check to be sure the terminals of the speaker leads
are covered with insulating tape properly, then reset
the unit (see page 3).
If “PROTECT” does not disappear, consult your JVC
car audio dealer or a company supplying kits.
The unit does not work at all. Reset the unit. (See page 3.)
“AUX IN” cannot be selected. Check the <SRC SELECT> = <AUX IN> setting.
(See page 13.)
FM/AM
SSM automatic presetting does
not work.
Store stations manually.
Static noise while listening to the
radio.
Connect the aerial firmly.
“AM” cannot be selected. Check the <SRC SELECT> = <AM> setting. (See
page 13.)
EN_KW-XG810S[UN]1.indd 16EN_KW-XG810S[UN]1.indd 16 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

17ENGLISH
Symptom Remedy/Cause
Disc playback
Disc cannot be played back. Insert the disc correctly.
• CD-R/CD-RW cannot be played
back.
• Tracks on the CD-R/CD-RW
cannot be skipped.
• Insert a finalized CD-R/CD-RW.
• Finalize the CD-R/CD-RW with the component which
you used for recording.
Disc can neither be played back
nor ejected.
Eject the disc forcibly. (See page 3.)
Disc sound is sometimes
interrupted.
• Stop playback while driving on rough roads.
• Change the disc.
• Check the cords and connections.
“NO DISC” appears on the display. Insert a playable disc into the loading slot.
“PLEASE” and “EJECT“ appear
alternately on the display.
Press
0 , then insert a disc correctly.
MP3/WMA playback
Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format
compliant with ISO 9660 Level 1, Level 2, Romeo, or
Joliet.
• Add the extension code <.mp3> or <.wma> to the
file names.
Noise is generated. Skip to another track or change the disc. (Do not add
the extension code <.mp3> or <.wma> to non-MP3 or
WMA tracks.)
A longer readout time is required
(“READING” keeps flashing on the
display).
Do not use too many hierarchical levels and folders.
Tracks do not play back in the
order you have intended them
to play.
The playback order is determined when the files are
recorded.
The elapsed playing time is not
correct.
This sometimes occurs during playback. This is caused
by how the tracks are recorded on the disc.
“NO FILE” appears on the display. Selected folder is an empty folder *. Select another
folder that contains MP3/WMA tracks.
*Folder that is physically empty or folder that contains
data but does not contain valid MP3/WMA track.
“NOT SUPPORT” appears on the
display and track skips.
Skip to the next track encoded in an appropriate
format or to the next non-copy-protected WMA track.
The correct characters are not
displayed (e.g. album name).
This unit can only display letters (upper case), numbers,
and a limited number of symbols. (See page 7.)
EN_KW-XG810S[UN]1.indd 17EN_KW-XG810S[UN]1.indd 17 9/29/11 2:56:40 PM9/29/11 2:56:40 PM

18 ENGLISH
Symptom Remedy/Cause
USB device playback
Noise is generated. The track played back is not an MP3/WMA track. Skip to
another file. (Do not add the extension code <.mp3> or
<.wma> to non-MP3 or WMA tracks.)
“READING” keeps flashing on
the display.
• Readout time varies depending on the USB device.
• Do not use too many hierarchy or folders.
• Turn off the power then on again.
• Reattach the USB device again.
“NO FILE” appears on the
display.
Selected folder is an empty folder *. Select another
folder that contains MP3/WMA tracks.
*Folder that is physically empty or folder that contains
data but does not contain valid MP3/WMA track.
“NOT SUPPORT” appears on the
display and track skips.
Skip to the next track encoded in an appropriate format
or to the next non-copy-protected WMA track.
Tracks/folders are not played
back in the order you have
intended.
The playback order is determined by the write-in time
stamp. The first track/folder written into the USB device
will be the first track/folder for playback.
• “CANNOT PLAY” flashes on
the display.
• “NO USB” appears on the
display.
• The unit cannot detect the
USB device.
• Attach a USB device that contains tracks encoded in
an appropriate format.
• Reattach the USB device again.
While playing a track, sound is
sometimes interrupted.
The MP3/WMA tracks have not been properly copied
into the USB device.
Copy MP3/WMA tracks again into the USB device, and
try again.
Correct characters are not
displayed (e.g. album name).
This unit can only display letters (upper case), numbers,
and a limited number of symbols. (See page 7.)
Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Make sure all important data has been backed up. We shall bear no responsibility for any loss of
data in USB mass storage class device while using this system.
EN_KW-XG810S[UN]1.indd 18EN_KW-XG810S[UN]1.indd 18 9/29/11 2:56:41 PM9/29/11 2:56:41 PM

19ENGLISH
Specifications
AUDIO AMPLIFIER SECTION
Maximum Power Output: 50 W per channel
Continuous Power Output (RMS): 20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no
more than 1% total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Output Impedance: 1 kΩ
Other Terminal: AUX (auxiliary) input jack, USB input terminal
TUNER SECTION
Frequency Range: FM: 87.5 MHz to 108.0 MHz
AM: 531 kHz to 1 629 kHz
FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω)
50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)
Alternate Channel Selectivity
(400 kHz):
65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 40 dB
AM Tuner: Sensitivity / Selectivity: 20 μV / 40 dB
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical pickup
(semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Signal-to-Noise Ratio: 75 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps
USB SECTION
USB Standard: USB 1.1, USB 2.0
Data Transfer Rate (Full Speed): Max. 12 Mbps
Compatible Device: Mass storage class
Compatible File System: FAT 32/16/12
Playable Audio Format: MP3/WMA
Maximum Supply Current: DC 5 V 500 mA
GENERAL
Power Requirement: Operating Voltage: DC 13.2 V (10.8 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature: 0°C to +40°C
Dimensions:
(approx.)
Installation Size (W × H × D): 178 mm × 100 mm × 174 mm
Panel Size (W × H): 190 mm × 119 mm
Mass: 1.4 kg(excluding accessories)
Design and specifications are subject to change without notice.
EN_KW-XG810S[UN]f.indd 19EN_KW-XG810S[UN]f.indd 19 11/29/11 10:44:58 AM11/29/11 10:44:58 AM

2 INDONESIA
Harap membaca seluruh petunjuk dengan teliti sebelum mengoperasikan, untuk memastikan anda
memahami secara keseluruhan dan mendapatkan performansi terbaik dari unit ini.
PENTING UNTUK PRODUK-PRODUK LASER
1.PRODUK LASER KELAS 1
2.PERHATIAN: Jangan membuka penutup atas. Tidak ada bagian yang dapat diperbaiki oleh
pengguna di dalam unit tersebut; biarkanlah semua bagian yang diperbaiki untuk
memenuhi syarat perbaikan teknis.
3.PERHATIAN: Apabila terbuka, radiasi laser kelas 1M dapat terlihat dan/atau tidak terlihat. Jangan
langsung melihatnya dengan alat optik.
4.REPRODUKSI DARI LABEL: LABEL PERHATIAN, TEMPATKAN DI LUAR UNIT TERSEBUT.
[Hanya Uni Eropa]
PERINGATAN:
Hentikan mobil sebelum mengoperasikan unit.
Perhatian:
Sesuaikan volume agar Anda masih dapat
mendengar suara di luar mobil. Mengemudi
sembari mendengar volume unit yang terlalu
tinggi dapat menyebabkan kecelakaan.
Perhatian pada pengaturan volume:
Perangkat digital (CD/USB) tidak terlalu berisik
jika dibandingkan dengan sumber lainnya.
Turunkan volume sebelum memutar sumber-
sumber digital ini untuk menghindari kerusakan
pada pengeras suara akibat peningkatan level
output [keluaran] yang tiba-tiba.
Kondensasi : Jika mobil dilengkapi AC, uap
air bisa bertumpuk pada lensa laser. Kondisi
bisa menyebabkan kesalahan baca pada disk.
Untuk mengatasi hal ini, keluarkan disk dan
tunggu sampai uap air menguap.
Suhu dalam mobil : Jika anda telah
memarkir mobil terlalu lama dalam cuaca
yang panas atau dingin, tunggu hingga
suhu dalam mobil menjadi normal kembali
sebelum mengoperasikan unit ini.
IN_KW-XG810S[UN]1.indd 2IN_KW-XG810S[UN]1.indd 2 11/2/11 9:50:24 AM11/2/11 9:50:24 AM
