JVC KD-AVX1 User manual

ENGLISHESPAÑOL
FRANÇAIS
DVD/CD RECEIVER KD-AVX1
RECEPTOR CON DVD/CD
KD-AVX1
RECEPTEUR DVD/CD
KD-AVX1
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information for
future reference.
Model No.
Serial No.
LVT1322-001B
[J]
SOURCE MENU
BACK
BAND
OK
KD-AVX1
DISP
D
Cover_KD-AVX1[J]ff.indd 2Cover_KD-AVX1[J]ff.indd 2 05.3.28 9:37:20 AM05.3.28 9:37:20 AM

2
ENGLISH
How to forcibly eject a disc
If a disc cannot be recognized by the receiver
or cannot be ejected, ejects the disc as
follows.
“NO EJECT?”(or “EJECT OK?”) and
“EMERGENCY EJECT?”appear on the
monitor.
Press 5/ ∞repeatedly to select
“EMERGENCY EJECT?”, then press OK.
• If this does not work, reset your receiver.
• Be careful not to drop the disc when it
ejects.
How to reset your unit
This will reset the microcomputer. Your
preset adjustments will also be erased.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
–Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover.
There are no user serviceable parts inside
the unit; leave all servicing to qualified
service personnel.
3. CAUTION: Visible and invisible laser
radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
AVX1EN_book.indb 2AVX1EN_book.indb 2 05.2.18 8:54:16 PM05.2.18 8:54:16 PM

3
ENGLISH
This product incorporates copyright
protection technology that is protected
by U.S. patents and other intellectual
property rights. Use of this copyright
protection technology must be authorized
by Macrovision, and is intended for home
and other limited viewing uses only unless
otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Cautions on the monitor:
•The monitor built in this receiver has
been produced with high precision, but it
may have some ineffective dots. This is
inevitable and is not malfunction.
•Do not expose the monitor to direct
sunlight.
Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
For safety....
•Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
•Stop the car before performing any
complicated operations.
WARNINGS:
• DO NOT install any receiver in
locations where;
– it may obstruct the steering wheel and
gearshift lever operations, as this may
result in a traffic accident.
– it may obstruct the operation of safety
devices such as air bags, as this may
result in a fatal accident.
– it may obstruct visibility.
• DO NOT operate any receiver while
manipulating the steering wheel, as this
may result in a traffic accident.
• The driver must not watch the monitor
while driving.
If the driver watches the monitor while
driving, it may lead to carelessness and
cause an accident.
• The driver must not put on the
headphones while driving. It is
dangerous to shut off the outside sounds
while driving.
• If you need to operate the receiver while
driving, be sure to look ahead carefully
or you may be involved in a traffic
accident.
• If the parking brake is not engaged,
“ParkingBrake” flashes on the monitor,
and no playback picture will be shown.
– This warning appears only when
the parking brake wire is connected
to the parking brake system built
in the car (refer to the Installation/
Connection Manual).
AVX1EN_book.indb 3AVX1EN_book.indb 3 05.2.18 8:54:17 PM05.2.18 8:54:17 PM

4
ENGLISH
Characters shown on the monitor
The following characters will be used to show
the various information on the monitor.
•You can also use the following characters to
assign titles (see page 44).
Numbers and symbols
How to read this manual
The following methods are used to make the
explanations simple and easy-to-understand:
•Some related tips and notes are explained in
“More about this receiver”(see pages
57 –61).
•Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press A, then press
B.
Press and hold both
buttons at the same
time.
Upper case
Lower case
space
space
space
A B
AVX1EN_book.indb 4AVX1EN_book.indb 4 05.2.18 8:54:17 PM05.2.18 8:54:17 PM

5
ENGLISH
Dual Zone operations ..................... 37
Playing back two sources at a time........ 37
Sound adjustments......................... 38
Selecting preset sound modes....... 38
Storing your own sound adjustments..... 38
Adjusting the sound ............................... 39
General settings — PSM................ 41
Basic procedure ..................................... 41
Other main functions ...................... 44
Assigning titles to the sources ............... 44
Detaching the control panel................... 45
Changing the control panel angle .......... 45
CD changer operations.................... 46
Playing discs in the CD changer .... 46
Selecting the playback modes................ 48
External component operations ............ 49
Playing an external component.... 49
SIRIUS®radio operations................ 50
Listening to the SIRIUS
®
radio ..... 51
Storing channels in memory .................. 52
Listening to a preset channel ................. 52
List screen operation.............................. 53
Channel skipping ................................... 54
Maintenance .................................. 55
Language codes.............................. 56
More about this receiver................. 57
Troubleshooting ............................. 62
Specifications................................. 67
Contents
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
Characters shown on the monitor .......... 4
Introduction —Playable discs............ 6
Control panel ................................ 7
Parts identification................................. 7

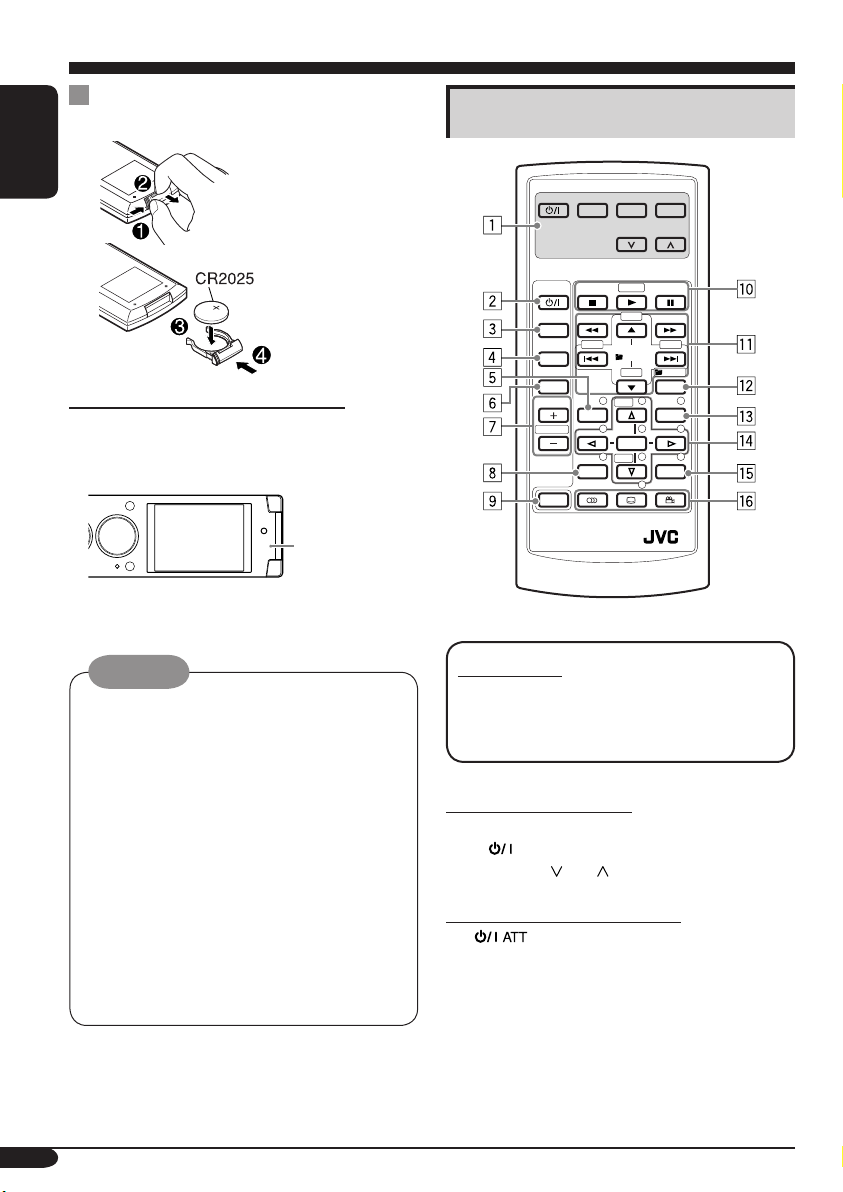

Remote controller —RM-RK230 ....... 8
Main elements and features ................... 8
Getting started .............................. 10
Basic operations............................. 10
Setting the clock .................................... 11
Radio operations............................ 12

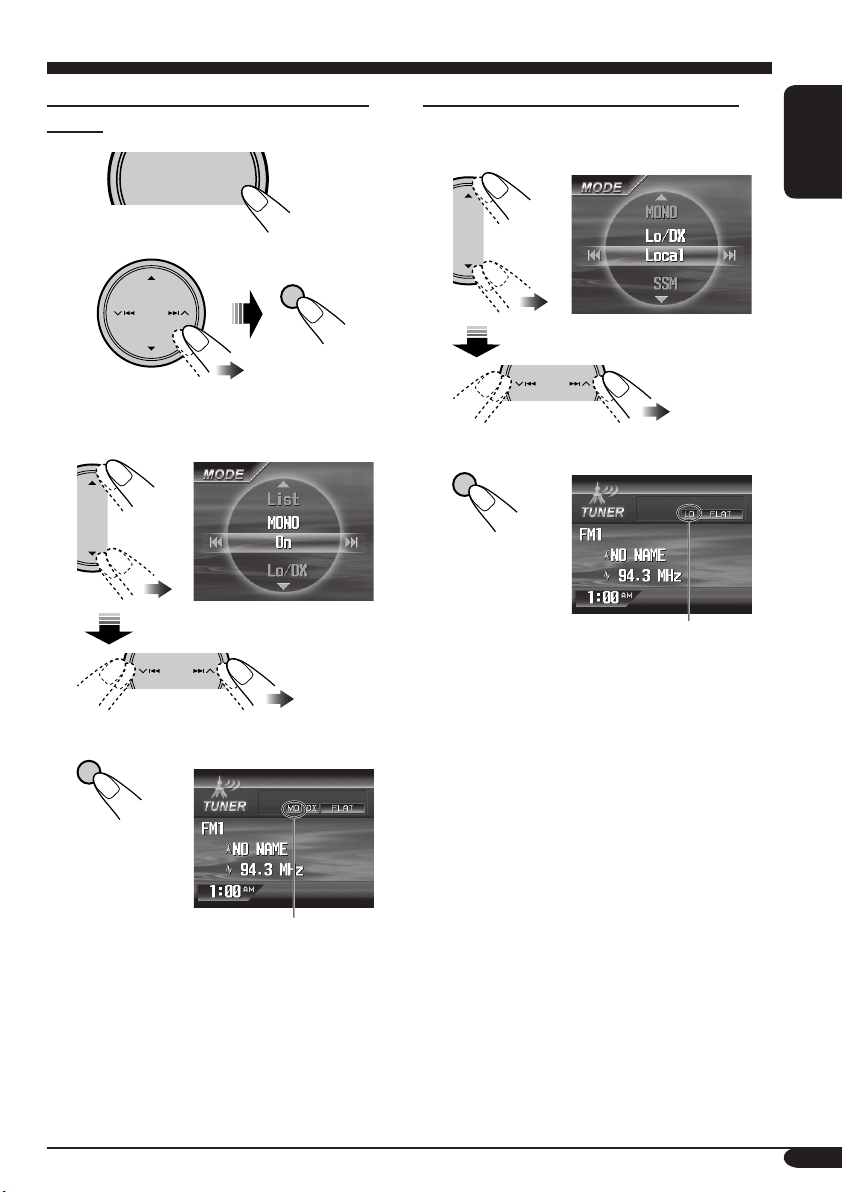

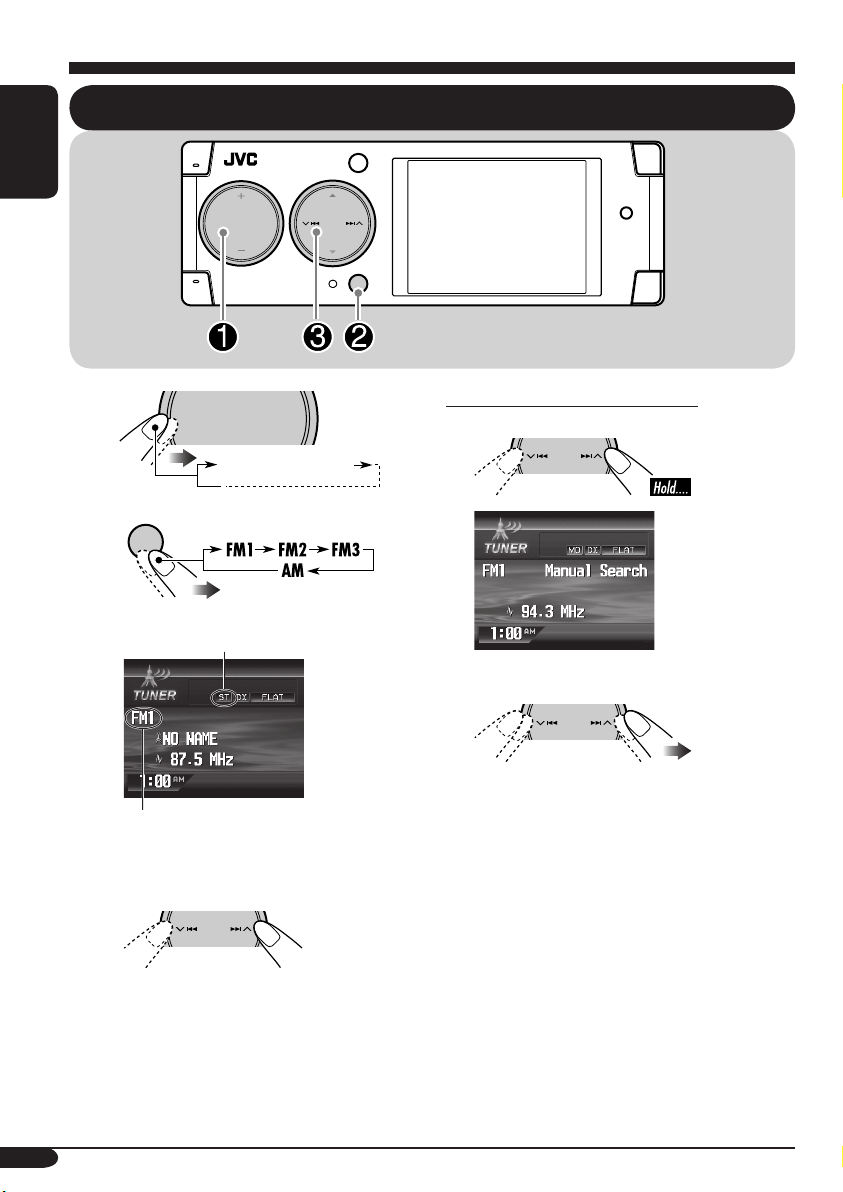

Listening to the radio .................... 12

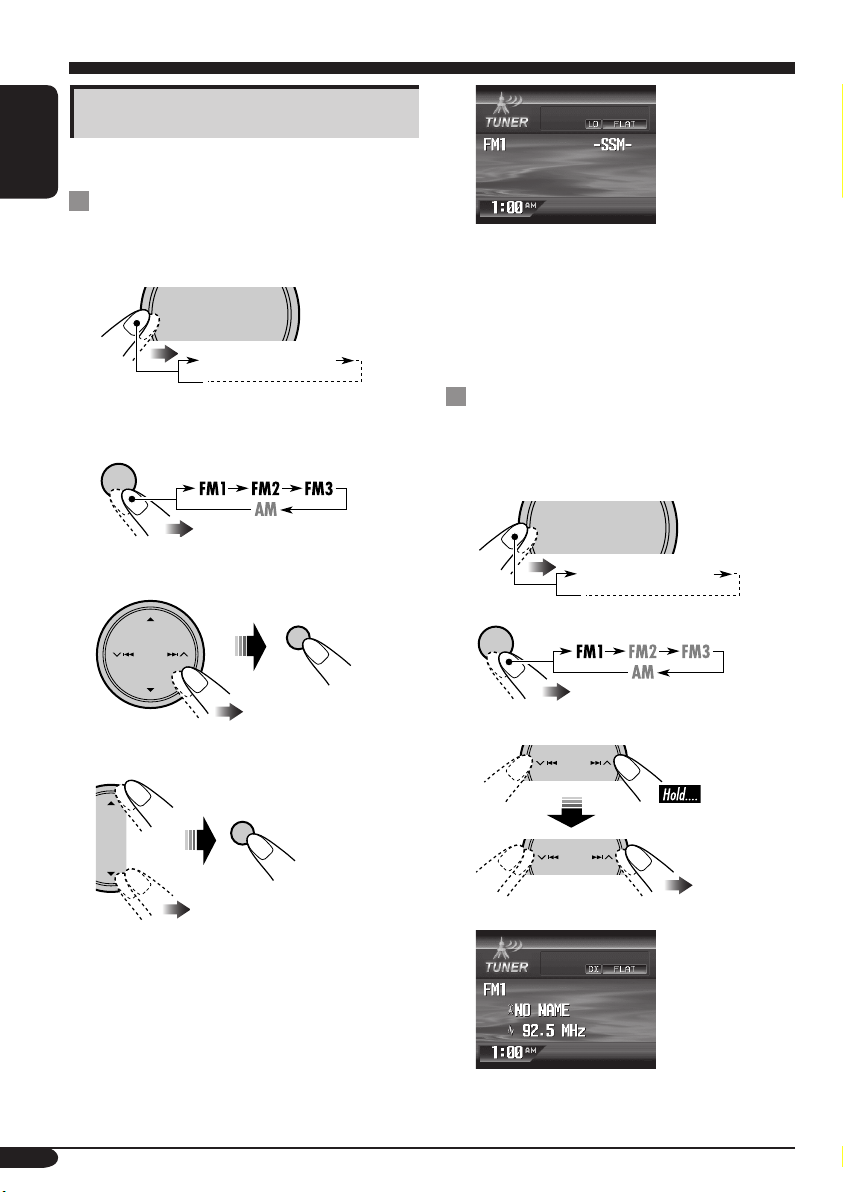

Storing stations in memory.................... 14

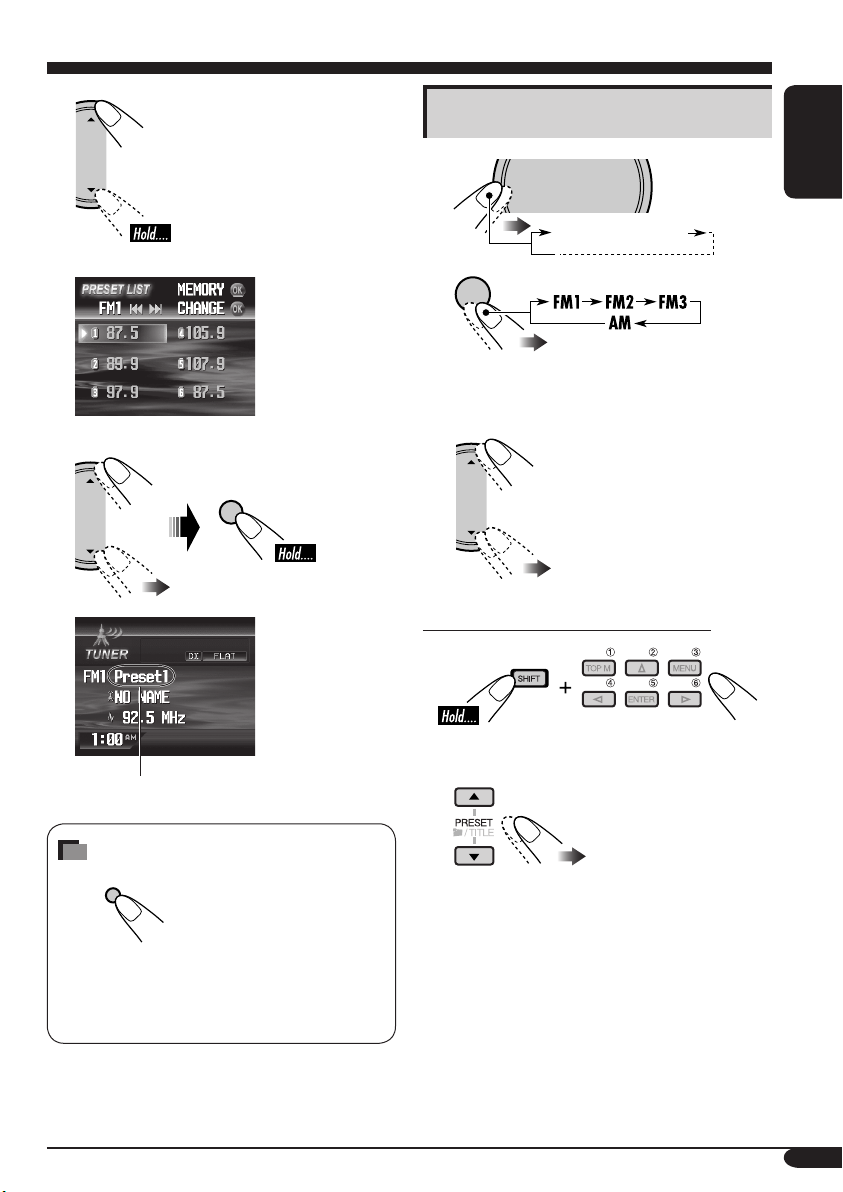

Listening to a preset station ................... 15
Disc operations .............................. 16

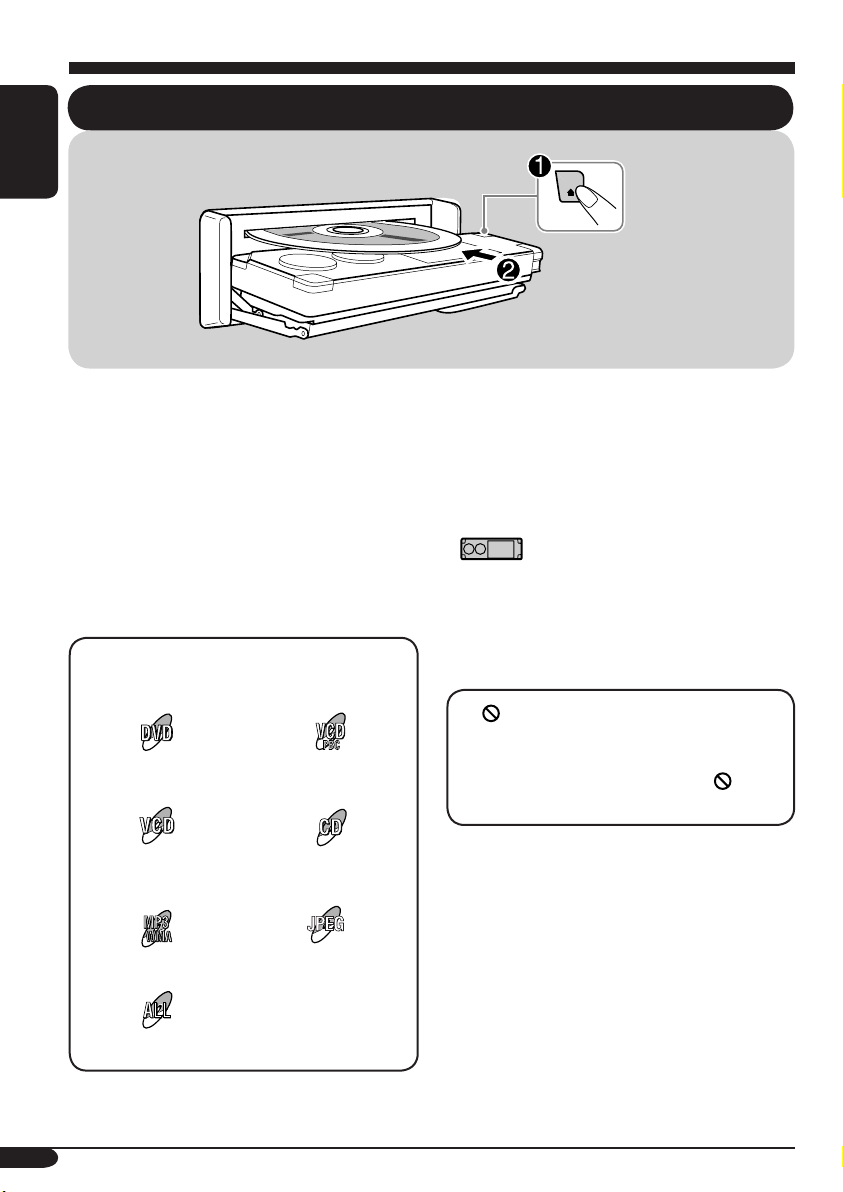

Playing a disc in the receiver ....... 16

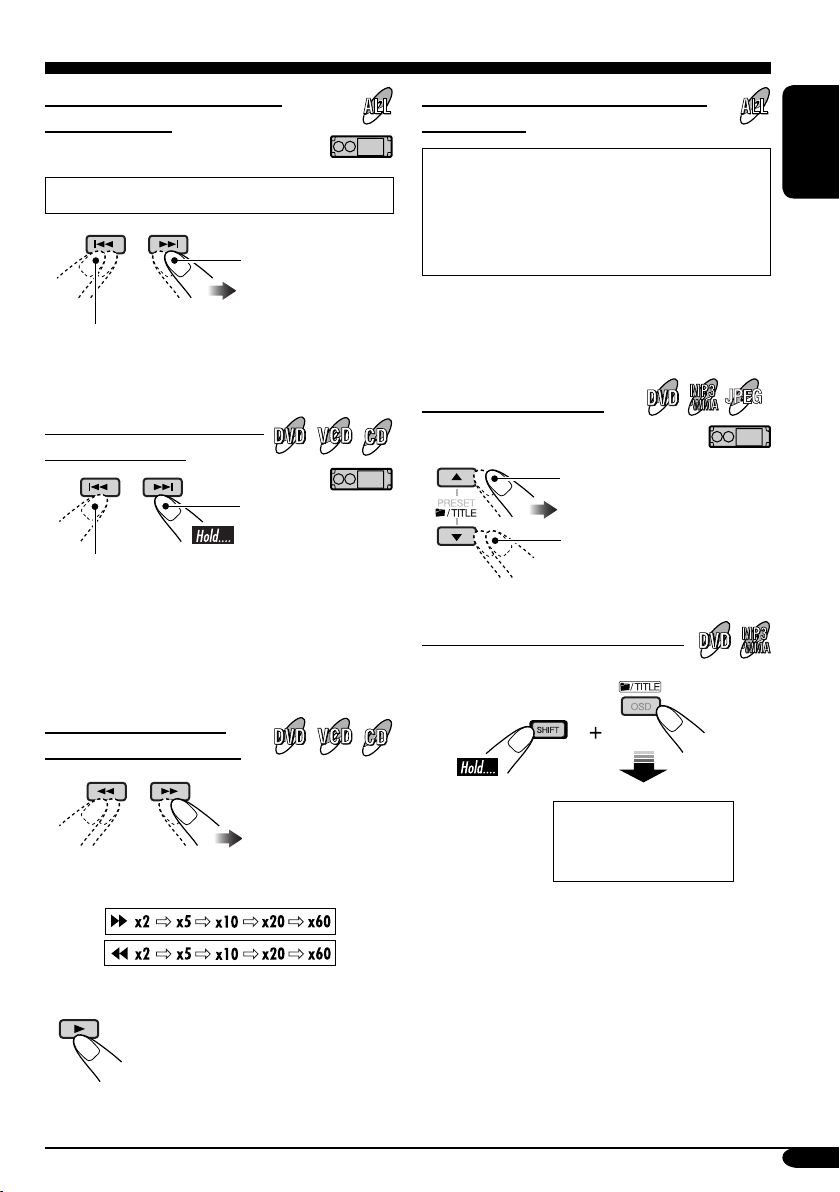

Basic operations .................................... 18
DVD/VCD special functions ............ 20
Selecting audio languages ..................... 20
Selecting subtitles .................................. 20
Selecting multi-angle views................... 20
Disc menu operations ............................ 21
Zoom in.................................................. 21
On-Screen disc operations............... 22
Basic on-screen bar operations .............. 23
Basic control screen operations ............. 25
List screen operations ............................ 26
AV setup menu .............................. 27
Basic setting procedure.......................... 27
Monitor adjustments ...................... 31
Other disc operations ..................... 32
Basic operations..................................... 32
Selecting the playback modes................ 34
List screen operations ............................ 36
AVX1EN_book.indb 5AVX1EN_book.indb 5 05.2.18 8:54:18 PM05.2.18 8:54:18 PM

6
ENGLISH
Introduction — Playable discs
Discs you can play
You can play back the following discs—12 cm
(4-3/4") and 8 cm (3-3/16")—on this receiver:
•DVD Video: Recorded in NTSC color
system with Region Code “1”(see below).
–DVD-R/DVD-RW recorded in the DVD-
Video format can also be played.
•Video CD (VCD)/audio CD
•MP3/WMA/JPEG: Recorded either in CD-
R/CD-RW or DVD-R/DVD-RW/DVD-ROM.
–CD-R/CD-RW: Compliant with ISO 9660
Level 1, ISO 9660 Level 2, Romeo, and
Joliet.
–DVD-R/DVD-RW/DVD-ROM: Compliant
with UDF-Bridge Format*1.
On some discs, the actual operations may be
different from what is explained in this manual.
Discs cannot be played back
DVD-Audio, DVD-ROM (data), DVD-RAM,
DVD-R/DVD-RW recorded in the DVD-VR
format, CD-ROM, CD-I (CD-I Ready), Photo
CD, etc.
•Playing back these discs will generate noise
and damage the speakers.

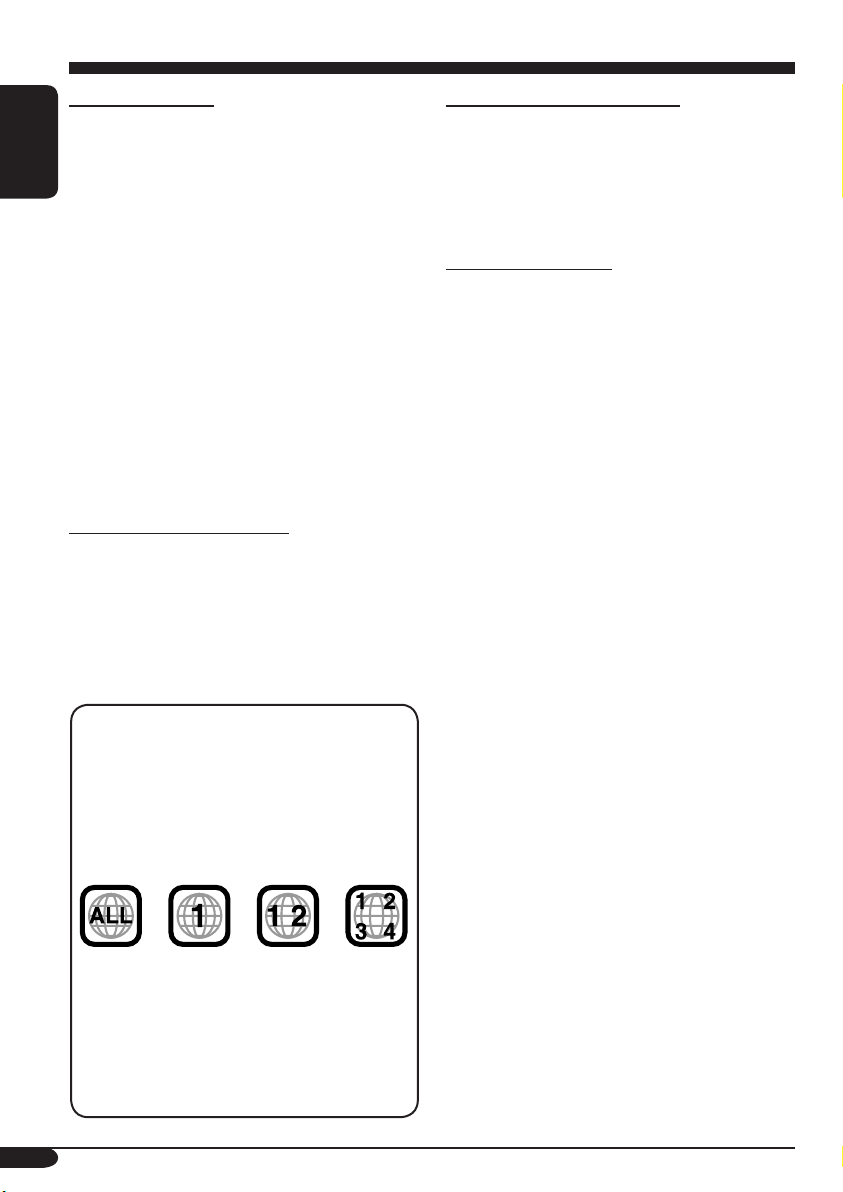

Note on Region Code:
DVD players and DVD Video discs have
their own Region Code numbers. This
receiver can only play back DVD discs
whose Region Code numbers include “1”.
Examples:
If you insert a DVD Video disc of an
incorrect Region Code
“Region Error”appears on the monitor on
the unit.
“REGION CODE ERROR!”appears on the
external monitor.
Caution for DualDisc playback
•The Non-DVD side of a “DualDisc”does
not comply with the “Compact Disc Digital
Audio”standard. Therefore, the use of Non-
DVD side of a DualDisc on this product may
not be recommended.
Digital audio formats
The System can play back the following digital
audio formats.
Linear PCM: Uncompressed digital audio,
the same format used for CDs and most studio
masters.
Dolby Digital *2:Compressed digital audio,
developed by Dolby Laboratories, which
enables multi-channel encode to create the
realistic surround sound.
DTS *3(Digital Theater Systems):
Compressed digital audio, developed by Digital
Theater Systems, Inc., which enables multi-
channel like Dolby Digital. As the compression
ratio is lower than for Dolby Digital, it provides
wider dynamic range and better separation.
MPEG Audio: Another compressed digital
audio which also enables multi-channel encode
to create the realistic surround sound. However,
this System downmix the multi-channel signals
into 2 channels (decoded PCM) and play it
back.
*1A hybrid file system used to provide
compatibility with ISO 9660 for accessing
any type of files on the disc. (UDF stands for
Universal Disk Format.)
*2Manufactured under license from Dolby
Laboratories. “Dolby”and the double-
D symbol are trademarks of Dolby
Laboratories.
*3“DTS”and “DTS 2.0 + Digital Out”are
registered trademarks of Digital Theater
Systems, Inc.
“DVD Logo”is a trademark of DVD Format/
Logo Licensing Corporation registered in the
US, Japan and other countries.
AVX1EN_book.indb 6AVX1EN_book.indb 6 05.2.18 8:54:19 PM05.2.18 8:54:19 PM

7
ENGLISH
SOURCE MENU
BACK BAND
OK
KD-AVX1
DISP
D
15
2367
89pq
4
w
e
r
t
y
Control panel
1(standby/on attenuator) button
2•+/–(volume +/–) button
•SOURCE button
•MENU button
3•5(up) / ∞(down) buttons
•4/¢buttons
4•OK button
•3(play) button
5Monitor
6D DISP (display) button
70(eject) button
8(angle) button
9Reset button
p•BACK button
•BAND button
•7(stop) button
q(control panel release) button
Monitor indications
wSource indicator
eMain display
rClock display
Also indicates volume level when adjusting
volume.
tStatus indicators
yAlert information area
Also indicates volume level bar when
adjusting volume.
Parts identification
Monitor
indications
Ex.:
Source
screen
on JPEG
playback
AVX1EN_book.indb 7AVX1EN_book.indb 7 05.2.18 8:54:19 PM05.2.18 8:54:19 PM

8
ENGLISH
Installing the lithium coin battery
(CR2025)
Before using the remote controller:
•Aim the remote controller directly at the
remote sensor on the receiver. Make sure
there is no obstacle in between.
•Do not expose the remote sensor to strong
light (direct sunlight or artificial lighting).
Warning:
•Do not install any battery other than
CR2025 or its equivalent; otherwise, it
may explode.
•Store the battery in a place where children
cannot reach to avoid risk of accident.
•To prevent the battery from over-heating,
cracking, or starting a fire:
–Do not recharge, short, disassemble, or
heat the battery or dispose of it in a fire.
–Do not leave the battery with other
metallic materials.
–Do not poke the battery with tweezers or
similar tools.
–Wrap the battery with tape and insulate
when throwing away or saving it.
The receiver is equipped with the steering
wheel remote control function.
•See the Installation/Connection Manual
(separate volume) for connection.
Main elements and features
IMPORTANT:
If Dual Zone is activated (see page 37),
the remote controller only functions for
operating the DVD/CD player.
MONITOR CONTROL
1Monitor control buttons*1
•(standby/on), MODE, ASPECT,
MENU, and .
DVD/RECEIVER CONTROL
2(standby/on attenuator) button
•Turns on and off the power and also
attenuates the sound.
3SOURCE button
•Selects the source.
4BAND button
•Selects the FM/AM/SIRIUS®bands.
Remote controller —RM-RK230
Remote
sensor
MODE MENU ASPECT
ZOOM
ATT
SOURCE
DISC+
DISC–
DVD / RECEIVER CONTROL
MONITOR CONTROL
+10
–10
123
456
78
0
9
–100
BAND
OSD
MENUTOP M
SETUP
RM-RK230
RETURN
ENTER
DUAL
SHIFT
VOL
2nd VOL
+100
/ TITLE
PRESET
/ TITLE
AVX1EN_book.indb 8AVX1EN_book.indb 8 05.2.18 8:54:20 PM05.2.18 8:54:20 PM

9
ENGLISH
5TOP M (menu) button*2
•Display the DVD and VCD*3disc menu.
6DUAL button*4
•Activate and deactivate Dual Zone.
7VOL + / –buttons
•Adjusts the volume level.
•Also function as 2nd VOL +/–buttons
when pressed with SHIFT button.
8SETUP button (for DVD/VCD)*2
9SHIFT button
pBasic disc operation buttons*4:
7(stop), 3(play), 8(pause)
•3(play) also function as ZOOM button
when pressed with SHIFT button.
qAdvanced disc operation/tuner operation
buttons*5
For advanced disc operations:
•/TITLE 5/ ∞
–Select the titles (for DVD) or folders
(for MP3/WMA).
•4/ ¢(reverse skip/forward skip)
•1/ ¡(reverse search/forward
search)*6
For FM/AM tuner operations:
•PRESET 5/ ∞
–Changes the preset stations.
•4/ ¢
–Functions to search for stations.
Press briefly: auto search
Press and hold: manual search
For SIRIUS®radio operations:
•PRESET 5/ ∞
–Changes the categories.
•4/ ¢
–Changes the channels if pressed briefly.
–Changes the channels rapidly if pressed
and held.
wOSD button
•Display the on-screen bar.
•Also function as the /TITLE button
when pressed with SHIFT button.
–You can directly select titles (for DVD)
or folders (for MP3/WMA) using the
number buttons (see page 19).
eMENU button*2
•Display the DVD and VCD*3disc menu.
rMenu operation buttons*2
•Cursor (%, fi, @, #) and ENTER
•%/ fi: Also function as DISC + / –
buttons when the source is “CD-CH”.
tRETURN button*2
ySpecial function buttons
•DVD/VCD: (audio)
•DVD: (subtitle), (angle)
*1Controllable only if your monitor is one of
the JVC monitors —KV-MR9010 or
KV-MH6510.
*2These buttons function as the number
buttons when pressed with SHIFT button.
*3Only when PBC is not in use.
*4Not used for CD changer operations.
*5These buttons function as the +10/–10
and +100/–100 buttons when pressed with
SHIFT button.
*6Not used for MP3/WMA/JPEG operations.
How to select a number
To select a number from 0 –9:
To select a number greater than 9:
•+100/–100 buttons used only for searching
MP3/WMA/JPEG tracks number greater
than 99.
AVX1EN_book.indb 9AVX1EN_book.indb 9 05.2.18 8:54:21 PM05.2.18 8:54:21 PM

10
ENGLISH
~Turn on the power.
Ÿ
You cannot select some sources if they
are not ready.
!For FM/AM tuner only
For SIRIUS®radio only
⁄Adjust the volume.
Volume level indicator
@Adjust the sound as you want.
(See pages 38 –40.)
To drop the volume in a moment (ATT)
To restore the sound,
press it again.
To turn off the power
Getting started
Basic operations
SOURCE MENU
BACK BAND
SOURCE MENU
BACK BAND
SOURCE MENU
BACK BAND
AVX1EN_book.indb 10AVX1EN_book.indb 10 05.2.18 8:54:22 PM05.2.18 8:54:22 PM
