JVC KW-AVX838 User manual

ENGLISHESPAÑOL
For canceling the display demonstration, see page 4.
Para cancelar la demonstración en pantalla, consulte la página 4.
KW-AVX838/KW-AVX830
KW-ADV793/KW-AVX738
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
LVT2086-001A
[J/JW]
DVD RECEIVER WITH MONITOR
RECEPTOR DVD CON MONITOR
• Only for KW-AVX838/KW-AVX830: To use the Bluetooth function, insert the Bluetooth adapter (KS-UBT1). (See page 37.)
• Sólo para KW-AVX838/KW-AVX830: Para utilizar la función Bluetooth, inserte el adaptador Bluetooth (KS-UBT1). (Consulte la
página 37)
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information
for future reference.
Model No.
Serial No.
Only for KW-AVX830/KW-ADV793
Sólo para KW-AVX830/KW-ADV793

2
ENGLISH
Cautionson themonitor:
•The monitor builtin this unit has been produced with
high precision, but it may havesome ineffectivedots.
This is inevitableand is not malfunction.
•Do not expose the monitor to direct sunlight.
•Do not operate the touch panel using aball-point pen
or similar tool with the sharp tip.
Touch the buttons on the touch panel with your finger
directly(if you are wearing aglove, takeit off).
•When the temperature is very coldor very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearlyor may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
•Afterimage may occur if displaying acertain image on
the monitor for along time. This is not malfunction.
Turn off the unit or display another image.
Thank you for purchasing aJVC product.
Please read all instructions carefullybefore operation, to ensure your complete understanding and to obtain the best
possibleperformance from the unit.

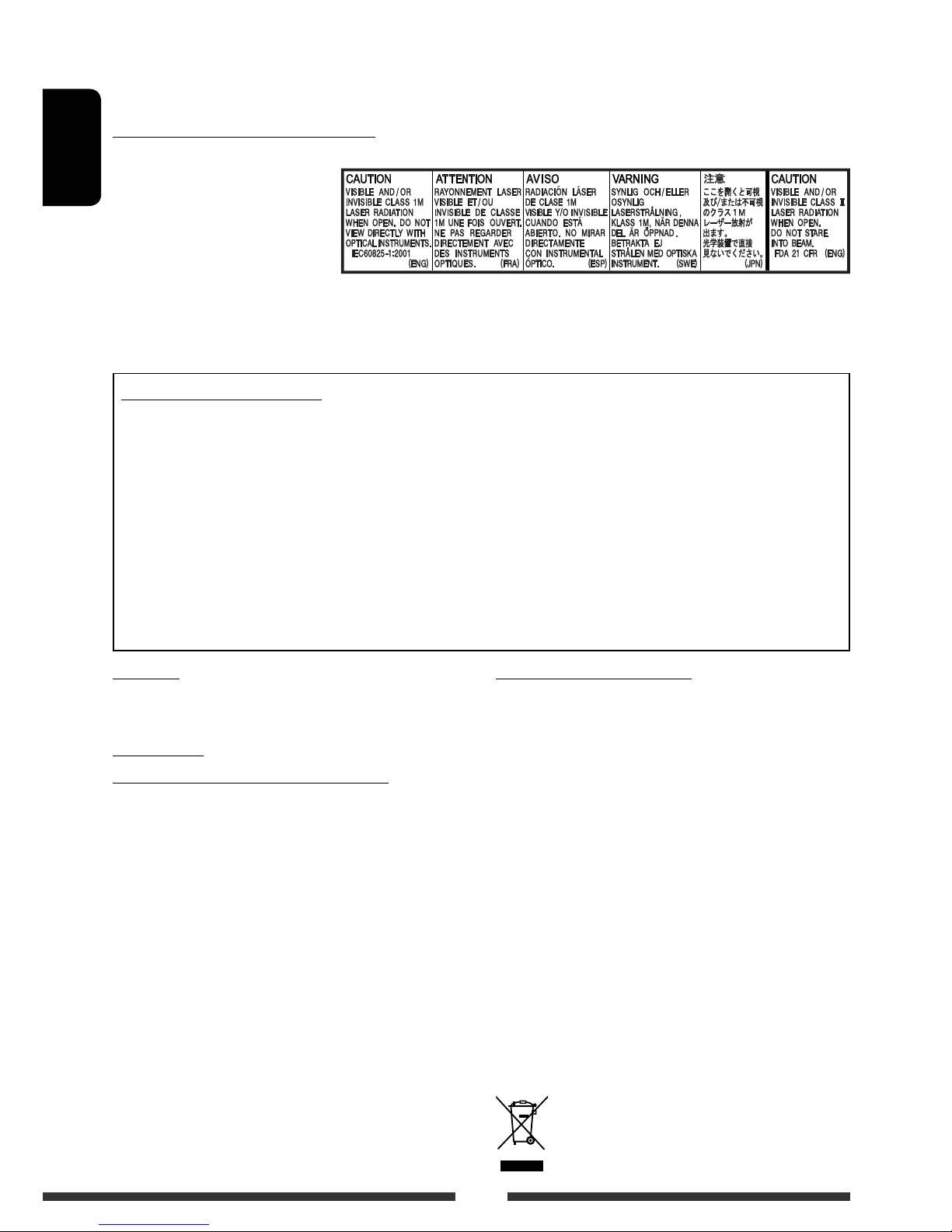

IMPORTANT FOR LASER PRODUCTS
1. CLASS 1LASERPRODUCT
2.CAUTION:Do not open the
top cover. There are no user
serviceableparts inside the unit;
leaveall servicing to qualified
service personnel.
3. CAUTION:(For U.S.A.) Visibleand/or invisibleclass II laser radiation when open. Do not stare into beam.
(For Canada)Visibleand/or invisibleclass 1M laser radiation when open. Do not view directlywith
optical instruments.
4. REPRODUCTION OF LABEL:CAUTION LABEL,PLACEDOUTSIDE THE UNIT.
INFORMATION (For U.S.A.)
This equipment has been tested and found to complywith the limits for aClass Bdigital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in
aresidential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in aparticular installation. Ifthis equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on acircuit different from that to which the receiver is connected.
– Consultthe dealer or an experienced radio/TVtechnician for help.
[European Union only]
Caution:
Changes or modifications not approved by JVC could
void the user’sauthority to operate the equipment.
WARNINGS:
(Toprevent accidentsand damage)
•DO NOT install any unit or wire any cablein alocation
where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices such
as air bags.
– it may obstruct visibility.
•DO NOT operate the unit whiledriving.
Ifyou need to operate the unit whiledriving, be sure
to look around carefully.
•The driver must not watch the monitor whiledriving.
•The driver must not put on the headphones while
driving.
•Onlyfor KW-AVX838/KW-AVX830: Excessivesound
pressure from earphones or headphones can cause
hearing loss when you listen through earphones or
headphones with using Dual Zone.
EN_KW-AVX838[J]6.indb 2 10.1.18 5:42:25 PM

3
ENGLISH

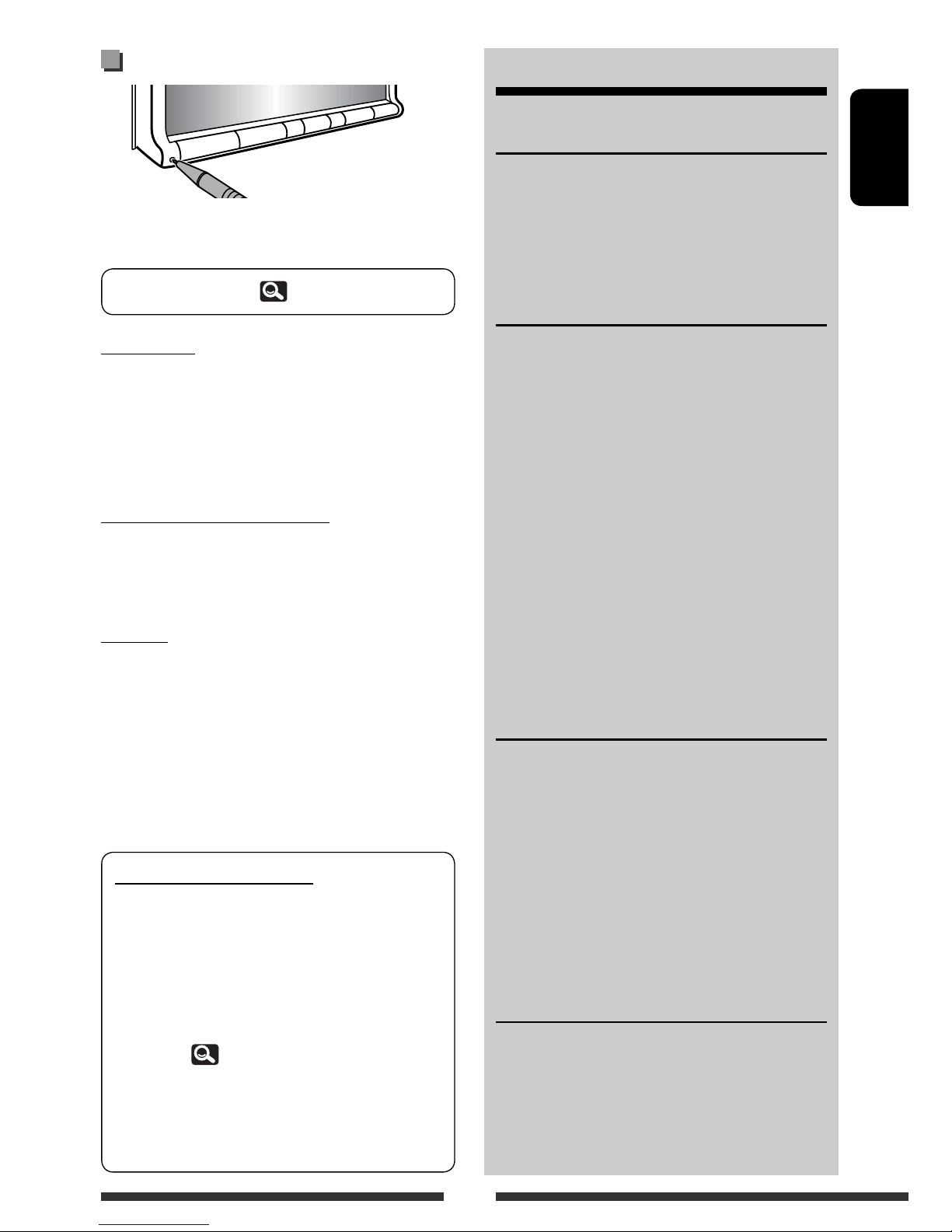

How toreset your unit
• Your preset adjustments will also be erased (except the
registered Bluetooth devices).
For safety...
•Do not raise the volume level too much, as this will
makedriving dangerous by blocking outside sounds,
and may cause hearing loss.
•Stop the car before performing any complicated
operations.
Temperature insidethecar...
Ifyou haveparked the car for along time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
Caution
This product has afluorescent lamp that
contains mercury. Disposal of these materials
may be regulated in your community due to
environmental considerations. For disposal or
recycling information, please contact your local
authorities or for USA, the Electronic Industries
Alliance: <http://www.eiae.org.>
How toread thismanual:
•Illustrations of KW-AVX838/KW-AVX830 are
mainlyused for explanation.
•This manual mainlyexplains operations using
the buttons on the monitor panel and touch
panel.For operations using the remote controller
(RM-RK252:supplied onlyfor KW-AVX838/KW-
AVX738), 53.
•< > indicates the variablescreens/menus/
operations/settings that appear on the touch
panel.
•[ ] indicates the buttons on the touch panel.
CONTENTS
How to reset your unit ............................................3
INTRODUCTIONS
Canceling the display demonstration and setting the
clock....................................................................4
Basic operations......................................................5
•Detaching/attaching the monitor panel ...................... 5
•Basic operations on the monitor panel......................... 6
•Basic operations on the touch panel ........................... 7
AV SOURCE OPERATIONS
Listening to the radio............................................ 11
Disc/USB operations.............................................. 13
Listening to the iPod/iPhone device...................... 19
Listening to the satellite radio
(Onlyfor KW-AVX830/KW-ADV793).................. 22
Listening to the HDRadioTMbroadcast
(Onlyfor KW-AVX830/KW-ADV793).................. 24
Using other external components......................... 26
•AV-INPUT ................................................................. 26
•EXT-INPUT ................................................................. 27
Dual Zone operations
(Onlyfor KW-AVX838/KW-AVX830).................. 28
Sound equalization............................................... 29
Using arear view camera...................................... 29
AV Setup/Sound/Equalizer menu items................ 30
BLUETOOTH OPERATIONS (Only for
KW-AVX838/KW-AVX830/KW-ADV793)
Information for using Bluetooth® devices............. 36
Bluetooth operations
for KW-AVX838/KW-AVX830............................. 36
•Connecting Bluetooth devices ................................... 37
•Using the Bluetooth mobilephone/audio player ....... 39
•Bluetooth device settings .......................................... 44
Bluetooth operations for KW-ADV793................... 45
•Connecting Bluetooth devices ................................... 45
•Using the Bluetooth mobilephone ........................... 48
•Using the Bluetooth audio player .............................. 51
•Bluetooth device settings .......................................... 52
REFERENCE
Using the remote controller
(Onlyfor KW-AVX838/KW-AVX738).................. 53
Maintenance......................................................... 58
More about this unit ............................................. 59
Troubleshooting.................................................... 63
Specifications........................................................ 69
Toforciblyeject adisc, 13.
EN_KW-AVX838[J]6.indb 3 10.1.18 5:42:28 PM

4
ENGLISH

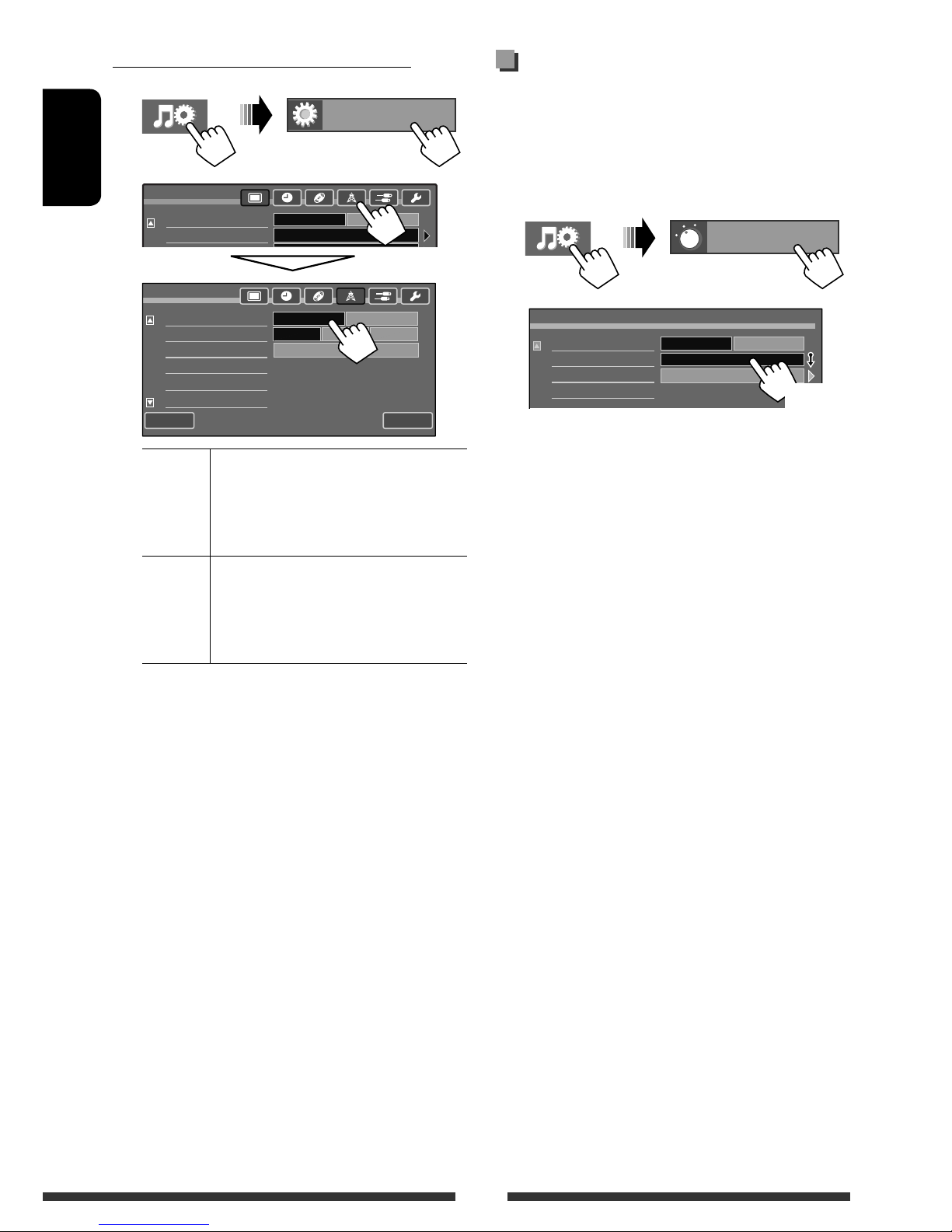

Setting theclock
1 Display <AV Menu> screen.
2 Display <Setup> screen.
3
4 Adjust thehour (1), then theminute
(2).
5 Finish theprocedure.
Canceling thedisplay
demonstration
1 Display <AV Menu> screen.
2 Display <Setup> screen.
3 Select <Off>.
4 Finish theprocedure.
AV Menu
Exit
AV Setup
Equalizer
Sound
Mode
List
Bluetooth
Back
Setup
Demonstration
Wall Paper
Color
Scroll
Dimmer
Dimmer Time Set
Blue
Auto
AutoOnce
7AMPM6
Ambient
Off On
Off
Exit
INTRODUCTIONS
Ambient
Setup
Demonstration
Wall Pa
p
er
Off On
1 : 00
12Hours 24Hours
Auto
On
Off
Off
AM
Setup
Time Set
Time Format
OSD Clock
Clock Adjust
Back
Setup
Exit
Time Set
Time Format
OSD Clock
Clock Adjust
3 : 45PM
Time Zone
DST
Back Exit
AV Menu
Exit
AV Setup
Equalizer
Sound
Mode
List
Bluetooth
Back Exit
3:45 PM
or
3:45 PM
or
Canceling the display demonstration and setting the clock
EN_KW-AVX838[J]6.indb 4 10.1.18 5:42:29 PM

5
ENGLISH
Ÿ
•The attaching plate closes automaticallyabout
10 seconds after the monitor panel is unlocked.
!
Detaching
~Whiletheunit isturned on:
The monitor panel opens by about 50°.
•Itcloses automaticallywhen no operation is
done for about aminute.
Removethe monitor panel before this happens.
Attaching plate
The monitor panel is
unlocked.
Basic operations
Soft case (supplied)
•Holdthe monitor panel securelyso as not to drop it accidentally.
•Fit the monitor panel onto the attaching plate until it is firmlylocked.
Caution:
Exit
Detach
Close
Yes No
Detach?

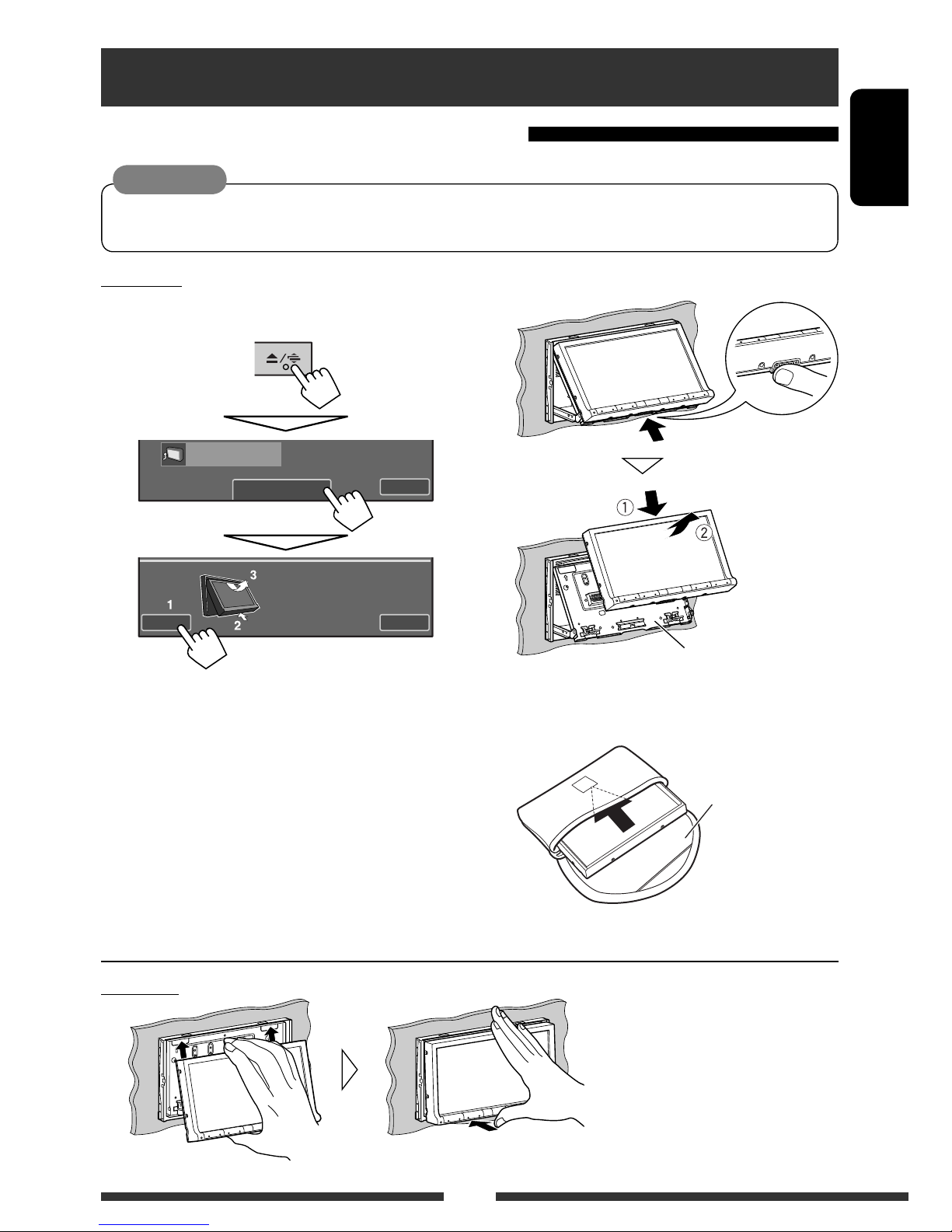

Detaching/attaching themonitor panel
Attaching
EN_KW-AVX838[J]6.indb 5 10.1.18 5:42:30 PM

6
ENGLISH

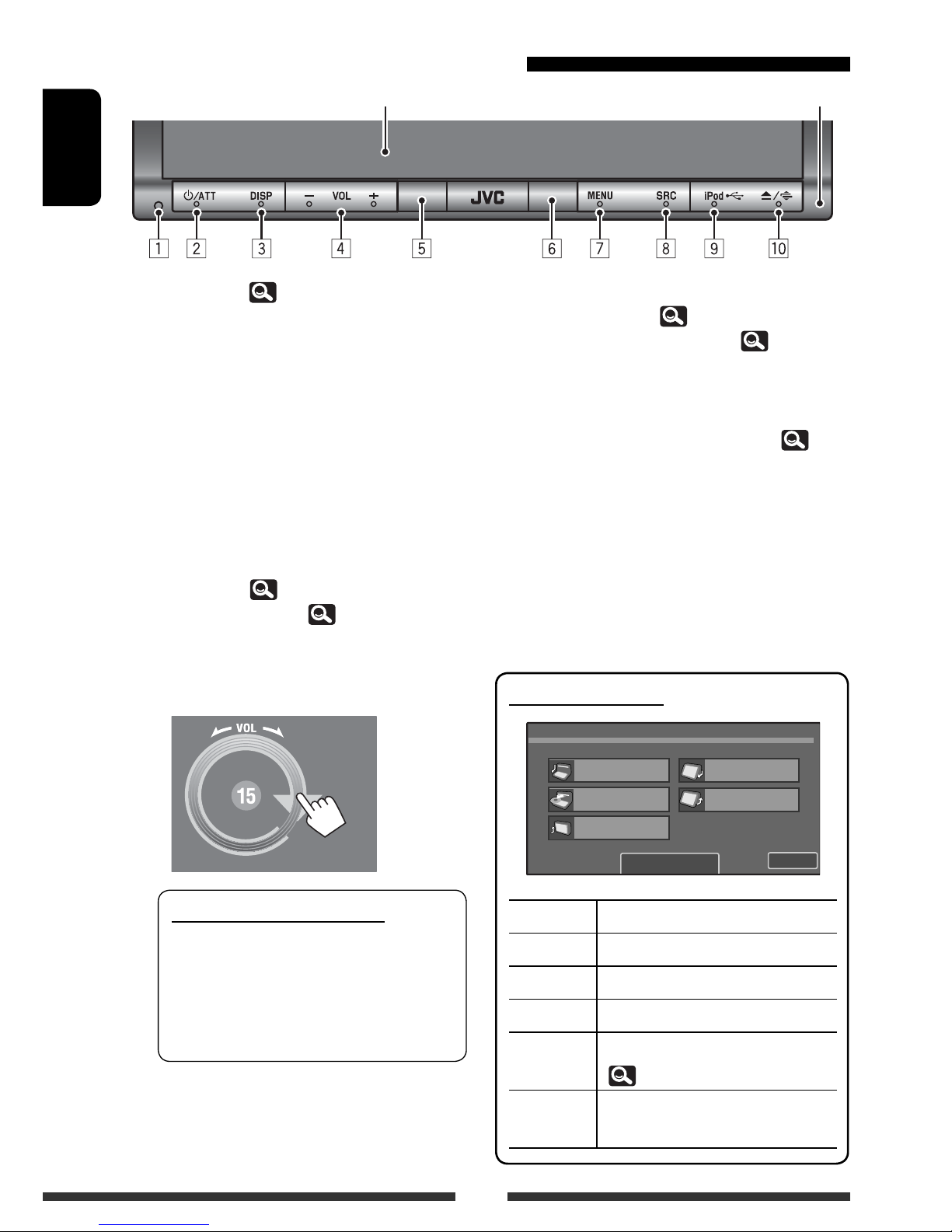

5Remote sensor
6Prox./Motion sensor(8)
7•Displays <AV MENU> screen. (7)
8•Selects the source.
•Turns on the power.
9•Change the source to “ USB ” or “ iPod .”
•Selects the iPod control mode. (Hold)(19)
p•Displays <Open/Tilt> screen.(See below.)
•Ejects the disc and display <Open/Tilt>
screen. (Hold)
•Closes the monitor panel if pressed when the
panel is open.
1Resets the unit. (3)
2•Turns on the power.
•Attenuates the sound.
•Turns off the power. (Hold)
3•Changes the display information.
– Each time you press DISP, the display changes
to show the various information.
•Availabledisplay information varies among
the playback sources.
– The following screens are displayed onlywhen
they are ready:
•Dual play screen (onlyfor KW-AVX838/KW-
AVX830) (28)
•Navigation screen (27)
4•Adjusts the audio volume.
– You can also adjust the volume by moving
your finger on the touch panel as illustrated.
Basicoperationson themonitor panel
Screen (touch panel) Monitor panel
Caution on volume setting:
Digital devices (CD/USB) produce very little
noise compared with other sources. Lower
the volume before playing these digital
sources to avoid damaging the speakers by
sudden increase of the output level.
<Open/Tilt> screen
[Open] Opens the monitor panel.
[Eject] Ejects the disc.
[Close]Closes the monitor panel.
[Tilt +/–] Tilts the monitor panel.
[Detach] Todetach the monitor panel.
(5)
[Exit] Goes back to the current source
screen.
Open
Eject
Close
Tilt +
Tilt –
Exit
Open/Tilt
Detach
EN_KW-AVX838[J]6.indb 6 10.1.18 5:42:30 PM

3:45
SOURCE
TUNER
PM
XYZ Radio
7
ENGLISH
<Source Menu>(10)
Current source
Exit
Source Menu
TUNER DISCSAT
AV-IN
USB
Bluetooth
EXT-IN
Short cut menu
Displays <Lighting Sensor> menu in
<Setup>.(8)
Changes the sound mode. (29)
•Turns on or off Track/Chapter Repeat
during disc/fileplayback.(18)
•Changes the repeat mode during
iPod/iPhone playback.(21)
Displays <Aspect> menu in
<Setup>.(31)
Displays <Sirius ID> screen. (33)
Changes the HDRadio reception mode.
(25)
Activates <Voice Dialing> function.
(KW-AVX838/KW-AVX830: 41 /
KW-ADV793: 49)
Displays <Redial> menu.
(KW-AVX838/KW-AVX830: 41 /
KW-ADV793: 49)
• Toerase theshort cut menu,perform the
same procedure.
Short Cut icons
<AV Menu>
[AV Setup] Changes various settings of the
system, sources, etc. (30)
[Equalizer]Adjusts equalizer. (29)
[ Sound] Adjusts the sound. (35)
[Mode]Changes various mode settings
for playback source.
[List] Displays the lists.
[Bluetooth]*2Displays the <Bluetooth>
menu.(KW-AVX838/
KW-AVX830: 44 /
KW-ADV793: 52)
[Exit] Goes back to the current
source screen.
AV Menu
Exit
AV Setup
Equalizer
Sound
Mode
List
Bluetooth
Onlyfor KW-AVX838/KW-AVX830
Basicoperationson thetouch panel
*1Appears only when the Bluetooth adapter is attached.
(KW-AVX838/KW-AVX830: 37 / KW-ADV793:
45)
•The items shown on the screen differ depending
on the selected source and connected device.
•Non-availableitems will be shaded.
*1 *2
*1
*2
3:45 PM
SOURCE
TUNER
SOURCE
TUNER
Onlyfor KW-AVX830/KW-ADV793
*2
*2
*2Only for KW-AVX838/KW-AVX830/KW-ADV793
*3Only for KW-AVX830/KW-ADV793
*3
*3
EN_KW-AVX838[J]6.indb 7 10.1.18 5:42:31 PM

8
ENGLISH
Prox./
Motion-LED
Monitor panel buttons are turned
off. They light up when your
finger touches the touch panel
or your hand moves closer to the
Prox./Motion sensor.
Touch
Panel-LED
Monitor panel buttons are turned
off. They light up when your
finger presses any button on the
touch panel.
Prox./
Motion-LCD
The screen and the lights of the
monitor panel buttons are turned
off. They turn on when your
finger touches the touch panel
or your hand moves closer to the
Prox./Motion sensor.
Touch
Panel-LCD
The screen and the lights of the
monitor panel buttons are turned
off. They turn on when your finger
touches the touch panel.
Off The screen and the lights of the
monitor panel buttons are always
turned on whilethe power is
turned on.
•Pressing any button on the monitor panel also
turns on the screen and/or the lights of the
buttons.
•Inthe following cases, the screen and/or the lights of
the monitor panel buttons are turned on regardless
of the <Lighting Sensor> setting:
– The buttons are lit up when <AV Menu>,
<Source Menu>,or <Open/Tilt> is displayed.
– The screen is turned on when acall/Text message
comes in (for Bluetooth mobilephone).
– The screen is turned on when the signal from the
rear view camera comes in.
Tochangethesensitivity of thesensor,see
“Motion Sensitiv.” (34)

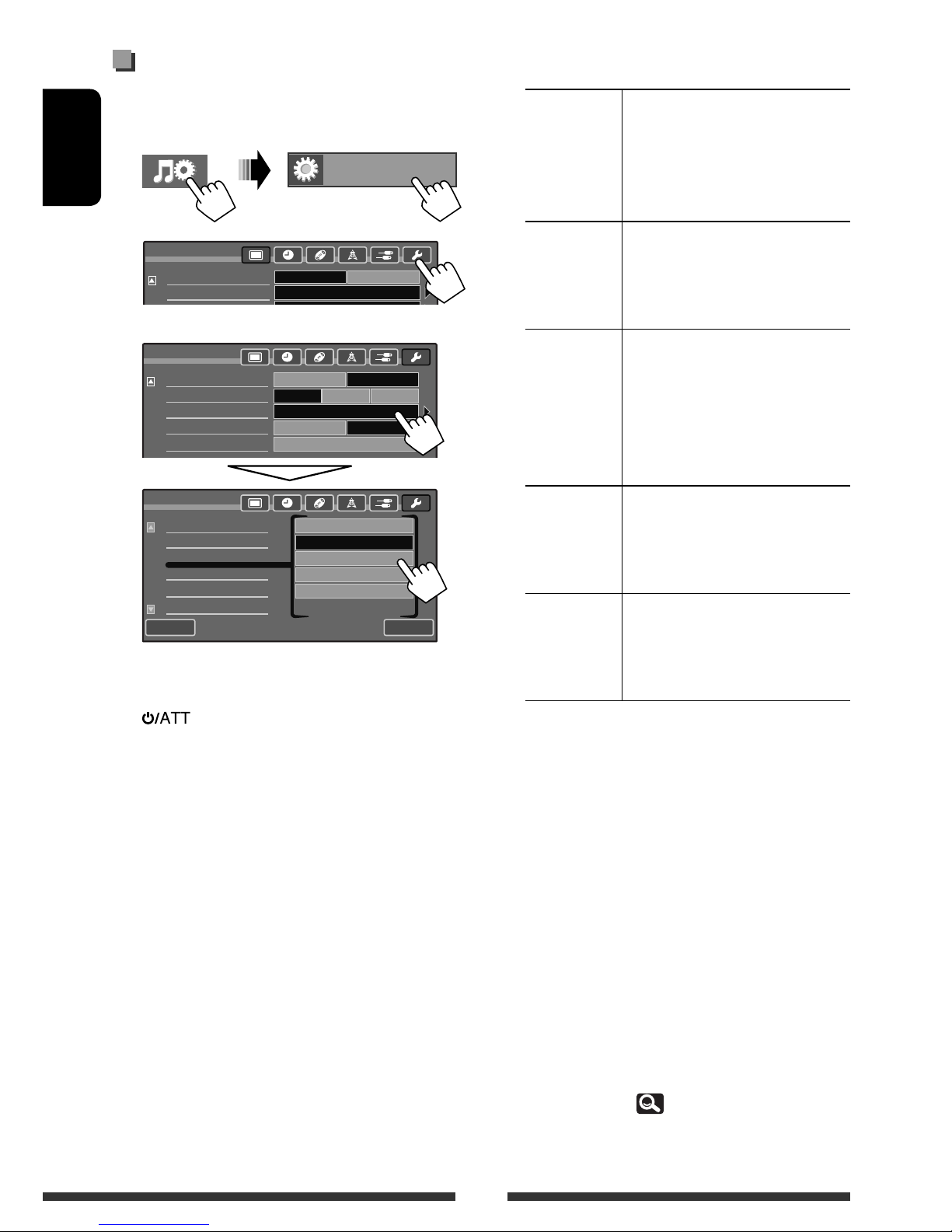

You can change the condition for turning off/on the
screen and the lights of the monitor panel buttons.
1
2
3
When any setting other than <Off> is selected,
the screen and/or lights of the buttons (except
)are turned off when no operation is done
for about 10 seconds.
The screen and/or the lights of the buttons are
turned off/on as follows.
AV Setup
Setup
Demonstration
Wall Paper
Off On
Ambient
Setup
Beep
Telephone Muting
Lighting Sensor
Motion Sensitiv.
Initialize
Prox./Motion-LED
Enter
Muting2Muting1
Off On
Mid High
Off
Off
Prox./Motion-LED
Touch Panel-LED
Prox./Motion-LCD
Touch Panel-LCD
Back
Setup
Beep
Telephone Muting
Lighting Sensor
Motion Sensitiv.
Initialize
Exit
Setting thelighting sensor
EN_KW-AVX838[J]6.indb 8 10.1.18 5:42:32 PM

Back
Setup
Beep
Telephone Muting
Lighting Sensor
Motion Sensitiv.
Initialize
Prox./Motion-LED
Enter
Muting2Muting1
Off On
Mid High
Off
Exit
9
ENGLISH
Changing thesettingson the
menu
Assigning thetitles tothe
sources
You can assign titles (up to 16 characters) to
“
TUNER ”,“ AV-IN ” and “ EXT-IN ”.
1
When the source is“ TUNER ”:
When the source is“
AV-IN ” or“ EXT-IN ”:
2 Assign a title.
[Store]Confirm the entry.
[2/3]Movethe cursor.
[BS] Erase the character before the
cursor.
[Del] Erase the character on the
cursor.
[Cap] Change the letter case (upper/
lower).
[A =0 =Ä] Change the character set.
[Space]Enter aspace.
[Back] Returns to the previous screen.
[Exit] Goes back to the current source
screen.
•For availablecharacters, 60.
Playback control on thetouch
panel
When you drag your finger on the touch panel,
it functions in the same way as touching
[5/∞/4/¢].
•Returns to the previous screen
•Closes the sub-setting screen
Moves to the succeeding
menu page
Moves to the preceding
menu page
Indicates the next hierarchy
level/setting item exists
Indicates to hold
for activating the
function
/
;
@
Back
Title Entry
ExitSpace
Store
Mode
Title Entry Enter
Off On
Start
Mode
Mono
SSM
Enter
Title Entry
Mode
EN_KW-AVX838[J]6.indb 9 10.1.18 5:42:33 PM

10
ENGLISH
KW-AVX838/KW-AVX830 KW-ADV793/KW-AVX738
DISCSAT USB
Exit
Source Menu
TUNER
AV-INEXT-IN BT Phone BT Audio

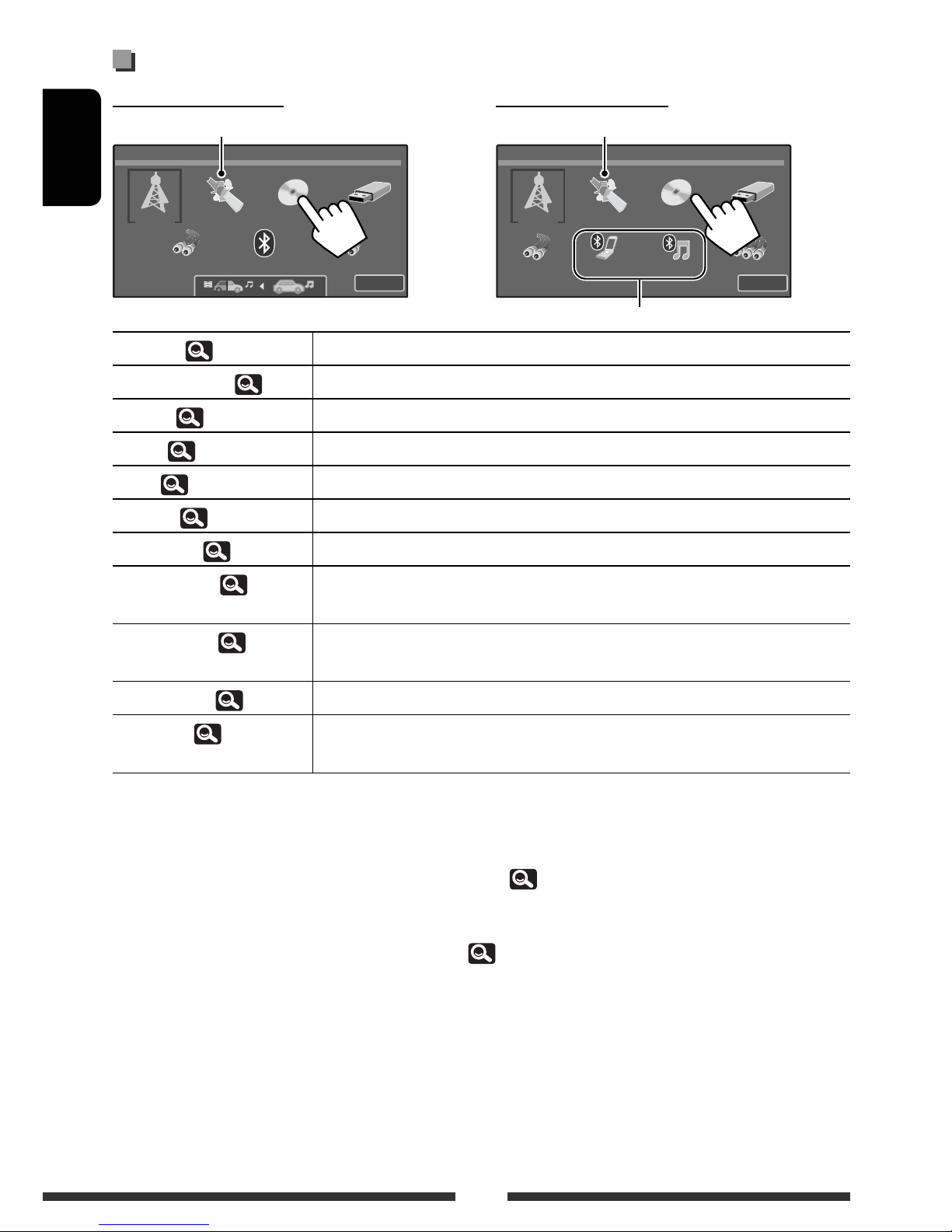

Selecting theplayback source
Exit
Source Menu
TUNER DISCSAT
AV-IN
USB
Bluetooth
EXT-IN
TUNER (11) Switches to the conventional radio broadcast.
HD Radio *1 *2(24) Switches to the HDRadio broadcast.
SAT *1(22)Switches to the satellite radio broadcast.
DISC (16)Plays adisc.
USB (16)Plays files on aUSB device.
iPod *3(19) Plays an iPod/iPhone.
EXT-IN *4(27)Switches to an external component connected to expansion port on the rear panel.
Bluetooth *5(39) •Displays information about the connected device.
•Plays aBluetooth audio player.
BT Phone *6 (48) •Makes the pairing between amobilephone and the unit.
•Selects the registered device.
BT Audio *6 (51) Plays aBluetooth audio player.
AV-IN *7(26)Switches to an external component connected to LINE IN/VIDEOINjackson the rear
panel.
*1Only for KW-AVX830/KW-ADV793.
*2"
HD Radio " is shown as the source instead of " TUNER " when the HD Radio tuner box is connected.
*3"
iPod " is shown as the source instead of " USB " when an iPod/iPhone is connected.
*4Select an appropriate input setting on <External Input>.( 34)
*5Only for KW-AVX838/KW-AVX830.
*6Only for KW-ADV793.
*7Select an appropriate input setting on <AV Input>.( 34)
*1*1
*6
EN_KW-AVX838[J]6.indb 10 10.1.18 5:42:33 PM

11
ENGLISH
Preset list operations
•You can also display the preset list by pressing [
List] on <AV Menu> screen (7).
Listening to the radio
Preset number*
Band
Sound mode
(29)
•The ST indicator lights up when receiving an FMstereo broadcast with sufficient signal strength.
* Touching the preset number also displays the preset list (see below).
SOURCE
TUNER
XYZ Radio
3:45 PM
Assigned station name
(9)
•Ifno name is assigned,
“No Name” appears.
ST indicator
AV SOURCE OPERATIONS
[ ] Searches for astation.
– Auto search (Press)
– Manual search (Hold)
[5∞]•Selects apreset station.
•Displays the preset list. (Hold)
[BAND]Selects the band.
[SOURCE]Displays <Source Menu> screen.
[]Displays <AV Menu> screen.
Back Exit
List
FM1
FM2
FM3
87.5
89.9
97.9
105.9
107.9
87.5
1
2
3
4
5
6
•Selects apreset station (Press)
•Stores the station currentlyreceived into memory (Hold)
Selects the band
When an FM stereo broadcast ishard to
receive...
Activate monaural mode for better reception.
1
2
On Activate monaural mode to improve
FMreception, but stereo effect will be
lost. The MONO indicator lights up.
Off Restore the stereo effect.
Mode
Off On
Start
Enter
Mode
Mono
SSM
Title Entry
EN_KW-AVX838[J]6.indb 11 10.1.18 5:42:34 PM

12
ENGLISH
Automaticpresetting — SSM
(Storing-station Sequential
Memory) (for FM only)
You can automaticallypreset 6 stations for each FM
band.
1
2
Local FMstations with the strongest signalsare
searched and stored automaticallyin the FMband.
When theFM reception isinterfered...
1
2
AutoIncreases the tuner selectivity to
reduce interference noises between
adjacent stations. (Stereo effect may
be lost.)
WideSubject to the interference from
adjacent stations, but sound quality
will not be degraded and the stereo
effect will remain.
Off On
Start
Mode
Mono
SSM
Enter
Title Entry
(Hold)
AV Setup
Ambient
Setup
Demonstration
Wall Paper
Off On
Setup
IF Band Width
Area Setting
Sirius ID
SA
112233445566
Back
Auto
US
Wide
Exit
Europe
Mode
EN_KW-AVX838[J]6.indb 12 10.1.18 5:42:35 PM

13
ENGLISH
Disc/USB operations
Playing a disc
•Ifadisc does not haveany disc menu, all trackson it will be played repeatedlyuntil you change the source or eject
the disc.
~Open themonitor panel.
•You can also open the monitor panel from the
<Open/Tilt> screen. (6)
ŸInsert a disc.
Monitor panel closes automatically.
Toeject a disc
The monitor panel opens and the disc is ejected.
•Ifthe ejected disc is not removed within 15 seconds,
the disc is automaticallyinserted again into the
loading slot.
Label side
Caution:
Do not place your finger behind the monitor panel.
•If“ ” appears on the screen, the unit cannot accept the operation you havetried to do.
– Insome cases, without showing“ ,” operations will not be accepted.
•When playing back amulti-channel encoded disc, the multi-channel signalsare downmixed.
(Hold) (Hold)
How toforcibly eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit. ( 3)
Prohibiting disc ejection
You can lock adisc in the loading slot.
Tocancel theprohibition, repeat the same procedure
to select <EJECT OK?>.
(Hold)(Hold)
Exit
ENTER
Back
NO EJECT?
EMERGENCY EJECT?
(Hold)(Hold)
ENTER
NO EJECT?
EMERGENCY EJECT?
EN_KW-AVX838[J]6.indb 13 10.1.18 5:42:35 PM

14
ENGLISH

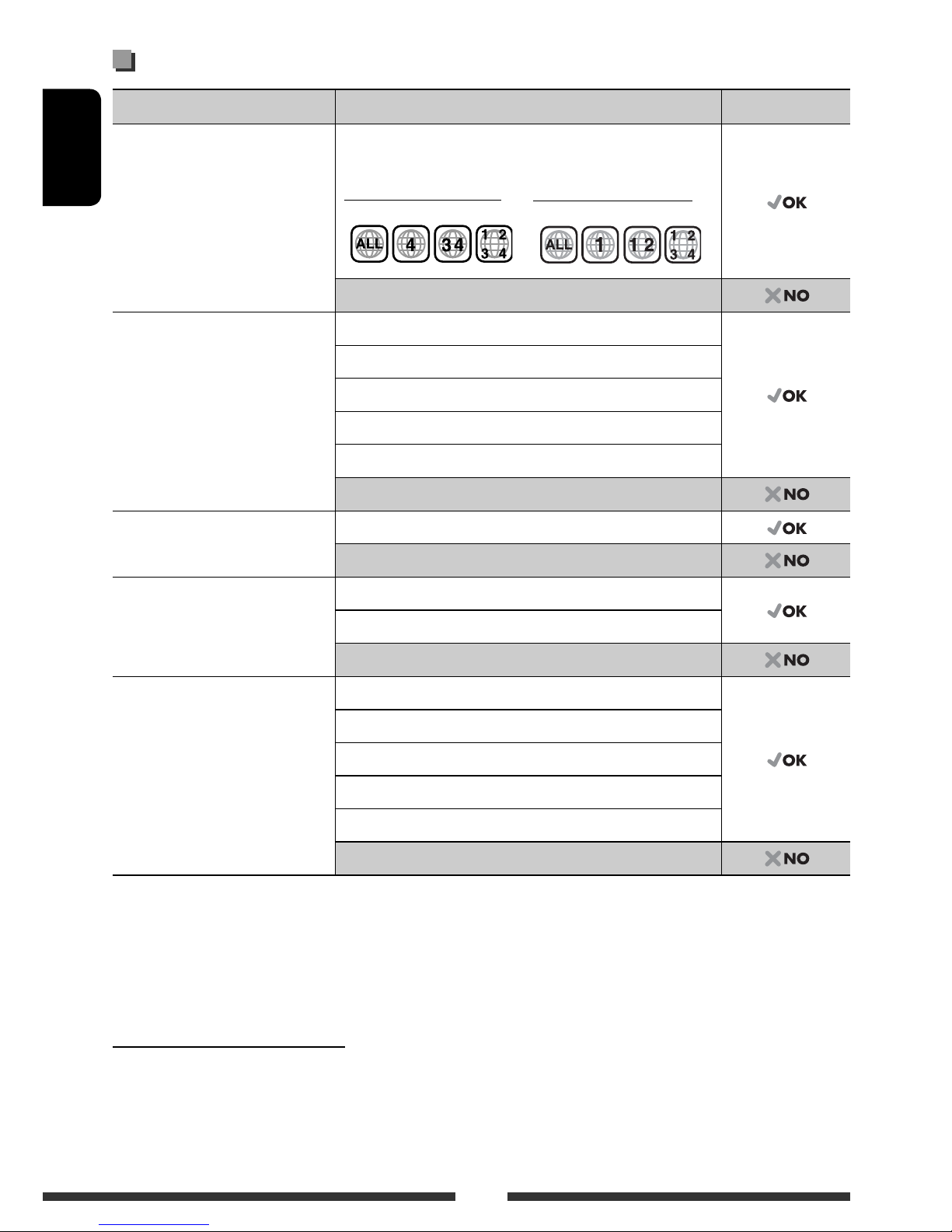

Playabledisc type
Disc typeRecording format, filetype, etcPlayable
DVD
•DTSsound cannot be
reproduced or emitted from
this unit.
DVD-Video *1
Region Code:
KW-AVX838/KW-AVX738: 4
Ex.:
DVD-Audio/DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW *2, +R/+RW*3)
•DVD Video: UDF bridge
•DVD-VR
•MPEG1/MPEG2/JPEG/MP3/
WMA/WAV: ISO 9660level 1,
level 2,Romeo, Joliet
DVD-Video
DVD-VR
MPEG1/MPEG2
JPEG
MP3/WMA/WAV
DivX/MPEG4/AAC/DVD+VR/DVD-RAM
Dual Disc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)
VCD (Video CD)
DTS-CD/SVCD (Super Video CD)/CD-ROM/CD-I (CD-I Ready)
CD Recordable/Rewritable
(CD-R/-RW)
•ISO 9660level 1, level 2,
Romeo, Joliet
CD-DA
VCD (Video CD)
MPEG1/MPEG2
JPEG
MP3/WMA/WAV
DivX/MPEG4/AAC
*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen.
*2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not
playable.
*3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a
+R/+RW disc is loaded. +RW double layer discs are not playable.
Caution for DualDisc playback
The Non-DVD side of a“DualDisc” does not complywith the“Compact Disc Digital Audio” standard. Therefore, the use
of Non-DVD side of aDualDisc on this product may not be recommended.
KW-AVX830/KW-ADV793: 1
Ex.:
EN_KW-AVX838[J]6.indb 14 10.1.18 5:42:35 PM

15
ENGLISH
Cautions:
•Avoid using the USB device if it might hinder your
safety driving.
•Do not pull out and attach the USB device repeatedly
while“Now Reading” is shown on the screen.
•Do not start the car engine if aUSB device is
connected.
•Stop playback before disconnecting aUSB device.
•Electrostatic shock at connecting aUSB device may
cause abnormal playback of the device. Inthis case,
disconnect the USB device then reset this unit and the
USB device.
•This unit may not be ableto play the files depending
on the type of USB device.
•Operation and power supplymay not work as
intended for some USB devices.
•Do not leaveaUSB device in the car, expose to direct
sunlight, or high temperature to avoid deformation or
cause damages to the device.
•Some USB devices may not work immediatelyafter
you turn on the power.
•For more detailsabout USB operations, 59.

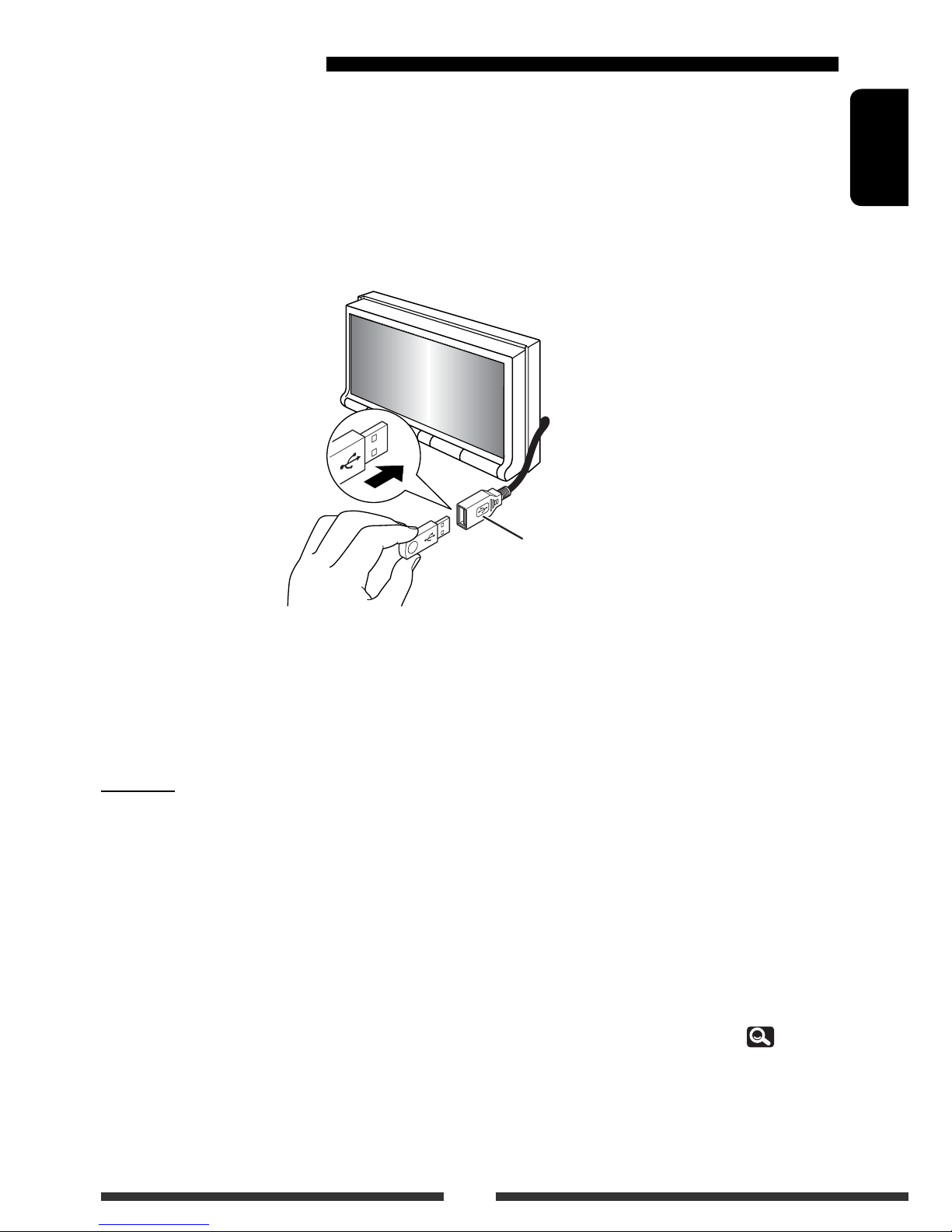

USB cablefrom the rear of
the unit
Playing a USB device
•This unit can play JPEG/MPEG1/MPEG2*/MP3/WMA/WAV files stored in USB mass storage class device.
•All tracksin the USB device will be played repeatedlyuntil you change the source.
•Makesure all important data has been backed up to avoid losing the data.
*Except for MPEG2 files recorded by JVC Everio camcorder (extension code <.mod>).
You can connect aUSB mass storage class device such as aUSB memory, Digital Audio Player etc. to the unit.
•You cannot connect acomputer or portableHDD to the USB cablefrom the rear of the unit.
The source changes to “
USB ” and playback starts.
EN_KW-AVX838[J]6.indb 15 10.1.18 5:42:36 PM

FLAT
CHAP. RPT
SOURCE
VI D E O
DIGITAL
DVD
48kHz
01 01
0:01: 2 0
24Bit 3/2.1
3:45 PM
16
ENGLISH
Disc/fileplayback operations
Media type
Audio format
Sound mode
(29)
Onlyfor discs: Video format/playback mode—VIDEO,
MPEG,JPEG,VR-PRG (program), VR-PLAY (playlist), PBC
Playback mode
(18)
•DVD Video: Titleno./Chapter
no.
•DVD-VR: Program no. (or
Playlist no.)/Chapter no.
•MPEG1/MPEG2/MP3/WMA/
WAV: Folder no./Track no.*1
•JPEG:Folder no./Fileno.*1
•VCD/CD: Track no.
Playback status — 3:play/8:pause/7:stop
Disc/track information (For CD Text/MP3/WMA/WAV, the track/fileinformation)
•Touching an information bar scrollsthe text if all the text is not shown. (See“Scroll,” 30.)
– For DVD Video/DVD-VR/MPEG1/MPEG2/JPEG/conventional CD, the information bar does not appear.
•“No Name” appears for conventional CDs or if not recorded.
•The buttons on the touch panel also work when they are not shown on the screen.
*1 Touching the folder no. or track/file no. also displays the Folder/Track List ( 18, step 2)
*2 To display the Original Program/Playlist screen, 17.
*3 Search speed varies depending on the type of disc or file.
[3/8]Starts playback/pauses.
[5∞]•DVD Video/DVD-VR: Selects title/
program/playlist*2.
•MPEG1/MPEG2/JPEG/MP3/WMA/
WAV:
– Selects folder.
– Displays Folder/Track List.*1
(Hold) (18, step 2)
[4¢]•Selects chapter/track.
•Reverse/forward search.*3(Hold)
[7]Stops playback.
[SOURCE]Displays <Source Menu> screen.
[]Displays <AV Menu> screen.
Playing time
When watching aplayback picture, press DISP or touch the screen to display the operation buttons (6).
EN_KW-AVX838[J]6.indb 16 10.1.18 5:42:36 PM

17
ENGLISH
FLAT
01
15:45
01
0:01: 2 0
KEY
KEYENTER
KEY
KEY
ENTER
123
456
7
0Direct/CLR
89
RETURN M ENU T O P MEN U
M ENU T O P MEN U
SOURCE
DIGITAL
VI D E O
DVD
SOURCE
VI D E O
DVD
Operation buttonson thescreen
You can display the following operation buttons whilewatching the playback pictures on the screen.
•Ifno operation is done for about 15 seconds, the operation buttons disappear (except when adisc menu is
displayed).
A
For DVD/VCD menu operation playback
[5∞23]Selects the menu items
[ENTER] Confirms the selection
[TOP MENU]Displays the disc menu
[MENU]Displays the disc menu
[RETURN] Returns to the previous menu or
displays the menu (onlyfor VCD with
PBC)
For DVD-VR menu operation playback
[5∞23]Selects the menu items
[ENTER] Returns to the DVD-VR playback
[TOP MENU]Displays the Original Program
[MENU]Displays the Playlist
B
For entering the numbers
[Direct/CLR] =
[0]–[9]=[ENTER] Enters numbers
[Direct/CLR] •Switches between chapter/
track entry and title/folder
entry
•Erases the last entry when you
enter awrong number
C
For advanced operations
[]Selects audio language
[]Selects subtitlelanguage
[]Selects view angle
[1¡]•Reverse/forward search
•Plays back in slow motion (while
playback is paused)*
*For DVD-VR/VCD, reverse slow motion does not work.
Toend theoperations,touch the screen again.
Touch thescreen (center portion).
EN_KW-AVX838[J]6.indb 17 10.1.18 5:42:37 PM

18
ENGLISH

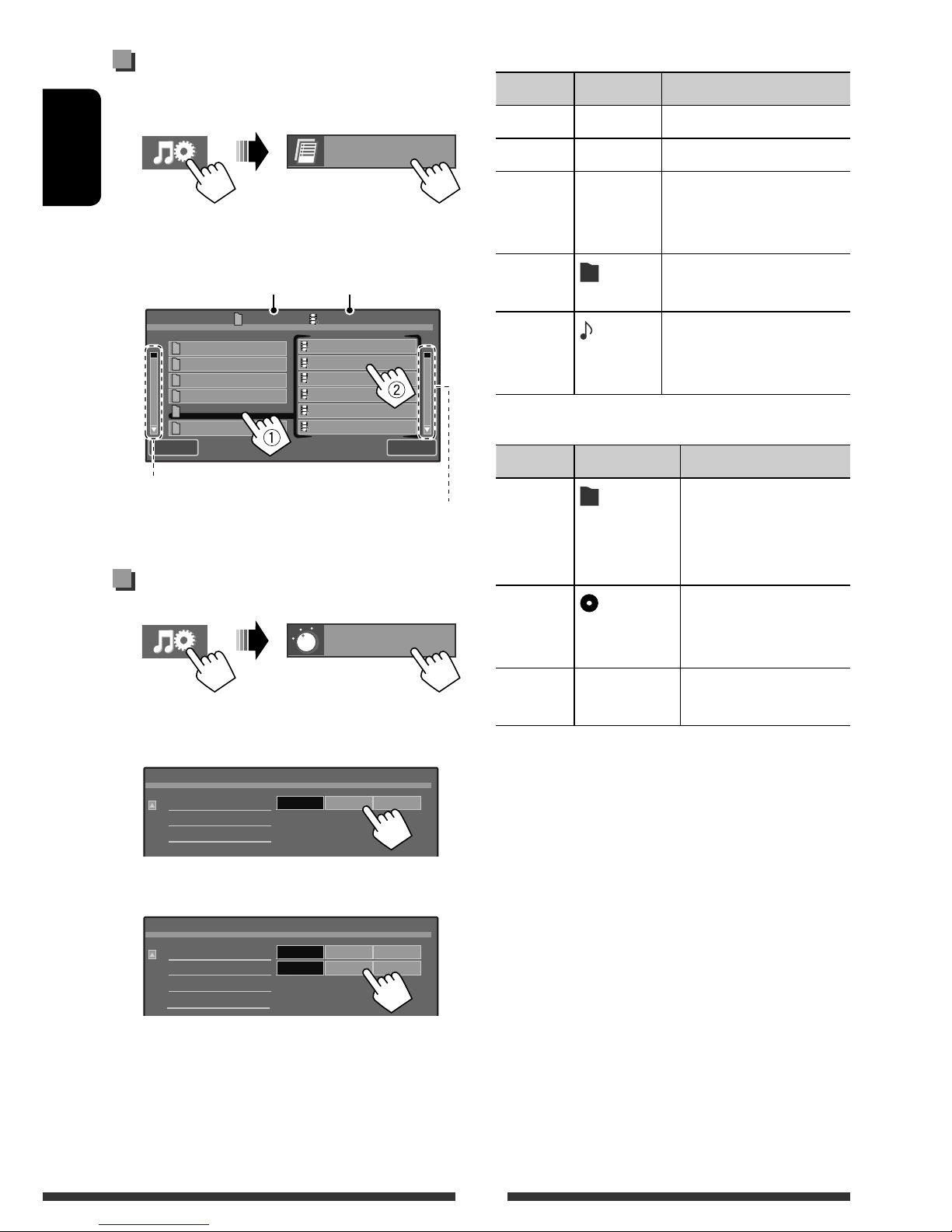

Selecting folder/track on the
list
1
2 Select a folder (1), then a track (2).
Selecting playback modes
1
2 Select theplayback mode.
For DVD/DVD-VR
For CD/VCD/MPEG1/MPEG2/MP3/WMA/WAV
•When one of the playback mode is selected, the
corresponding indicator lights up on the source
information screen.
Tocancel, select <Off>.
<Repeat>
Mode Indicator Setting
Chapter CHAP.RPT Repeats current chapter.
TitleTITLE RPT Repeats current title.
ProgramPR-REPEAT Repeats current program.
(For DVD-VR, not available
during Playlist playback.)
Folder REPEAT Repeats all tracksof the
current folder.
TrackREPEAT Repeats current track.(For
VCD: When PBC is not in
use.)
<Random>
Mode Indicator Setting
Folder RANDOM Randomlyplays all
tracksof the current
folder, then tracksof the
next folders.
Disc RANDOM Randomlyplays all
tracks. (For VCD: When
PBC is not in use.)
USB USB RANDOM Randomlyplays all
tracksin the USB device.
•You cannot activate the repeat mode and the random
mode at atime.
•Availableitems depend on the types of loaded disc
and playback file.
Mode
Mode
Repeat TitleChapter
Off
DiscOnce
Mode
Repeat
Random
FolderTrack
FolderOff
Off
Disc
Press/drag to browse the list.
• You can also browse the list by dragging your finger
up and down on the list.
Current folder number/ total
folder number
Current track number/
total track number
List
Back Exit
Folder 01
Folder 02
Folder 03
Folder 04
Folder 05
Folder 06
Track001.mp3
Track002.mp3
Track003.mp3
Track004.mp3
Track005.mp3
Track006.mp3
0003/00990005/0035
List
EN_KW-AVX838[J]6.indb 18 10.1.18 5:42:38 PM

19
ENGLISH
Listening to the iPod/iPhone device
Preparation
Connecting iPod/iPhone
•You can control the following iPod/iPhone models:
– iPod with video (5th Generation)*
– iPod classic*
– iPod nano (1st Generation)
– iPod nano (2nd Generation)
– iPod nano (3rd Generation)*
– iPod nano (4th Generation)*
– iPod nano (5th Generation)*
– iPod touch (1st Generation)*
– iPod touch (2nd Generation)*
– iPhone*
– iPhone 3G*
– iPhone 3GS*
•Use the following cables:
– Tolisten tothemusic: USB 2.0 cable(accessory
of the iPod/iPhone)
– Towatch thevideo: USB Audio and Video cable
for iPod/iPhone—KS-U30 (not supplied) (See the
Installation/Connection Manual.)
* To watch the video with its audio, connect the iPod/
iPhone using USB Audio and Video cable (KS-U30, not
supplied).

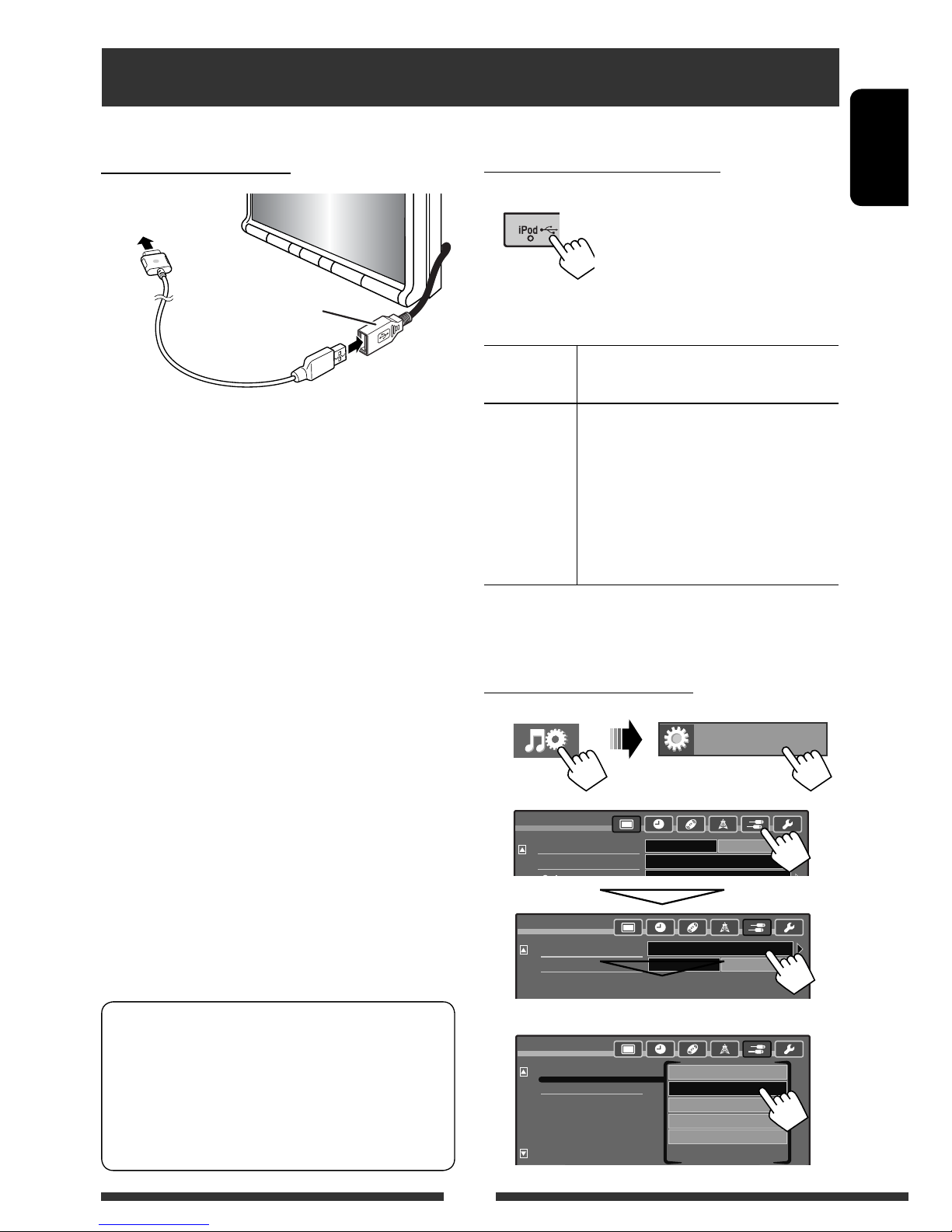

Setting theiPod control mode
When the source is“ iPod ”...
Select the unit controlling playback of the iPod/iPhone.
HEAD
MODE
Controlsplayback from this unit.
iPod MODE Controlsplayback from the iPod/
iPhone.
•Not availablewhen using iPod nano
(1st Generation) or iPod with video
(5th Generation).
•Track information is not displayed on
the external monitor.
•The operations explained in this manual are under
<HEAD MODE>.
Setting for watching video
1
2
ToiPod/iPhone
For some iPod/iPhone models, the performance
may be abnormal or unstableduring operation. In
this case, disconnect the iPod/iPhone device, then
check its condition.
Ifthe performance is not improved or slow, reset
your iPod/iPhone.
USB cablefrom the rear
of the unit
(Hold)
AV Setup
Setup
Demonstration
Wall Paper
Cl Bl
Off On
Ambient
Setup
AV Input Audio&Video
External Input Off On
Setup
Off
iPod Video
Audio&Video
Audio
Navigation
AV Input
External Input
EN11-29_AV_AVX838[J].indd 19 10.1.19 3:51:55 PM

20
ENGLISH
iPod control mode
iPod/iPhoneplayback operations
Current Track Title
Artist Name
Album Title
FLAT
REPEAT
SOURCE
HEAD MODE
01
0
:
01
:
2 0
3:45 PM
Sound mode (29)
Playback mode (21)
[3/8]Starts playback/pauses.
[5∞]Enters <Search Mode> menu.
(21)
[4¢]•Selects atrack/video.*3
•Reverse/forward search. (Hold)
[SOURCE]Displays <Source Menu> screen.
[]Displays <AV Menu> screen.
*1 For changing the Artwork display setting, 33.
No Artwork is shown when the iPod control mode is set to <iPod MODE>.
*2 This unit can display up to 128 characters.
*3 You cannot resume playback for video sources.
Ifthe iPod/iPhone does not play correctly, update your iPod/iPhone software to the latest version. For details
about updating your iPod/iPhone, visit <http://www.apple.com>.
•When you turn on this unit, the iPod/iPhone is
charged through the unit.
•The text information may not be displayed correctly.
Notice:
When operating an iPod/iPhone, some operations
may not be performed correctlyor as intended.
Inthis case, visit the following JVC web site:
<http://www.jvc.co.jp/english/car/> (English
website only)
Track information bars
•Touching an information bar scrollsthe text if all the text is
not shown.*2(See“Scroll,” 30)
Whileplaying, Artwork (the picture displayed on the screen of
iPod/iPhone) is shown if the song contains the Artwork*1Playback status — 3:play/8:pause
EN11-29_AV_AVX838[J].indd 20 10.1.19 3:51:56 PM
