JVC KW-XG500J User manual

SERVICE MANUAL
COPYRIGHT © 2007 Victor Company of Japan, Limited No.MA345
2007/6
CD RECEIVER
MA34520076SERVICE MANUAL
KW-XG500J, KW-XG504UI, KW-XG505U,
KW-XG505UN, KW-XG505UH, KW-XG506U,
KW-XG506UN, KW-XG506UH, KW-XG508UF
COPYRIGHT © 2007 Victor Company of Japan, Limited
* Please refer to the mechanism manual (model TN2007-1010 (No.MY005 and No.MY005B)) for the CD mechanism.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

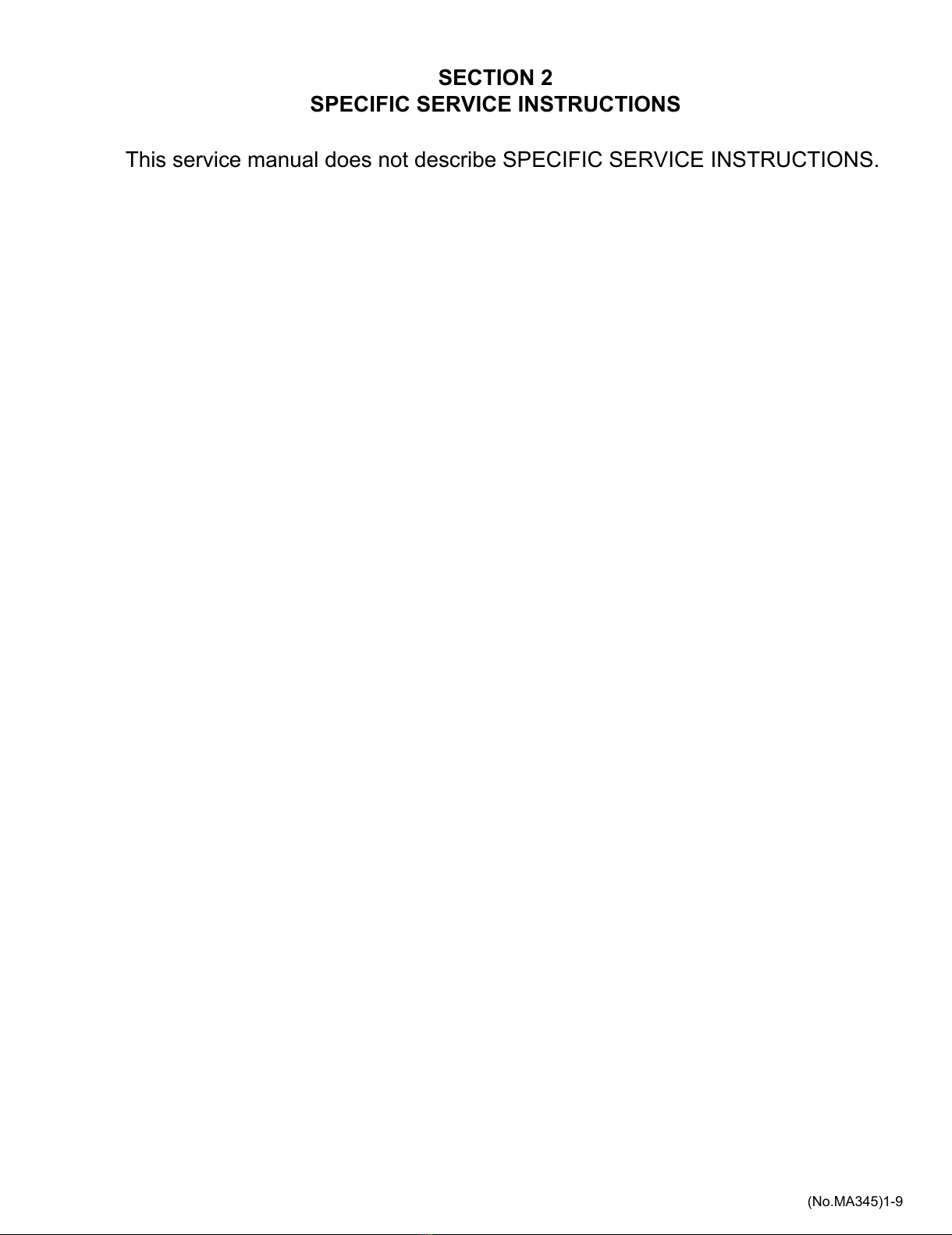

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
(for KW-XG500)
All manuals and user guides at all-guides.com
all-guides.com

1-2 (No.MA345)

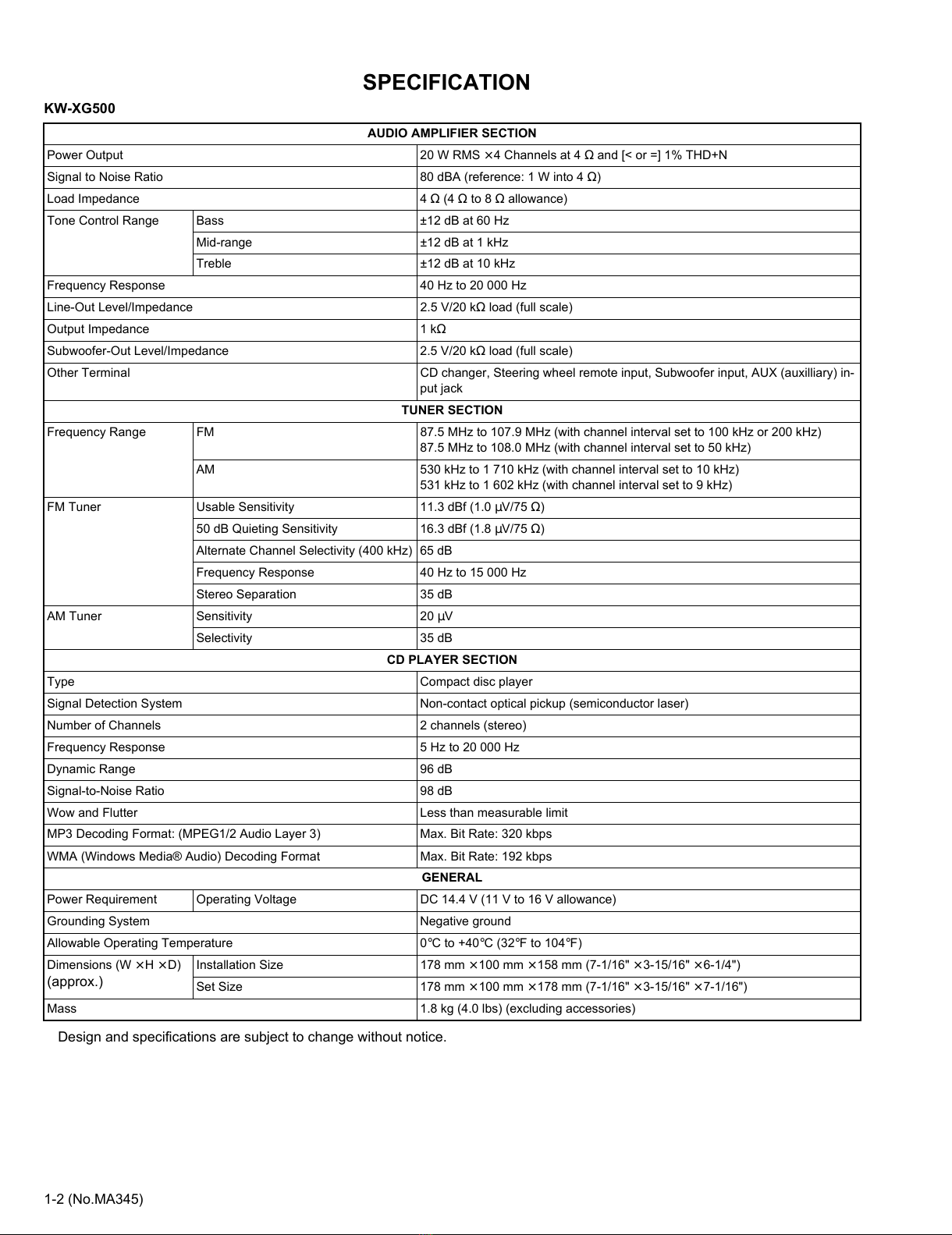

SPECIFICATION
KW-XG500
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Power Output 20 W RMS ×4 Channels at 4 Ωand [< or =] 1% THD+N
Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB at 60 Hz
Mid-range ±12 dB at 1 kHz
Treble ±12 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Other Terminal CD changer, Steering wheel remote input, Subwoofer input, AUX (auxilliary) in-
put jack
TUNER SECTION
Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W ×H ×D)
(approx.)
Installation Size 178 mm ×100 mm ×158 mm (7-1/16" ×3-15/16" ×6-1/4")
Set Size 178 mm ×100 mm ×178 mm (7-1/16" ×3-15/16" ×7-1/16")
Mass 1.8 kg (4.0 lbs) (excluding accessories)
All manuals and user guides at all-guides.com

(No.MA345)1-3
KW-XG504
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front and rear 50 W per channel
Continuous Power Output
(RMS)
Front and rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total har-
monic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB at 60 Hz
Mid-range ±12 dB at 1 kHz
Treble ±12 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Other Terminal CD changer, Subwoofer input, AUX (auxilliary) input jack
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D)
(approx.)
Installation Size 178 mm ×100 mm ×158 mm
Set Size 178 mm ×100 mm ×178 mm
Mass 1.8 kg (excluding accessories)
All manuals and user guides at all-guides.com

1-4 (No.MA345)
KW-XG506/KW-XG505
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front and rear 50 W per channel
Continuous Power Output
(RMS)
Front and rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total har-
monic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB at 60 Hz
Mid-range ±12 dB at 1 kHz
Treble ±12 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Other Terminal CD changer, Subwoofer input, AUX (auxilliary) input jack
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D)
(approx.)
Installation Size 178 mm ×100 mm ×158 mm
Set Size 178 mm ×100 mm ×178 mm
Mass 1.8 kg (excluding accessories)
All manuals and user guides at all-guides.com

(No.MA345)1-5
KW-XG508
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front and rear 50 W per channel
Continuous Power Output
(RMS)
Front and rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total har-
monic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB at 60 Hz
Mid-range ±12 dB at 1 kHz
Treble ±12 dB at 10 kHz
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Other Terminal CD changer, Subwoofer input, AUX (auxilliary) input jack
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D)
(approx.)
Installation Size 178 mm ×100 mm ×158 mm
Set Size 178 mm ×100 mm ×178 mm
Mass 1.8 kg (excluding accessories)
All manuals and user guides at all-guides.com

1-6 (No.MA345)
SECTION 1
PRECAUTIONS

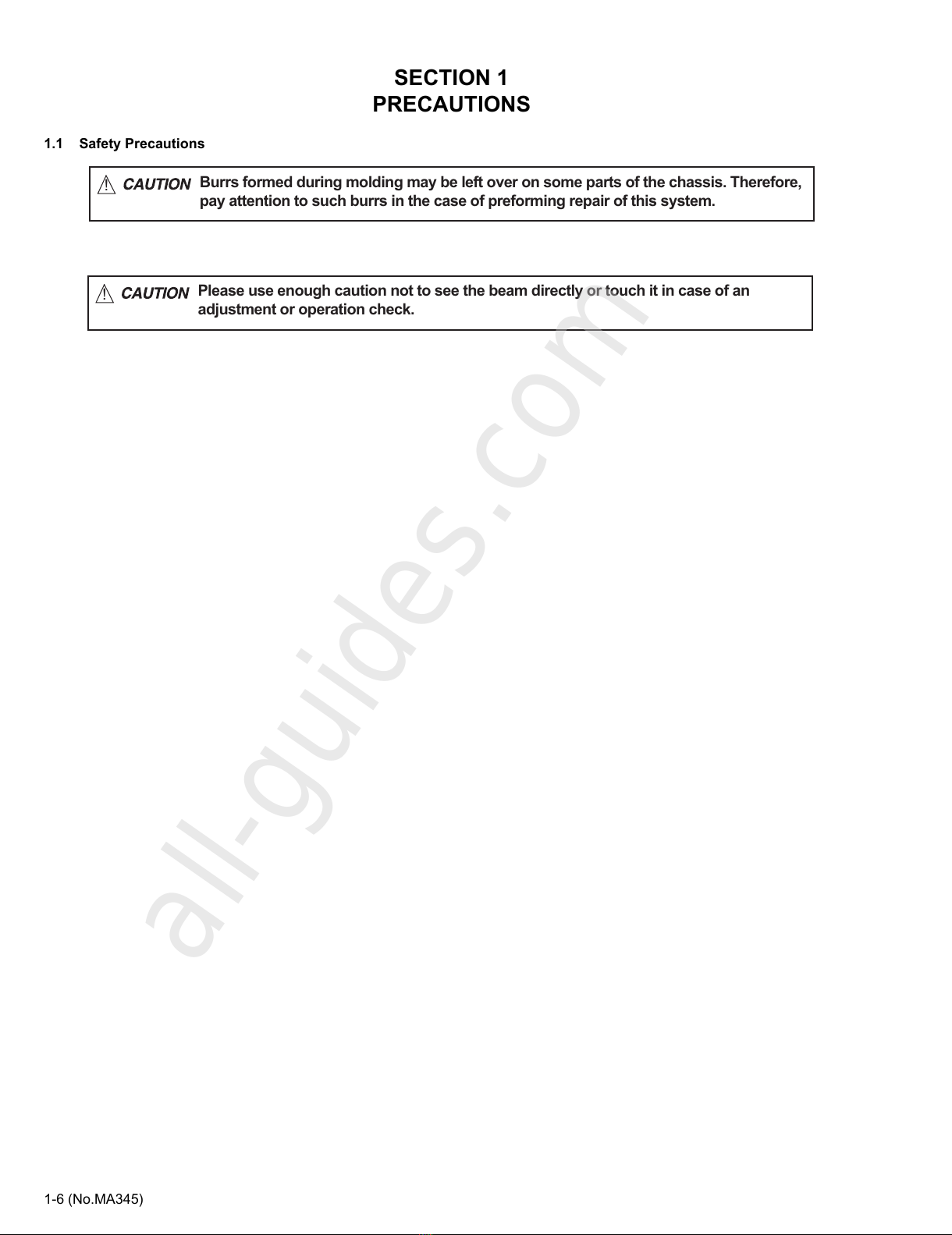

1.1 Safety Precautions
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
All manuals and user guides at all-guides.com
all-guides.com

(No.MA345)1-7
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the CD pickup unit.
• Apply solder to the short land before the flexible wire is disconnected from the connector on the CD pickup unit.
(If the flexible wire is disconnected without applying solder, the CD pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.
1M
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
Wires Push switch
Pickup
Base board
Pickup
Connector
Flexible wire
Frame CD mechanism
assembly
All manuals and user guides at all-guides.com

1-8 (No.MA345)
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT
All manuals and user guides at all-guides.com

(No.MA345)1-9
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
All manuals and user guides at all-guides.com

1-10 (No.MA345)
SECTION 3
DISASSEMBLY
3.1 MAIN BODY
3.1.1 Removing the FRONT PANEL assembly
(See Fig.1)
(1) From the bottom side of main body, remove the two screws
Aattaching the both side of the FRONT PANEL assembly.
(2) Disengage two hooks aengaged CHASSIS assembly.
Fig.1
A
hook ahook a
All manuals and user guides at all-guides.com

(No.MA345)1-11

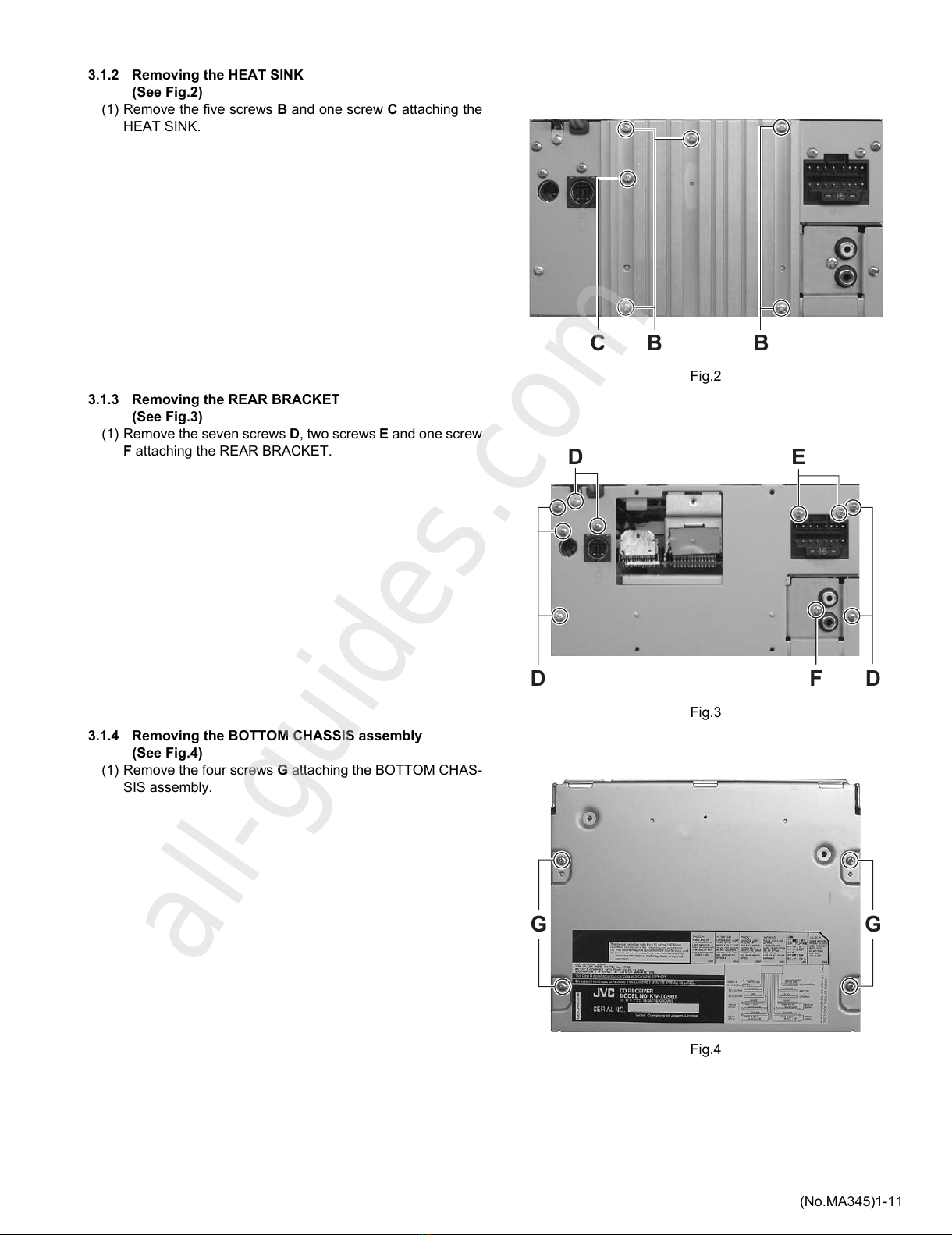

3.1.2 Removing the HEAT SINK
(See Fig.2)
(1) Remove the five screws Band one screw Cattaching the
HEAT SINK.
Fig.2
3.1.3 Removing the REAR BRACKET
(See Fig.3)
(1) Remove the seven screws D, two screws Eand one screw
Fattaching the REAR BRACKET.
Fig.3
3.1.4 Removing the BOTTOM CHASSIS assembly
(See Fig.4)
(1) Remove the four screws Gattaching the BOTTOM CHAS-
SIS assembly.
Fig.4
BBC
DD
D
F
E
GG
All manuals and user guides at all-guides.com
all-guides.com

1-12 (No.MA345)
3.1.5 Removing the FUNC BOARD assembly
(See Fig.5)
(1) Remove the one screw Hattaching the FUNC BOARD as-
sembly.
(2) Disconnect the connecter wire from MAIN BOARD assem-
bly connected to connector CN322 of the FUNC BOARD
assembly.
(3) Straighten hook battaching the FUNC BOARD assembly.
3.1.6 Removing the MIDDLE CHASSIS
(See Fig.5)
(1) Remove the four screws Jattaching the MIDDLE CHAS-
SIS.
(2) Disconnect the connector CN501 of the main board on the
MIDDLE CHASSIS from the CD mechanism assembly in
an upward direction.
Fig.5
3.1.7 Removing the MAIN BOARD assembly
(See Fig.6)
(1) Remove the four screws Kattaching the MAIN BOARD as-
sembly.
Fig.6
JJ
H
CN322
hook b
CN501
K
K
All manuals and user guides at all-guides.com

(No.MA345)1-13
3.1.8 Removing the CD MECHANISM assembly
(See Fig.7)
(1) Remove the three screws Lattaching the CD MECHA-
NISM assembly.
Fig.7
3.1.9 Removing the SWITCH BOARD assembly
(See Fig.8)
(1) Remove the volume knob from the front side of the FRONT
PANEL assembly.
(2) Remove the thirteen screws Mand two screws Nattaching
the SWITCH BOARD assembly.
Fig.8
3.2 CD MECHANISM assembly
For CD MECHANISM ASSEMBLY, please refer MODEL TN2007-1010 (No.MY005 and No.MY005B).
L
L
MM
N
M
All manuals and user guides at all-guides.com

1-14 (No.MA345)
SECTION 4
ADJUSTMENT
4.1 Adjustment method
4.1.1 Test instruments required for adjustment
(1) Digital oscilloscope (100MHz)
(2) Electric voltmeter
(3) Digital tester
(4) Tracking offset meter
(5) Test Disc JVC :CTS-1000
(6) Extension cable for check
EXTSH002-22P x 1
4.1.2 Standard measuring conditions
Power supply voltage : DC14.4V(11 to 16V)
Load impedance : 20K.(2 Speakers connection)
Output Level : Line out 2.5V (Vol. MAX)
4.1.3 Standard volume position
Balance and Bass &Treble volume : lndication"0"
Loudness : OFF
4.1.4 Dummy load
Exclusive dummy load should be used for AM,and FM. For FM
dummy load,there is a loss of 6dB between SSG output and an-
tenna input.The loss of 6dB need not be considered since direct
reading of figures are applied in this working standard.
4.1.5 How to connect the extension cable for adjusting
Caution:
Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power.
If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.
EXTSH002-22P
Extension cable
All manuals and user guides at all-guides.com

(No.MA345)1-15
SECTION 5
TROUBLESHOOTING
5.1 16 PIN CORD DIAGRAM (for KW-XG500)
8
7
6
5
4
3
2
1
GY
VI
GN
WH
BL/WH
NC
RD
BK
16
15
14
13
12
11
10
9
YL
GY/BK
VI/BK
GN/BK
WH/BK
OR/WH
NC
BR
GND
CAUTION!
REMOTE
OUTPUT ONLY
GND
16 YL
8 BK
7 RD
15 OR/WH
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
5 BL/WH
MEMORY
GND
ACC
ILL
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
REMOTE
13 BR TEL
BK
RD
BL
WH
BR
Black
Red
Blue
White
Brown
GN
VI
GY
YL
OR
Green
Violet
Gray
Yellow
Orange
RR
FR
FL
RL
TEL
Rear Right
Front Right
Front Left
Rear Left
Telephone muting
REMOTE
ACC
MEMORY
ILL
Remote out
ACC Line
Memory Backup Battery +
Ground
Illuminations Control
All manuals and user guides at all-guides.com

1-16 (No.MA345)
5.2 16 PIN CORD DIAGRAM (for KW-XG504, KW-XG505, KW-XG506)
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
BK
RD
BL
BL/WH
WH
GN
VI
GY GY/BK
VI/BK
GN/BK
WH/BK
BR
NC
OR/WH
YL
POWER
ANTENNA
CAUTION!
REMOTE
OUTPUT ONLY
GND
Black
RD
BK
Red
BL Blue
WH White
GN Green
VI Violet
GY Gray
OR Orange
YL
Yellow
RR
FR
FL
RL
REMOTE
ANT
ACC
ILL
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Illuminations Control
Ground
Memory Backup Battery+
Auto Antenna
BR Brown
TEL
Telephone muting
16 YL
8 BK
7 RD
15 OR/WH
13 BR
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
5 BL/WH
6 BL
MEMORY
GND
ACC
ILL
TEL
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
REMOTE
ANT
All manuals and user guides at all-guides.com
all-guides.com

(No.MA345)1-17

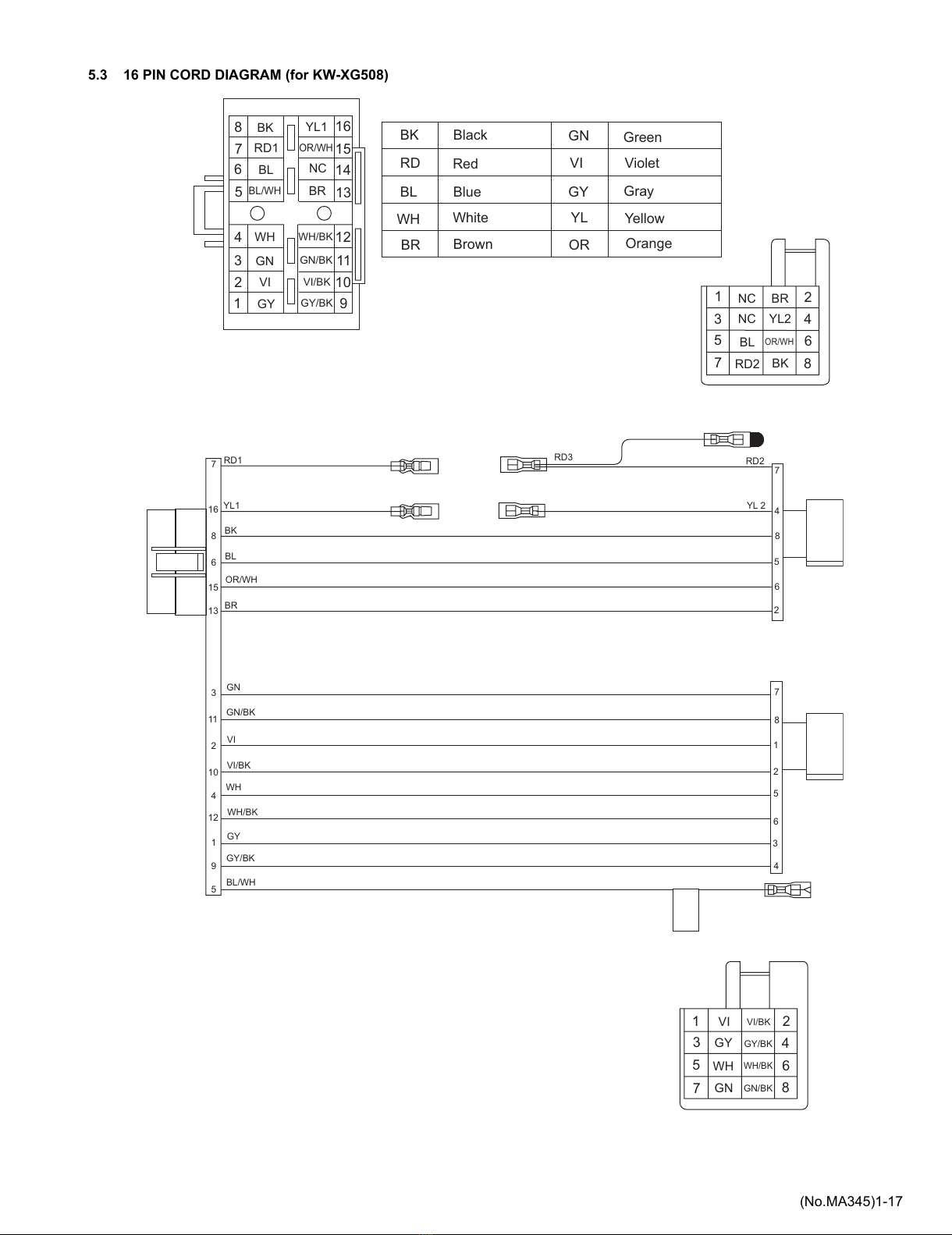

5.3 16 PIN CORD DIAGRAM (for KW-XG508)
8
7
6
5
16
15
14
13
4
3
2
1
12
11
10
9
BK
RD1
NC
OR/WH
WH
GN
VI
GY
BL/WH
GN/BK
VI/BK
GY/BK
RD1
YL1
BK
BL
GN
GN/BK
VI
VI/BK
WH/BK
GY
GY/BK
RD3 RD2
YL 2
WH
1
3
5
7
2
4
6
8
NC YL2
OR/WH
RD2 BK
1
3
5
7
2
4
6
8
VI
GY
WH
GN
VI/BK
GY/BK
WH/BK
GN/BK
BK
RD
BL
WH
BR
Black
Red
Blue
White
Brown
GN
VI Violet
GY Gray
YL Yellow
YL1
BRNC
Green
BR
BL
WH/BK
BL
OR/WH
BR
BL/WH
7
8
5
2
4
6
7
1
5
6
3
4
8
2
7
16
8
13
15
6
2
11
3
12
4
10
9
1
5
OR Orange
All manuals and user guides at all-guides.com

(No.MA345)
VPT
Printed in Japan
Victor company of Japan, Limited
Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
All manuals and user guides at all-guides.com

3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
* Please refer to the mechanism manual (model TN2007-1010, No.MY005,MY005B)
for the CD mechanism.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~03)
Packing materials and accessories parts list (Block No.M3)
KW-XG500J,KW-XG504UI,KW-XG505U
KW-XG505UN,KW-XG505UH,KW-XG506U
KW-XG506UN,KW-XG506UH,KW-XG508UF
3- 2
3- 6
3-12
MA345
All manuals and user guides at all-guides.com

3-2
Exploded view of general assembly and parts list
A
A
a
a
b
B
f
g
j
c
r
hk
n
Main board
F
E
KW-XG500J only
D
E
C
d
e
p
p
Switch board
S/M : MY005,MY005B
model : TN2007-1010
G
c
r
C
20
16
10
11
25
36
18
27
15
14
50
15
12
38
29
37
38
1
49
10
517
4
35
28
32
24
21
18
33
23 30
34
8
48
43
44
39
6
22
31
26
53
54
55
56
Block No.
MM
M
1
All manuals and user guides at all-guides.com
