SERVICE MANUAL
MAGNETOSCOPE
No. 82798
April 2000
HR-J270MS/J470MS
Regarding service information other than these sections, refer to the HR-J670MS service manual (No. 82787).

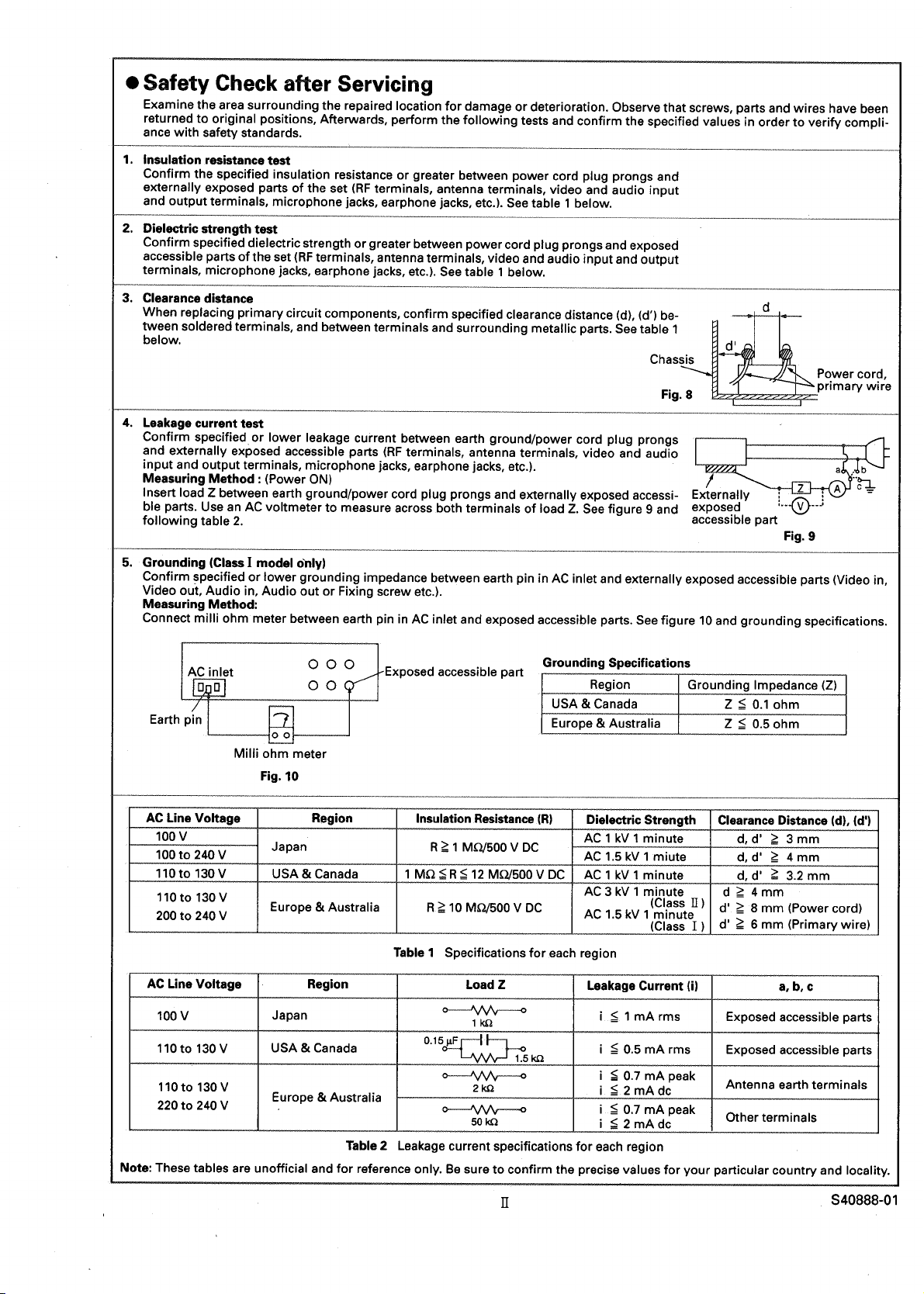

Also, be sure to note important safety precautions provided in the service manual.
CARACTERISTIQUES TECHNIQUES (The specifications shown pertain specifically to the model HR-J670MS/J470MS/J270MS)
This service manual is made from all recycled paper.
COPYRIGHT © 2000 VICTOR COMPANY OF JAPAN, LTD.
Gamme
SECAM L PAL B/G
Fréquence Canaux Fréquence Canaux
VHF 49 MHz 2 – 4 47 MHz E2 – E4
(LOW) – 65 MHz – 89 MHz X, Y, Z
VHF 104 MHz 5 – 10 104 MHz
E5 – E12
(HIGH) – 300 MHz CATV – 300 MHz
S1 – S20
M1 – M10
U1 – U10
Hyper 300 MHz CATV 302 MHz S21 – S41
– 470 MHz – 470 MHz
UHF 470 MHz 21 – 69 470 MHz E21 – E69
–862 MHz – 862 MHz
GÉNÉRALES
Alimentation : CA 220 V – 240 V `, 50/60 Hz
Consommation
[HR-J670MS]
Alimentation en marche : 19 W
Alimentation en veille : 4,9 W
[HR-J470/270MS]
Alimentation en marche : 17 W
Alimentation en veille : 4,9 W
Températures
Fonctionnement : 5°C à 40°C
Stockage : -20°C à 60°C
Position de fonctionnement : Seulement horizontale
Dimensions (LxHxP) : 400 mm x 94 mm x 278 mm
Poids : 3,5 kg
Format : Standard VHS PAL/SECAM
Largeur de bande : 12,65 mm
Vitesse de bande
(VN) : 23,39 mm/s
(LD)* : 11,70 mm/s
Durée maximale d’enregistrement
(VN) : 240 mn avec une cassette vidéo E-240
(LD)* : 480 mn avec une cassette vidéo E-240
* Disponible seulement avec le HR-J670/470MS
VIDÉO/AUDIO
Système de signal : Signaux couleur PAL et signal monochrome CCIR, 625
lignes/50 trames
Système d’enregistrement : Balayage hélicoïdal DA4 (Double Azimuth)
[HR-J670/470MS]
2 têtes àbalayage hélicoïdal [HR-J270MS]
Entrée : 0,5 Vcc à2,0 Vcc, 75 ohms, asymétrique
Sortie : 1,0 Vcc, 75 ohms, asymétrique
Rapport signal/bruit : 45 dB
Résolution horizontale : 250 lignes (VHS-PAL)
240 lignes (VHS-SECAM)
Gamme de fréquence : 70 Hz à10.000 Hz (Audio normal)
20 Hz à20.000 Hz (Audio Hi-Fi)
[HR-J670MS seulement]
Entrée/sortie : Connecteurs péritélévision à21 broches:
ENTREE/SORTIE x 1,
ENTREE/DECODEUR x 1
Connecteurs RCA:
SORTIE AUDIO x 1 [HR-J670MS seulement]
SYNTONISEUR
Système de syntonisation : Syntoniseur àsynthèse de fréquence
Capacitéde canaux TV : 99 positions (+ position AUX)
Canaux couverts
ATTENTION:
Ce magnétoscope contient des microprocesseurs. Des bruits
électroniques externes ou des interférences peuvent causer un
mauvais fonctionnement. Dans de tels cas, couper l’alimentation et
débrancher le cordon d’alimentation. Puis le rebrancher et remettre
l’alimentation. Sortir la cassette. Après contrôle de la cassette, faire
fonctionner l’appareil comme d’ordinaire.
Les caractéristiques techniques sont pour le mode VN àmoins
d’indication contraire.
Présentation et caractéristiques modifiables sans préavis.
MINUTERIE
Référence de l’horloge : Par quartz
Capacitéde programmation : Minuterie sur 1 an/8 programmes
Durée de soutien mémoire : 60 mn
ACCESSOIRES
Accessoires fournis : Câble d’antenne,
Câble péritélévision à21 broches,
Adaptateur antenne,
Boîtier de télécommande àinfrarouge,
Pile “R6”x 2
Accessoires en option : Contrôleur satellite RM-SD1

Notes : Mark is same as left.
Mark --- is not used.
TABLE OF CONTENTS
DIFFERENT TABLE .............................................................................................................................................................................. 1
4. CHARTS AND DIAGRAMS (4-1 to 4-6)

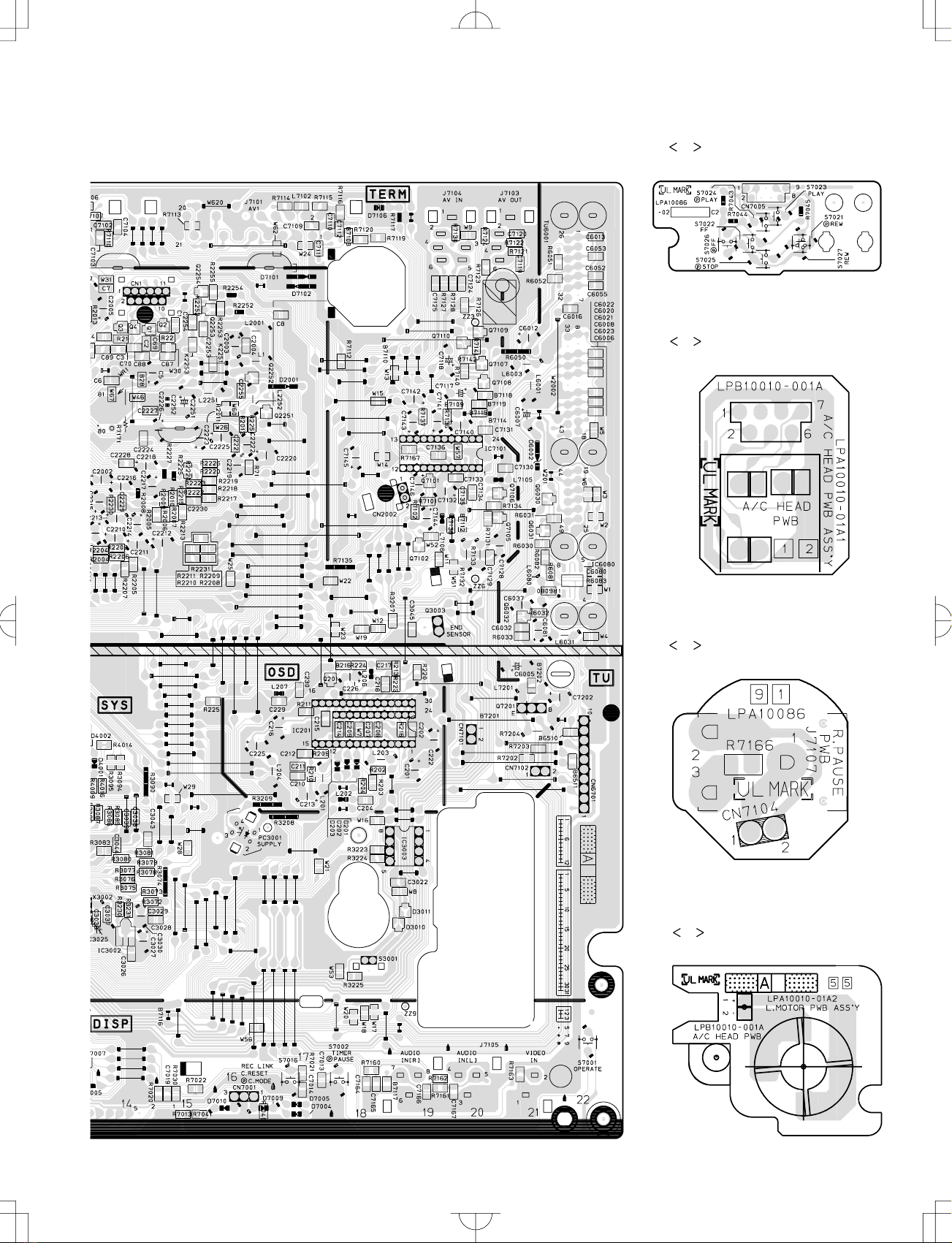

4.1 MAIN, A/C HEAD R.PAUSE, MINI OPE AND LOADING MOTOR CIRCUIT BOARDS .............................................................. 4-2

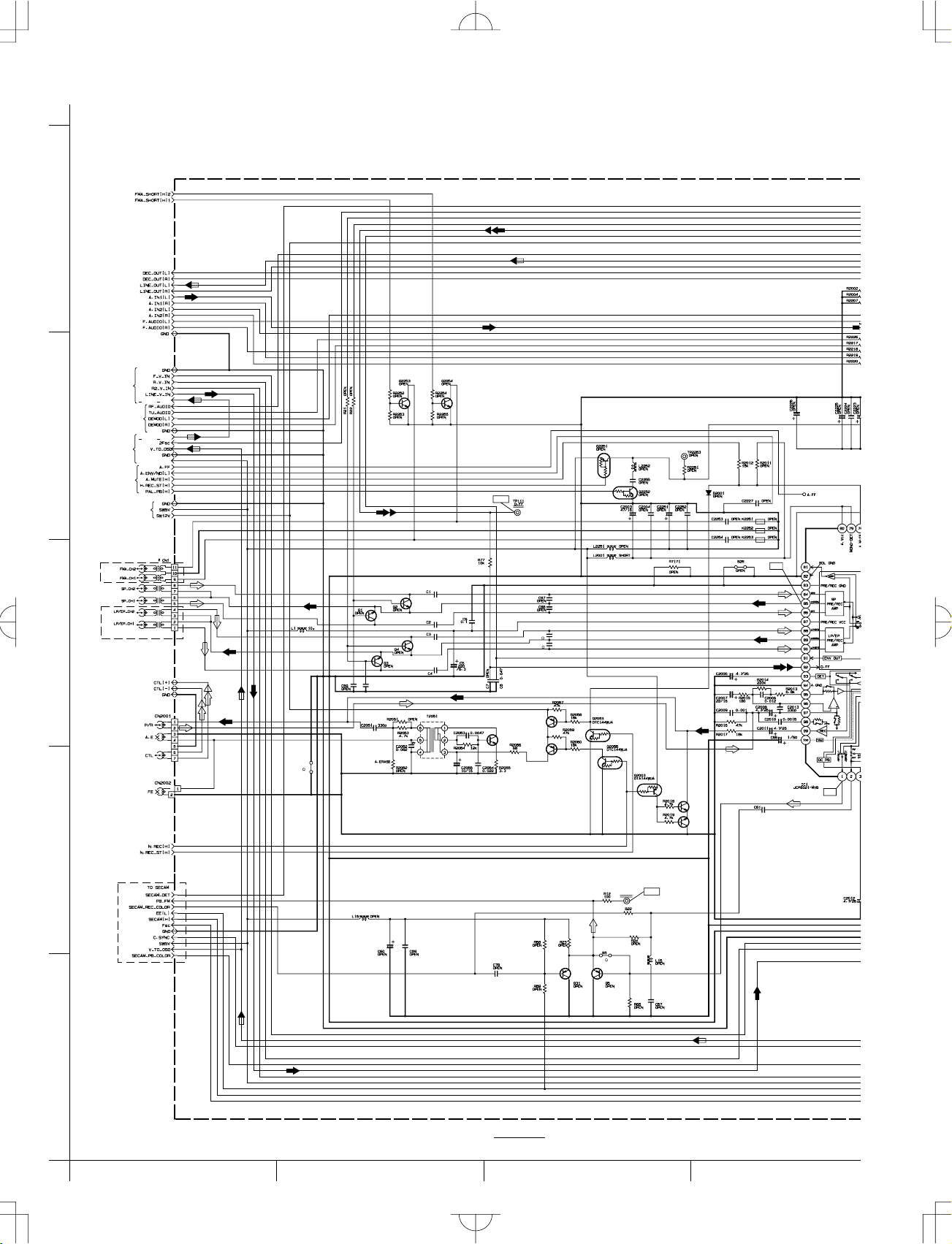

4.2 VIDEO/N.AUDIO SCHEMATIC DIAGRAM ................................................................................................................................. 4-4
5. PARTS LIST (5-1 to 5-7)
5.1 ELECTRICAL PARTS LIST
MAIN BOARD ASSEMBLY <03> .................................................................................................................................................... 5-1
1
The following table indicate main different points between models HR-J670MS, HR-J270MS and HR-J470MS.
MODEL HR-J670MS HR-J270MS HR-J470MS
ITEM
FRONT PANEL COLOR SILVER D.SILVER D.SILVER
VIDEO 4HEAD 2HEAD 4HEAD
HiFi AUDIO USED NOT USED
RECORDING & PLAYBACK SPEED SP/LP SP SP/LP
STILL/PAUSE/FRAME ADVANCE NOISELESS REDUCED NOISE NOISELESS
HQ SYSTEM WC,DE,YNR WC,DE WC,DE,YNR
STEREO DECODER USED NOT USED
The following table indicate different parts number between models HR-J670MS, HR-J270MS and HR-J470MS.
!REF. MODEL
HR-J670MS HR-J270MS HR-J470MS
NO. ITEM
!501 FRONT PANEL ASSY LP10289-011C LP10289-030C LP10289-031C
501A CASETTE DOOR LP20868-002A LP20868-010A
501C DISPLAY WINDOW LP20869-011B LP20869-037B LP20869-038B
505 DRUM SUB ASSY LP20617-007A LP20617-009A LP20617-010A
505A UPPER DRUM ASSY LP20616-004A LP20084-005A LP20084-001A
505H LOWER DRUM ASSY LP20615-002A LP20615-005A LP20615-004A
CABINET AND CHASSIS ASSEMBLY <M2>
!REF. MODEL
HR-J670MS HR-J270MS HR-J470MS
NO. ITEM
PW1 MAIN BOARD ASSY LPA10086-10C1 LPA10086-14D1 LPA10086-13D1
MAIN BOARD ASSEMBLY <03>
!REF. MODEL
HR-J670MS HR-J270MS HR-J470MS
NO. ITEM
PW1 MINI OPE BOARD ASSY LPA10086-02D2 LPA10086-02C2
MINI OPE BOARD ASSEMBLY <28>
!REF. MODEL
HR-J670MS HR-J270MS HR-J470MS
NO. ITEM
PW1 DEMOD BOARD ASSY LPA10094-01C — —
DEMOD BOARD ASSEMBLY <14>
!REF. MODEL
HR-J670MS HR-J270MS HR-J470MS
NO. ITEM
PW3 R.PAUSE BOARD ASSY LPA10086-01D3 LPA10086-01C3
R.PAUSE BOARD ASSEMBLY <91>

4-1
SECTION 4
CHARTS AND DIAGRAMS
REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION

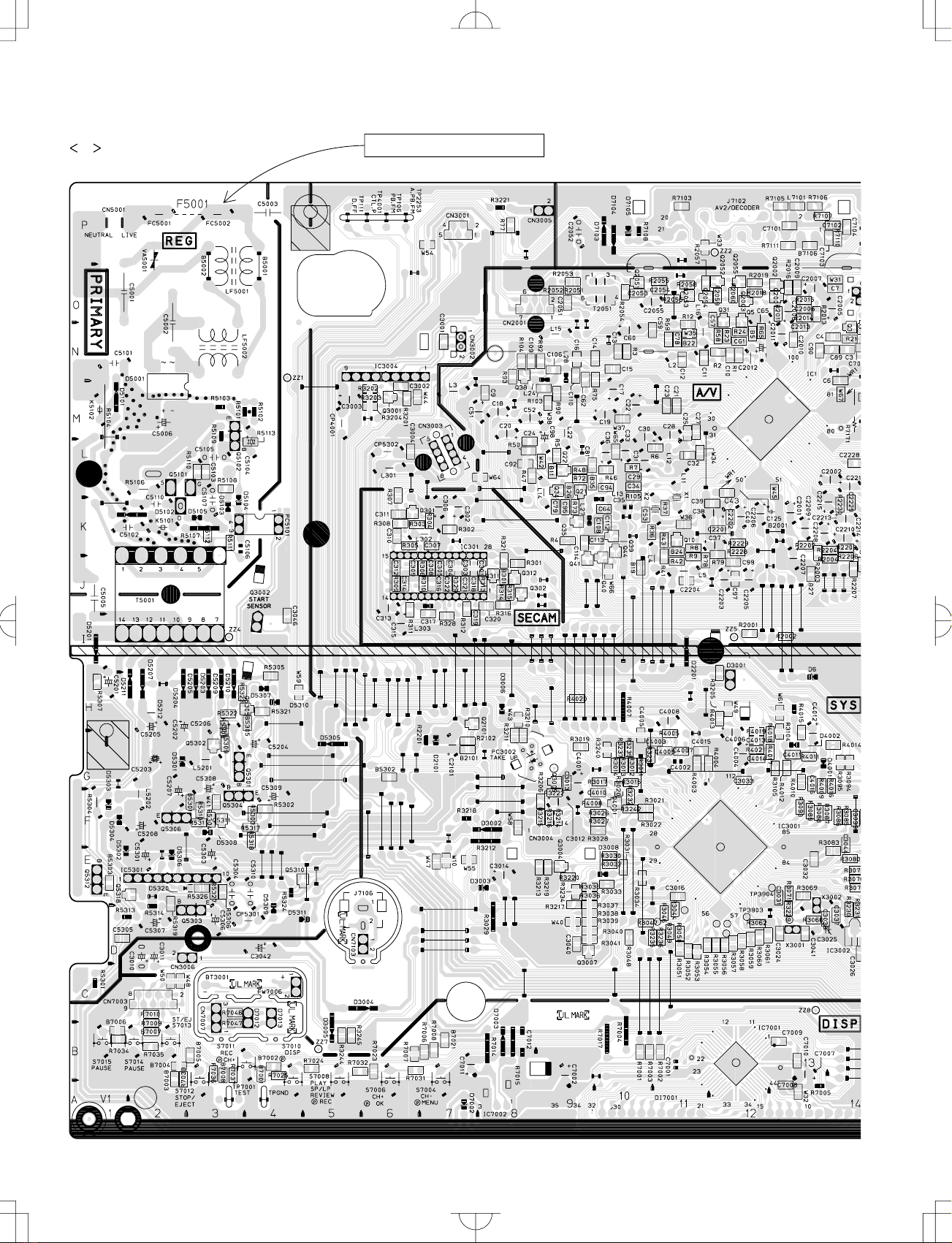

COMPONENT PARTS LOCATION GUIDE <MAIN>
CAPACITOR
C1 B C 15N
C2 B C 14N
C3 B C 14N
C4 B C 14N
C5 A D 14N
C6 B C 14N
C7 B C 14O
C8 B C 17O
C9 B C 8M
C10 B C 12N
C11 B C 11N
C12 B C 11N
C13 B C 10N
C14 B C 10N
C15 B C 10N
C16 B C 9N
C17 A D 10M
C18 A D 8M
C19 A D 10M
C20 A D 8M
C21 B C 11M
C22 A D 10M
C23 B C 11M
C24 B C 8L
C25 B C 11M
C27 B C 11M
C28 A D 11M
C29 B C 10L
C30 A D 10M
C31 A D 10L
C32 B C 11L
C33 A D 10L
C34 B C 10L
C35 A D 10K
C36 A D 10L
C37 A D 11K
C38 A D 12K
C39 B C 12K
C40 A D 12K
C43 B C 12L
C51 A D 8M
C52 A D 8M
C53 B C 10K
C57 B C 12O
C59 B C 11N
C60 A D 10N
C61 B C 12N
C62 B C 9N
C64 B C 10K
C65 A D 12O
C69 B C 14N
C70 B C 14N
C78 B C 11N
C79 B C 9K
C81 B C 9L
C87 B C 15N
C88 B C 14N
C89 B C 14N
C90 B C 13N
C92 B C 8L
C94 B C 10L
C95 B C 9K
C97 B C 12J
C98 A D 9M
C99 B C 12J
C106 B C 9N
C108 B C 10K
C109 B C 8N
C110 B C 9N
C112 B C 10K
C113 B C 10K
C114 B C 9K
C125 A D 12L
C201 A D 19G
C202 B C 19H
C204 B C 18F
C206 B C 18H
C207 B C 18H
C209 B C 18H
C210 B C 17G
C211 B C 17G
C212 B C 17G
C213 A D 17F
C214 B C 18H
C215 B C 17H
C216 A D 17H
C217 B C 18I
C218 B C 18H
C222 A D 19G
C225 A D 16G
C226 A D 18H
C229 B C 17H
C230 B C 17H
C301 B C 8J
C302 A D 7K
C303 B C 7J
C304 B C 7J
C305 B C 7J
C306 A D 7K
C307 B C 7K
C308 B C 7J
C309 B C 6J
C310 B C 6K
C311 B C 6K
C312 B C 6J
C313 A D 6J
C314 B C 6J
C315 A D 6I
C316 B C 7J
C317 B C 7J
C318 B C 7J
C319 B C 7I
C320 B C 8J
C321 B C 7J
C322 B C 7J
C2001 A D 13K
C2002 A D 13L
C2003 A D 16N
C2004 B C 16N
C2005 A D 14O
C2006 B C 13O
C2007 A D 13O
C2008 A D 13O
C2009 B C 13O
C2010 B C 13N
C2011 A D 13N
C2012 A D 12N
C2013 B C 13N
C2051 B C 9O
C2052 A D 9P
C2053 B C 10O
C2054 B C 11O
C2055 A D 11O
C2101 A D 7G
C2201 B C 12K
C2202 B C 12K
C2203 A D 12J
C2204 B C 11J
C2205 A D 12J
C2206 A D 12K
C2207 A D 13K
C2208 A D 13K
C2209 A D 13K
C2210 A D 14K
C2211 A D 14K
C2212 A D 15K
C2213 A D 14K
C2214 A D 14K
C2215 A D 14K
C2216 A D 14L
C2217 A D 14L
C2218 A D 14L
C2219 A D 16L
C2220 A D 16L
C2221 B C 16L
C2222 A D 16L
C2223 A D 15L
C2224 B C 14M
C2225 A D 16M
C2226 A D 15M
C2227 B C 14M
C2228 B C 14L
C2229 B C 14K
C2230 B C 15K
C2251 A D 15M
C2252 A D 15M
C2253 B C 15N
C2254 B C 15O
C2255 B C 16M
C3001 B C 7N
C3002 B C 6M
C3003 A D 5M
C3004 B C 6L
C3010 A D 2C
C3011 A D 2C
C3012 A D 9F
C3013 B C 9G
C3014 A D 8E
C3016 B C 11E
C3022 B C 19E
C3024 B C 13D
C3025 A D 14D
C3026 B C 14D
C3027 A D 14D
C3028 B C 14D
C3029 B C 14D
C3030 A D 14D
C3031 B C 13E
C3032 B C 13E
C3033 B C 12G
C3036 B C 13D
C3037 B C 14D
C3038 B C 14F
C3039 B C 14F
C3040 B C 9D
C3041 B C 13D
C3042 A D 4D
C3043 B C 14F
C3044 B C 14F
C3045 B C 19I
C3046 B C 4I
C4001 A D 9G
C4002 A D 11G
C4003 B C 11G
C4004 A D 12G
C4005 B C 10G
C4006 A D 12G
C4007 B C 11G
C4008 A D 11H
C4009 B C 11G
C4010 B C 10F
C4011 B C 13G
C4012 A D 13H
C4013 B C 12G
C4014 B C 12G
C4015 B C 11G
C4016 B C 13G
C5001 A D 1O
C5002 A D 2N
C5003 A D 4P
C5005 A D 1J
C5006 A D 2M
C5101 A D 1N
C5102 A D 1K
C5103 B C 3L
C5104 A D 4M
C5105 A D 3L
C5106 A D 3J
C5107 A D 3K
C5110 A D 2K
C5201 A D 1I
C5202 A D 2H
C5203 A D 2G
C5204 A D 4G
C5205 A D 2H
C5206 A D 3H
C5207 A D 2F
C5208 A D 2F
C5301 A D 2E
C5303 A D 3E
C5304 A D 3E
C5305 B C 1D
C5306 A D 3D
C5307 A D 2D
C5308 A D 3G
C5309 A D 4F
C5310 A D 4E
C6005 A D 21I
C6006 B C 22M
C6007 A D 21M
C6008 B C 22M
C6012 A D 21N
C6013 B C 22P
C6016 B C 22O
C6020 B C 22N
C6021 B C 22N
C6022 B C 22N
C6023 B C 22M
C6032 B C 21I
C6037 A D 21J
C6052 B C 22O
C6053 B C 22P
C6055 B C 22O
C6080 B C 22J
C6081 A D 21I
C7001 A D 11B
C7002 A D 9B
C7007 A D 13B
C7008 B C 13A
C7009 B C 13B
C7010 B C 13B
C7011 A D 7B
C7012 A D 8B
C7013 B C 17B
C7014 B C 17A
C7019 B C 15A
C7101 B C 13P
C7102 B C 14P
C7103 B C 14P
C7104 B C 14P
C7109 B C 17P
C7110 B C 17P
C7111 B C 17P
C7112 B C 18P
C7117 A D 20M
C7118 A D 20N
C7119 B C 21P
C7120 B C 21P
C7124 B C 20O
C7125 B C 19O
C7128 A D 20K
C7129 B C 20J
C7130 B C 20L
C7131 B C 20M
C7132 A D 20L
C7133 B C 20L
C7134 B C 20L
C7135 B C 20L
C7136 B C 19L
C7138 B C 20K
C7140 A D 20M
C7141 A D 19M
C7142 A D 19M
C7143 A D 19M
C7144 A D 19K
C7145 A D 18L
C7146 A D 19L
C7164 B C 18A
C7165 B C 18A
C7166 B C 19A
C7167 B C 20A
C7202 A D 21H
CONNECTOR
CN1 A D 14O
CN2001 A D 9O
CN2002 A D 19L
CN3001 A D 7P
CN3002 A D 7N
CN3003 A D 7L
CN3004 A D 9F
CN3005 A D 9P
CN3006 A D 3D
CN5001 A D 1P
CN6701 A D 22F
CN7001 A D 16A
CN7003 A D 2C
CN7007 A D 3B
CN7101 A D 20H
CN7102 A D 21G
DIODE
D6 A D 13H
D201 A D 18G
D202 A D 18G
D203 A D 18G
D2001 A D 16M
D2101 A D 7H
D2201 A D 11I
D3001 A D 12H
D3002 A D 8F
D3003 A D 8E
D3004 A D 5C
D3005 A D 5C
D3006 A D 8H
D3008 A D 10E
D3010 B C 19D
D3011 B C 19D
D4001 A D 13G
D4002 A D 13G
D5001 B C 2M
D5101 A D 1M
D5102 A D 2K
D5103 A D 3K
D5104 A D 3L
D5105 A D 3K
D5201 A D 1I
D5203 A D 3I
D5204 A D 2I
D5205 A D 3I
D5207 A D 2I
D5209 A D 3I
D5210 A D 3I
D5211 A D 2H
D5212 A D 2I
D5301 A D 2G
D5302 A D 1F
D5303 A D 1F
D5304 A D 1F
D5305 A D 5G
D5306 A D 2F
D5307 A D 4H
D5308 A D 3F
D5309 A D 4D
D5310 A D 4H
D5311 A D 4D
D5320 B C 2E
D6002 A D 21M
D7002 A D 7A
D7003 A D 8B
D7004 A D 17A
D7005 A D 17A
D7009 A D 16A
D7010 A D 16A
D7012 A D 4C
D7013 A D 4C
D7101 A D 17O
D7102 A D 17O
D7103 A D 10P
D7104 A D 10P
D7105 A D 10P
D7106 A D 18P
IC
IC1 B C 12M
IC201 A D 19G
IC301 A D 8J
IC3001 B C 12F
IC3002 B C 14D
IC3003 A D 19F
IC3004 A D 7N
IC5301 A D 2E
IC6080 B C 22J
IC7001 B C 12B
IC7002 A D 8A
IC7101 A D 20L
JACK
J7101 A D 16P
J7102 A D 12P
J7103 A D 21P
J7104 A D 20P
J7105 A D 20A
COIL
L1 A D 16N
L2 A D 11N
L3 A D 7M
L4 A D 11J
L5 A D 11J
L11 A D 11L
L12 A D 11L
L13 A D 10K
L14 A D 9L
L15 A D 9N
L16 A D 11O
L22 A D 9M
L24 A D 9N
L27 A D 9K
L28 A D 9M
L201 A D 17G
L202 A D 18F
L203 A D 19G
L204 A D 16G
L206 A D 18I
L207 A D 17H
L301 A D 6L
L302 A D 6K
L303 A D 6J
L2001 A D 16N
L2251 A D 16M
L2252 A D 16M
L5201 A D 3G
L5202 A D 2G
L6001 A D 21M
L6003 A D 21N
L6031 A D 21I
L6080 A D 21J
L7101 B C 13P
L7102 B C 17P
L7105 A D 21L
L7106 A D 19K
L7201 A D 21H
TRANSISTOR
Q1 B C 14N
Q2 B C 15N
Q3 B C 14N
Q4 B C 14N
Q5 B C 12O
Q10 B C 11K
Q21 B C 9L
Q22 B C 9L
Q31 B C 12O
Q34 B C 9L
Q35 B C 9K
Q38 B C 8N
Q39 B C 10K
Q40 B C 10J
Q41 B C 9J
Q44 B C 10K
Q201 B C 17H
Q301 B C 6K
Q302 B C 8J
Q311 B C 8J
Q312 B C 8J
Q2001 B C 13O
Q2002 B C 13O
Q2003 B C 12O
Q2051 B C 10O
Q2052 B C 12O
Q2053 B C 11O
Q2054 B C 11O
Q2055 B C 12O
Q2101 B C 7H
Q2251 B C 16M
Q2252 B C 16N
Q2253 B C 15O
Q2254 B C 15O
Q3001 B C 6M
Q3002 A D 4I
Q3003 A D 19I
Q3004 B C 9E
Q3005 B C 9G
Q3007 B C 9D
Q4001 B C 10F
Q5101 A D 2L
Q5102 A D 3M
Q5301 A D 3G
Q5302 B C 3G
Q5303 A D 3D
Q5304 A D 4F
Q5305 B C 4H
Q5306 A D 2F
Q5310 B C 5E
Q5311 B C 3F
Q5312 A D 1E
Q5318 B C 2E
Q6030 B C 21K
Q6031 B C 21K
Q6032 B C 21I
Q7101 B C 19L
Q7102 B C 19K
Q7105 B C 20K
Q7106 B C 20L
Q7107 B C 20N
Q7108 B C 20M
Q7109 B C 20N
Q7110 B C 20N
Q7201 A D 21H
RESISTOR
R1 B C 12N
R2 B C 12N
R3 B C 10N
R4 B C 9K
R5 B C 9L
R6 B C 11L
R7 B C 10L
R8 B C 11K
R9 B C 11J
R12 B C 11N
R21 B C 14N
R22 B C 15N
R23 B C 12N
R24 B C 12N
R36 B C 10K
R37 B C 11K
R41 B C 11J
R42 B C 11J
R43 B C 11K
R46 B C 10L
R47 B C 8L
R48 B C 9L
R50 B C 8L
R58 B C 12N
R59 B C 11N
R65 B C 12N
R71 B C 16L
R72 B C 9L
R73 B C 9K
R75 B C 10N
R77 B C 8P
R78 B C 11J
R79 B C 12K
R90 B C 9M
R92 B C 9N
R93 B C 8N
R103 B C 9M
R104 B C 8N
R105 B C 10L
R202 B C 18G
R203 B C 18G
R204 B C 18G
R209 B C 17G
R210 B C 17G
R211 B C 17H
R213 B C 19I
R216 B C 19H
R220 B C 19I
R223 B C 19H
R224 B C 18I
R225 B C 15H
R301 B C 8J
R302 B C 7K
R303 B C 6K
R304 B C 7K
R305 B C 6K
R306 B C 7J
R307 B C 6L
R308 B C 6K
R309 B C 6J
R310 B C 7J
R311 B C 6J
R312 B C 7J
R313 B C 8J
R314 B C 8J
R315 B C 8J
R316 B C 8J
R321 B C 8J
R328 B C 7I
R329 B C 7J
R2001 B C 12I
R2002 B C 13I
R2003 B C 13K
R2004 B C 14J
R2005 B C 15K
R2006 B C 15K
R2007 B C 15K
R2008 A D 14K
R2009 B C 15K
R2010 B C 15K
R2011 B C 16M
R2012 B C 16M
R2013 B C 13O
R2014 B C 13O
R2015 B C 13O
R2016 B C 13O
R2017 B C 13O
R2018 B C 12O
R2019 B C 12O
R2051 B C 9O
R2052 B C 9O
R2053 B C 9O
R2054 B C 10O
R2055 B C 11O
R2056 B C 11O
R2057 B C 11O
R2058 B C 11O
R2059 B C 12O
R2060 B C 12O
R2102 B C 7G
R2201 A D 7G
R2202 B C 13K
R2203 B C 14K
R2204 B C 14K
R2205 B C 14J
R2206 B C 14J
R2207 B C 14J
R2208 B C 15J
R2209 B C 15K
R2210 B C 15J
R2211 B C 15K
R2213 B C 15K
R2215 B C 15L
R2217 B C 15K
R2218 B C 15L
R2219 B C 15L
R2220 B C 15L
R2222 B C 15L
R2223 B C 15L
R2224 B C 15L
R2225 A D 15L
R2226 B C 15L
R2227 A D 15L
R2228 B C 12K
R2229 B C 12K
R2230 B C 14K
R2231 B C 15K
R2251 B C 16M
R2252 A D 16O
R2253 B C 16O
R2254 A D 16O
R2255 B C 15O
R3011 B C 10G
R3012 B C 10G
R3013 B C 10G
R3014 B C 10G
R3015 B C 10G
R3017 B C 10G
R3019 B C 9G
R3020 B C 10G
R3021 B C 10F
R3022 B C 10F
R3026 B C 10F
R3027 B C 10F
R3028 B C 10F
R3029 A D 8D
R3030 B C 10E
R3031 B C 10E
R3032 B C 10E
R3033 B C 10E
R3034 B C 10E
R3035 B C 9E
R3036 B C 9E
R3037 B C 9E
R3038 B C 9D
R3039 B C 9D
R3040 B C 9D
R3041 B C 9D
R3044 B C 11D
R3046 B C 11D
R3047 B C 10D
R3048 B C 10D
R3049 B C 11D
R3050 B C 11D
R3051 B C 11D
R3052 B C 11D
R3053 B C 11D
R3054 B C 11D
R3055 B C 12D
R3056 B C 12D
R3057 B C 12D
R3058 B C 12D
R3059 B C 12D
R3060 B C 12D
R3061 B C 12D
R3062 B C 12D
R3066 B C 13D
R3069 B C 13E
R3071 B C 13E
R3072 B C 14E
R3073 B C 14E
R3074 A D 15E
R3075 B C 14E
R3076 B C 14E
R3077 B C 14E
R3078 B C 14E
R3079 B C 14E
R3080 B C 14E
R3081 B C 14E
R3083 B C 14E
R3085 B C 14F
R3086 B C 14F
R3087 B C 14F
R3088 B C 13F
R3089 B C 13F
R3090 A D 14F
R3093 B C 13F
R3094 B C 14G
R3095 B C 14G
R3104 B C 13G
R3105 B C 13G
R3201 B C 6M
R3202 B C 6M
R3203 B C 6M
R3204 B C 6M
R3205 B C 12H
R3206 B C 9F
R3207 B C 19I
R3208 A D 17F
R3209 A D 17F
R3210 B C 8G
R3211 B C 8G
R3212 A D 8F
R3213 B C 9E
R3214 B C 9F
R3215 B C 9F
R3216 B C 9F
R3217 B C 9E
R3218 A D 7F
R3219 B C 9E
R3220 B C 9E
R3221 A D 8P
R3222 B C 9F
R3223 B C 18E
R3224 B C 18E
R3225 B C 18C
R3229 B C 13D
R3230 B C 14D
R3231 B C 14D
R3232 B C 10F
R3234 B C 9E
R3235 B C 11D
R3236 B C 11D
R3237 B C 10G
R3238 B C 10G
R3239 B C 10G
R3240 B C 10G
R3242 B C 10F
R3244 B C 5B
R3245 B C 5B
R4001 A D 13H
R4003 B C 11G
R4004 B C 11G
R4005 B C 11G
R4007 A D 10H
R4008 B C 9F
R4009 B C 13G
R4010 B C 13G
R4011 B C 13G
R4012 B C 13G
R4013 B C 12H
R4014 B C 14G
R4015 B C 13G
R4016 B C 14G
R4017 B C 13G
R4018 B C 13G
R4019 B C 12G
R4020 B C 9H
R4021 B C 12G
R5101 A D 4M
R5102 A D 4M
R5103 A D 3M
R5104 A D 1N
R5106 A D 2L
R5107 A D 3K
R5108 B C 3L
R5109 A D 3L
R5110 B C 3L
R5111 B C 3K
R5112 B C 3K
R5113 B C 4L
R5301 A D 1C
R5302 B C 4F
R5303 B C 4F
R5304 A D 1F
R5305 B C 4H
R5306 B C 3E
R5307 B C 1H
R5308 B C 3H
R5309 B C 3G
R5310 B C 3F
R5311 B C 3F
R5313 A D 1D
R5314 A D 2D
R5317 B C 4F
R5318 B C 4F
R5319 B C 2E
R5321 B C 4H
R5322 B C 3H
R5323 B C 3H
R5324 A D 4E
R5326 B C 3E
R5327 B C 3E
R6030 B C 21K
R6031 B C 21K
R6032 B C 21J
R6033 B C 21I
R6050 A D 21N
R6051 B C 21P
R6052 B C 21O
R6080 B C 21J
R6081 B C 21J
R6082 B C 21J
R6083 B C 22J
R7001 B C 10B
R7002 B C 11B
R7003 B C 10B
R7004 A D 10B
R7005 A D 14A
R7006 B C 6B
R7007 B C 7B
R7008 B C 7B
R7009 B C 2B
R7010 B C 2C
R7013 B C 15A
R7014 A D 8B
R7015 A D 8B
R7017 A D 10B
R7020 B C 15A
R7021 B C 17B
R7022 B C 15A
R7023 B C 6B
R7024 B C 5B
R7025 B C 4B
R7030 B C 15A
R7031 B C 6B
R7032 B C 5B
R7033 B C 2B
R7034 B C 1B
R7035 B C 2B
R7036 B C 3B
R7037 B C 3B
R7040 B C 16A
R7041 B C 15A
R7046 B C 3C
R7047 B C 3B
R7101 B C 19K
R7102 B C 19K
R7103 B C 11P
R7105 B C 13P
R7106 B C 13P
R7107 B C 13P
R7108 A D 10P
R7110 B C 14P
R7111 B C 13P
R7112 B C 18N
R7113 B C 15P
R7114 B C 17P
R7115 B C 17P
R7116 B C 18P
R7117 A D 19P
R7119 B C 18P
R7120 B C 18P
R7121 B C 21P
R7122 B C 21P
R7123 B C 20O
R7124 B C 20P
R7126 B C 20O
R7127 B C 19O
R7128 B C 20O
R7130 B C 20P
R7131 B C 20K
R7132 A D 20J
R7133 A D 20J
R7134 B C 20K
R7135 A D 18J
R7136 B C 19M
R7137 B C 19M
R7140 B C 20N
R7141 B C 20N
R7142 B C 20N
R7160 B C 18B
R7161 B C 19A
R7162 B C 19B
R7163 B C 21B
R7167 B C 19L
R7171 A D 14M
R7202 B C 21G
R7203 B C 21G
R7204 A D 21G
SWITCH
S3001 A D 18C
S7001 A D 22B
S7002 A D 18B
S7004 A D 7B
S7006 A D 6B
S7008 A D 5B
S7010 A D 4B
S7011 A D 4B
S7012 A D 3B
S7013 A D 2B
S7014 A D 2B
S7015 A D 1B
S7016 A D 17B
TEST POINT
TP106 A D 6P
TP111 A D 5P
TP2253 A D 6P
TP3901 B C 11D
TP3902 B C 11D
TP3903 B C 12D
TP3904 B C 13E
TP3905 B C 13D
TP3906 B C 12D
TP3907 B C 12D
TP3908 B C 12D
TP4001 A D 6P
TP7001 A D 3A
TPGND A D 4A
OTHER
BT3001 A D 3C
CP4001 A D 5M
CP5301 A D 4D
CP5302 A D 6L
DI7001 A D 12A
F5001 A D 2P
FC5001 A D 2P
FC5002 A D 3P
FW7006 A D 4C
K2251 B C 15N
K2252 B C 15O
K2253 B C 15N
K5101 A D 2K
K5102 A D 1M
LF5001 A D 3O
LF5002 A D 3N
PC3001 A D 16F
PC3002 A D 8G
PC5101 A D 4K
T2051 A D 9O
T5001 A D 1K
TU6001 A D 22P
VA5001 A D 2O
WR1 A D 12L
X1 A D 11K
X2 A D 11K
X3001 A D 13D
X3002 A D 13E

4-2
LOADING MOTOR CIRCUIT BOARDS
4.1 MAIN,A/C HEAD,R.PAUSE,MINI OPE AND
LPB10086-002D
03 MAIN DANGEROUS VOLTAGE

4-3
LPB10010-001A
55 LOADING MOTOR
LPB10010-001A
12 A/C HEAD
28 MINI OPE
LPB10086-002D
91 R.PAUSE
LPB10086-002D

TO SYSCON
TO TERMINAL
V FROM OSD
V FROM OSD
SW5V
TO TERMINAL
TO TUNER
TO ON SCREEN
TO SYSCON
TO SW.REG
TO U.DRUM
OPEN
TO SYSCON
TO A/C HEAD
CN1
TO
FULL ERASE HEAD
NC
1
2
3
5
4
ABC D
VIDEO/N.AUDIO SCHEMATIC DIAGRAM4.2
WF9
WF11
WF10
TO SYSCON
WF1
0
B27
0
OPEN
PB.FM
TP106
/QRS
2SC4081
Q2002
/QRS
2SC4081
Q2001
OPEN
2SA1576A
2SA1576A
C70
/QRS
2SC4081
Q2051
/QR
Q2054
/QR
Q2052
0
0
4-4

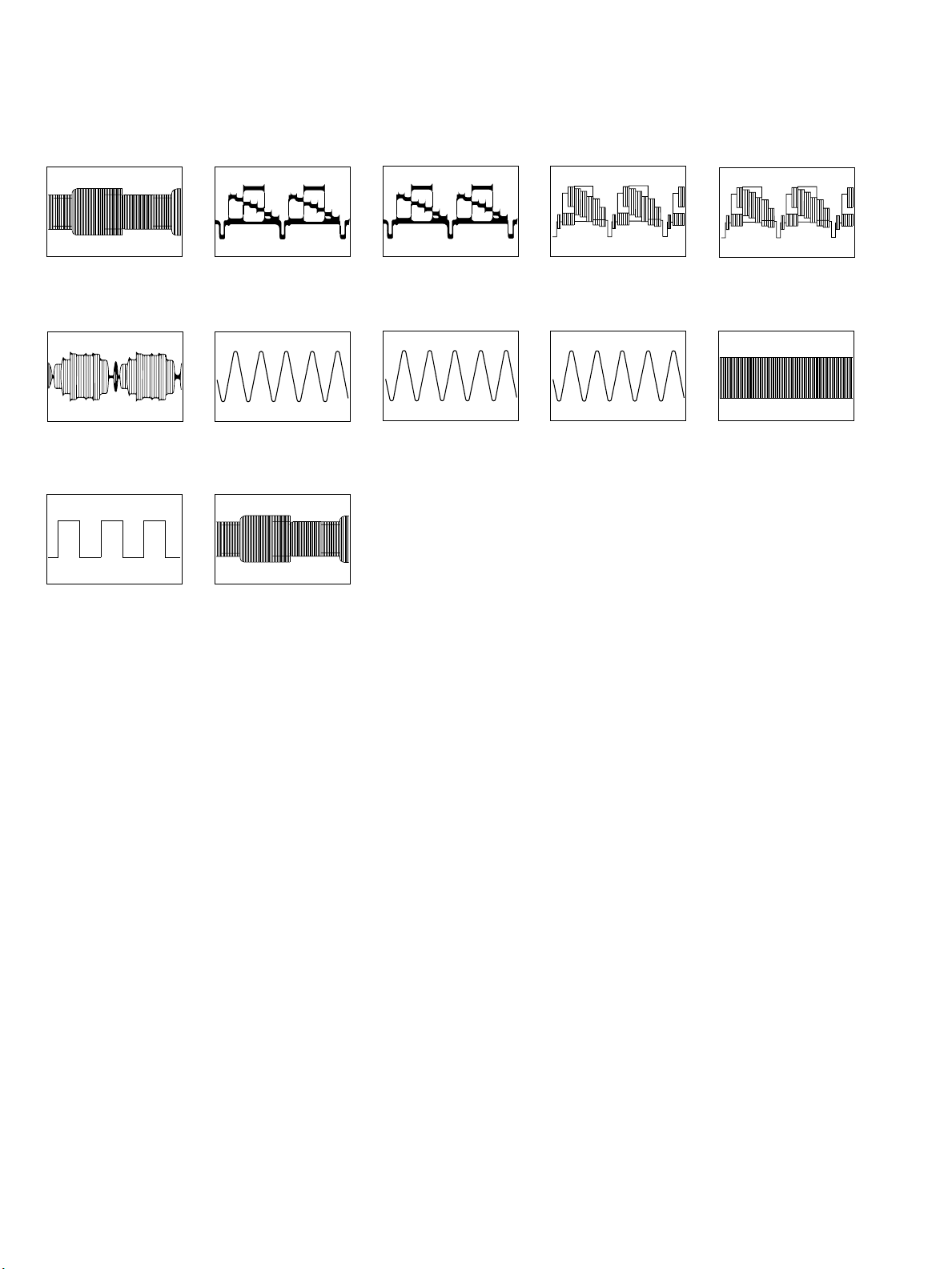

NOTE : For VIDEO/N.AUDIO waveforms,please refer to page 4-6.
(Page 4-12)
(Page 4-19)
(Page 4-19)
(Page 4-16)
(Page 4-7)
(Page 4-12)
(Page 4-14)
(Page 4-11)
(Page 4-11)
OPEN
OPEN
OPEN
C89
C90

MAIN (VIDEO/N.AUDIO)
TO SYSCON
EFGH
When ordering parts,be sure to order according to
the Part Number indicated in the Parts List.
NOTE :
WF8
WF7
WF6
WF5
WF4
WF3
WF2
WF1
OPEN
OPEN
Q34
OPEN
R48
220
Y
/QRS
2SC4081
Q22
R47
Y
Y
Y
Y
OPEN
C51
OPEN
C18
R5
C
OPEN
OPEN
L14
OPEN
Q40
OPEN
C113
C79
OPEN
C95
C112
OPEN
Q39
OPEN
0
C94
OPEN
R72
OPEN
R73
0
OPEN
Q21
B35
UN521E
Q41
C
C
MTZJ5.6C
NC
R
P
VCA
Y
Y
Y
Y
C
HIFI MODEL
C
C
C
C
C
HIFI MODEL
X2
OPEN
OPEN
OPEN
C53
680
0
D6
4-5
TO SYSCON (Page 4- ):
TO SYSCON (Page 4- ):
Example)
NOTE : How to find the page showing the continuative schematic diagram
Refer to this sevice manual
Refer to the HR-J670MS service manual (NO.82787)
(Page 4-11,4-12)

4-6
WF1 IC1-1
PB 0.5 Vp-p
20 mV/5 msec/DIV
WAVEFORMS
WF2 IC1-11
REC/PB 0.46 Vp-p
10 mV/20 µsec/DIV
— VIDEO/N.AUDIO —
WF3 IC1-13
REC/PB 0.46 Vp-p
10 mV/20 µsec/DIV
WF4 IC1-22
REC 0.84 Vp-p
20 mV/20 µsec/DIV
WF5 IC1-27
REC/PB 2.2 Vp-p
50 mV/20 µsec/DIV
WF6 IC1-30
PB 0.6 Vp-p
20 mV/20 µsec/DIV
WF7-1 IC1-53
REC 0.8 Vp-p
20 mV/0.5 msec/DIV
WF8 IC1-63
REC 0.07 Vp-p
2 mV/0.5 msec/DIV
WF9 IC1-85
REC 1.6 Vp-p
50 mV/1 msec/DIV
WF10 TP111
D.FF
REC/PB 3.5 Vp-p
0.1 V/10 msec/DIV
WF11 TP106
PB.FM
PB 0.5 Vp-p
20 mV/5 msec/DIV
WF7-2 IC1-53
PB 0.9 Vp-p
20 mV/0.5 msec/DIV

5-1
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
MAIN BOARD ASSEMBLY <03>
PW1 LPA10086-13D1 MAIN BOARD ASSY,J470MS
LPA10086-14D1 MAIN BOARD ASSY,J270MS
IC1 JCP8021-MVD IC
IC201 LC74775-9750 IC
IC301 LA7358 IC
IC3001 HD6432194A25F IC(MCU)
IC3002 S-80727AN-DQ-X IC
or S-80827ANUP-W IC
IC3003 AT24C16-10PC IC
or 24LC16B/P IC
or BR24C16 IC
IC3004 BA6956AN IC
IC5301 LA5613 IC
IC6080 BA10358F-XE IC
IC7001 M35500BGP IC
or M35500AGP IC
IC7002 GP1U291Q IR DETECT UNIT
or PNA4652M00YC IR DETECT UNIT
IC7101 BH7635S IC
Q21 2SA1576A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
Q22 2SC4081/QRS/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q34 2SA1576A/QR/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q38 2SC4081/QRS/-X TRANSISTOR
Q41 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q201 2SA1576A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
Q301 2SA1576A/QR/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q302 DTA144WU TRANSISTOR
or PDTA144WU TRANSISTOR
or RN2309 TRANSISTOR
or UN511E TRANSISTOR
Q2001 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
Q2002 2SC4081/QRS/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q2003 DTA144WU TRANSISTOR
or PDTA144WU TRANSISTOR
or RN2309 TRANSISTOR
or UN511E TRANSISTOR
Q2051 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
Q2052 2SA1576A/QR/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q2053 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q2054 2SA1576A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
Q2055 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q3001 2SD1819A/QRS/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q3002 PTZ-NV16 PHOTO TRANSISTOR
or PTZ-NV16A PHOTO TRANSISTOR
Q3003 PTZ-NV16 PHOTO TRANSISTOR
or PTZ-NV16A PHOTO TRANSISTOR
Q3004 2SD1819A/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
Q3005 2SD1819A/QRS/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q3007 UN521E TRANSISTOR
or RN1309 TRANSISTOR
or DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
Q4001 UN5211 TRANSISTOR
or RN1302 TRANSISTOR
or DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
Q5101 2SK2632-CB14 POWER MOS FET
or 2SK2632 POWER MOS FET
or 2SK2129 POWER MOS FET
or 2SK2129-LT POWER MOS FET
Q5102 2SD2144S/UV/-T TRANSISTOR
Q5303 2SD2144S/UV/-T TRANSISTOR
Q5304 2SD1450/ST/-T TRANSISTOR
or 2SD1302/ST/-T TRANSISTOR
Q5305 DTA114EU TRANSISTOR
or PDTA114EU TRANSISTOR
or RN2302 TRANSISTOR
or UN5111 TRANSISTOR
Q5306 2SB1239 TRANSISTOR
Q5310 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
or UN5211 TRANSISTOR
5.1 ELECTRICAL PARTS LIST
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
Q5311 2SA1576A/RS/-X TRANSISTOR
Q5312 2SD2144S/UV/-T TRANSISTOR
Q5318 DTA114EU TRANSISTOR
or PDTA114EU TRANSISTOR
or RN2302 TRANSISTOR
or UN5111 TRANSISTOR
Q6030 2SB1218A/RS/-X TRANSISTOR
Q6031 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
or UN5211 TRANSISTOR
Q6032 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
or UN5211 TRANSISTOR
Q7106 2SB1218A/QRS/-X TRANSISTOR
or 2SA1576A/QRS/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q7107 UN511E TRANSISTOR
or RN2309 TRANSISTOR
or DTA144WU TRANSISTOR
or PDTA144WU TRANSISTOR
Q7108 UN521E TRANSISTOR
or RN1309 TRANSISTOR
or DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
Q7110 2SD1819A/QRS/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q7201 2SC1317/RS/-T TRANSISTOR
D6 MTZJ5.6C ZENER DIODE
or RD5.6ES/B3/-T2 ZENER DIODE
D201 QRE141J-101Y RESISTOR 100Ø,1/4W
D202 QRE141J-101Y RESISTOR 100Ø,1/4W
D203 QRE141J-101Y RESISTOR 100Ø,1/4W
D3001 LNB2301L01VI LE DIODE
D3002 1SS133 DIODE
D3003 RD39ES/B3/-T2 ZENER DIODE
or MTZJ39C ZENER DIODE
D3004 11ES2 DIODE
or 1A3G DIODE
D3005 11ES2 DIODE
or 1A3G DIODE
D3008 1SS133 DIODE
D4001 1SS133 DIODE
D4002 1SS133 DIODE
D5001 S1WB/A/60-4102 BRIDGE DIODE
or S1WB(A)60F4072X BRIDGE DIODE
or S1WB/A/60-X BRIDGE DIODE
D5101 AU01 FR DIODE
or ERA18-04-T2 FR DIODE
or 10ELS4 FR DIODE
or 1SR153-400-T2 FR DIODE
D5102 AU01 FR DIODE
or ERA18-04-T2 FR DIODE
or 10ELS4 FR DIODE
or 1SR153-400-T2 FR DIODE
D5103 1SS133 DIODE
or 1SS270A DIODE
D5105 1SS133 DIODE
or 1SS270A DIODE
D5201 AU01Z FR DIODE
or 10ELS2 FR DIODE
D5203 AU01Z FR DIODE
or ERA18-02-T2 FR DIODE
or PG104RS FR DIODE
or 1SR153-400-T2 FR DIODE
or 10ELS2 FR DIODE
D5204 AU01Z FR DIODE
or ERA18-02-T2 FR DIODE
or PG104RS FR DIODE
or 10ELS2 FR DIODE
or 1SR153-400-T2 FR DIODE
D5207 AK04 DIODE
or 1S4 SB DIODE
or 11EQS04 SB DIODE
D5210 AU01Z FR DIODE
or ERA18-02-T2 FR DIODE
or PG104RS FR DIODE
or 1SR153-400-T2 FR DIODE
or 10ELS2 FR DIODE
D5211 AU01Z FR DIODE
or ERA18-02-T2 FR DIODE
or PG104RS FR DIODE
or 10ELS2 FR DIODE
or 1SR153-400-T2 FR DIODE
D5301 MTZJ15A ZENER DIODE
or RD15ES/B1/-T2 ZENER DIODE
D5302 MTZJ6.8A ZENER DIODE
or RD6.8ES/B1/-T2 ZENER DIODE
D5303 MTZJ27C ZENER DIODE
or RD27ES/B3/-T2 ZENER DIODE
D5304 1SS133 DIODE
or 1SS270A DIODE
D5306 MTZJ11C ZENER DIODE
or RD11ES/B3/-T2 ZENER DIODE
D5307 1SS133 DIODE
or 1SS270A DIODE
D5308 1SS133 DIODE
or 1SS270A DIODE
D5309 1SS133 DIODE
or 1SS270A DIODE
D5310 MTZJ11C ZENER DIODE
or RD11ES/B3/-T2 ZENER DIODE
D5320 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
D6002 HZ30-2L-T2 ZENER DIODE
or HZ30-2LTD Z DIODE (M)
D7002 RD9.1ES/B2/-T2 ZENER DIODE
or UZ9.1BSB ZENER DIODE
or MTZJ9.1B ZENER DIODE
D7004 1SS133 DIODE
D7009 SLR-325VC-T LE DIODE
D7101 1SS133 DIODE
D7102 1SS133 DIODE
D7105 MTZJ12C ZENER DIODE
or RD12ES/B3/-T2 ZENER DIODE
D7106 MTZJ12C ZENER DIODE
or RD12ES/B3/-T2 ZENER DIODE
R1 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R2 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R5 NRSA02J-221X MG RESISTOR 220Ø,1/10W
5-2

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
R6 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R7 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R9 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R12 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R21 NRSA02J-0R0X MG RESISTOR,J470MS 0Ø,1/10W
R46 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R47 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R48 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R50 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R71 NRSA02J-0R0X MG RESISTOR,J270MS 0Ø,1/10W
R72 NRSA02J-333X MG RESISTOR 33kØ,1/10W
R73 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R77 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R90 NRSA02J-391X MG RESISTOR 390Ø,1/10W
R92 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R93 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R104 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R202 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R209 NRSA02J-512X MG RESISTOR 5.1kØ,1/10W
R210 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R211 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R213 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R216 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R224 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R225 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R301 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R302 NRSA02J-124X MG RESISTOR 120kØ,1/10W
R303 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R304 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R305 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R306 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R307 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R308 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R309 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R310 NRSA02J-223X MG RESISTOR 22kØ,1/10W
R311 NRSA02J-392X MG RESISTOR 3.9kØ,1/10W
R312 NRSA02J-272X MG RESISTOR 2.7kØ,1/10W
R313 NRSA02J-223X MG RESISTOR 22kØ,1/10W
R314 NRVA02D-243X CMF RESISTOR 24kØ,1/10W
R315 NRSA02J-564X MG RESISTOR 560kØ,1/10W
R316 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R329 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R2003 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R2004 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2007 NRSA02J-393X MG RESISTOR 39kØ,1/10W
R2010 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2012 NRSA02J-153X MG RESISTOR 15kØ,1/10W
R2013 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R2014 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R2015 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R2016 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R2017 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R2018 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2019 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2053 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2054 NRSA02J-123X MG RESISTOR 12kØ,1/10W
R2055 NRSA02J-3R3X MG RESISTOR 3.3Ø,1/10W
R2056 NRSA02J-680X MG RESISTOR 68Ø,1/10W
R2057 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R2058 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R2059 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R2060 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R3013 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3015 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3017 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3019 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R3020 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3021 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3022 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3029 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R3030 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3031 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3032 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3034 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3035 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3036 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3037 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3038 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3039 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3041 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3044 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3049 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3050 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3051 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3052 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3053 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3054 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3055 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3056 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3057 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3058 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3060 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3061 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3062 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3066 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3069 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3071 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3072 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3073 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3074 QRE141J-102Y RESISTOR 1kØ,1/4W
R3075 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3076 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3078 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3079 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3094 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3095 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3104 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3201 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3202 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3203 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3204 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R3205 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R3206 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R3207 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R3208 QRE141J-181Y RESISTOR 180Ø,1/4W
R3209 QRE141J-273Y RESISTOR 27kØ,1/4W
R3210 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R3211 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R3212 QRE141J-474Y RESISTOR 470kØ,1/4W
R3213 NRSA02J-334X MG RESISTOR 330kØ,1/10W
R3214 NRSA02J-103X MG RESISTOR 10kØ,1/10W
5-3

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
R3215 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3216 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3217 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R3218 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R3219 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3220 NRSA02J-104X MG RESISTOR 100kØ,1/10W
R3222 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3223 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3224 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3225 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3229 NRSA02J-105X MG RESISTOR 1MØ,1/10W
R3230 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3231 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3232 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3234 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3235 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R3236 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R4001 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R4003 NRSA02J-561X MG RESISTOR 560Ø,1/10W
R4004 NRSA02J-561X MG RESISTOR 560Ø,1/10W
R4005 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R4007 QRE141J-102Y RESISTOR 1kØ,1/4W
R4008 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R4009 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4011 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R4012 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R4013 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4015 NRSA02J-223X MG RESISTOR 22kØ,1/10W
R4016 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R4017 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4018 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4019 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R4020 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R4021 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R5101 QRE141J-334Y RESISTOR 330kØ,1/4W
R5102 QRE141J-334Y RESISTOR 330kØ,1/4W
R5103 QRE141J-683Y RESISTOR 68kØ,1/4W
R5104 QRG02GJ-683 OMF RESISTOR 68kØ,2W
R5106 QRT01DJ-R39X MF RESISTOR 0.39Ø,1W
R5107 QRE121J-331Y RESISTOR 330Ø,1/2W
R5108 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R5109 QRE141J-681Y RESISTOR 680Ø,1/4W
R5110 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R5111 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R5112 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R5302 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R5303 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
! R5304 QRZ9005-221X FUSI RESISTOR 220Ø,1/4W
R5305 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R5306 NRSA02J-563X MG RESISTOR 56kØ,1/10W
R5307 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R5310 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R5311 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R5313 QRE141J-222Y RESISTOR 2.2kØ,1/4W
R5314 QRE141J-102Y RESISTOR 1kØ,1/4W
R5317 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R5318 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R5319 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R5321 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R5322 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R5323 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R5327 NRSA02J-303X MG RESISTOR 30kØ,1/10W
R6030 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6031 NRSA02J-271X MG RESISTOR 270Ø,1/10W
R6032 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R6050 QRE141J-101Y RESISTOR 100Ø,1/4W
R6080 NRSA02J-223X MG RESISTOR 22kØ,1/10W
R6081 NRSA02J-683X MG RESISTOR 68kØ,1/10W
R6082 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R6083 NRSA02J-563X MG RESISTOR 56kØ,1/10W
R7001 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R7002 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R7003 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R7004 QRE141J-471Y RESISTOR 470Ø,1/4W
R7005 QRE141J-103Y RESISTOR 10kØ,1/4W
R7006 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7007 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7008 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7013 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7017 QRE141J-103Y RESISTOR 10kØ,1/4W
R7020 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7021 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R7022 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R7023 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R7024 NRSA02J-272X MG RESISTOR 2.7kØ,1/10W
R7025 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R7030 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7031 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R7032 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R7033 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R7034 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R7037 NRSA02J-563X MG RESISTOR 56kØ,1/10W
R7040 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7103 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R7105 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R7106 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R7107 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R7108 QRE141J-750Y RESISTOR 75Ø,1/4W
R7111 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7112 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7113 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R7114 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R7115 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R7117 QRE141J-750Y RESISTOR 75Ø,1/4W
R7120 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R7131 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7133 QRE141J-471Y RESISTOR 470Ø,1/4W
R7134 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R7135 QRE141J-221Y RESISTOR 220Ø,1/4W
R7136 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7137 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7140 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R7142 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R7167 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7202 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7203 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R7204 QRE123J-100X RESISTOR 10Ø,1/2W
C1 NCB21EK-104X CAPACITOR,J470MS 0.1µF,25V
NCB21HK-103X CAPACITOR,J270MS 0.01µF,50V
C2 NCB21EK-104X CAPACITOR,J470MS 0.1µF,25V
NCB21HK-103X CAPACITOR,J270MS 0.01µF,50V
C3 NCB21EK-104X CAPACITOR,J470MS 0.1µF,25V
5-4

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
C4 NCB21EK-104X CAPACITOR,J470MS 0.1µF,25V
C5 QEKJ0JM-227 E CAPACITOR 220µF,6.3V
C6 NCB21EK-104X CAPACITOR 0.1µF,25V
C8 NCB21HK-473X CAPACITOR 0.047µF,50V
C10 NDC21HJ-151X CAPACITOR 150pF,50V
C11 NCB21EK-104X CAPACITOR 0.1µF,25V
C12 NDC21HJ-100X CAPACITOR 10pF,50V
C14 NCB21EK-104X CAPACITOR 0.1µF,25V
C15 NCB21HK-103X CAPACITOR 0.01µF,50V
C16 NCB21EK-104X CAPACITOR 0.1µF,25V
C17 QEKJ1HM-335 E CAPACITOR 3.3µF,50V
C19 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C20 QEQF1HM-105 NP E CAPACITOR 1µF,50V
C21 NCB21EK-104X CAPACITOR 0.1µF,25V
C22 QEKJ0JM-107 E CAPACITOR 100µF,6.3V
C23 NCB21EK-104X CAPACITOR 0.1µF,25V
C24 NCB21EK-104X CAPACITOR 0.1µF,25V
C25 NDC21HJ-6R0X CAPACITOR 6pF,50V
C27 NCB21HK-223X CAPACITOR 0.022µF,50V
C28 QEKJ1HM-335 E CAPACITOR 3.3µF,50V
C29 NCB21EK-333X CAPACITOR 0.033µF,25V
C30 QEKJ1HM-474 E CAPACITOR 0.47µF,50V
C31 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C32 NCB21EK-104X CAPACITOR 0.1µF,25V
C33 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C34 NCB21EK-224X CAPACITOR 0.22µF,25V
C35 QDYB1CM-103Y CAPACITOR 0.01µF,16V
C36 QERF1EM-475 E CAPACITOR 4.7µF,25V
C37 QEKJ1HM-105 E CAPACITOR 1µF,50V
C38 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C39 NCB21EK-104X CAPACITOR 0.1µF,25V
C40 QEKJ1CM-106 E CAPACITOR 10µF,16V
C43 NCB21HK-332X CAPACITOR 0.0033µF,50V
C53 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C61 NCB21HK-103X CAPACITOR 0.01µF,50V
C62 NCB21EK-104X CAPACITOR 0.1µF,25V
C64 NDC21HJ-220X CAPACITOR 22pF,50V
C65 QEKJ1HM-105 E CAPACITOR 1µF,50V
C70 NRSA02J-0R0X MG RESISTOR,J470MS 0Ø,1/10W
C79 NDC21HJ-390X CAPACITOR 39pF,50V
C81 NCB21HK-103X CAPACITOR 0.01µF,50V
C89 NRSA02J-0R0X MG RESISTOR,J270MS 0Ø,1/10W
C90 NRSA02J-0R0X MG RESISTOR,J270MS 0Ø,1/10W
C92 NDC21HJ-330X CAPACITOR 33pF,50V
C94 NCB21HK-103X CAPACITOR 0.01µF,50V
C95 NCB21HK-103X CAPACITOR 0.01µF,50V
C97 NCB21EK-104X CAPACITOR 0.1µF,25V
C99 NCB21EK-104X CAPACITOR 0.1µF,25V
C106 NCB21HK-821X CAPACITOR 820pF,50V
C108 NDC21HJ-680X CAPACITOR 68pF,50V
C109 NCB21CK-224X CAPACITOR 0.22µF,16V
C110 NDC21HJ-820X CAPACITOR 82pF,50V
C114 NDC21HJ-181X CAPACITOR 180pF,50V
C204 NDC21HJ-100X CAPACITOR 10pF,50V
C206 NDC21HJ-330X CAPACITOR 33pF,50V
C207 NDC21HJ-330X CAPACITOR 33pF,50V
C209 NCB21CK-474X CAPACITOR 0.47µF,16V
C212 NCB21EK-104X CAPACITOR 0.1µF,25V
C213 QEKJ1EM-475 E CAPACITOR 4.7µF,25V
C214 NCB21CK-224X CAPACITOR 0.22µF,16V
C215 NCB21CK-224X CAPACITOR 0.22µF,16V
C216 QERF0JM-107 E CAPACITOR 100µF,6.3V
C217 NDC21HJ-560X CAPACITOR 56pF,50V
C218 NCB21AK-105X CAPACITOR 1µF,10V
C222 QERF1HM-105 E CAPACITOR 1µF,50V
C225 QERF0JM-107 E CAPACITOR 100µF,6.3V
C226 QERF0JM-107 E CAPACITOR 100µF,6.3V
C301 NDC21HJ-151X CAPACITOR 150pF,50V
C302 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C303 NCB21HK-682X CAPACITOR 0.0068µF,50V
C304 NCB21HK-682X CAPACITOR 0.0068µF,50V
C305 NCB21HK-103X CAPACITOR 0.01µF,50V
C306 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C307 NDC21HJ-151X CAPACITOR 150pF,50V
C308 NCB21HK-103X CAPACITOR 0.01µF,50V
C309 NCB21EK-104X CAPACITOR 0.1µF,25V
C310 NCB21HK-103X CAPACITOR 0.01µF,50V
C311 NCB21HK-103X CAPACITOR 0.01µF,50V
C312 NCB21HK-102X CAPACITOR 0.001µF,50V
C313 QERF1HM-474 E CAPACITOR 0.47µF,50V
C314 NCB21HK-471X CAPACITOR 470pF,50V
C315 QERF1CM-106 E CAPACITOR 10µF,16V
C316 NCB21HK-103X CAPACITOR 0.01µF,50V
C317 NCB21HK-681X CAPACITOR 680pF,50V
C318 NCB21EK-223X CAPACITOR 0.022µF,25V
C319 NCB21CK-105X CAPACITOR 1µF,16V
C320 NCB21HK-103X CAPACITOR 0.01µF,50V
C321 NDC21HG-301X CAPACITOR 300pF,50V
C322 NCB21CK-474X CAPACITOR 0.47µF,16V
C2001 QEKJ1EM-475 E CAPACITOR 4.7µF,25V
C2002 QEKJ1HM-105 E CAPACITOR 1µF,50V
C2003 QEKJ1CM-476 E CAPACITOR 47µF,16V
C2005 QEKJ1EM-475 E CAPACITOR 4.7µF,25V
C2006 NCB21HK-123X CAPACITOR 0.012µF,50V
C2007 QEKJ1CM-226 E CAPACITOR 22µF,16V
C2008 QEKJ1EM-475 E CAPACITOR 4.7µF,25V
C2009 NCB21HK-102X CAPACITOR 0.001µF,50V
C2010 NCB21HK-152X CAPACITOR,J470MS 0.0015µF,50V
C2011 QEKJ1EM-475 E CAPACITOR 4.7µF,25V
C2012 QEKC1EM-475 E CAPACITOR 4.7µF,25V
C2013 NCB21HK-331X CAPACITOR 330pF,50V
C2051 NCB21HK-331X CAPACITOR 330pF,50V
C2052 QFLC1HJ-823Z F CAPACITOR 0.082µF,50V
C2053 NCB21HK-472X CAPACITOR 0.0047µF,50V
C2054 NCB21HK-223X CAPACITOR 0.022µF,50V
C2055 QEKJ1CM-106 E CAPACITOR 10µF,16V
C3001 NCB21EK-104X CAPACITOR 0.1µF,25V
C3002 NCB21HK-103X CAPACITOR 0.01µF,50V
C3003 QEKJ1HM-106 E CAPACITOR 10µF,50V
C3004 NCB21CK-473X CAPACITOR 0.047µF,16V
C3010 QEZ0244-229 EDL CAPACITOR 0.0022F,5.5V
C3012 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C3013 NCB21HK-103X CAPACITOR 0.01µF,50V
C3014 QERF0JM-476 E CAPACITOR 47µF,6.3V
C3016 NCB21CK-473X CAPACITOR 0.047µF,16V
C3022 NCB21CK-473X CAPACITOR 0.047µF,16V
C3024 NDC21HJ-120X CAPACITOR 12pF,50V
C3026 NCB21HK-103X CAPACITOR 0.01µF,50V
C3027 QEKJ1CM-106 E CAPACITOR 10µF,16V
C3030 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C3031 NCB21CK-473X CAPACITOR 0.047µF,16V
C3032 NCB21CK-473X CAPACITOR 0.047µF,16V
5-5

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
C3033 NCB21CK-473X CAPACITOR 0.047µF,16V
C3036 NDC21HJ-180X CAPACITOR 18pF,50V
C3037 NDC21HJ-120X CAPACITOR 12pF,50V
C3040 NCB21CK-473X CAPACITOR 0.047µF,16V
C3041 NDC21HJ-100X CAPACITOR 10pF,50V
C3042 QETN0JM-108 E CAPACITOR 1000µF,6.3V
C3045 NDC21HJ-101X CAPACITOR 100pF,50V
C4001 QERF0JM-476 E CAPACITOR 47µF,6.3V
C4002 QDYB1CM-103Y CAPACITOR 0.01µF,16V
C4003 NCB21HK-102X CAPACITOR 0.001µF,50V
C4004 QERF1CM-226 E CAPACITOR 22µF,16V
C4005 NCB21HK-222X CAPACITOR 0.0022µF,50V
C4006 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C4008 QEQF1HM-105 NP E CAPACITOR 1µF,50V
C4009 NCB21HK-563X CAPACITOR 0.056µF,50V
C4010 NCB21EK-223X CAPACITOR 0.022µF,25V
C4011 NCB21CK-104X CAPACITOR 0.1µF,16V
C4012 QEKJ1HM-224 E CAPACITOR 0.22µF,50V
C4013 NCB21HK-563X CAPACITOR 0.056µF,50V
C4014 NDC21HJ-101X CAPACITOR 100pF,50V
C4015 NCB21HJ-102X CAPACITOR 0.001µF,50V
C4016 NDC21HJ-101X CAPACITOR 100pF,50V
! C5001 QFZ9073-683 F CAPACITOR 0.068µF,250V
! C5002 QFZ9051-333 F CAPACITOR 0.033µF,250V
! C5005 QCZ9071-222 CAPACITOR 0.0022µF,400V
C5006 QEZ0375-686 E CAPACITOR 68µF,400V
C5101 QCZ0212-472 CAPACITOR 0.0047µF,1kV
C5102 QCZ0302-330Z CAPACITOR 33pF,1kV
C5104 QETC1HM-105 E CAPACITOR 1µF,50V
C5105 QFLC1HJ-183Z F CAPACITOR 0.018µF,50V
C5106 QCBB1HJ-271 CAPACITOR 270pF,50V
C5107 QFV91HJ-104 F CAPACITOR 0.1µF,50V
C5201 QEMU0JM-227 E CAPACITOR 220µF,6.3V
C5202 QEMT1CM-827 E CAPACITOR 820µF,16V
C5203 QEMT1AM-128 E CAPACITOR 1200µF,10V
C5204 QETN2AM-475 E CAPACITOR 4.7µF,100V
C5205 QETN1HM-106 E CAPACITOR 10µF,50V
C5207 QETN1CM-227 E CAPACITOR 220µF,16V
C5208 QETN1AM-227 E CAPACITOR 220µF,10V
C5301 QEMU0JM-227 E CAPACITOR 220µF,6.3V
C5303 QETN1CM-107 E CAPACITOR 100µF,16V
C5304 QFLC1HJ-683Z F CAPACITOR 0.068µF,50V
C5305 NCB21HK-103X CAPACITOR 0.01µF,50V
C5306 QETN1AM-107 E CAPACITOR 100µF,10V
C5307 QETN1EM-476 E CAPACITOR 47µF,25V
C5308 QETN1CM-107 E CAPACITOR 100µF,16V
C5309 QETN1CM-107 E CAPACITOR 100µF,16V
C6007 QEKC1CM-107 E CAPACITOR 100µF,16V
C6013 NCB21HK-103X CAPACITOR 0.01µF,50V
C6032 NCB21EK-473X CAPACITOR 0.047µF,25V
C6037 QEKJ1HM-106 E CAPACITOR 10µF,50V
C6080 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C6081 QEKJ1HM-106 E CAPACITOR 10µF,50V
C7001 QDGB1HK-102Y CAPACITOR 0.001µF,50V
C7007 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C7008 NCB21EK-223X CAPACITOR 0.022µF,25V
C7009 NDC21HJ-220X CAPACITOR 22pF,50V
C7010 NCB21EK-104X CAPACITOR 0.1µF,25V
C7011 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C7013 NCB21HK-103X CAPACITOR 0.01µF,50V
C7014 NCB21HK-103X CAPACITOR 0.01µF,50V
C7102 NCB21HK-681X CAPACITOR 680pF,50V
C7103 NCB21HK-681X CAPACITOR 680pF,50V
C7109 NCB21HK-681X CAPACITOR 680pF,50V
C7111 NCB21HK-681X CAPACITOR 680pF,50V
C7130 NDC21HJ-330X CAPACITOR 33pF,50V
C7131 NCB21HK-223X CAPACITOR 0.022µF,50V
C7132 QETJ1CM-107 E CAPACITOR 100µF,16V
C7133 NCB21HK-103X CAPACITOR 0.01µF,50V
C7134 NCB21HK-223X CAPACITOR 0.022µF,50V
C7135 NCB21HK-223X CAPACITOR 0.022µF,50V
C7136 NCB21HK-223X CAPACITOR 0.022µF,50V
C7138 NDC21HJ-330X CAPACITOR 33pF,50V
C7140 QEKJ1CM-106 E CAPACITOR 10µF,16V
C7141 QEKJ1CM-476 E CAPACITOR 47µF,16V
C7142 QEKJ1CM-476 E CAPACITOR 47µF,16V
C7143 QEKJ1CM-476 E CAPACITOR 47µF,16V
C7144 QEKJ1CM-106 E CAPACITOR 10µF,16V
C7145 QEKJ1CM-106 E CAPACITOR 10µF,16V
C7146 QEKJ1CM-106 E CAPACITOR 10µF,16V
C7202 QETJ0JM-477 E CAPACITOR 470µF,6.3V
L1 QQL29BJ-100Z COIL 10µH
L2 QQL29BJ-221Z COIL 220µH
L3 QQL29BJ-100Z COIL 10µH
L4 QQL29BJ-100Z COIL 10µH
L5 QQL29BJ-100Z COIL 10µH
L12 QQR0967-001 COIL 12µH
L13 QQL071J-330Y COIL 33µH
L14 QQL29BJ-101Z COIL 100µH
L22 QQL231J-1R0Y COIL 1µH
L24 QQL071J-270Y COIL 27µH
L27 QQL071J-330Y COIL 33µH
L28 QQL071J-680Y COIL 68µH
L201 QQL29BK-1R0Z COIL 1µH
L202 QQL071J-330Y COIL 33µH
L203 QQL29BJ-220Z COIL 22µH
L206 QQL071J-220Y COIL 22µH
L301 QQL29BJ-100Z COIL 10µH
L302 QQL29BJ-6R8Z COIL 6.8µH
L303 QQL231J-270Y COIL 27µH
L5201 PELN1184 COIL 33µH
L5202 PELN1184 COIL 33µH
L6001 QQL29BK-1R0Z COIL 1µH
L7101 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
L7102 NQR0200-003X FERRITE BEAD
L7105 QQL231J-1R0Y COIL 1µH
L7106 QQL231J-1R0Y COIL 1µH
L7201 QQL01BJ-101Z COIL 100µH
X1 QAX0576-001Z CRYSTAL RESONATOR
X3001 QAX0444-001 CRYSTAL RESONATOR
X3002 QAX0527-001 CRYSTAL RESONATOR
S3001 QSW0602-004 PUSH SWITCH,REC SAFETY
S7001 QSW0456-002Z TACT SWITCH,STAND-BY
S7002 QSW0456-002Z TACT SWITCH,TIMER
S7004 QSW0456-002Z TACT SWITCH,CH-
S7006 QSW0456-002Z TACT SWITCH,CH+
S7008 QSW0456-002Z TACT SWITCH,SP/LP,J470MS
QSW0456-002Z TACT SWITCH,REVIEW,J270MS
S7010 QSW0456-002Z TACT SWITCH,DISPLAY
S7011 QSW0456-002Z TACT SWITCH,REC
S7013 QSW0456-002Z TACT SWITCH,STOP/EJECT
S7015 QSW0456-002Z TACT SWITCH,PAUSE
5-6

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
S7016 QSW0456-002Z TACT SWITCH,REC LINK
K5101 QQR0678-001Z FERRITE BEAD
PC3001 GP3S123 IC(PHOTO SENSOR)
PC3002 GP3S123 IC(PHOTO SENSOR)
! PC5101 PC123F2 PH COUPLER
T2051 PELN0832 OSC TRANSFORMER
! T5001 QQS0033-001 SW TRANSFORMER
TU6001 QAU0152-001 TUNER
! TB1 LP20317-006A TERM.BOARD(PAL)
ET1 PQ21623-2-5 EARTH PLATE(RF)
DI7001 QLF0031-001 FL TUBE
HD1 PQ35479-1-4 HOLDER(FDP)
! HS1 LP40090-001A HEAT SINK,Q5101
SD1 LP30644-001A SHIELD CASE(PRE)
WR1 QUB321-06A4A4 SIN TWIST WIRE,C43
OT1 PM30130-001 SPACER
OT2 QYTDST3006Z SCREW,Q5101
OT3006 QGZ2501L1-02 SHORT SOCKET,CN3006
FC5001 QNG0006-001Z FUSE CLIP
FC5002 QNG0006-001Z FUSE CLIP
J7101 PEMC1104 RGB21PIN SOCKET,AV1
J7102 PEMC1104 RGB21PIN SOCKET,AV2
! LF5001 PELN1204-01-01 LINE FILTER
! LF5002 QQR0978-001 LINE FILTER
CN1 QGF1028C2-08 FPC CONNECTOR,(1-8)DRUM FPC,J470MS
QGF1028C3-04 FPC CONNECTOR,(1-4)DRUM FPC,J270MS
CN2001 QGF1207C1-07 FPC CONNECTOR,(1-7)A/C HEAD
CN2002 QGB2532J1-02 CONNECTOR,(1-2)FE HEAD
CN3001 QGF1207C1-05 FPC CONNECTOR,(1-5)DRUM MDA
CN3002 QGB2532J1-02 CONNECTOR,(1-2)LOADING MOTOR
CN3003 QGB2015M2-08 CONNECTOR,(1-8)CAPSTAN MOTOR
CN3004 QGB2534J2-04 CONNECTOR,(1-4)ROTARY ENCODER
CN3006 QGG2504M3-02 HEADER PIN
! CN5001 QGA7901C3-02 CONNECTOR,(1-2)AC IN
CN7003 QGF1207C1-09 FPC CONNECTOR,(1-9)FRONT
! CP4001 ICP-N25 CIRCUIT PROTECTOR
! CP5301 ICP-N38 CIRCUIT PROTECTOR
! CP5302 ICP-N25 CIRCUIT PROTECTOR
! F5001 QMF51E2-2R0J1 FUSE T2.0A,AC250V
E. & O. E. No. 82798
(Sanwa)-V13A1/C1 5-7

Printed in Japan
VICTOR COMPANY OF JAPAN, LIMITED
VIDEO DIVISION
S40894
