SERVICE MANUAL
COPYRIGHT © 2004 Victor Company of Japan, Limited No.YD031
2004/9
DVD PLAYER & VIDEO CASSETTE RECORDER
YD03120049
HR-XV32EX, HR-XV32EY,
HR-XV32EZ
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manutal No. YD002 (HR-XV3EX).
Also, be sure to note iportant safety precautions provided in the service manual.
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
HR-XV32EX, HR-XV32EY, HR-XV32EZ [D3PV1]

1-2 (No.YD031)
SPECIFICATION
Specifications shown are for SP mode unless otherwise specified.
E.& O.E. Design and specifications subject to change without notice.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence
from Gemstar Development Corporation.
GENERAL
Power requirement AC 220V - 240V, 50 Hz/60 Hz
Power consumption
Power on 26 W
Power off 6.0 W
Temperature
Operating 5ºC to 40ºC
Storage -20ºC to 60ºC
Operating position Horizontal only
Dimensions (W ×H ×D) 435 mm ×93 mm ×272 mm
Weight 4.4 Kg
Format VHS PAL standard
Maximum recording time
(SP) 240 min. with E-240 video cassette
(LP) 480 min. with E-240 video cassette
VIDEO/AUDIO (VHS deck)
Signal system PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
Recording system DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio 45 dB
Horizontal resolution 250 lines
Frequency range 70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output 21-pin SCART connectors: IN/OUT ×1, IN/DECODER ×1
RCA connectors: VIDEO IN ×1, AUDIO IN ×1, AUDIO OUT ×1
VIDEO/AUDIO (DVD deck)
Signal system PAL
Applicable disc DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics DVD:4 Hz - 22 KHz
Frequency response CD:4 Hz - 20 KHz
S/N Ratio 90 dB
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Audio (RCA) 2 Vrms, 1 KΩ
Digital Audio -21 dBm to -15 dBm(peak)
TUNER/TIMER(VHS deck)
TV channel storage capacity 99 positions (+AUX position)
Tuning system Frequency synthesized tuner
Channel coverage VHF : 47 MHz - 89 MHz/104 MHz - 300 MHz/302 MHz - 470 MHz
UHF : 470 MHz - 862 MHz
Aerial output UHF channels 22 - 69 (Adjustable)
Memory backup time Approx. 10 min.
ACCESSORIES
Provided accessories RF cable, Infrared remote control unit, “R6” battery ×2

(No.YD031)1-3
SECTION 1
PRECAUTION
Please refer to "HR-XV3EX No.YD002" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "HR-XV3EX No.YD002" about this section except a written item.
2.1 DIFFERENT TABLE OF FEATURE
The following table indicates main different points between models HR-XV3EX, HR-XV32EX, HR-XV32EY and HR-XV32EZ.
SECTION 3
DISASSEMBLY
Please refer to "HR-XV3EX No.YD002" about this section.
SECTION 4
ADJUSTMENT
Please refer to "HR-XV3EX No.YD002" about this section except.
SECTION 5
TROUBLESHOOTING
Please refer to "HR-XV3EX No.YD002" about this section.
HR-XV3EX HR-XV32EX/EY/EY
BODY COLOUR PURE SILVER BLACK
REMOCON COLOUR GRAY BLACK

(No.YD031)
AV & MULTIMEDIA COMPANY DIGITAL VIDEO STORAGE CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
Victor Company of Japan, Limited
WPC
Printed in Japan

(No.YD031)3-1
[HR-XV32EX,HR-XV32EY,HR-XV32EZ]
* SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with
specified part numbers.
* BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to
safety and performance. We recommend that genuine JVC parts be used.
* (x_) in a description column shows the number of the used part.
- Contents -
Exploded view of general assembly and parts list ..................... 3-2
VHS mechanism assembly and parts list....................................3-5

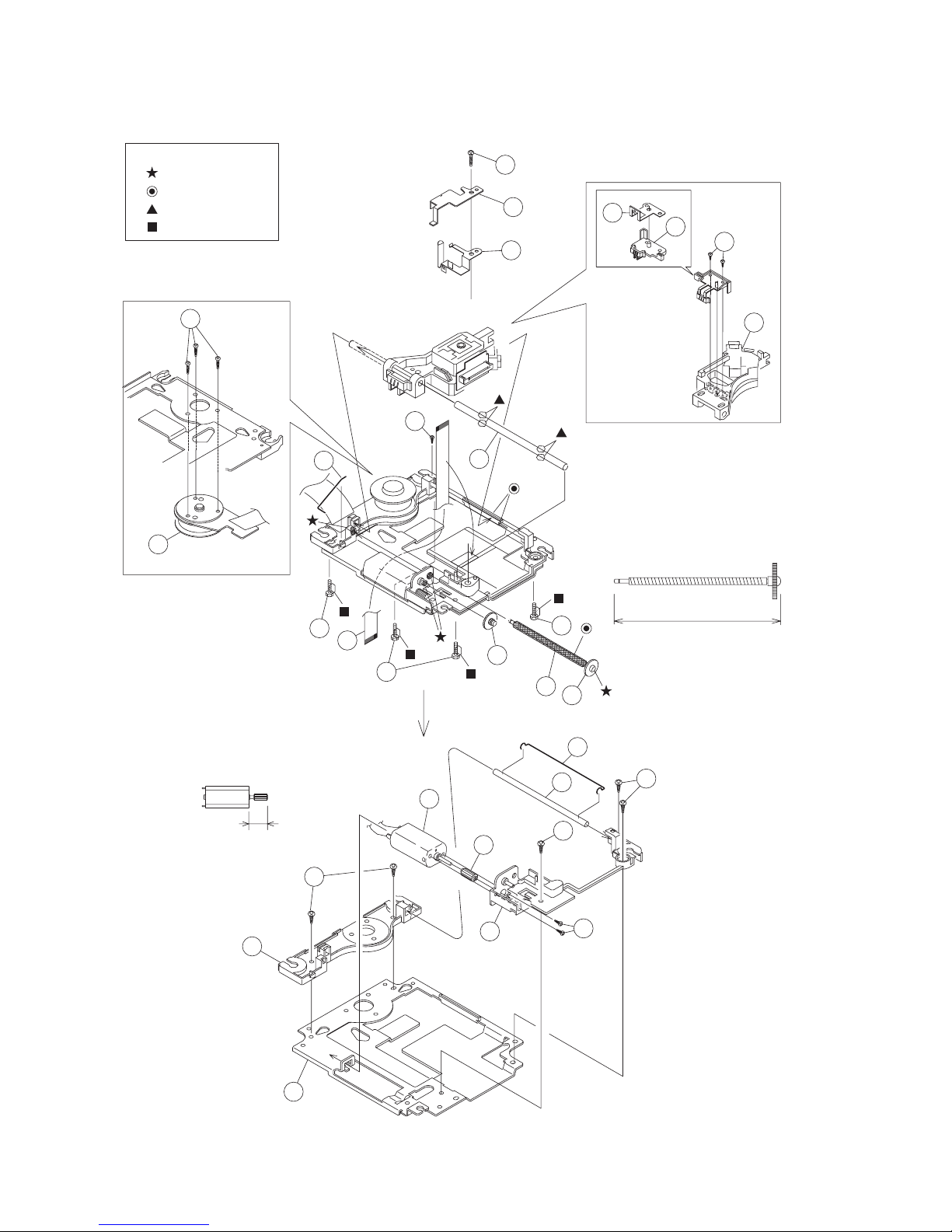

DVD Traverse mechanism assembly and parts list ................... 3-8

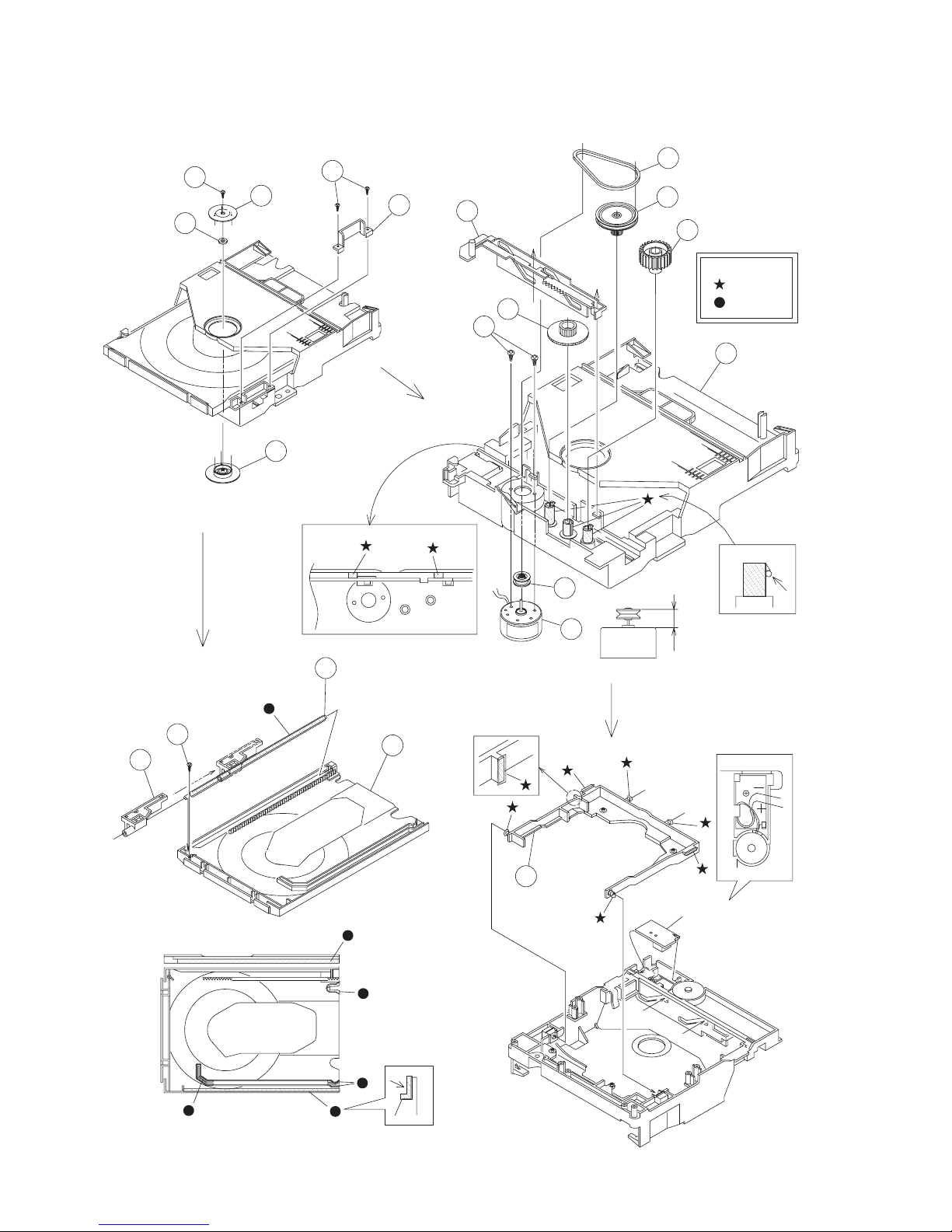

DVD Loading mechanism assembly and parts list ...................3-10
Electrical parts list .................................................................... 3-12
Packing materials and accessories parts list ...........................3-23
PARTS LIST

3-2(No.YD031)
Exploded view of general assembly and parts list
Block No. M1MM
596
BACK SIDE
DVD SERVO CONTROL BOARD ASSY
<99>
595
598
597
DVD
TRAVERSE
MECHANISM ASSY
<M3>
592
591
592
593
593
DVD
LOADING
MECHANISM
ASSY
<M4>
Grease
JVS-1003
f
f
f
f
a
a
h
i
i
i
i
i
e
j
f
j
TU6001
JS3001
CN511
i
i
i
i
i
m
m
a
a
h
LP*****
d
501
518
518
514
525 525
525
515
515
507
520
550
520
508
515
542
541
540
524
521
523
522
522
530
505
505
521
522
521
524
520
529
527
527
517
527
545
546
527
506
506
504
506
516
526
510
501D
501D
501A
501B
501C
501E
501F
503
MAIN
BOARD ASSY<03>
TERMINAL BOARD
ASSY<06>
VHS MECHANISM ASSY
<M2>
REGULATOR BOARD ASSY <01>
DVD UNIT<M3>, <M4>,<98>,<99>
B
A
C

(No.YD031)3-3
543
531
531
FIG.4
ONLY THIS PORTION IS PUSHED
WHEN ATTACHING DVD UNIT.
FIG.2
DRAWING FROM DIRECTION
Z-Z SECTION
Z
Z
TRAY
ZZ
A
FITTING ASSY
B
FIG.3
C
DRAWING FROM DIRECTION
549
UP
J7007
parts surface
TERMINAL BOARD ASSY
Attach the character "UP"
in the table side.
right side
3. Insert direction of POWER CORD.
2. FFC WIRE and DRUM FPC WIRE should be insert as follows.
1. Insert direction of FFC WIRE as follows.
4. Insert the wire to even the root of connector completely
at the same time as inserting each wire.
NEUTRAL
WHITE LINE
U/U(C)/JPN
CN
electrode side
OK
CN5001
NEUTRAL
CN5001
back side
CN
except U/U(C)/JPN
supporting side
CN
BLUE
NG
90
SPACER
SPACER
DVD UNIT
FIG.1
SIN TWIST WIRE
FROM DIRECTION
DRAWING
sheet side (transparentfilm side to IC.
SPACER should be stuck high cohesive
SPACER
Thing which to be
placed with
SPACERS and
to be fixed.
DVD SERVO CONTROL
BOARD ASSY
It solders SIN TWIST WIRE with DVD SERVO
CONTROL BOARD ASSY.
FIG 5
544
k
k
k
k
511
513
513
SHEET REFERS TO FIGURE BELOW.
THE POSITION OF 512 HEAT SINK AND 544
512
SPACER
502
WR3
WR1
502
WR2
502
502
502
D
D
C
A
CN5303 CN5301
CN5311
CN5313
CN3102 CN3103
CN7104
JACK BOARD ASSY
CN7191
CN5001
DRAWING FROM DIRECTION
After Assembling FRONT PANEL After Assembling FRONT PANEL
right side
CN7104
CN7191
A/C HEAD
CN2001
BOTTOM SIDE
TOP SIDE
NOTE) INSERT FFC WIRE TO THE CONNECTOR BEFORE
ATTACHING TO FRONT PANEL.
back side
CN7191
6
CN7003
right side
back side
CN7004
C
CN3103CN3102
CN7004
CN7003
Wire lets the bottom of BRACKET(DVD) pass.
FRONT PWB
FRONT PWB
DRAWING FROM DIRECTION
CN1601
CN511
CN5302
JACK BOARD ASSY parts surface
JACK BOARD ASSY<36>
DISPLAY BOARD
ASSY<28>
548
A
OK
CN
NOTE) FJ CONN should be insert as follows.
CN
NG
DRAWING FROM DIRECTION
/CN5313
CN5311
CN5301
/CN5303
when assembling
REGULATOR BOARD ASSY.
Connect the FJ CONN
502

3-4(No.YD031)
General assembly
Block No. [M][1][M][M]
 Symbol No. Part No. Part Name Description Local
 501 LP10490-022A FRONT PANEL ASSY
501A LP21181-003A CASSETTE DOOR
501B PQ46448 TORSION SPRING
501C LP31271-002B ORNAMENT(C.DOOR)
501D PU60109 CATCHER (x2)
501E LP21191-022A DOOR(L)
501F LP21192-005A DOOR(R)
502 QYTDSF2608ZA TAP SCREW M2.6 x 8mm JACK/DISPLAY(x9)
503 LP31391-001A SPECIAL SCREW FRONT PANEL
 504 LP10488-004C TOP COVER
505 QYSBSG3006MA TAP SCREW M3 x 6mm TOP SIDE(x2)
506 QYSBSG3006MA TAP SCREW M3 x 6mm TOP REAR(x6)
507 LP31261-003A FITTING ASSY
 508 LP41077-001A LABEL(CAUTION)
 510 LP10489-001B BOTTOM CHASSIS
511 LP21177-001B BRACKET(DVD)
512 LP21182-001A HEAT SINK
513 QYSDST3006ZA TAP SCREW M3 x 6mm HEAT SINK(x2)
514 LP40769-001A SPACER
515 LP31391-001A SPECIAL SCREW BRACKET(DVD)(x3)
 516 LP21178-012A REAR COVER
517 QYSBSG3006MA TAP SCREW M3 x 6mm REAR COVER
518 LP31348-001A FOOT (x2)
520 QYSBSG3010ZA TAP SCREW M3 x 10mm DVD(x3)
521 QYSPSPD3008ZA SCREW M3 x 8mm DRUM(x3)
522 LP31391-002A SPECIAL SCREW MECHANISM(x3)
523 LP31391-001A SPECIAL SCREW HOUSING
524 LP31391-001A SPECIAL SCREW MAIN(x2)
525 LP31391-001A SPECIAL SCREW REGULATOR(x3)
526 LP40696-008A HOLDER(PWB) (x2)
527 QYTDSF3008MA TAP SCREW M3 x 8mm JACK COVER(x6)
 529 QMP4A10-170-K POWER CORD(US/CA) 1.7m BLACK
530 PDV2539B DRUM FINAL ASSY
531 LP30002-0E5A SPACER (x2)
540 PQ21623-2-5 EARTH PLATE(RF)
541 PQ44695-1-1 EARTH PLATE
542 LP31391-001A SPECIAL SCREW EARTH PLATE
543 LP40983-001A SHIELD TIGHT
544 LP31306-001A SHEET(SHIELD)
545 QQR0491-002 CORE FILTER TDK (BLACK)
546 PU43192-4 BINDER
548 LP31337-001B EARTH PLATE
549 LP31345-001A EARTH PLATE
550 QUB221-10A4XL SIN TWIST WIRE
591 LE40900-003A INSULATOR REAR (x2)
592 LE40900-005A INSULATOR FRONT (x2)
593 LE40901-001A SPECIAL SCREW (x4)
595 QYSDSF2608Z TAP SCREW M2.6 x 8mm(x4)
596 VYSH101-034 SPACER
597 QUQ110-0518BF FFC WIRE 5pin 18cm
598 LE30001-034A SPACER
WR1 QUQ112-0714CG FFC WIRE JACK CN7191-MAIN CN7104
WR2 QUQ112-1414CG FFC WIRE DISPLAY CN7004-MAIN CN3103
WR3 QUQ112-1422CG FFC WIRE DISPLAY CN7003-MAIN CN3102
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

(No.YD031)3-5
VHS mechanism assembly and parts list
Block No. M2MM
Classification Part No. Symbol in drawing
Grease KYODO-SH-JB AA
Oil COSMO-HV56 BB
NOTE:The section marked in AA and BB
indicate lubrication and greasing areas.
WR3
WR1
87
39
15
86
127
128
137
130
90
89
88
Not used
75
74
38
105
105
107
107
112
123
151
113
115
124
125
79
82
21
4
117
44
26
3
58
52 57
56
58
55
90
37
77
72
116
50
112
122
110
126
126
89
36
73
69
102
70
134
78
76
71
120
42
85
46
47
81
83
80
49
119
53
111
114
118
121
96
93
94
95 64
65
19
22
20
16
63
66
59
62
68
24
18
84
61
60
67
23
WR2
A/C HEAD
BOARD ASSY <12>
LOADING MOTOR
BOARD ASSY <55>
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
BB
BB
BB
BB
BB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
PMD0044A-C
17
51
91

3-6(No.YD031)
VHS mechanism
Block No. [M][2][M][M]
 Symbol No. Part No. Part Name Description Local
3 LP40097-002E GUIDE POLE CAP
4 NAH0004-001 FULL ERASE HEAD
15 LP30958-001B LOADING GEAR BASE
16 QYTPST2620ZA TAP SCREW M2.6 x 20mm(x2)
17 QYTDST2606ZA TAP SCREW M2.6 x 6mm
18 LP40798-002A LOADING GEAR(SUPPLY) ASSY
19 LP40837-001A TORSION SPRING(SUPPLY)
20 LP40903-004A FIXING PLATE
21 LP40806-001D POLE BASE ASSY(SUPPLY)
22 LP30959-001B LOADING GEAR
23 LP40802-002A LOADING GEAR(TAKE UP) ASSY
24 LP40838-001A TORSION SPRING(TAKE UP)
26 LP40808-001E POLE BASE ASSY(TAKE UP)
36 LP21055-001G TAKE UP LEVER
37 LP40943-001A TENSION SPRING
38 LP40859-001D T-UP HEAD
39 LP30961-001C LID GUIDE
42 LP40810-003A PINCH ROLLER ARM ASSY
44 LP40840-001E TORSION SPRING
46 LP30963-002A PRESS LEVER
47 PQM30017-24 SLIT WASHER
49 LP40813-001D GUIDE ARM ASSY
50 LP40841-001A TORSION SPRING
51 LP30002-090A SPACER
52 NAH0003-001 A/C HEAD
53 LP30965-003A HEAD BASE
55 LP40842-001D COMPRESSION SPRING
56 QYTDST2006MA TAP SCREW M2 x 6mm
57 LP41036-002A A/C ADJ.SCREW (x2)
58 QYTDST2606ZA TAP SCREW M2.6 x 6mm(x2)
59 QAR0289-001 LOADING MOTOR
60 QYTPSP3003ZA SCREW M3 x 3mm(x2)
61 LP21056-002J MOTOR BRACKET
62 QYTPST2620ZA TAP SCREW M2.6 x 20mm
63 LP40814-001B WORM BEARING
64 LP21044-001E CONTROL CAM
65 PQM30017-24 SLIT WASHER
66 LP40815-001A WORM GEAR
67 LP40816-001B HELICAL GEAR
68 LP40817-001A CONNECT GEAR
69 LP10400-001N CONTROL PLATE
70 LP40843-001A TORSION SPRING
71 LP40818-002A TENSION ARM ASSY
72 LP40844-001F TENSION SPRING
73 LP21045-001E TENSION ARM BASE
74 LP40821-001A TENSION BAND ASSY
75 LP30967-001B BAND HOLDER-1
76 LP30968-001C BAND HOLDER-2
77 LP40822-002B ADJUST PIN
78 LP31000-005E TENSION ARM LEVER
79 LP21046-001C MAIN BRAKE(TAKE UP)
80 LP40824-001A BAND BRAKE ASSY
81 LP30969-002B BRAKE LEVER
82 LP30003-033C TENSION SPRING
83 LP30003-035C TENSION SPRING
84 LP40825-001B CAPSTAN BRAKE ASSY
 85 QAR0267-003 CAPSTAN MOTOR
86 QYTPSG2606ZA TAP SCREW M2.6 x 6mm(x3)
87 LP30005-010A BELT CAPSTAN MOTOR
88 LP30970-001A IDLER ARM
89 LP40828-004A IDLER GEAR 1 (x2)
90 LP40829-002A IDLER GEAR 2 (x2)
91 LP31014-002A WIRE HOLDER
93 LP40934-001B CLUTCH UNIT
94 PQM30017-47 SLIT WASHER
95 LP30973-001A DIRECT GEAR
96 LP40939-001A COMPRESSION SPRING
102 LP30974-001C CHANGE LEVER
105 LP21049-001A REEL DISK (x2)
107 LP30017-004A SPACER REEL DISK(x2)
110 LP10401-001L SIDE FRAME(L)
111 LP10402-001M SIDE FRAME(R)
112 QYTDST2606ZA TAP SCREW M2.6 x 6mm(x2)
113 LP40917-001D TORSION SPRING
114 LP30976-002B SIDE PLATE
115 LP30977-002E LIMIT PLATE
116 LP40846-001C LIMIT SPRING
117 LP31100-002A DRIVE LEVER
118 LP30978-001B DRIVE ARM(L)
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

(No.YD031)3-7
119 LP30979-001S DRIVE ARM(R)
120 LP40847-001B TORSION SPRING
121 LP30980-002A CONNECT PLATE
122 LP10403-001C SIDE HOLDER(L)
123 LP10404-001E SIDE HOLDER(R)
124 LP30983-002A LOCK LEVER(L)
125 LP30984-002A LOCK LEVER(R)
126 LP40924-001D TENSION SPRING (x2)
127 LP40972-001A EARTH SPRING(1)
128 LP40857-001B EARTH SPRING(2)
130 LP30981-003B CASSETTE HOLDER ASSY
134 LP21051-002C REC SAFETY LEVER
137 LP21052-002A TOP FRAME
151 LP30985-002M DOOR OPENER
WR1 WJT0117-001A E-CARD WIRE DRUM
WR2 WJT0067-001B E-CARD WIRE A/C HEAD CN2001
WR3 WJS0022-001A E-FL/RB WIRE LOADING MOTOR
 Symbol No. Part No. Part Name Description Local
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

3-8(No.YD031)
DVD Traverse mechanism assembly and parts list
Block No. M3MM
16
12
13
14
15
< Back side >
25
20
Grease
=1401C
=PG-641
=CFD-4007ZY2
=JVG-31N
17
6
21
22
23
8
9
710
19 18
2
1
3
411
11
27
63.3mm 0.1mm
+
-
+
10.5mm 0.1mm
-
A
A
EXL-Z1-11C
27
5
26
27
24

(No.YD031)3-9
DVD Traverse mechanism
Block No. [M][3][M][M]
 Symbol No. Part No. Part Name Description Local
1 LE20729-001A MECHA BASE
2 LE20731-001A SPINDLE BASE
3 QYSDST2604M TAP SCREW M2.6 x 4mm(x2)
4 LE40931-001A SHAFT
5 LE40995-001A BAR SPRING
6 QYSPSTU2080M TAP SCREW M2 x 8mm
7 LE20730-002A FEED HOLDER
8 QAR0165-001 FEED MOTOR
9 LV41510-001A FEED GEAR T
10 QYSPSPU2040M SCREW M2 x 4mm(x2)
11 QYSDST2604M TAP SCREW M2.6 x 4mm(x3)
12 QAL0577-001 PICK UP
13 LE20732-001A SW ACTUATOR
14 LE31093-001A LEAD SPRING
15 QYSPSFU1740Z TAP SCREW M1.7 x 4mm(x2)
16 QUQ105-2415AC FFC WIRE 24pin 15cm
17 LE40931-001A SHAFT
18 LE40855-002A FEED GEAR E
19 LE40918-001A LEAD SCREW
20 LE40930-001A FEED GEAR M
21 LE40928-002A THURUST SPRING
22 LE40927-002A PLATE
23 QYSDST2614Z TAP SCREW M2.6 x 14mm
24 QAR0324-001 S.MOTOR
25 QYSPSPU1760Z SCREW M1.7 x 6mm(x3)
26 LE40994-001A T.SPRING
27 LE40858-002A SPECIAL SCREW (x4)
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

3-10(No.YD031)
DVD Loading mechanism assembly and parts list
Block No. M4MM
JVS-1003
JVG-31N
Switch board
Back side
a
b
Grease
20
19
18 5
17
4
13
14 16
3
21
1
8
10
9
7
6
12
11
22
7.95mm 0.10mm
+
-
ELM-J2-2C
a
b
(All circumferences)

(No.YD031)3-11
DVD Loading mechanism
Block No. [M][4][M][M]
 Symbol No. Part No. Part Name Description Local
1 LE10275-006A LOADING BASE
3 LE31043-001A PULLEY GEAR
4 LE31042-001A MIDDLE GEAR
5 LE20665-005A SLIDE CAM
6 LE20666-003A ELEVATOR
7 LE10276-002A TRAY
8 LE31045-001A BUSHING
9 LE40898-001A SHAFT
10 QYSSSF2008Z TAP SCREW M2 x 8mm
11 QAR0197-001 MOTOR
12 LV42087-002A MOTOR PULLEY
13 QYSPSPU1730Z SCREW FOR MOTOR(x2)
14 QYSDSF2008Z TAP SCREW M2 x 8mm(x2)
16 LE40897-001A BELT
17 LE31046-003A CLAMPER
18 LV42930-003A MAGNET
19 LE40899-001A YOKE
20 LE40906-001A SPECIAL SCREW
21 LE31044-001A IDLE GEAR
22 LE40937-003A LEAF SPRING
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

3-12(No.YD031)
Electrical parts list
Reglator board
Block No. [0][1]
 Symbol No. Part No. Part Name Description Local
PW1 LPA10206-11D1 REGLATOR BOARD ASSY
IC5201 UTCTL431-T IC
IC5201 or MM1431AT-T IC
IC5201 or L5431-T IC
IC5201 or TL431/A/-T IC
IC5301 UTCTL431-T IC
IC5301 or MM1431AT-T IC
IC5301 or L5431-T IC
IC5301 or TL431/A/-T IC
IC5302 MM1565AF-X IC
Q5101 2SK2632-CB14 POWER MOS FET
Q5102 2SD2144S/UV/-T TRANSISTOR
Q5103 2SB709A/QR/-X TRANSISTOR
Q5103 or 2SA1037AK/QR/-X TRANSISTOR
Q5311 2SC5739/QP/ TRANSISTOR
Q5315 2SC5739/QP/ TRANSISTOR
Q5315 or 2SD2394/EF/ TRANSISTOR
D5001 D3SBA60 DIODE
D5001 or GBJ4J BRIDGE DIODE
D5101 AU01-T2 SI DIODE
D5102 AU01-T2 SI DIODE
D5103 1SS133-T2 DIODE
D5103 or 1SS270A-T2 SI DIODE
D5105 1SS133-T2 DIODE
D5105 or 1SS270A-T2 SI DIODE
D5106 MTZJ33D-T2 Z DIODE
D5106 or RD33ES/B4/-T2 Z DIODE
D5201 10ERB40-T2 FR DIODE
D5201 or 1F4G-T2 FR DIODE
D5205 1F4G-T2 FR DIODE
D5205 or 10ERB20-T2 FR DIODE
D5206 1F4G-T2 FR DIODE
D5206 or 10ERB20-T2 FR DIODE
D5208 SB240-F26 SB DIODE
D5208 or RK14LF-B2 SBD
D5208 or 21DQ04-F SBD
D5209 PG104RS-T2 FR DIODE
D5209 or 10ERB20-T2 FR DIODE
D5209 or 1F4G-T2 FR DIODE
D5209 or AU01Z-T2 FR DIODE
D5209 or 1SR153-400-T2 FR DIODE
D5210 PG104RS-T2 FR DIODE
D5210 or 10ERB20-T2 FR DIODE
D5210 or 1F4G-T2 FR DIODE
D5210 or AU01Z-T2 FR DIODE
D5210 or 1SR153-400-T2 FR DIODE
D5215 D1FS4A-X SB DIODE
D5216 D1FS4A-X SB DIODE
D5301 MTZJ15C-T2 Z DIODE
D5301 or RD15ES/B3/-T2 Z DIODE
D5302 1SS133-T2 DIODE
D5302 or 1SS270A-T2 SI DIODE
 D5303 MTZJ27C-T2 Z DIODE
 D5303 or RD27ES/B3/-T2 Z DIODE
D5310 MTZJ10B-T2 Z DIODE
D5310 or RD10ES/B2/-T2 Z DIODE
 PC5101 PC123Y22 PHOTO COUPLER
 C5001 QFZ9077-683 MPP CAPACITOR 0.068uF 275V M
 C5002 QFZ9073-223 MM CAPACITOR 0.022uF AC250V M
 C5003 QCZ9071-101 C CAPACITOR 100pF AC400V K
 C5004 QCZ9079-222 C CAPACITOR 2200pF AC250V M
C5006 QEZ0374-826 E CAPACITOR 82uF 400V M
C5101 QCZ0336-330Z C CAPACITOR 33pF 1kV J
C5102 QCZ0333-472 C CAPACITOR 4700pF 1kV K
C5104 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5105 QFLC1HJ-183Z M CAPACITOR 0.018uF 50V J
C5106 NCB31HK-271X C CAPACITOR 270pF 50V K
C5107 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C5201 QFVF1HJ-154Z MF CAPACITOR 0.15uF 50V J
C5202 QEMU1AM-567Z E CAPACITOR 560uF 10V M
C5203 QEMX0JM-227Z E CAPACITOR 220uF 6.3V M
C5204 QEMU1AM-567Z E CAPACITOR 560uF 10V M
C5205 QEMU1CM-397Z E CAPACITOR 390uF 16V M
C5206 QEMU1AM-567Z E CAPACITOR 560uF 10V M
C5207 QETN2AM-475Z E CAPACITOR 4.7uF 100V M
C5208 QEMU1HM-186Z E CAPACITOR 18uF 50V M
C5209 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5210 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5211 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5301 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C5306 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C5307 NCB31HK-471X C CAPACITOR 470pF 50V K
C5309 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5310 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5311 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5312 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5313 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5314 QETN1CM-107Z E CAPACITOR 100uF 16V M
R5101 QRE141J-224Y C RESISTOR 220k Ω 1/4W J
R5102 QRE141J-224Y C RESISTOR 220k Ω 1/4W J
R5103 QRE141J-683Y C RESISTOR 68k Ω 1/4W J
R5104 QRG02GJ-683 OMF RESISTOR 68k Ω 2W J
R5106 QRT01DJ-R27X MF RESISTOR 0.27 Ω 1W J
R5107 QRE121J-331Y C RESISTOR 330 Ω 1/2W J
R5108 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R5109 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R5110 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R5111 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R5112 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5113 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R5201 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5202 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5203 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5204 NRSA63D-332X MG RESISTOR 3.3k Ω 1/16W D
R5205 NRSA63D-123X MG RESISTOR 12k Ω 1/16W D
R5206 NRSA63D-332X MG RESISTOR 3.3k Ω 1/16W D
R5302 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5305 NRSA63J-3R3X MG RESISTOR 3.3 Ω 1/16W J
R5306 NRSA63J-2R2X MG RESISTOR 2.2 Ω 1/16W J
R5307 NRSA63J-2R2X MG RESISTOR 2.2 Ω 1/16W J
R5317 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
 R5318 QRZ9005-470X FUSI RESISTOR 47 Ω 1/4W G
R5319 NRSA63J-560X MG RESISTOR 56
Ω 1/16W J
R5320 NRSA63D-153X MG RESISTOR 15k
Ω 1/16W D
R5321 NRSA63D-473X MG RESISTOR 47k
Ω 1/16W D
R5325 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
L5201 PELN1184 CHOKE COIL
L5202 PELN1184 CHOKE COIL
L5203 PELN1184 CHOKE COIL
L5301 QQL29BJ-220Z P COIL 22uH J
L5302 QQL231J-220Y COIL 22uH J
L5303 QQL231J-220Y COIL 22uH J
 T5001 QQS0219-001 SW TRANSF
 CN5001 QGA7901C3-02 CONNECTOR W-B (1-2)
CN5301 QGB1231L1-11 CONNECTOR B-B (1-11)
CN5302 QGB2027MA-22 CONNECTOR B-B (1-22)
CN5303 QGB1231L1-11 CONNECTOR B-B (1-11)
 CP5301 QMFZ050-1R5X-E FUSE 1.5A 125V
 CP5302 QMFZ050-1R5X-E FUSE 1.5A 125V
 F5001 QMF51W2-2R0-J8 FUSE 2A AC250V
FC5001 QNG0020-001Z FUSE CLIP
FC5002 QNG0020-001Z FUSE CLIP
HS1 LP40621-001A HEAT SINK Q5101
K5101 QQR0678-001Z FERRITE BEADS
 LF5002 QQR0608-001 LINE FILTER
OT1 QYTDST3008Z TAP SCREW M3 x 8mm Q5101
W5306 QRE142J-0R0X C RESISTOR 0
Ω 1/4W J
 Symbol No. Part No. Part Name Description Local
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

(No.YD031)3-13
Main board
Block No. [0][3]
 Symbol No. Part No. Part Name Description Local
PW1 LPA10215-03C MAIN BOARD ASSY
IC1 JCP8060-MSA IC
IC201 LC74776-9791 IC
 IC2201 AN3651FBP IC
IC3001 HD6432194SAD71F IC(MCU) MASK
IC3002 IC-PST3427U-X IC
IC3003 LPN0833-004E-14 IC(EEPROM) *(REFER TO BELOW)
IC6701 MSP3417GQGB8V3X IC
IC6701 or MSP3417G-X IC
IC8001 HA17558AF-X IC
IC8001 or RC4558D-X IC
Q7 2SC2412K/QRS/-X TRANSISTOR
Q7 or 2SD601A/QRS/-X TRANSISTOR
Q7 or 2SC3928A/QRS/-X TRANSISTOR
Q8
2SC2412K/QRS/-X TRANSISTOR
Q8 or 2SD601A/QRS/-X TRANSISTOR
Q8 or
2SC3928A/QRS/-X TRANSISTOR
Q9 2SC2412K/QRS/-X TRANSISTOR
Q9 or 2SD601A/QRS/-X TRANSISTOR
Q9 or 2SC3928A/QRS/-X TRANSISTOR
Q10 2SC2412K/QRS/-X TRANSISTOR
Q10 or 2SD601A/QRS/-X TRANSISTOR
Q10 or 2SC3928A/QRS/-X TRANSISTOR
Q2001 2SC2412K/QRS/-X TRANSISTOR
Q2001 or 2SD601A/QRS/-X TRANSISTOR
Q2001 or 2SC3928A/QRS/-X TRANSISTOR
Q2002 2SC2412K/QRS/-X TRANSISTOR
Q2002 or 2SD601A/QRS/-X TRANSISTOR
Q2002 or 2SC3928A/QRS/-X TRANSISTOR
Q2003 DTA144WKA-X TRANSISTOR
Q2003 or UN211E-X DIGI TRANSISTOR
Q2051 2SC2412K/QRS/-X TRANSISTOR
Q2051 or 2SD601A/QRS/-X TRANSISTOR
Q2051 or 2SC3928A/QRS/-X TRANSISTOR
Q2052 2SA1037AK/QR/-X TRANSISTOR
Q2052 or 2SB709A/QR/-X TRANSISTOR
Q2052 or 2SA1530A/QR/-X TRANSISTOR
Q2053 DTC144WKA-X DIGI TRANSISTOR
Q2053 or UN221E-X TRANSTSTOR
Q2054 2SA1037AK/QR/-X TRANSISTOR
Q2054 or 2SB709A/QR/-X TRANSISTOR
Q2054 or 2SA1530A/QR/-X TRANSISTOR
Q2055 DTC144WKA-X DIGI TRANSISTOR
Q2055 or UN221E-X TRANSTSTOR
Q2201 DTA144WKA-X TRANSISTOR
Q2201 or UN211E-X DIGI TRANSISTOR
Q2202 DTC144WKA-X DIGI TRANSISTOR
Q2202 or UN221E-X TRANSTSTOR
Q2203 2SC2412K/QRS/-X TRANSISTOR
Q2203 or 2SD601A/QRS/-X TRANSISTOR
Q2203 or
2SC3928A/QRS/-X TRANSISTOR
Q2204
2SC2412K/QRS/-X TRANSISTOR
Q2204 or 2SD601A/QRS/-X TRANSISTOR
Q2204 or
2SC3928A/QRS/-X TRANSISTOR
Q2255 DTC114EKA-X TRANSISTOR
Q2255 or UN2211-X TRANSISTOR
Q3002 PTZ-NV16A IC(PHOTO SENSOR)
Q3003 PTZ-NV16A IC(PHOTO SENSOR)
Q3004
2SC2412K/QRS/-X TRANSISTOR
Q3004 or 2SD601A/QRS/-X TRANSISTOR
Q3004 or 2SC3928A/QRS/-X TRANSISTOR
Q3005
2SC2412K/QRS/-X TRANSISTOR
Q3005 or 2SD601A/QRS/-X TRANSISTOR
Q3005 or
2SC3928A/QRS/-X TRANSISTOR
Q3007 DTC144WKA-X DIGI TRANSISTOR
Q3007 or UN221E-X TRANSTSTOR
Q3008 DTC144WKA-X DIGI TRANSISTOR
Q3008 or UN221E-X TRANSTSTOR
Q3401 2SC2412K/QRS/-X TRANSISTOR
Q3401 or 2SD601A/QRS/-X TRANSISTOR
Q3401 or
2SC3928A/QRS/-X TRANSISTOR
Q4001 DTC114EKA-X TRANSISTOR
Q4001 or UN2211-X TRANSISTOR
Q5301 2SD2144S/UV/-T TRANSISTOR
Q5301 or 2SC3576-JVC-T TRANSISTOR
Q5302 DTA114EKA-X DIGI TRANSISTOR
Q5302 or UN2111-X TRANSISTOR
Q5303 DTC114EKA-X TRANSISTOR
Q5303 or UN2211-X TRANSISTOR
Q5306 2SD1302/ST/-T TRANSISTOR
Q5307 DTA114EKA-X DIGI TRANSISTOR
Q5307 or UN2111-X TRANSISTOR
Q5308 2SB709A/QR/-X TRANSISTOR
Q5308 or 2SA1037AK/QR/-X TRANSISTOR
Q5308 or 2SA1530A/QR/-X TRANSISTOR
Q5309 DTC114EKA-X TRANSISTOR
Q5309 or UN2211-X TRANSISTOR
Q5312 DTA114EKA-X DIGI TRANSISTOR
Q5312 or UN2111-X TRANSISTOR
Q5313 2SC2412K/QRS/-X TRANSISTOR
Q5313 or 2SD601A/QRS/-X TRANSISTOR
Q5313 or 2SC3928A/QRS/-X TRANSISTOR
Q5314 2SC5739/QP/ TRANSISTOR
Q5314 or 2SD2394/EF/ TRANSISTOR
Q5316 2SD2144S/UV/-T TRANSISTOR
Q5316 or 2SC3576-JVC-T TRANSISTOR
Q6030 2SA1037AK/QR/-X TRANSISTOR
Q6030 or 2SB709A/QR/-X TRANSISTOR
Q6030 or 2SA1530A/QR/-X TRANSISTOR
Q6031 DTC114EKA-X TRANSISTOR
Q6031 or UN2211-X TRANSISTOR
Q6032 DTC114EKA-X TRANSISTOR
Q6032 or UN2211-X TRANSISTOR
Q8001 2SC2412K/QRS/-X TRANSISTOR
Q8001 or 2SD601A/QRS/-X TRANSISTOR
Q8001 or 2SC3928A/QRS/-X TRANSISTOR
Q8002 2SC2412K/QRS/-X TRANSISTOR
Q8002 or 2SD601A/QRS/-X TRANSISTOR
Q8002 or 2SC3928A/QRS/-X TRANSISTOR
Q8052 2SC2412K/QRS/-X TRANSISTOR
Q8052 or 2SD601A/QRS/-X TRANSISTOR
Q8052 or 2SC3928A/QRS/-X TRANSISTOR
Q8053 DTA114EKA-X DIGI TRANSISTOR
Q8053 or UN2111-X TRANSISTOR
D201 QRE141J-152Y C RESISTOR 1.5k Ω 1/4W J
D202 QRE141J-101Y C RESISTOR 100 Ω 1/4W J
D203 QRE141J-101Y C RESISTOR 100 Ω 1/4W J
D2001 1SS133-T2 DIODE
D2001 or 1SS270A-T2 SI DIODE
D2251 1SS133-T2 DIODE
D2251 or 1SS270A-T2 SI DIODE
D3001 LNB2301L01VI LED
D3002 1SS133-T2 DIODE
D3002 or 1SS270A-T2 SI DIODE
D3003 RD33ES/B3/-T2 Z DIODE
D3003 or MTZJ33C-T2 Z DIODE
D3004 10EDB20-T2 SI DIODE
D3004 or 1A3G-T2 SI DIODE
D3005 10EDB20-T2 SI DIODE
D3005 or 1A3G-T2 SI DIODE
D3007 1SS355-X SI DIODE
D3008 1SS355-X SI DIODE
D3401 RD3.6ES/B2/-T2 Z DIODE
D3401 or MTZJ3.6B-T2 Z DIODE
D5305 MTZJ11C-T2 Z DIODE
D5305 or RD11ES/B3/-T2 Z DIODE
D5306 MTZJ5.6C-T2 Z DIODE
D5306 or RD5.6ES/B3/-T2 Z DIODE
D5307 1SS133-T2 DIODE
D5307 or 1SS270A-T2 SI DIODE
D6002 HZ30-2L-T2 Z DIODE
D6002 or HZ30-2LTD Z DIODE
D6701 1SS133-T2 DIODE
D6701 or 1SS270A-T2 SI DIODE
D7301 10EDB20-T2 SI DIODE
D7301 or 1A3G-T2 SI DIODE
PC3001 RPI-304J IC(PHOTO SENSOR)
PC3002 RPI-304J IC(PHOTO SENSOR)
 Symbol No. Part No. Part Name Description Local
*The VCR goes to jig RCU mode after replacing the EEPROM and the VCR does not accept some RCU command.
Therefore please set the VCR to the user RCU mode after replacing the EEPROM.
The method of setting the VCR to the user RCU mode is written on the service manual.
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

3-14(No.YD031)
C1 NDC31HJ-151X C CAPACITOR 150pF 50V J
C2 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C9 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C10 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C11 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C12 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C14 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C17 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C19 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C20 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C22 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C24 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C25 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C26 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C27 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C30 NDC31HJ-331X C CAPACITOR 330pF 50V J
C31 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C32 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C33 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C34 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C35 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C36 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C37 NDC31HJ-4R0X C CAPACITOR 4pF 50V J
C38 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C39 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C40 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C41 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C43 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C44 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C45 NCB31EK-472X C CAPACITOR 4700pF 25V K
C46 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C47 QEKJ1HM-474Z E CAPACITOR 0.47uF 50V M
C48 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C49 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C56 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C57 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C58 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C59 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C60 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C61 QEKC0JM-476Z E CAPACITOR 47uF 6.3V M
C62 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C63 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C64 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C71 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C201 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C204 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C206 NDC31HJ-330X C CAPACITOR 33pF 50V J
C207 NDC31HJ-330X C CAPACITOR 33pF 50V J
C209 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C210 NDC31HJ-101X C CAPACITOR 100pF 50V J
C211 NDC31HJ-101X C CAPACITOR 100pF 50V J
C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C213 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C214 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C215 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C217 NDC31HJ-560X C CAPACITOR 56pF 50V J
C218 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C222 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C225 QEKJ0JM-227Z E CAPACITOR 220uF 6.3V M
C2001 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2002 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C2003 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C2005 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2006 NCB31EK-682X C CAPACITOR 6800pF 25V K
C2007 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C2008 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2009 NCB31HK-122X C CAPACITOR 1200pF 50V K
C2010 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2011 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2012 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2013 NDC31HJ-331X C CAPACITOR 330pF 50V J
 Symbol No. Part No. Part Name Description Local
C2051 NDC31HJ-331X C CAPACITOR 330pF 50V J
C2052 QFV91HJ-823Z MF CAPACITOR 0.082uF 50V J
C2053 NCB31HK-472X C CAPACITOR 4700pF 50V K
C2054 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C2055 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2201 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2202 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2203 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2204 QEKJ0JM-336Z E CAPACITOR 33uF 6.3V M
C2205 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2206 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2207 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C2208 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C2209 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2210 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2211 QEKJ0JM-336Z E CAPACITOR 33uF 6.3V M
C2212 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C2214 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2215 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2216 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C2218 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2219 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C2220 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2221 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C2222 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2223 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C2224 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C2225 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2226 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2227 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2230 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2231 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2251 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2252 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2253 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2254 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C2255 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2256 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2257 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2258 NDC31HJ-181X C CAPACITOR 180pF 50V J
C2259 QEKJ1HM-334Z E CAPACITOR 0.33uF 50V M
C2261 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2262 NDC31HJ-101X C CAPACITOR 100pF 50V J
C3008 NDC31HJ-101X C CAPACITOR 100pF 50V J
C3011 QETL0JM-338 E CAPACITOR 3300uF 6.3V M
C3012 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C3015 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C3016 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C3020 NDC31HJ-101X C CAPACITOR 100pF 50V J
C3021 NDC31HJ-101X C CAPACITOR 100pF 50V J
C3022 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C3024 NDC31HJ-120X C CAPACITOR 12pF 50V J
C3025 QAT3725-300Z
TRIM CAPACITOR 30pF TIMER CLOCK
C3026 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3027 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C3030 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C3031 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3033 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C3036 NDC31HJ-180X C CAPACITOR 18pF 50V J
C3037 NDC31HJ-120X C CAPACITOR 12pF 50V J
C3040 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3050 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C3071 QEKJ1CM-336Z E CAPACITOR 33uF 16V M
C3401 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C4002 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C4004 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C4005 NCB21HK-222X C CAPACITOR 2200pF 50V K
C4006 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C4008 QEQF1HM-105Z E CAPACITOR 1uF 50V M
C4009 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
C4010 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C4011 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4012 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C4014 NDC31HJ-101X C CAPACITOR 100pF 50V J
C4015 NCB31HK-102X C CAPACITOR 1000pF 50V K
C5303 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5304 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5305 QETN1AM-107Z E CAPACITOR 100uF 10V M
 Symbol No. Part No. Part Name Description Local
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

(No.YD031)3-15
C5315 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C5316 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C6005 QEKJ1HM-474Z E CAPACITOR 0.47uF 50V M
C6037 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C6707 NDC31HJ-470X C CAPACITOR 47pF 50V J
C6708 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C6709 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C6713 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C6714 NCB31HK-222X C CAPACITOR 2200pF 50V K
C6715 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C6716 NCB31HK-222X C CAPACITOR 2200pF 50V K
C6717 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C6719 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C6720 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C6721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6725 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6751 QEKJ0JM-337Z E CAPACITOR 330uF 6.3V M
C7506 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7507 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C7508 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8001 NCB31HK-332X C CAPACITOR 3300pF 50V K
C8002 NCB31HK-332X C CAPACITOR 3300pF 50V K
C8003 NDC31HJ-471X C CAPACITOR 470pF 50V J
C8004 NDC31HJ-471X C CAPACITOR 470pF 50V J
C8005 NDC31HJ-471X C CAPACITOR 470pF 50V J
C8006 NDC31HJ-471X C CAPACITOR 470pF 50V J
C8007 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8008 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8009 NCB31HK-222X C CAPACITOR 2200pF 50V K
C8010 NCB31HK-222X C CAPACITOR 2200pF 50V K
C8051 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C8052 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
R1 NRSA63J-622X MG RESISTOR 6.2k Ω 1/16W J
R2 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R3 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R11 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R12 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R21 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R22 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R36 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R37 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R38 NRSA63J-685X MG RESISTOR 6.8M Ω 1/16W J
R201 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R202 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R208 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R209 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R210 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R211 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R213 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R216 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R226 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R2003 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R2005 NRSA63J-153X MG RESISTOR 15k
Ω 1/16W J
R2007 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R2008 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R2010 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R2013 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R2014 NRSA63J-394X MG RESISTOR 390k
Ω 1/16W J
R2015 NRSA63J-331X MG RESISTOR 330
Ω 1/16W J
R2016 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R2017 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R2018 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R2019 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2021 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R2022 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R2023 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R2053 NRSA63J-392X MG RESISTOR 3.9k
Ω 1/16W J
R2054 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R2055 NRSA63J-3R3X MG RESISTOR 3.3
Ω 1/16W J
R2056 QRE141J-560Y C RESISTOR 56
Ω 1/4W J
R2057 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2058 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R2059 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R2060 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R2201 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R2202 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R2203 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2204 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R2205 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2206 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R2207 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2208 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R2209 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R2210 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2211 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R2212 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R2213 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2214 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R2215 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R2216 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R2217 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2218 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R2219 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R2220 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R2222 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2223 NRSA63J-511X MG RESISTOR 510 Ω 1/16W J
R2224 NRSA63J-511X MG RESISTOR 510
Ω 1/16W J
R2225 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R2226 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R2227 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R2228 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R2229 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R2230 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R2231 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2232 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R2233 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2234 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R2235 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R2236 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R2237 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R2238 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R2239 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2240 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2241 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2242 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R2243 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2244 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R2251 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2252 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R2253 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R2255 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R3011 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3012 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3013 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3014 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3015 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3016 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3017 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3018 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R3019 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3020 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3021 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3022 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3025 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3026 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3027 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3029 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3031 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3032 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3033 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3035 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3036 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3038 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R3040 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3041 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3042 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3044 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3046 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3047 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3048 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3049 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3050 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3051 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3052 NRSA63J-471X MG RESISTOR 470
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK

3-16(No.YD031)
R3053 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R3054 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3055 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3056 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3057 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3058 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3059 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3060 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3062 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3063 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3066 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3069 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R3071 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3072 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3073 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3074 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3075 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R3076 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R3077 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3078 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3079 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3080 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3081 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3085 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3086 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3088 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3090 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3091 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3094 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3096 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3103 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3104 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3105 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3205 QRE141J-181Y C RESISTOR 180 Ω 1/4W J
R3206 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R3207 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R3208 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3209 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R3210 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3211 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R3212 NRSA63J-474X MG RESISTOR 470k Ω 1/16W J
R3213 NRSA63J-334X MG RESISTOR 330k Ω 1/16W J
R3214 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3215 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3216 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3217 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3218 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3219 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3220 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R3222 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3223 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3224 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3225 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3229 NRSA63J-105X MG RESISTOR 1M Ω 1/16W J
R3230 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3231 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3233 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3234 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3235 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R3236 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R3237 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3241 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3242 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3253 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3301 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R3302 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R3303 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R3304 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R3305 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R3306 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R3307 NRSA63J-182X MG RESISTOR 1.8k
Ω 1/16W J
R3308 NRSA63J-182X MG RESISTOR 1.8k
Ω 1/16W J
R3401 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R3402 NRSA63J-271X MG RESISTOR 270
Ω 1/16W J
R4003 NRSA63J-561X MG RESISTOR 560
Ω 1/16W J
R4004 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R4005 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R4007 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R4008 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4009 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4010 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4012 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R4013 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R4015 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R4017 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5303 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5304 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5311 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5312 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5313 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R5314 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R5315 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R5316 QRE141J-181Y C RESISTOR 180 Ω 1/4W J
R5322 QRE121J-681Y C RESISTOR 680 Ω 1/2W J
R5323 QRE121J-561Y C RESISTOR 560 Ω 1/2W J
R5324 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5326 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R6020 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6021 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R6030 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R6031 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R6032 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6050 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6052 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6053 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6080 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R6707 NRSA63J-330X MG RESISTOR 33 Ω 1/16W J
R6708 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R6709 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6710 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6711 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R6712 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6713 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R6714 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6715 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R6716 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R6720 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R6721 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R7103 NRVA63D-390X CMF RESISTOR 39 Ω 1/16W D
R7104 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R7105 NRVA63D-390X CMF RESISTOR 39 Ω 1/16W D
R7106 NRSA63J-751X MG RESISTOR 750 Ω 1/16W J
R7107 NRVA63D-390X CMF RESISTOR 39 Ω 1/16W D
R7108 NRSA63J-751X MG RESISTOR 750 Ω 1/16W J
R7109 NRVA63D-390X CMF RESISTOR 39 Ω 1/16W D
R7110 NRSA63J-751X MG RESISTOR 750 Ω 1/16W J
R7211 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R7507 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R8001 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R8002 NRSA63J-392X MG RESISTOR 3.9k
Ω 1/16W J
R8003 NRSA63J-392X MG RESISTOR 3.9k
Ω 1/16W J
R8004 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R8005 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R8006 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R8007 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R8008 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R8009 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R8010 NRSA63J-201X MG RESISTOR 200
Ω 1/16W J
R8011 NRSA63J-201X MG RESISTOR 200
Ω 1/16W J
R8012 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R8013 NRSA63J-273X MG RESISTOR 27k
Ω 1/16W J
R8014 NRSA63J-273X MG RESISTOR 27k
Ω 1/16W J
R8015 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R8016 NRSA63J-821X MG RESISTOR 820
Ω 1/16W J
R8017 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R8018 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R8051 QRE141J-221Y C RESISTOR 220
Ω 1/4W J
R8052 QRE141J-221Y C RESISTOR 220 Ω 1/4W J
R8054 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
L3 QQL29BJ-100Z P COIL 10uH J
L5 QQL29BJ-100Z P COIL 10uH J
L6 QQL29BJ-100Z P COIL 10uH J
L7 QQR0967-001 CHOKE COIL
L10 QQL29BJ-100Z P COIL 10uH J
L201 QQL29BK-1R0Z P COIL 1uH K
 Symbol No. Part No. Part Name Description Local
HR-XV32EX
HR-XV32EY
HR-XV32EZ
A
B
C
MODEL
MARK
