COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED
SERVICE MANUAL
GENERAL
Power supply:
Power consumption:
Weight:
Dimensions:
Inputs/Outputs:
Video:
Audio:
Antenna:
Hi-Fi Frequency Response:
Hi-Fi Dynamic Range:
VCR section
Video Head:
Audio Track:
Tuner:
RF Channel Output:
F.FWD/REW Time:
DVD section
Signal system:
Applicable disc:
Audio characteristics
Frequency response:
S/N Ratio:
Harmonic distortion
Wow and flutter:
Dynamic range:
Output:
Pickup:
ACCESSORIES:
110-220 V, 50/60 Hz
Operation: 18 W
Stand by: 3 W
7.9 lbs (3.6 kg)
Width : 16-15/16 inches (430 mm)
Height: 3-7/8 inches (99 mm)
Depth : 9-13/16 inches (249 mm)
In: 1 Vp-p/75 ohm
Out: 1 Vp-p/75 ohm
In:
-
8 dBm/50 k ohm
Out:
-
8 dBm/1 k ohm
UHF/VHF IN/OUT: 75 ohm coaxial
20 Hz to 20,000 Hz
More than 90 dB
4 Rotary Heads
Hi-Fi Sound - 2 Tracks / MONO Sound - 1 Track
181 Channel Freq. Synthesized
VHF 2-13
UHF 14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-125 (100)-(125)
01 (5A)
Channel 3 or 4, Switchable
Approx. 1 minute 48 seconds (with T-120 Cassette Tape) (at + 25°C)
NTSC
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
DVD: 4 Hz - 22 kHz
CD: 4 Hz - 20 kHz
90 dB
0.02%
Less than 0.01% Wrms
More than 90 dB
Video : (RCA) 1 Vp-p/75 ohm
Audio : (RCA)
-
12 dBm/1k ohm
Digital Audio : 0.5 Vp-p 75 ohm
CD : Wavelength: 775 - 805 nm
Maximum output power: 0.5 mW
DVD : Wavelength: 640 - 660 nm
Maximum output power: 1.0 mW
Remote control x 1
Batteries (2 x AA)
75 ohm Coaxial Cable x 1
AUDIO/VIDEO Cable x 1
Conversion plug x 1
No.82990
2003/08
HR-XVC21UJ
HR-XVC21UJ D2VP11
DVD/CD PLAYER Hi-Fi STEREO VIDEO CASSETTE RECORDER
SPECIFICATIONS

TABLE OF CONTENTS
Section Title Page Section Title Page
Important Safety Precautions
INSTRUCTIONS
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICALPARTS AND P.C.BOARDS.....1-1
1-1 TOP CABINET AND FRONT CABINET ............................ 1-1
1-2 FLAP ..................................................................................1-1
1-3 DVD DECK ........................................................................1-1
1-4 DVD PCB ...........................................................................1-2
1-5 VCR DECK ........................................................................1-2
1-6 VCR PCB ...........................................................................1-2
2. REMOVAL OF VCR DECK PARTS.........................................1-3
2-1 TOP BRACKET..................................................................1-3
2-2 CASSETTE HOLDER ASS’Y.............................................1-3
2-3 CASSETTE SIDE L/R ........................................................1-3
2-4 LINK UNIT .........................................................................1-3
2-5 LINK LEVER / FLAP LEVER .............................................1-3
2-6 LOADING MOTOR / WORM..............................................1-4
2-7 TENSION ASS’Y ................................................................1-4
2-8 T BRAKE ARM / T BRAKE BAND......................................1-5
2-9 S REEL / T REEL / IDLER ARMASS’Y / IDLER GEAR.....1-5
2-10
CASSETTE OPENER / PINCH ROLLER BLOCK / P5 ARM ASS’Y . 1-6
2-11 A/C HEAD ........................................................................1-6
2-12 FE HEAD .........................................................................1-6
2-13 CYLINDER UNITASS’Y ..................................................1-6
2-14 CAPSTAN DD UNIT.........................................................1-7
2-15
MAIN CAM / PINCH ROLLER CAM / JOINT GEAR ............ 1-7
2-16 LOADING GEAR S/T UNIT..............................................1-7
2-17
CLUTCH ASS’Y / RING SPRING / CLUTCH LEVER / CLUTCH GEAR.. 1-8
2-18
CASSETTE GUIDE POST / INCLINED BASE S/T UNIT / P4 CAP. 1-8

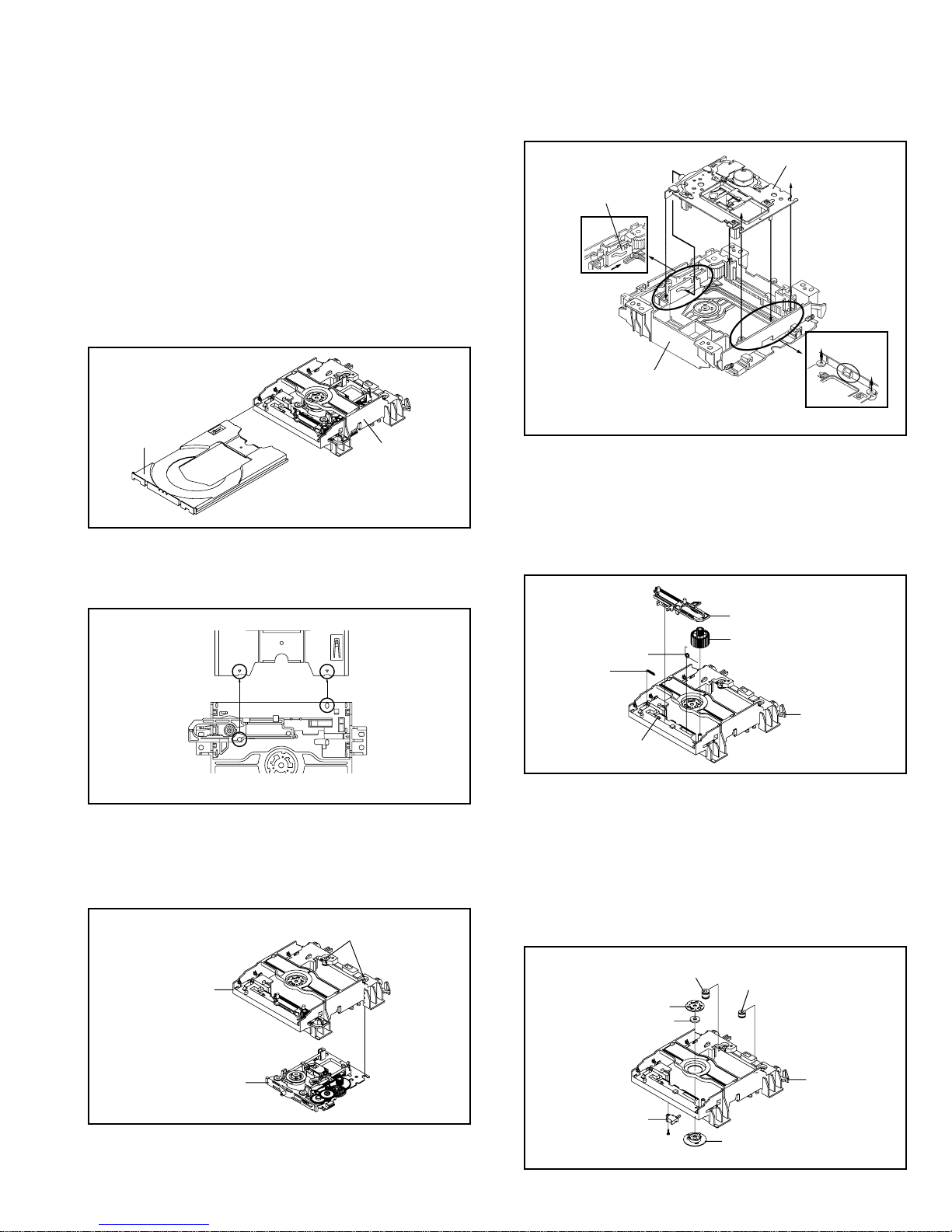

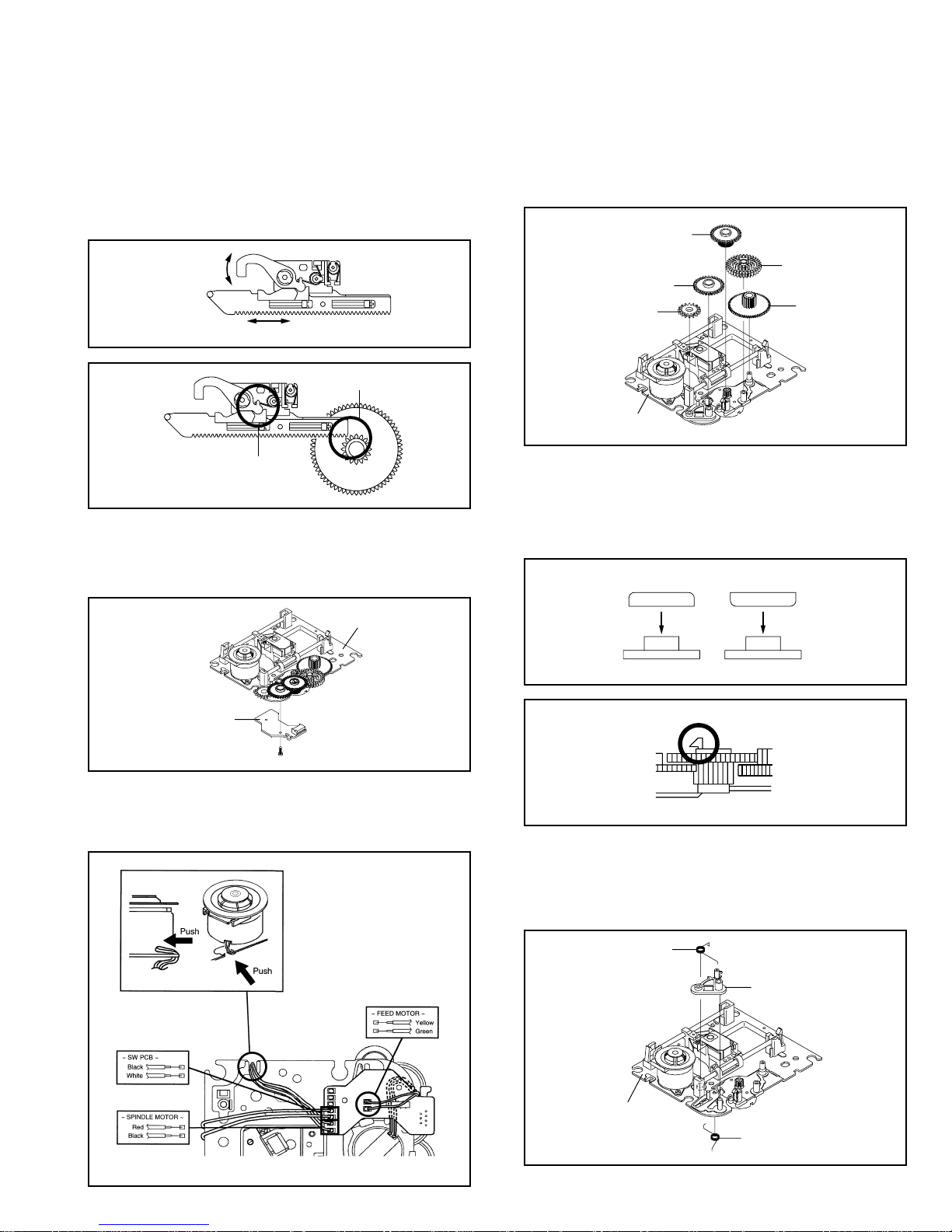

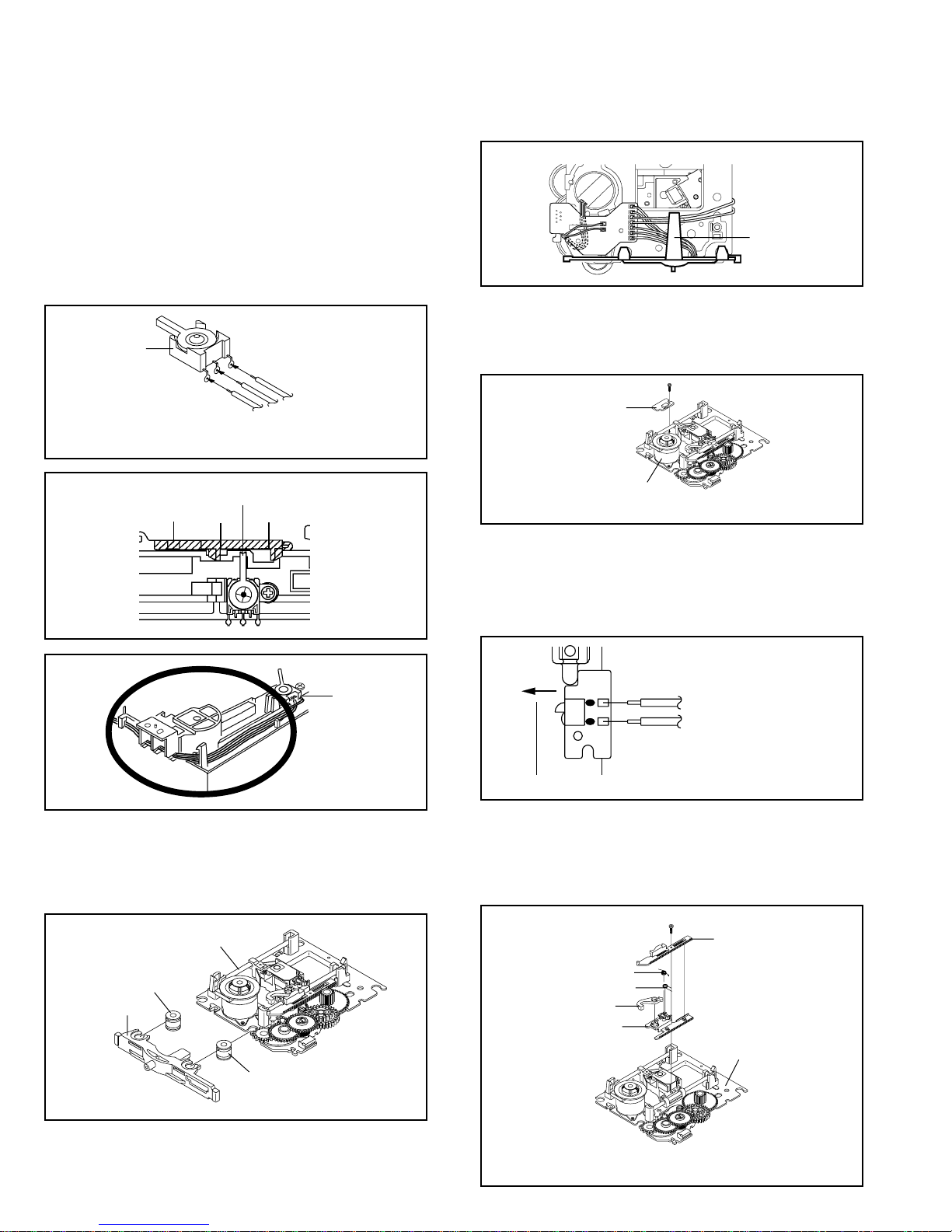

3. REMOVAL OF DVD DECK PARTS.........................................1-9
3-1 TRAY..................................................................................1-9
3-2 MAIN CHASSIS ASS’Y ......................................................1-9
3-3
RACK LOADING / MAIN GEAR / RACK LOADING SPRING / RACK L SPRING.. 1-9
3-4 CLAMPER ASS’Y / INSULATOR(R) / LEVER SWITCH ....1-9
3-5 TRAVERSE HOLDER / INSULATOR(F) ..........................1-10
3-6 SWITCH PCB ASS’Y .......................................................1-10
3-7 RACK FEED ASS’Y .........................................................1-10
3-8 RELAY PCB ASS’Y .......................................................... 1-11
3-9 GEAR............................................................................... 1-11
3-10 IDLER ARM ................................................................... 1-11
3-11 FEED MOTOR ...............................................................1-12
KEY TO ABBREVIATIONS ......................................................1-13
SERVICE MODE LIST..............................................................1-15
WHEN “N” IS ALWAYS BEING DISPLAYED ON THE TV MONITOR . 1-15
PARENTAL CONTROL - RATING LEVEL 4-DIGIT PASSWORD CANNCELLATION . 1-15
WHEN REPLACING EEPROM(MEMORY) IC .........................1-16
PREVENTIVE CHECKS AND SERVICE INTERVALS............. 1-17
CONFIRMATION OF HOURS USED .......................................1-17
CLEANING ...............................................................................1-17
SERVICING FIXTURES AND TOOLS......................................1-18
MECHANISM ADJUSTMENT PARTS LOCATION GUIDE............ 1-18
MECHANICAL ADJUSTMENTS ..............................................1-19
TAPE REMOVAL METHOD AT NO POWER SUPPLY ..........1-19
DISC REMOVAL METHODAT NO POWER SUPPLY...........1-19
1. CONFIRMATION AND ADJUSTMENT .................................1-19
1-1
CONFIRMATION ANDADJUSTMENT OF TENSION POST POSITION . 1-19
1-2 CONFIRMATION OF PLAYBACK TORQUE AND
BACK TENSION TORQUE DURING PLAYBACK...........1-19
1-3 CONFIRMATION OF VSR TORQUE...............................1-19
1-4 CONFIRMATION OF REEL BRAKE TORQUE................1-20
2. CONFIRMATION AND ADJUSTMENT OF TAPE
RUNNING MECHANISM ..................................................1-20
2-1 GUIDE ROLLER ..............................................................1-20
2-2
CONFIRMATION AND ADJUSTMENT OF AUDIO/CONTROL HEAD . 1-21
2-3
TAPE RUNNING ADJUSTMENT(X-VALUE ADJUSTMENT) . 1-21
ELECTRICAL ADJUSTMENTS ............................................... 1-22
1. BASIC ADJUSMENT ............................................................1-22
1-1 SWITCHING POINT ........................................................1-22
ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE ............ 1-22
SERVO TIMING CHART ..........................................................1-23
MECHANISM TIMING CHART.................................................1-24
IC DESCRIPTIONS ..................................................................1-25
TROUBLE SHOOTING GUIDE ................................................1-28
(VCR SECTION) ....................................................................1-28
(DVD SECTION) ....................................................................1-51
CHARTS AND DIAGRAMS
INTERCONNECTION DIAGRAM ............................................2-1
Y/C/AUDIO/CCD/HEAD AMP SCHEMATIC DIAGRAM ..........2-3
SYSCON SCHEMATIC DIAGRAM ..........................................2-5
TUNER/JACK SCHEMATIC DIAGRAM ..................................2-7
OPERATION/DISPLAY SCHEMATIC DIAGRAM....................2-9
HI-FI/DEMODULATOR SCHEMATIC DIAGRAM ..................2-11
POWER SCHEMATIC DIAGRAM .........................................2-13
OPERATION/LED SCHEMATIC DIAGRAM ..........................2-15
SW/RELAY/FG SCHEMATIC DIAGRAM ..............................2-17
MPEG/MICOM SCHEMATIC DIAGRAM ...............................2-19
MEMORY SCHEMATIC DIAGRAM .......................................2-21
RF AMP/DSP SCHEMATIC DIAGRAM .................................2-23
AUDIO/VIDEO SCHEMATIC DIARAM ..................................2-25
PRINTED CIRCUIT BOARD VCR .........................................2-27
PRINTED CIRCUIT BOARD DVD .........................................2-31
PRINTED CIRCUIT BOARD SW/RELAY/FG ........................2-33
PRINTED CIRCUIT BOARD OPERATION............................2-34
Y/C/AUDIO/CCD/HEAD AMP BLOCK DIAGRAM .................2-35
SYSTEM CONTROL BLOCK DIAGRAM...............................2-37
OPERATION/DISPLAY BLOCK DIAGRAM...........................2-39
HI-FI/DEMODULATOR BLOCK DIAGRAM ...........................2-41
TUNER/JACK BLOCK DIAGRAM .........................................2-43
POWER BLOCK DIAGRAM ..................................................2-45
DVD BLOCK DIAGRAM ........................................................2-47
WAVEFORMS .......................................................................2-49
PARTS LIST
3.1 EXPLODED VIEW ................................................................3-1
3.1.1 PACKING AND ACCESSORYASSEMBLY<M1> .......... 3-1
3.1.2 FINAL ASSEMBLY<M2> ................................................ 3-2
3.1.3 MECHANISM ASSEMBLY(DVD)<MN> ..........................3-3
3.1.4 MECHANISM ASSEMBLY(VCR)<M4> .......................... 3-4
3.2 PARTS LIST ......................................................................... 3-6
PACKING AND ACCESSORY ASSEMBLY<M1> ....................3-6
FINALASSEMBLY<M2> ..........................................................3-6
MECHANISM ASSEMBLY(VCR)<M4> ....................................3-6
MECHANISM ASSEMBLY(DVD)<MN> ...................................3-7
VCR BOARD ASSEMBLY<03>............................................... 3-8
OPERATION BOARD ASSEMBLY<28> ................................3-12
DVD BOARD ASSEMBLY<50>..............................................3-12
REFERENCE
GENERAL SPECIFICATIONS[HR-XVC21UJ] .........................4-1

Important Safety Precautions
Prior to shipment from the factory, JVC products are strictly inspected to conform with the recognized product safety and electrical codes
of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the
following precautions when a set is being serviced.
Fig.1
1. Locations requiring special caution are denoted by labels and
inscriptions on the cabinet, chassis and certain parts of the
product. When performing service, be sure to read and com-
ply with these and other cautionary notices appearing in the
operation and service manuals.
2. Parts identified by the symbol and shaded ( ) parts are
critical for safety.
Replace only with specified part numbers.
Note: Parts in this category also include those specified to com-
ply with X-ray emission standards for products using
cathode ray tubes and those specified for compliance
with various regulations regarding spurious radiation
emission.
3. Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as specified.
4. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
5. Use specified insulating materials for hazardous live parts.
Note especially:
1) Insulation Tape 3) Spacers 5) Barrier
2) PVC tubing 4) Insulation sheets for transistors
6. When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Power cord
Fig.2
10. Also check areas surrounding repaired locations.
11. Products using cathode ray tubes (CRTs)
In regard to such products, the cathode ray tubes themselves,
the high voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray emission.
Consequently, when servicing these products, replace the cath-
ode ray tubes and other parts with only the specified parts.
Under no circumstances attempt to modify these circuits.
Unauthorized modification can increase the high voltage value
and cause X-ray emission from the cathode ray tube.
12. Crimp type wire connector
In such cases as when replacing the power transformer in sets
where the connections between the power cord and power
transformer primary lead wires are performed using crimp type
connectors, if replacing the connectors is unavoidable, in or-
der to prevent safety hazards, perform carefully and precisely
according to the following steps.
1) Connector part number : E03830-001
2) Required tool : Connector crimping tool of the proper type
which will not damage insulated parts.
3) Replacement procedure
(1) Remove the old connector by cutting the wires at a point
close to the connector.
Important : Do not reuse a connector (discard it).
Fig.7
cut close to connector
Fig.3
(2) Strip about 15 mm of the insulation from the ends of
the wires. If the wires are stranded, twist the strands to
avoid frayed conductors.
15 mm
Fig.4
(3) Align the lengths of the wires to be connected. Insert
the wires fully into the connector.
Connector
Metal sleeve
Fig.5
(4) As shown in Fig.6, use the crimping tool to crimp the
metal sleeve at the center position. Be sure to crimp fully
to the complete closure of the tool.
1
vPrecautions during Servicing
7. Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
8. Check that replaced wires do not contact sharp edged or
pointed parts.
9. When a power cord has been replaced, check that 10-15 kg of
force in any direction will not loosen it.
1.25
2.0
5.5
Crimping tool
Fig.6
(5) Check the four points noted in Fig.7.
Not easily pulled free Crimped at approx. center
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm
S40888-01

v Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following tests and confirm the specified values in order to verify compli-
ance with safety standards.
1. Insulation resistance test
Confirm the specified insulation resistance or greater between power cord plug prongs and
externally exposed parts of the set (RF terminals, antenna terminals, video and audio input
and output terminals, microphone jacks, earphone jacks, etc.). See table 1 below.
2. Dielectric strength test
Confirm specified dielectric strength or greater between power cord plug prongs and exposed
accessible parts of the set (RF terminals, antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.). See table 1 below.
3. Clearance distance
When replacing primary circuit components, confirm specified clearance distance (d), (d’) be-
tween soldered terminals, and between terminals and surrounding metallic parts. See table 1
below.
4. Leakage current test
Confirm specified or lower leakage current between earth ground/power cord plug prongs
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone jacks, etc.).
Measuring Method : (Power ON)
Insert load Z between earth ground/power cord plug prongs and externally exposed accessi-
ble parts. Use an AC voltmeter to measure across both terminals of load Z. See figure 9 and
following table 2.
5. Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between earth pin in AC inlet and externally exposed accessible parts (Video in,
Video out, Audio in, Audio out or Fixing screw etc.).
Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and exposed accessible parts. See figure 10 and grounding specifications.
d'
d
Chassis Power cord,
primary wire
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
≤
≤
AC inlet
Earth pin
Exposed accessible part
Milli ohm meter
Grounding Specifications
Fig. 10
ab
c
V
Externally
exposed
accessible part
Z
Fig. 9
Fig. 8
Clearance Distance (d), (d')
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
1 MΩR 12 MΩ/500 V DC
Dielectric Strength
AC 1 kV 1 minute
AC 1.5 kV 1 miute
AC 1 kV 1 minute
AC Line Voltage
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
Japan
USA & Canada
Europe & Australia R 10 MΩ/500 V DC
Region
Insulation Resistance (R)
R 1 MΩ/500 V DC
≤
≤
≥≥
≤
≤
≤≤
≤
≤
AC 3 kV 1 minute
(Class 2)
AC 1.5 kV 1 minute
(Class 1)
d 4 mm
d' 8 mm (Power cord)
d' 6 mm (Primary wire)
Table 1 Specifications for each region
a, b, cLeakage Current (i)AC Line Voltage
100 V
110 to 130 V
110 to 130 V
220 to 240 V
Japan
USA & Canada
i 1 mA rms Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Europe & Australia
Region Load Z
≤
≤
≤
≤
≤
≤
1 kΩ
2 kΩ
1.5 kΩ
0.15 µF
50 kΩ
Table 2 Leakage current specifications for each region
Note: These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
2S40888-01

DISASSEMBLY INSTRUCTIONS
1-1
1
1
2
Top Cabinet
Front Cabinet 1
1
2
2
22
2
1
2
1.
1-1:
Fig. 1-1
REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
TOP CABINET AND FRONT CABINET
(Refer to Fig. 1-1)
1.
2.
3.
4.
5.
6.
7.
Remove the 5 screws 1.
Remove the Top Cabinet in the direction of arrow (A).
Disconnect the following connector: (CP651).
Unlock the 8 supports 2.
Remove the Front Cabinet in the direction of arrow (B).
Remove the 2 screws 3.
Remove the Operation PCB in the direction of arrow (C).
1-2: FLAP (Refer to Fig. 1-2)
1.
2.
Open Flap to 90˚ and flex in direction of arrow (A), at the
same time slide in direction of arrow (B).
Then lift in direction of arrow (C).
Fig. 1-2
(A)
Flap
(B)
(C)
(B) 33
Operation PCB
CP651
2
(A)
(C)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Make the short circuit on the position as shown Fig. 1-3
using a soldering. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
Unlock the support 1and remove the Deck Top Holder
in the direction of arrow (A).
Remove the 2 screws 2.
Remove the screw 3.
Remove the screw 4.
Disconnect the following connectors: (CP2601, CP2602,
CP2603).
Remove the DVD Deck in the direction of arrow (B).
Remove the 3 screws 5.
Remove the Front Angle in the direction of arrow (C).
Remove the screw 6.
Remove the DVD Angle.
Fig. 1-3
1-3: DVD DECK (Refer to Fig. 1-3)
NOTE
When the installation of the DVD Deck, remove all the
soldering on the short circuit position after the connection of
Pick Up PCB and DVD PCB connector.
1
Make the sort circuit
using a soldering.
Pick Up PCB
Deck Top Holder
(A)
2
2
4
3
5
DVD Deck
(C)
Front Angle
5
5
(B)
CP2603
CP2602
CP2601
6
DVD Angle

DISASSEMBLY INSTRUCTIONS
1-2
1-6: VCR PCB (Refer to Fig. 1-6)
1.
2.
3.
4.
5.
Remove the screw 1.
Remove the screw 2.
Remove the screw 3.
Remove the 3 Pin Shield.
Remove the VCR PCB in the direction of arrow.
Fig. 1-6
1
VCR Deck
1-5: VCR DECK (Refer to Fig. 1-5)
1.
2.
3.
4.
5.
6.
Move the Cassette Holder Ass’y to the back side.
Remove the screw 1.
Remove the FE Head.
Remove the 3 screws 2.
Disconnect the following connectors: (CP101, CP102,
and CP3001).
Remove the AC Head Cover and VCR Deck in the
direction of arrow.
3VCR PCB
1-4: DVD PCB (Refer to Fig. 1-4)
1.
2.
3.
4.
Remove the 3 screws 1.
Remove the 4 screws 2.
Disconnect the following connectors: (CP4002 and
CP8102).
Remove the DVD PCB in the direction of arrow.
Fig. 1-4
Do not remove the cable at the FE Head section. The FE
Head may be damaged if you remove the cable by force.
NOTE
Fig. 1-5
2
FE Head
2
CP101
CP102CP3001
AC Head Cover
2
12
3 Pin Shield
1
1
DVD PCB
2
2
2
2
1
CP4002
CP8102

DISASSEMBLY INSTRUCTIONS
1-3
2. REMOVAL OF VCR DECK PARTS
2-1: TOP BRACKET (Refer to Fig. 2-1)
Extend the 2 supports 1.
Slide the 2 supports 2and remove the Top Bracket.
1.
2.
NOTE
After the installation of the Top Bracket, bend the support
1so that the Top Bracket is fixed.
1.
11
2
2
Top Bracket
Main Chassis
Top Bracket
Main Chassis
Fig. 2-1
1.
2.
3.
2-2: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-2)
Move the Cassette Holder Ass'y to the front side.
Push the Locker R to remove the Cassette Side R.
Remove the Cassette Side L.
Fig. 2-2
Link Unit Main Chassis
Main Chassis
Cassette Side L
Cassette Side R
Locker R
1.
2.
3.
2-3: CASSETTE SIDE L/R (Refer to Fig. 2-3-A)
Remove the Locker Spring.
Unlock the 4 supports 1and then remove the Cassette
Side L/R.
Unlock the support 2and then remove the Locker R.
Locker Spring
Cassette Side L
Cassette Side R
Locker R
Cassette Holder
1
1
1
1
2
In case of the Locker R installation, check if the one
position of Fig. 2-3-B are correctly locked.
When you install the Cassette Side R, be sure to move
the Locker R after installing.
NOTE
1.
2.
Locker R
Check if this position
is locked.
Cassette Side R
Fig. 2-3-B
2-4: LINK UNIT (Refer to Fig. 2-4)
1.
2.
3.
Set the Link Unit to the Eject position.
Unlock the support 1.
Remove the (A) side of the Link Unit first, then remove
the (B) side.
Fig. 2-4
(A)
Link Unit
Main Chassis
(B)
Link Unit
Main Chassis
Fig. 2-3-A
2-5: LINK LEVER/FLAP LEVER (Refer to Fig. 2-5)
1.
2.
3.
Extend the support 1.
Remove the Link Lever.
Remove the Flap Lever.
Fig. 2-5
Link Lever
Flap Lever
1

DISASSEMBLY INSTRUCTIONS
1-4
2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A)
1.
2.
3.
Remove the screw 1.
Remove the Loading Motor.
Remove the Worm.
Fig. 2-6-A
Loading Motor
Worm
• Screw Torque: 3 ±0.5kgf•cm
Main Chassis
1
NOTE
1.
2.
3.
In case of the Worm installation, check if the value of the
Fig. 2-6-B is correct.
In case of the Loading Motor installation, hook the wire on
the Cassette Opener as shown Fig. 2-6-C.
When installing the wires between Capstan DD Unit and
Loading Motor, connect them correctly as shown Fig. 2-6-D.
Fig. 2-6-B
19.2 ±0.1mm
Safety surface for pressing
of the insert.
2-7: TENSION ASS’Y (Refer to Fig. 2-7-B)
1.
2.
3.
4.
5.
6.
Turn the Pinch Roller Cam clockwise so that the Tension
Holder hook is set to the position of Fig. 2-7-A to move
the Tension Arm Ass’y.
Remove the Tension Spring.
Unlock the 2 supports 1and remove the Tension Band.
Unlock the support 2and remove the Tension Arm Ass’y.
Unlock the support 3and remove the Tension Connect.
Float the hook 4and turn it clockwise then remove the
Tension Holder.
Fig. 2-6-C
Loading Motor
Cassette Opener
Fig. 2-7-B
Tension Band
Tension Connect
Tension Spring Tension Arm Ass’y
Tension Holder
1
1
3
2
4
NOTE
1.
2.
3.
In case of the Tension Band installation, note the direc-
tion of the installation. (Refer to Fig. 2-7-C)
In case of the Tension Band installation, install correctly
as Fig. 2-7-D.
In case of the Tension Connect installation, install as the
circled section of Fig. 2-7-E.
Fig. 2-7-C
Tension Band
Tension Connect
Tension Arm Ass’y
Fig. 2-7-A
Fig. 2-6-D
Pink
Loading Motor
White
Capstan DD Unit
L2
L1
-
+

DISASSEMBLY INSTRUCTIONS
1-5
Fig. 2-7-D
[OK]
[NG]
Tension Connect
Tension Band
Tension Connect Tension Band
Fig. 2-7-E
Tension Connect
Main Chassis
2-8: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-8-A)
Remove the T Brake Spring.
Turn the T Brake Arm clockwise and bend the hook
section to remove it.
Unlock the 2 supports 1and remove the T Brake Band.
1.
2.
3.
Fig. 2-8-A
T Brake Band
Hook section
T Brake Arm
T Brake Spring
1
1
NOTE
1. In case of the T Brake Band installation, install correctly
as Fig. 2-8-B.
Fig. 2-8-B
[OK]
[NG]
T Brake Arm
T Brake Band
T Brake Arm
T Brake Band
2-9: S REEL/T REEL/IDLER ARM ASS’Y/IDLER GEAR
(Refer to Fig. 2-9-A)
1.
2.
3.
Remove the S Reel and T Reel.
Remove the 2 Polyslider Washers 1.
Remove the Idler ArmAss’y and Idler Gear.
NOTE
1.
2.
3.
4.
5.
6.
Take care not to damage the gears of the S Reel and T
Reel.
The Polyslider Washer may be remained on the back of
the reel.
Take care not to damage the shaft.
Do not touch the section “A” of S Reel and T Reel. (Use
gloves.) (Refer to Fig. 2-9-A) Do not adhere the stains
on it.
When you install the reel, clean the shaft and grease it
(FG-84M). (If you do not grease, noise may be heard in
FF/REW mode.)
After installing the reel, adjust the height of the reel.
(Refer to MECHANICAL ADJUSTMENT)
Fig. 2-9-A
Idler Gear Idler Arm Ass’y
S Reel
T Reel
(A)
1
1
(A)
NOTE
1.
2.
In case of the S Reel and T Reel installation, check if the
correct parts are installed. (Refer to Fig. 2-9-B)
In case of the Idler Arm Ass’y installation, install correctly
as Fig. 2-9-C. And also set it so that the section “B” of
Fig. 2-9-A is placed under the Main Chassis tab.
Fig. 2-9-B
Big Hole
(S Reel) Small Hole (T Reel)
Fig. 2-9-C
[OK]
[NG]
Clutch Gear Idler Arm Ass’y
Idler Arm Ass’y
Clutch Gear
(B)

DISASSEMBLY INSTRUCTIONS
1-6
2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/P5
ARM ASS’Y (Refer to Fig. 2-10-A)
1.
2. Unlock the support 1and remove the Cassette Opener. Remove the Pinch Roller Block and P5 Arm Ass’y.
Fig. 2-10-A
Cassette Opener
1
Pinch Roller Block
P5 Arm Ass’y
Main Chassis
NOTE
1.
2. Do not touch the Pinch Roller. (Use gloves.) In case of the Pinch Roller Block and the Pinch Roller
Cam installation, install correctly as Fig. 2-10-B.
Fig. 2-10-B
Pinch Roller Block Can be seen the hole of
the Pinch Roller Cam.
P5 Arm Ass’y
Can be seen the hole of the
Main Cam.
2-11: A/C HEAD (Refer to Fig. 2-11-A)
1.
2.
3.
4.
Remove the screw 1.
Remove the A/C Head Base.
Remove the 3 screws 2.
Remove the A/C Head and A/C Head Spring.
NOTE
1.
2.
3.
Do not touch the A/C Head. (Use gloves.)
When you install the A/C Head Spring, install as shown in
Fig. 2-11-B.
When you install the A/C Head, tighten the screw (1) first,
then tighten the screw (2), finally tighten the screw (3).
Fig. 2-11-A
(1)
2
A/C Head
A/C Head Spring
A/C Head Base
• Screw Torque: 5 ±0.5kgf•cm (Screw 1)
2
2
(3)
(2)
1
Fig. 2-11-B
Spring Position
2-12: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-12)
1.
2. Remove the screw 1. Remove the FE Head.
Fig. 2-12
1
FE Head
• Screw Torque: 5 ±0.5kgf•cm
• The FE Head is not installed on the Video Cassette Player.
2-13: CYLINDER UNIT ASS’Y (Refer to Fig. 2-13)
1.
2.
3.
Disconnect the following connector:
(CD2001)
Remove the 3 screws 1.
Remove the Cylinder Unit Ass’y.
NOTE
1. When you install the Cylinder UnitAss’y, tighten the
screws from (1) to (3) in order while pulling the Ass’y
toward the left front direction.
Fig. 2-13
Cylinder Unit Ass’y
1
(1)
• Screw Torque: 3 ±0.5kgf•cm
1
1
(2)
(3)
CD2001
