JVC XV-SA70BK User manual

STANDBY/ON
STANDBY/ON
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
PROGRESSIVEDVD AUDIO
DVD/ VIDEO CD/CD
XV-SA70 DVD AUDIO/DVD VIDEO/CD PLAYER


PROGRESSIVE
SCAN
S.FREQ
OPEN
/CLOSE TV DVD
TV DVD
STANDBY/ON
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC TV/VIDEO CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
DIGEST PAGE
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW
-
TOP
MENU
MENU
CHOICE
ENTER
RM-SXVM50J REMOTE CONTROL
CH+
SELECT
CH
-
VOL
+
VOL
-
ONSCREEN
ZOOM +
-
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
Introduction 2
Preliminary knowledge 6
Getting started 16
Basic operations 25
Advanced operations 29
MP3 disc playback 51
Initial settings 54
Additional information 64







 !
"#$%#&
,16758&7,216


Warnings, Cautions and Others
Mises en garde, précautions et indications diverses
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le
coffret de l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
IMPORTANT FOR LASER PRODUCTS
IMPORTANT POUR LES PRODUITS LASER
1. CLASS 1 LASER PRODUCT
2. CAUTION:Visible laser radiation when open and interlock failed
or defeated. Avoid direct exposure to beam.
3. CAUTION:Do not open the top cover.There are no user
serviceable parts inside the Unit; leave all servicing to qualified
service personnel.
1. PRODUIT LASER CLASSE 1
2. ATTENTION: Radiation laser visible quand l’appareil est ouvert
ou que le verrouillage est en panne ou désactivé.Eviter une
exposition directe au rayon.
3. ATTENTION: Ne pas ouvrir le couvercle du dessus.Il n’y a
aucune pièce utilisable à l’intérieur. Laisser à un personnel
qualifié le soin de réparer votre appareil.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
For U.S.A.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
Caution — STANDBY/ON switch!
Disconnect the mains plug to shut the power off completely (the
STANDBY/ON lamp goes off). The STANDBY/ON switch in
any position does not disconnect the mains line.
• When the unit is on standby, the STANDBY/ON lamp lights red.
• Whentheunitisturnedon, theSTANDBY/ONlamplightsgreen.
The power can be remote controlled.
Attention — Commutateur STANDBY/ON !
Déconnectezlaprised’alimentationsecteurpourmettrel’appareil
complètementhorstension(letémoinSTANDBY/ON s’éteint).
L’interrupteur, sur n’importe quelle position, ne peut pas
déconnecter l’appareil du secteur.
• Quandl’appareilest enmodedeveille, letémoinSTANDBY/ON
est allumé en rouge.
• Quand l’appareil est sous tension, le témoin STANDBY/ON est
allumé en vert.
L’alimentation peut être télécommandée.
For Canada/Pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND.
For Canada/Pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS
B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE INTERFERENCE-
CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL
APPARATUS,” ICES-003 OFTHE DEPARTMENT OF
COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX
APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES
DANS LA NORME SUR LE MATERIEL BROUILLEUR:
“APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE
MINISTRE DES COMMUNICATIONS.
CAUTION:
Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)
Do not place any naked flame sources, such as lighted candles,
on the apparatus.
When discarding batteries, environmental problems must be
considered and local rules or laws governing the disposal of
these batteries must be followed strictly.
Do not use this apparatus in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such
as cosmetics or medicines, flower vases, potted plants, cups,
etc.) on top of this apparatus.
ATTENTION:
Ne bloquez pas les orifices ou les trous de ventilation.
(Si les orifices ou les trous de ventilation sont bloqués par un
journal un tissu, etc., la chaleur peut ne pas être évacuée
correctement de l’appareil.)
Ne placez aucune source de flamme nue, telle qu’une bougie, sur
l’appareil.
Lors de la mise au rebut des piles, veuillez prendre en
considération les problèmes de l’environnement et suivre
strictement les règles et les lois locales sur la mise au rebut des
piles.
N’utilisez pas cet appareil dans une salle de bain ou un autre
endroit avec de l’eau. Ne placez aucun récipient contenant de
l’eau (tel que des cosmétiques ou des médicaments, un vase de
fleurs, un pot de fleurs, une tasse, etc.) sur cet appareil.
FOR DVD[C]Safety 01.6.5, 8:51 PM1

1
EnglishEnglish
Table of Contents
Introduction
Page 2
Features...............................................................................2

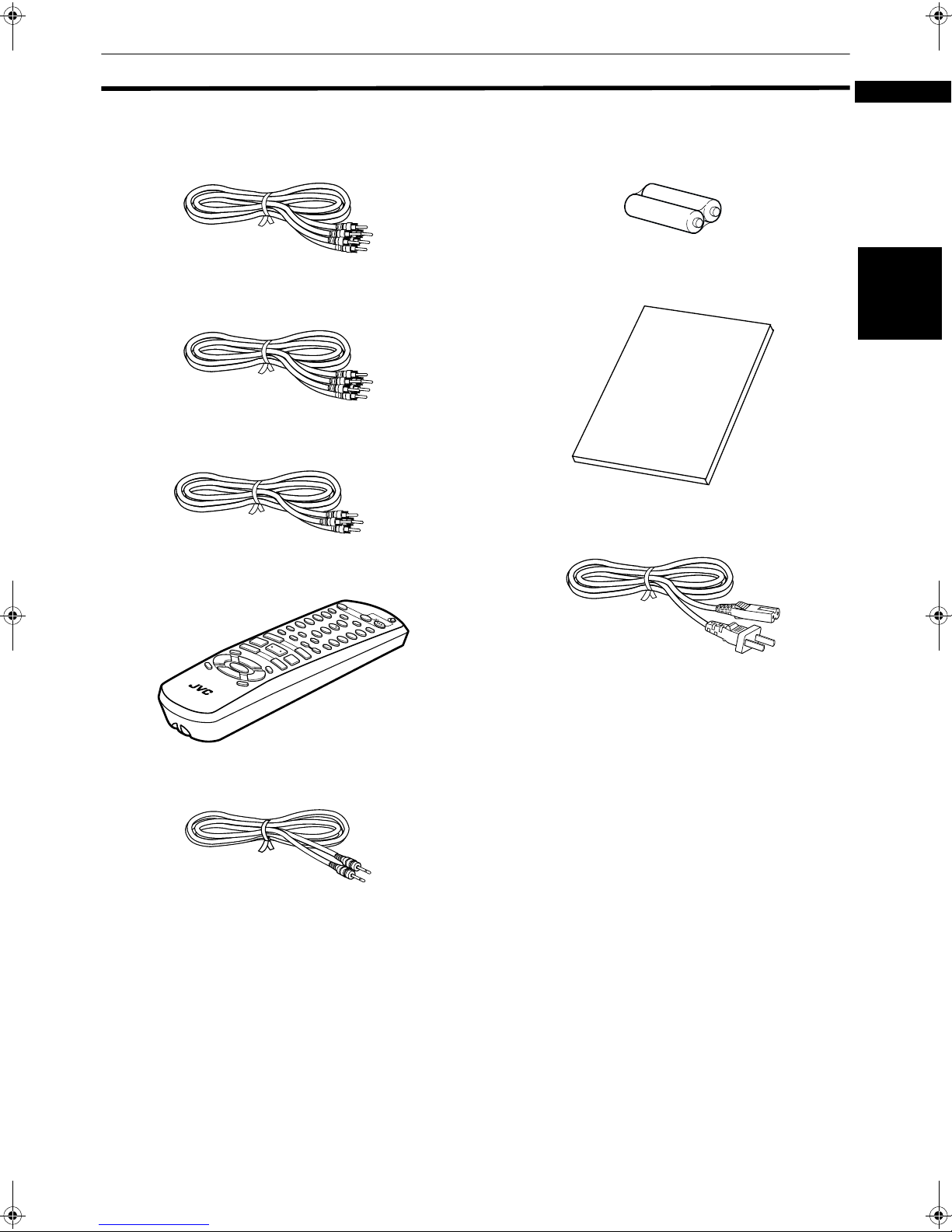

Supplied accessories..........................................................3
About this instruction manual ..........................................4
Notes on handling..............................................................5
Preliminary knowledge
Page 6
Names of parts and controls.............................................6
Front panel................................................................................6
Display window........................................................................7
Rear panel.................................................................................7
Remote control unit .................................................................8
Operational Principles......................................................10
On-screen displays.................................................................10
To prevent the monitor from burning out
[SCREEN SAVER] ................................................................12
On-screen guide icons ...........................................................13
How to use numeric buttons.................................................13
About discs .......................................................................14
Playable disc types.................................................................14
Audio formats.........................................................................14
Disc structure..........................................................................15
Getting started
Page 16
Connections ......................................................................16
Before making any connections ...........................................16
To connect to a conventional TV ..........................................16
To connect to a TV with the component video
input jacks............................................................................17
To connect to an audio amplifier or receiver.......................18
To connect to an amplifier/receiver equipped with
5.1-channel inputs...............................................................19
To connect to audio equipment with a digital input ...........20
To connect the power cord ...................................................21
Using the remote control unit.........................................21
To install batteries in the remote control unit .....................21
Remote sensor .......................................................................22
To use the remote control unit for TV operation.................23
Basic operations
Page 25
Turning on/off the unit ....................................................25
Inserting and removing discs..........................................25
Basic playback ..................................................................26
To start playback ....................................................................26
To stop playback completely ................................................26
To stop playback temporarily ...............................................26
To advance or reverse playback rapidly while
monitoring...........................................................................27
To locate the beginning of the scene or song .....................27
Resuming playback ..........................................................28
To memorize the interrupted position .................................28
To resume playback...............................................................28
Advanced operations
Page 29
Playing from a specific position on a disc......................30
To locate a desired scene from the DVD menu ...................30
To locate a desired scene from the menu of the
Video CD with PBC..............................................................30
To locate a desired selection using the numeric buttons...31
To locate a desired selection using 4or ¢...................32
To specify a desired chapter/track from the on-screen
display [CHAP. SEARCH/TRACK SEARCH] .......................32
To locate a desired position in the current title or track
[TIME SEARCH]...................................................................33
To locate a desired scene from the display [DIGEST] ........34
Special picture playback ................................................. 35
To advance a still picture
frame-by-frame ...................................................................35
To display continuous still pictures [STROBE]....................35
To playback in slow-motion [SLOW]....................................35
To zoom in/out [ZOOM].........................................................36
Changing the playback order ......................................... 37
To playback in the desired order [PROGRAM] ....................37
To playback in random order [RANDOM]...........................38
Repeat playback............................................................... 39
To repeat the current selection or all tracks [REPEAT] .......39
To repeat a desired part [A-B REPEAT]................................40
Selecting a scene angle of DVD VIDEO ......................... 41
To select a scene angle from the normal screen
[ANGLE]...............................................................................41
To select a scene angle from the angle list display
[ANGLE]...............................................................................42
Changing the language and sound................................ 43
To select the subtitle language [SUBTITLE] ........................43
To change the audio language or sound [AUDIO]..............44
Miscellaneous functions ................................................. 45
To adjust the picture character [VFP] ...................................45
To simulate surround sound [3D PHONIC]..........................46
To check the disc time [TIME SELECT] ................................47
To select a still picture on a DVD AUDIO disc [PAGE] ........48
To playback a bonus group of a DVD AUDIO disc ..............49
Changing the brightness of the display window.................49
Checking the sampling frequency ........................................50
MP3 disc playback
Page 51
About MP3 disc................................................................ 51
Operations........................................................................ 51
Basic operations.....................................................................51
Specifying the desired Group and Track .............................52
Repeat playback .....................................................................53
Initial settings
Page 54
Selecting preferences...................................................... 54
How to set preferences..........................................................54
Language and display preference ........................................54
Audio and system preference...............................................56
Speaker setting ......................................................................59
Limiting playback by children ........................................ 61
To set Parental Lock for the first time
[PARENTAL LOCK]..............................................................61
To change the settings [PARENTAL LOCK] ........................62
To temporarily release the Parental Lock
[PARENTAL LOCK] .............................................................63
Additional information
Page 64
AV COMPU LINK remote control system...................... 64
Connection and setup............................................................64
Operation................................................................................65
Care and handling of discs.............................................. 66
Troubleshooting .............................................................. 67
Specifications................................................................... 68
Table of languages and their abbreviations.. Appendix A
Country code list for parental lock..................Appendix B


2
Introduction
Introduction
Features
This unit is a compatible player for DVD VIDEO, DVD AUDIO, Audio CD and Video CD discs.
7
77
7Progressive Scan system
Supports the Progressive scan system, as well as the
conventional (current) Interlace scan system.
* To enjoy the progressive video picture, you must
connect the unit to a television or monitor that
supports the progressive video input.
7
77
7Special picture playback
Provides special picture playback functions such as
Strobe, Frame-by-frame, Zoom and Slow-motion.
7
77
7Angle function*
You can select a desired angle from multiple camera
angles recorded on the DVD VIDEO disc.
7
77
7VFP function
You can adjust the picture character according to the
type of programming, picture tone or personal
preferences.
7
77
7Parental lock*
You can restrict the playback of DVD VIDEO discs with
scenes which you do not want children to see, such as
adult or violent films.
7
77
7High quality digital sound
Supports audio formats for DVD AUDIO including
high sampling frequencies up to 192 kHz, the linear
PCM multichannel format, up to 24-bit resolution and
MLP, as well as the audio formats for DVD VIDEO such
as Dolby Digital 5.1 ch. and DTS.
• DOLBY DIGITAL
A surround audio format configured with six
channels. Because the “sub-woofer” channel, one of
the six channels, is an auxiliary channel, this format is
called “5.1-channel system.”
• DTS (Digital Theater Systems)
A surround audio format configured with six (5.1)
channels which is same as Dolby Digital. Because the
compression ratio is lower than Dolby Digital, it
provides wider dynamic range and better separation.
• MLP (Meridian Lossless Packing)
A format for DVD AUDIO with the compression ratio
of about 2:1 while allowing the PCM signal to be
completely recreated by the MLP decoder (required in
all DVD AUDIO players). It supports up to 192kHz/24-
bit.
•LinearPCM
Uncompressed digital audio, the same format used on
CDs and most studio masters.
DVD AUDIO supports up to 6 channels at sample rates
of 48/96/192 kHz (also 44.1/88.2/176.4 kHz) and sample
sizes of 16/20/24 bits, while DVD VIDEO supports
2 channels at sample rates of 48/96 kHz and sample
sizes of 16/20/24 bits.
Audio CD/Video CD is limited to 2 channels, 44.1 kHz
at 16 bits.
7
77
7Multichannel audio outputs
Provides the multichannel (5.1) analog audio outputs,
as well as the PCM/Bitstream digital audio outputs.
7
77
73D PHONIC function
You can enjoy Virtual surround sound with your
2 channel (stereo) system.
7
77
7Multi-language subtitles and sound*
You can select a subtitle or sound language from
those recorded on the DVD VIDEO disc.
7
77
7Operation from the on-screen display
User-friendly on-screen displays allow you to operate
the unit easily.
Functions with (*) mark only work on a DVD VIDEO disc
that is compatible with each function.
Picture features
Audio features
Other features


Introduction
3
Introduction
English

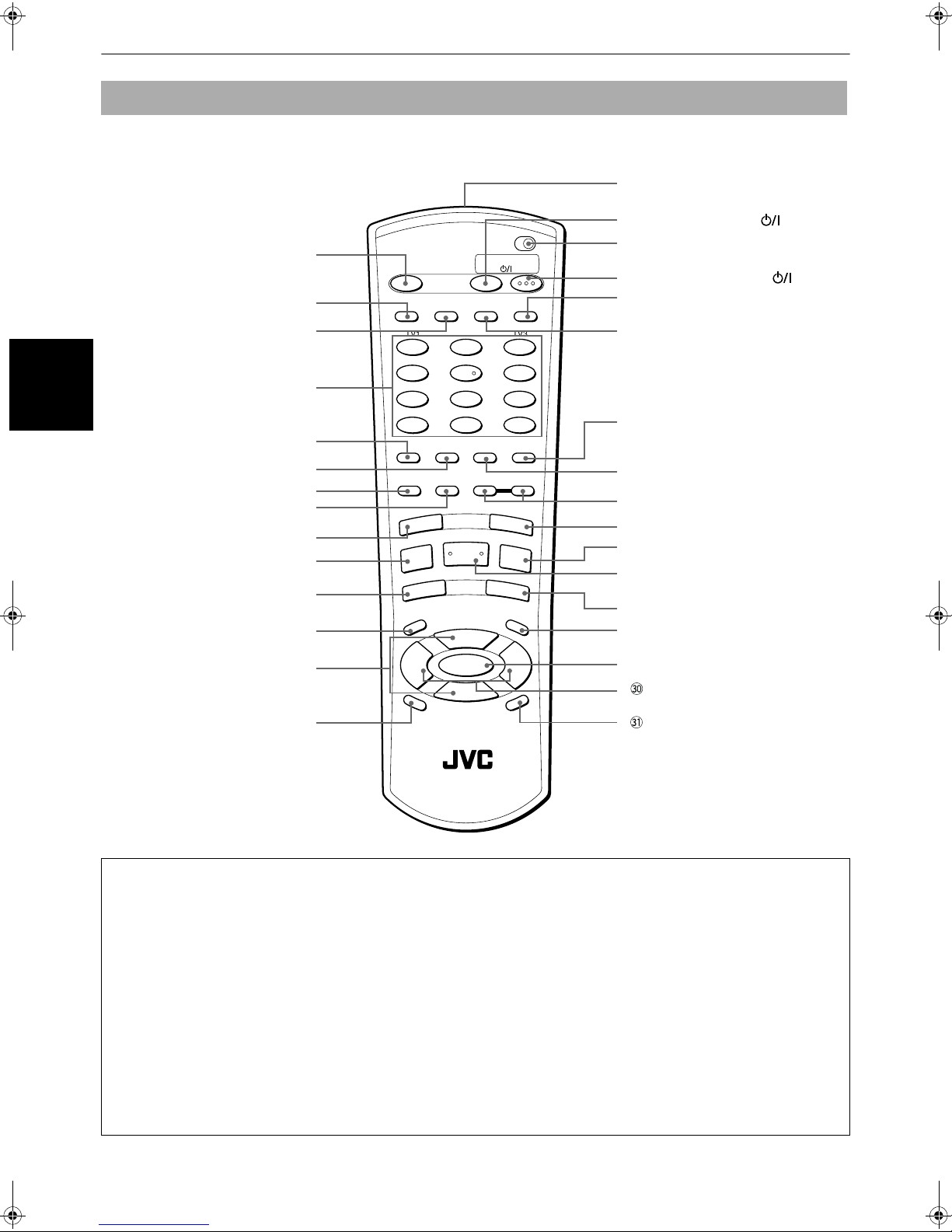

Supplied accessories
• Audio/video cable (x 1)
• Component video cable (x 1)
• Audio cable (x 2)
• Remote Control Unit (x 1)
• AV compluink cable (x 1)
• R6P(SUM-3)/AA(15F) batteries (x 2)
• Instruction manual (x 1)
• AC power cord (x 1)
S.FREQ
OPEN
/CLOSE
TVDVD
REPEAT3D
PHONIC TV/VIDEO
CANCEL
SUBTITLE
PAGE
ANGLE
TV1 TV2TV3
TV4TV5TV6
TV7 TV9
TV
-/-- TV0
VFP
AUDIO
PROGRESSIVE
SCAN
DIGEST
PREVIOUS
CLEAR
STROBE
SLOW
+
SLOW
-
TITLE
MENU
CHOICE
CH
+
SELECT
CH
-
VOL
+
VOL
-
ONSCREEN
+
ZOOM
-
RETURN
TVDVD
STANDBY/ON
TV8
NEXT
MENU
RM-SXVM50JREMOTECONTROL
123
56
89
0+10
10
7
4
ENTER
4
¢
1
¡
5
5
5
∞
7
8
3


Introduction
4
Introduction
About this instruction manual
• This instruction manual is written in the following manner.
• This unit can playback CD-R/RW discs recorded by the MP3 format (we refer to those discs as MP3 discs in this
manual).
• Regarding operations for MP3 discs, see “MP3 disc playback” on and after page 51. The other sections of this manual
basically do not refer to MP3 disc playback.
These symbols indicate
the types of discs which
the operation can be
used for.
The number indicates
the following procedural
step(s) in which the
button(s) is(are) used.
You may also use the
corresponding buttons
on the front panel of the
unit if available.
The names of buttons on
the remote control unit
(or on the front panel of
the unit) are all given in
uppercase letters.
The number
indicates the
procedural step.
Other convenient
procedures, etc.
1Press and hold ANGLE for more than 1
second.
2Use CURSOR 5/∞/2/3to select the desired
angle.
3Press ENTER or 3.
To select a scene angle from the angle
list display [ANGLE]
PROGRESSIVE
SCAN
OPEN
/CLOSE TV DVD
TV DVD
STANDBY/ON
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC TV/VIDEO CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
DIGEST PAGE
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW
-
MENU
MENU
CHOICE
ENTER
RM-SXVM50J REMOTE CONTROL
CH+
SELECT
CH
-
VOL
+
VOL
-
ON SCREEN
ZOOM + -
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
1
3
3
3
2
The selected camera angle
Up to nine camera
angles recorded on
a disc appear on the
TV screen.
The unit starts playback by the selected angle on
the full-sized screen.
NOTES
•When appears on the TV screen in step 1:
•During the operation above, audio is muted.
The current scene is not recorded from multiple angles.
÷During DVD VIDEO playback
S.FREQ
TOP


Introduction
5
Introduction
English
Notes on handling
Important cautions
Installation of the unit
•Select a place which is level, dry and neither too hot
nor too cold (between 5oC and 35oC, 41oF and 95oF).
•Leave sufficient distance between the unit and the TV.
•Do not use the player in a place subject to vibrations.
Power cord
•Do not handle the power cord with wet hands!
•A small amount of power (2.5 W) is always consumed
while the power cord is connected to the wall outlet.
•When unplugging the player from the wall outlet,
always pull the plug, not the power cord.
To prevent malfunction of the unit
•There are no user-serviceable parts inside. If anything
goes wrong, unplug the power cord and consult your
dealer.
•Do not insert any metallic object into the unit.
•Do not use any non-standard shape disc available on
the market, because it may damage the unit.
•Do not use a disc with tape, seals, or paste on it,
because damage to the unit may result.
Note about copyright laws
•Please check the copyright laws in your country before
recording from DVD AUDIO, DVD VIDEO, Audio CD,
Video CD and MP3 discs. Recording of copyrighted
material may infringe copyright laws.
Note about the copyguard system
•The DVD VIDEO disc is protected by the copyguard
system. When you connect the unit to your VCR
directly, the copyguard system activates and the
picture may not be played back correctly.
Safety precautions
Avoid moisture, water and dust
Do not place the unit in moist or dusty places.
Avoid high temperatures
Do not expose the unit to direct sunlight or place it near
a heating device.
When you are away
When away on travel or otherwise for an extended
period of time, remove the plug from the wall outlet.
Do not insert foreign objects into the unit
Do not insert wires, hairpins, coins, etc. into the unit.
Do not block the vents
Blocking the vents may damage the unit.
Care of the cabinet
When cleaning the unit, use a soft cloth and follow the
relevant instructions on the use of chemically-coated
cloths. Do not use benzene, thinner or other organic
solvents and disinfectants. These may cause
deformation or discoloring.
If water gets inside the unit
Turn off the power switch and remove the plug from the
wall outlet, then call the store where you made your
purchase. Using the unit in this state may cause a fire or
electrical shock.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
Manufactured under license from Dolby Laboratories. “Dolby”, “MLP Lossless”and the double-D symbol are
trademarks of Dolby Laboratories.
Confidential unpublished works.
©1992-1998 Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. “DTS”, “DTS Digital Surround”, are trademarks of Digital Theater Systems, Inc.
©1996 Digital Theater Systems, Inc. All Rights Reserved.


6
Preliminary
knowledge
Preliminary knowledge
Names of parts and controls
Refer to the corresponding pages indicated in () for details.
Front panel
1STANDBY/ON indicator
Lights in red when the power cord is connected and
the unit is on standby. When the unit is turned on,
the STANDBY indicator lights in green.
2STANDBY/ON button (25)
Turns the unit on or off (standby).
3Remote sensor (22)
Receives signals from the remote control unit.
4Disc tray (25)
Used to load a disc.
50(OPEN/CLOSE) button (25)
Used to open and close the disc tray.
6DVD AUDIO indicator
Lights when a DVD AUDIO disc is loaded.
7PROGRESSIVE indicator (17)
Lights up when the Progressive scan mode is active.
It lights in green during playback of a film-source DVD
VIDEO disc when “PROGRESSIVE MODE”in
“PREFERENCE 1”is set to “SMART”, “FILM”or
“AUTO.”In other conditions when the Progressive
scan mode is active, it lights in red.
8Display window (7)
Indicates the current status of the unit.
94/¢(SKIP) buttons (27, 51)
Used to skip a chapter, title or track. Also, used for
the page selection of a menu screen (for Video CD).
Holding down 4or ¢during playback reverses or
advances playback rapidly (except MP3 disc).
07(STOP) button (26, 51)
Stops playback.
-3(PLAY) button (26, 51)
Starts playback. Also, used as a SELECT button for
PBC of Video CDs.
=8(PAUSE) button (26, 51)
Pauses playback. Also, used to display nine
continuous still pictures (STROBE function).
STANDBY/ON
STANDBY/ON
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
PROGRESSIVEDVD AUDIO
DVD/VIDEO CD /CD
XV-SA70 DVD AUDIO/DVD VIDEO/CD PLAYER
1STANDBY/ON indicator
3Remote sensor
50(OPEN/CLOSE) button
2STANDBY/ON
button 4Disc tray
8Display window
7PROGRESSIVE indicator
6DVD AUDIO indicator
=8(PAUSE) button
-3(PLAY) button
07(STOP) button
94/¢(SKIP) buttons


Preliminary knowledge
7
Preliminary
knowledge
English

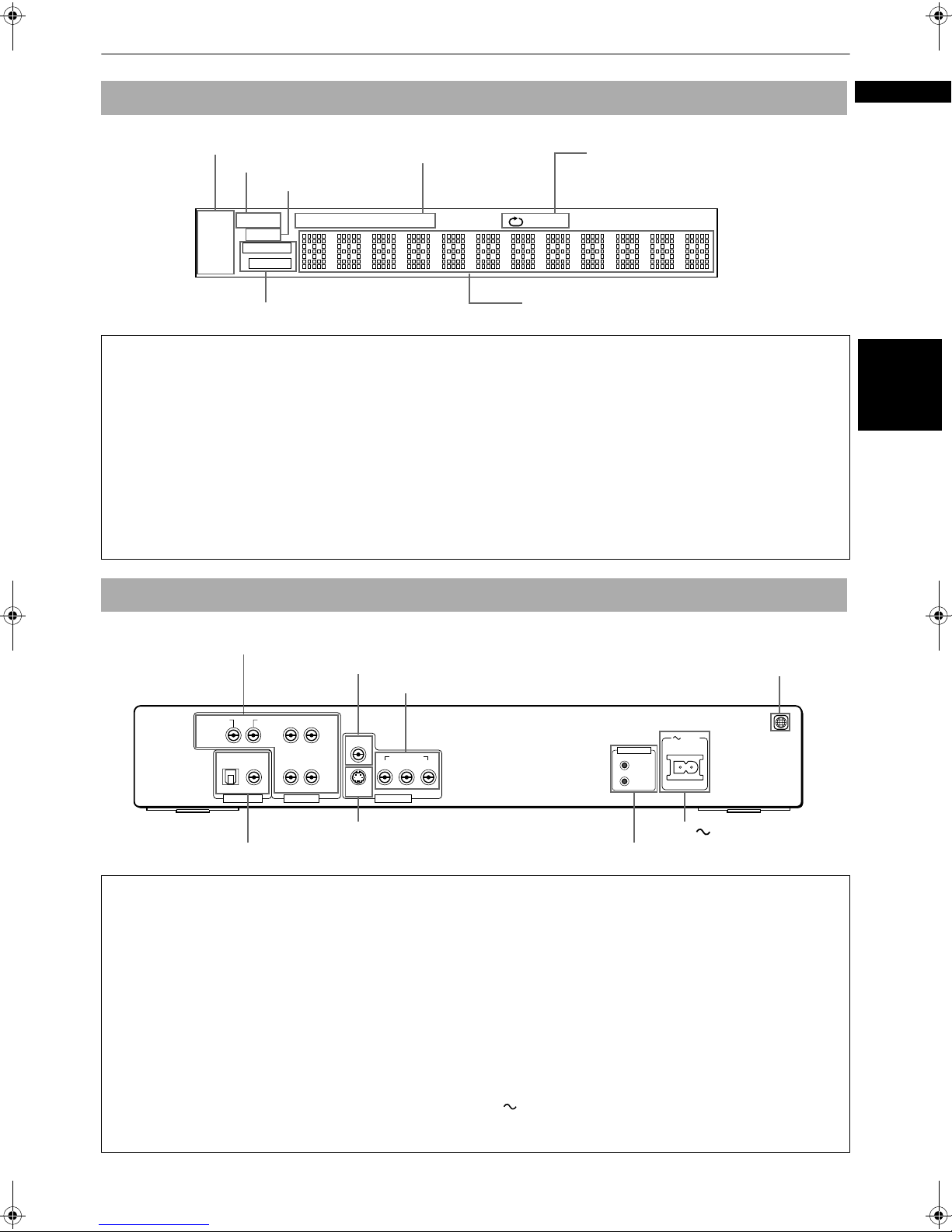

Display window
1Audio format indicators
Indicates the format of audio currently being played back.
See “Audio formats”on page 14 for details.
2Disc indicator
Indicates the type of the disc set in the tray. When a DVD
Audio/DVD VIDEO disc is set, “DVD”lights up. When a
Video CD disc is set, “VCD”lights up. When an Audio CD
is set, “CD”lights up.
33
33
3(play)/8
88
8(pause) indicators
3
33
3or 8
88
8illuminates during playback or while paused,
respectively.
Neither of them illuminates while stopped.
4Group/title/track/chapter indicators
One or more appropriate indicators illuminate according
to the disc inserted.
5Repeat mode indicators
The appropriate indicator illuminates according to the
current repeat mode.
6PROGRAM/RANDOM indicators
The appropriate indicator illuminates while the unit is
in the Program or Random playback mode.
7Multi-information window
Displays the current group/title/track/chapter number(s),
time and status information.
Rear panel
1AUDIO OUT jacks (16, 17)
Outputs the multichannel signals of a DVD AUDIO disc
recorded by the linear PCM multichannel format or a
DVD VIDEO disc recorded by the Dolby Digital
surround or DTS format. FRONT jacks also output
stereo analog audio signals.
2VIDEO OUT - VIDEO jack (16)
Outputs a composite video signal.
3VIDEO OUT - COMPONENT jacks (Y/PB/PR) (17)
Output component video signals.
These jacks can output the Progressive scan signals as
well as the conventional Interlace scan signals.
See “How to make the Progressive scan mode active”
on page 17 for details.
4Region code label (14)
Indicates the region code of the unit.
5DIGITAL OUT jacks (OPTICAL/COAXIAL) (20)
Outputs digital audio signals. You must select the
signal type correctly according to the external device
connected to via the Preference display. Both the
OPTICAL and COAXIAL connectors are provided.
6VIDEO OUT - S-VIDEO jack (16)
Outputs an S-video signal.
7AV COMPU LINK jacks (64)
Connects with other JVC equipment supporting the AV
Compulink function to facilitate integrated operations.
8AC IN connector (21)
Connects to the wall outlet using the suppplied AC
power cord.
VCDVD
TITLEGROUP TRACK CHAP A
-
B1
PROGRAM
RANDOM
8
3
2Disc indicator
33(play)/8(pause)
indicators
4Group/title/track/
chapter indicators
5Repeat mode indicators
7Multi-information window
6PROGRAM/RANDOM indicators
LPCM
MPEG
DOLBY
DIGITAL
DTS
1Audio format indicators
1AUDIO OUT jacks
3VIDEO OUT - COMPONENT jacks (Y/P
B /P R )
5DIGITAL OUT jacks (OPTICAL/COAXIAL) 7AV COMPU LINK jacks
8AC IN connector
2VIDEO OUT - VIDEO jack
6 VIDEO OUT - S-VIDEO jack
4Region code label
1
VIDEO OUT
AC IN
DIGITAL OUT
VIDEO
RIGHT
COMPONENT
S-VIDEO
YP
B P R
PCM / STREAM
COAXIALOPTICAL
AV COMPU LINK
LEFT
FRONT
REAR
RIGHT LEFTSUBWOOFER
CENTER
AUDIO OUT


Preliminary knowledge
8
Preliminary
knowledge
Remote control unit
1OPEN/CLOSE button (25)
Opens and closes the disc tray.
2REPEAT button (39, 53)
Selects the repeat mode.
33D PHONIC button (46)
Produces a simulated surround effect.
4Numeric buttons (13, 23)
When the TV - DVD switch is set to DVD, these buttons
are used to specify a title, chapter, track or group
number.
Also used to enter a time for the Time search and a
chapter number for the Chapter search.
When the TV - DVD switch is set to TV, these buttons
are used to select a TV channel as well as mute the TV
audio.
5ANGLE button (41, 42, 49)
Changes camera angles during playback of a DVD
VIDEO disc containing multiple camera angles.
Also used to change the brightness of the display
window.
6SUBTITLE button (43)
Used to display the subtitle selection display on the
TV screen, as well as used to turn the subtitle on or off
(for DVD VIDEO).
7DIGEST button (34)
Displays beginning scenes of each title, chapter or
track on the TV screen (for DVD VIDEO/Video CD).
PROGRESSIVE
SCAN
S.FREQ
OPEN
/CLOSE TV DVD
TV DVD
STANDBY/ON
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC TV/VIDEO CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
DIGEST PAGE
PREVIOUS
NEXT
CLEAR
STROBE
SLOW+
SLOW
-
TOP
MENU
MENU
CHOICE
ENTER
RM-SXVM50J REMOTE CONTROL
CH+
SELECT
CH
-
VOL
+
VOL
-
ONSCREEN
ZOOM
-
+
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
1OPEN/CLOSE button
2REPEAT button
33D PHONIC button
4Numeric buttons
5ANGLE button
6SUBTITLE button
7DIGEST button
8PAGE button
94/PREVIOUS button
07/CLEAR button
-1/SLOW–button
=TOP MENU button
~CURSOR(5Up, ∞Down)
- CH(+/–) buttons
!CHOICE button
@Infrared signal-emitting
window
#TV STANDBY/ON button
^RETURN button
$TV - DVD switch
%DVD STANDBY/ON button
&TV/VIDEO - CANCEL
button
*VFP - PROGRESSIVE SCAN
button
(AUDIO - S.FREQ button
)ZOOM +/–buttons
_¢/NEXT button
+8/STROBE button
™¡/SLOW
+ button
¡3/SELECT button
£MENU button
¢ENTER button
¢CURSOR (2Left, 3Right)
- VOL (+/–) buttons
§ON SCREEN button
 

Preliminary knowledge
9
Preliminary
knowledge
English
8PAGE button (48)
Turns the page of B.S.P. (still picture) for a DVD AUDIO
disc.
94/PREVIOUS button (27, 32, 51)
Skips back a chapter, title, group or track. Also used for
the page selection of a menu screen (for DVD VIDEO/DVD
AUDIO/Video CD).
Holding down this button during playback reverses
playback rapidly (except MP3 disc).
07/CLEAR button (26, 37, 51)
Stops playback. Also used to clear all the programmed
selection for the program play.
-1/SLOW– button (27, 35)
Pressing this button during playback reverses playback
rapidly (except MP3 disc).
Pressing this button while a DVD VIDEO disc is paused
reverses playback slowly.
=TOP MENU button (30)
Displays the top menu of a DVD AUDIO disc or the title
menu of a DVD VIDEO disc on the TV screen.
~CURSOR (5Up, ∞Down) - CH (+/–) buttons
When the TV - DVD switch is set to DVD, these buttons
are used to select an item from a menu or on-screen
display, or to change the setting of an on-screen
display item.
In this case, we call them “CURSOR 5/∞” buttons in
this manual.
When the TV - DVD switch is set to TV, they are used
to select a TV channel.
!CHOICE button (54)
Brings up the preference on-screen display on the TV
screen.
@Infrared signal-emitting window (22)
Point this window toward the remote sensor on the
front panel when pressing buttons.
#TV STANDBY/ON button (23)
Turns the TV on or off (standby).
$TV - DVD switch (13, 23, 29)
When setting this switch to “TV”, the numeric, cursor
and TV/VIDEO - CANCEL buttons are used to control
your TV.
When setting it to “DVD”, these buttons are used to
control the unit.
%DVD STANDBY/ON button (25)
Turns the unit on or off (standby).
^RETURN button (31)
Returns to the previous menu (for DVD AUDIO/DVD
VIDEO/Video CD).
&TV/VIDEO - CANCEL button (23, 29)
Switches the TV input mode when the TV - DVD switch
is set to TV.
Cancels the last selection of the program when the
TV - DVD switch is set to DVD.
*VFP - PROGRESSIVE SCAN button (17, 45)
Pressing this button brings up the VFP window in
which you can select or adjust the picture character.
Holding down this button for a few seconds switches
the scan mode between the Progressive scan and
Interlace scan modes. See “How to make the Progressive
scan mode active” on page 17 for details.
(AUDIO - S.FREQ button (44, 50)
Selects the audio (for DVD AUDIO/DVD VIDEO/Video CD).
By pressing this button for more than one second during
playback, the current sampling frequency is shown in the
display window for a while.
)ZOOM +/– buttons (36)
Zooms in or out the picture (for DVD VIDEO/Video CD).
_¢/NEXT button (27, 32, 51)
Skips forward a chapter, title, group or track. Also used for
the page selection of a menu screen (for DVD VIDEO/DVD
AUDIO/Video CD).
Holding down this button during playback advances
playback rapidly (except MP3 disc).
+8/STROBE button (26, 35, 51)
Pauses playback. Also, used to display nine continuous
still pictures (STROBE function).
Pressing this button while paused advances the still
picture frame-by-frame.
¡3/SELECT button (26, 30, 51)
Starts playback. Also used as a SELECT button for PBC
of Video CDs.
¡/SLOW+ button (27, 35)
Pressing this button during playback advances
playback rapidly (except MP3 disc).
Pressing this button while a DVD VIDEO or Video CD
disc is paused advances playback slowly.
£MENU button (30)
Displays a DVD menu on the TV screen.
¢ENTER button
Executes the selected item in a menu or on-screen
display.
CURSOR (2Left, 3Right) - VOL (+/–) buttons
When the TV - DVD switch is set to DVD, these buttons
are used to select an item from a menu or on-screen
display, or to change the setting of an on-screen
display item.
In this case, we call them “CURSOR 2/3” buttons
in this manual.
When the TV - DVD switch is set to TV, they are used to
change the TV audio volume.
§ON SCREEN button
Brings up an appropriate on-screen display for
controlling advanced functions for the current disc on
the TV screen.


Preliminary knowledge
10
Preliminary
knowledge
Operational Principles
You can set preferences and perform advanced playback
functions via various on-screen displays, including the
Opening, Preference, Speaker setting, Parental lock and
Control displays.
Basic operations of on-screen displays
•You can move using the CURSOR 5/∞/2/3buttons
to select items you want to work with.
•With an item like you can change the setting
by using the CURSOR 2/3buttons when is on
the item.
•- type item works when you place on the
item and press ENTER.
•In the message box, the operation to be performed is
displayed according to the item pointed by .
•Numbers are entered using the numeric buttons.
•Some functions become effective by pressing ENTER
after specifying necessary entries.
Opening display
An opening display appears automatically (without
pressing any buttons) in some conditions.
The display shown on the right appears when the unit
turns on with no disc inserted.
One of the displays shown on the right appears when a
disc is set and stopped. For a disc that does not contain
any picture (such as an Audio CD), the opening display
does not disappear after starting playback.
On-screen displays
1 / 3
REPEAT
(for Audio CD)
(for DVD AUDIO)
PROGRESSIVE
SCAN
S.FREQ
ENTER
Numeric
buttons
CURSOR
5/∞/2/3
OPEN
/CLOSE TV DVD
TV DVD
STANDBY/ON
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC TV/VIDEO CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
DIGEST PAGE
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW
-
TOP
MENU
MENU
CHOICE
ENTER
RM-SXVM50J REMOTE CONTROL
CH+
SELECT
CH
-
VOL
+
VOL
-
ON SCREEN
ZOOM +
-
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
(for DVD VIDEO)
(for Video CD)


Preliminary knowledge
11
Preliminary
knowledge
English
PREFERENCE (1, 2) and SPK.SETTING
(speaker setting) displays (see page 54)
You can set preferences via these displays.
•To bring up the PREFERENCE 1/PREFERENCE 2/
SPK.SETTING display
1When a DVD VIDEO disc is set and stopped or no
disc is inserted, press CHOICE.
2To select the display, move to the desired tab
using the CURSOR 2/3buttons.
PARENTAL LOCK display (see page 61)
You can set the parental lock from this display.
•To bring up the PARENTAL LOCK display
When no disc is inserted or a DVD VIDEO disc is
stopped, press ENTER while holding down 7.
DVD CONTROL (for DVD VIDEO) display
You can select and set various functions for DVD VIDEO
playback from this display.
This display is avairable only during DVD VIDEO
playback.
•To bring up the DVD VIDEO CONTROL display
During DVD VIDEO playback, press ON SCREEN.
DVD CONTROL (for DVD AUDIO) display
You can select and set various functions for DVD AUDIO
playback from the display.
There are two types of DVD AUDIO CONTROL display.
One is shown during playback of pictures together with
audio, while the other is shown during playback of audio
only or while stopped.
•To bring up a DVD AUDIO CONTROL display
Press ON SCREEN when a DVD AUDIO is inserted.
One of the displays above appears according to the
disc contents and the unit's status.
PREFERENCE2 SPK. SETTINGPREFERENCE1
MENU LANGUAGE
ENGLISH
AUDIO LANGUAGE
ENGLISH
OFF
SUBTITLE
ON SCREEN LANGUAGE
ENGLISH
ON SCREEN GUIDE
ON
MONITOR TYPE
PRESS KEY
4.3LB
PROGRESSIVE MODE
AUTO
( PREFERENCE1 )
PREFERENCE2PREFERENCE1 SPK. SETTING
DIGITAL AUDIO OUTPUT
STREAM/PCM
DOWN MIX
Lo/ Ro
COMPRESSION
DTS BASS MANAGEMENT
ON
OFF
AUTO STANDBY
OFF
SCREEN SAVER
PRESS KEY
MODE1
AV COMPULINK MODE
DVD1
( PREFERENCE2 )
PARENTAL LOCK
Country Code US
Set Level NONE
PASSWORD ––––
EXIT
NEW PASSWORD? •••PRESS 0~9 KEY
St. End
010Mb
TITLE
TIME
3
CHAPTER
3
1 : 34 : 58
PRESS ENTER EXECUTE CHAP.SEARCH
TIME SEARCH
A-B REPEAT
REPEAT
1 / 3
AUDIO
SUBTITLE
2 / 3
ANGLE
1 / 3
TITLE. REPEAT
TITLE
TIME
3
CHAPTER
3
1 : 34 : 58
St. End
010Mb
Current relative
position of the
title
(St: start,End: end)
Current
title
number
Current
chapter
number
Elapsed time from
the beginning
of the current title
Transmission rate
SPK.SETTING
5.1 CHANNEL
LEVEL
DELAY
TEST TONE
F. SP Large
C. SP Small
R. SP Small
S.woofer
BASS
PREFERENCE2PREFERENCE1
PRESS KEY
(SPK. SETTING)
St. End
010Mb
GROUP
TIME
3
TRACK
3
1 : 34 : 58
PRESS ENTER EXECUTE TRACK SEARCH
TIME SEARCH
A-B REPEAT
REPEAT
PAGE
2 / 3
AUDIO
1 / 3
GROUP REPEAT
(During playback of pictures
together with audio)
GROUP
TIME
3
TRACK
3
1 : 34 : 58
St. End
010Mb
Current relative
position of the
title (St: start,
End: end)
Current
group
number
Current
track
number
Elapsed time from
the beginning of
the current title
Transmission rate
AUDIO
2 / 3
TRACK TIME
GROUP 23 2:34:58
2
EACH
REMAIN
RANDOM
PROGRAM
TIME SEARCH
A-B REPEAT
REPEAT
TIME SELECT
PRESS ENTER EXECUTE
REPEAT ALL
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
17 18 19 20 21 22 23 24
(During playback audio only
or while stopped)


Preliminary knowledge
12
Preliminary
knowledge

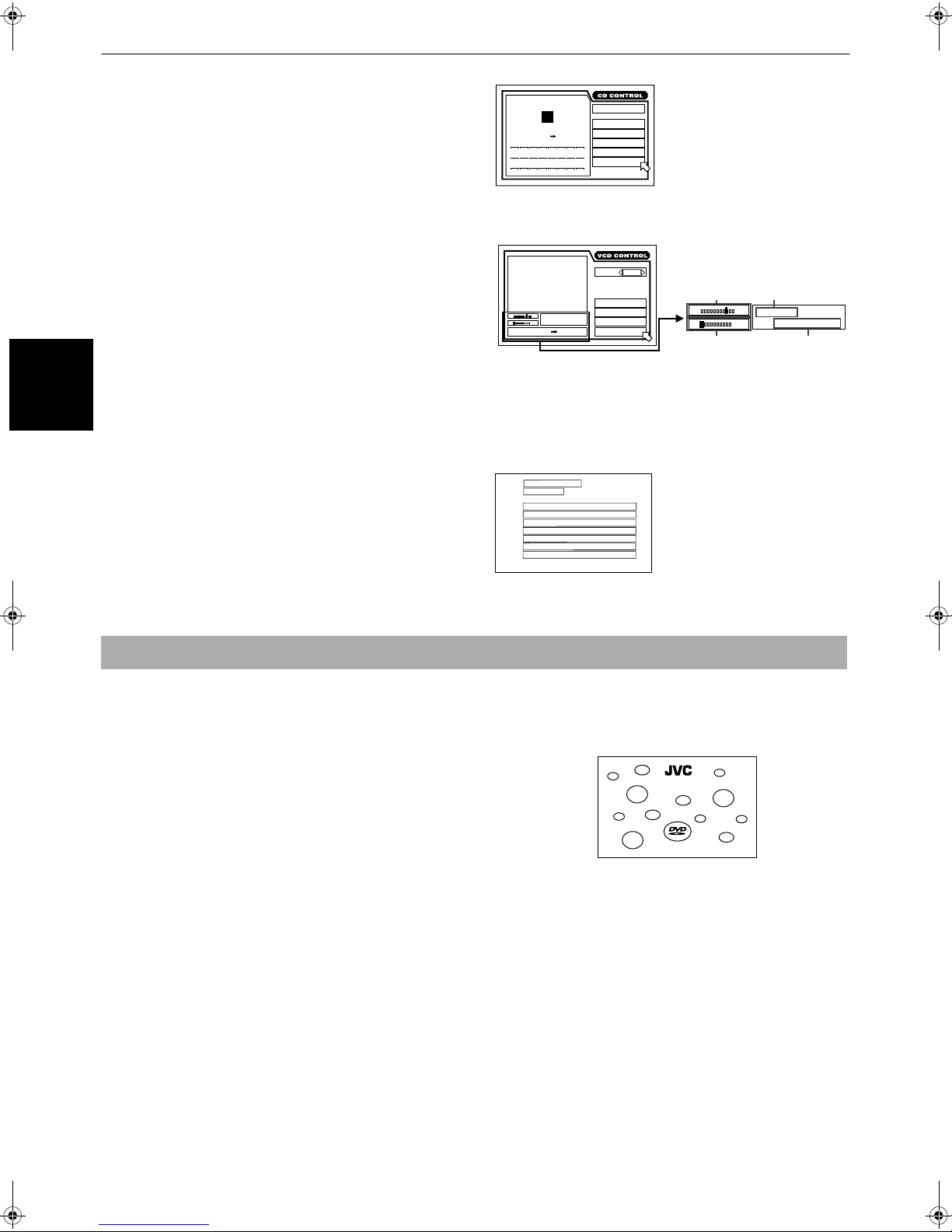

CD CONTROL display
You can select and set various functions for Audio CD
playback from this display.
•To bring up the CD CONTROL display
Whenever an Audio CD is inserted, press ON SCREEN.
VCD CONTROL display
There are two types of VCD CONTROL display. The
display shown on the right is avairable only during Video
CD playback.
When a Video CD disc is stopped, a display similar to the
CD CONTROL display appears.
•To bring up the VCD CONTROL display
Press ON SCREEN when a Video CD is inserted. The
appropriate display appears according to the unit's
status.
MP3 CONTROL display (see page 51)
The display shown on the right appears when a MP3 disc
is set. You can select the desired Group to be played
back.
A television monitor screen may be burned out if a static
picture is displayed for a long time. To prevent this, the
unit automatically activates the screen saver function if a
static picture, such as an on-screen display or menu, is
displayed for over 5 minutes.
•Pressing any buttons on the unit or the remote control
unit will release the screen saver function and return to
the previous display.
•You can select one of several screen saver modes
available (see page 58).
•The screen saver function is not activated during
Audio CD/MP3 disc playback or after stopping Audio
CD/MP3 disc playback.
TRACK
TIME
3
4 : 58
PBC CALL
TIME SEARCH
A-B REPEAT
REPEAT
AUDIO
ST
PRESS ENTER EXECUTE
St. End
010Mb
REPEAT ALL
TRACK
TIME
3
4 : 58
St. End
010Mb
Current relative
position of the
track
(St: start, End: end) Current track
number
Elapsed time from
the beginning of
the current track
Transmission rate
MP3 CONTROL
GROUP: /
TRACK 3 : 54TIME1
MIN SEC
EACH
REMAIN
RANDOM
PROGRAM
TIME SEARCH
A-B REPEAT
REPEAT
TIME SELECT
REPEAT ALL
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
17 18 19 20 21 22 23 24
PRESS ENTER EXECUTE
To prevent the monitor from burning out [SCREEN SAVER]
DVD/Video CD/CD PLAYER


Preliminary knowledge
13
Preliminary
knowledge
English
On-screen guide icons
During DVD VIDEO playback, you may see icons displayed over the picture. These have
the following meanings.
: Displayed at the beginning of a scene recorded from multiple angles. (See page 41.)
: Displayed at the beginning of a scene recorded with multiple audio languages.
(See page 44.)
: Displayed at the beginning of a scene recorded with multiple subtitle languages.
(See page 43.)
You can set the unit not to display on-screen icons above via the preference settings
described on page 55.
About invalid operation icon
When you press a button, if the unit does not accept its operation, appears on your
television screen. Operations are occasionally unacceptable even if is not displayed.
Note that some operations may not be accepted. For example, some discs may not allow
rapid advance/reverse or slow-motion playback.
How to use numeric buttons
The function of the numeric buttons differs depending on the setting of the TV - DVD
switch. When setting it to TV, the buttons are used to select a TV channel (see page 23).
When setting it to DVD, the buttons are used to select a track/title/group or enter a disc
time or chapter number.
To select a track/title/group number
•To select a number between 1 and 10
Press the corresponding button for the number.
•To select a number higher than 10
Use the +10 button.
Examples:
To select 13 +10 →3
To select 34 +10 →+10 →+10 →4
To select 40 +10 →+10 →+10 →10
To enter a time or chapter number
The method for entering a time for Time search or chapter number for Chapter search is
different from above. See the corresponding sections in this manual for the details.
* There is another method for selecting a track or group of an MP3 disc. See the
appropriate section.
To select a TV channel
Press the corresponding numeric buttons. See page 23 and 24 for details.
S.FREQ
PROGRESSIVE
C
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC TV/VIDEO CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
RETURN
TV DVD
TV DVD


Preliminary knowledge
14
Preliminary
knowledge
About discs
Playable and non-playable disc types are as follows:
Playable discs
The DVD Logo is a trademark.
•CD-R and CD-RW discs recorded with the Audio CD or MP3 format can be played back, though some may not be played
back because of the disc characteristics or recording condition.
•DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This unit only can play back DVD
VIDEO discs whose Region Code numbers include “1”.
Examples of playable DVD VIDEO discs:
This unit accommodates both the NTSC and PAL system and can playback discs recorded with either system.
Note that the PAL video signal on disc is converted to an NTSC signal and output.
Non-playable discs
DVD-ROM, DVD-RAM, DVD-R, DVD-RW, CD-ROM, PHOTO CD, CD-EXTRA, CD-G, CD-TEXT
•Playing back discs listed as “Non-playable discs”above may generate noise and damage speakers.
•This unit can play back audio recorded in CD-G, CD-EXTRA and CD-TEXT discs.
There are some formats of audio recorded on discs as shown below. The associated indicator lights up in the display
window when playing back a disc.
Note that, with some formats and/or depending on the unit's “DIGITAL AUDIO OUTPUT”setting, digital audio signals are
not always output from the unit's DIGITAL output jacks as are recorded on the disc.
See “DIGITAL AUDIO OUTPUT”on page 56 for details.
Playable disc types
DVD AUDIO DVD VIDEO Video CD Audio CD
Audio formats
Indicator Audio format
LPCM Linear PCM
MPEG MPEG Multichannel
DOLBY DIGITAL Dolby Digital
DTS DTS (Digital Theater Systems)
AUDIO
VIDEO
ALL 151 4
2
3
13
2
1
6
5
4


Preliminary knowledge
15
Preliminary
knowledge
English
A DVD VIDEO disc is comprised of “titles”and each title may be divided into some “chapters”. For example, if a DVD
VIDEO disc contains some movies, each movie may have its own title number, and each movie may be divided into some
chapters. In a DVD VIDEO KARAOKE disc, each song usually has its own title number and does not have chapters. A DVD
AUDIO disc is comprised of “groups”, and each group is comprised of “tracks”. Some DVD AUDIO discs also contain a
“bonus group”that can be played back by entering the “key number”(a kind of password). Usually the contents of a
“bonus group”are not opened to the public. Note that most DVD AUDIO discs include other information in addition to
audio, such as still pictures, movies and text. An Audio CD or Video CD is simply comprised of “tracks.”
(Example: DVD VIDEO disc)
(Example: DVD AUDIO disc)
(Example: Audio CD/Video CD)

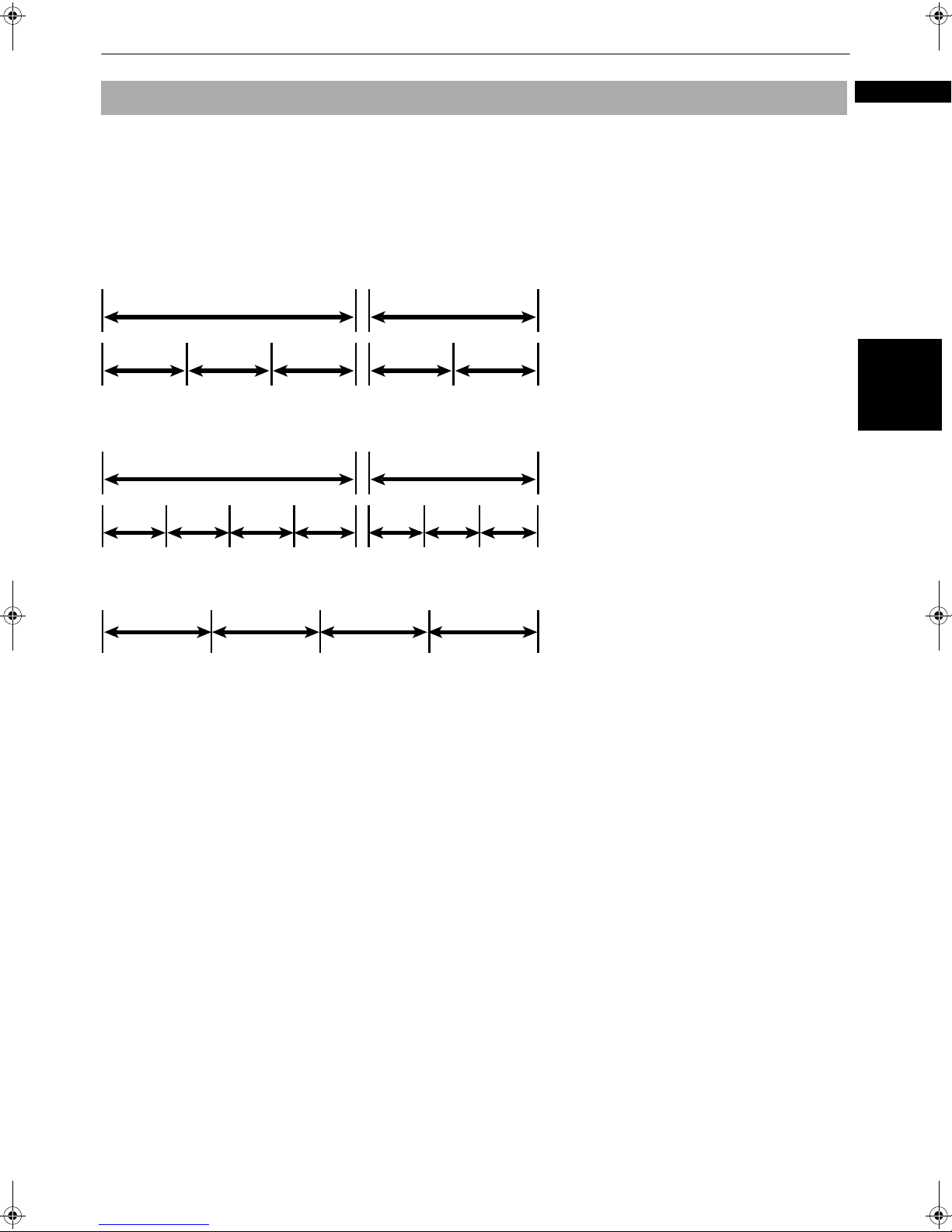

Disc structure
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
Title 1 Title 2
Track 1 Track 2 Track 3 Track 4 Track 1 Track 2 Track 3
Group 1 Group 2
Track 1 Track 2 Track 3 Track 4


16
Getting started
Getting started
Connections
*In the following description, “TV”may be substituted with “monitor”or “projector.”
*Before using the unit, you have to connect the unit to a TV and/or amplifier.
•Do not connect the AC power cord until all other connections have been made.
•Since different components often have different terminal names, carefully read the instructions supplied with the
component you are going to connect.
You can enjoy playback by simply connecting the unit to a TV. To improve audio sound quality, connect the AUDIO OUT
jacks to your separate audio equipment. (See the following pages.)
Connect the unit to a TV equipped with stereo audio input and video input jacks using the supplied audio/video cables.
•If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo
audio output to monaural.
•If your TV has an S-video input, you can get better picture quality by connecting it with the S-VIDEO output of the unit
using the S-video cable (optional) in addition to the (standard) video connection.
Before making any connections

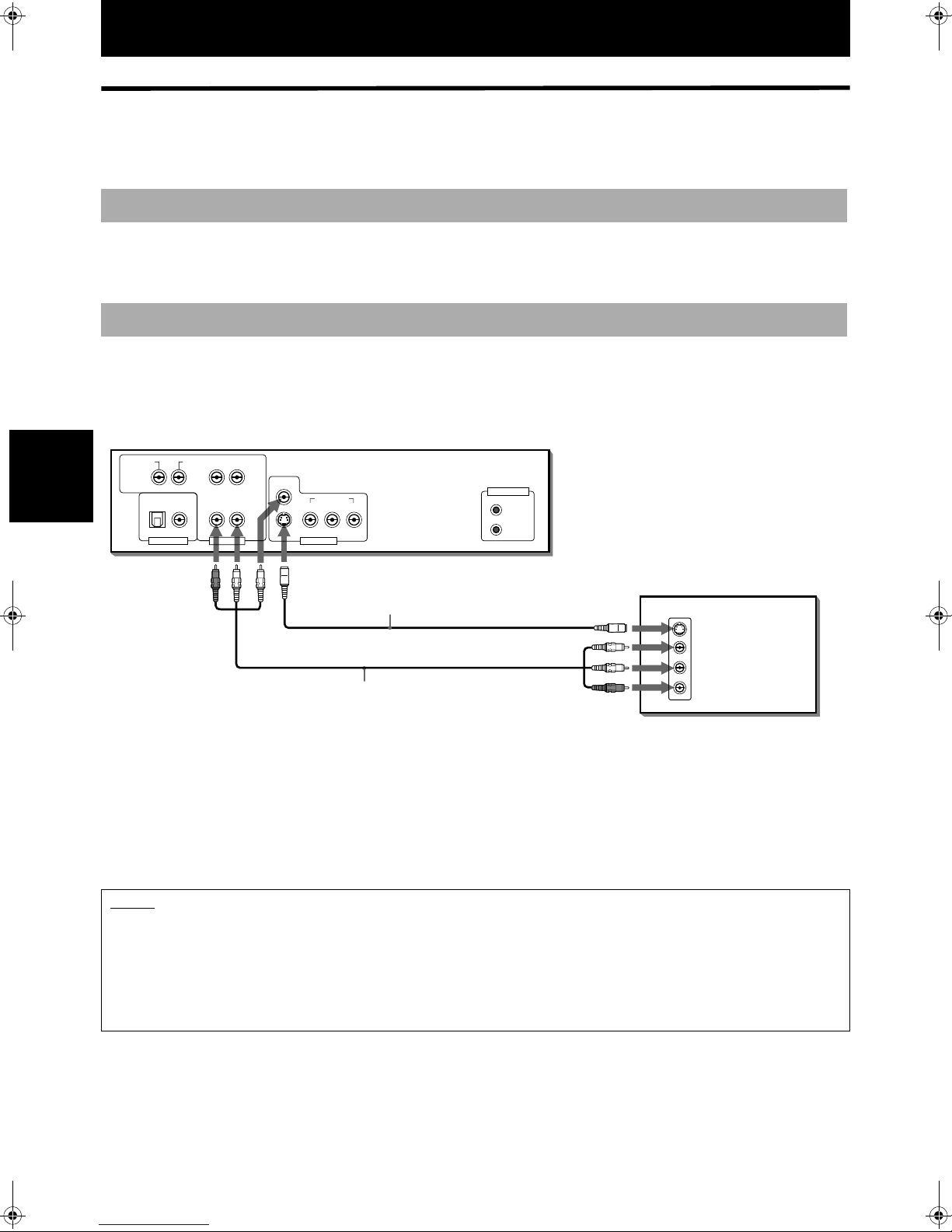

To connect to a conventional TV
NOTES
•When connecting to a TV using the VIDEO OUT jack, make sure that the PROGRESSIVE indicator on the front panel is not lit. If
it is lit, the VIDEO and S-VIDEO outputs do not feed the correct signals. To turn off the PROGRESSIVE indicator, see “How to
make the Progressive scan mode active”on page 17.
•When making the audio connection using the FRONT (LEFT and RIGHT) jacks, set “DOWN MIX”in “PREFERENCE 2”to “Lo/
Ro”and the Speaker setting in “SPK. SETTING”to “2 CHANNEL”(see page 57 and 59).
•Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may
cause a monitor problem when playing back a copy-protected disc.
If theTV has an AV COMPU LINK terminal,
you can use the AV COMPU LINK function.
See “AV COMPU LINK remote control
system”on page 64 for details.
Yellow
Audio/Video cable
(supplied)
White
Red
S-video cable
(not supplied)
Red
White Yellow
AV COMPU LINK
VIDEO OUTDIGITAL OUT
RIGHT
COMPONENT
S-VIDEO
YP
BPR
PCM / STREAM
COAXIALOPTICAL
LEFT
VIDEO
The unit
FRONT
REAR
RIGHT LEFTSUBWOOFER
CENTER
AUDIO OUT
T V
VIDEO
AUDIO
RIGHT
LEFT
S-VIDEO
IN


Getting started
17
Getting started
English
You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT VIDEO IN
jacks of your TV with the video cables.
The unit supports the Progressive scan system as well as the conventional Interlace scan system. If your television or
monitor supports the progressive video input, you can enjoy a high quality picture by making the Progressive scan mode
active.
How to make the Progressive scan mode active
Press and hold down the VFP - PROGRESSIVE SCAN button for a few seconds.
The scan mode switches between the Progressive scan and Interlace scan modes. When the Progressive is selected, the
PROGRESSIVE indicator on the front panel is lit.
•You should note that not all ProgressiveTV and High-Definition TV sets are fully compatiblewith the unit and may
cause artifacts to be displayed in the picture. In case of progressive scan picture problems,it is recomended that you
switch the setting to the “Interlace Scan” output. If there are questions regarding our TV set compatibility with the unit,
please contact our customer service center.
• All JVC Progressive TV and High-Definition TV sets have no problem. (Example: AV-61S902)

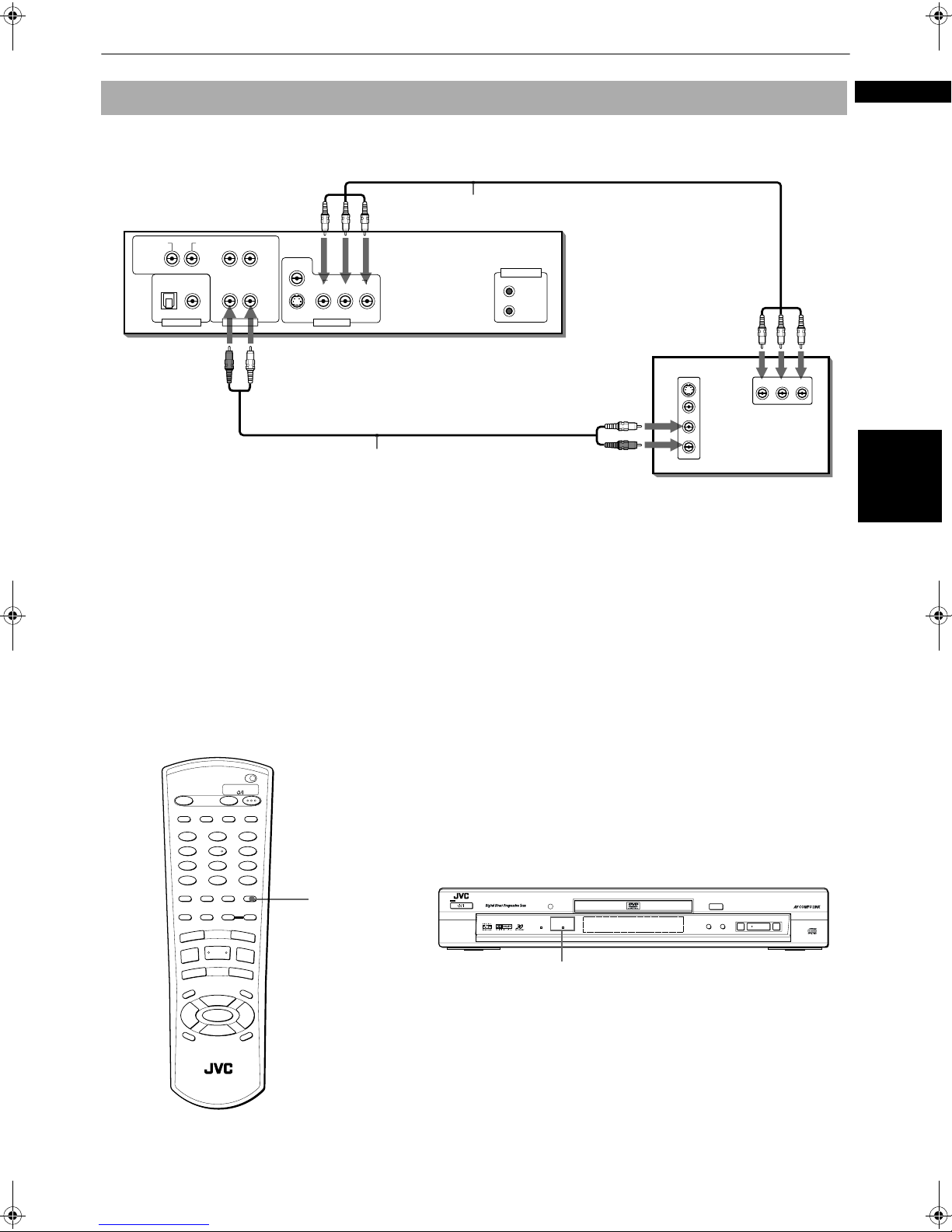

To connect to a TV with the component video input jacks
Audio cable
(supplied)
White
Red
Red White
Green Red
Blue
Component video cable
(supplied)
Green Red
Blue
T V
AV COMPU LINK
VIDEO OUTDIGITAL OUT
RIGHT
COMPONENT
S-VIDEO
YP
B P R
PCM / STREAM
COAXIALOPTICAL
LEFT
VIDEO
The unit
FRONT
REAR
RIGHT LEFTSUBWOOFER
CENTER
AUDIO OUT
YP B P R
IN
VIDEO
AUDIO
RIGHT
LEFT
S-VIDEO
IN
VFP -
PROGRESSIVE
SCAN
PROGRESSIVE
SCAN
S.FREQ
OPEN
/CLOSE TV DVD
TV DVD
STANDBY/ON
REPEAT
123
56
89
0+1010
7
4
3D
PHONIC
TV/VIDEO
CANCEL
SUBTITLEANGLE
TV1 TV2 TV3
TV4 TV5 TV6
TV7 TV8 TV9
TV
-/-- TV0 MUTING
AUDIO VFP
DIGEST PAGE
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW
-
TOP
MENU
MENU
CHOICE
ENTER
RM-SXVM50J REMOTE CONTROL
CH+
SELECT
CH
-
VOL
+
VOL
-
ON SCREEN
ZOOM +
-
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
STANDBY/ON
STANDBY/ON
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
PROGRESSIVEDVD AUDIO
DVD/ VIDEO CD/CD
PROGRESSIVE indicator
XV-SA70 DVD AUDIO/DVD VIDEO/CD PLAYER


Getting started
18
Getting started
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
• Connect the unit's AUDIO OUT (FRONT LEFT/RIGHT) to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio
amplifier or receiver.
NOTES
• Connect “Y” to “Y”, “PB” to “PB”, “PR” to “PR” correctly.
• When the component video input jacks of the TV is of the BNC type, use an adapter to convert a pin jack to a BNC jack
(optional).
• Make the “DOWN MIX” setting in “PREFERENCE 2” to “Lo/Ro” and the Speaker setting in “SPK. SETTING” to “2 CHANNEL”
(see pages 57 and 59).
• When the Progressive scan mode is selected, the VIDEO and S-VIDEO outputs do not feed the correct signals.
About SCAN MODE
To display video on the monitor (television) screen, the conventional scanning method is called “Interlaced scan”.
With this method, only half of the horizontal lines are displayed at a time. So two fields complete a single picture
(frame); i.e., the first field, containing all the odd-numbered lines, is displayed followed by the second field, containing
all the even-numbered lines.
On the other hand, the Progressive scan system scans all horizontal lines at a time, so you can double the number of
pictures compared with the interlaced scan, resulting flicker-free, high-density picture.
To enjoy the progressive scanned video, a monitor (or TV or projector) to be connected to the unit must have the
Progressive inputs.
Depending on the material source format, DVD VIDEO discs can be classified into two types; film source and video
source (Note that some DVD VIDEO discs contain both film source and video source). Film sources are recorded as 24-
frame-per-second information, while (NTSC) video sources are recorded as 30-frame-per-second (60-field-per-second
interlaced) information.
When the unit plays back a film source material, uninterlaced progressive output signals are created using the original
information. When a video source material is played back, the unit interleaves lines between the interlaced lines on
each to create the pseudo uninterlaced picture and outputs as the progressive signal.
To connect to an audio amplifier or receiver
NOTE
• When using the unit with a stereo amplifier or receiver, make the “DOWN MIX” setting in “PREFERENCE 2” to “Lo/Ro” and the
Speaker etting in “SPK. SETTING” to “2 CHANNEL” (see pages 57 and 59).
Audio cable
(supplied)
White
Red
White
Red Amplifier or receiver
AV COMPU LINK
VIDEO OUTDIGITAL OUT
RIGHT
COMPONENT
S-VIDEO
YP
B P R
PCM / STREAM
COAXIALOPTICAL
LEFT
VIDEO
The unit
FRONT
REAR
RIGHT LEFTSUBWOOFER
CENTER
AUDIO OUT
AUDIO
RIGHT
LEFT
IN

