SERVICE MANUAL
COPYRIGHT © 2004 Victor Company of Japan, Limited No.YD025B
2004/10
DVD VIDEO RECORDER
YD025B200410
DR-M10SAA2
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
DVDTV
DVD
CH
TIMER REC LINK PROG/CHECK G-CODE
SHOW VIEW
NEXTPREVIOUS
PAUSEREC
REC MODE LIVE CHECK
SET UP DISPLAY ON SCREEN
OPEN/
CLOSE
AUDIO SUBTITLE ANGLE
PROGRESSIVE
SCAN
SLOWSLOW PLAY/SELECT
STOP/
CLEAR
NAVIGATIONTOP MENU
RETURN
ENTER
MENU
TV
STANDBY/ON
TV
MUTING TV/ VIDEO
TV VOLUME
ABC
JKLGHI MNO
TUVPQRS WXYZ
AUXCANCEL MEMO/MARK
DBS
DEF
Area Suffix
AA -------------- Australia
Since the whole mechanism assembly unit is replaced, the DVD recorder
mechanism of this unit need not be adjusted.
STANDBY/ON
S-VIDEO VIDEO
L(MONO) - AUDIO - R
DV DV IN
F1
REC MODE
PULL - OPEN
REC
LINK
DR-M10SAA2 [D4R10]
This model (DR-M10SAA2) differs in a part of specification from DR-M10SAA.
Refer to the 3rd page for how to recognize.
Since this service manual has indicated only the "Parts List" and "Instruction Book",
please refer to another manual (DR-M10SAA, DR-M10SAG, and DR-M10SAX
ISSUE No.YD025 2004/6) about other items.

1-2 (No.YD025B)
SPECIFICATION
Specifications shown are for SP mode unless otherwise specified.
E.& O.E. Design and specifications subject to change without notice.
• Manufactured under licence from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
• G-CODE is a trademark of Gemstar Development Corporation and is registered in the following countries: Australia, China, Hong Kong, Japan,
South Korea, New Zealand, and Taiwan. SHOWVIEW is a trademark of Gemstar Development Corporation and is registered in the following coun-
tries: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Italy, Luxembourg, Netherlands, Norway,
Poland, Portugal, Russia, Slovakia, South Africa, Spain, Sweden and Switzerland.
The G-CODE/SHOWVIEW system is manufactured under license from Gemstar Development Corporation.
G-CODE and SHOWVIEW are different trademarks used to represent the same easy recording feature. However, for simplicity, only the term G-
CODE will be used in the instructions. If you use SHOWVIEW system, follow the same steps listed for the G-CODE system.
• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engi-
neering or disassembly is prohibited.
DR-M10SAA2
GENERAL
Power requirement AC 220 V - 240 V~, 50 Hz/60 Hz
Power consumption Power on : 33 W
Power off : 17.6 W
Temperature Operating : 5°C to 40°C
Storage : -20°C to 60°C
Operating position Horizontal only
Dimensions (W ×H ×D) 435 mm ×70 mm ×350 mm
Weight 4.3 kg
VIDEO/AUDIO
Recordable disc DVD-RAM 12 cm : (4.7 GB/9.4 GB)
DVD-RAM 8 cm : (1.4 GB/2.8 GB)
DVD-R (12 cm: 4.7 GB, 8 cm: 1.4 GB for General Ver. 2.0)
DVD-RW 4.7 GB for Ver. 1.0/1.1
Recording format DVD-RAM DVD Video Recording format
DVD-R DVD-Video format
DVD-RW DVD-Video format, DVD Video Recording format
Recording time Maximum 8 hours (with 4.7 GB disc)
(XP) : Approx. 1 hour, (SP) : Approx. 2 hours, (LP) : Approx. 4 hours, (EP) : Approx. 6 hours, (FR) : Approx.
1 hour - 8 hours
Playable disc DVD-RAM 12 cm : (4.7 GB/9.4 GB)
DVD-RAM 8 cm : (1.4 GB/2.8 GB)
DVD-R 12 cm:( 4.7 GB, 8 cm: 1.4 GB for General Ver. 2.0)
DVD VIDEO,
DVD-RW
4.7 GB
Music CD (CD-DA)
Video CD
Super Video CD(SVCD)
CD-R/RW (CD-DA, Video CD/SVCD formatted discs)
Audio recording system Dolby Digital (2 ch)
Linear PCM (XP mode only)
Video recording compression system MPEG2 (CBR/VBR)
Input/Output
S-video input Y : 0.8 - 1.2 Vp-p, 75 Ω
C : 0.2 - 0.4 Vp-p, 75 Ω
S-video output Y : 1.0 Vp-p, 75 Ω
C : 0.3 Vp-p, 75 Ω
Video input 0.5 - 2.0 Vp-p, 75 Ω(pin jack)
Video output 1.0 Vp-p, 75 Ω(pin jack)
Audio input -8 dB, 50 kΩ(pin jack) Corresponding to mono (left)
Audio output -8 dB, 1 kΩ(pin jack)
i.Link 4-pin for DV input
Component video output Y : 1.0 Vp-p, 75 Ω
PB/PR : 0.7 Vp-p, 75 Ω
Corresponding to copy protection
Optical -18 dBm, 660 nm
Coaxial 0.5Vp-p,75ohms Corresponding to Dolby Digital and DTS Digital Surround
Bit stream
Selectable in digital audio output setting menu
TUNER/TIMER
Signal system PAL-type colour signal and CCIR monochrome signal, 625 lines 50 fields
TV channel storage capacity 99 positions (+AUX position)
Tuning system Frequency synthesized tuner
Channel coverage (low) 42 MHz - 175 MHz/(high) 175 MHz - 470 MHz
UHF 470 MHz - 870 MHz(Adjustable E28 - E60)
Memory backup time Approx. 60 min.
ACCESSORIES
Provided accessories RF cable, Audio/video cable,Input Cable Adapter,Output Cable Adapter, Infrared remote control unit, "R6"
battery ×2

(No.YD025B)1-3
About this service manual
This model (DR-M10SAA2) differs in a part of specification from DR-M10SAA.
Since the way of recognizing is explained below, in the case of DR-M10SAA2,
please use this manual. In the case of DR-M10SAA, please refer to another service
manual (DR-M10SAA, DR-M10SAG, DR-M10SAX ISSUE No.YD025 2004/6).
The surface of
a rear panel
HOW TO IDENTIFY MODELS
How to recognize from the appearance of the model concerned is written below.
Please distinguish from several contents currently printed on the rating label of the rear panel.
BLANK : DR-M10SAA
2 : DR-M10SAA2

1-4 (No.YD025B)
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ωper volt or more sensitivity
in the following manner. Connect a 1,500Ω10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

(No.YD025B)1-5
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

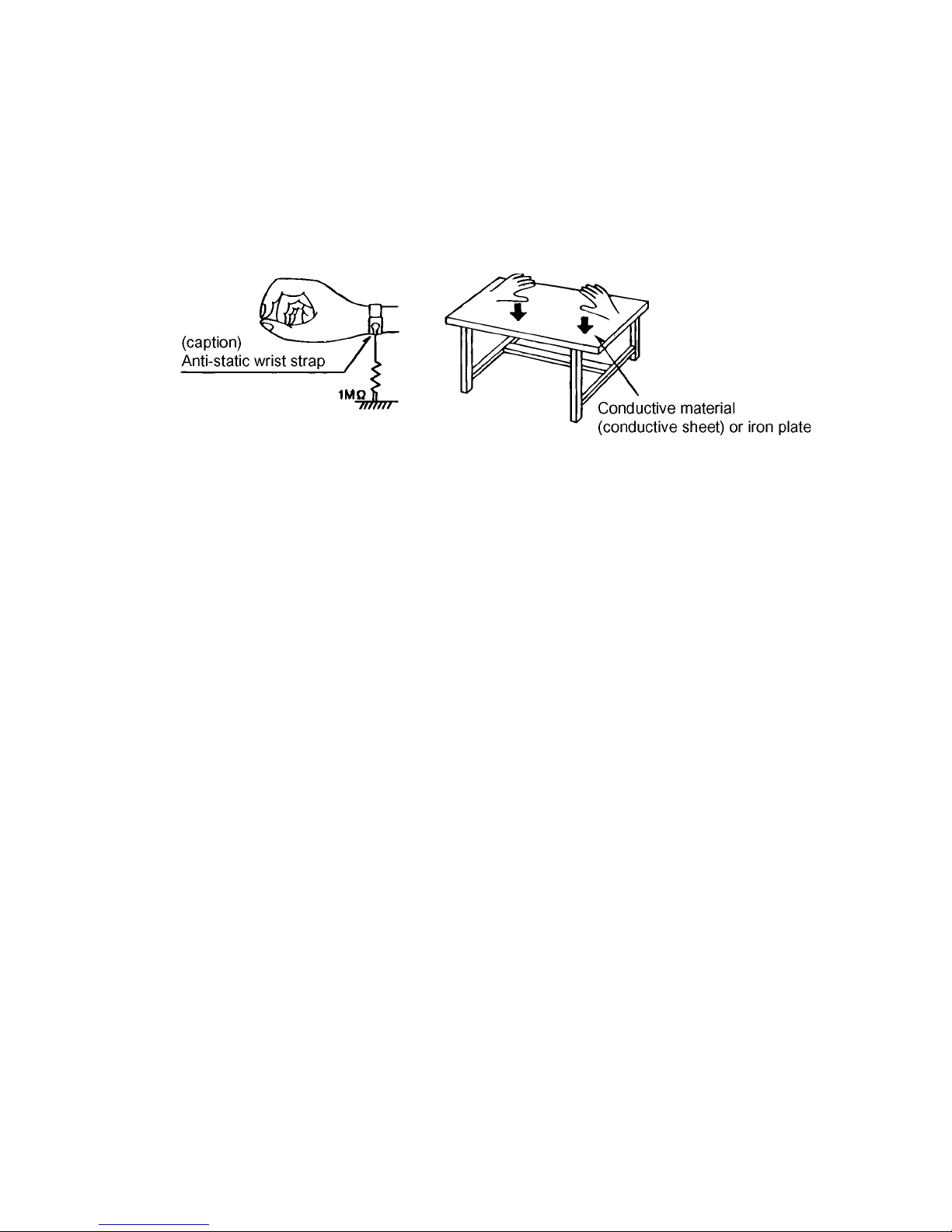

1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players or DVD recorder.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long
a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1-6 (No.YD025B)
1.7 Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The CD,MD and DVD player uses invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABEL and PRINT
WARNING LABEL and PRINT
On mechaism assembly

(No.YD025B)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
Please refer to "DR-M10SAA, DR-M10SAG,DR-M10SAX No.YD025"
about this section.
SECTION 4
ADJUSTMENT
Please refer to "DR-M10SAA, DR-M10SAG,DR-M10SAX No.YD025"
about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "DR-M10SAA, DR-M10SAG,DR-M10SAX No.YD025"
about this section.

(No.YD025B)
AV & MULTIMEDIA COMPANY DIGITAL VIDEO STORAGE CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
Victor Company of Japan, Limited
VPT
Printed in Japan
