JVC HR-XVC24SUC User manual

SERVICE MANUAL
COPYRIGHT © 2005 Victor Company of Japan, Limited No.YD065
2005/5
DVD PLAYER & VIDEO CASSETTE RECORDER
YD06520055
HR-XVC24SUC
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
Regarding service information other than these sections, refer to the service manual No. YD052 (HR-XVC29SUC).
Also, be sure to note important safety precautions provided in the service manual.
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
HR-XVC24SUC [D5PV1]

1-2 (No.YD065)
SPECIFICATION
• Specifications shown are for SP mode unless otherwise specified.
• E.& O.E. Design and specifications subject to change without notice.
• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
• "DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.
GENERAL
Power requirement AC 120 V, 60 Hz
Power consumption
Power on 25 W
Power off 2.0 W
Temperature
Operating 5°C to 40°C (41°F to 104°F)
Storage -20°C to 60°C (-4°F to 140°F)
Operating position Horizontal only
Dimensions (W ×H ×D) 435 mm x 93 mm x 272 mm
Weight 4.1 kg
Format VHS NTSC standard
Maximum recording time
(SP) 210 min. with T-210 video cassette
(EP) 630 min. with T-210 video cassette
VIDEO/AUDIO (VCR deck)
Signal system NTSC color signal and EIA monochrome signal, 525 lines/60 fields
Recording system DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio 45 dB
Horizontal resolution 230 lines
Frequency range 70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output RCA connectors: IN ×1, OUT ×1
VIDEO/AUDIO (DVD deck)
Signal system NTSC
Applicable disc DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Audio characteristics DVD:4 Hz - 22 KHz
Frequency response CD:4 Hz - 20 KHz
S/N Ratio 90 dB
Harmonic distortion 0.1%
Wow and flutter Below Measurable Level
Dynamic range 90 dB
Output
Component-Y (RCA) 1.0 Vp-p/75 Ω
Component-PB/PR (RCA) 0.7 Vp-p/75 Ω
Audio (RCA) 2 Vrms, 1 KΩ
Digital Audio (COAXIAL) 0.5 Vp-p/75 Ω
TUNER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69, CATV: 113 Channels
RF output Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 Ω, unbalanced
TIMER
Clock reference Quartz
Program capacity 1-year programmable timer/8 programs
ACCESSORIES
Provided accessories RF cable, Infrared remote control unit, "AA" battery ×2

(No.YD065)1-3
SECTION 1
PRECAUTION
Please refer to "HR-XVC29SUC No.YD052" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "HR-XVC29SUC No.YD052" about this section except a written item.
2.1 DIFFERENCE LIST
The following table indicates main different point between models HR-XVC29SUC and HR-XVC24SUC.
SECTION 3
DISASSEMBLY
Please refer to "HR-XVC29SUC No.YD052" about this section.
SECTION 4
ADJUSTMENT
Please refer to "HR-XVC29SUC No.YD052" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "HR-XVC29SUC No.YD052" about this section.
MODEL NAME HR-XVC29SUC HR-XVC24SUC
CENTER ORNAMENT COLOR DARK GRAY LIGHT SILVER

(No.YD065)
AV & MULTIMEDIA COMPANY DIGITAL VIDEO STORAGE CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
Victor Company of Japan, Limited
VPT
Printed in Japan

(No.YD065)3-1
[HR-XVC24SUC]
* SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with
specified part numbers.
* BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety
and performance. We recommend that genuine JVC parts be used.
* (x_) in a description column shows the number of the used part.
- Contents -
Exploded view of general assembly and parts list ........................ 2
VHS mechanism assembly and parts list ...................................... 5
TRAVERSE mechanism assembly and parts list .......................... 8
LOADING mechanism assembly and parts list ........................... 10
Electrical parts list ........................................................................ 12
Packing materials and accessories parts list .............................. 19
PARTS LIST

3-2(No.YD065)

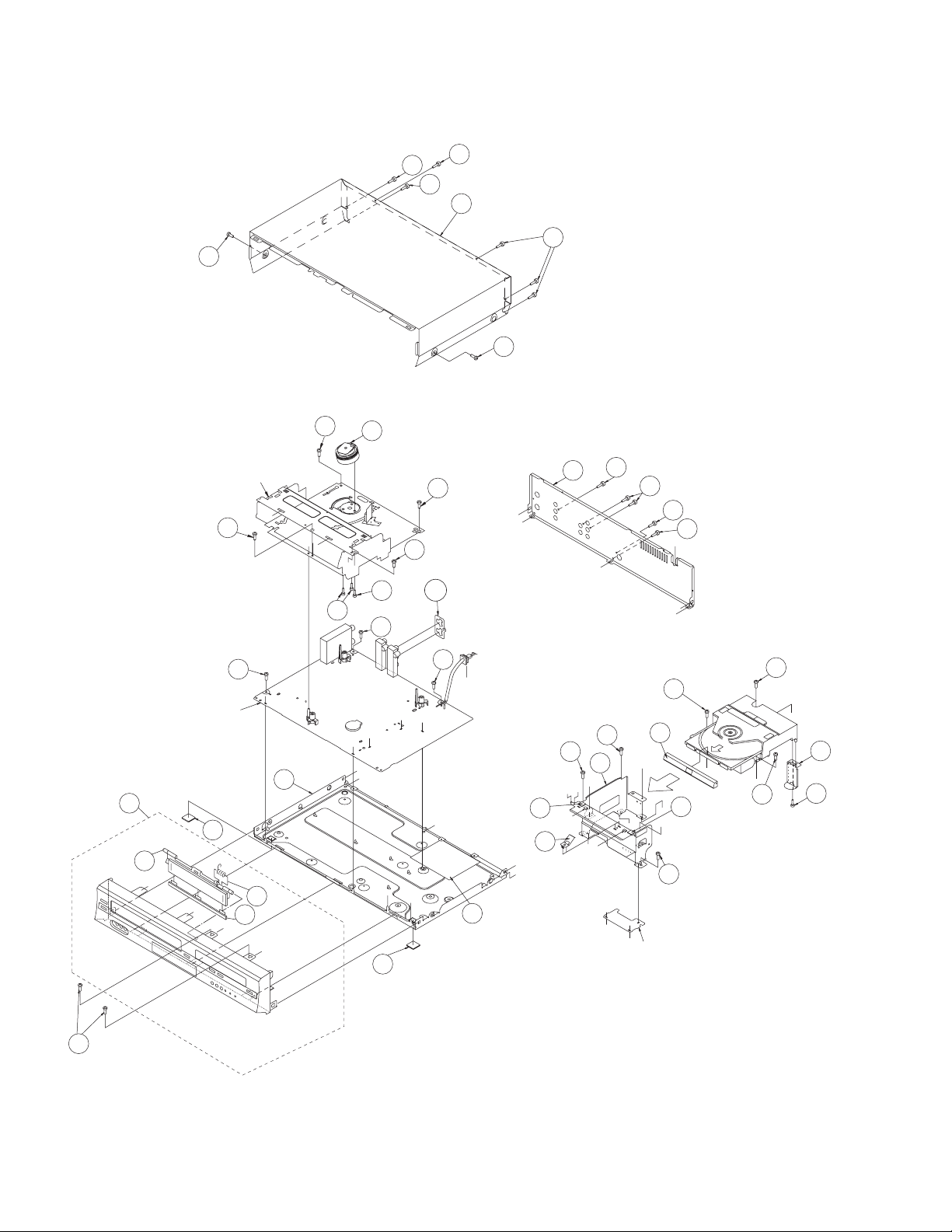

Exploded view of general assembly and parts list
Block No. M1MM
1A
1
1B
1C
JS3001
e
j
b
a
a
c
i
i
i
i
i
j
j
j
j
f
j
c
m
TU6001
22 9
22
21
21
24
10
11
16
16
3
24
24
22
23
VHS MECHANISM ASSY<M2>
MAIN BOARD ASSY<03>
27
UP
i
i
i
i
i
m
14 25
25
25
15
d
d
d
d
d
d
c
e
b
c
j
f
j
a
a
DVD BRACKET BOARD ASSY<13>
13
17
26
13 7
18
19
20
20
20
13 12
17
A
4
6
6
6
5
5
6

(No.YD065)3-3
CN7103
from FRONT PANEL
(JACK CN7191)
CN7103
CN7191
A/C HEAD
CN2001
CN3102
CN7302 CN7301
CN3301
CN503 CN501
CN1
WR4
WR5
WR3
B
NOTE) WHEN YOU FIX ANY
PWB WITH THE SCREW.
PUT IT ON THE JIGS.
TOP SIDE
BOTTOM SIDE
CN7191
CN7003
SWITCH/JACK BOARD ASSY<36> DISPLAY BOARD ASSY<28>
2
2
2
2
22
2
WR1
WR2
FITTING's hooks hold DVD UNIT.
DRAWING FROM DIRECTION A
FITTING
FITTING
DVD UNIT
DVD UNIT
Z-Z SECTION
Z
Z
Z
Z
After Assembling FRONT PANEL
DRAWING FROM DIRECTION B
CN3102
NOTE) FFC WIRE SHOULD BE POSITIONED
BELLOW CASSETTE DOOR.
(FOR AVOID FFC WIRE DISTURB CASSETTE
IN AND OUT.)

3-4(No.YD065)
General assembly
Block No. [M][1][M][M]
 Symbol No. Part No. Part Name Description Local
 1 LP10492-023A FRONT PANEL ASSY
1A LP21188-006B CASSETTE DOOR
1B LP31269-007A ORNAMENT(CASSETTE DOOR)
1C PQ46448 TORSION SPRING
2 QYTDSF2608ZA TAP SCREW M2.6 x 8mm DISPLAY SWITCH/JACK(x9)
3 LP31391-001A SPECIAL SCREW FRONT PANEL(x2)
 4 LP10488-002C TOP COVER
5 QYSBSG3006NA TAP SCREW M3 x 6mm TOP SIDE(x2)
6 QYSBSG3006NA TAP SCREW M3 x 6mm TOP REAR(x6)
7 LP21190-005A FITTING
9 PDV2531D DRUM FINAL ASSY
 10 LP10489-001B BOTTOM CHASSIS
 11 LP30002-0F1A SPACER
12 LP21177-001B BRACKET(DVD)
13 LP31391-001A SPECIAL SCREW BRACKET(DVD)(x3)
 14 LP21178-023A REAR COVER
15 QYSBSG3006MA TAP SCREW M3 x 6mm REAR COVER
16 LP31348-001A FOOT (x2)
17 LP30002-0E5A SPACER (x2)
18 LP31392-001A BRACKET
19 QYSDSF2608ZA TAP SCREW M2.6 x 8mm BRACKET
20 QYSBSG3010ZA TAP SCREW M3 x 10mm DVD UNIT(x3)
21 QYSPSPD3008ZA SCREW M3 x 8mm DRUM(x3)
22 LP31391-002A SPECIAL SCREW MECHANISM(x3)
23 LP31391-001A SPECIAL SCREW HOUSING
24 LP31391-001A SPECIAL SCREW MAIN(x3)
25 QYTDSF3008MA TAP SCREW M3 x 8mm JACK(x4)
26 PQ44695-1-1 EARTH PLATE
27 LP31345-001A EARTH PLATE
WR1 QUQ112-2212CG-E FFC WIRE DISPLAY CN7003-MAIN CN3102
WR2 QUQ112-1010CG-E FFC WIRE SWITCH/JACK CN7191-MAIN CN7103
WR3 QUQ210-1916CC-E FFC WIRE DVD UNIT CN501-MAIN CN7301
WR4 QUQ210-1716CC-E FFC WIRE DVD UNIT CN503-MAIN CN7302
WR5 QUQ210-0510CC-E FFC WIRE DVD UNIT CN1-MAIN CN3301

(No.YD065)3-5
VHS mechanism assembly and parts list
Block No. M2MM
141
WR3
WR1
87
39
15
86
128
137
130
90
89
88
Not used
75
74
38
105
105
107
107
112
123
151
113
115
124
125
79
82
21
4
117
44
26
3
58
52 57
56
58
55
90
37
77
72
116
50
112
122
110
126
89
36
73
69
102
70
134
78
76
71
120
42
85
46
47
81
83
80
49
119
53
111
114
118
121
96
93
94
95 64
65
19
22
20
16
63
66
59
62
68
24
18
61
60
67
23
WR2
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
BB
BB
BB
BB
BB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
17
91
A/C HEAD
BOARD ASSY <12>
LOADING MOTOR
BOARD ASSY <55>
PMD0048A-C
NOTE:The section marked in AA and BB
indicate lubrication and greasing areas.
Classification Part No. Symbol in drawing
Grease KYODO-SH-JB AA
Oil COSMO-HV56 BB
140
127

3-6(No.YD065)
VHS mechanism
Block No. [M][2][M][M]
 Symbol No. Part No. Part Name Description Local
3 LP40097-002E GUIDE POLE CAP
4 NAH0004-001 FULL ERASE HEAD
15 LP30958-001B LOADING GEAR BASE
16 QYTPST2620ZA TAP SCREW M2.6 x 20mm(x2)
17 QYTDST2606ZA TAP SCREW M2.6 x 6mm
18 LP40798-002A LOADING GEAR(SUPPLY) ASSY
19 LP40837-001A TORSION SPRING(SUPPLY)
20 LP40903-004A FIXING PLATE
21 LP40806-001D POLE BASE ASSY(SUPPLY)
22 LP30959-001B LOADING GEAR
23 LP40802-002A LOADING GEAR(TAKE UP) ASSY
24 LP40838-001A TORSION SPRING(TAKE UP)
26 LP40808-001E POLE BASE ASSY(TAKE UP)
36 LP21055-001G TAKE UP LEVER
37 LP40943-001A TENSION SPRING
38 LP40859-001D T-UP HEAD
39 LP30961-001C LID GUIDE
42 LP40810-003A PINCH ROLLER ARM ASSY
44 LP40840-001E TORSION SPRING
46 LP30963-002A PRESS LEVER
47 PQM30017-24 SLIT WASHER
49 LP40813-001D GUIDE ARM ASSY
50 LP40841-001A TORSION SPRING
52 NAH0005-001 AC HEAD
53 LP30965-003A HEAD BASE
55 LP40842-001D COMPRESSION SPRING
56 QYTDST2006MA TAP SCREW M2 x 6mm
57 LP41036-002A A/C ADJ.SCREW (x2)
58 QYTDST2606ZA TAP SCREW M2.6 x 6mm(x2)
59 QAR0289-001 LOADING MOTOR
60 QYTPSP3003ZA SCREW M3 x 3mm(x2)
61 LP21056-002J MOTOR BRACKET
62 QYTPST2620ZA TAP SCREW M2.6 x 20mm
63 LP40814-001B WORM BEARING
64 LP21044-001E CONTROL CAM
65 PQM30017-24 SLIT WASHER
66 LP40815-001A WORM GEAR
67 LP40816-001B HELICAL GEAR
68 LP40817-001A CONNECT GEAR
69 LP10400-001N CONTROL PLATE
70 LP40843-001A TORSION SPRING
71 LP40818-002A TENSION ARM ASSY
72 LP40844-001F TENSION SPRING
73 LP21045-001E TENSION ARM BASE
74 LP40821-001A TENSION BAND ASSY
75 LP30967-001B BAND HOLDER-1
76 LP30968-001C BAND HOLDER-2
77 LP40822-002B ADJUST PIN
78 LP31000-005E TENSION ARM LEVER
79 LP21046-001C MAIN BRAKE(TAKE UP)
80 LP40824-001A BAND BRAKE ASSY
81 LP30969-002B BRAKE LEVER
82 LP30003-033C TENSION SPRING
83 LP30003-035C TENSION SPRING
 85 QAR0322-002 CAPSTAN MOTOR
86 QYTPSG2606ZA TAP SCREW M2.6 x 6mm(x3)
87 LP30005-010A BELT CAPSTAN MOTOR
88 LP30970-001B IDLER ARM
89 LP40828-004A IDLER GEAR 1 (x2)
90 LP40829-003A IDLER GEAR 2 (x2)
91 LP31014-002A WIRE HOLDER
93 LP40934-001B CLUTCH UNIT
94 PQM30017-47 SLIT WASHER
95 LP30973-001A DIRECT GEAR
96 LP40939-001A COMPRESSION SPRING
102 LP30974-001C CHANGE LEVER
105 LP21049-001A REEL DISK (x2)
107 LP30017-004A SPACER REEL DISK(x2)
110 LP10401-001L SIDE FRAME(L)
111 LP10402-001M SIDE FRAME(R)
112 QYTDST2606ZA TAP SCREW M2.6 x 6mm(x2)
113 LP40917-001D TORSION SPRING
114 LP30976-002B SIDE PLATE
115 LP30977-002E LIMIT PLATE
116 LP40846-001C LIMIT SPRING
117 LP31100-002A DRIVE LEVER
118 LP30978-001B DRIVE ARM(L)
119 LP30979-001S DRIVE ARM(R)
120 LP40847-001B TORSION SPRING

(No.YD065)3-7
121 LP30980-002A CONNECT PLATE
122 LP10403-001C SIDE HOLDER(L)
123 LP10404-001F SIDE HOLDER(R)
124 LP30983-002A LOCK LEVER(L)
125 LP30984-002A LOCK LEVER(R)
126 LP40924-001D TENSION SPRING
127 LP40972-001A EARTH SPRING(1)
128 LP40857-001B EARTH SPRING(2)
130 LP30981-003B CASSETTE HOLDER ASSY
134 LP21051-002C REC SAFETY LEVER
137 LP21052-002A TOP FRAME
140 LP41153-001A EARTH SPRING(3)
141 LP40924-001D TENSION SPRING
151 LP30985-002M DOOR OPENER
WR1 WJT0117-001A-E E-CARD WIRE DRUM
WR2 WJT0067-001B-E E-CARD WIRE A/C HEAD CN2001
WR3 WJW0023-001A-E E-TWISTED ASSY LOADING MOTOR
 Symbol No. Part No. Part Name Description Local

3-8(No.YD065)

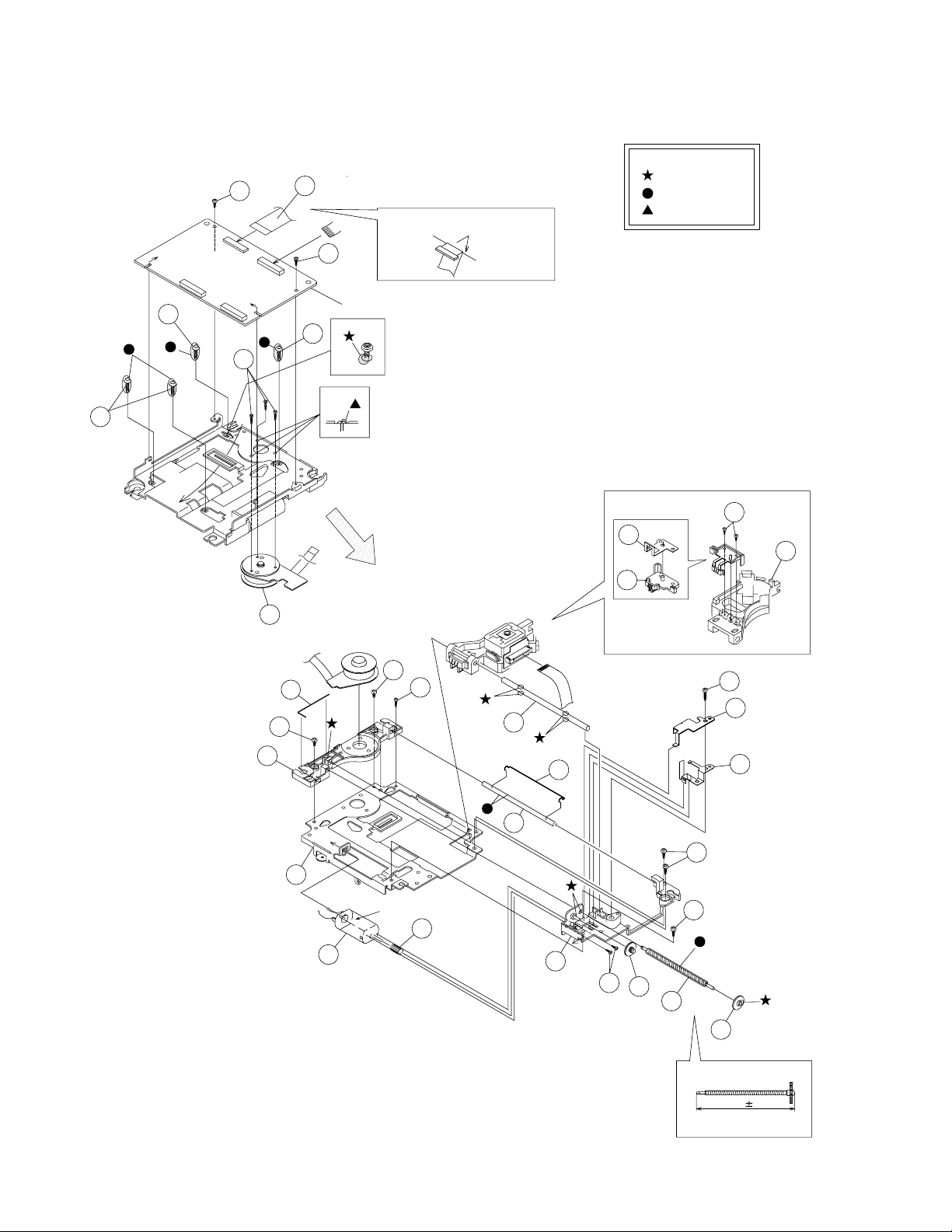

DVD Traverse mechanism assembly and parts list
Block No. M3MM
CN101
CN101
BEND WIRE AT THE PWB EDGE
AFTER INSERTING WIRE
LETTER SIDE
63.3mm 0.1mm
CN201
A
A
BACK SIDE
DVD SERVO CONTROL BOARD ASSY <99>
1
2
3
3
6
5
4
7
10 20
19
18
11
11
12
13
14
15
17
9
8
24
21
22
23
25
27
27
28
28
16
26
1401C
CFD-4007ZY2
JVG-31N
Grease
27
GTU-DZ1-34C

(No.YD065)3-9
DVD Traverse mechanism
Block No. [M][3][M][M]
 Symbol No. Part No. Part Name Description Local
1 LV21814-001A MECHA BASE
2 LE20731-002A SPINDLE BASE
3 QYSDST2605MA TAP SCREW M2.6 x 5mm(x2)
4 LE40931-001A SHAFT
5 LE40995-001A BAR SPRING
6 QYSPSTU2080MA TAP SCREW M2 x 8mm
7 LE20730-002A FEED HOLDER
8 QAR0165-001 FEED MOTOR
9 LV41510-001A FEED GEAR T
10 QYSPSPU2040MA SCREW M2 x 4mm(x2)
11 QYSDST2605MA TAP SCREW M2.6 x 5mm(x3)
12 QAL0577-001 P.UP
13 LE20732-001A SW ACTUATOR
14 LE31093-001A LEAD SPRING
15 QYSPSFU1740ZA TAP SCREW M1.7 x 4mm(x2)
16 QUQ105-2412AC-E FFC WIRE 24pin 12cm
17 LE40931-001A SHAFT
18 LE40855-002A FEED GEAR E
19 LV41517-003A LEAD SCREW
20 LE40930-001A FEED GEAR M
21 LE40928-002A THURUST SPRING
22 LE40927-002A PLATE
23 QYSDST2614ZA TAP SCREW M2.6 x 14mm
24 QAR0334-002 S.MOTOR
25 QYSPSPU1760ZA SCREW M1.7 x 6mm(x3)
26 LE40994-001A T.SPRING
27 LE40858-002A SPECIAL SCREW (x4)
28 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)

3-10(No.YD065)
DVD Loading mechanism assembly and parts list
Block No. M4MM
JVS-1003
JVG-31N
SWITCH BOARD
ASSY <98>
a
Back side
b
a
b
Grease
20
19
18
5
17
3
15
11
16
2
4
1
8
10
9
7
6
14
13
12
(All circumferences)
_
+
_
7.95mm +0.10mm
21
25
24
24
24
24
22
22
23
23
GMU-DZ1-34YC

(No.YD065)3-11
DVD Loading mechanism
Block No. [M][4][M][M]
 Symbol No. Part No. Part Name Description Local
1 LE10275-006A LOADING BASE
2 LE31043-001A PULLEY GEAR
3 LE31042-001A MIDDLE GEAR
4 LE31044-001A IDLE GEAR
5 LE20665-005A SLIDE CAM
6 LE20666-003A ELEVATOR
7 LE10276-002A TRAY
8 LE31045-001A BUSHING
9 LE40898-001A SHAFT
10 QYSSSF2008ZA TAP SCREW M2 x 8mm
11 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
12 LE40937-003A LEAF SPRING
13 QAR0197-001 MOTOR
14 LV42087-002A MOTOR PULLEY
15 QYSPSPU1730ZA SCREW FOR MOTOR(x2)
16 LE40897-001A BELT
17 LE31046-003A CLAMPER
18 LV42930-003A P.C.MAGNET
19 LE40899-001A YOKE
20 LE40906-002A SPECIAL SCREW
21 ------------ DVD TRAMECHA UNIT
22 LE40900-003A INSULATOR REAR(x2)
23 LE40900-005A INSULATOR FRONT(x2)
24 LE40901-002A SPECIAL SCREW (x4)
25 QYWFM419025 WASHER 9mm/4.1mm x 0.25mm

3-12(No.YD065)
Electrical parts list
Main board
Block No. [0][3]
 Symbol No. Part No. Part Name Description Local
IC1 JCP8060-NVA IC
 IC2201 AN3663FBP IC
IC3001 MN101D10GJJ IC(MCU) MASK
IC3004 LPN0956-001B-01 IC(EEPROM) *(REFER TO BELOW)
IC3301 LB1641-E IC
IC3302 SN74HCT08APW-X IC
IC5201 UTCTL431-T IC
IC5201 or TL431/A/-T IC
IC5301 UTCTL431-T IC
IC5302 MM1565AF-X IC
IC7102 MM1507XN-X IC
IC7104 BH7868FS-X IC
IC7501 SN74AHCT08NS-X IC
IC7501 or SN74AHCT08NS-X IC
IC8001 HA17558AF-X IC
IC8001 or RC4558D-X IC
Q19 2SD601A/QRS/-X TRANSISTOR
Q19 or 2SC2412K/QRS/-X TRANSISTOR
Q19 or 2SC3928A/QRS/-X TRANSISTOR
Q2001 2SD601A/QRS/-X TRANSISTOR
Q2001 or 2SC2412K/QRS/-X TRANSISTOR
Q2001 or 2SC3928A/QRS/-X TRANSISTOR
Q2002 2SD601A/QRS/-X TRANSISTOR
Q2002 or 2SC2412K/QRS/-X TRANSISTOR
Q2002 or 2SC3928A/QRS/-X TRANSISTOR
Q2003 UN211E-X DIGI TRANSISTOR
Q2003 or DTA144WKA-X TRANSISTOR
Q2003 or RT1P44HC-X DIGI TRANSISTOR
Q2051 2SD601A/QRS/-X TRANSISTOR
Q2051 or 2SC2412K/QRS/-X TRANSISTOR
Q2051 or 2SC3928A/QRS/-X TRANSISTOR
Q2052 2SB709A/QR/-X TRANSISTOR
Q2052 or 2SA1037AK/QR/-X TRANSISTOR
Q2052 or 2SA1530A/QR/-X TRANSISTOR
Q2053 UN221E-X TRANSTSTOR
Q2053 or DTC144WKA-X DIGI TRANSISTOR
Q2053 or RT1N44HC-X DIGI TRANSISTOR
Q2054 2SB709A/QR/-X TRANSISTOR
Q2054 or 2SA1037AK/QR/-X TRANSISTOR
Q2054 or 2SA1530A/QR/-X TRANSISTOR
Q2055 UN221E-X TRANSTSTOR
Q2055 or DTC144WKA-X DIGI TRANSISTOR
Q2055 or RT1N44HC-X DIGI TRANSISTOR
Q2201 UN211E-X DIGI TRANSISTOR
Q2201 or DTA144WKA-X TRANSISTOR
Q2201 or RT1P44HC-X DIGI TRANSISTOR
Q2202 UN221E-X TRANSTSTOR
Q2202 or DTC144WKA-X DIGI TRANSISTOR
Q2202 or RT1N44HC-X DIGI TRANSISTOR
Q2203 2SD601A/QRS/-X TRANSISTOR
Q2203 or
2SC2412K/QRS/-X TRANSISTOR
Q2203 or
2SC3928A/QRS/-X TRANSISTOR
Q2204 2SD601A/QRS/-X TRANSISTOR
Q2204 or
2SC2412K/QRS/-X TRANSISTOR
Q2204 or
2SC3928A/QRS/-X TRANSISTOR
Q3002 PTZ-NV16A IC(PHOTO SENSOR)
Q3006
2SC2412K/QRS/-X TRANSISTOR
Q3006 or 2SD601A/QRS/-X TRANSISTOR
Q3006 or
2SC3928A/QRS/-X TRANSISTOR
Q3007
2SC2412K/QRS/-X TRANSISTOR
Q3007 or 2SD601A/QRS/-X TRANSISTOR
Q3007 or 2SC3928A/QRS/-X TRANSISTOR
Q4001 UN2211-X TRANSISTOR
Q4001 or DTC114EKA-X DIGI TRANSISTOR
Q4001 or RT1N141C-X DIGI TRANSISTOR
Q4002 2SD601A/QRS/-X TRANSISTOR
Q4002 or
2SC2412K/QRS/-X TRANSISTOR
Q4002 or
2SC3928A/QRS/-X TRANSISTOR
Q5101 2SK2043-CB14 FET
Q5102 2SC3576-JVC-T TRANSISTOR
Q5103 2SA1530A/QR/-X TRANSISTOR
Q5103 or 2SB709A/QR/-X TRANSISTOR
Q5103 or 2SA1037AK/QR/-X TRANSISTOR
Q5306 2SD1302/ST/-T TRANSISTOR
Q5307 UN211E-X DIGI TRANSISTOR
Q5307 or DTA144WKA-X TRANSISTOR
Q5307 or RT1P44HC-X DIGI TRANSISTOR
Q5309 UN2211-X TRANSISTOR
Q5309 or DTC114EKA-X DIGI TRANSISTOR
Q5309 or RT1N141C-X DIGI TRANSISTOR
Q5310 2SD1858/QR/-T TRANSISTOR
Q5311 2SC5739/QP/ TRANSISTOR
Q5315 2SD1858/QR/-T TRANSISTOR
Q6030 2SB709A/QR/-X TRANSISTOR
Q6030 or 2SA1037AK/QR/-X TRANSISTOR
Q6030 or 2SA1530A/QR/-X TRANSISTOR
Q7113 2SA1037AK/QR/-X TRANSISTOR
Q7113 or 2SB709A/QR/-X TRANSISTOR
Q7113 or 2SA1530A/QR/-X TRANSISTOR
Q8001 2SD601A/QRS/-X TRANSISTOR
Q8001 or
2SC2412K/QRS/-X TRANSISTOR
Q8001 or
2SC3928A/QRS/-X TRANSISTOR
Q8002 2SD601A/QRS/-X TRANSISTOR
Q8002 or 2SC2412K/QRS/-X TRANSISTOR
Q8002 or 2SC3928A/QRS/-X TRANSISTOR
Q8052 2SD601A/QRS/-X TRANSISTOR
Q8052 or 2SC2412K/QRS/-X TRANSISTOR
Q8052 or 2SC3928A/QRS/-X TRANSISTOR
Q8053 UN2111-X TRANSISTOR
Q8053 or DTA114EKA-X DIGI TRANSISTOR
Q8053 or RT1P141C-X DIGI TRANSISTOR
D2001 1SS133-T2 SI DIODE
D2001 or 1SS270A-T2 SI DIODE
D2251 1SS133-T2 SI DIODE
D2251 or 1SS270A-T2 SI DIODE
D3001 LNB2301L01VI LED
D3002 1SS133-T2 SI DIODE
D3002 or 1SS270A-T2 SI DIODE
D3004 10EDB20-T2 SI DIODE
D3004 or 10EDB20-T2 SI DIODE
D3005 10EDB20-T2 SI DIODE
D3005 or 10EDB20-T2 SI DIODE
D3016 MTZJ3.9B-T2 Z DIODE
D3016 or MTZJ3.9B-T2 Z DIODE
D3301 MTZJ5.1B-T2 Z DIODE
D3301 or MTZJ5.1B-T2 Z DIODE
D5001 S1WB/A/60-X BRIDGE DIODE
D5001 or S1WB/A/60-7102 BRIDGE DIODE
D5101 10ERB40-T2 FR DIODE
D5101 or AU01-T2 SI DIODE
D5102 10ERB40-T2 FR DIODE
D5102 or AU01-T2 SI DIODE
D5103 1SS133-T2 SI DIODE
D5103 or 1SS270A-T2 SI DIODE
D5105 1SS133-T2 SI DIODE
D5105 or 1SS270A-T2 SI DIODE
D5106 MTZJ33D-T2 Z DIODE
D5106 or MTZJ33D-T2 Z DIODE
D5208 AW04-T2 SB DIODE
D5208 or AW04-T2 SB DIODE
D5208 or AW04-T2 SB DIODE
D5209 AU01Z-T2 FR DIODE
D5209 or 10ERB20-T2 FR DIODE
D5209 or AU01Z-T2 FR DIODE
D5209 or AU01Z-T2 FR DIODE
D5209 or AU01Z-T2 FR DIODE
D5212 RK14-LFB2 SB DIODE
D5212 or RK14-LFB2 SB DIODE
D5212 or RK14-LFB2 SB DIODE
D5213 AU01Z-T2 FR DIODE
D5213 or 10ERB20-T2 FR DIODE
D5301 MTZJ15C-T2 Z DIODE
D5301 or MTZJ15C-T2 Z DIODE
D5305 MTZJ11C-T2 Z DIODE
D5305 or MTZJ11C-T2 Z DIODE
D5306 MTZJ5.6C-T2 Z DIODE
 Symbol No. Part No. Part Name Description Local
*The VCR goes to jig RCU mode after replacing the EEPROM and the VCR does not accept some RCU command.
Therefore please set the VCR to the user RCU mode after replacing the EEPROM.
The method of setting the VCR to the user RCU mode is written on the service manual.

(No.YD065)3-13
D5306 or MTZJ5.6C-T2 Z DIODE
D5310 MTZJ10B-T2 Z DIODE
D5310 or MTZJ10B-T2 Z DIODE
D6002 HZ30-2L-T2 Z DIODE
D8001 1SS133-T2 SI DIODE
D8001 or 1SS270A-T2 SI DIODE
PC3001 RPI-304J IC(PHOTO SENSOR)
PC3002 RPI-304J IC(PHOTO SENSOR)
 PC5101 PC123Y22FZ PHOTO COUPLER
C1 NDC31HJ-151X C CAPACITOR 150pF 50V J
C2 NDC31HJ-330X C CAPACITOR 33pF 50V J
C4 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C9 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C11 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C12 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C14 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C17 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C19 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C20 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C22 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C24 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C25 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C26 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C27 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C30 NCB31HK-331X C CAPACITOR 330pF 50V K
C31 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C33 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C34 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C35 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C36 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C37 NDC31HJ-4R0X C CAPACITOR 4pF 50V J
C40 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C41 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C43 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C44 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C45 NCB31EK-472X C CAPACITOR 4700pF 25V K
C46 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C47 QEKJ1HM-474Z E CAPACITOR 0.47uF 50V M
C48 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C49 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C56 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C57 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C58 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C59 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C60 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C77 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C78 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C201 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C203 QERF1HM-105Z E CAPACITOR 1uF 50V M
C205 NDC31HJ-101X C CAPACITOR 100pF 50V J
C207 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C215 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
C216 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
C2001 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2002 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C2005 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2006 NCB31EK-682X C CAPACITOR 6800pF 25V K
C2007 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C2008 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2009 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2010 NCB31HK-681X C CAPACITOR 680pF 50V K
C2011 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2012 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2051 NCB31HK-331X C CAPACITOR 330pF 50V K
C2052 QFV61HJ-823Z MF CAPACITOR 0.082uF 50V J
C2053 NCB31HK-472X C CAPACITOR 4700pF 50V K
C2054 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C2055 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2201 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2202 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
 Symbol No. Part No. Part Name Description Local
C2203 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C2204 QEKJ0JM-336Z E CAPACITOR 33uF 6.3V M
C2205 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2206 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2207 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C2208 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C2209 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2210 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2211 QEKJ0JM-336Z E CAPACITOR 33uF 6.3V M
C2212 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C2214 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2215 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2218 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2219 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C2220 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C2221 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C2222 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C2234 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2235 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2251 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2252 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2253 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2254 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C2255 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C2256 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2257 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C2259 QEKJ1HM-334Z E CAPACITOR 0.33uF 50V M
C3011 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C3016 NDC31HJ-180X C CAPACITOR 18pF 50V J
C3017 NDC31HJ-270X C CAPACITOR 27pF 50V J
C3028 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M
C3029 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C3030 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C3035 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C3036 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C3047 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3048 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3049 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3052 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3053 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3071 QETN1HM-336Z E CAPACITOR 33uF 50V M
C3301 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3302 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C3303 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C4001 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4002 QERF1HM-105Z E CAPACITOR 1uF 50V M
C4004 QERF1AM-336Z E CAPACITOR 33uF 10V M
C4006 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
C4007 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C4009 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4010 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C4011 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C4014 NDC31HJ-101X C CAPACITOR 100pF 50V J
C4019 NCB31EK-103X C CAPACITOR 0.01uF 25V K
 C5001 QFZ9073-683 MM CAPACITOR 0.068uF AC250V M
 C5002 QFZ9073-223 MM CAPACITOR 0.022uF AC250V M
 C5003 QCZ9071-101 C CAPACITOR 100pF AC400V K
 C5004 QCZ9071-472 C CAPACITOR 4700pF AC400V M
C5006 QETM2DM-157 E CAPACITOR 150uF 200V M
C5101 QCZ0353-101Z C CAPACITOR 100pF 1kV K
C5102 QCZ0136-102Z C CAPACITOR 1000pF 1kV K
C5104 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5106 NCB31HK-821X C CAPACITOR 820pF 50V K
C5108 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C5109 NCB31HK-183X C CAPACITOR 0.018uF 50V K
C5202 QEZ0564-128 E CAPACITOR 1200uF 10V M
C5204 QEZ0564-128 E CAPACITOR 1200uF 10V M
C5205 QEZ0655-397Z E CAPACITOR 390uF 16V M
C5207 QETN2AM-475Z E CAPACITOR 4.7uF 100V M
C5209 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5210 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5211 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5214 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C5301 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5303 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5304 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5305 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5306 NCF31AZ-105X C CAPACITOR 1uF 10V Z
 Symbol No. Part No. Part Name Description Local

3-14(No.YD065)
C5307 NCB31HK-471X C CAPACITOR 470pF 50V K
C5308 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C5309 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5310 QETN1AM-107Z E CAPACITOR 100uF 10V M
C5314 QETN1CM-107Z E CAPACITOR 100uF 16V M
C6013 NCB31HK-102X C CAPACITOR 1000pF 50V K
C6021 NDC31HJ-151X C CAPACITOR 150pF 50V J
C6053 NDC31HJ-120X C CAPACITOR 12pF 50V J
C6054 NDC31HJ-100X C CAPACITOR 10pF 50V J
C6501 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6502 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C6503 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C6504 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C6505 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C6508 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C6509 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6511 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C6512 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C6513 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C6514 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C6515 QEKJ1HM-335Z E CAPACITOR 3.3uF 50V M
C6516 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C6517 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C6532 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C7114 QETJ0JM-477Z E CAPACITOR 470uF 6.3V M
C7117 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C7118 QEKJ1EM-106Z E CAPACITOR 10uF 25V M
C7119 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C7129 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C7131 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C7132 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C7133 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C7134 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C7135 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C7136 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C7146 QETJ0JM-477Z E CAPACITOR 470uF 6.3V M
C7148 QETJ0JM-477Z E CAPACITOR 470uF 6.3V M
C7150 QETJ0JM-477Z E CAPACITOR 470uF 6.3V M
C7502 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C7503 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C7504 NDC31HJ-151X C CAPACITOR 150pF 50V J
C8001 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8002 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8003 NCB31HK-821X C CAPACITOR 820pF 50V K
C8004 NCB31HK-821X C CAPACITOR 820pF 50V K
C8005 NCB31HK-821X C CAPACITOR 820pF 50V K
C8006 NCB31HK-821X C CAPACITOR 820pF 50V K
C8007 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8008 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C8052 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
R1 NRSA63J-622X MG RESISTOR 6.2k Ω 1/16W J
R2 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R3 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R11 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R12 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R36 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R37 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R40 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R41 NRSA63J-471X MG RESISTOR 470
Ω 1/16W J
R201 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R202 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R2007 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R2010 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R2013 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R2014 NRSA63J-394X MG RESISTOR 390k
Ω 1/16W J
R2015 NRSA63J-271X MG RESISTOR 270
Ω 1/16W J
R2016 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R2017 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R2018 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2019 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R2021 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R2022 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R2023 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R2024 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R2053 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R2054 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R2055 NRSA63J-3R3X MG RESISTOR 3.3
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R2056 QRE141J-820Y C RESISTOR 82 Ω 1/4W J
R2057 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2058 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R2059 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2060 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R2201 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R2202 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R2205 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R2206 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R2209 QRE141J-101Y C RESISTOR 100 Ω 1/4W J
R2210 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2211 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R2212 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R2213 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2214 QRE141J-101Y C RESISTOR 100 Ω 1/4W J
R2216 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R2218 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R2219 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R2220 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R2221 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R2222 NRSA63J-392X MG RESISTOR 3.9k
Ω 1/16W J
R2223 NRSA63J-561X MG RESISTOR 560
Ω 1/16W J
R2224 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R2230 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2231 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R2251 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R2252 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R2255 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R2257 NRSA63J-684X MG RESISTOR 680k Ω 1/16W J
R3003 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3005 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3006 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3007 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3008 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3009 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3010 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3011 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3014 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3015 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3016 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3017 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3018 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3021 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3031 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R3032 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R3035 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R3060 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3087 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3091 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3092 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3093 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3094 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R3095 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3096 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3097 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3098 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3099 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3100 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3201 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3202 NRSA63J-393X MG RESISTOR 39k
Ω 1/16W J
R3205 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3206 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3207 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3208 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3209 QRE141J-181Y C RESISTOR 180 Ω 1/4W J
R3211 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R3212 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3213 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R3214 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3215 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R3216 NRSA63J-474X MG RESISTOR 470k
Ω 1/16W J
R3217 NRSA63J-334X MG RESISTOR 330k
Ω 1/16W J
R3219 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3220 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R3222 NRSA63J-471X MG RESISTOR 470
Ω 1/16W J
R3223 NRSA63J-105X MG RESISTOR 1M Ω 1/16W J
R3224 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R3226 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local

(No.YD065)3-15
R3227 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3236 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R3237 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3238 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3242 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3243 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R3244 NRSA63J-331X MG RESISTOR 330
Ω 1/16W J
R3245 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R3253 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3301 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R3302 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R3303 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R3304 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3305 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3306 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3307 QRE141J-4R7Y C RESISTOR 4.7 Ω 1/4W J
R3308 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3309 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R3310 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3311 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R4001 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R4002 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R4010 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R4011 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R4012 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R4018 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4019 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4022 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 R5001 QRZ9046-475Z C RESISTOR 4.7M Ω 1/2W K
R5101 QRE141J-224Y C RESISTOR 220k Ω 1/4W J
R5102 QRE141J-224Y C RESISTOR 220k Ω 1/4W J
R5103 QRE141J-683Y C RESISTOR 68k Ω 1/4W J
R5104 QRG02GJ-683 OMF RESISTOR 68k Ω 2W J
R5106 QRT01DJ-R27X MF RESISTOR 0.27 Ω 1W J
R5107 QRE121J-331Y C RESISTOR 330 Ω 1/2W J
R5108 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R5109 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R5110 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R5111 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5112 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5113 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R5201 QRE141J-221Y C RESISTOR 220 Ω 1/4W J
R5202 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5203 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5204 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R5205 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R5206 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R5311 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5312 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5313 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R5316 QRE141J-181Y C RESISTOR 180 Ω 1/4W J
R5317 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R5319 NRSA63J-560X MG RESISTOR 56
Ω 1/16W J
R5320 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R5321 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R5325 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R6020 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6021 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R6030 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R6031 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R6050 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R6051 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R6054 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R6055 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R6502 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R7134 NRSA63J-750X MG RESISTOR 75
Ω 1/16W J
R7135 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R7137 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R7164 QRE141J-750Y C RESISTOR 75
Ω 1/4W J
R7165 QRE141J-750Y C RESISTOR 75 Ω 1/4W J
R7166 QRE141J-750Y C RESISTOR 75
Ω 1/4W J
R7173 NRSA63J-181X MG RESISTOR 180
Ω 1/16W J
R7174 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R7175 NRSA63J-181X MG RESISTOR 180
Ω 1/16W J
R7176 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R7177 NRSA63J-820X MG RESISTOR 82 Ω 1/16W J
R7179 NRSA63J-820X MG RESISTOR 82
Ω 1/16W J
R7183 NRSA63J-181X MG RESISTOR 180
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R7184 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R7501 NRSA02J-100X MG RESISTOR 10 Ω 1/10W J
R7502 NRSA63J-301X MG RESISTOR 300 Ω 1/16W J
R7503 NRSA63J-301X MG RESISTOR 300 Ω 1/16W J
R7504 NRSA63J-820X MG RESISTOR 82 Ω 1/16W J
R7506 NRSA63J-330X MG RESISTOR 33
Ω 1/16W J
R8001 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R8002 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R8003 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R8004 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R8005 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R8006 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R8007 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R8008 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R8009 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R8010 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R8013 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R8014 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R8015 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R8016 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R8017 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R8018 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R8052 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R8053 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R8054 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R8055 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
L5 QQL29BJ-100Z P COIL 10uH J
L7 QQL071J-120Y COIL 12uH J
L10 QQL29BJ-100Z P COIL 10uH J
L203 QQL231J-4R7Y COIL 4.7uH J
L2251 QQL29BJ-100Z P COIL 10uH J
L4001 QQL29BJ-100Z P COIL 10uH J
L5201 QQR1287-001 CHOKE COIL
L5202 QQR1287-001 CHOKE COIL
L5203 QQR1287-001 CHOKE COIL
L5303 QQL231J-220Y COIL 22uH J
L7101 QQL29BJ-100Z P COIL 10uH J
L7103 QQL29BJ-100Z P COIL 10uH J
L7501 QQL231K-1R0Y COIL 1uH K
T2051 QQR1309-001 BIAS COIL
 T5001 QQS0219-001 SW TRANSF
B4 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B10 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B3003 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B5301 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B5303 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B5393 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B6020 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
B7501 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
B7502 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
 CD1 QMPD530-172-JD POWER CORD(US/CA) 1.72m BLACK
CN1 QGF1201C2-09 CONNECTOR FFC/FPC (1-9)
CN2001 QGF1207C1-06 CONNECTOR FFC/FPC (1-6)
CN2002 QGB2532J1-02 CONNECTOR B-B (1-2)
CN3001 QGB2032M4-12 CONNECTOR B-B (1-12)
CN3102 QGF1207C1-22 CONNECTOR FFC/FPC (1-22)
CN3301 QGF1016C3-05 CONNECTOR FFC/FPC (1-5)
CN7103 QGF1207C1-10 CONNECTOR FFC/FPC (1-10)
CN7301 QGF1016C3-19 CONNECTOR FFC/FPC (1-19)
CN7302 QGF1016C3-17 CONNECTOR FFC/FPC (1-17)
 CP3001 QMFZ053-1R5Z-J1 FUSE 1.5A
 CP3101 QMFZ053-1R5Z-J1 FUSE 1.5A
 CP4001 QMFZ053-1R5Z-J1 FUSE 1.5A
 CP5301 QMFZ054-1R5X-J1 FUSE 1.5A
 CP5302 QMFZ054-1R5X-J1 FUSE 1.5A
 F5001 QMF51N2-1R25-J5 FUSE 1.25A AC250V
FC5001 QNG0006-001Z FUSE CLIP
FC5002 QNG0006-001Z FUSE CLIP
HS1 LP40090-001A HEAT SINK Q5101
J7002 QNN0586-001 PIN JACK
AUDIO/VIDEO OUTPUT
J7004 QNN0588-001 PIN JACK DVD AUDIO OUTPUT
J7005 QNN0587-002 PIN JACK COMPONENT VIDEO OUT
J7009 QNN0347-001 SURROUND JACK COAX OUT
JS3001 NSW0238-001 ROTARY ENCODER
K5101 QQR0621-001Z COIL
 LF5002 QQR1515-001 LINE FILTER
 Symbol No. Part No. Part Name Description Local

3-16(No.YD065)
A/C head board
Block No. [1][2]
DVD bracket board
Block No. [1][3]
Display board
Block No. [2][8]
OT1 LP31158-001A BOSS(MECHA) 1
OT2 LP31185-001A BOSS(MECHA) 2 (x2)
OT3 QYTDST3006ZA TAP SCREW M3 x 6mm Q5101
S3001 QSW0602-004 PUSH SWITCH REC.SAFETY
SD1 LP31179-001A SHILD PLATE(PRE/REC)
TU6001 QAU0336-003 TUNER
 VA5001 QAF0023-431Z VARISTOR 430V
W1 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W2 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W4 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W5 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W6 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W7 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W8 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W9 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W10 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W11 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W12 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W23 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W25 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
W30 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
W31 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W32 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W33 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W34 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W36 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W37 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W38 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W39 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W40 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W41 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W42 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W43 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W45 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W47 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W49 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W50 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
X2 QAX0739-001 CRYSTAL 3.57MHz
X3001 QAX0526-001 CRYSTAL 14.31818MHz
 Symbol No. Part No. Part Name Description Local
PW1 LPA10158-01A1 A/C HEAD BOARD ASSY
 Symbol No. Part No. Part Name Description Local
PW1 LPA10228-03A3 DVD BRACKET BOARD ASSY
 Symbol No. Part No. Part Name Description Local
PW1 LPA10228-03A1 DISPLAY BOARD ASSY
IC7002 GP1UM281XKVF IR DETECT UNIT
IC7002 or PNA4652M00XB IR DETECT UNIT
Q7001 2SA1037AK/QR/-X TRANSISTOR
 Symbol No. Part No. Part Name Description Local
Q7001 or 2SB709A/QR/-X TRANSISTOR
Q7001 or 2SA1530A/QR/-X TRANSISTOR
Q7002 2SA1037AK/QR/-X TRANSISTOR
Q7002 or 2SB709A/QR/-X TRANSISTOR
Q7002 or 2SA1530A/QR/-X TRANSISTOR
Q7003 2SA1037AK/QR/-X TRANSISTOR
Q7003 or 2SB709A/QR/-X TRANSISTOR
Q7003 or 2SA1530A/QR/-X TRANSISTOR
Q7004 2SA1037AK/QR/-X TRANSISTOR
Q7004 or 2SB709A/QR/-X TRANSISTOR
Q7004 or 2SA1530A/QR/-X TRANSISTOR
Q7005 2SA1037AK/QR/-X TRANSISTOR
Q7005 or 2SB709A/QR/-X TRANSISTOR
Q7005 or 2SA1530A/QR/-X TRANSISTOR
Q7006 2SA1037AK/QR/-X TRANSISTOR
Q7006 or 2SB709A/QR/-X TRANSISTOR
Q7006 or 2SA1530A/QR/-X TRANSISTOR
Q7007 2SA1037AK/QR/-X TRANSISTOR
Q7007 or 2SB709A/QR/-X TRANSISTOR
Q7007 or 2SA1530A/QR/-X TRANSISTOR
Q7008
2SC2412K/QRS/-X TRANSISTOR
Q7008 or 2SD601A/QRS/-X TRANSISTOR
Q7008 or
2SC3928A/QRS/-X TRANSISTOR
Q7009 2SC2412K/QRS/-X TRANSISTOR
Q7009 or 2SD601A/QRS/-X TRANSISTOR
Q7009 or 2SC3928A/QRS/-X TRANSISTOR
Q7010 2SC2412K/QRS/-X TRANSISTOR
Q7010 or 2SD601A/QRS/-X TRANSISTOR
Q7010 or 2SC3928A/QRS/-X TRANSISTOR
Q7011 2SC2412K/QRS/-X TRANSISTOR
Q7011 or 2SD601A/QRS/-X TRANSISTOR
Q7011 or 2SC3928A/QRS/-X TRANSISTOR
Q7012 2SC2412K/QRS/-X TRANSISTOR
Q7012 or 2SD601A/QRS/-X TRANSISTOR
Q7012 or 2SC3928A/QRS/-X TRANSISTOR
Q7013 2SC2412K/QRS/-X TRANSISTOR
Q7013 or 2SD601A/QRS/-X TRANSISTOR
Q7013 or 2SC3928A/QRS/-X TRANSISTOR
Q7014 2SC2412K/QRS/-X TRANSISTOR
Q7014 or 2SD601A/QRS/-X TRANSISTOR
Q7014 or 2SC3928A/QRS/-X TRANSISTOR
C7011 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
R7001 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7002 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7003 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7004 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7005 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7006 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R7007 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R7010 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R7011 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R7012 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R7013 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R7014 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R7015 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R7020 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R7021 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R7022 NRSA63J-182X MG RESISTOR 1.8k
Ω 1/16W J
R7023 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R7031 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R7032 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R7033 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R7034 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R7035 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R7036 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R7037 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R7040 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
CN7003 QGF1208F1-22 CONNECTOR FFC/FPC (1-22)
DI7001 ZDP-17902AEG-21 LED
S7001 QSW1061-001Z TACT SWITCH DVD OPEN/CLOSE
S7002 QSW1061-001Z TACT SWITCH
PROGRESSIVE SCAN
S7003 QSW1061-001Z TACT SWITCH CH+
S7004 QSW1061-001Z TACT SWITCH FF
S7005 QSW1061-001Z TACT SWITCH REW
S7006 QSW1061-001Z TACT SWITCH REC
 Symbol No. Part No. Part Name Description Local
