JVC LT-24HA47E User manual

LT-24HA47E
LT-29HA47E
LT-39HG47E
LEDTV
Operating Instructions
Příručka k obsluze
Návod na obsluhu
használati utasítása
Instrukcja Obslugi
ČESKY ENGLISHMAGYAR
SLOVENSKY
POLSKI
LT-39HG47E
LT-24HA47E
LT-29HA47E
J3MW0251A_EN.indd 1J3MW0251A_EN.indd 1 10/26/12 6:41:23 PM10/26/12 6:41:23 PM

EN 2
Features
Battery notice (valid in EU only)
Look after our environment - contact your local authorities for advice on how to safely dispose of exhausted
batteries.The crossed out wheelie bin symbol indicates that used batteries should not be disposed of
with your normal household waste! A separate collection system for used batteries is in place to allow the
correct treatment and recycling in accordance with current legislation. Please contact your local authority for
details on collection and recycling schemes in your area.
DVB-C notice
Encoded programmes require a Smartcard and a CA module (CAM) to deciphering.The Smartcard you
get from your cable supplier, CAMs are customary.The CAM you insert into the CI-Slot (see P.10) of this
TV-set. The Smartcard you insert into the CAM.
Currently approx. 650 cable-providers offer their service in Germany. The built-in tuner cannot
automatically store all available channels of all cable networks.This performance cannot be expected, with
so many individual providers on the market. Please use your provider’s channel-table for manual tuning.
This TV’s CI-slot cannot support all CI+moduls of all 650 providers. If your provider’s modul is not
supported, please ask your dealer for another CA-module or use your provider’s settop-box for descrambling.
Information for the DVB-T function
Any function relative to the digital television (with the DVB logo) is available only within the country or area
where such signals are transmitted.Verify with the salesman if it is possible to receive a DVB-T signal in
the zone where you live.
Remove the CAM for DVB-T reception, if it has been inserted.
A DVB-T antenna must be connected for DVB-T reception.
Even if the television conforms to the DVB-T specifications, the compatibility to future digital DVB-T
transmissions is not guaranteed.
Some digital television functions may not be available in some countries.
The DVB-T system present in this device is FTA (Free to air).
•
•
•
•
•
•
•
•
•
16:9 LCD screen
LED-Backlight-Technology
DVB-C/T-HDTV-Tuner
Cable-analogue-Tuner
Electronic Progr. Guide (EPG) for DVB
•
•
•
•
•
USB-Media player
Auto Power Off
PVR (Personal Video Recorder)
Time Shift
New Thin-frame design*
•
•
•
•
•
Equipment connected to the protective earthing of the building installation through the mains connection
or through other equipment with a connection to protective earthing – and to a cable distribution system
using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution
system has therefore to be provided through a device providing electrical isolation below a certain
frequency range.
Utstyr som er koplet til beskyttelsesjord via nettplugg og/eller via annet jordtilkoplet utstyr – og er tilkoplet
et kabel-TV nett, kan forårsake brannfare.
For å unngå dette skal det ved tilkopling av utstyret til kabel-TV nettet installeres en galvanisk isolator
mellom utstyret og kabel-TV nettet.
Utrustning som är kopplad till skyddsjord via jordat vägguttag och/eller via annan utrustning och samtidigt
är kopplad till kabel-TV nät kan i vissa fall medföra risk för brand.
För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator finnas mellan
utrustningen och kabel-TV nätet.
* The extra-slim frame allows more than a full view to the TV’s screen. Even the superblack screen’s rim
(3mm approx.) is now visible.
Dear Customer, [European Union]
This apparatus is in conformance with the valid European directives and standards regarding
electromagnetic compatibility and electrical safety.
European representative of the manufacturer is:
ORION ELECTRIC (POLAND) SP.ZO.O.
OSTASZEWO 57 87-148 LYSOMICE
POLAND
J3MW0251A_EN.indd 2J3MW0251A_EN.indd 2 10/26/12 6:41:26 PM10/26/12 6:41:26 PM

3 EN
Contents
Features................................................................ 2
Contents ............................................................... 3
Important safety information.................................. 4
Location of controls............................................... 7
Remote Control..................................................... 8
Antenna connection............................................ 10
Auto setup........................................................... 11
Selecting the input source................................... 11
On-screen Language Selection .......................... 12
Station search..................................................... 12
Manual Channel Scan......................................... 12
Channel Setup.................................................... 13
Auto Synchronization.......................................... 13
Power On/Off Timer ............................................ 13
Basic Operation .................................................. 14
Teletext ............................................................... 14
Stereo reception in analogue cable
TV channel mode................................................ 15
Remarks on DVB-T system ................................. 16
Password Setup (Parental lock) .......................... 17
EPG (Electronic Programme Guide) ................... 17
Other convenience functions .............................. 18
Picture size and resolution .................................. 20
Picture format...................................................... 21
Information for recording function ....................... 22
Recording the TV programme............................. 22
Watch the recorded programme ......................... 22
Preparing your USB device for playing
Time Shift recordings.......................................... 22
Time Shift............................................................ 23
EPG Recording................................................... 23
Media Operation ................................................. 24
Media Browser.................................................... 24
Playable File Types ............................................. 24
Playback files...................................................... 25
Connecting an HDMI or a DVI device
to the HDMI input................................................ 26
Connection to other equipment........................... 26
Troubleshooting table.......................................... 28
Specifications ..................................................... 29
License information............................................. 30
ENGLISH
J3MW0251A_EN.indd 3J3MW0251A_EN.indd 3 10/26/12 6:41:26 PM10/26/12 6:41:26 PM

EN 4
Important safety information
This unit has been produced according to all current safety regulations.The following safety tips should safeguard
users against careless use and the dangers connected with such use.
Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as
with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build-up
of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket
immediately.
Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!
This set should be only be connected to an AC 220~240V / 50Hz mains power supply - do not attempt to
connect it to any other type of supply.
The socket-outlet must be installed near the equipment and easily accessible.
Any repairs must be carried out by qualified service personnel only.
Do not open this unit. A non-expert attempting to repair the unit could be dangerous and potentially cause a fire
hazard.
Keep away from rodents. Rodents (and also cockatiels) enjoy biting into electric flexes.
The animal can cause a short cut (fire hazard!) and receive a fatal electric shock.
Always hold plug when pulling out plug from power mains supply system. Do not pull on flex.The flex can
become overloaded and cause a short cut.
Never wet clean. Only use a damp cloth, the same as when cleaning furniture.
Do not submerge in or under water!
Set up unit so that no one is able to trip over the flex.
This unit is recommended to be installed on shock-free benches in order to avoid any danger from falling.
Take note that toddlers can pull the unit down from the table or cupboard by means of its flex. Children can hurt
themselves when doing this.
Do not use the unit near heat sources.The casing and flex could be damaged by the impact of heat.
Watch out for kiddies copying what adults do! Do not stick any objects through the vents!
The vents must remain open! No newspapers or covers should be put on the unit!
The remote control is not a toy! Toddlers could swallow the batteries. If a battery has been swallowed, please
seek out a doctor immediately.
The screen is made of glass and can break if damage is done to it. Be careful when collecting sharp-edged
glass splitters.
You could be hurt or the unit could be damaged.
If the unit is mounted on the wall, contact the shop where you purchased the unit for advice, and leave the
installation work to experts. Incomplete installation work can cause you injuries.
Taking fall-prevention measures
- If these measures are not taken, the unit can fall and you could be injured.
- Contact the shop where you purchased the unit to obtain full details of the measures.
When a TV stand is used,
- Ensure the unit is fully on the stand and placed in the centre.
- Do not leave the stand doors open.
- You could be hurt as a result of the unit falling or breaking, or your fingers being caught or jammed.Take extra
precautions if you have children.
Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
To protect the unit during a thunder storm unplug the AC power cord and disconnect the antenna. Caution: Do
not touch the antenna connector.
When you leave your home for a long period of time, unplug the AC power cord for safety reasons.
The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent
overheating.The ventilation holes are not to be blocked. Do not set up near radiators. Do not place in direct
sunshine.When placing on a shelf leave 10 cm free space around the whole unit.
Make some space around TV (Correct shelf assembly).
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Liquids spilled into the unit can cause serious damage. Switch the set OFF and disconnect the mains power
supply, then consult a qualified service person before attempting to use the unit again.
Please pay attention to the following instructions in order to avoid receiving a life-threatening electric
shock:
Protect against moisture. Never use in the bath or sauna.
Never use near a bath, shower or swimming pool.
Never use the unit if it has got wet.This can also mean condensation moisture, which occurs in the winter when
the cold unit is brought into a heated flat.Wait before operating the unit especially after it has been transported
in the winter, until the cold unit has adjusted to the room temperature.
Do not place any heavy objects on the flex. Electrical isolation could be damaged.
Never wrap insulating tape around damaged flexes or on damaged plugs.These should be repaired or replaced
by qualified service personnel.
Never use this unit if the cabinet is defective. Do not make provisional repairs if the cabinet is damaged - this
should be replaced by a new cabinet if necessary.
Unplug the unit from the mains power supply prior to the cleaning of the unit.
Never try to repair a damaged AC power cord with isolation-tape - this should be repaired by a specialist or
replaced. Do not let your pet loose near the cable. Animals biting into the cable could receive a fatal electric
shock, and could cause a hazard to others.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
J3MW0251A_EN.indd 4J3MW0251A_EN.indd 4 10/26/12 6:41:26 PM10/26/12 6:41:26 PM

5 EN
LT-39...
Important safety information

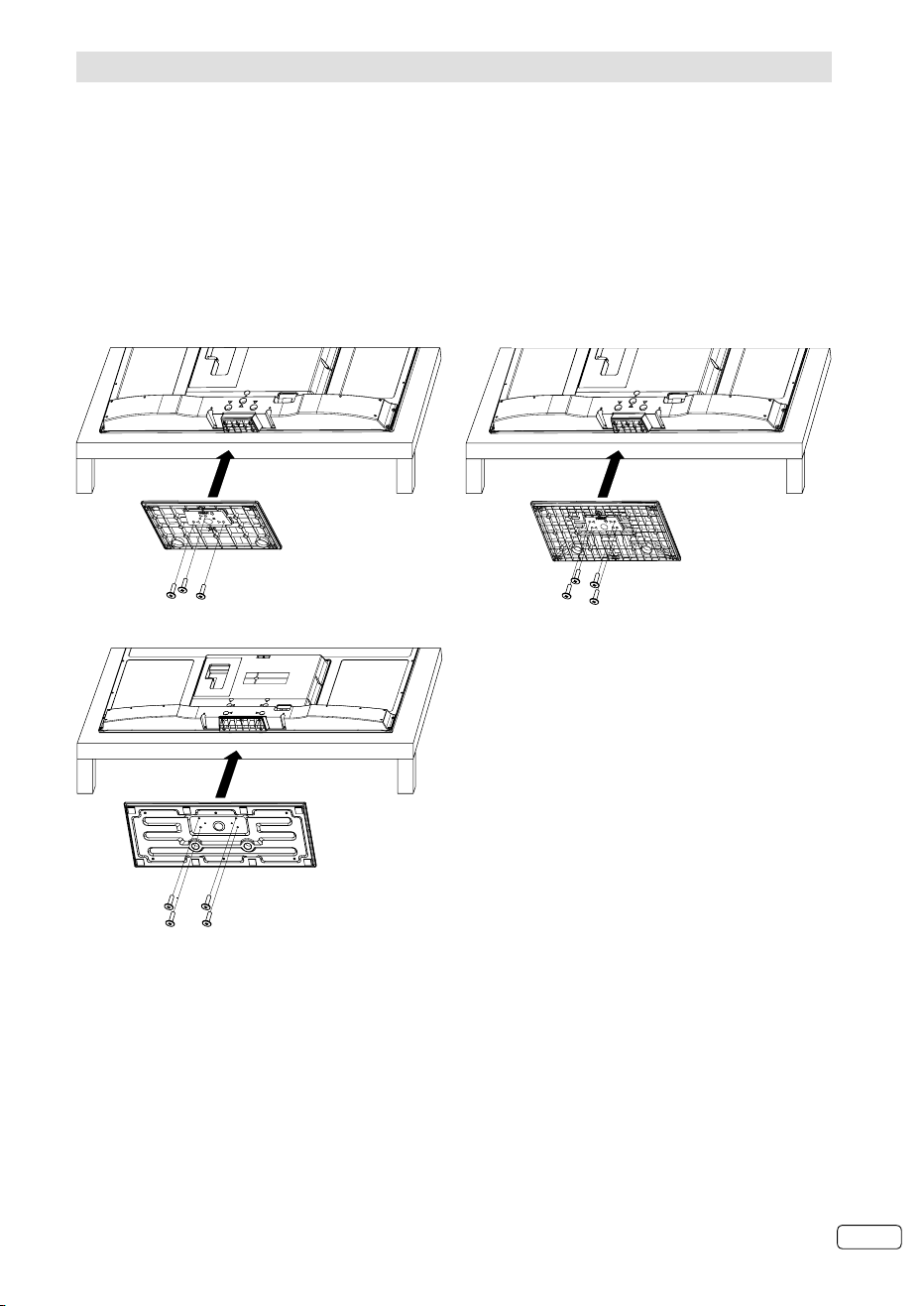

How to attach the stand
NOTE:
• Unplug the AC cord.
• Before performing work spread cushioning over the base area to lay the TV on.
• Do not support the TV by the screen as sharp objects and too much pressure may cause damage.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
1) Place the TV on its front onto a table.
2) Align the stand’s base-plate (supplied) as seen here.
It will fit in only one direction. Make sure the locating pegs project through the locating holes.
3) Carefully hold the base plate in position and secure it with screws (4x16mm)..LT-24..x3/LT-29../LT-39..x4
(included).
Dismantling the base
For wall mounting, the base must be dismantled.To do this, remove screws (J, see page 10) from the back.
Take off the base entirely. Fit a VESA (LT-24.../LT-29...:100mm, LT-39...:100X200mm) wall mounting kit.
LT-24... LT-29...
NOTE:
To detach the base plate, perform these steps in
reverse order.
•
Notes when mounting the TV on a wall
Before wall-mounting, please check carefully the location of the TV’s mounting-holes. (see, “Dimension”
on inside back cover)
•
