JVC LT-32HA60U User manual

LT-32HA60U
EnglishFrenchDutchSpanish
CZECH
Operating Instructions
Mode d'emploi
Handleiding
Instrucciones de Funcionamiento
Návod k použití
Návod na obsluhu
SLOVAK
VOL
VOL
CH
CH
MENU MENU
//
ANGLE ANGLE
REC
REC
A-B A-B
Downloaded from www.vandenborre.be

EN
2
You get the smartcard from your cable supplier (CAMs are customary). Insert the
smartcard into the CAM, and then insert the CAM into the CI slot of your TV set.
modules
EN
Darty Plc © 22/24 Ely Place, London EC1N 6TE, UK
Downloaded from www.vandenborre.be

it is damaged.
broken glass. You could be hurt or the unit could become damaged.
to allow for air circulation.
100-240V~50/60Hz
EN
3
EN
Downloaded from www.vandenborre.be

Carefully hold the base plate in position and secure it with screws.
To detach the stand, perform these steps in reverse order.
For wall mounting , the stand must be dismantled. To do this, remove screws ( above drawing ) from the
back . Fit a VESA (200 x 100) wall mounting kit. The screw thread length must not exceed 5mm (lower
screws) and 10mm (upper screws) into the TV.
Remove the stand as one piece by reversing the fixing procedure described above.
You can refit the screws to the stand for safe keeping, but tighten them only slightly.
VESA screw size 4xM4x5mm
Protect the screen and lay the TV flat on its face, on a stable table, with the stand foot clear of the
table edge.
To ensure a safe installation, please observe the following when hanging the television on a wall:
Warning: This operation requires two people.
Check that the wall can support the weight of the television set and a VESA-standard wall mount
assembly (not supplied).
Be sure to use only screws suitable for the material of the wall.
In case of any doubt please contact a qualified installer.
Beware of electrical cables, gas and water pipes in the wall.
Follow the instructions provided with the wall mount.
The set must be installed on a vertical wall.
Make sure that cables are placed so that there is no danger of tripping over them or damaging
them.
fit in
1. Place the TV with the display side down
on a flat surface. Use a cloth to protect the
display.Position the stand base pillar onto
the bottom of the TV.
2. Attach the stand base plate and washer to
the stand pole by firmly tightening the supplied
screws.
EN
4
EN
3xM3x15mm
3xM4x15mm
Dismantling the stand
Downloaded from www.vandenborre.be

it on the edge.
While cleaning, do not wear jewelry that could cause surface
scratching (such as rings, wrist-watch, etc.).
the
EN
5
EN
Downloaded from www.vandenborre.be

Safety Information
Dangerous voltage constituting a risk
of electric shock is present inside this
equipment.
This equipment is double insulated
and an earth connection is not
required.
This mark is applied to show the
equipment conforms to European
safety and electro-magnetic
compatibility standards.
Safe use and care of your television
We have designed and made this television to meet
European Safety Standards, but as with any
electronic equipment you must take care, to stay
safe and get the best results. Here is some good
advice to help you do this.
Read these instructions carefully before you try to
use the television.
Protect the mains lead. You must ensure the mains
lead cannot be walked on, crushed, chafed, cut or
trapped.
Switch off the mains power or pull out the mains plug
when you leave the television unattended, unless
the function of the television requires a continuous
power supply.
Do not continue to use your television if you have
spilt liquids in it, if it is damaged in any way or if it
does not work normally. Immediately unplug the
television and get expert advice.
Avoid harsh conditions such as wet or damp places,
high humidity, strong vibration, extremely high or
low temperatures, strong sunlight and places that
are very dusty.
Never fit makeshift stands or legs to the television.
Never push objects into holes and ventilation slots.
To prevent electric shock do not remove any cover.
Do not touch the LED display as it gets warm when
in use, this is normal and is not a fault.
If anything goes wrong do not try to fix it yourself,
get a qualified service agent to look at it.
Pull out the mains plug and disconnect the aerial
lead during thunder storms.
Ventilation
Place the television on a hard flat surface away from
direct sunlight or heat sources. If it is in a cabinet
allow at least a 10cm gap all around.
Do not obstruct the ventilation slots, including those
underneath with soft furnishings.
Overheating will shorten the life of the television
and increase the risk of fire.
Cleaning
Disconnect the mains supply and use only a lightly
dampened soft cloth. Do not use chemical solvents
or strong detergents as these may damage the
cabinet or screen.
Mains Supply
This television is designed to operate from a 100-
240 Volts 50/60Hz AC mains supply. Other power
sources
may damage it. Check that the rating plate (on the
back cover of the television) states 100-240V AC
before you plug it in for the first time.
The manufacturer accepts NO liability for damage
or injury caused by using the product with the
wrong mains voltage.
Mains Plug
We have fitted this television with a standard
mains plug.
 If the mains lead is damaged it must be
replaced with a mains lead of the same type and
rating to avoid a hazard.
If for any reason you cut off the mains plug,
please destroy the old plug as it would be
dangerous if inserted into a live power outlet.
Carefully follow the wiring instructions supplied
with the new plug.
If a fuse is fitted to the plug, remove the fuse
before throwing the plug away.
Never use a fused mains plug without the fuse
cover.
The mains plug shall be the main disconnect
device and should be accessible at all times.
Never allow water droplets to remain on the
screen as moisture can cause permanent
discolouration.
Greasy marks must only be removed with a
commercial cleaner specifically recommended for
LED screens.
EN
6
EN
Downloaded from www.vandenborre.be

Safety Information (cont)
Eye Fatigue
When using this product as a computer monitor, health and safety experts recommend short
frequent breaks rather than occasional longer breaks. For example a 5-10 minute break after
an hour of continuous screen work is considered to be better than a 15 min break every 2 hours.
Do not use the monitor against a bright background or where sunlight or other bright light
sources will shine directly onto the screen.
Headphones
CAUTION: Connect headphones with the volume set low and increase if required. Prolonged
listening through headphones at high volume settings can result in hearing damage.
Batteries
Remove batteries when the remote control is not to be used for a long time. Batteries left in
equipment may cause damage through deterioration and corrosive leakage, invalidating the
guarantee.
To protect the environment use local recycling facilities for battery disposal.
Dispose of used batteries according to the instructions.
CAUTION: Risk of explosion if batteries are replaced by an incorrect type.
DISPOSAL
You must dispose of this product according to local laws and regulations.
Because this product contains electronic components, the product must be
disposed of separately from household waste when the product reaches its end of life.
The product should be taken to your local collection point for recycling.
Some collection points accept products free of charge.
WARNINGS:
This appliance is intended for domestic household use only and should not be used for any
other purpose or on any other application, such as for non-domestic use or use in a commercial
environment.
If the supply cord is damaged it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
No naked flame sources, such as lighted candles should be placed on the apparatus.
The ventilation should not be impeded by covering the ventilation openings, with items such as
newspapers, tablecloths, curtains etc.
WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.
This apparatus shall not be exposed to dripping or splashing.
No objects filled with liquids, such as vases, shall be placed on the apparatus.
EN
7
EN
Downloaded from www.vandenborre.be

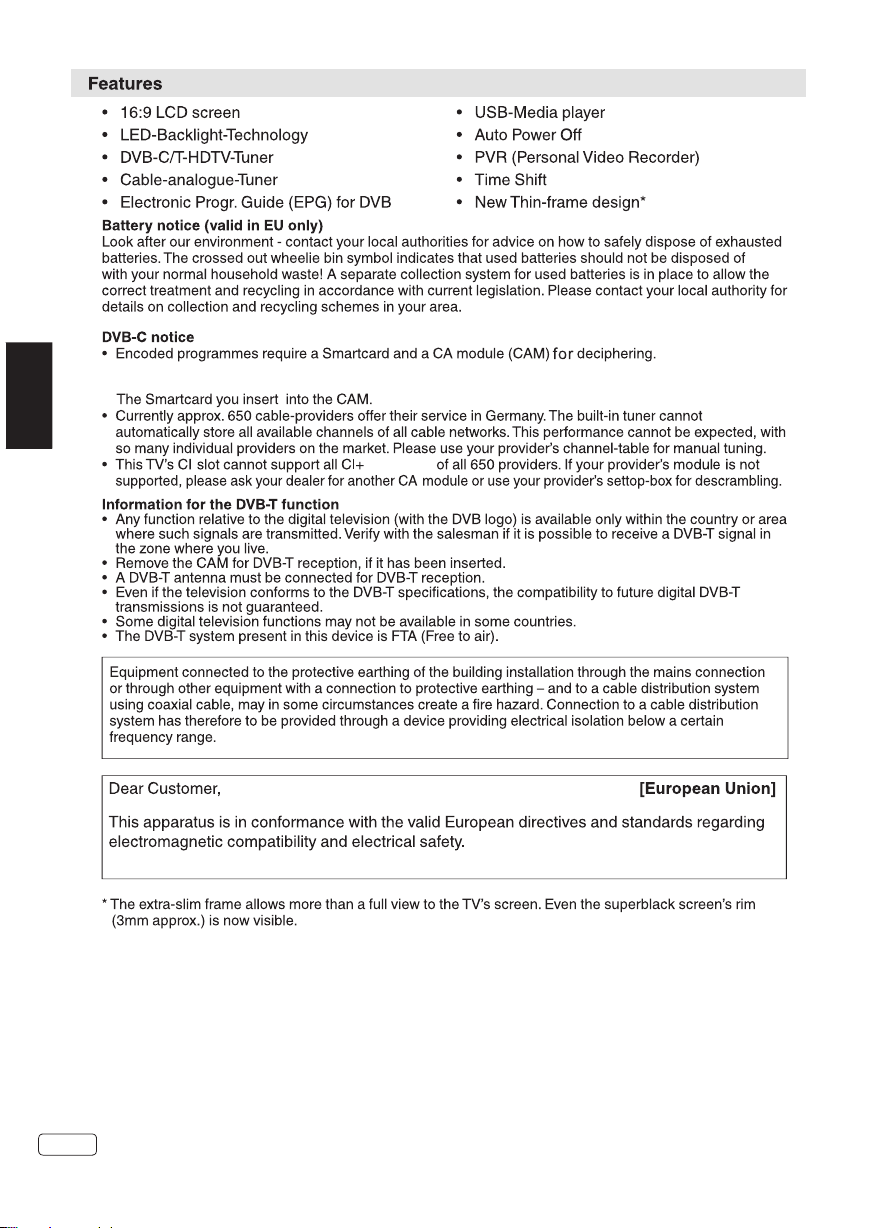

Features...............................................................................................2
Important Safety Information...................................................................3-7
Contents...............................................................................................8
Installation............................................................................................9-12
Remote Control.....................................................................................13-14
Operation.............................................................................................15-24
Troubleshooting table............................................................................25-29
Specification.........................................................................................30
License Information...............................................................................31
EN
8
EN
Downloaded from www.vandenborre.be

1: Remote Control Sensor.
2: Power Indicator LED:
BLUE POWER ON.
RED STANDBY.
3: Side buttons
30 30
1
3
2
KEYBOARD
Front panel
REAR AV Connections

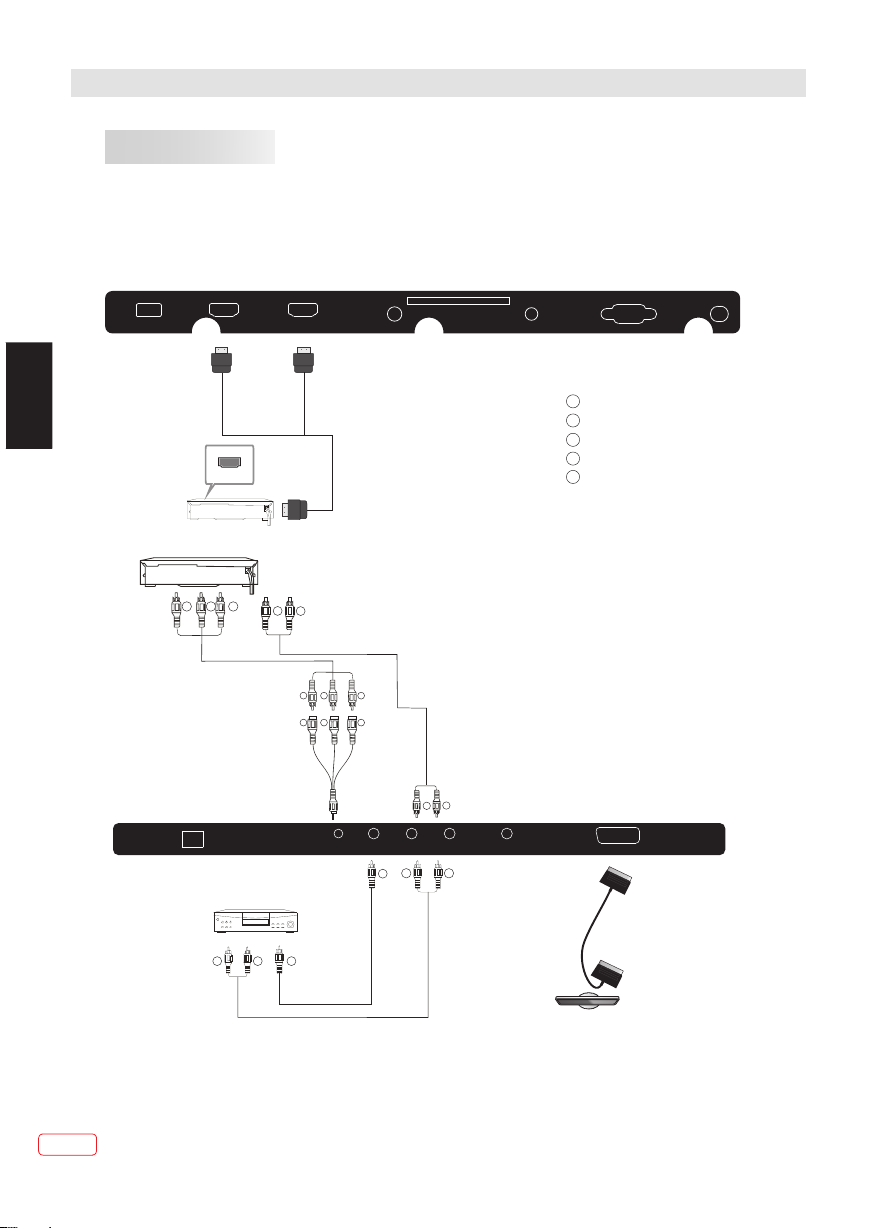

All the terminals are(from left to right):AC-INPUT, YPbPr INPUT, VIDEO, AUDIO INPUT,
COAXIAL OUTPUT, SCART.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
Note: 1.When HDMI port gets DVI signal ,the audio signal is received from the PC Audio channel.
2.Insert the plug of the earphone into the headphone jack on the unit.
The speakers are then muted.
USB, HDMI2(ARC), HDMI1, HEADPHONE, CI, PC AUDIO, VGA, RF.
EN
9
Installation
EN
VOL CH
FREEZE
EPG
AC-INP UT
100-24 0V~ 5 0/60Hz YPbPr VIDEO L R COAXIAL OUTPUT SCART
USB HDMI2(ARC) HDMI1 HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO VGA R F
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1. SOURCE: Displays the input source menu;
press repeatedly to move down the menu or press
"CH+" or "CH-" to select the required source.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode,
press "CH+" or "CH-" to select items.In standby
mode, press "CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that
you selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
HDMI ARC (Audio Return Channel)
The ARC function allows you to send audio signal from your ARC-compliant TV to ARC-compliant
audio devices (e.g. home theatre) without the need to connect any audio cable (e.g. coaxial, optical
digital audio cable, or analog audio cable).
To enjoy the ARC function:
1. Make sure your ARC- compliant audio devices are connected by an HDMI 1.4 cable to the HDMI 2 (ARC)
port of your ARC- compliant TV. And open the ARC function of ARC-compliant audio devices.
2. Adjust TV setting : press MENU button, choose SETUP, then set HDMI CEC Control on.
3. Then, just use your TV remote control to adjust the volume output (VOL + / - and MUTE) of the
connected audio device.
Note: if the ARC-compliant audio devices do not support sound that TV outputs, such as Dolby
Digital , or Dolby Digital Plus, then ARC function will not work and there may be no sound from
ARC-compliant audio devices.
Downloaded from www.vandenborre.be

STEPS:
PC
Be sure both the TV and computer are set to
Power off.
1.Connect VGA and audio cable.
2.Connect the power cord.
3.Power on the TV, switch to PC mode.
4.Power on the PC.
This sequence is very important.
EN
10
Installation
EN
USB HDMI2(ARC) HDMI1 HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO VGA R F
Downloaded from www.vandenborre.be

PRESET MODE
PC
EN
11
Installation
EN
ANTENNA
Note:
Aerial connections: IEC(female).
Input impedance: 75 unbalanced.
NOTE:
PC V.Freq.(Hz) not more than 60Hz
2
1
3
640*480
800*600
1024*768
60
60
60
31.47
37.88
48.36
RESOLUTION V.Freq.(Hz) H.Freq.(kHz)
4
1280*960 60 60
1280*720 60 45
1360*768 60 47.7
5
6
Downloaded from www.vandenborre.be

EN
12
This TV provides one group of AV, one group of YPbPr and one SCART for convenient
connection to VCR, DVD or other video equipment. Please refer to the owners manual
of the equipment to be connected.
REAR AND SIDE CONNECTIONS
AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i,1080p.
Installation
EN
HD MI
W R
GBR
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
WR
WR
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y
RBG
RBG
USB HDMI2(ARC) HDMI1 HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO VGA R F
AC-INP UT
100-24 0V~ 50/60Hz YPbPr VIDEO L R COAXIAL OUTPUT SCART
Please use the attached SCART cable.
NOTE:
(attached)
Downloaded from www.vandenborre.be

EN
13
REMOTE CONTROL
EN
EN
13
REMOTE CONTROL
1: :To set the TV to standby or power on.
2: :In USB mode, used as reverse key, in teletext
mode used as Sub-page key.
3: : In USB mode, used as forward key, in teletext
mode used as Reveal key.
4: : Press in USB Mode to begin or continue playback.
5: : Press in USB Mode to pause playback.
6:TEXT:To enter TELETEXT.
7: SUBTITLE: To turn on subtitles press the subtitle button
in DTV mode.
8 :MENU : Displays the main on-screen menu.
9 :CURSOR: To move within the menu.
10:OK: To confirm selection.
11:EPG: To display information about the programme being viewed
and what's on next in DTV mode.
12:FAV: To access your favourite channels list in ATV or DTV mode.
13:VOL+/- : To adjust sound level.
14:NUMERIC KEY: For direct access to channels.
15:AUDIO: To select the available audio language of TV programmes.
16: : To disable or enable the speaker sound output.
17: : In USB mode, used as next key, in teletext mode used as
list key. In DTV mode it lists TV and Radio channels.
18: : In USB mode, used as previous key, in teletext mode used
as hold key.
19: :In teletext mode used as index/shortcut button for PVR File System.
20: : Press to stop play in USB mode.
21:INFO: Press the info button to display the programme information of
the show you are watching.
22:FREEZE: Press to freeze the picture you are watching.
23: : Press to display and select the available video sources.
24:EXIT: To return to the previous menu or exit menu.
25:CH+/CH-: To access the next or previous channels.
26:REC:Press to record the TV programme you are watching in
DTV Mode.
27:RECALL: DTV Mode: Jumps to last channel viewed.
28. COLOURED BUTTONS (see footnote)
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
VOL CH
REC
FREEZE
28
MENU
Footnote:
Red, green, yellow and blue buttons are multi-function;
please follow on-screen prompts and section
instructions.
Remote Control Battery Installation
The remote control requires two AAA batteries (not supplied). Below are steps to
assist you with replacing the batteries.
1.Open the back cover of the battery compartment.
2.Install the batteries into the battery tray. There are +/- polarity
markings in the battery compartment. Please ensure the battery
polarity is correct.
3.Close the battery cover.
Downloaded from www.vandenborre.be

TELETEXT
Teletext is an information system broadcast by certain channels which can be like a
newspaper. It also offers access to subtitles for viewers with hearing problems or who are not
familiar with the transmission language (cable networks, satellite channels, etc.)
read
EN
14
REMOTE CONTROL
EN
E
SELECTING A PAGE
INDEX
(BUTTON 19)
DIRECT ACCESS
TO THE ITEMS
SUB PAGE
(BUTTON 2)
HOLD
(BUTTON 18)
REVEAL
(BUTTON 3)
Press : You will obtain :
LIST
(BUTTON 17)
Enter the number of the page required using the numeric buttons and up
and down arrow buttons. Example: page 120, enter 120. The number is
displayed top left, the counter turns and then the page is displayed.
Repeat this operation to view another page. If the counter continues to
search, this means that the page is not transmitted. Select another
number.
Coloured areas are displayed at the bottom of the screen. The 4 coloured
keys are used to access the items or corresponding pages. The coloured
areas flash when the item or the page is not yet available.
This returns to the contents page (usually page 100).
Certain pages contain sub-pages which are automatically displayed
successively. This key is used to stop or resume sub-page
acquisition. The number appears top left.
To freeze the page.
To display or hide the concealed information (games solutions).
The user can set four favourite pages to be directly linked to the four
colour keys. The favourite page numbers should be stored and restored
to/from nonvolatile memory for each channel by the system software.
This is used to enter or exit teletext mode. The summary appears with a
list of items that can be accessed. Each item has a corresponding 3 digit
page number.
TEXT
(BUTTON 6)
Downloaded from www.vandenborre.be

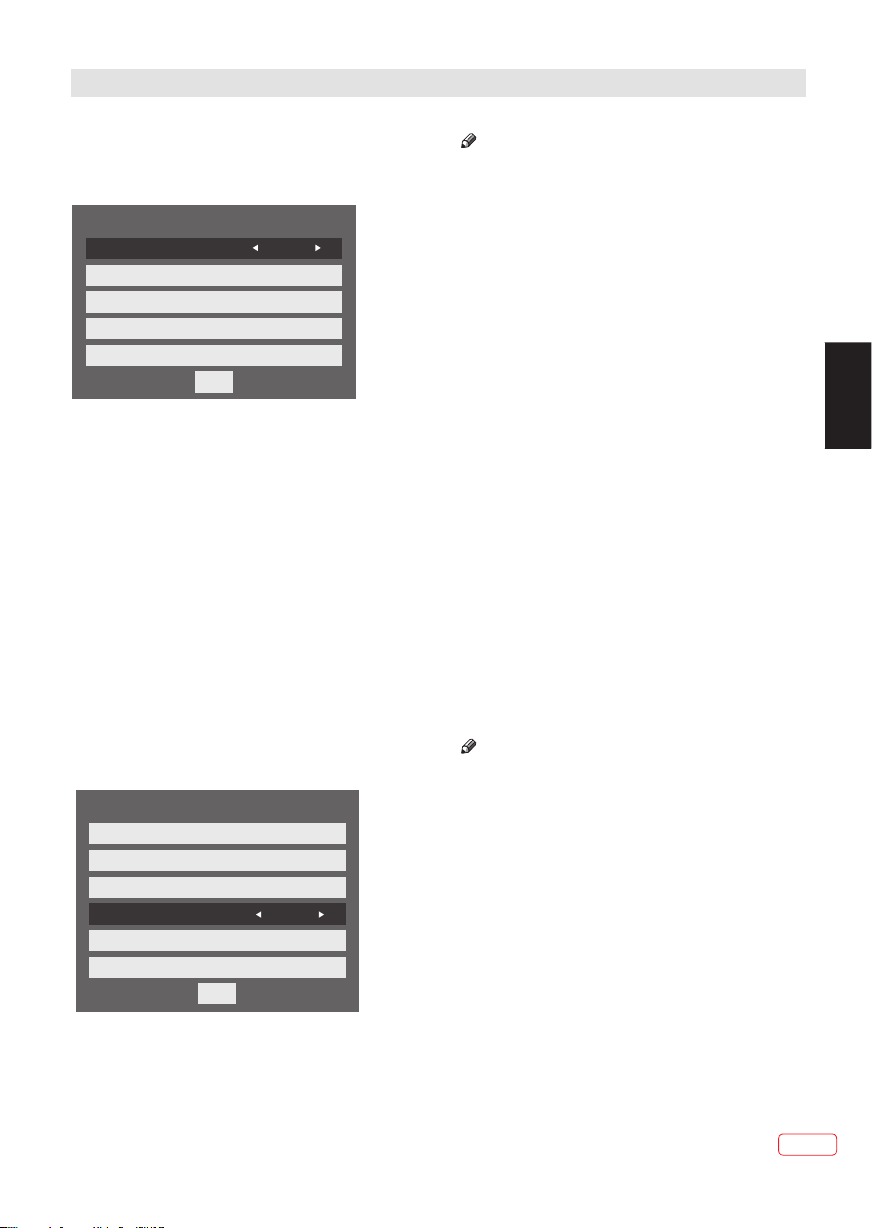

Installation Guide
1).Press the ▼▲ buttons to navigate the menu and
◀▶buttons to change the settings. Select your
desired language to be displayed on the menu and
choose between Home Mode and Shop Mode.
2). Press the ◀▶buttons to select AIR/Cable that is
to say DVB-T/DVB-C.
If you select DVB-C, you will select Full or Quick
way to scan.Also you can select Auto Scan mode.
DTV+ATV or DTV only, or ATV only.
3). Channel tuning will commence. This operation
may take a few minutes. The display will show the
progress of the tuning and the number of
channels found.
4). If you want to skip the DTV tuning, press the
MENU button to interrupt the tuning half way.
You will then go straight to ATV tuning.
You may repeat the above step if you also want to
skip the ATV tuning. An installation reminder will
appear the next time you turn on the TV, if no
channel is found.
5). After tuning is complete, the channels are
arranged in a preset order. If you wish to skip
channels, modify the preset order or rename
channels, select Programme Edit under the
Channel menu.
1. Home Mode is an energy-saving Mode. Home
Mode is recommended for normal viewing setting
and is set as default.
2. Shop Mode is an option for retailers for advertising
or product presentation. Shop Mode has a brighter
image than Home Mode.
3. You may switch between Home or Shop Mode
as you choose.
First Time Setup
OSD Language English
Mode Setting Home Mode
Country Germany
Start
Auto Scan DTV+ATV
Antenna Type Air
OSD Language English
Mode Setting Home Mode
Country Germany
Start
Auto Scan DTV+ATV
Antenna Type Cable
Cable Quick
First Time Setup
The First Time Setup screen will appear when the
T V is first switched on or reset to the factory
settings.
Home or Shop modes
Note
1. 1)Auto Tuning (DVB-T)
1. CHANNEL MENU
1). Press the MENU button and then press the▼▲
buttons to select the CHANNEL menu and then press
the OK button or right button.
2). Press the ▼▲ buttons to select Auto Scan and
then press the OK button or right button.
DTV Digital TV
ATV Analogue TV (not used in France and UK)
Note
EN
15
OPERATION
EN
Downloaded from www.vandenborre.be

Auto Scan
Signal Information
Software Update(USB)
Manual Scan
Program Edit
Common Interface
Return Move OK
OK
MENU
3). Press the◀▶buttons to select Antenna Type to
Air that is to say DVB-T.
5). In the Mode item, press the ◀▶buttons to select
tune mode: ATV / DTV / DTV + ATV. Press the▼button
to select Start then press OK button or right button.
6). Channel tuning will commence. This operation may
take a few minutes. The display will show the progress
of the tuning and the number of channels found.
7). If you want to skip the DTV tuning, press the MENU
button to interrupt the tuning half way. You will then go
straight to ATV tuning. You may repeat the above step
if you also want to skip the ATV tuning. An installation
reminder will appear the next time you turn on the TV,
if no channel is found.
8). After tuning is complete, the channels are arranged
in a preset order. If you wish to skip channels, modify
the preset order or rename channels, select
Programme Edit under the channel menu.
1.2 )Auto Tuning (DVB-C)
1). Press the MENU button and then press the▼▲
buttons to select the CHANNEL menu and then press
the OK button or right button.
2). Press the▼▲ buttons to select Auto Scan and
then press the OK button, or right button. Under
Antenna Type, select Cable, that is to say DVB-C.
3). Press the▼button and then press the◀▶buttons
to select the country where you will operate the TV.
Channel
Audio
Clock
Setup
Lock
Antenna Type Air
Country Germany
Mode DTV+ATV
Start
Channel
Audio
Clock
Setup
Lock
Quick
Full
Advanced
4). In Country item, press the ◀▶buttons to select
the country where you will operate the TV.
4). In the Mode item, press the◀▶buttons to select
ATV / DTV / DTV + ATV.
6). Channel tuning will commence. This operation
may take a few minutes. The display will show the
progress of the tuning and the number of channels
found.
5). Select start to enter the menu as below, to select
search mode, by pressing the OK button or right
button.
▶
Return Move OK
OK
MENU
Channel
Audio
Clock
Setup
Lock
Scanning Ch12
Digital Channels Found:
DTV: 3
Radio: 0
Data: 0
Analog Channels Found: 0
Skip
MENU Exit
EXIT
Channel
Audio
Clock
Setup
Lock
Antenna Type Cable
Country Germany
Mode DTV+ATV
Start
Return Move OK
OK
MENU
Return Move OK
OK
MENU
Channel
Audio
Clock
Setup
Lock
EN
16
OPERATION
EN
Downloaded from www.vandenborre.be

Channel
Audio
Clock
Setup
Lock
Digital Scan Ch5
Start
Strength 54
2. 1 )DTV Manual Tuning (DVB-T)
All the channels including ATV, DTV and Radio can
be tuned in one go, if the Tune Type is DTV+ATV .
All the old channels will disappear after auto tuning .
After auto tuning , the channel will skip to the first
DTV channel.
2). Press the▼▲ buttons to select Manual
Scan and then press the OK button, or right button.
If you have selected Air in Auto Scan, you will enter
DVB-T manual scan menu.
4). Press the MENU button to return back to the
main menu.
5). Press the EXIT button to exit the menu.
2. 2 )DTV Manual Tuning (DVB-C)
1). Press the MENU button and then press the▼▲
buttons to select the CHANNEL menu and then
press the OK button or right button..
3). The DTV Manual Scan screen will pop up.
Press the ◀▶ buttons to select the desired UHF
channel or press the OK button then input channel
number. Select Start to commence searching for this
channel. When the signal has been tuned, the picture
and signal strength will be displayed on the screen.
1). Press the MENU button and then press the
buttons to select the CHANNEL menu and then
press the OK button or the right button. If you have
selected Cable in Auto scan, you will enter DVBC
manual scan menu.
▼▲
2). The DVB-C Manual Scan screen will pop up.
Press the▼▲buttons to select(Frequency/Symbol/
QAM Type ),press OK to input Frequency and symbol,
press ◀▶ to change QAM type, then select Start to
start searching for this channel by pressing the OK
button or right button. When the signal has been tuned,
the picture and signal strength will be displayed on the
screen.
3). Press the MENU button to return back to the
main menu.
4). Press the EXIT button to exit the menu.
3) ATV Manual tuning :
You can change the sound system, search for the analog
TV channels and fine tune the channels , then store the
channels you selected.
1. Press red button to store the channels after
manual tuning .
2. If the number to be saved is the same as the
number of a current channel, when you press the Red
button, the new number will overwrite the current
channel number.
Save to 1
System BG
Current CH1
Search
Frequency 44.25 MHz
Fine tune
Save
ATV Manual Tuning
4). Programme edit:
Press the ▲or▼ Buttons to select Program Edit in the
Channel Menu. Then press the OK button or right button
to enter the sub-Menu. Then you will need to select the
program you wish to edit.
7). If you want to skip the DTV tuning, press the
MENU button to interrupt the tuning half way. You will
then go straight to ATV tuning. You may repeat the
above step if you also want to skip the ATV tuning. An
installation reminder will appear the next time you turn
on the TV,if no channel is found.
8). After tuning is complete, the channels are arranged
in a preset order. If you wish to skip channels, modify
the preset order or rename channels, select
Programme Edit under the channel menu.
Return Move OK
OK
MENU
Channel
Audio
Clock
Setup
Lock
Frequency 474000K
Symbol Rate 6875K
Modulation Auto
Start
Return Move OK
OK
MENU
Note
Note
EN
17
OPERATION
EN
Downloaded from www.vandenborre.be

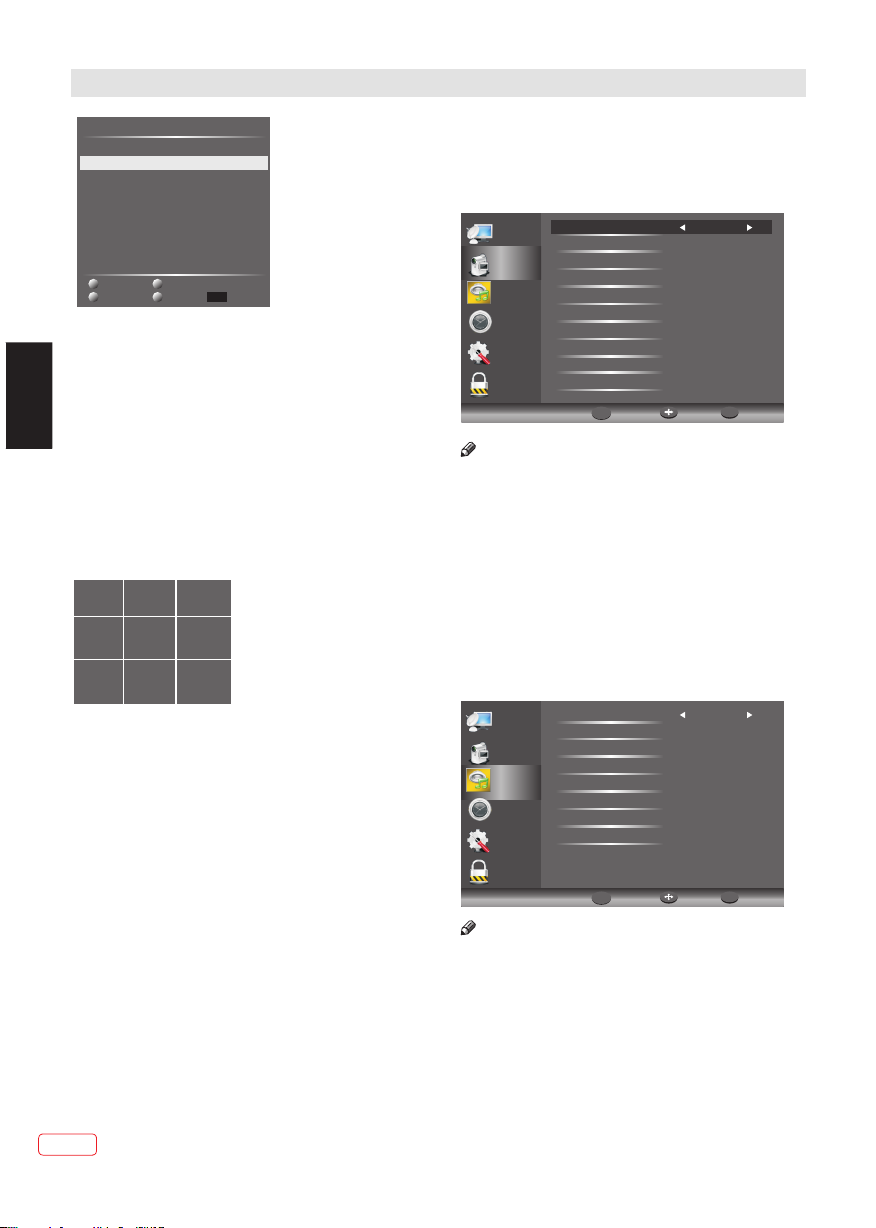

1 2
abc
3
def
4
ghi
5
jkl 6
mno
7
pqrs 8
tuv
9
wxyz
5). Common Interface
This menu can display the CI card' s information.
The second item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as
contrast, brightness, etc.
Press ▼▲ to move, press ◀▶ to adjust.
2. PICTURE MENU
Channel
Audio
Clock
Setup
Lock
Picture Mode Standard
Aspect Ratio 16:9
Color Temp
Brightness 50
Contrast 45
Sharpness 60
Color 45
Tint 0
Medium
Dynamic Contrast Weak
DNR
Normal
1).You can choose between three colour temperature
modes: Normal, Cool, Warm.
2).PC Setting is available in PC mode only. It enables
you to adjust Horizontal position, vertical position,
size and phase.
3.AUDIO MENU
The third item of the MENU is the AUDIO MENU.
You can adjust the sound effect here such as
treble, bass, balance etc.
Press ▼▲ to move, press ◀▶ to adjust.
Channel
Audio
Clock
Setup
Lock
Sound Mode Standard
Treble 0
Bass 0
Balance 0
Auto Volume On
Surround Sound Off
Off
Audio Description
COAXIAL
001 The HITS
003 UKTV Br’tldeas
004 f th
005 Ideal World
006 Colourbars100
001 Kiss
002 Smash Hits!
003 Kerrang!
002 TMF
Delete
Programme Edit
DTV
DTV
DTV
DTV
DTV
DTV
Radio
Radio
Radio
Move
Skip
Rename Favorite
Delete: Press the Red Button to delete the channel
you highlighted.
SKIP: Press the Yellow Button to select the Skip
function and a SKIP icon will be displayed next to the
program and it will be skipped when changing the
channel.
MOVE: Press the Green Button to highlight
the channel you want to move. An icon will display
ahead of the channel number. Then press the ▼ / ▲
Buttons to a new position and press the Green Button
to confirm.
Rename: (For ATV only) Press the Blue Button for
renaming the channel. Use the virtual keypad (as
shown below) to enter a new name and press the OK
Button to confirm.
FAV: Press the FAV Button to set the favourite channel.
(If you want to view the Favorite Channel List you need
to exit Program Edit Menu and then press the FAV
Button.)
6). Signal Information (Only for DTV)
Press the ▼/▲ Buttons to select the Signal
Information in the Channel Menu. Then press the OK
button or the right button to show the related information
of the current channel.
7). Software Update (USB)
Press the ▼ or ▲ Buttons to select Software Update
(USB) in the Channel Menu. Then press the OK
button or right button to update software by using a USB
device. Follow the software upgrade instructions provided
with the software.
Note: We recommend you perform a factory reset
(refer to Restore Factory Default in Setup menu) to
ensure the unit is successfully upgraded.
1.Auto volume: only available when the input
signal volume is too large or distorted.
Surround sound can be set on or off.
Coaxial is the digital output sound feature.
Return Move OK
OK
MENU
Return Move OK
OK
MENU
Note
Note
EN
18
OPERATION
FAV
EN
Downloaded from www.vandenborre.be

EN
19
OPERATION
EN

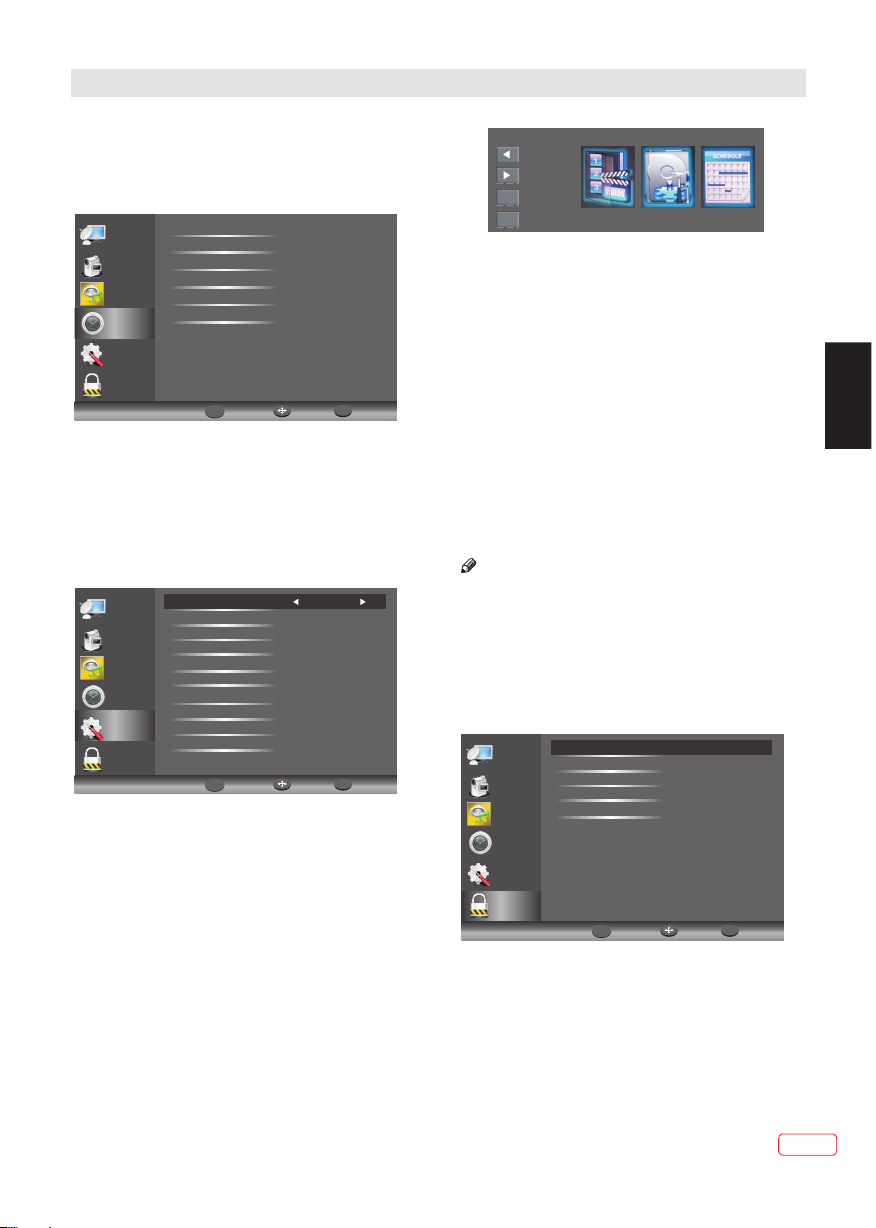

Channel
Audio
Clock
Setup
Lock
Sleep Timer Off
Date 2010/04/30
On Time
f
Auto Sleep On
Time Zone
Of Time
5.SETUP MENU
The fifth item of the MENU is the SETUP MENU. You
can adjust the OSD language, Audio language,Subtitle
language etc.
In PVR File system menu you can set up USB
disk for PVR.
Auto Standby(4hr)
1. If after 4 hours from switch on, no changes have
been made to the TV (channel or volume changes,
for example), the TV automatic power-down process
will start. A pop-up window will appear on screen.
Channel
Audio
Clock
Lock
O E
A Languages
H
10 seconds
SD Language nglish
udio
Subtitle
Country Germany
PVR File System
Timeshift Record Time 1hour
Auto Standby(4hr) On(4 hours)
Mode Setting ome Mode
OSD Time
Restore Factory Default
HDMI CEC Control On
Setup
PVR Settings
Move Left
Move Right
Select
Exit
OK
EXIT File Manager Device List Scheduled Record
6.LOCK MENU
The sixth item of the menu is the LOCK MENU
You can lock system, set password, block program
and set parental guidance Once you set the lock
system on you can not search the channels or
change any programs.
Restore factory default will clear all the programs
and password.
Channel
Audio
Clock
Enter Password ----
Enable Off
New Password ----
Channel Locks
Parental Rating None
Setup
Lock
The default password is 6666. If you change the
password, be sure to remember the new password!
If you forget the new password, enter the master
password "9527".
Channel Locks: Press ▼▲ to choose the
program, press OK button to block
the program. If you want unblock the program,
please enter the main menu, input the password,
choose the program, then press OK button again.
Parental Rating: Press ◀▶to choose rating.
Timeshift Record Time: To set the max
Timeshift Record Time.
Auto Standby (4hr): To set the unit to
standby after 4 hours without any user
operation.
Mode Setting: To set Home mode or Shop
mode.
OSD Time: Press ◄ or ► to select the menu
display time.
Restore Factory Default
Press the ▼ or ▲ Buttons to select Restore
Factory Default and press the OK Button to
enter the first setup. Once confirmed, all the
settings will be cleared. This should be used
if you experience any issues with your TV.
HDMI CEC Control: To set CEC function to
on or off.
to standby. To override the automatic shutdown
press any button on the remote control.
2. To disable the automatic power-down of the TV,
go to Setup menu, select Auto Standby (4hr) and set
this option to Off by using the right arrow key.
After 150 seconds the TV will automatically switch
The fourth item of the menu is the CLOCK MENU
You can adjust the clock, power on/off time,
sleep timer etc .Press ▼▲ to move, press OK
to adjust.
To return to auto shutdown after 4 hours repeat the
above except use the left arrow key to select On(4
hours).
Auto Sleep
If after 15 minutes there is no signal input, the TV will
switch off to Auto Sleep, when the Auto Sleep function
is set to ON. The clock time is automatically set when
the TV is able to receive DTV.
4.CLOCK MENU
Return Move OK
OK
MENU
Return Move OK
OK
MENU
Return Move OK
OK
MENU
Note
Downloaded from www.vandenborre.be

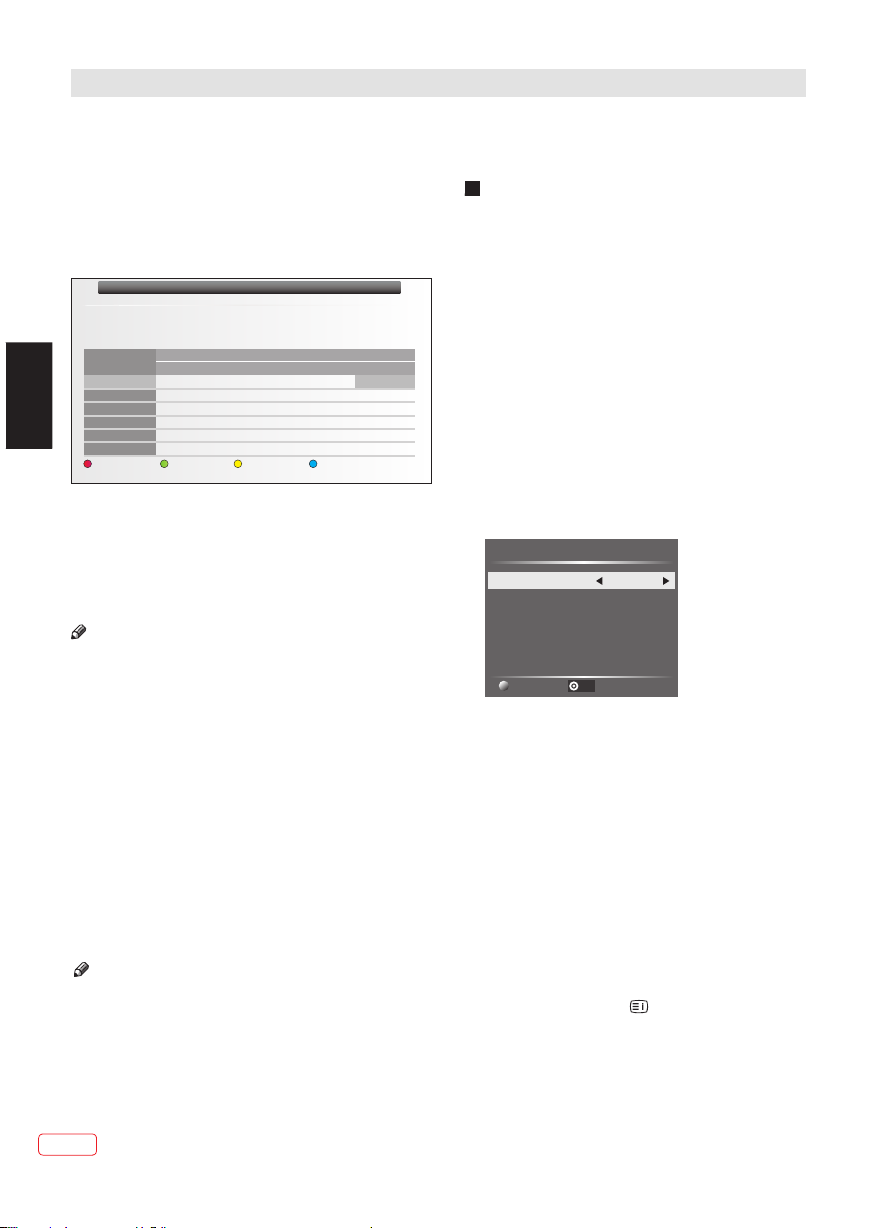

To see what is going to be broadcast after the current
program, press ► button. To view a different channel,
use the ▲ or ▼ buttons to highlight the channel and
then press the ◄ or ► buttons. To exit the EPG Menu,
press the EPG or EXIT button.
Please refer to the bottom of the EPG screen for the
basic remote control key functions.
Weekly
In EPG mode, press the red button on the remote
control to switch between EPG Daily Mode and
EPG Weekly Mode.
The information will be displayed in different
ways, but the function is the same.
Schedule a recording
In EPG mode, press the REC Button on the remote
control to select a program to be recorded. You will
then enter Scheduled Record menu for record setting.
(Refer to the section of PVR file system.)
Please ensure a compatible Hard Disc Drive or USB
device is inserted into the USB input to schedule
recordings. If your storage device is not compatible,
you will be asked to format it. In Setup menu, enter
the PVR File System Menu Device List to format
your device.
If you have set a scheduled recording, your TV will
automatically turn on when the program is set to
Record and will automatically turn off after the
recording is complete.
During a scheduled recording the picture and volume
will be mute (there will be no display), however the
unit will be on. You can press the STANDBY Button
to turn the picture and volume back on.
Reminder (Green Button)
In the EPG Menu, press the Green Button to set a
program reminder. The below Reminder Menu will
then be displayed and you can use the ◄or ►buttons
to set the program reminder details. You will be able
to set reminder to occur once, Daily or Weekly.
Frequency
Channel
Minute
Hour
Month
Date
Reminder
Off
The HITS
0
17
Nov
19
17:03 19/11/2004
OK
Schedule List
You may press Red button to view the scheduled
programs list. Also you may delete the programs you
have scheduled.
INFO
In the EPG Menu, press the INFO Button to view more
information about the current program.
8.PVR File System (only for DTV)
Press Menu Key, select Setup submenu. Press the
▼ or ▲buttons to select PVR File System, then
press the OK button or right button to enter sub-menu
and then use the◄ or ►buttons to scroll through the
options.
Note: you may press the button to open the PVR
File System directly.
The EPG (Electronic Programme Guide) Menu provides
you with detailed broadcast program information. Press
the EPG Button and a pop-up Menu will be displayed
with program information about the channel you are
currently watching. You will be able to see up to seven
days of program information. To view the previous day
use the yellow button, and next day use the blue button.
WARNING
When formatting the USB device it will delete all the
files stored on the USB device.
7.EPG Menu(Electronic Program Guide)
Note
Note
EN
20
OPERATION
EPG Daily Mode
800 HTV1 25 Jan 2010 10:13
11:32-12:17
FIKCIJA ( IGRANA I ANIMIRANA)Marichuy razmišlja kako će ubrzo saznati ho e li ponovno vidjeti ili
će zauvijek biti smetnja drugima, dok se Juan Miguel kune da će joj vratiti vid. Cecilia I Patric...
ć
Mon. 25 Jan
801 HTV2 Zg
802 RTL TV
803 NOVA TV
804 CH-3 on T...
805 CH-5 on T...
10:00 11:00
11:32-12:17 Opreznoanđelom,telenovela
First...Treća dob, emisija za umir... . .. Dne... .. TV k... . ..Oprezno s anđe...
Evergreen(3.) Zvjezdan, dok...
Pod isti... Dadilja Malcolm u sredini Exkluziv
Naši najbolji dani Zakon brojeva IN magazin
Real No Information
Real No Information
Weekly
Move
Reminder PrevDate NextDate
Rec:Record Info:Display EXIT:Exit
800 HTV1
Standby Record
EN
Downloaded from www.vandenborre.be
