DLA-M15U INSTRUCTIONS
PROJECTOR
MANUEL D’INSTRUCTIONS : PROJECTEUR
OPERATE
VOL.
PAGE
BACK
PRESET
ZOOM FOCUS
COMPUTER VIDEO
QUICK
ALIGN. AV MUTING
RM-M10G REMOTE CONTROL UNIT
W
T
MENU/ENTER
For customer Use:
Enter below the Serial No. which is located
on the side panel of the cabinet. Retain this
information for future reference.
Pour l’utilisateur:
Inscrivezci-dessousleNodesériesituésur
le panneau latéral du coffret de l’appareil.
Conservez cette information à titre
d’information.
Model No.
No de modèle DLA-M15U
Serial No.
No de série
M15U Cover.A4 99.8.23, 9:24 PM3

1
ENGLISH
PROJECTOR
DLA-M15U
INSTRUCTIONS
M15U Subcover.EN 99.8.23, 9:25 PM1

2
Thank you for purchasing this projector. Before using it, read and follow all instructions carefully to take full
advantage of the projector's capabilities.
SAFETY PRECAUTIONS
WARNING :
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION :
To reduce the risk of electric shock, do not remove cover.
Refer servicing to qualified service personnel.
FCC INFORMATION (U.S.A. only)
CAUTION: Changes or modification not approved by
JVC could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.
IMPORTANT SAFEGUARDS
Electricalenergycanperformmanyusefulfunctions. This
unit has been engineered and manufactured to assure
yourpersonalsafety. ButIMPROPER USE CAN RESULT
IN POTENTIAL ELECTRICAL SHOCK OR FIRE
HAZARD. In order not to defeat the safeguards
incorporatedintothis product, observe the following basic
rulesforitsinstallation,use andservice. Pleaseread these
“Important Safeguards” carefully before use.
– All the safety and operating instructions should be read
before the product is operated.
– Thesafety andoperating instructionsshould be retained
for future reference.
– All warnings on the product and in the operating
instructions should be adhered to.
– All operating instructions should be followed.
– Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
– Do not use attachments not recommended by the
product manufacturer as they may be hazardous.
– Do not use this product near water. Do not use
immediatelyafter movingfrom alow temperature tohigh
temperature, as this causes condensation, which may
result in fire, electric shock, or other hazards.
– Do not place this product on an unstable cart, stand, or
table. The product may fall, causing serious injury to a
child or adult, and serious damage to the product. The
product should be mounted according to the
manufacturer’s instructions, and should use a mount
recommended by the manufacturer.
– When the product is used on a cart, care
should be taken to avoid quick stops,
excessive force, and uneven surfaces
which may cause the product and cart to
overturn,damagingequipment orcausing
possible injury to the operator.
– Slots and openings in the cabinet are provided for
ventilation. These ensure reliable operation of the
productand protectit fromoverheating. These openings
must not be blocked or covered. (The openings should
never be blocked by placing the product on bed, sofa,
rug, or similar surface. It should not be placed in a built-
in installation such as a bookcase or rack unless proper
ventilation is provided and the manufacturer’s
instructions have been adhered to.)
For proper ventilation, separate the product from other
equipment, which may prevent ventilation and keep
distance more than 50 cm (19-3/4”).
IMPORTANT INFORMATION
This projector is equipped with a 3-blade grounding-type
plug to satisfy FCC rule. If you are unable to insert the
plug into the outlet, contact your electrician.
About burning-in of the D-ILA device
Do not allow the same still picture to be projected for a long
time or an abnormally bright video picture to be projected.
Do not project video images with high-intensity or high-
contraston a screen.The video imagecould be burned into
the D-ILAdevice.
Use special care when projecting video games or computer
program images. There is no problem with ordinary video-
cassette playback images.
M15U p.02-04 Safety 99.8.23, 9:34 PM2

3
ENGLISH
– This product should be operated only with the type of
power source indicated on the label. If you are not sure
of the type of power supply to your home, consult your
product dealer or local power company.
– This product is equipped with a three-wire plug. This
plug will fit only into a grounded power outlet. If you are
unable to insert the plug into the outlet, contact your
electrician to install the proper outlet. Do not defeat the
safety purpose of the grounded plug.
– Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them. Pay particular attention to cords
at doors, plugs, receptacles, and the point where they
exit from the product.
– For added protection of this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the cable system. This will prevent damage
to the product due to lightning and power line surges.
– Do not overload wall outlets, extension cords, or
conveniencereceptacles on otherequipment asthis can
result in a risk of fire or electric shock.
– Never push objects of any kind into this product through
openings as they may touch dangerous voltage points
or short out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.
– Donotattempt toservice thisproductyourself asopening
or removing covers may expose you to dangerous
voltagesand otherhazards. Refer all serviceto qualified
service personnel.
– Unplugthis product fromthe wall outletand refer service
to qualified service personnel under the following
conditions:
a) When the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen on
the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following
theoperating instructions. Adjust onlythose controls
that are covered by the Operation Manual, as an
improperadjustmentof controlsmayresult indamage
and will often require extensive work by a qualified
technicianto restore theproduct tonormal operation.
e) If the product has been dropped or damaged in any
way.
f ) When the product exhibits a distinct change in
performance – this indicates a need for service.
– Whenreplacementpartsare required,besure theservice
technician has used replacement parts specified by the
manufactureror withsame characteristics asthe original
part. Unauthorizedsubstitutionsmayresult infire,electric
shock, or other hazards.
– Uponcompletion ofany serviceor repairsto thisproduct,
ask the service technician to perform safety checks to
determine that the product is in proper operating
condition.
– The product should be placed more than one foot away
from heat sources such as radiators, heat registers,
stoves, and other products (including amplifiers) that
produce heat.
– When connecting other products such as VCR’s, and
personal computers, you should turn off the power of
this product for protection against electric shock.
– Do not place combustibles behind the cooling fan. For
example, cloth, paper, matches, aerosol cans or gas
lighters that present special hazards when over heated.
– Do not look into the projection lens while the illumination
lamp is turned on. Exposure of your eyes to the strong
light can result in impaired eyesight.
– Do not look into the inside of this unit through vents
(ventilation holes), etc. Do not look at the illumination
lampdirectlyby openingthe cabinetwhilethe illumination
lamp is turned on. The illumination lamp also contains
ultraviolet rays and the light is so powerful that your
eyesight can be impaired.
– Xenongasis enclosedwith highpressure insidethelight-
source lamp (lamp unit) of this projector. If you drop or
impart a shock to the lamp, or discard it as is, there is
the possibility of explosion, leading to personal injury.
Use special care when handling the lamp. For any
unclear points, consult your product dealer.
– Use only the accessory cord designed for this product to
prevent shock.
The power supply voltage rating of this product isAC
120 V, the power cord attached conforms to the
following power supply voltage. Use only the power
cord designated by our dealer to ensure Safety and
EMC.
When it is used by other power supply voltage, power
cable must be changed.
Consult your product dealer.
Power cord
Power supply voltage: AC 120 V
SAFETY PRECAUTIONS (Cont.)
*DO NOT allow any unqualified person to
install the unit.
Be sure to ask your dealer to install the unit
(eg. attaching it to the ceilling) since special technical
knowledge and skills are required for installation.
If installation is performed by an unqualified person, it
may cause personal injury or electrical shock.
M15U p.02-04 Safety 99.8.23, 9:34 PM3

4
Contents
SAFETY PRECAUTIONS........................... 2
Accessories ............................................... 5
Controls and Features .............................. 6
Front Side / Top Surface / Right Side ....................6
Left-hand side ....................................................... 7

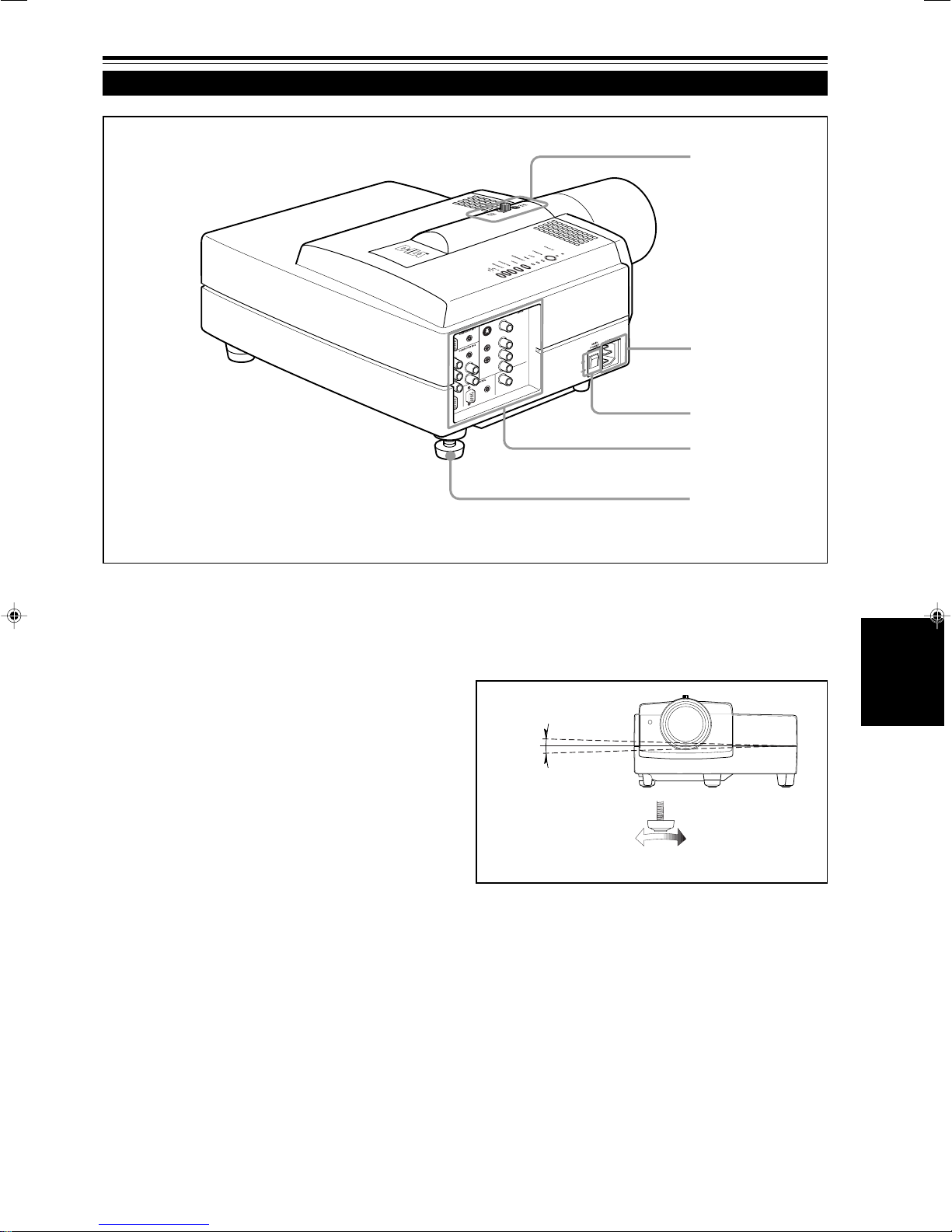

Bottom Surface .....................................................8
Control Panel ........................................................9
Connector Panel .................................................11

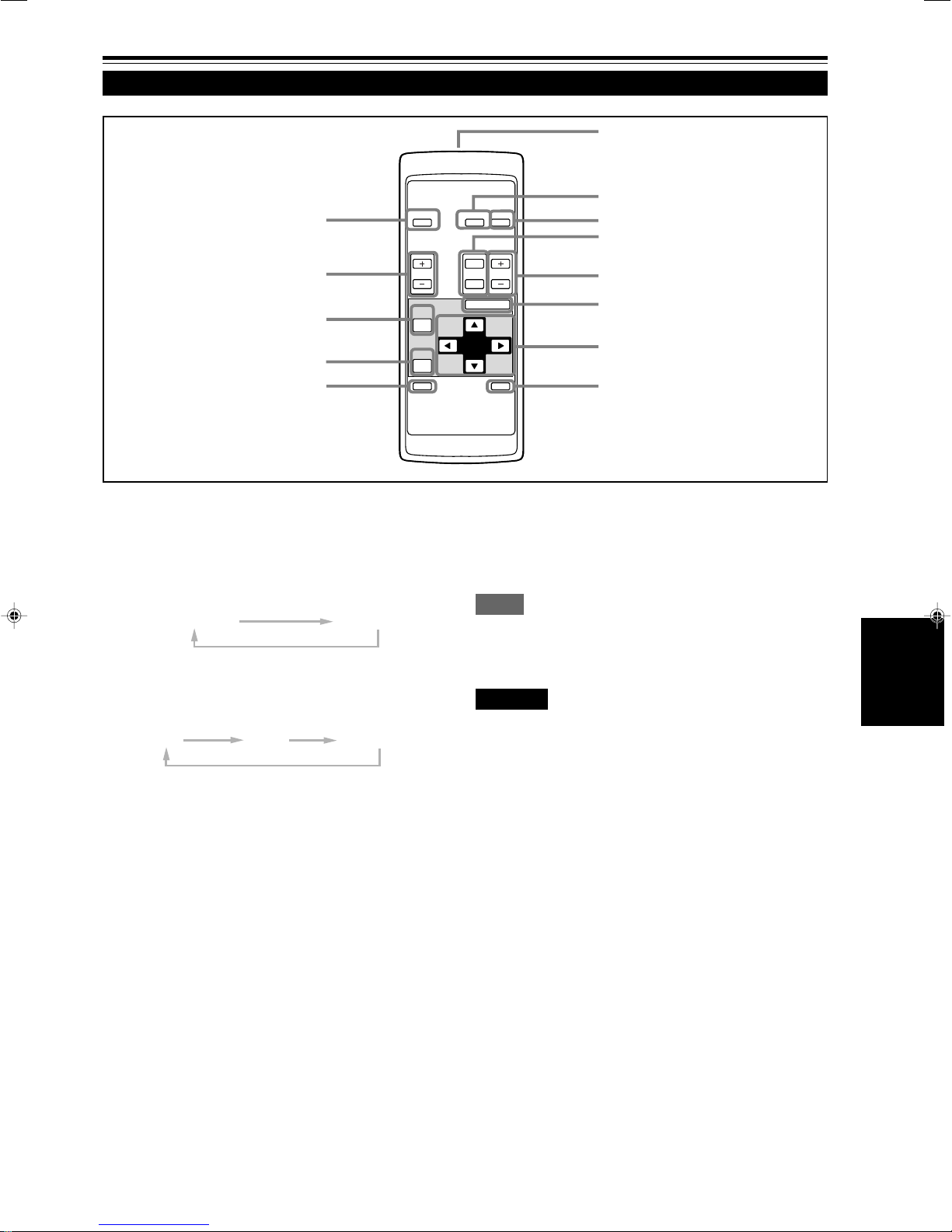

Remote Control Unit ...........................................13

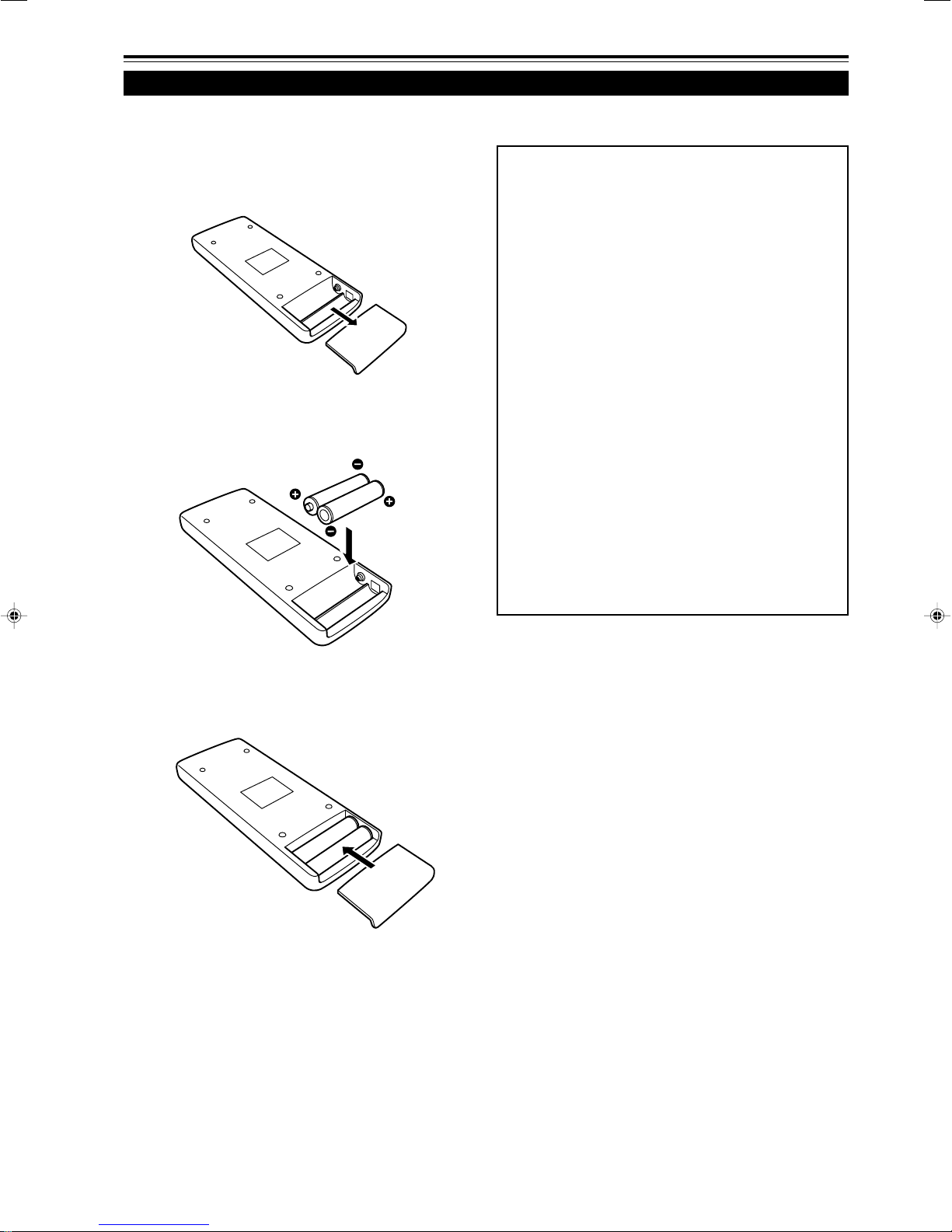

Installing Batteries...............................................14
Installing the Projector ........................... 15
Precautions for installation ..................................15
Projection Distance and Screen Size.................. 16
Setting the Amount of Lens Shifting....................17
Effective Range and Distance of the Remote
Control unit.....................................................18
Setting the Position Selecting Screw
for Ceiling Mounting.......................................18
Connecting to Various Devices ............. 19
Signals that Can Be Input to the Projector..........19
Connecting to Video Devices ..............................20
Connecting to Hi-Vision Devices.........................20
Connecting to Other Devices ..............................21
Connecting to Devices which Control the
Projector.........................................................21
Connecting to Computer Devices ....................... 22
Connecting the Power Cord (Supplied)...............24
When Turning On the Devices Connected to the
Projector.........................................................25
Basic Operations..................................... 26
1. Turning on the Power.......................................26
2. Select the video input to be projected ............. 27
3. Adjust the screen size .....................................27
4.Adjust focus.....................................................28
5.Adjust sound volume ....................................... 28
• For Operating Other Functions ......................... 29
Operating the Setting Menu ................... 31
Making Basic Settings.........................................31
Operating the Main Menu ....................... 32
Configuration of the Main Menu ..........................32
Operating the Main Menu (Basic Operation of the
Main Menu) ....................................................34
Changing the Color System ................................ 35
Changing the Language Display .........................36
Adjusting the Pixel Clock.....................................37
Adjusting the Screen Position .............................38
Adjusting Picture Quality.....................................39
Adjusting Sound Quality......................................42
Setting and Adjusting Other Functions
(OPTIONS) ....................................................43
Changing (Setting) the Source............................46
Replacing the Light-Source Lamp......... 48
Resetting the Lamp Use Time.............................50
Cleaning and Replacing the Filter ......... 51
Troubleshooting ...................................... 52
Specifications.......................................... 54
*This manual is divided into two language sections:
English and French.
M15U p.02-04 Safety 99.8.26, 1:09 PM4

5
ENGLISH
Remote control unit (RM-M10G) AAA/R03-size dry cell battery (×2)
(for checking operation) Power code [approx. 2.5 m (8.2 ft)]
Personal computer connection cable
[approx. 2 m (6.56 ft)]
(D-sub, 3-row 15 pin)
Conversion adapter for Mac
(for Macintosh)
Audio cable
[approx. 3 m (9.84 ft)]
(3.5 mm dia. stereo mini plug)
AV connection cable
[approx. 1.5 m (4.92 ft)]
BNC-RCA conversion plug
Accessories
The following accessories are included with this projector. Check for them; if any item is missing, please contact your
dealer.
Hex wrench
M15U p.05-14 99.8.26, 1:19 PM5

6
Controls and Features
Front Side /Top Surface / Right Side
STANDBY
OPERATE
LAMP
TEMP
EMERGENCY
VIDEO
COMPUTER
SETTING
QUICK
ALIGN
-
+
9
1
8
7
65
2
34
1Control panel
For details, refer to “Control Panel” (page 9).
2Exhaust vents
Vents for cooling fans through which warm air comes out.
CAUTION
• Do not block the exhaust vents, or heat builds up inside,
possibly causing a fire. Also, do not touch the vents, or this
could cause a low-temperature burn.
3Carrying handle
Raise this handle when carrying the projector.
Carrying handle
STANDBY
OPERATE
LAMP
TEMP
EMERGENCY
VIDEO
COMPUTER
SETTING
QUICK
ALIGN
-
+
How to use the carrying handle
CAUTIONS
• When carrying the projector, do not give a shock to it. Be
careful to keep its balance.
• Do not carry it while the light source lamp is on or the cooling
fan is operating. This could cause personal injury.
4Adjustable foot (for adjusting upper/lower angles)
It is adjusted to be level when shipped from the factory.
Turning to extend the foot allows adjustment up to + 7°.
5Built-in speaker (left)
6Built-in speaker (right)
7Lens
The projection lens used in this projector is a 1.5 : 1, short
focal-distance lens (with a manual shift function). Before
projection, remove the lens cap.
8Lens cap
The cap has a string attached and the string is fixed to the
projectorwhenshippedfromthefactory. It is recommended
that the cap be fitted on to prevent the lens becoming dirty
when the projector is not used.
9Remote sensor
When operating with the remote control, aim it toward this
sensor.You can alsooperatetheremotecontrolbypointing
it to a screen and allowing the remote sensor to receive
the reflected light.
Extend Shorten
COMPUTERIN-1
COMPUTERIN-2
AVIN
CONTROL
MAIN
POWER
ON
OFF
AC IN ~
+7˚
M15U p.05-14 99.8.26, 2:30 PM6

7
ENGLISH
Controls and Features (cont.)
Left-hand side
p
q
w
e
r
pAC IN (power input) terminal
This is the power input terminal where the supplied power
cord is connected. For details, refer to page 24.
qMAIN POWER switch
This is the main power switch. When it is turned on, the
projector goes into stand-by state, and the STAND BY
indicator on the control panel comes on.
ON [ ❙]: The main power turns on.
OFF [‡‡
‡‡
‡]: The main power turns off.
wConnector panel
For details, refer to “Connector Panel” on page 11.
eAdjustable foot (for horizontal angle adjustment)
It is set at the shortest position when shipped from the
factory.Turnthefoottomake the projectorlevel.Adjustment
can be made in the range of + 1.5° and – 1.5° from the
horizontal position.
Extend Shorten
+1.5°
–1.5°
rLENS SHIFT knob / SHIFT LOCK fixing bolt
The projection screen can be shifted up and down in
position. Use this adjustment when you use a different
installation configuration (such as dual stacking) which
requires the lens to be shifted. The amount of lens shift
canrangefromapprox.30%to55%.Formoreinformation,
refer to “Setting the Amount of Lens Shifting” on page 17.
M15U p.05-14 99.8.23, 9:06 PM7

8
Controls and Features (cont.)
Bottom Surface
tAir intake area (filter)
Air is taken in through this area to cool the light-source
lamp. If this area is blocked or if something that obstructs
taking in or exhausting air is placed around the projector,
heatmaybuildupinsideandcouldcauseafire.Fordetails,
refer to “Precautions for Installation” on page 15.
CAUTIONS
• Be careful as paper, cloth or soft cushion could be drawn in
if placed nearby. Do not block the intake area, or heat may
build up and could cause a fire.
• Clean the filter periodically. For details, refer to “Cleaning
and Replacing the Filter” on page 51.
Deposition of dirt on the filter works to reduce the cooling
effect, causing heat to build up inside, which could cause a
fire or malfunction.
yOpening for replacing the light-source lamp
Forreplacing the light-source lamp, refer to“Replacingthe
Light-Source Lamp” on page 48.
uFixing foot
iPosition selecting screw for ceiling mounting
When using the projector in an upside-down, ceiling-
mountedposition (inverted top-to-bottom and right-to-left),
the “position selecting screw for ceiling mounting” must be
turned to switch to ceiling mounting.
This will correct variance in color images (shading), which
otherwise would occur in ceiling mounting.
For more information, refer to “position selecting screw for
ceiling mounting” on page 18.
CAUTIONS
• To ceiling-mount and adjust the projector, special expertise
and technique are necessary. Be sure to ask your dealer or
a specialist to perform this work.
t
y
u
i
M15U p.05-14 99.8.23, 9:06 PM8

9
ENGLISH
Controls and Features (cont.)
Control Panel
1STAND BY Indicator
ON : When in stand-by mode.
Blinking: When in cool-down mode.
Memo
About the cool-down mode:
This projector has a function to cool down the heated lamp for a fixed
period oftimeafter projection isfinished. Thisfeature is referredtoas
the cool-down mode.
CAUTION
• The purpose of the cool-down mode is to prevent inner parts
frombeingdeformed or broken by heat from theheatedlamp
as well as to prolong the life of the lamp. Do not turn off the
main power switch while in the cool-down mode. Also, do
notplace the projector on its side orstand it upright; this may
block the exhaust vents.
2OPERATE indicator
ON: When the projector is in operation (projecting)
3OPERATE button
When the projector is in the stand-by mode, press this
button, and the main power switch is turned on, causing
the OPERATE indicator to light. Press it again, and the
projector goes into the cool-down mode, then stand-by
mode.
Memo
While in the cool-down mode:
If you press the OPERATE button, the projector is not tuned on.
4Lamp indicator
ON : After the light-source lamp has been used for
more than approx. 900 hours.
Blinking : Replacethelamp.Referto “Replacing theLight-
Source Lamp” on page 48.
5TEMP indicator
ON: The temperature inside the projector has abnormally
risen.
Note
• While the TEMP indicator is on (during abnormal temperature), the
power is automatically cut off, and an emergency mode is shown
(with the EMERGENCY indicator blinking).
6EMERGENCY indicator
Blinking: Something abnormal has occurred with the
projector.
Memo
About the emergency mode:
The emergency mode is shown when the following anomalies have
occurred with the projector (the EMERGENCY indicator blinks). In
the emergency mode, projection is automatically interrupted and the
cooling fans operate for about 20 seconds.
• When the air filter is displaced.
• When the filter is clogged.
• When the light-source lamp has suddenly gone off.
• When the fans have stopped.
• When the temperature inside has risen abnormally high.
CAUTION
• When an emergency mode is shown:
After the cooling fans have stopped, turn off the main power
switch and unplug the power cord from the wall outlet.
Make sure the lamp-replacement cover and the air filter are
correctly installed. Then, plug in the power cord again and
operate the projector.
If it goes into an emergency mode again, after the cooling
fans have stopped, turn off the main power switch, unplug
the power cord, and call your dealer for repair.
p
9
8
7
6
5
4
1
2
3
STAND BY
LAMP
TEMP
EMERGENCY
VIDEO
COMPUTER
SETTING
QUICK
ALIGN.
-
2
+
3
OPERATE
M15U p.05-14 99.8.23, 9:06 PM9

10
Controls and Features (cont.)
Control Panel (Cont.)
7VIDEO button
Use this button to select a device such as a video deck
connectedto theAV INterminal of the projector.Eachtime
you press the button, the device selected changes as
follows:
Y/C VIDEO Y,P
B /B-Y,P R /R-Y
8COMPUTER button
Use this button to select a device connected to the
COMPUTER -1 or -2 terminals. Each time you press the
button, the selection changes as follows:
COMPUTER 1 COMPUTER 2
9SETTING button
Use this button to call up the setting menu. For details,
refer to “Making Basic Settings” on page 31.
pQUICK ALIGN. button
While a menu screen is shown, use this button to adjust
the values for the item selected. When no menu is shown,
the quick alignment function works.
• When a menu is shown
+3button: The value for the selected item increases.
–2button: The value for the selected item decreases.
• When no menu is shown
Press the +3button and –2button at the same time:
QUICK ALIGNMENT is displayed on the screen and the
quick alignment function works (TRACKING, PHASE, H.
POS.and V. POS. are automatically adjusted). Whenthe
adjustmentis finished, the display goesoffautomatically.
Memo
The quick alignment function :
• Works for computer input (COMPUTER- 1 and - 2 input terminals)
signals.
• Does not work for video input (AV IN input terminal) signals.
CAUTION
• Automatic adjustment with the quick alignment function
should be done on a bright still-picture screen. This function
may not work correctly on a dark screen or motion-picture
screen. If adjustment with this function is not satisfactory,
adjust TRACKING, PHASE, H. POS. and V. POS. manually
(see pages 31, 37 and 38).
p
9
8
7
6
5
4
1
2
3
STAND BY
LAMP
TEMP
EMERGENCY
VIDEO
COMPUTER
SETTING
QUICK
ALIGN. -2
+3
OPERATE
M15U p.05-14 99.8.23, 9:06 PM10

11
ENGLISH
Controls and Features (cont.)
Connector Panel
1Y/C (S video) input terminal (Mini DIN 4 pin)
Connect this terminal to the S video output terminal of a
video deck, etc.
2VIDEO (composite video) input terminal (BNC)
Connectthisterminalto the compositevideooutputterminal
of a video deck, etc.
3Y, PB/B-Y, PR/R-Y input terminals (BNC)
These are input terminals for component (Y, B-Y, R-Y)
signals or DTV-format (Y, PB, PR) signals.
Device with component output terminals can be
connected.
* For details about DTV-format signals (480i, 480p, 720p,
1080i) compatible with this unit, refer to page 56.
4AUDIOL/R(Audio•left/right) input terminals (pin jacks)
Of devices connected to the video input terminals, such
as a video deck, etc., the audio output terminals of the
device to be projected is connected to these terminals.
The input audio signal is reproduced by the speakers of
the projector. The signal is also output from the AUDIO
OUT terminal of the projector.
* Whenthe input signal isstereo signal,connectionshould
be made to both L and R.
* Signals from a monaural device should be connected to
only L. That way, the projector’s speakers and theAUDIO
OUT terminal produce the same sound from both L and R.
Memo
To select the proper audio input for video input:
The video input terminals (AV IN input terminals) can be switched
with the projector’s or remote control’s VIDEO button. However, since
this projector has only single audio input terminal, reconnect audio
input in accordance with the AV device to be used.
5AUDIO OUT (audio output) terminal (stereo mini jack)
Of input signals inputted to the projector, the audio signal
of the device being projected is output. Volume should be
adjustedusingtheVOL.(+/–)buttonsontheremotecontrol
or VOLUME on the setting menu. When a cable is
connected to this jack, no audio sound is produced from
the projector’s speakers.
6REMOTE terminal (mini jack)
Connect an infrared remote control extension unit, etc. to
this jack.
* For details, consult your dealer.
7RS-232C terminal (D-sub 9 pin)
This is a RS-232C interface-specified terminal. This
projector can be controlled by a computer connected
externally.
* For details, consult your dealer.
8COMPUTER OUT (computer output) terminal (D-sub
3-row 15 pin)
Thecomputerinputsignalprojected on thescreenisoutput.
Adisplay unit can be usedby connecting it tothis terminal.
Y
PC
AUDIO
AUDIO
AUDIO
AUDIO OUT
REMOTE
Y/C VIDEO
Y
P
B
/B-Y
P
R
/R-Y
L
R
H/C
S
V
R
G
B
COMPUTER
OUT
RS-232C
w12
q
p
9
8765
3
4
M15U p.05-14 99.8.23, 9:06 PM11

12
Controls and Features (cont.)
Connector Panel (Cont.)
9COMPUTER IN (computer input) -2 terminal (BNC)
These are input terminals for analog RGB signals, vertical
sync(V)signals,and horizontalsync(H)signals/composite
signals(Cs).DeviceswhichhaveanalogRGBsignaloutput
terminals can be connected.
* Input of external sync signals is automatically
detected.
Detection of H/V signals or Cs signals causes automatic
switch to external sync. The priority order is H/V > Cs.
Note
• DTV-format (480i, 480p, 720p, 1080i) signals can be input.
When the source is set to “AUTO”, signals of 480i and 1080i can
automatically be detected, but 480p and 720p signals can not be
detected.
To be able to input 480p or 720p signal, the source should be set
to a dedicated source mode “SDTV(480p)” or “HDTV1(720p)”. For
setting the source, refer to “Chenging (setting) the source” on
page 46.
CAUTION
• Whencomputer-relatedsignalsare input,theuppermostedge
of the screen may appear bowing if the sync signal input is
composite sync (Cs) or G on sync signal. In that case, use
separatesyncsignalsforverticalsync(V)and horizontal sync
(H).
pAUDIO input terminal (stereo mini jack)
This is an audio input terminal for COMPUTER IN
(computer input) -2 terminal. Connect the audio output
signalof a device connected toCOMPUTERIN (computer
input) -2 terminal.
* WheninputtoCOMPUTER-2 is selected,theaudiosignal
input is reproduced by the projector’s speakers. Also,
signalscanbeoutputfromtheAUDIO OUT(audiooutput)
terminal.
(However, if a cable is connected toAUDIO OUT (audio
output) terminal, audio sound does not come out from
the projector’s speakers.)
qCOMPUTER IN (computer input) -1 terminal (D-sub 3-
row 15 pin)
This is an input terminal (PC) dedicated for computer
signals (RGB video signals and sync signals).
Connectthe display output terminal ofthecomputer to this
terminal. When a Macintosh computer is to be connected,
use the Conversion adapter for Mac supplied.
CAUTION
• When computer-related signals are input, the uppermost
edge of the screen may appear bowing if the sync signal
input is composite sync (Cs) or G on sync signal. In that
case, use separate sync signals for vertical sync (V) and
horizontal sync (H).
wAUDIO (audio) input terminal (stereo mini jack)
This is an audio input terminal for COMPUTER IN
(computer input) -1 terminal. Connect the audio output
signalof a device connected toCOMPUTERIN (computer
input) -1 terminal.
* WheninputtoCOMPUTER-1 is selected,theaudiosignal
input is reproduced by the projector’s speakers. Also,
signalscanbeoutputfromtheAUDIO OUT(audiooutput)
terminal.
(However, if a cable is connected toAUDIO OUT (audio
output) terminal, audio sound does not come out from
the projector’s speakers.)
Y
PC
AUDIO
AUDIO
AUDIO
AUDIO OUT
REMOTE
Y/C VIDEO
Y
P
B
/B-Y
P
R
/R-Y
L
R
H/C
S
V
R
G
B
COMPUTER
OUT
RS-232C
w12
q
p
9
8765
3
4
M15U p.05-14 99.8.23, 9:06 PM12

13
ENGLISH
Controls and Features (Cont.)
Remote Control Unit
1Remote control’s signal transmitter
2COMPUTER button
Use this button to select the devices connected to the
projector’sCOMPUTER IN (computer input) -1 and -2 input
terminals. Each time you press the button, the selection
changes as follows:
COMPUTER 1 COMPUTER 2
3VIDEO button
Use this button to select the devices such as a video
connectedtotheprojector’sAV IN(AV input) terminal. Each
timeyoupressthebutton,theselectionchanges as follows:
Y/C VIDEO Y,P
B /B-Y,P R /R-Y
4ZOOM (T/W) button
The size of the screen can be fine-adjusted. (Use these
buttonswhenyouaremakingadjustmentfordualstacking,
etc.)
T:The screen size decreases. (Approx. –2%)
W:The screen size increases. (Approx. +2%)
5FOCUS (+/–) button
Usethesebuttonstoadjust the focus oftheprojectedvideo.
+: The focus point becomes more distant.
–: The focus point becomes nearer.
6MENU/ENTER button
Use this button to display the main menu. While the main
menu is displayed, pressing this button displays a details
setting (submenu) for items with details settings.
7Cursor (5/∞/2/3) button
While the main menu is displayed, use these buttons to
select an item to adjust or make adjustment.
8AV MUTING (On/Off) button
Usethisbuttonto turn offthevideoimageandaudio sound
temporarily. Pressing it again makes the video image and
audio sound to resume.
9QUICK ALIGN. (Quick Alignment) button
Use this button to automatically adjust TRACKING,
PHASE, H. POS. and V. POS. of the projected video.
During the automatic adjustment, QUICK ALIGNMENT
appears on the screen, and disappears after it is finished.
Memo
Quick alignment function:
Does not work for video input (AV IN input terminal) signals.
Worksonlyfor computer-related(COMPUTER-1 and-2input terminals)
signals.
CAUTION
• Automatic adjustment with the quick alignment function should be
done on a bright still-picture screen. This function may not work
correctly on a dark screen or motion-picture screen. If adjustment
with this function is not satisfactory, adjust TRACKING, PHASE, H.
POS. and V. POS. manually (see pages 31, 37 and 38).
pPRESET button
While making adjustment on the main or setting menu,
use this button to reset the setting of the selected item to
the factory-set value. This button works only for numerical
settings and does not work for switching ON to OFF.
qPAGE BACK button
While a details setting is displayed, use this button to go
back to the previous page.
wVOL. (Volume) (+/–) button
Use these buttons to adjust the sound volume:
+: Increase the volume level.
–: Decrease the volume level.
eOPERATE button
To turn on the power, press this button for one second or
more.
* About 30 seconds after the power has turned on, video
image will appear on the screen.
OPERATE
VOL.
PAGE
BACK
PRESET
ZOOM FOCUS
COMPUTER VIDEO
QUICK
ALIGN. AV MUTING
W
T
MENU/ENTER
1
2
3
4
5
6
7
8
e
w
q
p
9
M15U p.05-14 99.8.23, 9:06 PM13

14
Controls and Features (cont.)
Installing Batteries
Install batteries in the remote control. If the remote control has started to work erratically, replace the batteries.
1Open the back cover.
While pushing on the back cover, slide it in the direction
of the arrow.
2Install the batteries.
Place the two batteries (AAA/R03-size) supplied in the
remote control as illustrated below.
3Close the back cover.
Slide the back cover in the direction of the arrow until a
click is heard.
Precautions for using batteries
If batteries are used incorrectly, they may crack or
leak liquid. This could cause a fire, burn, malfunction,
or staining or damaging the surrounding.
Beware of the following:
• Do not mix new and old batteries.
• Do not mix different types of batteries as they differ in
characteristics.
• Place batteries so they match the polarities indicated:
(+) to (+) and (–) to (–).
• Be sure to put the minus (–) end in first to avoid short-
circuiting.
• Use only designated batteries.
• Remove the batteries if not used for a prolonged period
of time.
• When the batteries are exhausted, replace them
immediately. Otherwise, liquid could leak, ormalfunction
could occur due to leaked liquids. If the leaked liquid
contacts the skin, wipe it off with a cloth, otherwise the
skin could become rough.
• Do not put batteries into fire or try to recharge them.
• Batteries run for six months to one year in normal use.
But the batteries supplied are for confirming operation
andmaynotrunthatlong. When the remote controlstarts
failing to work properly, replace the batteries with new
ones.
M15U p.05-14 99.8.23, 9:06 PM14

15
ENGLISH
Installing the Projector
Precautions for Installation
■When installing the projector, observe the followings:
• Do not use the projector placed on its side.
Avoid using the projector placed on its side. This could cause a malfunction.
• Use the projector within the installed angle.
Avoid using the projector inclined ±30° or more right-to-left or left-to-right.This could cause color variation or harm the lamp
life.
• Do not block the exhaust vents.
Do not use a cover which encloses the projector air-tight or blocks the exhaust vents. Allow sufficient space around the
projector. When the projector is enclosed in a space of the following dimensions, use an air conditioner so the temperature
inside becomes equal to the outside temperature.
Allowable minimum space required
CAUTION
Do not install the projector in the following places :
• There is much water, humidity or dust.
• The projector may be subjected to oil smoke or cigarette smoke.
• On a soft surface such as a carpet or cushion.
• The projector may be subjected to direct sunlight.
• Temperature is high or humidity is low.
Allowable operation temperature range: + 5°C to + 35°C (41°F to 95°F)
Allowable relative humidity range: 20% to 80% (no condensation)
Allowable storage temperature range: –10°C to +60°C (14°F to 140°F)
20cm (7 - 7/8”)
50cm (19 - 3/4”)20cm (7 - 7/8”)
20cm (7 - 7/8”)
20cm (7 - 7/8”)
M15U p.15-25 99.8.23, 9:11 PM15

16
Installing the Projector (Cont.)
Projection Distance and Screen Size
■The projection lens used in this projector is a 1.5 : 1, short focal-distance lens (with a manual shift function).
■The range of projection distances that can be focused is 60”screen (approx. 1.76 m) to 150” screen (approx. 4.499
m) when the aspect ratio of the screen is 4:3.
■With this projector, the projection screen can be shifted up and down in position within the range of approx.30% to
55%. The amount of shift shown in the illustration is 50% shifting which corresponds to the factory setting. See
page 17 for “Setting the Amount of Lens Shifting”.
Screen
When the amount of shift is
selected to be 50% (factory
setting), set the screen so that its
bottom edge is the same height as
the center line of the lens.
Screen with 4 : 3 aspect ratio
■Change of projection screen
according to aspect ratio
Screen with 16 : 9 aspect ratio
Center line of the lens
90° 90° 90°
Projectionscreen size Projection distance
(Diagonal length) For 4 : 3 aspect-ratio screens For 16 : 9 aspect-ratio screens
55” (approx. 139.7 cm) ----- approx. 1.826 m (approx. 5.99 ft)
60” (approx. 152.4 cm) approx. 1.760 m (approx. 5.77 ft) approx. 1.917 m (approx. 6.29 ft)
65” (approx. 165.1 cm) approx. 1.912 m (approx. 6.27 ft) approx. 2.083 m (approx. 6.83 ft)
70” (approx. 177.8 cm) approx. 2.064 m (approx. 6.77 ft) approx. 2.249 m (approx. 7.38 ft)
75” (approx. 190.5 cm) approx. 2.216 m (approx. 7.27 ft) approx. 2.414 m (approx. 7.92 ft)
80” (approx. 203.2 cm) approx. 2.368 m (approx. 7.77 ft) approx. 2.580 m (approx. 8.46 ft)
85” (approx. 215.9 cm) approx. 2.520 m (approx. 8.27 ft) approx. 2.745 m (approx. 9.00 ft)
90” (approx. 228.6 cm) approx. 2.672 m (approx. 8.76 ft) approx. 2.911 m (approx. 9.55 ft)
95” (approx. 241.3 cm) approx. 2.825 m (approx. 9.27 ft) approx. 3.078 m (approx. 10.10 ft)
100” (approx. 254.0 cm) approx. 2.976 m (approx. 9.76 ft) approx. 3.242 m (approx. 10.63 ft)
105” (approx. 266.7 cm) approx. 3.129 m (approx. 10.26 ft) approx. 3.409 m (approx. 11.18 ft)
110” (approx. 279.4 cm) approx. 3.281 m (approx. 10.76 ft) approx. 3.575 m (approx. 11.73 ft)
115” (approx. 292.1 cm) approx. 3.433 m (approx. 11.26 ft) approx. 3.740 m (approx. 12.27 ft)
120” (approx. 304.8 cm) approx. 3.585 m (approx. 11.76 ft) approx. 3.906 m (approx. 12.81 ft)
125” (approx. 317.5 cm) approx. 3.738 m (approx. 12.26 ft) approx. 4.072 m (approx. 13.36 ft)
130” (approx. 330.2 cm) approx. 3.890 m (approx. 12.76 ft) approx. 4.238 m (approx. 13.90 ft)
135” (approx. 342.9 cm) approx. 4.042 m (approx. 13.26 ft) approx. 4.404 m (approx. 14.45 ft)
140” (approx. 355.6 cm) approx. 4.194 m (approx. 13.76 ft) -----
145” (approx. 368.3 cm) approx. 4.347 m (approx. 14.26 ft) -----
150” (approx. 381.0 cm) approx. 4.499 m (approx. 14.76 ft) -----
■Relationship between Projection Distances and Projection Screen Sizes
* The projection screen sizes (recommended) and projection distances listed above are only for a guide. Use them as
reference when setting the projector.
* This projector is designed to allow the screen size to be fine-adjusted approx. ±2%. The above listing shows the values
with ±0% adjustment (standard).
M15U p.15-25 99.8.30, 10:28 AM16

17
ENGLISH
Installing the Projector (Cont.)
Setting the Amount of Lens Shifting
CAUTIONS and NOTES
• When installing a screen, use a 4 : 3 aspect-ratio picture.
(A 16 : 9 aspect-ratio picture is projected based on the width of the range in which a 4 : 3 aspect-ratio picture is projected.)
• The diagonal length of a 16 : 9 aspect-ratio screen is about 91.8% that of a 4 : 3 aspect-ratio screen. This value is only a
guide (reference).
• If sunlight or lamp light strikes the projection screen directly, the picture tends to become whitish and dim. Be sure to use
a curtain, etc. to shield the light.
• Trapezoidaldistortionmay not be corrected. Set the projector horizontallyonasurface that is within the range of adjustable
angles (up/down adjustment angle: +7° ; horizontal adjustment angle: ±1.5°).
• The values listed in table “Relationship between Projection Distances and Screen Sizes” are provided only as a guide
(reference). The projected screen size may vary depending on the manufacturing tolerance of the projection lens.
• When hanging the from the ceiling, use a dedicated hanging fixture.
1Loosen the SHIFT LOCK fixing
bolt.
Use the hex wrench supplied.
2RotatetheLENSSHIFTknobto ad-
just the position (shift amount) of
the projection screen.
Rotate it to the right: The lens shifts upward.
Rotate it to the left: The lens shifts downward.
3Tighten the SHIFT LOCK fixing
bolt firmly.
Use the hex wrench supplied.
This projector features a lens shifting function which allows you to shift the projection screen up and down in position.
Depending on installation conditions (such as dual stacking), you may need to use this function to make adjustments.
Notes
• The amount of shifting is within the range of approx. 30% to 55%. The factory setting is 50%.
• After finishing the lens shift setting (adjustment), tighten the SHIFT LOCK fixing bolt firmly so the lens will not move.
SHIFT LOCK fixing bolt
LENS SHIFT knob
* The projection position can
only shift in an up-and-down
direction.
The illustration shows the
screen shifted sidewise for
the purpose of explanation.
Approx. 55% (upward maximum)
Approx. 30% (downward
maximum)
Approx. 50% (factory setting)
■Projected screen position image by amount of shift
M15U p.15-25 99.9.1, 10:04 AM17

18
Installing the Projector (Cont.)
Effective Range and Distance of the Remote Control Unit
The operable distance of the remote control unit is about 10 m (32.8 ft) for direct reception. The remote control can be used by
having it reflected on the screen, etc. When you use the remote control by reflecting it at the screen, the total distance ofA+ B
should be about 10 m (32.8 ft) or less. The operable angles of the remote control unit is 50° right to left, and 15° up and down.
The effective range and distance of the remote control unit
Screen
Projector
(DLA-M15U)
Remote control unit
• Use the projector with A+B about 10 m (32.8 ft) or less.
50˚
50˚
A30˚
B
Note
• Depending on the type of the screen used, the effective distance of the remote control may be reduced.
Setting the position selecting screw for Ceiling Mounting
When using the projector in an upside-down, ceiling-mounted position (inverted top-to-bottom and right-to-left), the “position
selecting screw for ceiling mounting” must be turned to switch to ceiling mounting.
This will correct variance in color images (shading), which otherwise would occur in ceiling mounting.
To revert to normal desltop setting, turn the “position selecting screw for ceiling mounting” back to the initial position (factory-
shipped).
[When using the projector in an upside-down, ceiling mounting position (inverted top-to-bottom and right-to-left)]
■Turn the “position selecting screw for ceiling mounting” counterclockwise fully (until it is turning idly).
[To again use the projector in a normal desktop setting]
■Turn the “position selecting screw for ceiling mounting” clockwise fully (until it tightens firmly).
Position selecting screw for ceiling mounting
For normal desktop mounting:
Turn clockwise.
For upside-down, ceiling-mounting:
Turn counterclockwise.
CAUTIONS
• To ceiling-mount and adjust the projector, special expertise and
technique are necessary. Be sure to ask your dealer or a specialist to
perform this work.
• Toturn the “position selecting screw for ceilingmounting”,use a Phillips
screwdriver with a 30-mm or longer shank.
The screw is located in the hole shown in the illustration.
M15U p.15-25 99.8.23, 9:11 PM18

19
ENGLISH
Connecting to Various Devices
The following signals can be input to the projector:
■Video signals
(1) Response to color systems
*1: Responds if Y/C output is available.
*2: Signifies that component signals (“Y, PB, PR ” / “ Y, B-Y, R-Y” / “G, B, R, H/CS, V”) conform to the signal timing (synchroniza-
tion and video period) of each color system. The color systems are used for convenience only.
(2) Response to double density (*1), high-vision signals
Color system NTSC NTSC4.43 PAL SECAM
Input terminal
VIDEO ‡‡‡‡
Y/C ‡‡*1‡- - - - -
Y, PB/B-Y, PR/R-Y ‡*2‡*2‡*2‡*2
G, B, R, H/CS, V ‡*2‡*2‡*2‡*2
*1: Signals whose density of scanning lines/field is twice as high.
*2: Responds to signals whose horizontal scanning frequency is 31.5 kHz. NTSC can be made twice as dense by a line doubler
(separately available: recommended article).Also, possible to respond to fully-specified, decoded wide-clear-vision signals
and 525P progressive signals.
*3: Responds to signals whose horizontal scanning frequency is 33.5 kHz. PAL can be made twice as dense by a line doubler
(separately available: recommended article).
Note
• DTV-format signals (480i, 480p, 720p, 1080i) can be input into this unit (Y, PB/B-Y, PR/R-Y input terminals). For details about DTV-format
signals (480i, 480p, 720p, 1080i) compatible with this unit, refer to page 56.
■Computer signals
• Signals with the following resolutions can be input to the input terminal of COMPUTER IN-1 (PC) or COMPUTER IN-2 (G,
B, R, H/Cs, V). (The following signals are preset.)
Input terminal NTSC*2PAL*3High-vision signal
Y, PB/B-Y, PR/R-Y ‡‡‡
G, B, R, H/CS, V ‡‡‡
Screen resolution (standard name) Horizontal frequency Vertical frequency Scanning method
640 ×400 (PC-9801) 24.8kHz 56.4Hz Non-interlace
640 ×350 (VGA1) 31.5kHz 70.1Hz Non-interlace
640 ×480 (VGA3) 31.5kHz 59.9Hz Non-interlace
640 ×480 (Macintosh 13”) 35.0kHz 66.7Hz Non-interlace
640 ×480 (VGAVESA) 37.5kHz 75.0Hz Non-interlace
800 ×600 (SVGA1) 37.9kHz 60.3Hz Non-interlace
800 ×600 (SVGA2) 48.1kHz 72.2Hz Non-interlace
832 ×624 (Macintosh16”) 49.7kHz 74.6Hz Non-interlace
1024 ×768 (XGA1) 48.4kHz 60.0Hz Non-interlace
1024 ×768 (XGA2) 56.5kHz 70.1Hz Non-interlace
1024 ×768 (Macintosh 19”) 60.2kHz 74.9Hz Non-interlace
1152 ×870 (Macintosh 21”) 68.7kHz 75.0Hz Non-interlace
1280 ×1024 (SXGA1) 64.0kHz 60.0Hz Non-interlace5
1280 ×1024 (SXGA2) 70.8kHz 67.0Hz Non-interlace
1360 ×1024 (SXGA3: Mac Board) 80.0kHz 75.1Hz Non-interlace
Signals that Can Be Input to the Projector
* Before connection, be sure to turn off the projector and connected devices.
* Read the manual which comes with each device thoroughly.
Notes
• Interlace signals are not handled.
• Some signals other than listed above can be displayed. But they require adjustment. Even some of the signals listed above may require
adjustment depending on the video board used.
• When a signal other than listed above is input, the screen could be partially erased or an unneeded fold-over screen could appear.
• Even signals in the frequency range that can be input may not be displayed normally depending on the type of the signal.
• Composite sync.(Cs) and G on sync. signals can not handled depending on the devices connected.
M15U p.15-25 99.8.23, 9:11 PM19
