SERVICE MANUAL
Regarding service information other than these sections, refer to the service manual No. 82963 (HR-V200EZ,HR-V205EK,HR-
V500EZ,HR-V505EK,HR-V505EZ). Also, be sure to note important safety precautions provided in the service manual.
Specifications shown are for SP mode unless specified otherwise.
E. & O.E. Design and specifications subject to change without
notice.
GENERAL
Power : 200 V – 240 V d , 50 Hz/60 Hz
Power consumption
Power on : Approx. 12 W
Standby mode : 3.0 W
Video Head system
HR-V505/V506/
V507E : DA4 (Double Azimuth) head helical
scan system
HR-V205/V206E : Rotary two-head helical scan system
Tape speed
(SP) : 23.39 mm/sec
(LP)* : 11.69 mm/sec
* HR-V505/V506/V507E only
* HR-V505/V506/V507E only
Tape format : Tape width 1/2"
(12.7 mm high density VHS tape)
Maximum recording time
(SP) : 240 min. with E-240 video cassette
(LP)* : 480 min. with E-240 video cassette
Rewind time : Approx. 180 sec. with E-180 cassette
Dimensions (W x H x D) : 360 mm x 94.5 mm x 270 mm
Weight : 4.0 kg
Operating temperature : 5°C to 35°C
Operating humidity : Less than 80 %
Timer : 24 hours display type
VIDEO
Signal system : PAL-type colour signal and CCIR
monochrome signal, 625 lines
50 fields
Recording Format : PAL/MESECAM
RF reception : PAL (B/G)/SECAM (B/G)
RF OUT : PAL G
RF modulator : UHF channels 22 – 68 (Adjustable)
Input level : VIDEO IN (SCART type)
1.0 Vp-p, 75 ohm, unbalanced
Output level : VIDEO OUT (SCART type)
1.0 Vp-p, 75 ohm, unbalanced
Signal-to-noise ratio : More than 43 dBm
AUDIO
Input level : AUDIO IN (SCART type)
–6.0 dBm, more than 10 kΩ
Output level
HR-V505/V506/
V507E : AUDIO OUT (SCART, RCA type)
–6.0 dBm, less than 1 kΩ
HR-V205/V206E : AUDIO OUT (SCART type)
–6.0 dBm, less than 1 kΩ
Audio track
HR-V505/V506/
V507E : Mono track and Hi-Fi track
HR-V205/V206E : Mono track
Audio frequency response
Normal audio : 100 Hz to 10,000 Hz
(–6/+3 dBm)
Hi-Fi audio* : 20 Hz to 20,000 Hz
(–3/+3 dBm)
Audio signal to noise ratio [HR-V505/V506/V507E only]
Hi-Fi audio : More than 70 dB (JIS A filter)
Audio dynamic range [HR-V505/V506/V507E only]
Hi-Fi audio : More than 85 dB (JIS A filter)
ACCESSORIES
Provided accessories : RF cable,
Infrared remote control unit,
“CR 2032” battery x 1
* HR-V505/V506/V507E only
No.82972
2003/05
HR-V506EL, HR-V506E X , HR-V506E Y ,
HR-V507EL, HR-V507E X , HR-V507E Y
HR-V506EL, HR-V506EX, HR-V506EY, HR-V507EL, HR-V507EX, HR-V507EY V16D1-
VIDEO CASSETTE RECORDER
SPECIFICATIONS (The specifications shown pertain specifically to the model HR-V205E, HR-V206E, HR-V505E, HR-V506E and HR-V507E.)

1
The following table indicate main different points between models HR-V200EZ,HR-V506EL,HR-V506EX,HR-V506EY,HR-
507EL,HR-V507EX and HR-V507EY.
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
DIFFERENT LIST .............................................................................................................................................................................................. 1
REPLACEMENT PARTS LIST
5.1 EXPLODED VIEW .................................................................................................................................................................................... 5-1
5.1.1 PACKING AND ACCESSORY ASSEMBLY <M1> ............................................................................................................................. 5-1
5.1.2 FINALASSEMBLY <M2> ................................................................................................................................................................... 5-2
5.1.3 MECHANISM ASSEMBLY <M4> ....................................................................................................................................................... 5-3
5.2 PARTS LIST.............................................................................................................................................................................................. 5-4
PACKING AND ACCESSORY PARTS LIST<M1> ...................................................................................................................................... 5-4
FINAL PARTS LIST<M2>............................................................................................................................................................................ 5-4
MECHANISM PARTS LIST<M4>................................................................................................................................................................ 5-4
MAIN BOARD ASSEMBLY<03> ................................................................................................................................................................. 5-5
DIFFERENT LISTDIFFERENT LIST
DIFFERENT LISTDIFFERENT LIST
DIFFERENT LIST
DIFFERENT TABLE OF FEATUREDIFFERENT TABLE OF FEATURE
DIFFERENT TABLE OF FEATUREDIFFERENT TABLE OF FEATURE
DIFFERENT TABLE OF FEATURE
MODEL HR-V200EZ
ITEM
BROADCASTING STANDARD PAL B/G,D/K PAL B/G
AUDIO MONO HiFi
STEREO DECODER NOT USED NICAM,2 Carrier
VIDEO HEAD 2 4
TAPE SPEED SP SP/LP
SHOWVIEW/VIDEOplus+ NOT USED SHOWVIEW
TIMER BACKUP 10 MIN. PERMANENT
FRAME ADVANCE NOT USED USED
SLOW(FORWARD) NOT USED USED
DIGITAL SHUTTLE NOT USED USED
HiFi AUDIO OUT(RCA) NOT USED USED
AV2 CONNECTOR NOT USED USED
HR-V506EXHR-V506EL HR-V507ELHR-V506EY HR-V507EX HR-V507EY
Notes: Mark is same as left.

VICTOR COMPANY OF JAPAN, LIMITED
12,3-chome,Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa-prefecture,221-8528,JapanAV & MULTIMEDIA COMPANY.
Printed in Japan
0305 VP

5-1
SECTION 5
REPLACEMENT PARTS LIST
SAFETY PRECAUTION
Parts identified by the !symbol are critical for safety. Replace only with specified part numbers.
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and performance. We recom-
mend that genuine JVC parts be used.

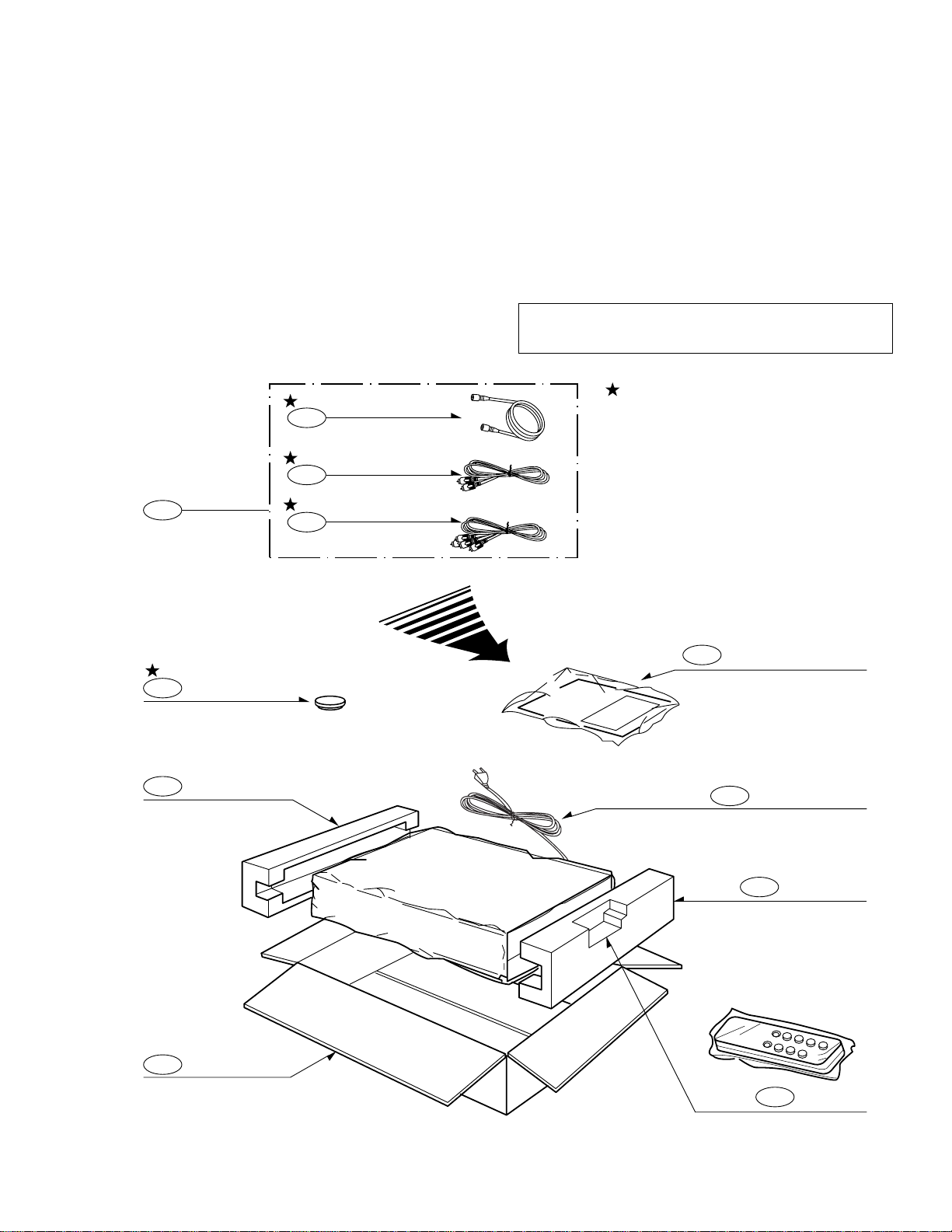

5.1.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5.1 EXPLODED VIEW
OPTIONAL PARTS
CABLE SET ASS'Y
(Optional parts)
810
BATTERY808
806
PLUG ASS'Y 2WAY
(Optional parts)
812
PLUG ASS'Y 1WAY
(Optional parts)
811
REMOCON900
PACKING (RF)803
PACKING (LF)803
BOX CARTON802
BAG. SOFR SHEET804
INSTRUCTION MANUAL801
NOTE) Refer to “SECTION REPLACEMENT PARTS LIST
NOTE) in order to look for the part number of each part.

5-2
5.1.2 FINAL ASSEMBLY <M2>
A46
260
452
330
323
TU701(TUNER)
2SCART
1SCART
457
320
452
A00
275
LED502(LED501)
457
457
A43
283
280
284
277
A42
A49
281
300
250
462
462
NOTE) Refer to “SECTION 5 REPLACEMENT
PARTS LIST” in order to look for the
part number of each part.
OPTIONAL PARTS

5-3

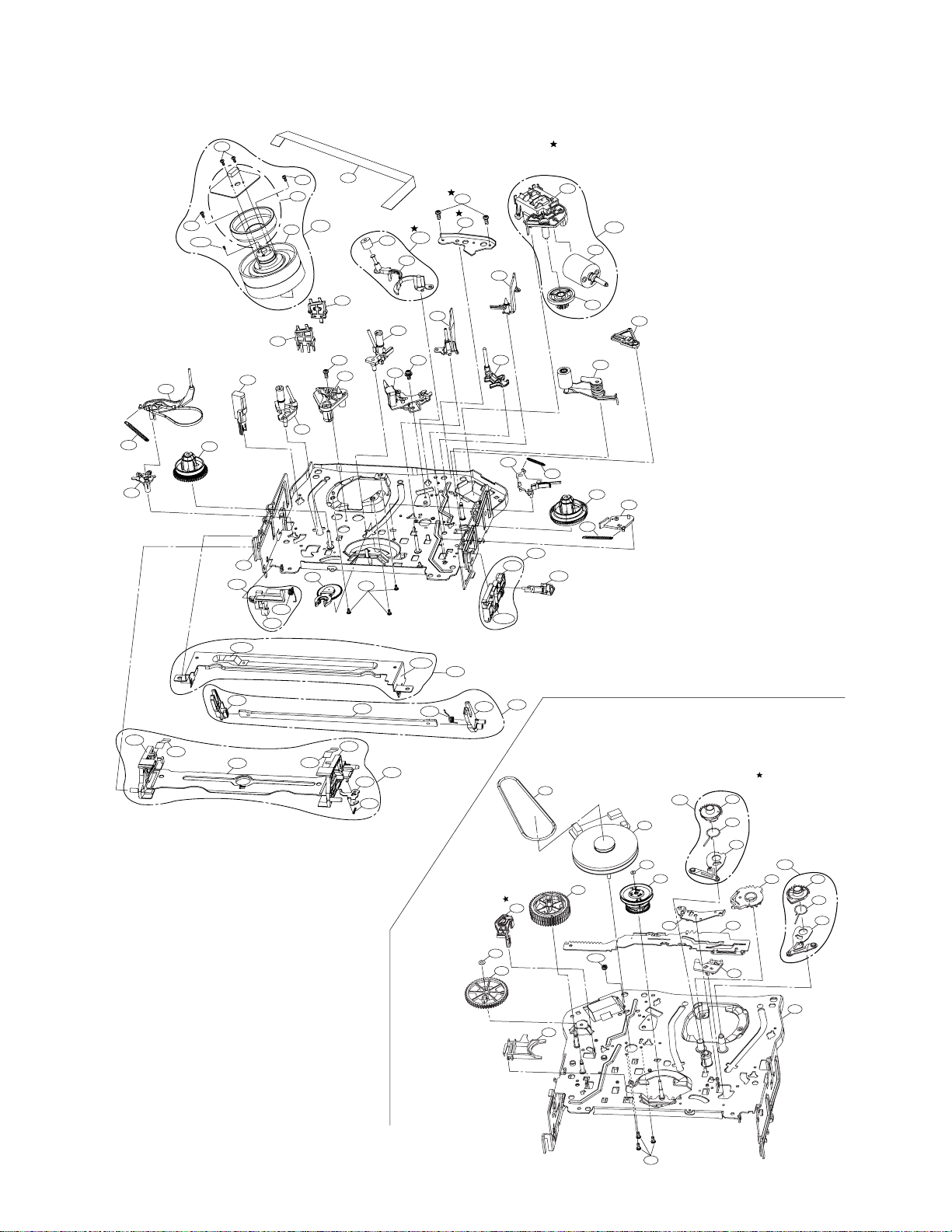

5.1.3 MECHANISM ASSEMBLY <M4>
401
402
001
008
011
031
079
017
032 024 406
020
021
028
019 018
029
030
026
A03 A04
A01
002
002A
025
027
022
003
004
006
007
010
405
014
015
009
409
013
023 016
405
012
402
OPTIONAL PART
A22
109
054
054A
117
103
105 117
100
106
107 A21
114
113
112
110
115
A24
116
102
A23
100A
100B
051
052
517
061
056
058
518 052A
055
060
410
070
069
076
032
077
068
064
066
065
067
A11
078
A12
OPTIONAL PART
[TOP VIEW]
[BOTTOM VIEW]

#REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP #REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP
5-4
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------ ---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
******************************
PACKING AND ACCESSORY PARTS LIST <M1>
801 LG-3835RP0095W INSTRUCTION ASSEMBLY VCR FCJ909NP.NA3GJJS B E
801 LG-3835RP0095Z INSTRUCTION ASSEMBLY VCR FCJ909NP.NA6PJJG A D
801 LG-3835RP0096B INSTRUCTION ASSEMBLY VCR FCJ909NP.NA8SJJS C F
802 LG-3890R-H784S BOX FCJ909NP NA3GJJG SW3-A 0.849 1 ABCDEF
803 LG-3920R-0067A PACKING AF999NS 0.02 65 EPS 12 1190 23 ABCDEF
804 LG-292-053A BAG SOFT(VCP) DEF NSP
804 LG-3880R-H001A BAG HDPE 500 500 0.03 VCR MIDI ABC NSP
808 QAB0022-001 BATTERY,LITHIUM CR2032 PANASONIC PANASONIC 3.0 ABC EF
810 LG-6851R-0012B CABLE ASSEMBLY RF-CABLE DOUBLE SHIELD PAL LGE ABC EF
900 LG-6711R2P041A REMOTE CONTROLLER ASSEMBLY JVC FCJ909NP LP21138-006 W/SHO DEF
900 LG-6711R2P041C REMOTE CONTROLLER ASSEMBLY JVC FCJ909NP LP21138-007 W/SHO ABC
******************************
FINAL PARTS LIST <M2>
A43 LG-3721R-F313L PANELASSEMBLY,FRONT VCR FCJ909NP NA8SJJB ABC
A43 LG-3721R-F313M PANELASSEMBLY,FRONT VCR FCJ909NP NA6PJJG DEF
A46 LG-3501R-7803D BOARDASSEMBLY VCR JVC PAL SCART B E
A46 LG-3501R-7803E BOARD ASSEMBLY VCR JVC PAL SCART C F
A46 LG-3501R-7803F BOARDASSEMBLY VCR JVC PAL SCART A
250 LG-3110R-0128C CASE TOP(Q280G:B/K),SIDE ABC
250 LG-3110R-0223G CASE VCR - TOP(0128 A288G SIDE SCRE DEF
260 LG-3210R-0023B FRAME MAIN (VII-PJT, 60HR) ABC NSP
260 LG-3210R-0023F FRAME VCR - MAIN (VII-PJT, 60HR,8657 DEF NSP
280 LG-3720R-F702A PANEL,FRONT FRONT(JVC EVNT) DEF NSP
280 LG-3720R-F702B PANEL,FRONT VCR FCJ209P NA3GJJB OTHER BK ABC NSP
283 LG-3580R-V031C DOOR,CASE VCR - CST (VCR) (HIFI-B589G-SI DEF
283 LG-3580R-V031D DOOR,CASE VCR - CST (VCR) (HIFI-Q280G-BK ABC
284 LG-442-681A SPRING DOOR ABCDEF
300 LG-6410RCHP02Z POWER CORD HIT-102/H03VHH2-F (ST-HS:80MM) ABCDEF
320 LG-3720R-D020C PANEL VCR - DISTRIBUTOR (PAL-2SCART ABCDEF
330 LG-3550R-0210A COVER BOTTOM(LARGE) ABCDEF
452 LG-353-051A SCREW SPECIAL ABCDEF
457 LG-353-051E SCREW SPECIAL (3X12) ABCDEF
462 LG-353-136A SCREW SPECIAL(FBK) (353S353A) ABC
462 LG-353-136D SCREW,DRAWING + 2 D4.0 L12.5 MSWR3/FN DEF
******************************
MECHANISM PARTS LIST <M4>
A00 LG-6721RF0750D DECKASSEMBLY,VIDEO D35(N) DI (4HF, PAL, AHC(X), B ABCDEF NSP
A01 LG-6723R-0403C DRUM(CIRC) ASSEMBLY D35-6CH PAL (8P6C) ABCDEF
A04 LG-4811RF0038A BRACKETASSEMBLY L/D(S) ABCDEF
A11 LG-4471R-0005A GEAR ASSY P3 ABCDEF
A12 LG-4471R-0004A GEAR ASSY P2 ABCDEF
A21 LG-4931R-0047A HOLDER ASSY CST ABCDEF
A22 LG-4471R-0006A GEAR ASSY RACK F/L ABCDEF
A23 LG-4261R-0023A ARM ASSY F/L ABCDEF
A24 LG-4510R-0046A LEVER ASSY SWITCH ABCDEF
001 LG-6723R-0306C DRUM(CIRC) ASSEMBLY SUB D35-6CH (8P6C) ABCDEF NSP
002 LG-4680R-B005A MOTOR(MECH) DRUM I2OAL05 SEJIN-SANKYO ICLE ABCDEF
002A LG-5202R00002C BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4, ABCDEF
003 LG-4930R-0284A HOLDER FPC(6CH) ABCDEF
004 LG-5006R-0034A CAP FPC ABCDEF
008 LG-6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7 ABCDEF
009 LG-4260R-0038A ARM T/UP(D35) ABCDEF
010 LG-4810R-0125A BRACKET CHASSIS ABCDEF
011 LG-4261R-0022A ARM ASSY TENSION(D35) ABCDEF
012 LG-3041R-0037A BASE ASSY P2 ABCDEF
013 LG-3041R-0038A BASE ASSY P3 ABCDEF
014 LG-3041R-0039A BASE ASSY P4 ABCDEF
015 LG-5870R-0005A OPENER LID(D35) ABCDEF
016 LG-3041R-0036A BASEASSEMBLY A/C HEAD (ALPS) ABCDEF
017 LG-4408R-0003A REEL S ABCDEF
018 LG-4970R-0140A SPRING COIL RS D35 ABCDEF
019 LG-4421R-0008A BRAKE ASSEMBLY RS ABCDEF
020 LG-4970R-0128A SPRING COIL D35 (TB) ABCDEF
021 LG-4421R-0006A BRAKE ASSY T ABCDEF
022 LG-6520D00002A HEAD(CIRC) D35 FE ST FE HEAD ABCDEF
023 LG-3040R-0057A BASE LOADING ABCDEF
024 LG-4261R-0029A ARM ASSEMBLY IDLER (N) ABCDEF
025 LG-4810R-0118A BRACKET L/D(S) ABCDEF NSP
026 LG-4680R-D002A MOTOR(MECH) LOADING MDB2B66 SANKYO D35ASP ABCDEF NSP
027 LG-4470R-0093A GEAR WHEEL ABCDEF NSP
028 LG-4408R-0004A REEL T ABCDEF
029 LG-4261R-0019C ARMASSEMBLY DECK/MECHA PINCH ABCDEF
030 LG-4510R-0043A LEVER T/UP ABCDEF
031 LG-4970R-0123A SPRING COIL TENSION(D35) ABCDEF
032 LG-3141R-0040A CHASSIS ASSY D35 ABCDEF NSP
051 LG-4400R-0005A BELT CAPSTAN ABCDEF
052 LG-4680R-A007A MOTOR(MECH) CAPSTAN F2QVB06 SANKYO D35 ASR ABCDEF
052A LG-4980R-0023A SUPPORTER CAPSTAN(D35) ABCDEF
054 LG-4470R-0100A GEAR RACK F/L ABCDEF
054A LG-4970R-0124B SPRING COIL D35 (RACK F/L) ABCDEF
055 LG-4470R-0097A GEAR DRIVE(D35) ABCDEF
056 LG-4470R-0096A GEAR CAM(D35) ABCDEF
058 LG-4421R-0007A BRAKE ASSY CAPSTAN ABCDEF
060 LG-4510R-0040A LEVER F/R(D35) ABCDEF
061 LG-4265R-0006A CLUTCH ASSEMBLY D35 (N) ABCDEF
064 LG-4470R-0098A GEAR SECTOR(D35) ABCDEF
065 LG-4261R-0021A ARM ASSY P3 ABCDEF NSP
066 LG-4970R-0122A SPRING COIL D35 ABCDEF NSP
067 LG-4470R-0095A GEAR P3 ABCDEF NSP
068 LG-4470R-0094A GEAR P2 ABCDEF NSP
069 LG-4970R-0122A SPRING COIL D35 ABCDEF NSP
070 LG-4261R-0020A ARM ASSY P2 ABCDEF NSP
076 LG-4510R-0047A LEVER SPRING ABCDEF
077 LG-3300R-M116A PLATE SLIDER ABCDEF
078 LG-4510R-0041A LEVER TENSION ABCDEF
079 LG-3040R-0056A BASE TENSION(D35) ABCDEF
100 LG-3301R-M022A PLATE ASSEMBLY TOP ABCDEF
100A LG-3300R-0184A PLATE GND ABCDEF
100B LG-3300R-M118A PLATE TOP(D35) ABCDEF
102 LG-4970R-0130A SPRING COIL D35 (STOPPER) ABCDEF
103 LG-4930R-0276A HOLDER SIDE(L) ABCDEF NSP
105 LG-4930R-0274A HOLDER CST ABCDEF NSP
106 LG-4930R-0275A HOLDER SIDE(R) ABCDEF NSP
107 LG-4510R-0044A LEVER STOPPER ABCDEF NSP
109 LG-5870R-0004A OPENER DOOR ABCDEF
110 LG-4260R-0035A ARM F/L(L) ABCDEF NSP
112 LG-3070R-0002A BODY F/L ABCDEF NSP
113 LG-4970R-0127A SPRING COIL D35 (F/L(R)) ABCDEF NSP
114 LG-4260R-0036A ARM F/L(R) ABCDEF NSP
115 LG-4510R-0042A LEVER SWITCH ABCDEF
116 LG-4970R-0138A SPRING COIL D35 SWITCH ABCDEF
117 LG-3300R-M137A PLATE SPRING CST ABCDEF
401 LG-1MEC0261518 SCREW MACHINE,PAN HEAD SPR W D2.6 L4.5 MSWR3/FZY ABCDEF
402 LG-1MPC0261418 SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY ABCDEF
405 LG-1SZZR-0031B SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP ABCDEF
406 LG-1MEC0302018 PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY ABCDEF
409 LG-1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP ABCDEF
410 LG-1APF0262218 SCREW TAP TITE(B),PAN HEAD D2.6 L6.8 MSWR3/FZY ABCDEF
517 LG-1WZZR-0004D WASHER STOPPER ABCDEF
518 LG-1WZZR-0004A WASHER STOPPER ABCDEF
MODEL MARK MODEL MARK MODEL MARK
HR-V506EL A HR-V506EX B HR-V506EY C
HR-V507EL D HR-V507EX E HR-V507EY F
5.2 REPLACEMENT PARTS LIST NSP:Not Service Parts

#REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP #REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP
5-5
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------ ---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
******************************
MAIN BOARD ASSEMBLY <03>
IC101 LG-0IPMGSK003A IC,POWER MANAGEMENT STR-A6351 SANKEN 8 DIP ST SMPS ABCDEF
IC102 PZ0ILI817000B SENSOR LTV-817B,PHOTO COUPLER(LITEON) ABCDEF
IC103 LG-0IKE431000A IC,KEC KIA431 3 PIN TP ABCDEF
IC301 LG-0ILNRSA005B IC,LINEAR LA71750EM SANYO 100PIN QFP TRA ABCDEF
IC501 LG-0IMCRHI027A IC,MICRO CONTROLLER HD64322197SA19F HITACHI 112PIN ABCDEF
IC503 LG-0ICS241600B IC,CATALYST CAT24W16P 8P DIP ST 16K SERIAL ABCDEF
IC504 LG-0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING) ABCDEF
IC505 LG-0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING) ABCDEF
IC506 LG-0ILNRPY001A IC,LINEAR PT6955 PTC 24P SOP ST LED DRIV ABCDEF
IC751 LG-0IIT341700B IC,ITT MSP3417D-QG QFP44 BK NICAM+A2 ABCDEF
IC7V1 LG-0ILNRMN001A IC,LINEAR SDA5650 MICRONAS 14 DIP ST VPS ABCDEF
IC801 LG-0IPH960500A IC,PHILIPS TDA9605H QFP44 BK HIFI AMP+HIF ABCDEF
D102 LG-0DD010009CA DIODE,RECTIFIER EG01CW(R-FORM 5MM) TP SANKEN ABCDEF
D103 LG-0DR180209AA DIODE,RECTIFIER ERA18-02KFRB TP FUJI DO204AL 2 ABCDEF
D104 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D105 LG-0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ABCDEF
D106 LG-0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V ABCDEF
D109 LG-0DR202000AB DIODE,RECTIFIER HER202 BK RECTRON NON 100V 2A ABCDEF
D155 2A02DIODE,RECTIFIERS 2A07 2A RECT(T/S)P=12.5 F DELT ABCDEF
D156 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D159 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D160 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D301 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D502 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D509 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D901 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D902 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D903 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D9M1 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
D9M2 1SS133-T2 DIODE,SWITCHING 1SS133 DETECT,SW TP ABCDEF
Q151 LG-0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC ABCDEF
Q152 LG-0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC ABCDEF
Q154 LG-0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC ABCDEF
Q155 LG-0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC ABCDEF
Q157 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q162 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q163 LG-0TR120109AC TRANSISTOR SRC1201 TP AUK TO92 4.7K,4.7K ABCDEF
Q164 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q165 LG-0TR220309AF TRANSISTOR SRA2203 TP AUK TO92 22K,22K ABCDEF
Q166 LG-0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC ABCDEF
Q301 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q302 LG-0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92 ABCDEF
Q303 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q304 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q305 LG-0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92 ABCDEF
Q306 LG-0TR534409AA TRANSISTOR 2SC5344Y TP ABCDEF
Q307 LG-0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92 ABCDEF
Q308 LG-0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92 ABCDEF
Q309 LG-0TR198009CA TRANSISTOR 2SA1980G TP AUK TO92 ABCDEF
Q501 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q502 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q503 LG-0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC ABCDEF
Q504 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q514 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q515 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q5S1 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q901 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q902 LG-0TR220309AF TRANSISTOR SRA2203 TP AUK TO92 22K,22K ABCDEF
Q903 LG-0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K ABCDEF
Q906 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q9M1 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
Q9M2 LG-0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92 ABCDEF
C101 LG-624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/2 ABCDEF
C102 LG-624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/2 ABCDEF
C103 LG-0CE476CU611 CAPACITOR,AL.ELECTROLYTIC 47UF SHL,SD 400V M FL BK7.5 ABCDEF
C105 LG-0CQ1031Y519 CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP ABCDEF
C106 LG-624-087B CAPACITOR HIGH-VOL 100P/1KV SMPS SAMHWA ABCDEF
C109 QETC1HM-106Z CAPACITOR,FIXED ELECTROLYTIC 10M SRA50V M FM5 TP(5) ABCDEF
C112 LG-0CG3320U630 CAPACITOR,SEMI CERAMIC 3300 PF 400V M E R(NK,AD,SD) ABCDEF
C113 LG-0CG3310U510 CAPACITOR,FIXED CERAMIC(TEMP.C 330PF D 400V 10% B(Y5P) R ABCDEF
C114 LG-0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V J PE TP ABCDEF
C115 LG-624-085D CAPACITOR CE 47UF/50V KME (SMPS) ABCDEF
C116 LG-0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK ABCDEF
C117 LG-624-082H CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P ABCDEF
C120 LG-0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK ABCDEF
C121 LG-0CE227CH618 CAPACITOR,FIXED ELECTROLYTIC 220UF SHL,SD 25V 20% FL TP 5 ABCDEF
C127 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C135 LG-0CN4710K518 CAPACITOR TUBULA(HIGH DIELE) 470P 50V K B TA26 ABCDEF
C153 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C190 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C301 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C302 QET61CM-226 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5) ABCDEF
C303 LG-0CN1220F668 CAPACITORTUBULA(HIGH DIELE) 1200P 16V M X TA26 ABCDEF
C304 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C305 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C306 LG-0CN1220F668 CAPACITORTUBULA(HIGH DIELE) 1200P 16V M X TA26 ABCDEF
C307 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C308 LG-0CQ1532K409 CAPACITOR,FIXED FILM 0.015UF S 50V J PE TP ABCDEF
C309 LG-0CN1210K518 CAPACITOR TUBULA(HIGH DIELE) 120P 50V K B TA26 ABCDEF
C310 LG-0CQ1032K409 CAPACITOR,POLYESTER(MYLAR) 0.01UF S 50V J PE TP ABCDEF
C311 LG-0CE4765K618 CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5 ABCDEF
C312 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C313 LG-0CQ2232L559 CAPACITOR,POLYESTER 0.022UF S 63V K PP NI TP5 ABCDEF
C314 QET61CM-226 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5) ABCDEF
C315 LG-0CE2253K636 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRE,SE 50V 20% FM5 BP(D) ABCDEF
C316 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C317 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C318 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C319 LG-0CQ1032K409 CAPACITOR,POLYESTER(MYLAR) 0.01UF S 50V J PE TP ABCDEF
C320 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C321 LG-0CX6800K408 CAPACITOR TUBULA(T.C) 68P 50V J SL TA26 ABCDEF
C322 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C323 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C324 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C325 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C326 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C327 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C328 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C329 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C330 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C331 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C333 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C334 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C335 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C336 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C337 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C338 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C339 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C340 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C341 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C342 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C343 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C344 LG-0CN1010K518 CAPACITOR,TUBULAR(HIGH DIELEC) 100P 50V K B TA26 ABCDEF
C345 LG-0CN3330K518 CAPACITOR,FIXED TUBULAR(High d 0.033UF 50V K B TA26 ABCDEF
C346 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C347 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C348 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C349 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C353 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C355 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C356 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C357 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C358 LG-0CX6800K408 CAPACITOR TUBULA(T.C) 68P 50V J SL TA26 ABCDEF
C359 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C360 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C361 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C362 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C363 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C364 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C365 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C366 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C367 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C368 LG-0CQ8224K409 CAPACITOR,FIXED FILM 0.0082UF TE 50V 5% PE TP5 ABCDEF
C369 LG-0CN1010K518 CAPACITOR,TUBULAR(HIGH DIELEC) 100P 50V K B TA26 ABCDEF
C370 LG-0CN8200K418 CAPACITOR TUBULA(HIGH DIELE) 82P 50V J B TA26 ABCDEF
C371 LG-0CN8200K418 CAPACITOR TUBULA(HIGH DIELE) 82P 50V J B TA26 ABCDEF
C372 LG-0CN8200K418 CAPACITOR TUBULA(HIGH DIELE) 82P 50V J B TA26 ABCDEF
C373 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C375 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C500 LG-0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5 ABCDEF
C501 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C502 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C503 LG-0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5) ABCDEF
C504 LG-0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5) ABCDEF
C505 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C506 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C508 LG-0CN1030F678 CAPACITORTUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C509 LG-0CC2200K415 CAPACITOR,CERAMIC(TEMP COMP) 22P 50V J NP0 TS ABCDEF
C510 LG-0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5) ABCDEF
C511 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C512 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C513 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
MODEL MARK MODEL MARK MODEL MARK
HR-V506EL A HR-V506EX B HR-V506EY C
HR-V507EL D HR-V507EX E HR-V507EY F
NSP:Not Service Parts

#REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP #REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP
5-6
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------ ---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
C514 LG-0CC1200K415 CAPACITOR,FIXED CERAMIC(TEMP.C 12PF 2012 50V 5% NP0 TR ABCDEF
C515 LG-0CC1500K415 CAPACITOR,CERAMIC(TEMP COMP) 15P 50V J NP0 TS ABCDEF
C516 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C518 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C519 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C520 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C523 QETC1HM-225Z CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C524 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C525 LG-0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5) ABCDEF
C526 LG-0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5 ABCDEF
C527 LG-0CN2210K518 CAPACITOR TUBULA(HIGH DIELE) 220P 50V K B TA26 ABCDEF
C533 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C534 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C535 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C543 LG-0CN2220F668 CAPACITOR,TUBULAR(HIGH DIELEC) 2200P 16V M X TA26 ABCDEF
C544 LG-0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V J PE TP ABCDEF
C545 LG-0CN3330K518 CAPACITOR,FIXED TUBULAR(High d 0.033UF 50V K B TA26 ABCDEF
C546 LG-0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5 ABCDEF
C547 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C551 LG-0CQ3332K409 CAPACITOR,FIXED FILM 0.033UF S 50V J PE TP ABCDEF
C552 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C561 LG-0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5) ABCDEF
C564 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C567 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C570 LG-0CC1500K415 CAPACITOR,CERAMIC(TEMP COMP) 15P 50V J NP0 TS ABCDEF
C571 LG-0CC1500K415 CAPACITOR,CERAMIC(TEMP COMP) 15P 50V J NP0 TS ABCDEF
C575 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C576 LG-0CC2700K415 CAPACITOR CERAMIC(TEMP COMP) 27P 50V J NP0 TP ABCDEF
C577 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C578 LG-0CN2220F668 CAPACITOR,TUBULAR(HIGH DIELEC) 2200P 16V M X TA26 ABCDEF
C581 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C582 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C583 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C589 LG-0CQ2232K409 CAPACITOR,FIXED FILM 0.022UF S 50V J PE TP ABCDEF
C596 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C5A3 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C5A4 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C5A5 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C5G1 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C5G2 LG-0CE1086C638 CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM ABCDEF
C5G3 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C5K1 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C5R1 QETA1CM-336 CAPACITOR,ELECTROLYTIC 33M SRA 16V M FM5 TP(5) ABCDEF
C5R2 LG-0CN6810K518 CAPACITOR TUBULA(HIGH DIELE) 680P 50V K B TA26 ABCDEF
C5S1 LG-0CX4300K408 CAPACITOR TUBULA(T.C) 43P 50V J SL TA26 ABCDEF
C5S3 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C701 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C704 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C705 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C706 LG-0CE4775C618 CAPACITOR,AL.ELECTROLYTIC 470UF SR,SV 6.3V M FL TP 5 ABCDEF
C707 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C710 LG-0CX6800K408 CAPACITOR TUBULA(T.C) 68P 50V J SLTA26 ABCDEF
C711 LG-0CX3300K408 CAPACITOR TUBULA(T.C) 33P 50V J SL TA26 ABCDEF
C712 LG-0CX5R60K508 CAPACITOR TUBULA(T.C) 5.6PF 50V K SL TA26 ABCDEF
C713 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C714 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C751 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C752 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C753 LG-0CX5600K408 CAPACITOR,TUBULAR(T.C) 56P 50V J SL TA26 ABCDEF
C754 LG-0CX5600K408 CAPACITOR,TUBULAR(T.C) 56P 50V J SL TA26 ABCDEF
C755 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C756 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C757 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C758 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C759 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C760 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C761 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C764 LG-0CN3920F668 CAPACITOR TUBULA(HIGH DIELE) 3900P 16V M X TA26 ABCDEF
C765 LG-0CN1520F668 CAPACITOR,TUBULAR(HIGH DIELEC) 1500P 16V M X TA26 ABCDEF
C766 QETF1HM-335Z CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C769 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C770 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C771 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C772 LG-0CC0500K015 CAPACITOR,CERAMIC(TEMP COMP) 5P 50V C NP0 TR ABCDEF
C773 LG-0CC0800K015 CAPACITOR CERAMIC(TEMP COMP) 8P 50V C NP0 TS ABCDEF
C790 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C7M2 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C7M3 LG-0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26 ABCDEF
C7M6 LG-0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26 ABCDEF
C7V1 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C7V2 LG-0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S ABCDEF
C7V3 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C7V4 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C7V5 LG-0CN4730K948 CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V) ABCDEF
C805 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C806 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C807 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C808 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C809 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C810 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C811 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C813 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C814 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C817 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C818 LG-0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 ABCDEF
C819 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C820 LG-0CQ6822K409 CAPACITOR,POLYESTER(MYLAR) 6800PF S 50V J PE TP ABCDEF
C821 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C822 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C823 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C824 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C825 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C826 LG-0CQ6822K409 CAPACITOR,POLYESTER(MYLAR) 6800PF S 50V J PE TP ABCDEF
C827 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C828 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C829 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C830 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C831 LG-0CN1030F678 CAPACITOR TUBULA(HIGH DIELE) 0.01M 16V M Y TA26 ABCDEF
C832 QET61CM-476 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) ABCDEF
C835 QETL1HM-474 CAPACITOR,ELECTROLYTIC 0.47M SRA50V M FM5 TP(5) ABCDEF
C8R1 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C8R2 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C901 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C902 LG-0CE477CF638 CAPACITOR,AL.ELECTROLYTIC 470UF SHL TYPE 16V M FM5 TP 5 ABCDEF
C903 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C904 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C909 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C911 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C912 LG-0CE477CF638 CAPACITOR,AL.ELECTROLYTIC 470UF SHL TYPE 16V M FM5 TP 5 ABCDEF
C914 LG-0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26 ABCDEF
C915 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C917 LG-0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26 ABCDEF
C920 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C921 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C956 QETC1HM-105Z CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) ABCDEF
C957 LG-0CX2700K408 CAPACITOR TUBULA(T.C) 27P 50V J SL TA26 ABCDEF
C960 LG-0CN1040K948 CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA ABCDEF
C961 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C962 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
C963 QET61CM-106Z CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) ABCDEF
R101 LG-614-007A RESISTOR 2.7/2W CEMENT SMPS V ABCDEF
R102 QRD161J-184Y RESISTOR,FIXED CARBON FILM 180K OHM 1/6 W 0.05 TA26 ABCDEF
R103 LG-0RD0682F608 RESISTOR,FIXED CARBON FILM 68 OHM 1/6 W 5.00% TA26 ABCDEF
R104 LG-0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR ABCDEF
R105 LG-0RF0101A619 RESISTOR,DRAWING 1 OHM 1/2 W(7.0) 5.00% TR ABCDEF
R106 QRD161J-184Y RESISTOR,FIXED CARBON FILM 180K OHM 1/6 W 0.05 TA26 ABCDEF
R109 LG-0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR ABCDEF
R112 QRD161J-104Y RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26 ABCDEF
R116 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R117 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R118 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R119 LG-0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26 ABCDEF
R120 LG-0RN3001F408 RESISTOR,FIXED METAL FILM 3K OHM 1/6 W 1% TA26 ABCDEF
R125 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R126 QRE141J-681Y RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26 ABCDEF
R151 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R152 QRE141J-331Y RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26 ABCDEF
R153 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R154 QRE141J-331Y RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26 ABCDEF
R155 QRD161J-332Y RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26 ABCDEF
R157 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R158 QRD161J-183Y RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26 ABCDEF
R159 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R161 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R170 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R172 QRD161J-271Y RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26 ABCDEF
R173 QRD161J-271Y RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26 ABCDEF
R1B1 QRE121J-155Y RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10 ABCDEF
R301 QRD161J-563Y RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26 ABCDEF
R303 QRD161J-183Y RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26 ABCDEF
R304 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R305 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R306 QRD161J-223Y RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26 ABCDEF
R307 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R308 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R309 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R310 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R311 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
MODEL MARK MODEL MARK MODEL MARK
HR-V506EL A HR-V506EX B HR-V506EY C
HR-V507EL D HR-V507EX E HR-V507EY F
NSP:Not Service Parts

#REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP #REF No. PART No. PART NAME, DESCRIPTION SPECIFICATION ABCDEF NSP
5-7
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------ ---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
R312 QRD161J-683Y RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26 ABCDEF
R313 QRD161J-2R2Y RESISTOR,FIXED CARBON FILM 2.2 OHM 1/6 W 5% TA26 ABCDEF
R314 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R315 QRD161J-470Y RESISTOR,FIXED CARBON FILM 47 OHM 1/6 W 5% TA26 ABCDEF
R316 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R317 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R318 LG-0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26 ABCDEF
R319 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R320 QRE141J-151Y RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26 ABCDEF
R321 QRD161J-122 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26 ABCDEF
R322 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R324 QRE141J-334Y RESISTOR,FIXED CARBON FILM 330K OHM 1/6 W 5% TA26 ABCDEF
R325 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R326 QRE141J-123Y RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26 ABCDEF
R327 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R328 QRD161J-271Y RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26 ABCDEF
R329 QRE141J-123Y RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26 ABCDEF
R330 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R331 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R334 QRD161J-272Y RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26 ABCDEF
R335 QRD161J-682Y RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26 ABCDEF
R336 QRD161J-104Y RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26 ABCDEF
R337 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R338 QRD161J-271Y RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26 ABCDEF
R339 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R340 QRD161J-183Y RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26 ABCDEF
R342 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R343 QRD161J-750Y RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26 ABCDEF
R344 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R345 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R346 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R347 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R349 QRD161J-182Y RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26 ABCDEF
R350 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R351 QRD161J-824 RESISTOR,FIXED CARBON FILM 820K OHM 1/6 W 0.05 TA26 ABCDEF
R3A1 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R501 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R502 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R503 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R504 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R505 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R506 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R507 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R508 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R509 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R510 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R511 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R512 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R513 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R514 LG-0RD1203F608 RESISTOR,FIXED CARBON FILM 120K OHM 1/6 W 5% TA26 ABCDEF
R515 QRD161J-271Y RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26 ABCDEF
R516 QRD161J-474Y RESISTOR,FIXED CARBON FILM 470K OHM 1/6 W 5% TA26 ABCDEF
R517 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R518 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R520 LG-0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26 ABCDEF
R521 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R522 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R523 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R524 QRE141J-220Y RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26 ABCDEF
R525 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R526 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R527 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R528 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R529 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R530 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R531 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R535 QRD161J-474Y RESISTOR,FIXED CARBON FILM 470K OHM 1/6 W 5% TA26 ABCDEF
R542 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R543 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R544 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R546 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R547 QRE141J-123Y RESISTOR,FIXED CARBON FILM 12K OHM 1/6 W 5% TA26 ABCDEF
R548 QRD161J-104Y RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26 ABCDEF
R550 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R553 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R555 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R556 QRD161J-223Y RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26 ABCDEF
R557 QRD161J-273Y RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26 ABCDEF
R558 QRD161J-223Y RESISTOR,FIXED CARBON FILM 22K OHM 1/6 W 5% TA26 ABCDEF
R559 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R55T2 QRE141J-152Y RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26 ABCDEF
R560 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R561 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R562 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R563 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R564 QRD161J-273Y RESISTOR,FIXED CARBON FILM 27K OHM 1/6 W 5% TA26 ABCDEF
R566 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R567 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R568 QRD161J-683Y RESISTOR,FIXED CARBON FILM 68K OHM 1/6 W 5% TA26 ABCDEF
R569 QRD161J-105Y RESISTOR,FIXED CARBON FILM 1M OHM 1/6 W 5% TA26 ABCDEF
R570 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R575 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R576 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R577 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R578 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R579 QRD161J-563Y RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26 ABCDEF
R582 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R583 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R589 QRD161J-105Y RESISTOR,FIXED CARBON FILM 1M OHM 1/6 W 5% TA26 ABCDEF
R591 QRD161J-104Y RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26 ABCDEF
R5A2 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R5A3 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R5A5 QRD161J-474Y RESISTOR,FIXED CARBON FILM 470K OHM 1/6 W 5% TA26 ABCDEF
R5B3 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5B4 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5B5 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R5C1 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5C5 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5C6 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5C7 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5C9 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R5G1 QRE141J-473Y RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26 ABCDEF
R5G2 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R5G3 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R5G4 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R5P2 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R5P3 QRE141J-103Y RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26 ABCDEF
R5R7 QRE141J-331Y RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26 ABCDEF
R5R8 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5S1 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R5T1 QRD161J-182Y RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26 ABCDEF
R5T10 QRE141J-152Y RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26 ABCDEF
R5T11 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R5T3 QRD161J-222Y RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 ABCDEF
R5T4 QRD161J-272Y RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26 ABCDEF
R5T5 LG-0RD3901F608 RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26 ABCDEF
R5T9 QRD161J-182Y RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26 ABCDEF
R706 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R707 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R709 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R753 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R754 QRD161J-332Y RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26 ABCDEF
R755 QRD161J-332Y RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26 ABCDEF
R758 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R759 QRD161J-562Y RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26 ABCDEF
R7M1 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R7M2 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R7M3 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R7M5 QRD161J-221 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26 ABCDEF
R7V1 QRD161J-105Y RESISTOR,FIXED CARBON FILM 1M OHM 1/6 W 5% TA26 ABCDEF
R7V2 QRD161J-104Y RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26 ABCDEF
R7V3 QRD161J-682Y RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26 ABCDEF
R7V4 QRD161J-564Y RESISTOR,FIXED CARBON FILM 560K OHM 1/6 W 5.00% TA26 ABCDEF
R7V5 QRD161J-682Y RESISTOR,FIXED CARBON FILM 6.8K OHM 1/6 W 5% TA26 ABCDEF
R7V6 QRD161J-564Y RESISTOR,FIXED CARBON FILM 560K OHM 1/6 W 5.00% TA26 ABCDEF
R7V7 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R7V8 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R7V9 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R801 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R802 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R817 QRD161J-335Y RESISTOR,FIXED CARBON FILM 3.3M OHM 1/6 W 5.00% TA26 ABCDEF
R818 QRE141J-333Y RESISTOR,FIXED CARBON FILM 33K OHM 1/6 W 5% TA26 ABCDEF
R819 QRD161J-272Y RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26 ABCDEF
R820 QRD161J-393Y RESISTOR,FIXED CARBON FILM 39K OHM 1/6 W 5% TA26 ABCDEF
R821 QRD161J-272Y RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26 ABCDEF
R822 QRE141J-333Y RESISTOR,FIXED CARBON FILM 33K OHM 1/6 W 5% TA26 ABCDEF
R823 QRD161J-471Y RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26 ABCDEF
R824 QRD161J-101Y RESISTOR,FIXED CARBON FILM 100 OHM 1/6 W 5% TA26 ABCDEF
R825 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R826 QRD161J-182Y RESISTOR,FIXED CARBON FILM 1.8K OHM 1/6 W 5% TA26 ABCDEF
R827 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R828 QRE141J-102Y RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 ABCDEF
R830 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R831 QRD161J-472Y RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26 ABCDEF
R8R1 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R8R2 QRD161J-561 RESISTOR,FIXED CARBON FILM 560 OHM 1/6 W 5% TA26 ABCDEF
R901 QRD161J-750Y RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26 ABCDEF
R902 QRD161J-750Y RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26 ABCDEF
MODEL MARK MODEL MARK MODEL MARK
HR-V506EL A HR-V506EX B HR-V506EY C
HR-V507EL D HR-V507EX E HR-V507EY F
NSP:Not Service Parts
