USER MANUAL
PUP 25° / PUP 45°
LED PAR46 RGB 18x3W

K9 Lights
www.k9lights.com




Introduction .................................................................................................................1
Safety Instructions ........................................................................................................1
Dimensions.....................................................................................................................2
Features..........................................................................................................................3
Display............................................................................................................................4
Menu...............................................................................................................................4
Connecting Fixtures......................................................................................................6
Technical specifications………..………………………………………………..……7
Please review before using the light
Contents

K9 lights
1
Introduction
Thank you for purchasing a K9 “Pup”. Please read these instructions carefully before
using or operating
the fixture to avoid any possible damage or accidents.
Product introduction
The K9 Pup is an LED PAR 46 fixture with an aluminum shell. The Pup uses high
power
R, G, B LED color mixing to create a smooth, bright field of light. The Pup provides
long life and low power consumption with in a lightweight frame. The built-in program
includes dimmer presets, dimming, strobe, slave functionality and DMX addressing.
Packing list
K9 Pup PAR46 light
DMX Signal line
Manual
Safety Information
●Speak with a skilled professional before any repair.
●Disconnect from the power source before setting up or moving.
●Avoid direct eye exposure to the fixture when it is on.
●Make sure the power supply voltage is consistent with this light, rated at 110v/60hz
●
This light is designed for indoor use. W orking temperature should be lower than 100°F.
●The fixtures may be mounted in any position provided there is adequate room for
ventilation. Make sure there are no flammable or explosive items with 2 feet of fixture.
●Grounding is important for proper fixture operation.
●If your Pup is in a continuous use environment with atmospheric particulates like fog,
smoke or dirt, be sure to inspect and clean the fan with compressed air as necessary.

K9 lights
2

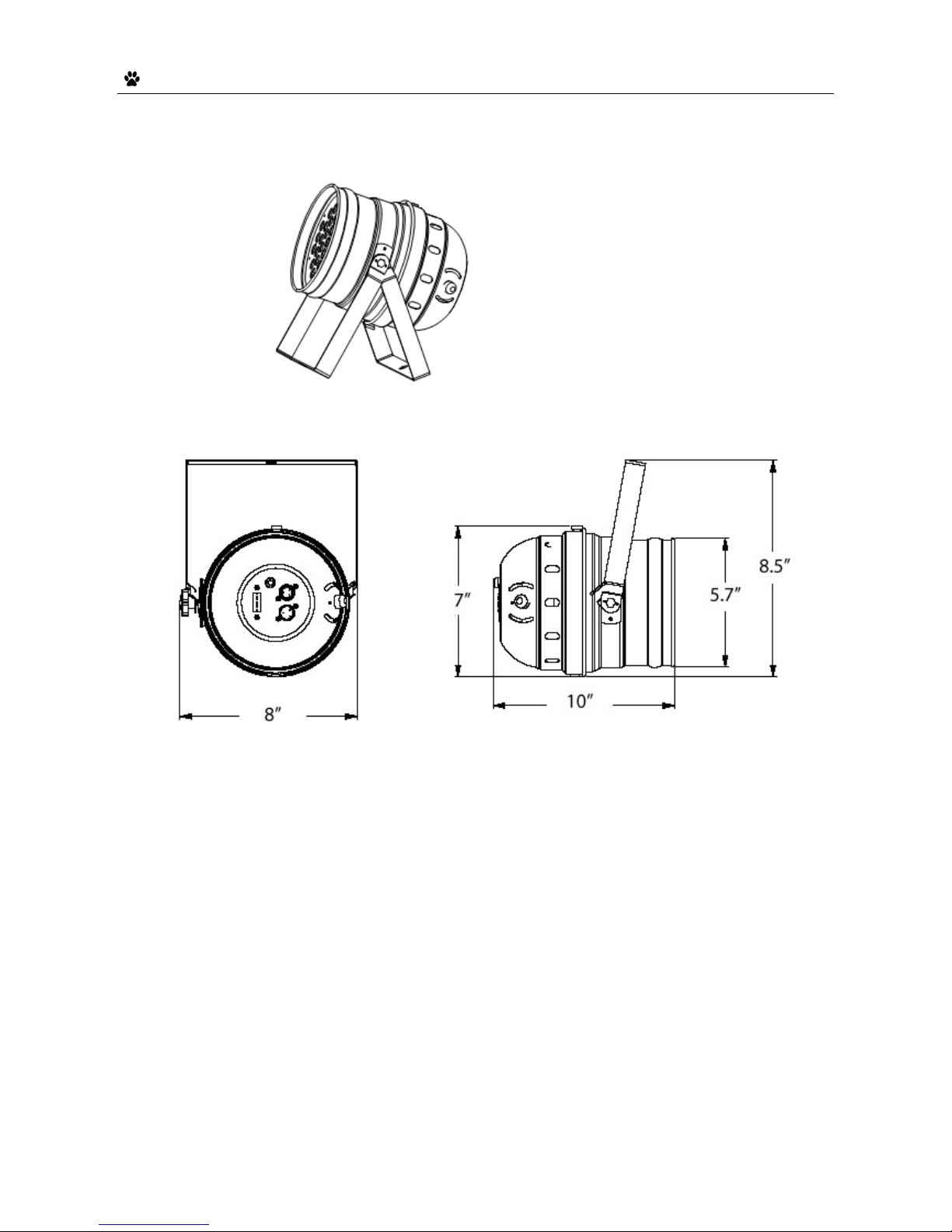

Dimensions
LED PAR46

K9 lights
3
Features
 High quality LED: low power consumption, bright 3 watt LED, even field and long life
Flicker free for video.
Fully dimmable 0 – 100%
Adjustable rate strobe
DMX controlled, addressable for the LED display
Auto run / sound activated / master slave / interconnected multi control
Uses switching power supply to protect LEDs
Lens degree: 25º or 45º
DMX512 channels: 6 channels
Body color: black (white optional)
DMX Control
Channel DMX
Value
Control Function Remark Priority
1 0-255 General dimming Must use this channel to control
dimming
2 0-255 Red Dimming 0——100%
3 0-255 Green Dimming
0——100%
4 0-255 Blue Dimming 0——100%
1
0-14 Strobe Intensity
5 15-255 Strobe Speed
When CH 6 is above 32-223  this
channel adjusts the speed of the
strobe.
2
0-31 Invalid
32-63 From dark to bright
64-95 From bright to dark
96-127 From dark—bright—dark
CH 1, 2, 3, 4 operate lighting.
CH 5 operates the speed adjustment
128-159 RGB Gradient
160-191 3 colors changing
192-223 7 colors changing
6
224-255 Sound activated
(random-changed)
Adjust speed on Ch 5
(CH1 - CH2 - CH3 – CH4 is invalid)
3

K9 lights
4
Display
DMX IN/OUT
LED display
4 buttons
MENU : access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increments
DOWN: menu selection or parameters decrease
Menu
Operating instruction:
1. MENU is used to access the menu or return to a previous menu option. It can not be used
to select and store the current menu option. Press UP / DOWN to choose a desired menu
item.
”addr”: DMX address A001-A512
“SouF”: Sound-activated strobe mode
“SouA”: Sound-activated no strobe mode
”SP”; Change the speed of built-in programs (SP00-SP15, SP00 is the fastest)
”Pr”; Built-in presets Pr00-Pr15, there are 16 programs in total
”ASC”; Automatic seven colors continuously changingAS00-AS15 speed adjustable
”FAdE”: Automatic gradual change modeFA00-FA15 speed adjustable
DMXIN DMXOUT
MENU UP DOWN ENTER

K9 lights
5
”FLAS”: White color strobeFL00-FL15 speed adjustable
”rL”: Red LED: Adjusts r000-r255 (r255 is at full)
”gL”: Green LED: Adjusts g000- g255 (g255 is at full)
”bL”: Blue LED: Adjusts b000- b255 (b255 is at full)
2. Press ENTER to access further menu settings or press enter to save the current setting.
For example, if you want to choose DMX mode A001, select as follows:
Press MENU, go back to the initial setting
Press UP / DOWN until “Addr” appears
Press ENTER to select (the display will flash)
Press UP / DOWN to change the address code to select A001

Press ENTER to select and store the current menu options. DMX mode will be
stored automatically and the screen will stop flashing.

3. Details of fixture presetsPr- -
Press MENU, go back to the initial setting
Press UP / DOWN until “Pr--“ appears
Press ENTER to choose, the display will flash
Press UP / DOWN to change the program code to select pr00

Press ENTER to select and store the current menu options. DMX mode will be
stored automatically and the screen will stop flashing.
Program Options:
Pr00:red; Pr01:green Pr02:blue Pr03:amber
Pr04:cyan Pr05:purple Pr06:white; Pr07:red+strobe;
Pr08:green+strobe Pr09:blue+strobe; Pr10:amber+strobe; Pr11:cyan+strobe
Pr12:purple+strobe; Pr13:white+strobe;
Pr14:RGB jumping change; Pr15: 7 colors continuously changing;
NotePr7--- Pr15 Changes the content Of SPadjust the speed of continuous color
changes. SP00 is the fastestSP15 is the slowest
Master/Slave

K9 lights
6
Multiple fixtures can be operated simultaneously without a control board by connecting each
fixture with DMX control cable and setting one fixture as “Master” and the others as “Slave”.
The “Master” fixture will then synchronize with the “Slave” units.
To use this feature, make sure there is nothing plugged into the “DMX IN” on the fixture
“Master”. Daisy-chain from the “Master” “DMX OUT” to the “Slave” fixtures. Set the DMX
address on every “Slave” unit to A001. Only one light within a group can serve as “Master”.
If the length of DMX data cables extend more than 180’ or there are more than 20 fixtures
being used as “Slaves”, the DMX signal will need to be boosted.
Connecting Fixtures
XLR cable
Using 3-Pin XLR data cable, connect the male end to your console, and the female end to the
“DMX IN” connector on your fixture. Using additional data cable, you can connect a string of
fixtures by feeding from “DMX OUT” on one fixture to “DMX IN” on each additional fixture in
the chain.
DMX signal must “daisy-chain”. The use of a “Y” adapter to split the signal will cause the
fixtures to function incorrectly.
If the DMX 512 output on your control board has a 5-pin DMX connector, you will need a
“5-pin male to 3-pin female DMX adapter” between your console and the first fixture.
Optional Accessories
Item Part#
5 Pin to 3 Pin Data Cable Adapter WIR 5PM3PF
C-Clamp ACC CC
Safety Cable HRD SAFE
3 Pin Data Cables (10’) WIR 3010
Technical Specification

K9 lights
7
●Input voltageAC 100V-264V/47-63HZ
●Output voltageDC24V
●Power Consumption54W 18*3W
●Lamp TypeHigh Power LED(3W)
●Lamp SpecR(6PCS)G(6PCS) B(6PCS)
●Control SignalDMX512, master and slave
●Control modestand alone/ DMX/ master and slave
●Channel: 6CH
●Color effectR-G-B mixing
●Function Effectdimmer, strobe, gradual change
●Beam Angle: 25° or 45°
●Cooling mode: Fan and Convection
●Net Weight3.3 lbs
